SavageAUS Posted November 28, 2019 Share Posted November 28, 2019 (edited) Can anyone help as to why my Haswell laptop freezes just after picking macOS from boot picker? I get the Apple logo but no progress bar. EFI.zip Edited November 28, 2019 by SavageAUS Link to comment Share on other sites More sharing options...
Matgen84 Posted November 28, 2019 Share Posted November 28, 2019 9 hours ago, Mastachief said: Hi Guys, is there a problem with Clover 0.5.3? I keep getting these error, not sure if its processor or USB related, I tried with the Option to state the kexts causing the KP, but I assume its not getting that far.,,,,, I used the guide here https://github.com/khronokernel/Getting-Started-With-OpenCore I am currently making a transition from Clover to OpenCore though. I have tried to create the USBMap Kext or even the SSDT-IUAC.aml, but there were some ports that just remained missing. Where am I going wrong? *Cries into Girlfriends Dress* Clover: 5098 EFI.zip OpenCore: 0.5.3 EFI.zip EFI.zip ACPI section is missing in your OC config.plist. Take a look to sample.plist docs file and complete. For USB, there is no SSDT-UIAC or USBPorts.kext Just my opinion: if any others members want to help, you need to complete your signature (hardware config) 1 Link to comment Share on other sites More sharing options...
crazyi Posted November 29, 2019 Share Posted November 29, 2019 On 11/28/2019 at 1:47 PM, Matgen84 said: ACPI section is missing in your OC config.plist. Take a look to sample.plist docs file and complete. For USB, there is no SSDT-UIAC or USBPorts.kext Just my opinion: if any others members want to help, you need to complete your signature (hardware config) You need to build the latest drivers from AppleSupportPkg and company with OC 0.5.3 Link to comment Share on other sites More sharing options...
Mastachief Posted November 29, 2019 Share Posted November 29, 2019 On 11/28/2019 at 12:47 AM, Matgen84 said: ACPI section is missing in your OC config.plist. Take a look to sample.plist docs file and complete. For USB, there is no SSDT-UIAC or USBPorts.kext Just my opinion: if any others members want to help, you need to complete your signature (hardware config) Thanks, I fixed my signature, a question though, when you say that my ACPI section is missing, I'm unsure of what extra options I should have enabled in ACPI, I am attaching a screenshot of the ACPI section for you to see. config.plist can I use USBPorts.kext on its own, I'll keep working on that further cause 1 of my USB ports died and I'm scared of disabling the only other one I have (HP ProBook 440 G5 only has 2 usb A Ports) I was able to get past the previous KP, I was complaining about though, this is where I am getting stuck at a "appleintellpssi2ccontroller ftimerservicematching timed out" error now though, not sure if its usb related, ill be working on the USB though, just putting OPEncore folder again to let you see. EFI.zip Im actually doing all my testing from a USB, since clover is installed locally. Link to comment Share on other sites More sharing options...
Matgen84 Posted November 29, 2019 Share Posted November 29, 2019 (edited) 1 hour ago, crazyi said: You need to build the latest drivers from AppleSupportPkg and company with OC 0.5.3 @crazyi Please quote @Mastachief who post for help. Not me 30 minutes ago, Mastachief said: Thanks, I fixed my signature, a question though, when you say that my ACPI section is missing, I'm unsure of what extra options I should have enabled in ACPI, I am attaching a screenshot of the ACPI section for you to see. config.plist can I use USBPorts.kext on its own, I'll keep working on that further cause 1 of my USB ports died and I'm scared of disabling the only other one I have (HP ProBook 440 G5 only has 2 usb A Ports) I was able to get past the previous KP, I was complaining about though, this is where I am getting stuck at a "appleintellpssi2ccontroller ftimerservicematching timed out" error now though, not sure if its usb related, ill be working on the USB though, just putting OPEncore folder again to let you see. EFI.zip Im actually doing all my testing from a USB, since clover is installed locally. Your ACPI section seems to be at wrong place: so what I have not see before. Take a look at sample.plist. EDIT: Yes you can use USBPorts.kext as a normal kext in config.plist Edited November 29, 2019 by Matgen84 1 Link to comment Share on other sites More sharing options...
djavo22 Posted November 30, 2019 Share Posted November 30, 2019 (edited) I have installed Catalina 10.15.1 with Olarila-s for AMD, but cannot boot with OpenCore, just with clover and need to change faked for XFXrx590 to 0x67CO ....however, with clover there is no HW acceleration and vram is only 14MB.with OpenCore there is error upon booting: see screenshot:https://postimg.cc/vxxRtf6F my config: Asus Prime B350-PlusRyzen 1700XFX Rx 590 Fatboy 8GB16GB RAMSamsung SSD 970Evo(windows) and Kingston A400 for Hackintosh Could someone please help me what to do?thank you .edit. I used Olarilas OC Efi partition without any modificationhttps://tinyurl.com/su794zm Edited November 30, 2019 by djavo22 Link to comment Share on other sites More sharing options...
crazyi Posted November 30, 2019 Share Posted November 30, 2019 (edited) On 6/15/2019 at 7:08 AM, obus said: If you have 16 ports ore more you need to inject XhciPortLimit -- YES. I f you have 15 ports or less you don't need it as I learnt from my friend @PMheart Hi, obus, can you please tell me how to deal with USB ports as PMHeart told you? Edited November 30, 2019 by crazyi correction Link to comment Share on other sites More sharing options...
LAbyOne Posted November 30, 2019 Share Posted November 30, 2019 Hi guys. Sorry to bother you again, but something lead to a failure upon compiling opencoreshellpkg my guess is into hii-database.diff some patches aren't following.. the new udk moduels Link to comment Share on other sites More sharing options...
mhaeuser Posted November 30, 2019 Share Posted November 30, 2019 @LAbyOne Patches are not applied automatically. Link to comment Share on other sites More sharing options...
LAbyOne Posted November 30, 2019 Share Posted November 30, 2019 1 hour ago, Download-Fritz said: @LAbyOne Patches are not applied automatically. That is true if building cloning opencoreshellpkg into UDK but if you just clone opencoreshellpkg and use ./macbuild.tool (apparently) patches are loaded automatically... this what the command gives when using macbuild ---------------------------------------------------------------------- Ran 280 tests in 3.922s OK error: patch failed: MdeModulePkg/Library/UefiHiiServicesLib/UefiHiiServicesLib.c:85 error: MdeModulePkg/Library/UefiHiiServicesLib/UefiHiiServicesLib.c: patch does not apply error: patch failed: MdeModulePkg/Universal/HiiDatabaseDxe/ConfigRouting.c:4869 error: MdeModulePkg/Universal/HiiDatabaseDxe/ConfigRouting.c: patch does not apply i Link to comment Share on other sites More sharing options...
canyondust Posted November 30, 2019 Share Posted November 30, 2019 56 minutes ago, LAbyOne said: That is true if building cloning opencoreshellpkg into UDK but if you just clone opencoreshellpkg and use ./macbuild.tool (apparently) patches are loaded automatically... this what the command gives when using macbuild ---------------------------------------------------------------------- Ran 280 tests in 3.922s OK error: patch failed: MdeModulePkg/Library/UefiHiiServicesLib/UefiHiiServicesLib.c:85 error: MdeModulePkg/Library/UefiHiiServicesLib/UefiHiiServicesLib.c: patch does not apply error: patch failed: MdeModulePkg/Universal/HiiDatabaseDxe/ConfigRouting.c:4869 error: MdeModulePkg/Universal/HiiDatabaseDxe/ConfigRouting.c: patch does not apply i This happens for me too. (also, on my system, the Aug 11 release build of OpencoreShell executes the ‘map’ command without issue, but hangs the system on ‘map -b’) Link to comment Share on other sites More sharing options...
Matgen84 Posted December 1, 2019 Share Posted December 1, 2019 (edited) 9 hours ago, LAbyOne said: That is true if building cloning opencoreshellpkg into UDK but if you just clone opencoreshellpkg and use ./macbuild.tool (apparently) patches are loaded automatically... this what the command gives when using macbuild ---------------------------------------------------------------------- Ran 280 tests in 3.922s OK error: patch failed: MdeModulePkg/Library/UefiHiiServicesLib/UefiHiiServicesLib.c:85 error: MdeModulePkg/Library/UefiHiiServicesLib/UefiHiiServicesLib.c: patch does not apply error: patch failed: MdeModulePkg/Universal/HiiDatabaseDxe/ConfigRouting.c:4869 error: MdeModulePkg/Universal/HiiDatabaseDxe/ConfigRouting.c: patch does not apply i Hi @LAbyOne Just my opinion: If I clone OpencoreshellPkg and use macbuildtool: same issue. Yesterday, @vit9696 has removed 'Patches' from repo, but the command is already in macbuildtool. I try to delete it, and compile: all works fine. In latest commit, OpenShellPKG use AUDK I remove this in macbuildtool: if [ ! -f patches.ready ]; then for i in ../Patches/* ; do git apply "$i" || exit 1 git add * || exit 1 git commit -m "Applied patch $i" || exit 1 done touch patches.ready fi Edited December 1, 2019 by Matgen84 Link to comment Share on other sites More sharing options...
cecekpawon Posted December 1, 2019 Share Posted December 1, 2019 Adding "--whitespace=fix" on "git apply" doesnt help? 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted December 1, 2019 Share Posted December 1, 2019 18 minutes ago, cecekpawon said: Adding "--whitespace=fix" on "git apply" doesnt help? It seems to work but with the comment below: ../Patches/hii-database.diff:27: trailing whitespace. // Retrieve the pointer to the UEFI HII String Protocol ../Patches/hii-database.diff:143: trailing whitespace. // Get the full request string from IFR when HiiPackage is registered to HiiHandle warning: 2 lines add whitespace errors. [master 3058dde] Applied patch ../Patches/hii-database.diff 7 files changed, 55 insertions(+), 42 deletions(-) create mode 100644 UDK.ready [master 782e8fd] Applied patch ../Patches/legacy-switch-to-text.diff 1 file changed, 27 insertions(+) [master ee16926] Applied patch ../Patches/optional-device-path.diff 1 file changed, 2 insertions(+), 6 deletions(-) [master 3ac6450] Applied patch ../Patches/skip-non-device-connect.diff 1 file changed, 14 insertions(+) ../Patches/unicode-collation-add.diff:43: trailing whitespace. /** @file ../Patches/unicode-collation-add.diff:44: trailing whitespace. Driver to implement English version of Unicode Collation Protocol. ../Patches/unicode-collation-add.diff:45: trailing whitespace. ../Patches/unicode-collation-add.diff:46: trailing whitespace. Copyright (c) 2006 - 2011, Intel Corporation. All rights reserved.<BR> ../Patches/unicode-collation-add.diff:47: trailing whitespace. This program and the accompanying materials warning: squelched 680 whitespace errors warning: 685 lines add whitespace errors. [master 3f0574d] Applied patch ../Patches/unicode-collation-add.diff 4 files changed, 690 insertions(+) create mode 100644 ShellPkg/Library/UefiShellCommandLib/UnicodeCollationEng.c create mode 100644 ShellPkg/Library/UefiShellCommandLib/UnicodeCollationEng.h 1 Link to comment Share on other sites More sharing options...
LAbyOne Posted December 1, 2019 Share Posted December 1, 2019 1 hour ago, Matgen84 said: Hi @LAbyOne Just my opinion: If I clone OpencoreshellPkg and use macbuildtool: same issue. Yesterday, @vit9696 has removed 'Patches' from repo, but the command is already in macbuildtool. I try to delete it, and compile: all works fine. In latest commit, OpenShellPKG use AUDK I remove this in macbuildtool: if [ ! -f patches.ready ]; then for i in ../Patches/* ; do git apply "$i" || exit 1 git add * || exit 1 git commit -m "Applied patch $i" || exit 1 done touch patches.ready fi Well point is ... doing so, no need anymore to get that package, just build shell from UDK directly... as stated above the patch causing troubles is inside hii-database.diff then, just remove that 1 Link to comment Share on other sites More sharing options...
LAbyOne Posted December 1, 2019 Share Posted December 1, 2019 34 minutes ago, cecekpawon said: Adding "--whitespace=fix" on "git apply" doesnt help? yes but my concern was, another... It does, the job if "you" build it, and since a long time, i made a tool to compile and install altogether, so it really doesn't in my case... or eventually to do so, i should insert that part of code directly into my tool, i''see thanks for the input. Link to comment Share on other sites More sharing options...

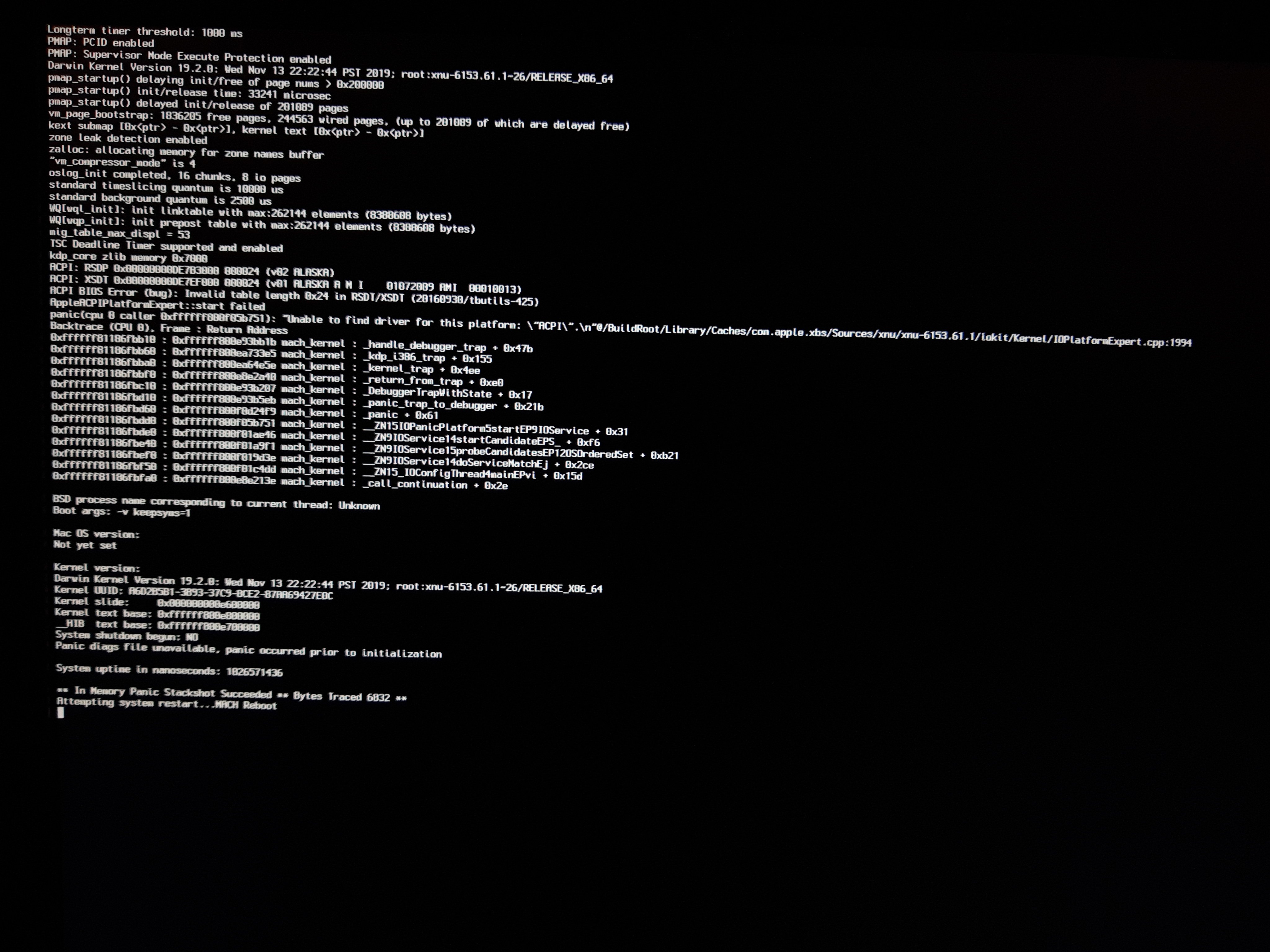

arsradu Posted December 1, 2019 Share Posted December 1, 2019 Hi guys, Any idea what's this about? Link to comment Share on other sites More sharing options...
vandroiy2012 Posted December 1, 2019 Share Posted December 1, 2019 10 minutes ago, arsradu said: Hi guys, Any idea what's this about? Problems with ACPI. Link to comment Share on other sites More sharing options...
arsradu Posted December 1, 2019 Share Posted December 1, 2019 (edited) OK, any idea what could cause these issues and how to fix them? I don't remember having them with previous versions of OC. Edit: nevermind... Config issues in ACPI. It's fixed now. Thank you. Edited December 1, 2019 by arsradu 1 Link to comment Share on other sites More sharing options...
SavageAUS Posted December 1, 2019 Share Posted December 1, 2019 Can anyone help as to why my Haswell laptop freezes just after picking macOS from boot picker? I get the Apple logo but no progress bar. EFI.zip Anyone?Sent from my iPhone using Tapatalk 1 Link to comment Share on other sites More sharing options...
vit9696 Posted December 1, 2019 Share Posted December 1, 2019 @SavageAUS, this looks like a typo in kext injection. E.g. missing executable file or something like that. 1 Link to comment Share on other sites More sharing options...
SavageAUS Posted December 1, 2019 Share Posted December 1, 2019 (edited) 4 hours ago, vit9696 said: @SavageAUS, this looks like a typo in kext injection. E.g. missing executable file or something like that. I have double checked and have found no typo's. No missing executables. Noting i can see would stop me from booting? Edited December 2, 2019 by SavageAUS Link to comment Share on other sites More sharing options...

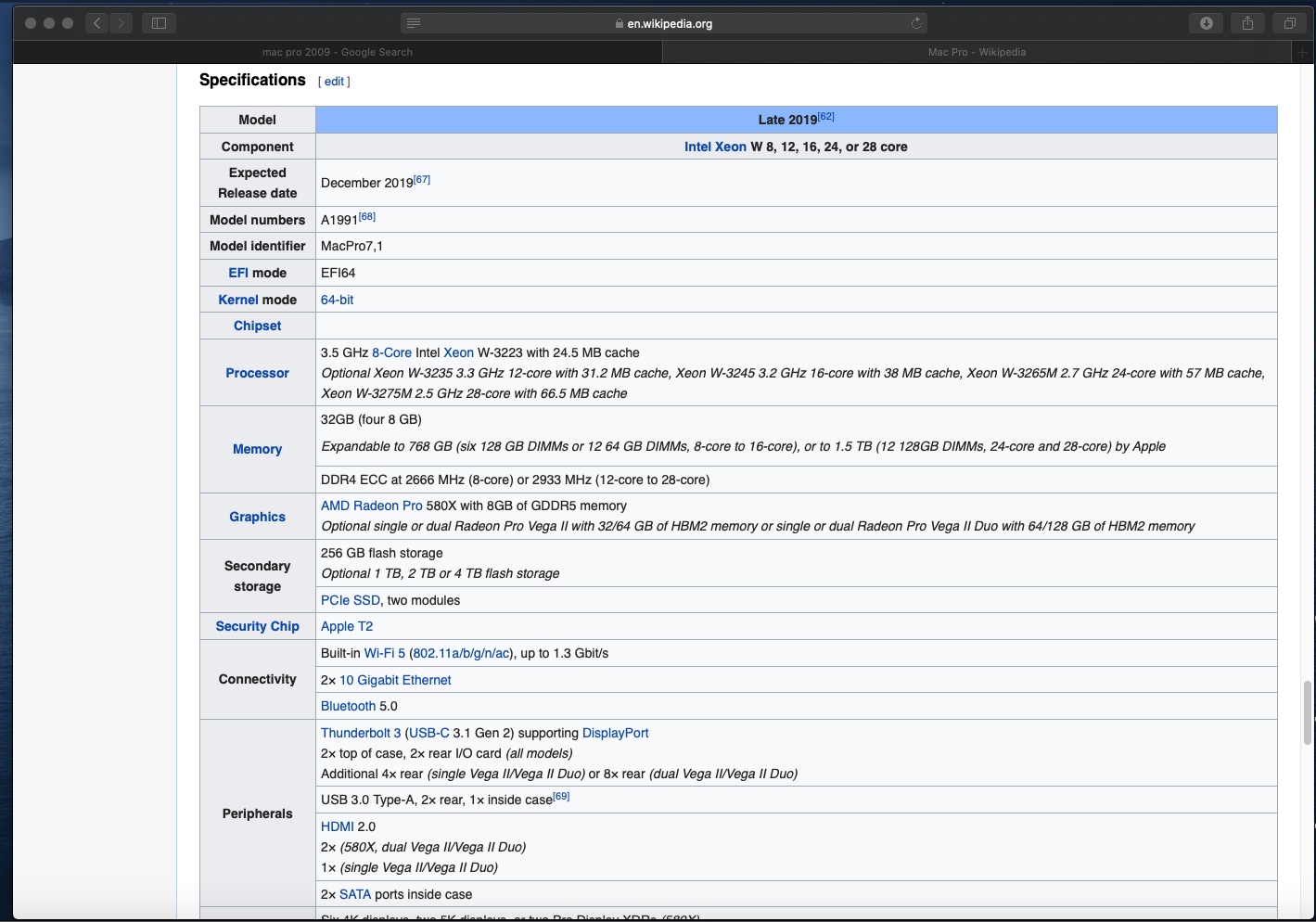

nmano Posted December 2, 2019 Share Posted December 2, 2019 I am looking original’s Mac Pro 7.1 ACPI folder. Hack more 2 Link to comment Share on other sites More sharing options...
rockhard301 Posted December 2, 2019 Share Posted December 2, 2019 22 hours ago, arsradu said: OK, any idea what could cause these issues and how to fix them? I don't remember having them with previous versions of OC. Edit: nevermind... Config issues in ACPI. It's fixed now. Thank you. Hello there. How did you fix it? I am having the same problem after updating to 0.5.3 Link to comment Share on other sites More sharing options...
Matgen84 Posted December 2, 2019 Share Posted December 2, 2019 (edited) 14 hours ago, SavageAUS said: I have double checked and have found no typo's. No missing executables. Noting i can see would stop me from booting? Sorry for some stupid opinion: what version of Opencore do you use? In the actual sample.plist, you will find these keys bellow for Kext and Patch <key>MaxKernel</key> <string></string> <key>MinKernel</key> <string></string> Edited December 2, 2019 by Matgen84 2 Link to comment Share on other sites More sharing options...
