texem Posted November 22, 2019 Share Posted November 22, 2019 Hi all, running OC 0.5.3 long time now w/o any problem and any version up to 8.Nov.19 is working perfectly. Now the latest from GIT crashes immediately . Trace (verbose) shows LILU (latest) loaded, then all ACPI tables successful loaded. Then panic (cpu0 caller ...) fault: CR2 ... Double checked if compile was wrong by someone else' version. Wondering what was changed between these releases ? 1 1 Link to comment Share on other sites More sharing options...
romyee Posted November 22, 2019 Share Posted November 22, 2019 Hi Can anyone help me out? Just started playing with OpenCore. Trying to install Catalina on my Lenovo T430 build. Had previously installed Mojave on it without any error thnx to Clover bootloader. But not this time around. Got stuck on 2nd stage installation when suddenly the installer quits and reboots with 3 minutes remaining shown on the screen. Anyhow, trying my hands with OpenCore to see I can break the deadlock. Managed to get the installer running but facing TWO huge problems. First off, at the installer, I cannot use my keyboard to input e.g. at the Disk Utility dialog box. But can move around with the Mouse. Trackpad is not working either. Secondly, the installer throws the exception Your mac needs a firmware update in order to install to this volume. please select a mac os extended... Any suggestions? I've attached my EFI folder below. EFI.zip Link to comment Share on other sites More sharing options...
Robbish Posted November 22, 2019 Share Posted November 22, 2019 (edited) On 10/25/2019 at 11:11 PM, DaGr8Gatzby said: You can use gfxutil to grab this path, but the way I did it was to boot EFI shell and run the following command: *BOOT EFI SHELL* Shell> fs0: fs0:\> map > maps.txt I then mounted my ESP partition and was able to copy and paste the info into the plist file: I hope this helps somebody. Took me a bit of tries to get it working. Hi, re the gfxutil tool, the command for graphics is e.g, -f IGPU but can somebody please give me the command for locating Disks Paths with gfxutil ? Also, and forgive my ignorance but how do I run the Boot EFI Shell on a Hackintosh. Is there a dedicated tool that? Please link it for me. Edit 16/12/19: I added the Shell.efi in my OC EFI Tools folder and I was able to select EFI Shell from the Boot Picker. I generated the maps.txt which saved to my EFI. Robbish Edited December 15, 2019 by Robbish Link to comment Share on other sites More sharing options...
texem Posted November 22, 2019 Share Posted November 22, 2019 10 hours ago, texem said: running OC 0.5.3 long time now w/o any problem and any version up to 8.Nov.19 is working perfectly. Now the latest from GIT crashes immediately . I made a new config.plist from scratch and now it's fixed. Tnx 2 Link to comment Share on other sites More sharing options...
ErEr Posted November 23, 2019 Share Posted November 23, 2019 ı have a asus laptop currently clover runnıng but opencore reboot immediately could you please look my confıg.config.plist Link to comment Share on other sites More sharing options...
crazyi Posted November 23, 2019 Share Posted November 23, 2019 Is there anyone know how to clean up the OpenCorePkg directory when I finished building the opencore binaries with macbuild.tool? Link to comment Share on other sites More sharing options...
crazyi Posted November 24, 2019 Share Posted November 24, 2019 On 5/13/2019 at 2:22 AM, Pavo said: Anyone know what value needs to go into ProcessorType of the SMBIOS section? My CPUs are 10-Core Xeon E5-2670v2 with a CPU type of 0x0105 in IOREG. Hi, I faced the same issue as you. I have a Intel Xeon e5-2650v4 CPU, and the auto detection was failed on system profiler. Unless I manually added the ProcessorType=0x0a01 in SMC info, there is always a unknown CPU type. Can you give me some tips on how to deal with it as it is boring for me to fill up the whole SMC info manually. I do found your bug track on github bug, but I can not find the solution yet. Link to comment Share on other sites More sharing options...
Pavo Posted November 24, 2019 Share Posted November 24, 2019 4 minutes ago, crazyi said: Hi, I faced the same issue as you. I have a Intel Xeon e5-2650v4 CPU, and the auto detection was failed on system profiler. Unless I manually added the ProcessorType=0x0a01 in SMC info, there is always a unknown CPU type. Can you give me some tips on how to deal with it as it is boring for me to fill up the whole SMC info manually. I do found your bug track on github bug, but I can not find the solution yet. You need to dump your CPU info like I did in that bug tracker and submit it to get added. Link to comment Share on other sites More sharing options...
crazyi Posted November 24, 2019 Share Posted November 24, 2019 (edited) 10 hours ago, Pavo said: You need to dump your CPU info like I did in that bug tracker and submit it to get added. Thx, I will add a issue on the github as you. Edited November 24, 2019 by crazyi found the solution Link to comment Share on other sites More sharing options...
n.d.k Posted November 24, 2019 Share Posted November 24, 2019 12 hours ago, crazyi said: Is there anyone know how to clean up the OpenCorePkg directory when I finished building the opencore binaries with macbuild.tool? No need to clean up, all those new files there, are needed for the next time you build and also speed up the compile time. If you don't build very often, then just delete the OpenCorePkg directory and run git clone again next time you want to build one. Link to comment Share on other sites More sharing options...
ameenjuz Posted November 24, 2019 Share Posted November 24, 2019 i have time issue between windows and macOS during dual boot anyone know how to set RealTimeIsUniversal to 1 to avoid time desync between Windows and macO Link to comment Share on other sites More sharing options...
n.d.k Posted November 24, 2019 Share Posted November 24, 2019 5 hours ago, anmool said: i have time issue between windows and macOS during dual boot anyone know how to set RealTimeIsUniversal to 1 to avoid time desync between Windows and macO HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\TimeZoneInformation\RealTimeIsUniversal Set it to 1 in Windows. 1 Link to comment Share on other sites More sharing options...
ameenjuz Posted November 24, 2019 Share Posted November 24, 2019 2 hours ago, n.d.k said: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\TimeZoneInformation\RealTimeIsUniversal Set it to 1 in Windows. Thanks n.d.k I set it and i will test Link to comment Share on other sites More sharing options...
ameenjuz Posted November 25, 2019 Share Posted November 25, 2019 19 hours ago, n.d.k said: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\TimeZoneInformation\RealTimeIsUniversal Set it to 1 in Windows. I set it RealTimeIsUniversal to 1 HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\TimeZoneInformation\RealTimeIsUniversal but didn't fix time during dual boot Link to comment Share on other sites More sharing options...
Slice Posted November 25, 2019 Share Posted November 25, 2019 It must be DWORD value. Link to comment Share on other sites More sharing options...
ameenjuz Posted November 25, 2019 Share Posted November 25, 2019 (edited) 1 hour ago, Slice said: It must be DWORD value. I tested with RealTimeIsUniversal 64bit DWORD value and 32bit DWORD value but didn't work do you have working this value during dual boot? Edited November 25, 2019 by anmool Link to comment Share on other sites More sharing options...
UefiBooter Posted November 25, 2019 Share Posted November 25, 2019 It really is off topic, but since the mod also contributed to it here is the method that works.... from http://www.extracatchy.net/sync-time-windows-mac-os-x-hackintosh/ Boot into OS X, set the timezone and time correctly or set it Automatic update of Time & Date. Boot into Windows, and do not attempt to update time by using “Adjust Date/Time”. Just Open Registry Editor and Locate HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\TimeZoneInformation. Right click in the blank space of the right pane, select New > DWORD (32-bit) value, name it RealTimeIsUniversal. Double click the newly created file and change the value to 1. Save and reboot into OS X Wait 1-2 minutes, then reboot into Windows. Now the time information between the 2 OS is matched. 2 Link to comment Share on other sites More sharing options...
Andrey1970 Posted November 25, 2019 Share Posted November 25, 2019 It is necessary QWORD 64 bit for 64 bit Windows. 2 Link to comment Share on other sites More sharing options...
ameenjuz Posted November 25, 2019 Share Posted November 25, 2019 23 minutes ago, Andrey1970 said: It is necessary QWORD 64 bit for 64 bit Windows. 2 hours ago, UefiBooter said: It really is off topic, but since the mod also contributed to it here is the method that works.... from http://www.extracatchy.net/sync-time-windows-mac-os-x-hackintosh/ Boot into OS X, set the timezone and time correctly or set it Automatic update of Time & Date. Boot into Windows, and do not attempt to update time by using “Adjust Date/Time”. Just Open Registry Editor and Locate HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\TimeZoneInformation. Right click in the blank space of the right pane, select New > DWORD (32-bit) value, name it RealTimeIsUniversal. Double click the newly created file and change the value to 1. Save and reboot into OS X Wait 1-2 minutes, then reboot into Windows. Now the time information between the 2 OS is matched. I tried above method didn't work how to edit QWORD 64 bit for 64 bit Windows please tell me clearly I have tried many times no luck it is necessary for dual booting every time didn't set the time manually to each boot Link to comment Share on other sites More sharing options...
ErEr Posted November 25, 2019 Share Posted November 25, 2019 On 11/23/2019 at 9:20 AM, ErEr said: ı have a asus laptop currently clover runnıng but opencore reboot immediately could you please look my confıg.config.plist please Link to comment Share on other sites More sharing options...

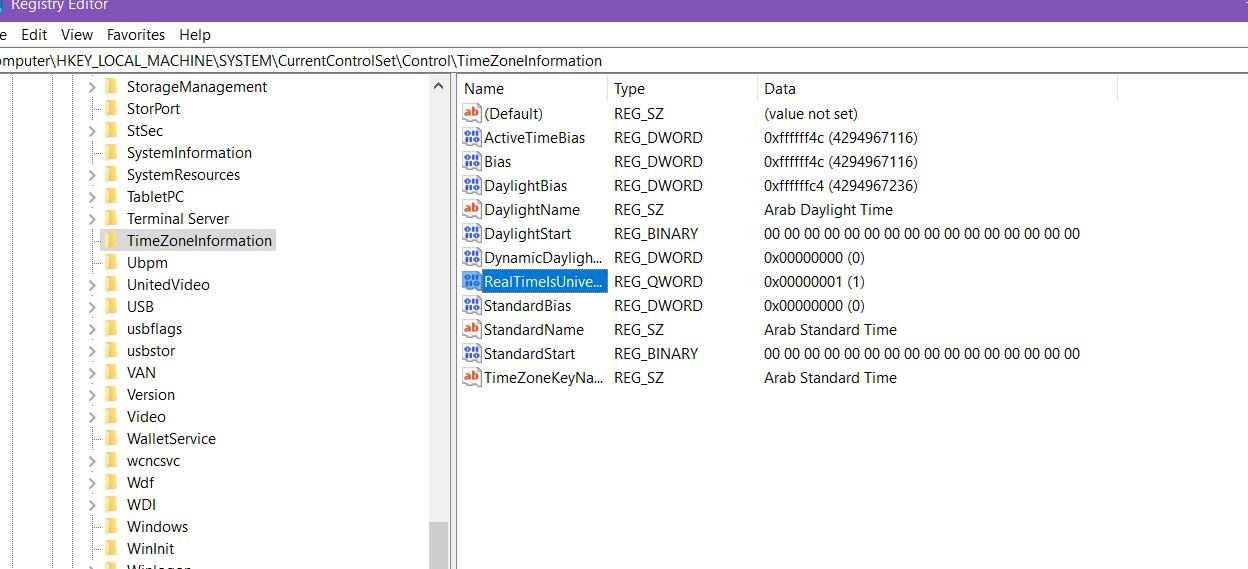

Ellybz Posted November 25, 2019 Share Posted November 25, 2019 2 hours ago, anmool said: I tried above method didn't work how to edit QWORD 64 bit for 64 bit Windows please tell me clearly I have tried many times no luck it is necessary for dual booting every time didn't set the time manually to each boot • go to Start Menu, launch cmd as Administrator • Paste the following command: Reg add HKLM\SYSTEM\CurrentControlSet\Control\TimeZoneInformation /v RealTimeIsUniversal /t REG_QWORD /d 1 3 Link to comment Share on other sites More sharing options...
n.d.k Posted November 25, 2019 Share Posted November 25, 2019 3 hours ago, anmool said: I tried above method didn't work how to edit QWORD 64 bit for 64 bit Windows please tell me clearly I have tried many times no luck it is necessary for dual booting every time didn't set the time manually to each boot Did you check the timezone setting in between mac and windows, make sure it's the same timezone? Otherwise, the time will always be different regardless if you set the RealTimeIsUniversal right. Link to comment Share on other sites More sharing options...
Slice Posted November 26, 2019 Share Posted November 26, 2019 23 hours ago, anmool said: I tested with RealTimeIsUniversal 64bit DWORD value and 32bit DWORD value but didn't work do you have working this value during dual boot? Yes, it works for me. Computer #2 in my signature. 1 Link to comment Share on other sites More sharing options...
ameenjuz Posted November 26, 2019 Share Posted November 26, 2019 20 hours ago, n.d.k said: Did you check the timezone setting in between mac and windows, make sure it's the same timezone? Otherwise, the time will always be different regardless if you set the RealTimeIsUniversal right. 21 hours ago, Ellybz said: • go to Start Menu, launch cmd as Administrator • Paste the following command: Reg add HKLM\SYSTEM\CurrentControlSet\Control\TimeZoneInformation /v RealTimeIsUniversal /t REG_QWORD /d 1 thanks guys finally worked for me between macOS and windows Link to comment Share on other sites More sharing options...

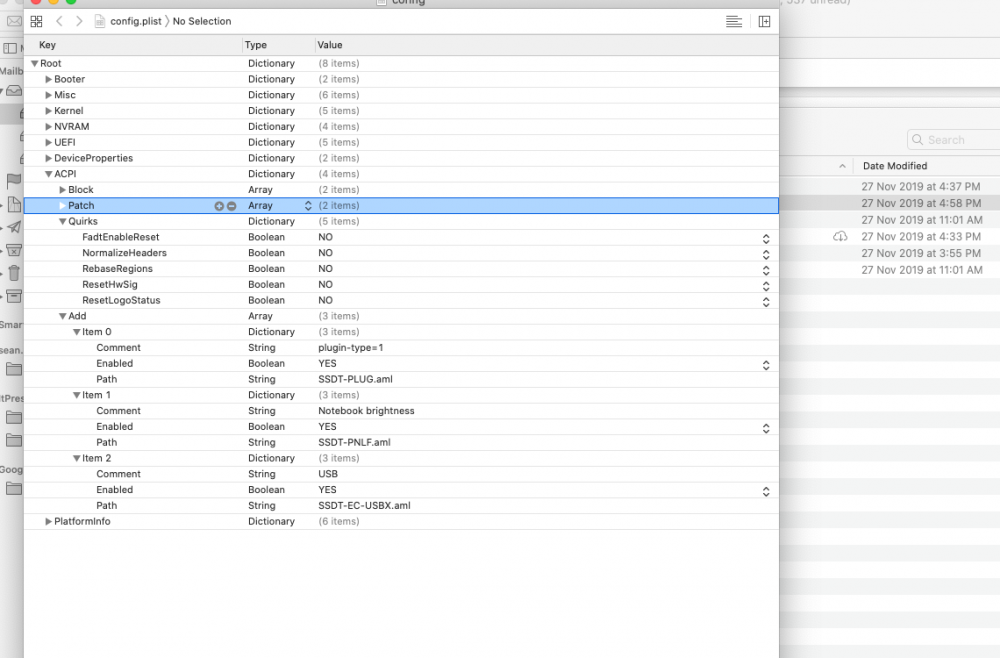

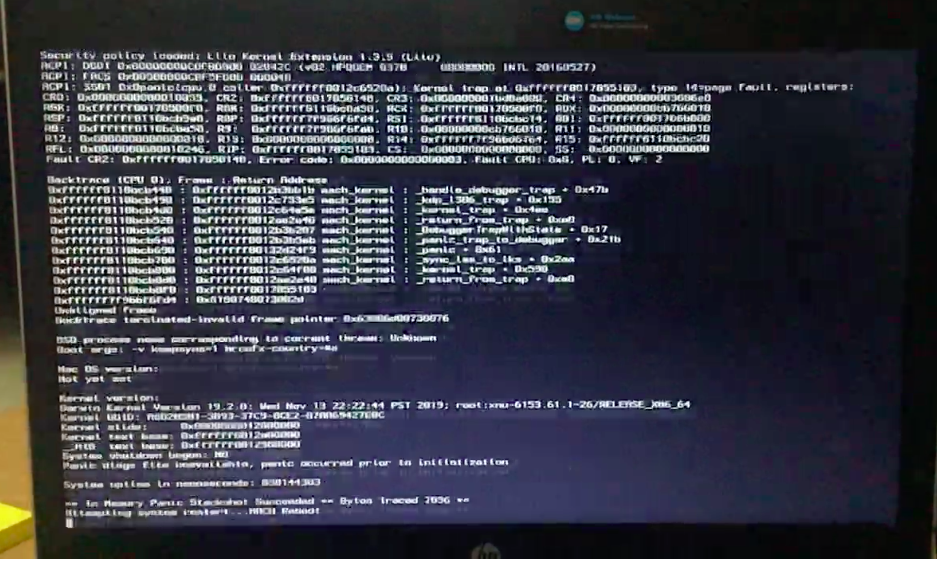

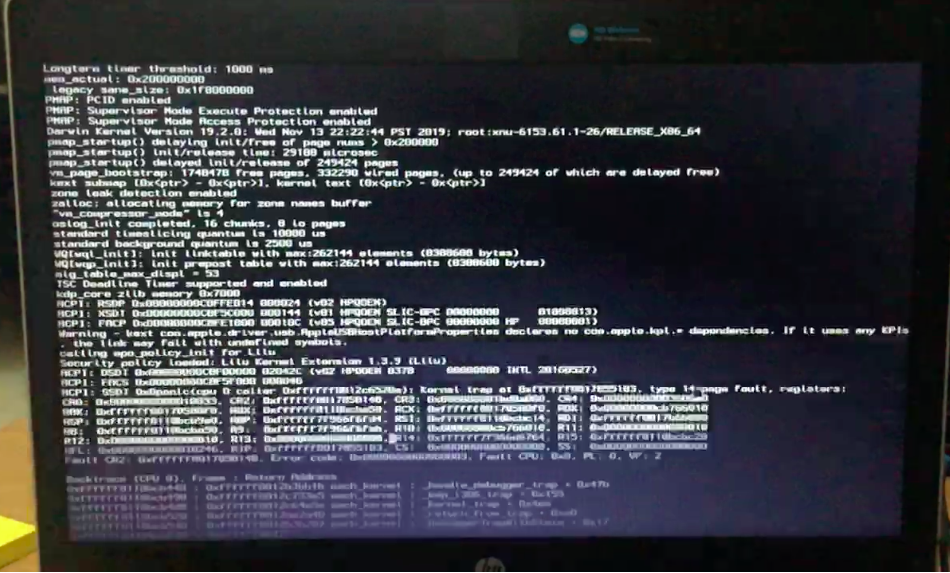

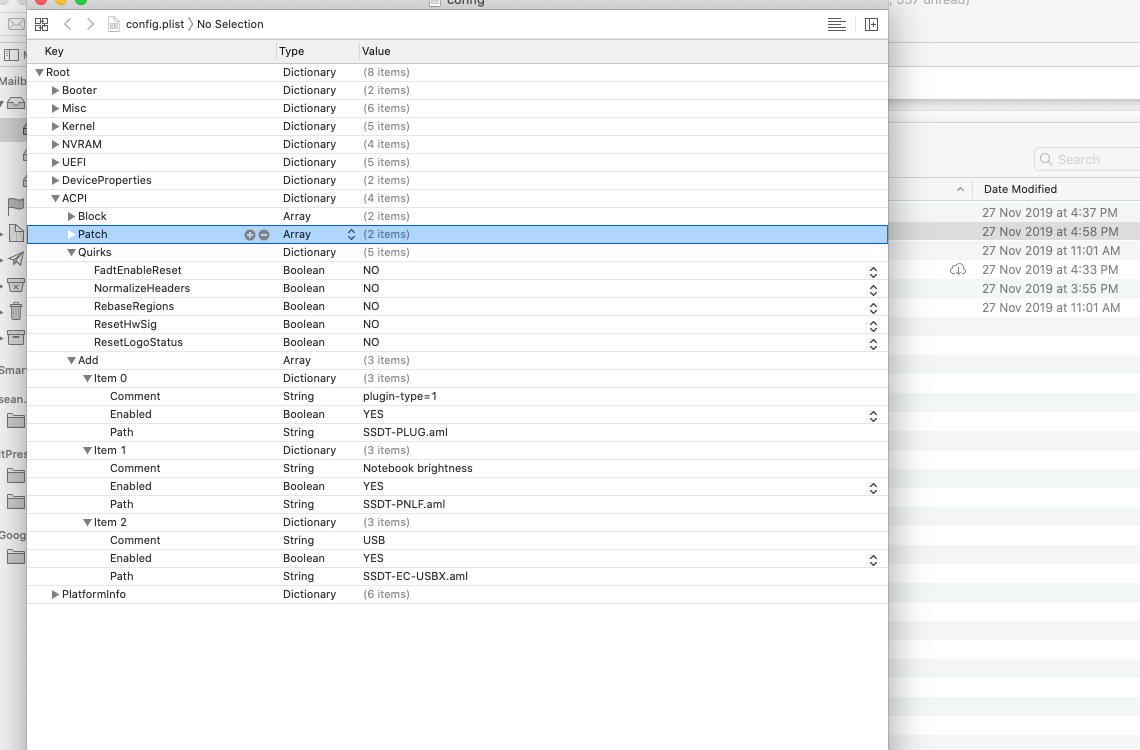

Mastachief Posted November 27, 2019 Share Posted November 27, 2019 (edited) Hi Guys, is there a problem with Clover 0.5.3? I keep getting these error, not sure if its processor or USB related, I tried with the Option to state the kexts causing the KP, but I assume its not getting that far.,,,,, I used the guide here https://github.com/khronokernel/Getting-Started-With-OpenCore I am currently making a transition from Clover to OpenCore though. I have tried to create the USBMap Kext or even the SSDT-IUAC.aml, but there were some ports that just remained missing. Where am I going wrong? *Cries into Girlfriends Dress* Clover: 5098 EFI.zip OpenCore: 0.5.3 EFI.zip EFI.zip Edited November 27, 2019 by Mastachief Removed Extra EFI Folder Link to comment Share on other sites More sharing options...
