onemanOSX Posted May 5, 2019 Share Posted May 5, 2019 6 hours ago, vladstarr said: Try moving VoodooGPIO and VoodooI2CServices above in config.plist so they load firstly, then add VoodooI2C and lastly VoodooI2CHID. Same problem is with ApplePS2SmartTouchpad. Firstly I load it's plug-ins, then the kext actually. Your tips works!! This is great! Thank you! 1 Link to comment Share on other sites More sharing options...
MattsCreative Posted May 5, 2019 Share Posted May 5, 2019 (edited) Logo Done maybe Edited May 5, 2019 by WarDoc 5 Link to comment Share on other sites More sharing options...
junkwolf Posted May 5, 2019 Share Posted May 5, 2019 On 4/28/2019 at 7:45 AM, MacFriedIntel said: All is working good, this is probably better than clover, just 2 things i want to ask, 1st is i use a 2k monitor and the boot seems to sit at low resolution and 2nd at the picker screen i have to press "2" to boot otherwise it defaults to 1. "EFI" and hangs. could you share you config? Link to comment Share on other sites More sharing options...

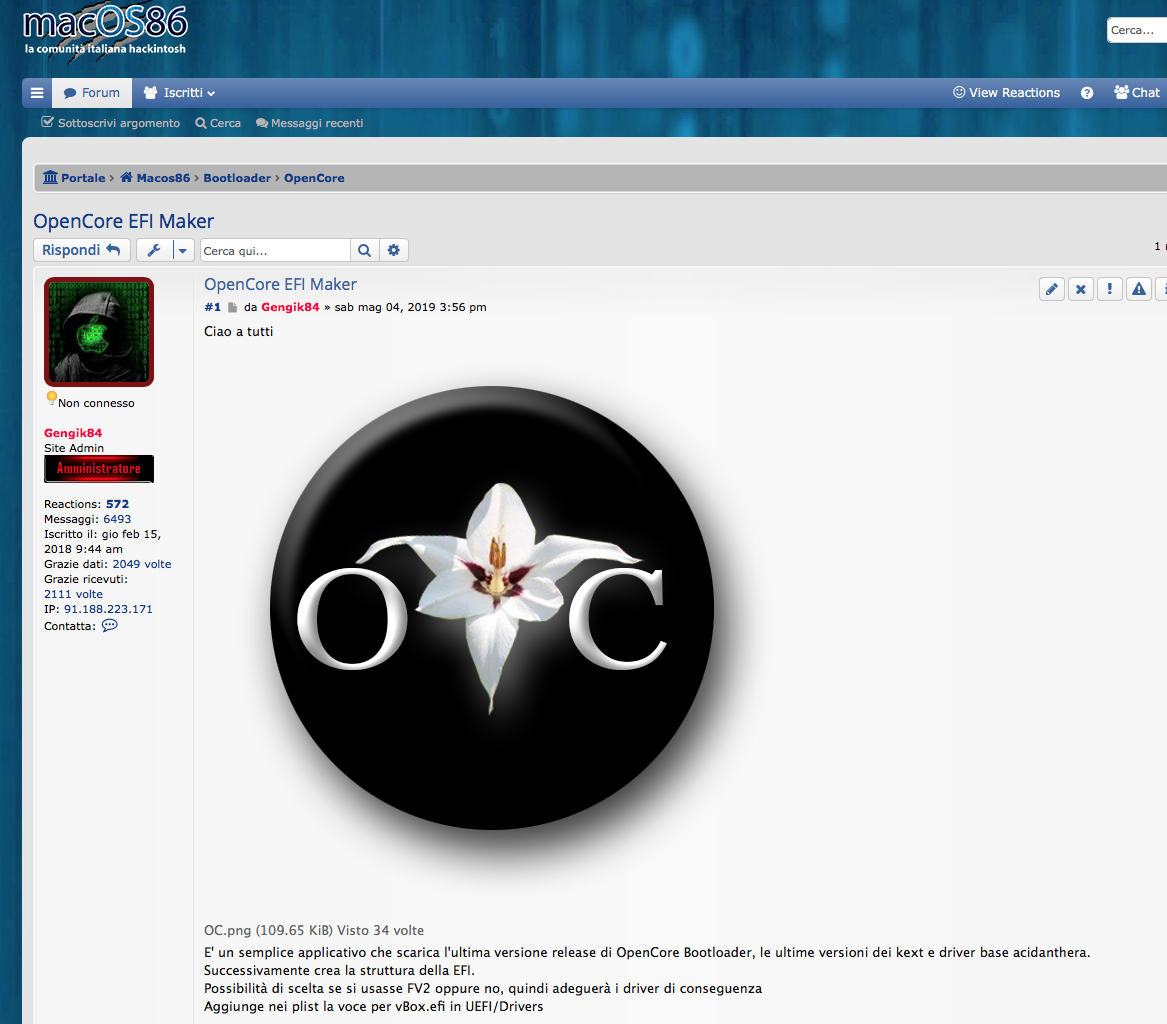

Guest Posted May 5, 2019 Share Posted May 5, 2019 (edited) https://www.macos86.it/viewtopic.php?f=107&t=1410 Here you can find a simple utility to download latest OC bootloader version in download section also a nice script (downloader utility) to build latest release available on GitHub Edited May 5, 2019 by Guest Link to comment Share on other sites More sharing options...
MacPato Posted May 5, 2019 Share Posted May 5, 2019 10 hours ago, MacFriedIntel said: There is many users with Gigabyte Boards especially the Z390 with NVRAM issues, also with Shutdown and Restarting glitches is there any plans to have a emulated NVRAM for OC to resolve this issue, Also when setting PlatformNVRAM to Auto, when running Geekbench it displays the motherboard as a MacbookPro 15,2, i know this can be fixed by adding SMBIOS to the config and changing the Board Version String. but when this is done on the Z390 it won't boot due to NVRAM issues. Maybe if anyone has any ideas they could check out the OpenCore Channel on Discord https://discord.gg/N24hR6J Link to comment Share on other sites More sharing options...
Andrey1970 Posted May 5, 2019 Share Posted May 5, 2019 vit9696 already invented the logo concept, but I have no right to disclose a detail. 4 1 2 Link to comment Share on other sites More sharing options...
Erroruser Posted May 5, 2019 Share Posted May 5, 2019 7 hours ago, MacFriedIntel said: 17 hours ago, MacFriedIntel said: There is many users with Gigabyte Boards especially the Z390 with NVRAM issues, also with Shutdown and Restarting glitches is there any plans to have a emulated NVRAM for OC to resolve this issue, Also when setting PlatformNVRAM to Auto, when running Geekbench it displays the motherboard as a MacbookPro 15,2, i know this can be fixed by adding SMBIOS to the config and changing the Board Version String. but when this is done on the Z390 it won't boot due to NVRAM issues. Yes please still looking for solution Maybe if anyone has any ideas they could check out the OpenCore Channel on Discord https://discord.gg/N24hR6J Yes please still looking for solution Link to comment Share on other sites More sharing options...
MacPato Posted May 5, 2019 Share Posted May 5, 2019 4 hours ago, errorexists said: Yes please still looking for solution Looks like we may have to wait for a NVRAM solution, but it needs a patch for sure otherwise thats a large slice of hardware excluded. Link to comment Share on other sites More sharing options...
mhaeuser Posted May 6, 2019 Share Posted May 6, 2019 23 minutes ago, ctich said: No, this is a completely different project, and has no relation to Ozmosis. The original implementation has been developed by the Ozmosis lead developer 8 1 Link to comment Share on other sites More sharing options...
uglyJoe Posted May 6, 2019 Share Posted May 6, 2019 I updated the ZBoxNano with my setup to Mojave 10.14.4, all fine. Boot from power button to desktop in less than 30 seconds. Thank you for this nice boot-loader! 1 Link to comment Share on other sites More sharing options...
junkwolf Posted May 7, 2019 Share Posted May 7, 2019 On 4/28/2019 at 4:09 AM, iCanaro said: @errorexists okay, here it is, removed the serials ... if used with mojave probably need to change ig-platform-id va bene, eccolo, tolti i seriali... se usato con mojave probabilmente occorre modificare ig-platform-id config_OC_Z97_HD4600_HighSierra.plist.zip can you share the z370 config?thanks Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted May 7, 2019 Share Posted May 7, 2019 OpenCore Bootloader with macOS Mojave 10.14.5 Beta 4 Build 18F127a Specifications :- Processor : Intel Core i7 6700 - iGPU : Intel HD 530 - eGPU : MSI Armor RX580 4GB - Motherboard : Gigabyte Z170X Gaming 7 - Storage : 1x MSata WD 240GB + 2x SSD @120GB + 5 HDD Storage (2x 2TB + 2x 500GB) - Wifi + Bluetooth : Broadcom BCM943602CS - Audio Codec : Creative CA0132 (5.1 Audio work) - RAM : 8GB (2x4GB) PC24000 (3000Mhz) - OpenCore version : rev 0.0.2 - Boot Mode : UEFI What's work?? - Sleep, Shutdown, and Restart - Good Cpu Power Management - HEVC and H264 for IGPU and eGPU - All USB Port - Unlock limit patch USB from config.plist of OpenCore (Built-in, just enable it) - QE/CI for RX580 - Faster boot time than clover - All kext in OC/Kexts is loaded perfectly - HDMI Audio - Audio Onboard (CA0132) All ACPI patch is in DSDT only,, no patch / binary DSDT patch from config.plist of OpenCore. I can say, all device work like using Clover but better boot time and Cpu Power management (my opinion) 4 Link to comment Share on other sites More sharing options...
Dr. Hurt Posted May 8, 2019 Share Posted May 8, 2019 Sorry for repeating my question, but any plans to have OpenCore run on legacy BIOS? (Intel 7-series mobile chipset) Link to comment Share on other sites More sharing options...
vit9696 Posted May 8, 2019 Share Posted May 8, 2019 It has run just fine on legacy bios since the beginning… Presently it is tested with DuetPkg clover fork. 4 Link to comment Share on other sites More sharing options...
mhaeuser Posted May 9, 2019 Share Posted May 9, 2019 I suggest stopping to replace random firmware modules that are incompatible with the rest of the software stack and just use EmuVariable. This has nothing to do with OpenCore though. 1 Link to comment Share on other sites More sharing options...
junkwolf Posted May 11, 2019 Share Posted May 11, 2019 (edited) works fine now except the h264 encoder. Edited May 12, 2019 by junkwolf Link to comment Share on other sites More sharing options...
Pavo Posted May 12, 2019 Share Posted May 12, 2019 Anyone willing to take a look at my config and tell me why my audio isn't working, I took all the Device Properties and boot-args from Clover config that make it work. config.plist.zip Link to comment Share on other sites More sharing options...
ctich Posted May 12, 2019 Share Posted May 12, 2019 1 hour ago, Pavo said: Anyone willing to take a look at my config and tell me why my audio isn't working, I took all the Device Properties and boot-args from Clover config that make it work. config.plist.zip you need to add a device PciRoot(0x0)/Pci(0x1f,0x3) 1 Link to comment Share on other sites More sharing options...
FredWst Posted May 12, 2019 Share Posted May 12, 2019 (edited) Hi, @vit9696 I found the reason why I was not able to use vault. When vault.plist is create, in my case first line is: ACPI\Custom\DSDT.aml except that directectory is Acpi. To solve atm i rename Acpi to ACPI. (Upper Low case) And now it boot fine with vault enable. ../Tools/create_vault.sh ../OC openssl genrsa -out privatekey.pem 2048 openssl req -new -x509 -key privatekey.pem -out publickey.cer -days 1825 ../Tools/RsaTool -cert publickey.cer > vault.pub rm privatekey.pem rm publickey.cer ../Tools/RsaTool -sign vault.plist vault.sig vault.pub off=$(($(strings -a -t d OpenCore.efi | grep "=BEGIN OC VAULT=" | cut -f1 -d' ')+16)) dd of=OpenCore.efi if=vault.pub bs=1 seek=$off count=520 conv=notrunc rm vault.pub sign.sh Before to use read PDF. Don't forget to set to YES RequireSignature and RequireVault in config.plist Put it into Tools directory with other files needed. in terminal ./sign.sh Answer to first question country when create certificate for me FR and press just enter for others. 00:000 00:000 OC: OpenCore is now loading (Vault: 1/1, Sign 1/1)... 00:009 00:009 OC: Boot timestamp: - 2019.05.12 07:45:46 00:017 00:008 Found Intel(R) Core(TM) i5-7500T CPU @ 2.70GHz 00:026 00:008 Signature E9 Stepping 9 Model 9E Family 6 Type 0 ExtModel 9 ExtFamily 0 00:034 00:007 Detected Apple Processor Type: 06 -> 0605 00:041 00:007 Ratio Min 8 Max 27 Current 26 Turbo 33 32 32 31 00:050 00:008 ART Frequency 2712000000 2712MHz 24000000 * 226 / 2 = 2712000000 00:059 00:008 CPU Frequency 2712000000 2712MHz 00:066 00:007 FSB Frequency 100444444 100MHz 00:074 00:007 Pkg 1 Cores 4 Threads 4 00:083 00:008 OC: OcLoadUefiSupport... 00:092 00:008 OCC: Configuring behaviour 0 00:100 00:007 OC: Got 6 drivers 00:107 00:007 OC: Driver HfsPlus.efi at 0 is being loaded... 00:120 00:013 OC: Driver HfsPlus.efi at 0 is successfully loaded! 00:130 00:009 OC: Driver ApfsDriverLoader.efi at 1 is being loaded... 00:243 00:112 OC: Driver ApfsDriverLoader.efi at 1 is successfully loaded! 00:250 00:007 OC: Driver AppleUiSupport.efi at 2 is being loaded... 00:363 00:113 OC: Driver AppleUiSupport.efi at 2 is successfully loaded! 00:372 00:008 OC: Driver AptioInputFix.efi at 3 is being loaded... 00:484 00:111 OC: Driver AptioInputFix.efi at 3 is successfully loaded! 00:491 00:007 OC: Driver AptioMemoryFix.efi at 4 is being loaded... 00:601 00:109 OC: Driver AptioMemoryFix.efi at 4 is successfully loaded! 00:610 00:008 OC: Driver VirtualSmc.efi at 5 is being loaded... 00:723 00:112 OC: Driver VirtualSmc.efi at 5 is successfully loaded! 00:731 00:007 OC: Connecting drivers... Fred Edited May 12, 2019 by FredWst No bug but my mistake : directory must be create ACPI not Acpi. Just like in PDF 1 Link to comment Share on other sites More sharing options...
Pavo Posted May 12, 2019 Share Posted May 12, 2019 (edited) 9 hours ago, ctich said: you need to add a device PciRoot(0x0)/Pci(0x1f,0x3) I wished it was that but on my board the device address is PciRoot(0x0)/Pci(0x1b,0x0) Figured it out, had to move Lilu in kernel section to the first one to load, audio works now. Edited May 12, 2019 by Pavo 2 Link to comment Share on other sites More sharing options...

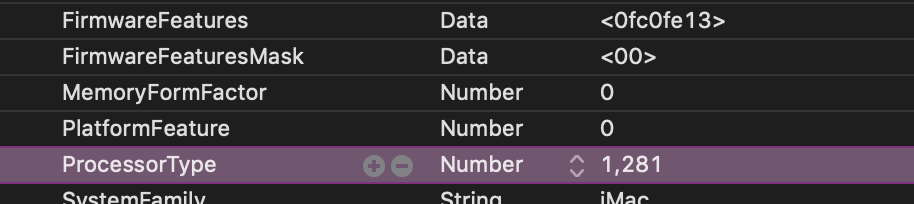

Pavo Posted May 12, 2019 Share Posted May 12, 2019 Anyone know what value needs to go into ProcessorType of the SMBIOS section? My CPUs are 10-Core Xeon E5-2670v2 with a CPU type of 0x0105 in IOREG. Link to comment Share on other sites More sharing options...

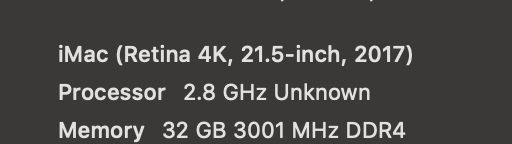

MacPato Posted May 12, 2019 Share Posted May 12, 2019 Okay how are we fixing this ProcessorType in OC, what should the format be and could someone give examples as to what we need to add to the config to pick this up as nothing seems to work. Link to comment Share on other sites More sharing options...
Pavo Posted May 12, 2019 Share Posted May 12, 2019 1 hour ago, Pavo said: Anyone know what value needs to go into ProcessorType of the SMBIOS section? My CPUs are 10-Core Xeon E5-2670v2 with a CPU type of 0x0105 in IOREG. Ok I have found the magic number, but it was a pain in the ass. Had to convert 0x0a0a to decimal which gives me 2750 integer. Now CPU in System Preferences shows Processor: 2 x 2.5 GHz 10-Core Intel Xeon E5. Link to comment Share on other sites More sharing options...
MattsCreative Posted May 12, 2019 Share Posted May 12, 2019 Safe to say clover to dead to me and thanks for all the great work i hope this project stays clean and doesn't end up like clover 1 Link to comment Share on other sites More sharing options...
Pavo Posted May 12, 2019 Share Posted May 12, 2019 We should probably compile a list of CPU Types for people. 2 Link to comment Share on other sites More sharing options...
