d5aqoep Posted July 26, 2020 Share Posted July 26, 2020 10 hours ago, yapan4 said: Maybe is needed new unknown SSDT-XXXX.aml? Maybe. But right now, OC and Clover both don’t boot Beta 3 on my MSI X299 Tomahawk. ACPI is a huge pain in the arse on this one. I installed Xcode and compiled OC myself today but same error at PCI configuration end, devices 11, bridges 21. I guess not many people are working with X299 system. However, my Gigabyte Z370N Wifi motherboard booted Beta 3 OC 0.6.0 USB installer without even trying. (Zero efforts. I was surprised at how effortless it was) 1 Link to comment Share on other sites More sharing options...
Gigamaxx Posted July 26, 2020 Share Posted July 26, 2020 On 7/25/2020 at 5:11 AM, Stefanalmare said: Hi! Does anybody have this phantom GPU on BS beta 3? It happen in 2 of my hacks (ivybridge desktop and laptop). Yes, just noticed it today. Installed gt710 for testing and noticed the R9 270x ID. AMD Ryzen 3900X system. Link to comment Share on other sites More sharing options...
Gigamaxx Posted July 26, 2020 Share Posted July 26, 2020 On 7/25/2020 at 5:20 AM, Cyberdevs said: Would you please share your EFI folder for your IvyBridge desktop? I wasn't able to boot mine with OC. You can remove the SMBIOS info from config before sending it. Thanks P.S. About the phantom GPU check if there's an entry under DeviceProperties. Here's mine with Serials XXXX'd out. Only thing in Devices is Layout ID =0x1000000 AMD Ryzen 3900X on Beta 3 with GT710 EFI.zip 1 Link to comment Share on other sites More sharing options...
Shaneee Posted July 26, 2020 Share Posted July 26, 2020 18 minutes ago, Gigamaxx said: Yes, just noticed it today. Installed gt710 for testing and noticed the R9 270x ID. AMD Ryzen 3900X system. Spoiler That's strange. I also have it on my system. It also shows in IOReg, 1 1 Link to comment Share on other sites More sharing options...
markl18 Posted July 26, 2020 Share Posted July 26, 2020 hi does any one else have this issue of not being able to get updates of Big Sur I have the beta but can't get unto beta 3 Link to comment Share on other sites More sharing options...
Gigamaxx Posted July 26, 2020 Share Posted July 26, 2020 1 hour ago, Shaneee said: That's strange. I also have it on my system. It also shows in IOReg, Mine is at GFX9? I'm also getting Blackscreen after sleep (RX 5700XT, GT710). You got sleep working? Link to comment Share on other sites More sharing options...
Loloflat6 Posted July 26, 2020 Share Posted July 26, 2020 Mine is at GFX9 too (RX570) : 1 Link to comment Share on other sites More sharing options...
Max.1974 Posted July 26, 2020 Share Posted July 26, 2020 8 hours ago, chris1111 said: Strangely today I make a test of my wifi program for BS not because I don't have wifi, I have a native BCM it's just for Beta 3 adjustment I was pleasantly surprised to see my volume icon at reboot this on all the machines I have tested Hide contents @chris1111 that most nice theme I ever seem before....thanks a lot!!!! Im change my all for this!!! 1 Link to comment Share on other sites More sharing options...
valeryimm Posted July 26, 2020 Share Posted July 26, 2020 On 7/21/2020 at 1:05 PM, mnfesq said: @lottenow @PC IT @hohoho @MICKHAEL It appears that at least 5 of us are all having the same problem - no ability to have Big Sur read our AHCI-connected drives. Since I have a fully-functioning installation on a USB drive, I swapped the IOAHCIFamily.kext from Catalina with the Big Sur version. I was able to boot to Big Sur on the USB drive but it didn't change anything - I couldn't see my internal drives. I will experiment with that a bit more before I rule it a complete failure and will report back. I have the same problem with Sunrise Point-LP SATA controller in my HP Envy laptop. The installer can’t see both SATA SSD and SATA HDD drives. I tried to add VoodoI2C.kext, but VoodooInput.kext plugin gives me KP, so I disabled that plugin. Still no luck with VoodooI2C. Any other workarounds? Link to comment Share on other sites More sharing options...
jlrycm Posted July 26, 2020 Share Posted July 26, 2020 3 hours ago, markl18 said: hi does any one else have this issue of not being able to get updates of Big Sur I have the beta but can't get unto beta 3 @markl18, I believe that you have to have csr-active-config equal to 00000000 (SIP enabled) and click on “More Info” under System Preferences>System Updates in order to see the 5GB delta update available for download and install. Link to comment Share on other sites More sharing options...
markl18 Posted July 27, 2020 Share Posted July 27, 2020 59 minutes ago, jlrycm said: @markl18, I believe that you have to have csr-active-config equal to 00000000 (SIP enabled) and click on “More Info” under System Preferences>System Updates in order to see the 5GB delta update available for download and install. ok I made the src-active-config=00000000 but the update didn't show up Link to comment Share on other sites More sharing options...
markl18 Posted July 27, 2020 Share Posted July 27, 2020 (edited) also for all of those who might have machine like mine please use your own DSDT from your own machine and all of those kexts are pretty much needed because it doesn't even boot with out them and yes I installed directly from usb into Big Sur EFI.zip Edited July 27, 2020 by markl18 Link to comment Share on other sites More sharing options...
jsl2000 Posted July 27, 2020 Share Posted July 27, 2020 8 hours ago, crazybirdy said: This EFI works on installed Beta 3 with i3-2100 legacy BIOS, Clover 5119 mod, not UEFI. It can't boot installer. EFI-i3-2100-BIOS-Clover.zip I think you need OcQuirks.efi in UEFI and Quirks in config.plist to boot Big Sur beta3 successfully even by legacy boot as mine. config.plist 2 Link to comment Share on other sites More sharing options...
BALDY_MAN Posted July 27, 2020 Share Posted July 27, 2020 (edited) Im over the moon just this minute. got. Big Sur (20A53231) on my Z490 gigabyte master thank you all for your help. I have enclosed my EFI I made that worked for me. you will need to sort your sound out and Ethernet. Enjoy. A Special Thanks to MaLd0n.whos work I used as a bit of a temprate GigabyteMaster.Z490 Big Sur Beta3EFI.zip Edited July 27, 2020 by BALDY_MAN added EFI 4 Link to comment Share on other sites More sharing options...
crazybirdy Posted July 27, 2020 Share Posted July 27, 2020 19 minutes ago, jsl2000 said: I think you need OcQuirks.efi in UEFI and Quirks in config.plist to boot Big Sur beta3 successfully even by legacy boot as mine. config.plist Thanks. I have tried it. Clover 5119 mod boot to beta 3 fine.. with or without OcQuirks.efi in UEFI and Quirks in config.plist. So, I remove it before. Maybe it needn't for legacy BIOS. 1 Link to comment Share on other sites More sharing options...
jlrycm Posted July 27, 2020 Share Posted July 27, 2020 2 hours ago, markl18 said: ok I made the src-active-config=00000000 but the update didn't show up @markl18, did you confirm SIP is enabled? If it didn’t, try with this value: FF0F0000 1 Link to comment Share on other sites More sharing options...
mnfesq Posted July 27, 2020 Share Posted July 27, 2020 4 hours ago, valeryimm said: I have the same problem with Sunrise Point-LP SATA controller in my HP Envy laptop. The installer can’t see both SATA SSD and SATA HDD drives. I tried to add VoodoI2C.kext, but VoodooInput.kext plugin gives me KP, so I disabled that plugin. Still no luck with VoodooI2C. Any other workarounds? It appears that VoodooInput.kext is located as a plugin in both VoodooI2C.kext and VoodooPS2Controller.kext. Perhaps it is the presence of 2 of the same kexts that is causing your KP. Link to comment Share on other sites More sharing options...
markl18 Posted July 27, 2020 Share Posted July 27, 2020 2 hours ago, jlrycm said: @markl18, did you confirm SIP is enabled? If it didn’t, try with this value: FF0F0000 yes It worked I just didn't follow instructions of sip on once I googled it it worked thank you again Link to comment Share on other sites More sharing options...
Cyberdevs Posted July 27, 2020 Share Posted July 27, 2020 10 hours ago, Gigamaxx said: Here's mine with Serials XXXX'd out. Only thing in Devices is Layout ID =0x1000000 AMD Ryzen 3900X on Beta 3 with GT710 EFI.zip I wasn't able to boot my IvyBridge with OC but yesterday I successfully installed Big Sur on that machine too and now I have tested all of my rigs with Big Sur (IvyBridge, Haswell and Skylake) @Stefanalmare, @crazybirdy and @Gigamaxx Thanks for sharing your EFI folders 3 Link to comment Share on other sites More sharing options...
Slice Posted July 27, 2020 Share Posted July 27, 2020 4 hours ago, crazybirdy said: Thanks. I have tried it. Clover 5119 mod boot to beta 3 fine.. with or without OcQuirks.efi in UEFI and Quirks in config.plist. So, I remove it before. Maybe it needn't for legacy BIOS. Yes, with legacy Clover we never used AptioFix and so OcQuirks not needed. 1 1 Link to comment Share on other sites More sharing options...
yapan4 Posted July 27, 2020 Share Posted July 27, 2020 @d5aqoep You can try this Efi folder Need add some X299 necessary files EFI.zip Link to comment Share on other sites More sharing options...
valeryimm Posted July 27, 2020 Share Posted July 27, 2020 5 hours ago, mnfesq said: It appears that VoodooInput.kext is located as a plugin in both VoodooI2C.kext and VoodooPS2Controller.kext. Perhaps it is the presence of 2 of the same kexts that is causing your KP. Yes, you’re right. I disabled VoodooInput.kext in VoodooPS2Controller.kext and left it in VoodooI2C.kext. No KP now, but didn’t solve the problem. Link to comment Share on other sites More sharing options...
d5aqoep Posted July 27, 2020 Share Posted July 27, 2020 2 hours ago, yapan4 said: @d5aqoep You can try this Efi folder Need add some X299 necessary files EFI.zip Unfortunately still stuck at same pci configuration end error. Will wait for clover or oc updates. 1 Link to comment Share on other sites More sharing options...

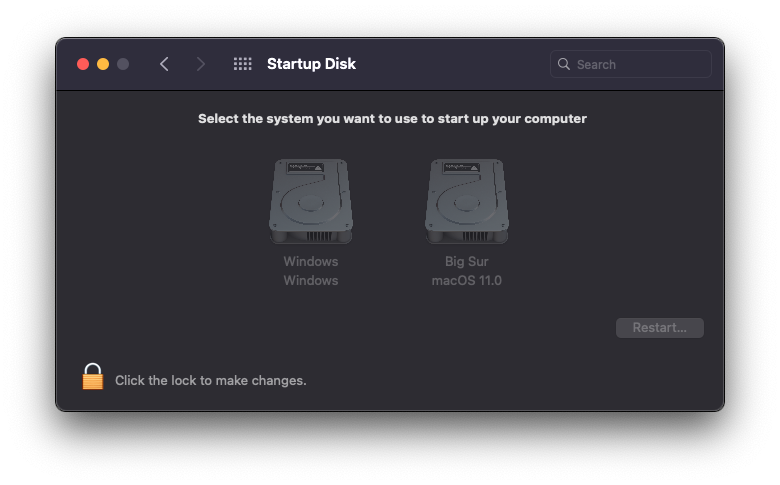

mick3lson Posted July 27, 2020 Share Posted July 27, 2020 It's possible with opencore 0.60 dual boot big sur and windows 10 on same drive, I tried but don't work, windows start but it crashes immediately. Link to comment Share on other sites More sharing options...
yapan4 Posted July 27, 2020 Share Posted July 27, 2020 Some logs from my hack. May be useful to someone BS_b3_OC.zip Link to comment Share on other sites More sharing options...
