ludufre Posted July 2, 2020 Author Share Posted July 2, 2020 3 minutes ago, SavageAUS said: Maybe i uploaded wrong config but i definitely had -lilubetaall. I've added keepsyms as shown and will try again. Attached last boot. opencore-2020-07-02-035339.txt Did you enabled Debug options? I didn't saw the kernel panic logs yet. Maybe a photo already helps Link to comment Share on other sites More sharing options...

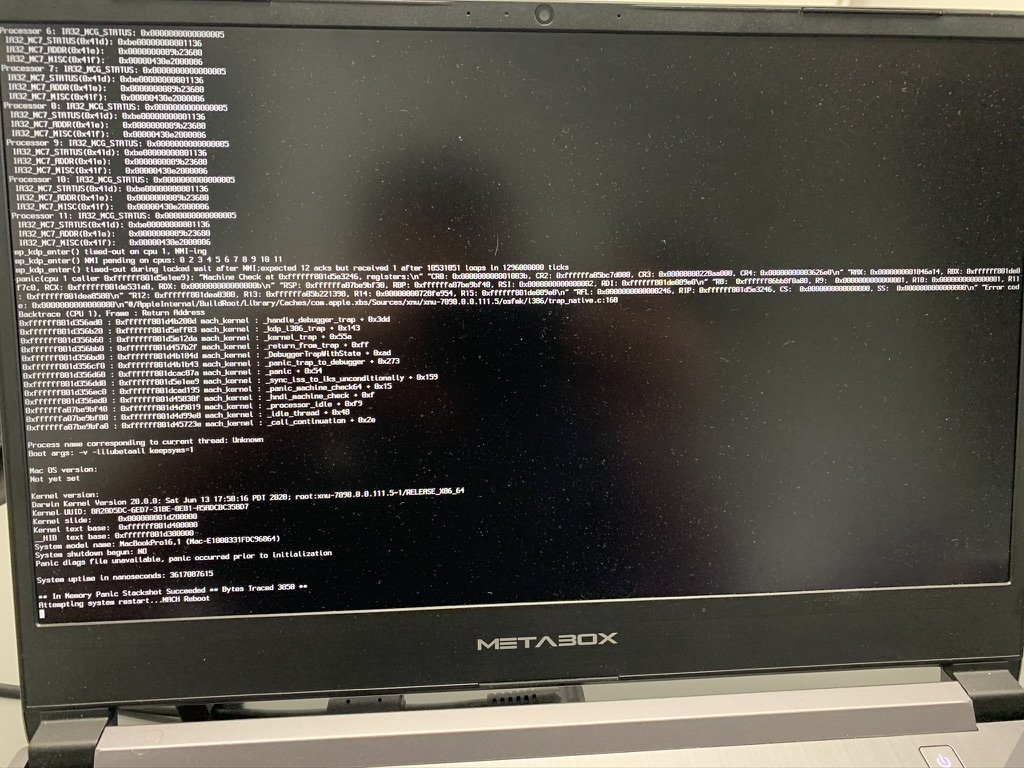

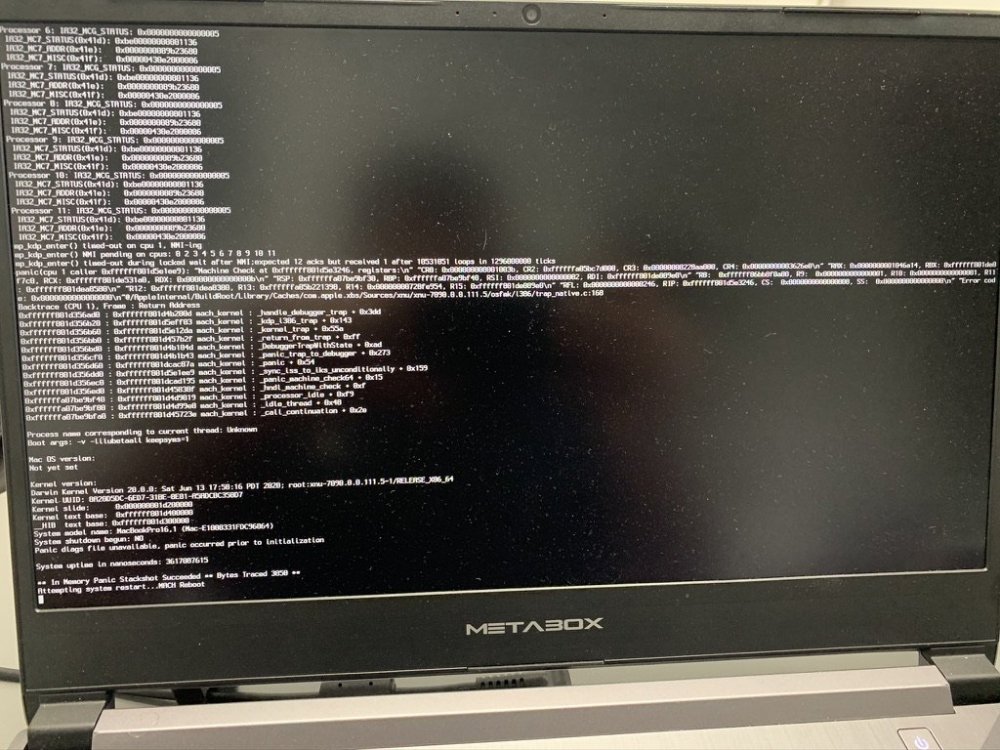

SavageAUS Posted July 2, 2020 Share Posted July 2, 2020 (edited) This is the exact config i am using. config.plist it seems keepsyms is not working? I don't have long enough to capture a picture. Edited July 2, 2020 by SavageAUS Link to comment Share on other sites More sharing options...
ludufre Posted July 2, 2020 Author Share Posted July 2, 2020 8 minutes ago, SavageAUS said: This is the exact config i am using. config.plist Errors in config.plist: https://opencore.slowgeek.com/?file=coffeelake059CTsy3I&rs=coffeelake059 (ignore the SMCBatteryManager.kext and SystemProductName error) See: https://dortania.github.io/vanilla-laptop-guide/OpenCore/config-laptop.plist/coffee-lake-plus.html Link to comment Share on other sites More sharing options...
SavageAUS Posted July 2, 2020 Share Posted July 2, 2020 1 minute ago, ludufre said: Errors in config.plist: https://opencore.slowgeek.com/?file=coffeelake059CTsy3I&rs=coffeelake059 (ignore the SMCBatteryManager.kext and SystemProductName error) See: https://dortania.github.io/vanilla-laptop-guide/OpenCore/config-laptop.plist/coffee-lake-plus.html I had to make changes or else i couldn't boot Arch Linux with the above. But i will try changing them for Big Sur. [mention=1083558]SavageAUS[/mention] You forgot this. I believe that's the problem.Ok I’ll give that a try and post back. Sent from my iPhone using Tapatalk Link to comment Share on other sites More sharing options...
SavageAUS Posted July 2, 2020 Share Posted July 2, 2020 @ludufre Keepsyms worked that time but still KP opencore-2020-07-02-043058.txt config.plist Link to comment Share on other sites More sharing options...
ludufre Posted July 2, 2020 Author Share Posted July 2, 2020 9 minutes ago, SavageAUS said: @ludufre Keepsyms worked that time but still KP opencore-2020-07-02-043058.txt config.plist Double check the ACPI section: https://dortania.github.io/vanilla-laptop-guide/OpenCore/config-laptop.plist/coffee-lake-plus.html#acpi Missing _OSI to XOSI, check if you have all required SSDTs. And try everything without your DSDT.aml. And if it still doesn't work, I don't know anymore. Perhaps a clean installation will do the trick. Something may have corrupted. Link to comment Share on other sites More sharing options...
g4fa Posted July 2, 2020 Share Posted July 2, 2020 6 hours ago, ludufre said: For some reason, the Boot didn't found the HDD. Maybe you need to start from scratch. Are you sure the target disk is 1? Try forcing detach... I tried with a sata disk ant it works . But not with a pic-express disk ( nvme ). is it possible to create physical.vdmk from a pic express disk ? Link to comment Share on other sites More sharing options...
ludufre Posted July 2, 2020 Author Share Posted July 2, 2020 1 minute ago, g4fa said: I tried with a sata disk ant it works . But not with a pic-express disk ( nvme ). is it possible to create physical.vdmk from a pic express disk ? Should. The only reason you can't get it to work is that it was in use at the time you were trying to mount. I have no other explanation. Link to comment Share on other sites More sharing options...
Manas Malla Posted July 2, 2020 Share Posted July 2, 2020 8 hours ago, ludufre said: For some reason, the Boot didn't found the HDD. Maybe you need to start from scratch. So what should i do? Link to comment Share on other sites More sharing options...
SavageAUS Posted July 2, 2020 Share Posted July 2, 2020 Double check the ACPI section: https://dortania.github.io/vanilla-laptop-guide/OpenCore/config-laptop.plist/coffee-lake-plus.html#acpi Missing _OSI to XOSI, check if you have all required SSDTs. And try everything without your DSDT.aml. And if it still doesn't work, I don't know anymore. Perhaps a clean installation will do the trick. Something may have corrupted.My last attempt made my Catalina install disappear so I think I’ll just wait for a clean install method. Appreciate the help. Sent from my iPhone using Tapatalk Double check the ACPI section: https://dortania.github.io/vanilla-laptop-guide/OpenCore/config-laptop.plist/coffee-lake-plus.html#acpi Missing _OSI to XOSI, check if you have all required SSDTs. And try everything without your DSDT.aml. And if it still doesn't work, I don't know anymore. Perhaps a clean installation will do the trick. Something may have corrupted.My last attempt made my Catalina install disappear so I think I’ll just wait for a clean install method. Appreciate the help. Sent from my iPhone using Tapatalk 1 Link to comment Share on other sites More sharing options...
Thegn Posted July 2, 2020 Share Posted July 2, 2020 On 7/1/2020 at 11:27 AM, manmo71 said: Make sure the Physical disk is unmounted. Then start the installation. Hi, thank's. But I think I already tried that. I will however try again! Thank's! Link to comment Share on other sites More sharing options...
greythorne Posted July 2, 2020 Share Posted July 2, 2020 (edited) Just a quick question. Can the above be done in an existing system where there is 2 SSD's? One SSD has Catalina and the other BS. Or the above guide is only for BS standalone, no dualboot with Catalina? I am asking because in my Skylake system i have two SSD's. One SSD has dualboot Win 10 + Catalina. The other SSD is spare, just for storage. So was thinking i can follow your guide above to get BS installed on the spare SSD. Secondly if installing to the spare SSD, can the existing EFI be used with the necessary changes to the config.plist? Edited July 3, 2020 by greythorne Link to comment Share on other sites More sharing options...
dotzil Posted July 2, 2020 Share Posted July 2, 2020 Ludufre: My hack GA-Z370N-WIFI + i5-8400, running Mojave, Catalina, Win10 and now Big Sur. Thanks for your guide. All working except sign in to App Store. Do you have the same issue? I do a search but I can’t find anyone else with that problem. iMessage, FaceTime, Music, Books and Cloud, all connect the only problem it’s the App Store. Link to comment Share on other sites More sharing options...
Henry.M. Posted July 2, 2020 Share Posted July 2, 2020 Is anybody able to boot into recovery-mode? Link to comment Share on other sites More sharing options...
SavageAUS Posted July 3, 2020 Share Posted July 3, 2020 @greythorne Please edit your post and refrain from quoting such a big post. Spoiler tags are helpful for large images / posts. Link to comment Share on other sites More sharing options...
greythorne Posted July 3, 2020 Share Posted July 3, 2020 23 minutes ago, SavageAUS said: @greythorne Please edit your post and refrain from quoting such a big post. Spoiler tags are helpful for large images / posts. Ok edited my post. Link to comment Share on other sites More sharing options...

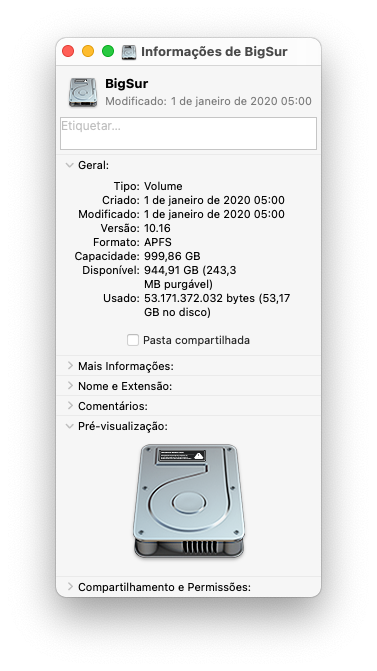

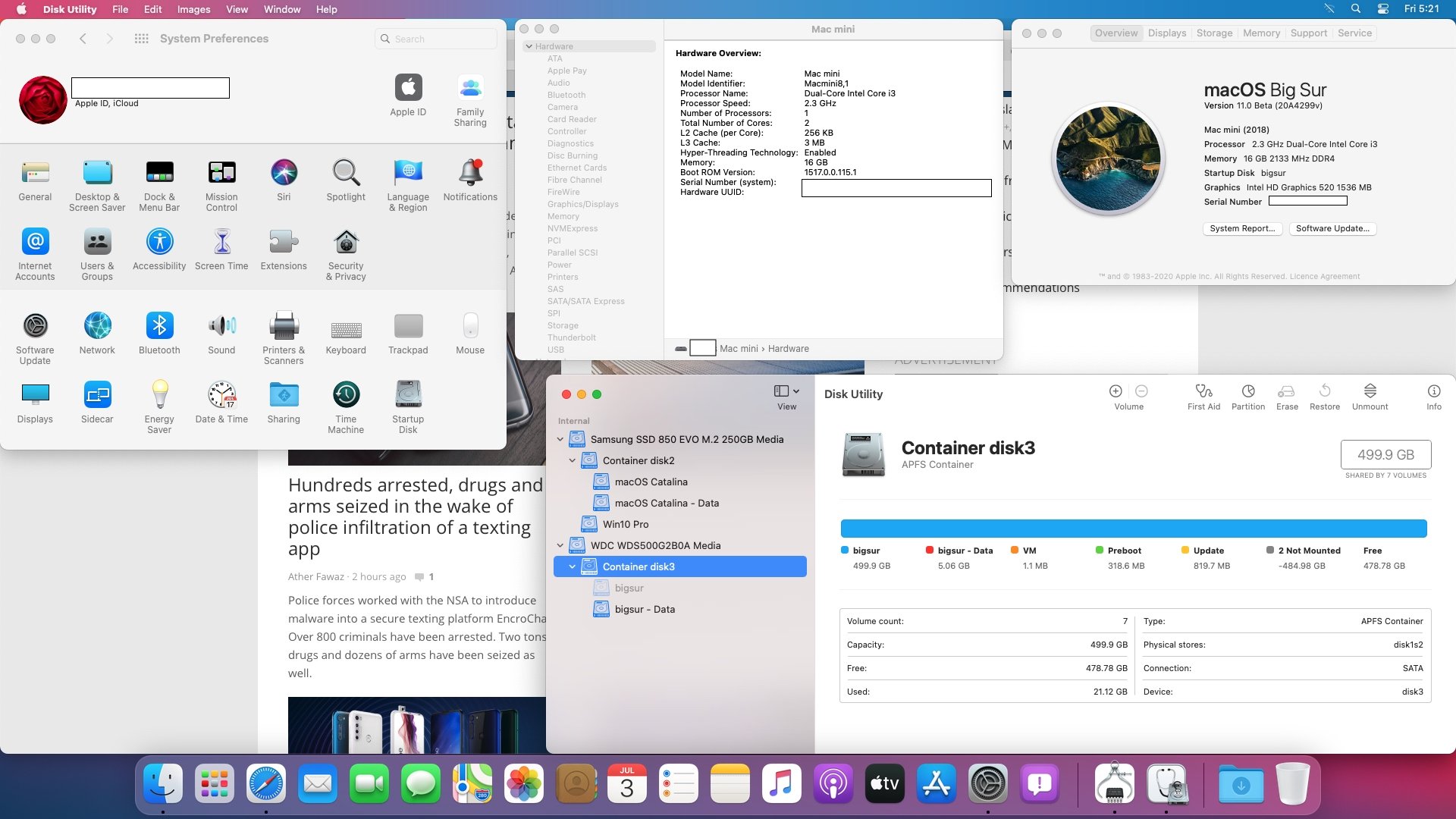

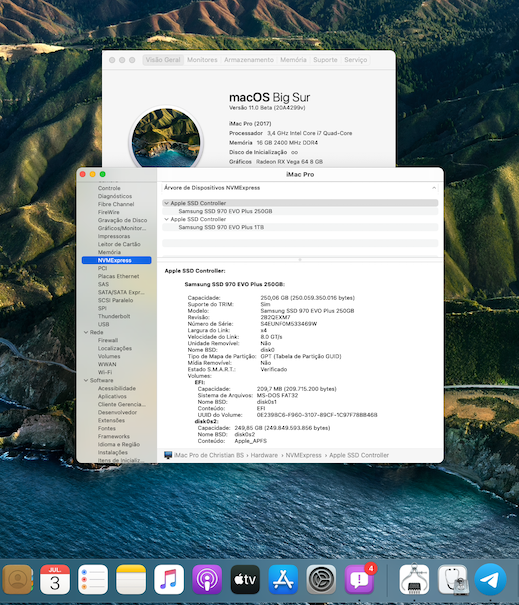

greythorne Posted July 3, 2020 Share Posted July 3, 2020 Finally able to install it to my intel NUC. Please see below. Spoiler 1 Link to comment Share on other sites More sharing options...
Loloflat6 Posted July 3, 2020 Share Posted July 3, 2020 Thanks for the guide , works fine on my test X299 build. 1 Link to comment Share on other sites More sharing options...
g4fa Posted July 3, 2020 Share Posted July 3, 2020 (edited) Hi, I have installed Big Sur on a sata disk ( 7200 rpm). Boot perfectly with open core is it possible to clone this disk on a other disk ( nvme ) ? The beta of carbon copy cloner not support yet bootable clone Thanks Edited July 3, 2020 by g4fa Link to comment Share on other sites More sharing options...
ludufre Posted July 3, 2020 Author Share Posted July 3, 2020 5 minutes ago, g4fa said: Hi, I have installed Big Sur on a sata disk ( 7200 rpm). Boot perfectly with open core is it possible to clone this disk on a other disk ( nvme ) ? The beta of carbon copy cloner not support yet bootable clone Thanks You can use DD via Terminal. But you have to boot another system that are not running on origin and target devices. (Linux Live CD/USB, for example) Link to comment Share on other sites More sharing options...
g4fa Posted July 3, 2020 Share Posted July 3, 2020 4 minutes ago, ludufre said: You can use DD via Terminal. But you have to boot another system that are not running on origin and target devices. (Linux Live CD/USB, for example) can you help me with the syntax please ? this disk will be bootable ? Thanks Link to comment Share on other sites More sharing options...
ludufre Posted July 3, 2020 Author Share Posted July 3, 2020 Just now, g4fa said: can you help me with the syntax please ? this disk will be bootable ? Thanks If you origin and target are same size (or the target is bigger) it's ok. The sintax looks like: dd if=/dev/diskX of=/dev/diskY bs=32 X = origin Y = target Caution! If you put wrong disks can erase all your data. Link to comment Share on other sites More sharing options...
g4fa Posted July 3, 2020 Share Posted July 3, 2020 Just now, ludufre said: If you origin and target are same size (or the target is bigger) it's ok. The sintax looks like: dd if=/dev/diskX of=/dev/diskY bs=32 X = origin Y = target Caution! If you put wrong disks can erase all your data. Sorry bit My target is smaller , how can I do ? Link to comment Share on other sites More sharing options...
ludufre Posted July 3, 2020 Author Share Posted July 3, 2020 2 minutes ago, g4fa said: Sorry bit My target is smaller , how can I do ? Not possible right now. You have to reinstall from scratch. Link to comment Share on other sites More sharing options...
g4fa Posted July 3, 2020 Share Posted July 3, 2020 4 minutes ago, ludufre said: Not possible right now. You have to reinstall from scratch. thanks Link to comment Share on other sites More sharing options...
