ludufre Posted July 1, 2020 Author Share Posted July 1, 2020 1 minute ago, fastfwd said: Hi @ludufre what is the trick to get audio to work? My older motherboard Asus z270 also has alc1220 or some variant but the internal audio isn't recognized. I have added alcid=1 to boot args nothing, which works in Catalina. I added device property entry and also nothing. By the way, auto sleep is broken but works if done form the apple menu. Thanks Are you using AppleALC.kext compiled from source and using -lilubetaall in boot-args? Link to comment Share on other sites More sharing options...
fastfwd Posted July 1, 2020 Share Posted July 1, 2020 I have the kext but the release version from the GitHub Link to comment Share on other sites More sharing options...
ludufre Posted July 1, 2020 Author Share Posted July 1, 2020 1 minute ago, fastfwd said: I have the kext but the release version from the GitHub As already mentioned in the guide. You need to use the Kexts compiled directly from the source code (because they are more recent). But, follow mine attached. And again: Add -lilubetaall to your config.plist's boot-args, otherwise it won't work. Arquivo Comprimido.zip 1 1 Link to comment Share on other sites More sharing options...
fastfwd Posted July 1, 2020 Share Posted July 1, 2020 Thanks once again. I never compiled for source so I stick with the release versions. Audio is now working! 2 Link to comment Share on other sites More sharing options...
Max.1974 Posted July 1, 2020 Share Posted July 1, 2020 Thanks a lot man, im will try a clean install, but im got many error like Gigamaxx...im using Russian image and work fine on my disk nvme. Muito obrigado camarada, que baita tutorial!!!! Manja muito hein!!! Eu nunca mexi com VM..manjo nada...!! Deus abençoe!!! 1 Link to comment Share on other sites More sharing options...

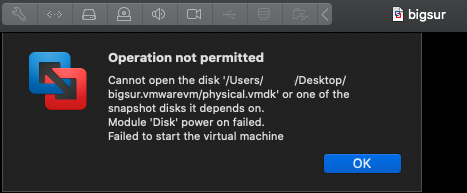

Thegn Posted July 1, 2020 Share Posted July 1, 2020 (edited) I get the following error when starting up the iso. "Operation not permitted Cannot open the disk '/...bigsur.vmwarevm/physical.vmdk' or one of the snapshot disks it depends on. Module 'Disk' power on failed. Failed to start the virtual machine." Can anyone help me? Edited July 1, 2020 by Thegn Link to comment Share on other sites More sharing options...
manmo71 Posted July 1, 2020 Share Posted July 1, 2020 3 hours ago, Thegn said: I get the following error when starting up the iso. "Operation not permitted Cannot open the disk '/...bigsur.vmwarevm/physical.vmdk' or one of the snapshot disks it depends on. Module 'Disk' power on failed. Failed to start the virtual machine." Can anyone help me? Make sure the Physical disk is unmounted. Then start the installation. Link to comment Share on other sites More sharing options...
dotzil Posted July 1, 2020 Share Posted July 1, 2020 GA-Z370N-WIFI + i5-8400 Thanks for your guide. All working except sign in to App Store. Do you have the same issue? I do a search but I can’t find anyone else with that problem. iMessage, FaceTime, Music, Books and Cloud, all connect the only problem it’s the App Store. Link to comment Share on other sites More sharing options...
Manas Malla Posted July 1, 2020 Share Posted July 1, 2020 When I try to run the VM using the guide given, the apple logo appears at the start and a small progress bar, and then it reboots automatically, and then it goes on and on and I can't reach the installer. I guess it is some kind of boot loop or something. I don't get any message nor anything. Here is a small recording of the problem i am facing https://drive.google.com/file/d/1GQNRXk8JWaXRg0GoclIf4t9VI82LZ7t0/view?usp=sharing My Processor : Pentium g4600 macOS host : 10.15.4 motherboard: Gigabyte HM110M-H Please help in this issue ASAP! Link to comment Share on other sites More sharing options...

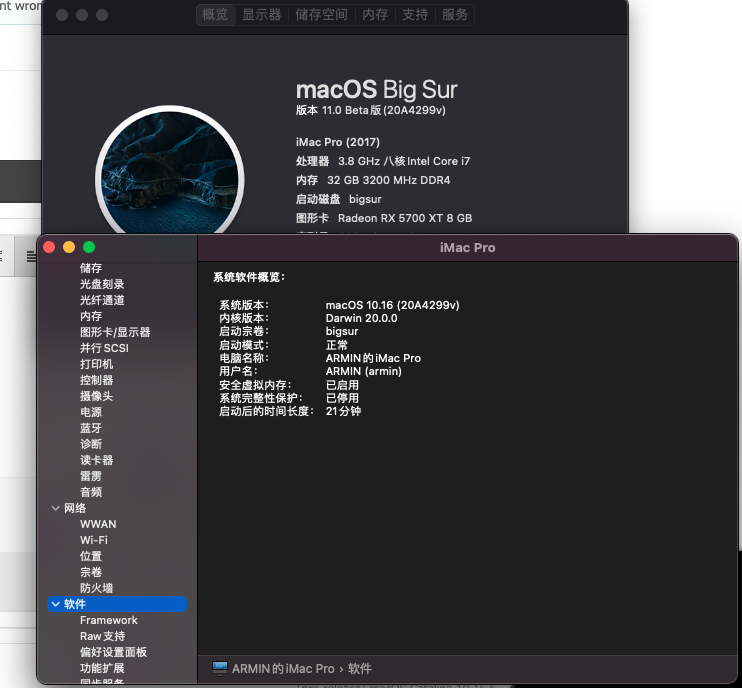

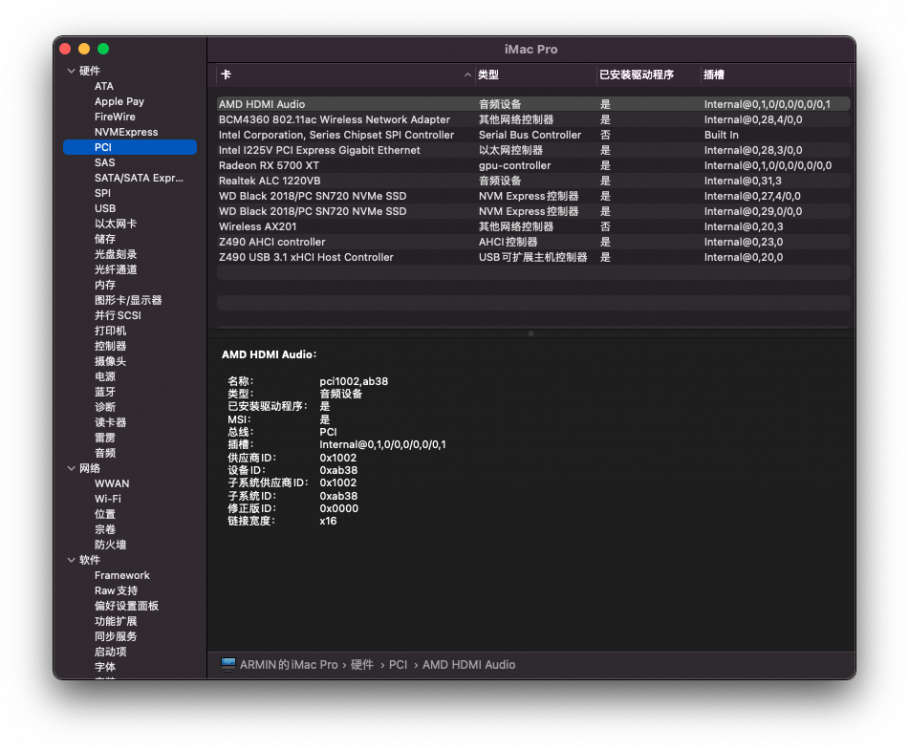

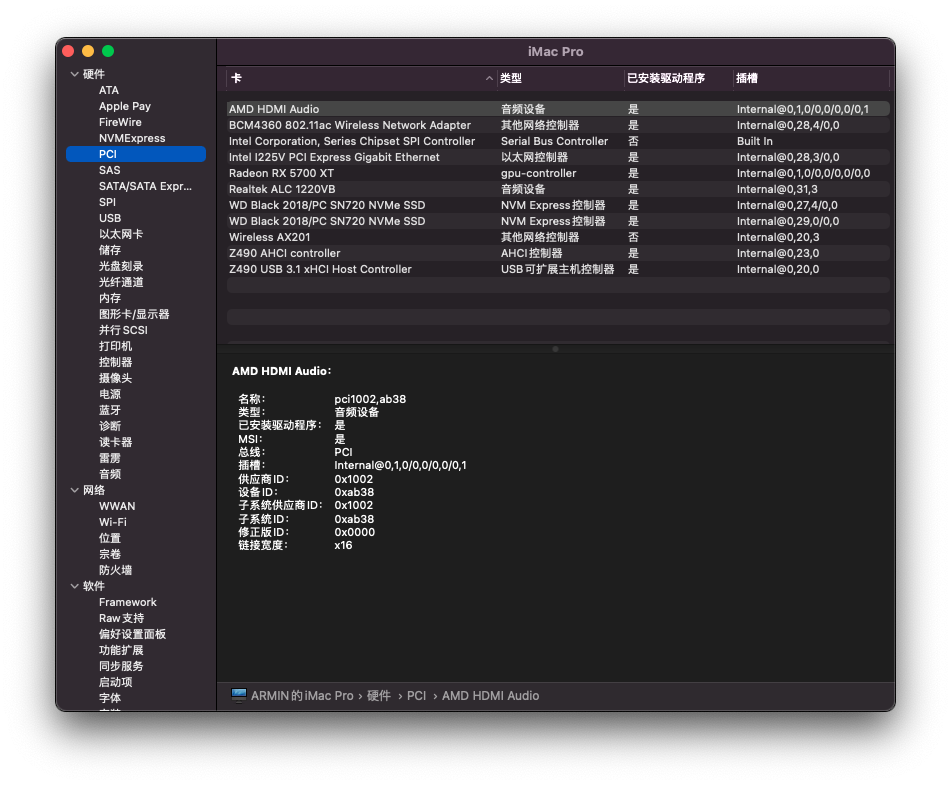

cfmwan Posted July 1, 2020 Share Posted July 1, 2020 5 minutes ago, cfmwan said: Thanks youludufre I used your installation tutorial and now I'm using 11.16 bigsur Motherboard: Gigabyte z490 aorus ultra motherboard supports CPU 10900k / 10700k (Intel z490 / LGA 1200) CPU:I7 10700K Graphics card: public version of AMD radon RX 5700 XT 8g gddr6 game graphics card Memory: g.skill 16gbx2 DDR4 3200 frequency desktop memory module sniper x (camouflage black) Hard disk: m.2 x2 250gwd_ Black sn750, western data 1TB SSD m.2 interface (nvme protocol) WD_ BLACK SN750 Network card: bcm4360cs two antenna version, Intel i225v 2.5gbe perfect, Intel ax201 has no driver at present Sound card: alc1220-vb Thank you very much! config.plist.zip 1 Link to comment Share on other sites More sharing options...
g4fa Posted July 1, 2020 Share Posted July 1, 2020 (edited) Hi When I Try to create vdml file, I have this error fabien@Hackintosh ~ % /Applications/VMware\ Fusion.app/Contents/Library/vmware-rawdiskCreator create /dev/disk1 fullDevice ~/Desktop/bigsur.vmwarevm/physical sata Unable to create the source raw disk: Resource deadlock avoided (720905). Thank for your help Edited July 1, 2020 by g4fa Link to comment Share on other sites More sharing options...
cfmwan Posted July 1, 2020 Share Posted July 1, 2020 11 minutes ago, g4fa said: Hi When I Try to create vdml file, I have this error fabien@Hackintosh ~ % /Applications/VMware\ Fusion.app/Contents/Library/vmware-rawdiskCreator create /dev/disk1 fullDevice ~/Desktop/bigsur.vmwarevm/physical sata Unable to create the source raw disk: Resource deadlock avoided (720905). Thank for your help Format the hard disk and reconfigure it Link to comment Share on other sites More sharing options...
g4fa Posted July 1, 2020 Share Posted July 1, 2020 5 minutes ago, cfmwan said: Format the hard disk and reconfigure it I have already format the disk. But its a PCI Express. Is it the problem ? Link to comment Share on other sites More sharing options...
ludufre Posted July 1, 2020 Author Share Posted July 1, 2020 5 hours ago, Manas Malla said: When I try to run the VM using the guide given, the apple logo appears at the start and a small progress bar, and then it reboots automatically, and then it goes on and on and I can't reach the installer. I guess it is some kind of boot loop or something. I don't get any message nor anything. Here is a small recording of the problem i am facing https://drive.google.com/file/d/1GQNRXk8JWaXRg0GoclIf4t9VI82LZ7t0/view?usp=sharing My Processor : Pentium g4600 macOS host : 10.15.4 motherboard: Gigabyte HM110M-H Please help in this issue ASAP! For some reason, the Boot didn't found the HDD. Maybe you need to start from scratch. 3 hours ago, g4fa said: Hi When I Try to create vdml file, I have this error fabien@Hackintosh ~ % /Applications/VMware\ Fusion.app/Contents/Library/vmware-rawdiskCreator create /dev/disk1 fullDevice ~/Desktop/bigsur.vmwarevm/physical sata Unable to create the source raw disk: Resource deadlock avoided (720905). Thank for your help Are you sure the target disk is 1? Try forcing detach... Link to comment Share on other sites More sharing options...
SavageAUS Posted July 2, 2020 Share Posted July 2, 2020 I am trying to install to a External HDD connected via USB 3.0 but i get the following error when powering on the virtual machine. Link to comment Share on other sites More sharing options...
ludufre Posted July 2, 2020 Author Share Posted July 2, 2020 1 minute ago, SavageAUS said: I am trying to install to a External HDD connected via USB 3.0 but i get the following error when powering on the virtual machine. Try if USB 2.0 works. With some people don't work with external, only internal. 1 Link to comment Share on other sites More sharing options...
SavageAUS Posted July 2, 2020 Share Posted July 2, 2020 I now have it "installed" to an internal SSD drive on my laptop. But i'm getting a KP very late in the boot process. config.plist Link to comment Share on other sites More sharing options...
ludufre Posted July 2, 2020 Author Share Posted July 2, 2020 Just now, SavageAUS said: I now have it "installed" to an internal SSD drive on my laptop. But i'm getting a KP very late in the boot process. config.plist What's reason? Im the root of EFI you'll have .log files. If no, enable AppleDebug and ApplePanic in config.plist Link to comment Share on other sites More sharing options...
SavageAUS Posted July 2, 2020 Share Posted July 2, 2020 What's reason? Im the root of EFI you'll have .log files. If no, enable AppleDebug and ApplePanic in config.plistDo I need debug version of OC? What about “target” in config.plist?Sent from my iPhone using Tapatalk Link to comment Share on other sites More sharing options...
ludufre Posted July 2, 2020 Author Share Posted July 2, 2020 1 minute ago, SavageAUS said: Do I need debug version of OC? What about “target” in config.plist? Sent from my iPhone using Tapatalk Nope. Put these settings in Debug: https://dortania.github.io/OpenCore-Desktop-Guide/config.plist/coffee-lake.html#debug Link to comment Share on other sites More sharing options...
SavageAUS Posted July 2, 2020 Share Posted July 2, 2020 @ludufre opencore-2020-07-02-032643.txt Link to comment Share on other sites More sharing options...
ludufre Posted July 2, 2020 Author Share Posted July 2, 2020 On 6/26/2020 at 5:10 PM, ludufre said: NVRAM -> Delete -> 7C436110-AB2A-4BBB-A880-FE41995C9F82 -> booter-fileset-basesystem NVRAM -> Delete -> 7C436110-AB2A-4BBB-A880-FE41995C9F82 -> booter-fileset-kernel @SavageAUS You forgot this. I believe that's the problem. Link to comment Share on other sites More sharing options...
SavageAUS Posted July 2, 2020 Share Posted July 2, 2020 [mention=1083558]SavageAUS[/mention] You forgot this. I believe that's the problem.Ok I’ll give that a try and post back. Sent from my iPhone using Tapatalk Link to comment Share on other sites More sharing options...
ludufre Posted July 2, 2020 Author Share Posted July 2, 2020 Just now, SavageAUS said: Ok I’ll give that a try and post back. Sent from my iPhone using Tapatalk I just saw that your boot-args is empty. Forgot to put -lilubetaall. And it would be interesting to add keepsyms=1 too (to show more details of the KP) Link to comment Share on other sites More sharing options...

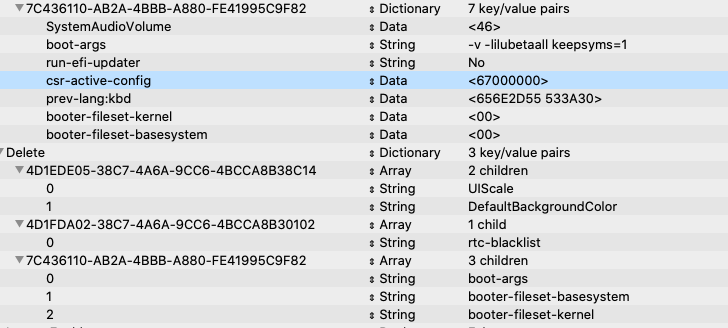

SavageAUS Posted July 2, 2020 Share Posted July 2, 2020 Maybe i uploaded wrong config but i definitely had -lilubetaall. I've added keepsyms as shown and will try again. Attached last boot. opencore-2020-07-02-035339.txt Link to comment Share on other sites More sharing options...
