cpla Posted March 5, 2020 Share Posted March 5, 2020 Mind uploading your setup again Mat? Thanks Link to comment Share on other sites More sharing options...
Matgen84 Posted March 5, 2020 Share Posted March 5, 2020 2 minutes ago, cpla said: Mind uploading your setup again Mat? Thanks What do you mean? Icons folder? Link to comment Share on other sites More sharing options...
cpla Posted March 5, 2020 Share Posted March 5, 2020 1 minute ago, Matgen84 said: What do you mean? Icons folder? Yeah icons folder, thanks! Link to comment Share on other sites More sharing options...
Matgen84 Posted March 5, 2020 Share Posted March 5, 2020 16 minutes ago, cpla said: Yeah icons folder, thanks! Done Icons.zip 1 Link to comment Share on other sites More sharing options...
cpla Posted March 5, 2020 Share Posted March 5, 2020 Thanks Mat! 1 Link to comment Share on other sites More sharing options...
MacNB Posted March 5, 2020 Share Posted March 5, 2020 2 hours ago, Download-Fritz said: Or just support Apple's .VolumeIcon.icns that can be set from Finder and is individual per volume instead of having a hardcoded mess like some of the older projects Does macOS still use .VolumeIcon.icns ? My Apple MacbooPro does not have have this file in the root of the volume. It is not in the EFI partition either. Also I seem to remember that the Apple volume icon dimensions was 512 x 512 so an external boot picker would not only need to check the existence of such an icon file but also consider its dimensions. Link to comment Share on other sites More sharing options...
mhaeuser Posted March 5, 2020 Share Posted March 5, 2020 @MacNB it looks like it was temporarily borked for 10.15.0: https://forums.developer.apple.com/thread/119966 ("All problems concerning the possibility to change the icons are solved in 10.15.1 second beta. Wow!") likely due to this same bug: https://blog.obdev.at/how-kernel-prelininkg-works-on-macos-catalina/ 2 Link to comment Share on other sites More sharing options...
n.d.k Posted March 5, 2020 Author Share Posted March 5, 2020 Circle shape selector in case, someone want..Circle_Selector.zip 1 2 Link to comment Share on other sites More sharing options...

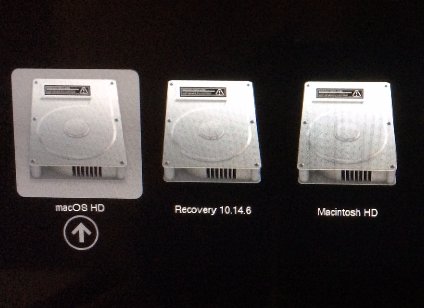

Matgen84 Posted March 7, 2020 Share Posted March 7, 2020 1 hour ago, Mustername said: Thank you for your Work. it is not possible to do the same as this so without a circle or a rectangle just a small arrow ?! Test and try: keeping the name circle_selector and the same size 144px, I think. I don't have the time to do that. @n.d.k has add several selector and icons for his great project in only few day. Link to comment Share on other sites More sharing options...
Matgen84 Posted March 7, 2020 Share Posted March 7, 2020 Hi @n.d.k The background is no longer displayed: ndk OpenCore build commit dcb1f9e. Can you take a look, please. Link to comment Share on other sites More sharing options...

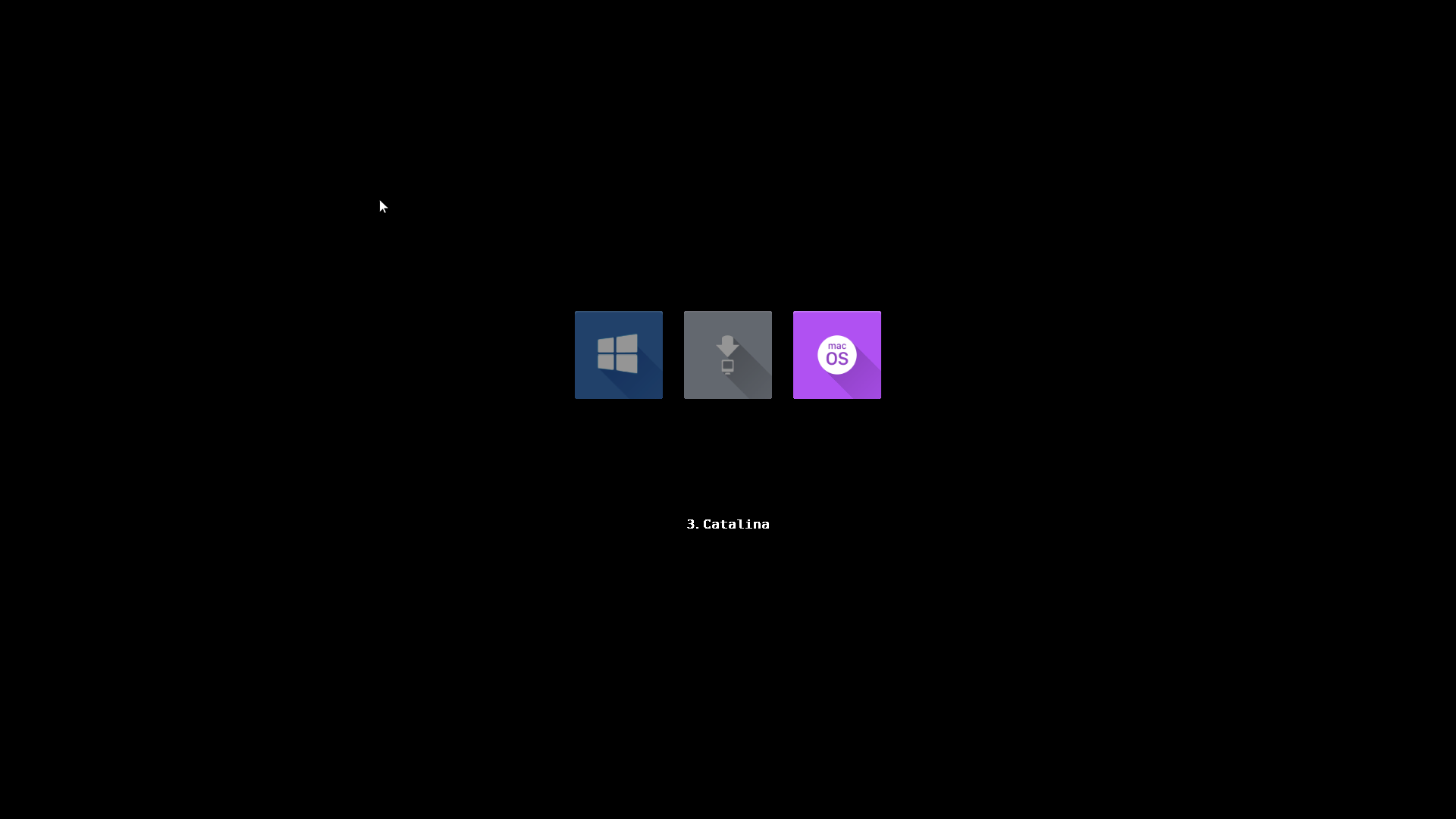

HmO Posted March 7, 2020 Share Posted March 7, 2020 New GUI BootLiquor.efi 1 Link to comment Share on other sites More sharing options...
n.d.k Posted March 7, 2020 Author Share Posted March 7, 2020 3 hours ago, Matgen84 said: Hi @n.d.k The background is no longer displayed: ndk OpenCore build commit dcb1f9e. Can you take a look, please. if your screen height is 2160px or more, background4k.png will be used, just make sure it matched your screen resolution. 1 Link to comment Share on other sites More sharing options...

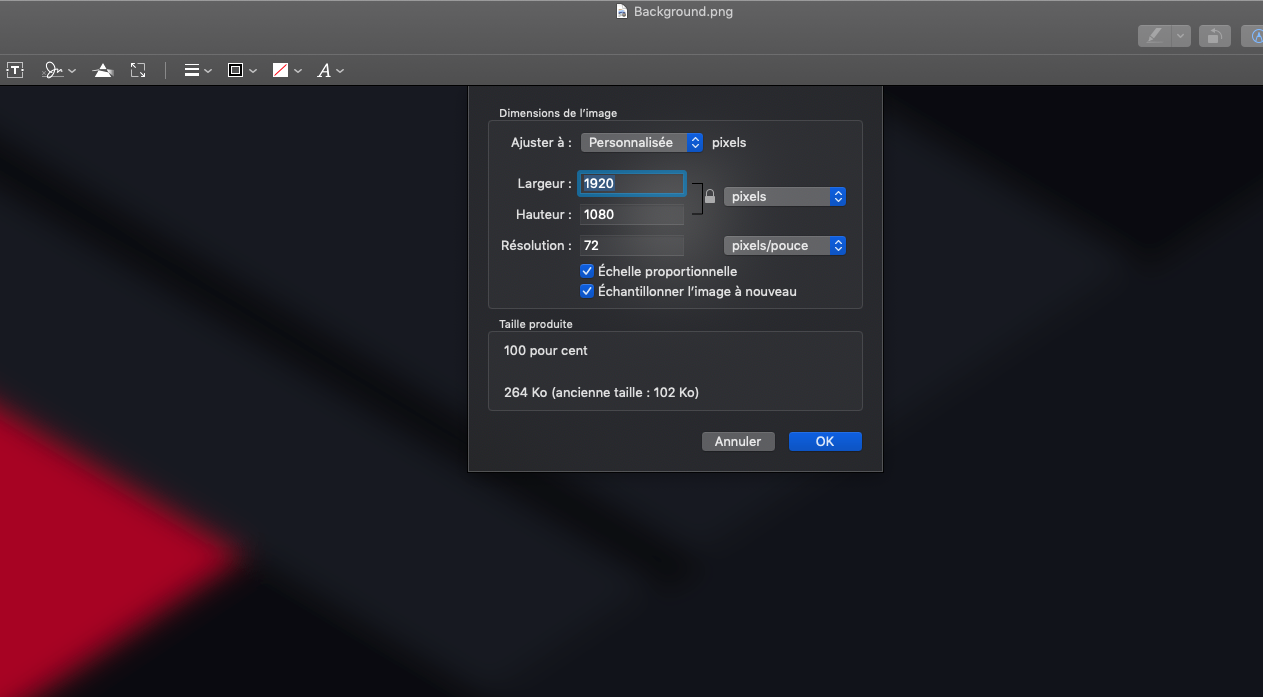

Matgen84 Posted March 7, 2020 Share Posted March 7, 2020 (edited) 26 minutes ago, n.d.k said: if your screen height is 2160px or more, background4k.png will be used, just make sure it matched your screen resolution. I use always 1920*1080 my screen resolution: all works fine before I build latest commit dcb1f9e Edited March 7, 2020 by Matgen84 1 Link to comment Share on other sites More sharing options...
cpla Posted March 7, 2020 Share Posted March 7, 2020 (edited) @Matgen84 might be the same issue i had where even if you don't have a 4k screen you still need to have background4k.png and selector4k.png in the icons folder or it won't know what to do, may as well report it as a possible bug since i forgot yesterday. Also could you share the install media icon please? Guessing you added it recently (gray one from your screenshot), thanks! Edited March 7, 2020 by cpla Link to comment Share on other sites More sharing options...
n.d.k Posted March 7, 2020 Author Share Posted March 7, 2020 38 minutes ago, Matgen84 said: I use always 1920*1080 my screen resolution: all works fine before I build latest commit dcb1f9e Sorry, I made a typo error on the file name, should resolved in latest commit. 2 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted March 7, 2020 Share Posted March 7, 2020 11 minutes ago, n.d.k said: Sorry, I made a typo error on the file name, should resolved in latest commit. Thanks a lot Great. 1 Link to comment Share on other sites More sharing options...
telepati Posted March 8, 2020 Share Posted March 8, 2020 Guys are this the correct setup for icon view; ShowPicker YES PickerMode External Copied the Icons folder to EFI/OC Added NdkBootPicker.efi into the UEFI Drivers TextRenderer BuiltinGraphics ProvideConsoleGop YES Reset NVRAM. 1 Link to comment Share on other sites More sharing options...
n.d.k Posted March 8, 2020 Author Share Posted March 8, 2020 31 minutes ago, telepati said: Guys are this the correct setup for icon view; ShowPicker YES PickerMode External Copied the Icons folder to EFI/OC Added NdkBootPicker.efi into the UEFI Drivers TextRenderer BuiltinGraphics ProvideConsoleGop YES Reset NVRAM. Pretty much, and resize background.png to match your screen resolution for it to show up, if you have a 4k+ monitor, then resize background4k.png. 1 1 Link to comment Share on other sites More sharing options...
Cass67 Posted March 8, 2020 Share Posted March 8, 2020 Whats different in the NDK OC that is not in OC that will show my Linux install on the boot picker when OC will not.. The config.plist seems to have nothing obvious that jumps out that would indicate it is configured to appear here. Well, that i noticed anyway. Cheers Link to comment Share on other sites More sharing options...
btwise Posted March 8, 2020 Share Posted March 8, 2020 9 hours ago, HmO said: New GUI BootLiquor.efi @n.d.k@Download-FritzLooks good, Expect to improve more functions and effects Link to comment Share on other sites More sharing options...
n.d.k Posted March 8, 2020 Author Share Posted March 8, 2020 2 hours ago, btwise said: @n.d.k@Download-FritzLooks good, Expect to improve more functions and effects Nice to see people can have more options. 3 Link to comment Share on other sites More sharing options...
Matgen84 Posted March 8, 2020 Share Posted March 8, 2020 (edited) Hi @n.d.k NdkBootPicker.efi os_win10.icns no more recognized with latest automatic commit 1f93203. (SOLVED march,9) On a previous post, you ask me a link for the theme I'm using: MaterialBox from BadruZeus. You can get it from his Gitub Repo Clover Theme EDIT: can't build 1.0.8 (SOLVED march,9) Spoiler "clang" -target x86_64-pc-win32-macho -c -g -gdwarf -Os -Wall -Werror -Wextra -include AutoGen.h -funsigned-char -fno-ms-extensions -fno-stack-protector -fno-builtin -fshort-wchar -mno-implicit-float -mms-bitfields -Wno-unused-parameter -Wno-missing-braces -Wno-missing-field-initializers -Wno-tautological-compare -Wno-sign-compare -Wno-varargs -ftrap-function=undefined_behavior_has_been_optimized_away_by_clang -D NO_MSABI_VA_FUNCS -D OC_TARGET_DEBUG=1 -D DISABLE_NEW_DEPRECATED_INTERFACES "-DANALYZER_UNREACHABLE=__builtin_unreachable" "-DANALYZER_NORETURN=__attribute__((noreturn))" -o /Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/Build/OpenCorePkg/DEBUG_XCODE5/X64/MdeModulePkg/Bus/Pci/XhciDxe/XhciDxe/OUTPUT/./AutoGen.obj -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/MdeModulePkg/Bus/Pci/XhciDxe -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/Build/OpenCorePkg/DEBUG_XCODE5/X64/MdeModulePkg/Bus/Pci/XhciDxe/XhciDxe/DEBUG -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/MdePkg -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/MdePkg/Include -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/MdePkg/Include/X64 /Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/Build/OpenCorePkg/DEBUG_XCODE5/X64/MdeModulePkg/Bus/Pci/XhciDxe/XhciDxe/DEBUG/AutoGen.c /Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/OpenCorePkg/Application/NdkBootPicker/NdkBootPicker.c:2208:36: error: use of undeclared identifier 'OC_BOOT_CUSTOM' if (BootEntries[Index].Type == OC_BOOT_CUSTOM) { ^ 2 errors generated. "clang" -target x86_64-pc-win32-macho -c -g -gdwarf -Os -Wall -Werror -Wextra -include AutoGen.h -funsigned-char -fno-ms-extensions -fno-stack-protector -fno-builtin -fshort-wchar -mno-implicit-float -mms-bitfields -Wno-unused-parameter -Wno-missing-braces -Wno-missing-field-initializers -Wno-tautological-compare -Wno-sign-compare -Wno-varargs -ftrap-function=undefined_behavior_has_been_optimized_away_by_clang -D NO_MSABI_VA_FUNCS -D OC_TARGET_DEBUG=1 -D DISABLE_NEW_DEPRECATED_INTERFACES "-DANALYZER_UNREACHABLE=__builtin_unreachable" "-DANALYZER_NORETURN=__attribute__((noreturn))" -o /Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/Build/OpenCorePkg/DEBUG_XCODE5/X64/OpenCorePkg/Tests/CryptoTest/CryptoTest/OUTPUT/./CryptoTest.obj -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/OpenCorePkg/Tests/CryptoTest -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/Build/OpenCorePkg/DEBUG_XCODE5/X64/OpenCorePkg/Tests/CryptoTest/CryptoTest/DEBUG -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/OpenCorePkg -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/OpenCorePkg/Include -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/MdePkg -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/MdePkg/Include -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/MdePkg/Include/X64 -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/MdeModulePkg -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/MdeModulePkg/Include -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/UefiCpuPkg -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/UefiCpuPkg/Include -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/EfiPkg -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/EfiPkg/Include -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/EfiPkg/Include/X64 /Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/OpenCorePkg/Tests/CryptoTest/CryptoTest.c make: *** [/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/Build/OpenCorePkg/DEBUG_XCODE5/X64/OpenCorePkg/Application/NdkBootPicker/NdkBootPicker/OUTPUT/NdkBootPicker.obj] Error 1 "clang" -target x86_64-pc-win32-macho -c -g -gdwarf -Os -Wall -Werror -Wextra -include AutoGen.h -funsigned-char -fno-ms-extensions -fno-stack-protector -fno-builtin -fshort-wchar -mno-implicit-float -mms-bitfields -Wno-unused-parameter -Wno-missing-braces -Wno-missing-field-initializers -Wno-tautological-compare -Wno-sign-compare -Wno-varargs -ftrap-function=undefined_behavior_has_been_optimized_away_by_clang -D NO_MSABI_VA_FUNCS -D OC_TARGET_DEBUG=1 -D DISABLE_NEW_DEPRECATED_INTERFACES "-DANALYZER_UNREACHABLE=__builtin_unreachable" "-DANALYZER_NORETURN=__attribute__((noreturn))" -o /Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/Build/OpenCorePkg/DEBUG_XCODE5/X64/OpenCorePkg/Tests/ExternalUi/ExternalUi/OUTPUT/./ExternalUi.obj -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/OpenCorePkg/Tests/ExternalUi -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/Build/OpenCorePkg/DEBUG_XCODE5/X64/OpenCorePkg/Tests/ExternalUi/ExternalUi/DEBUG -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/OpenCorePkg -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/OpenCorePkg/Include -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/MdePkg -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/MdePkg/Include -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/MdePkg/Include/X64 -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/MdeModulePkg -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/MdeModulePkg/Include -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/UefiCpuPkg -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/UefiCpuPkg/Include -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/EfiPkg -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/EfiPkg/Include -I/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/EfiPkg/Include/X64 /Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/OpenCorePkg/Tests/ExternalUi/ExternalUi.c build.py... : error 7000: Failed to execute command make tbuild [/Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/Build/OpenCorePkg/DEBUG_XCODE5/X64/OpenCorePkg/Application/NdkBootPicker/NdkBootPicker] build.py... : error F002: Failed to build module /Users/mathieu/Desktop/OpenCore-057/NdkBootPicker/UDK/OpenCorePkg/Application/NdkBootPicker/NdkBootPicker.inf [X64, XCODE5, DEBUG] - Failed - Build end time: 16:29:14, Mar.08 2020 Build total time: 00:00:08 Edited March 9, 2020 by Matgen84 2 Link to comment Share on other sites More sharing options...
steff89 Posted March 8, 2020 Share Posted March 8, 2020 Hey, could someone explain what "background_color.png" is actually doing? And why is it a greyscale image? Thanks a lot :) Link to comment Share on other sites More sharing options...
btwise Posted March 8, 2020 Share Posted March 8, 2020 33 minutes ago, steff89 said: Hey, could someone explain what "background_color.png" is actually doing? And why is it a greyscale image? Thanks a lot If you do not use a background image or cannot find a background image file, fill the entire background color with this pixel file 2 Link to comment Share on other sites More sharing options...
STLVNUB Posted March 8, 2020 Share Posted March 8, 2020 2 hours ago, btwise said: If you do not use a background image or cannot find a background image file, fill the entire background color with this pixel file As this pixel file is invisible, does that mean the gui will be as well, {censored} hope it doesn't spread to my system Link to comment Share on other sites More sharing options...
