hackinhacker Posted January 3, 2020 Share Posted January 3, 2020 50 minutes ago, AudioGod said: Here you go, Put your serial number details back in and Replace your EFI with this one. HackinHacker EFI.zip @hackinhacker make sure you fill in your MLB under RT Variables, its the same serial as your board serial number. Don't remove or Add any boot arguments or additional kexts, use the EFI just as I sent it to you. I did try with both HDMI and DisplayPort, it didn't work. thank you very much for your help but still no luck. Link to comment Share on other sites More sharing options...
AudioGod Posted January 3, 2020 Author Share Posted January 3, 2020 Just now, hackinhacker said: I did try with both HDMI and DisplayPort, it didn't work. thank you very much for your help but still no luck. Does it work in windows? it should work as it works over here with no trouble. Link to comment Share on other sites More sharing options...
hackinhacker Posted January 3, 2020 Share Posted January 3, 2020 10 minutes ago, AudioGod said: Does it work in windows? it should work as it works over here with no trouble. will do some more troubleshoot over the weekend and let you know. thanks much 1 Link to comment Share on other sites More sharing options...
i-am-the-slime Posted January 3, 2020 Share Posted January 3, 2020 @AudioGod (Continuing here, thanks for your help so far!) By patching properly with hackintool, do you just mean to persist the "Inject Intel" to config.plist Instead of having to specify it on every boot? Or do you mean a different setting? Link to comment Share on other sites More sharing options...
AudioGod Posted January 3, 2020 Author Share Posted January 3, 2020 2 minutes ago, i-am-the-slime said: @AudioGod (Continuing here, thanks for your help so far!) By patching properly with hackintool, do you just mean to persist the "Inject Intel" to config.plist Instead of having to specify it on every boot? Or do you mean a different setting? No it’s to patch the clover config to use whatevergreen with just the igpu try the easy way again now your using the correct EFI Link to comment Share on other sites More sharing options...
i-am-the-slime Posted January 3, 2020 Share Posted January 3, 2020 @AudioGod Just did, with the same result. I just got myself Hackintool, I don't get how I can really "open" something with it. I tried opening config.plist but it still shows the info of the (real) Mac I'm running it on. Link to comment Share on other sites More sharing options...
AudioGod Posted January 3, 2020 Author Share Posted January 3, 2020 (edited) @i-am-the-slime Google search an idiots guide to Lilu and it’s plugins and it will link you to the other place where you can learn with ease how to patch clover for your igpu. Edited January 3, 2020 by AudioGod Link to comment Share on other sites More sharing options...
i-am-the-slime Posted January 3, 2020 Share Posted January 3, 2020 @AudioGod Okay, yes, I just did and it literally says it's a post-install tool. I suppose I shouldn't use your EFI folder just to install macOS in the first place, then? Link to comment Share on other sites More sharing options...
AudioGod Posted January 3, 2020 Author Share Posted January 3, 2020 (edited) 1 minute ago, i-am-the-slime said: @AudioGod Okay, yes, I just did and it literally says it's a post-install tool. I suppose I shouldn't use your EFI folder just to install macOS in the first place, then? Yes you can can use it pre and post install no problems there. your only going to use hackintool to add some lines to your clover config and nothing more so you can do it from within a real Mac no problem. Read up on how to do it where I pointed you too and give it a go. Edited January 3, 2020 by AudioGod Link to comment Share on other sites More sharing options...
tasc Posted January 3, 2020 Share Posted January 3, 2020 1 hour ago, AudioGod said: Alternative EFI - N-D-K Fork of OpenCore (03/01/2020) NDK OpenCore Z390 Pro Navi Vega EFI.zip - Vega 56/64 Navi (5700/5700XT) & Radeon VII DSDT NDK OpenCore Z390 Pro RX Polaris EFI.zip - RX Polaris Series DSDT Great to see an OpenCore variation of the EFI. From my little reading about OpenCore, I've seen people saying it doesn't play nice with dual boot Mac/Windows systems. Is this still the case? Link to comment Share on other sites More sharing options...
AudioGod Posted January 3, 2020 Author Share Posted January 3, 2020 (edited) 6 minutes ago, tasc said: Great to see an OpenCore variation of the EFI. From my little reading about OpenCore, I've seen people saying it doesn't play nice with dual boot Mac/Windows systems. Is this still the case? that’s absolutely correct buddy, it’s horrid alongside windows but fear not as for this very reason we used a forked version of OpenCore done by N-D-K and he has made it so the dsdt and ssdt and any other system changes are not used when booting into any other OS other then Catalina (MacOS) so this version is completely fine to use with windows it’s actually all there in the notes for OpenCore about the fork and windows buddy. Edited January 3, 2020 by AudioGod 1 Link to comment Share on other sites More sharing options...
AudioGod Posted January 3, 2020 Author Share Posted January 3, 2020 (edited) On 12/31/2019 at 4:05 PM, pkdesign said: Nice! Works fine. Just a couple of extra ports listed and my USBPorts kexts had them identified as internal or type C but other than that this works! BTW, do you have an OC guide somewhere? @pkdesign A forked version of OpenCore done by N-D-K is now live on the thread. Check the first post on this page or its on the main guide and You can find info on it there too. Edited January 3, 2020 by AudioGod Link to comment Share on other sites More sharing options...

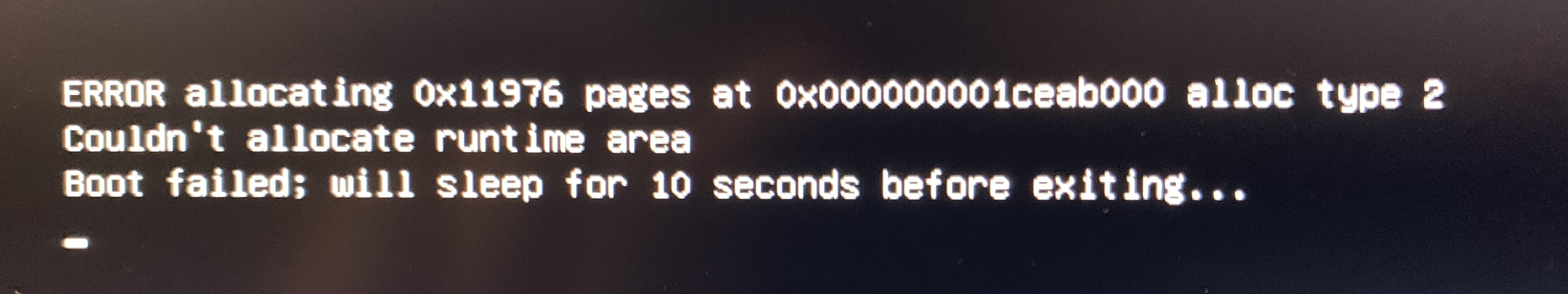

velopitex Posted January 3, 2020 Share Posted January 3, 2020 Hi AudioGod, Still have a same problem Works fine ONLY first boot after bios cleaning via your great guide (using Updated 17/12/2019) and all others boot have an error (see screenshot please) why it happened I don't understanding anymore. Link to comment Share on other sites More sharing options...
AudioGod Posted January 3, 2020 Author Share Posted January 3, 2020 (edited) 3 minutes ago, velopitex said: Hi AudioGod, Still have a same problem Works fine ONLY first boot after bios cleaning via your great guide (using Updated 17/12/2019) and all others boot have an error (see screenshot please) why it happened I don't understanding anymore. are you removing the power from the mains and then removing the battery from the motherboard for a few minutes to reset the bios fully? you can also try reducing the Igpu memory from 64mb down too 32mb but do the bios reset properly first. if it’s still happening after that then something is wrong with your system. Your welcome to send me your EFI to look at if you have made changes to it? also if you don’t care about Sidecar then you can try switching the smbios to 1,1 and disable the igpu in the bios. if it’s still happening after that then 100% something else must be causing it. are you using my bios settings and the MSR unlocked profile? Edited January 3, 2020 by AudioGod Link to comment Share on other sites More sharing options...
gabe.p Posted January 3, 2020 Share Posted January 3, 2020 (edited) @AudioGod the opencore variant can't open config.plist with Xcode or propertree says invalid file in Xcode and mismatched tag on propertree any recommendations? Edited January 3, 2020 by gabe.p Link to comment Share on other sites More sharing options...
velopitex Posted January 3, 2020 Share Posted January 3, 2020 13 minutes ago, AudioGod said: are you removing the power from the mains and then removing the battery from the motherboard for a few minutes to reset the bios fully? you can also try reducing the Igpu memory from 64mb down too 32mb but do the bios reset properly first. if it’s still happening after that then something is wrong with your system. Your welcome to send me your EFI to look at if you have made changes to it? also if you don’t care about Sidecar then you can try switching the smbios to 1,1 and disable the igpu in the bios. if it’s still happening after that then 100% something else must be causing it. are you using my bios settings and the MSR unlocked profile? Yes. Using all step-by-step in you guide. When I replaced the OcQuirks & FwRuntimeServices with old OsxAptioFix2Drv-free2000.efi it boots again as normal, but why? Why new drivers did not work with my system. But first boot works with the OcQuirks & FwRuntimeServices fine. P.S. I using my previous Rt Variables for registered audio soft to continue working license for this. I mean this RT Variables: - Product Name: iMac19,1 - SmUUID: my old - MLB: my old - ROM: my old Link to comment Share on other sites More sharing options...
AudioGod Posted January 3, 2020 Author Share Posted January 3, 2020 8 minutes ago, gabe.p said: @AudioGod the opencore variant can't open config.plist with Xcode or propertree says invalid file in Xcode and mismatched tag on propertree any recommendations? @texem Link to comment Share on other sites More sharing options...
AudioGod Posted January 3, 2020 Author Share Posted January 3, 2020 (edited) 37 minutes ago, velopitex said: Yes. Using all step-by-step in you guide. When I replaced the OcQuirks & FwRuntimeServices with old OsxAptioFix2Drv-free2000.efi it boots again as normal, but why? Why new drivers did not work with my system. But first boot works with the OcQuirks & FwRuntimeServices fine. P.S. I using my previous Rt Variables for registered audio soft to continue working license for this. I mean this RT Variables: - Product Name: iMac19,1 - SmUUID: my old - MLB: my old - ROM: my old Try the other options I gave you and see what if any farm it down. 41 minutes ago, gabe.p said: @AudioGod the opencore variant can't open config.plist with Xcode or propertree says invalid file in Xcode and mismatched tag on propertree any recommendations? use OpenCore configurator or Plist to edit it pal. OpenCore Configurator.zip Edited January 3, 2020 by AudioGod Link to comment Share on other sites More sharing options...
i-am-the-slime Posted January 3, 2020 Share Posted January 3, 2020 @AudioGod Hey! It's me again. I had a look and tried a few patches (Disable egpu, use intel hdmi) to no avail. But then I tried something else: Put the USB stick in a different port. And now I get "unsupported speed mantissa" a few times before a dreaded crossed out O. I'm not sure if this is progress or not, but I thought I'd let you know in case you have some idea. Link to comment Share on other sites More sharing options...
AudioGod Posted January 3, 2020 Author Share Posted January 3, 2020 Just now, i-am-the-slime said: @AudioGod Hey! It's me again. I had a look and tried a few patches (Disable egpu, use intel hdmi) to no avail. But then I tried something else: Put the USB stick in a different port. And now I get "unsupported speed mantissa" a few times before a dreaded crossed out O. I'm not sure if this is progress or not, but I thought I'd let you know in case you have some idea. Click on the link and put in a dsdt request with MaLd0n and he will create a EFI for you that's perfect for your needs. To Create Your Own Patched DSDT Message @MaLd0n using the link bellow https://olarila.com/forum/viewtopic.php?f=19&t=1131 (If you want a perfect setup then getting your own patched DSDT made would be the best thing to do, Mine will work perfectly fine but different hardware no matter how small a change it is can tend to have some sort of effect on the DSDT and your setup) Link to comment Share on other sites More sharing options...
texem Posted January 3, 2020 Share Posted January 3, 2020 (edited) 17 minutes ago, AudioGod said: Try the other options I gave you and see what if any farm it down. use OpenCore configurator or Plist to edit it pal. OpenCore Configurator.zip no no no, do not use OpenCore Configurator . It's incomplete and beta If you cannot configure config.plist use Textedit or BBEdit from AppStore, it's for free In both EFI versions the config.plist is a typo in line 468 which prevents opening with PLISTedit pro etc <string>YOUR-SERIAL</string> Edited January 3, 2020 by texem Link to comment Share on other sites More sharing options...
AudioGod Posted January 3, 2020 Author Share Posted January 3, 2020 (edited) 49 minutes ago, velopitex said: Yes. Using all step-by-step in you guide. When I replaced the OcQuirks & FwRuntimeServices with old OsxAptioFix2Drv-free2000.efi it boots again as normal, but why? Why new drivers did not work with my system. But first boot works with the OcQuirks & FwRuntimeServices fine. P.S. I using my previous Rt Variables for registered audio soft to continue working license for this. I mean this RT Variables: - Product Name: iMac19,1 - SmUUID: my old - MLB: my old - ROM: my old Send me your EFI Buddy so I can take a look and make some changes to it? 4 minutes ago, texem said: no no no, do not use OpenCore Configurator . It's incomplete and beta If you cannot configure config.plist use Textedit or BBEdit from AppStore, it's for free @texem its ok now, they fixed the bugs a few revisions ago. I have been using it for a bit now with no more problems Edited January 3, 2020 by AudioGod Link to comment Share on other sites More sharing options...
AudioGod Posted January 3, 2020 Author Share Posted January 3, 2020 (edited) @velopitex Here you go pal, Replace with this EFI and put your details back and let me know if this solves it for you? if you get any more errors after using this EFI then raise the igpu memory to 512mb Edited January 4, 2020 by AudioGod Link to comment Share on other sites More sharing options...
texem Posted January 3, 2020 Share Posted January 3, 2020 1 hour ago, gabe.p said: @AudioGod the opencore variant can't open config.plist with Xcode or propertree says invalid file in Xcode and mismatched tag on propertree any recommendations? Download again please, @AudioGod re-uploaded the fixed archives. 1 Link to comment Share on other sites More sharing options...
gabe.p Posted January 3, 2020 Share Posted January 3, 2020 3 minutes ago, texem said: Download again please, @AudioGod re-uploaded the fixed archives. Thanks found the problem was missing < in </string> 2 Link to comment Share on other sites More sharing options...
