AudioGod's Aorus Z390 Pro Patched DSDT Mini Guide and Discussion

AudioGod

By AudioGod,
in Installation Guides

 Share
5,966 posts in this topic

Recommended Posts

AudioGod
AudioGod
Posted
  • Author
Posted
34 minutes ago, WizeMan said:

One question related to what @lanparty35 asked. On the config.plist on the provided iMac19,1 EFI I do not see and headless setup for internal graphics on devices. But Hackintool reports it correctly as headless (with the normal setup using a dGPU). Is that done via the DSDT?


yes indeed it is :)

  • Like 1
Link to comment
Share on other sites
Yayiin
Yayiin
Posted
Posted (edited)

Hi mate!



Everything goes right in the installation.. but, now, I was using Catalina, installing apps, etc. But I don't know why, now I can't run hackintosh.



ERROR allocation 0x11968 pages at 0x0000000006edf000 alloc type 2
Couldn't allocate runtime area
Bott failed; will sleep for 10 seconds before exiting...



I was looking in this post and other sites in Google, but I don't really see where is the problem. Did you faced with this?

Edited by microsoftFTW
Link to comment
Share on other sites
AudioGod
AudioGod
Posted
  • Author
Posted (edited)
3 minutes ago, microsoftFTW said:

Hi mate!



Everything goes right in the installation.. but, now, I was using Catalina, installing apps, etc. But I don't know why, now I can't run hackintosh.



ERROR allocation 0x11968 pages at 0x0000000006edf000 alloc type 2
Couldn't allocate runtime area
Bott failed; will sleep for 10 seconds before exiting...



I was looking the post that you shared to me and other sites in Google, but I don't really see where is the problem. Did you faced with this?


It’s failed to allocate memory to your nvram,

simple one off fix is to save your bios as a profile and then pull the power from the mains and remove the battery from the motherboard for a couple of minutes then put it all back and load back your settings in the bios and away you go.



silly question but I must ask, also have you copied the EFI into the main drives EFI Partition?



Edited by AudioGod
Link to comment
Share on other sites
Yayiin
Yayiin
Posted
Posted
6 minutes ago, AudioGod said:


It’s failed to allocate memory to your nvram,

simple one off fix is to save your bios as a profile and then pull the power from the mains and remove the battery from the motherboard for a couple of minutes then put it all back and load back your settings in the bios and away you go.



silly question but I must ask, also have you copied the EFI into the main drives EFI Partition?





Working! thanks again, you are my savior! haha



Yes! I copied the exactly same EFI than I used in USB into internal system drive.

  • Like 1
Link to comment
Share on other sites
Ralle
Ralle
Posted
Posted

I think its time to say thank you AudioGod...



I bought the Aorus Z390 pro, the 9900k an the rx5700xt because of your tutorial. I have to admit, that I had hard times with the 1,1 smbios. I have another Hack with Mojave running so I forgot about the Catalina project because I need a stable system for my work. When I saw your new 19,1 EFI I gave it another shot. Now my MacPro-Killer-Hackintosh is working like charm. Still waiting for all my vsts to work, but that's no hack problem, but Catalina.

So now I have a stable Mojave and a stable Catalina build. As soon as all my vsts run proper I will switch complete to Catalina. Until then I let them run side by side.



Again thanks a lot bro, couldn't have done it without your great help. Also thanks to all other members of this forum. Great community :)



Cheers... ;)



Sorry for my bad English





  • Like 1
Link to comment
Share on other sites
AudioGod
AudioGod
Posted
  • Author
Posted
3 minutes ago, Ralle said:

I think its time to say thank you AudioGod...



I bought the Aorus Z390 pro, the 9900k an the rx5700xt because of your tutorial. I have to admit, that I had hard times with the 1,1 smbios. I have another Hack with Mojave running so I forgot about the Catalina project because I need a stable system for my work. When I saw your new 19,1 EFI I gave it another shot. Now my MacPro-Killer-Hackintosh is working like charm. Still waiting for all my vsts to work, but that's no hack problem, but Catalina.

So now I have a stable Mojave and a stable Catalina build. As soon as all my vsts run proper I will switch complete to Catalina. Until then I let them run side by side.



Again thanks a lot bro, couldn't have done it without your great help. Also thanks to all other members of this forum. Great community :)



Cheers... ;)



Sorry for my bad English






what vst’s are broken for you still?

just curious really buddy, I have a full house with mine all working correctly.

also smbios 1,1 does work perfectly fine as well as 19,1. Infact I personally use 1,1 on my own system as I do not like having my igpu enabled at all but 19,1 is the correct smbios to b using. :)

Link to comment
Share on other sites
Ralle
Ralle
Posted
Posted
2 minutes ago, AudioGod said:


what vst’s are broken for you still?

just curious really buddy, I have a full house with mine all working correctly.

also smbios 1,1 does work perfectly fine as well as 19,1. Infact I personally use 1,1 on my own system as I do not like having my igpu enabled at all but 19,1 is the correct smbios to b using. :)

Last time I checked I had big problems with Komplete 11 and with Ozone 9 also waves was a problem. Didn't install any vsts jet, because I just installed Catalina today. I will install them when I have vacation in January. Does Logic Pro X already work?

Link to comment
Share on other sites
AudioGod
AudioGod
Posted
  • Author
Posted
Just now, Ralle said:

Last time I checked I had big problems with Komplete 11 and with Ozone 9 also waves was a problem. Didn't install any vsts jet, because I just installed Catalina today. I will install them when I have vacation in January. Does Logic Pro X already work?

I’m using both buddy with logic x, Cubase and wavelab. Fully functional :thumbsup_anim:

Link to comment
Share on other sites
AudioGod
AudioGod
Posted
  • Author
Posted (edited)
4 minutes ago, Ralle said:

Great news :)  I will install as soon as I have time. Have some work to do first... B)



Here you go,

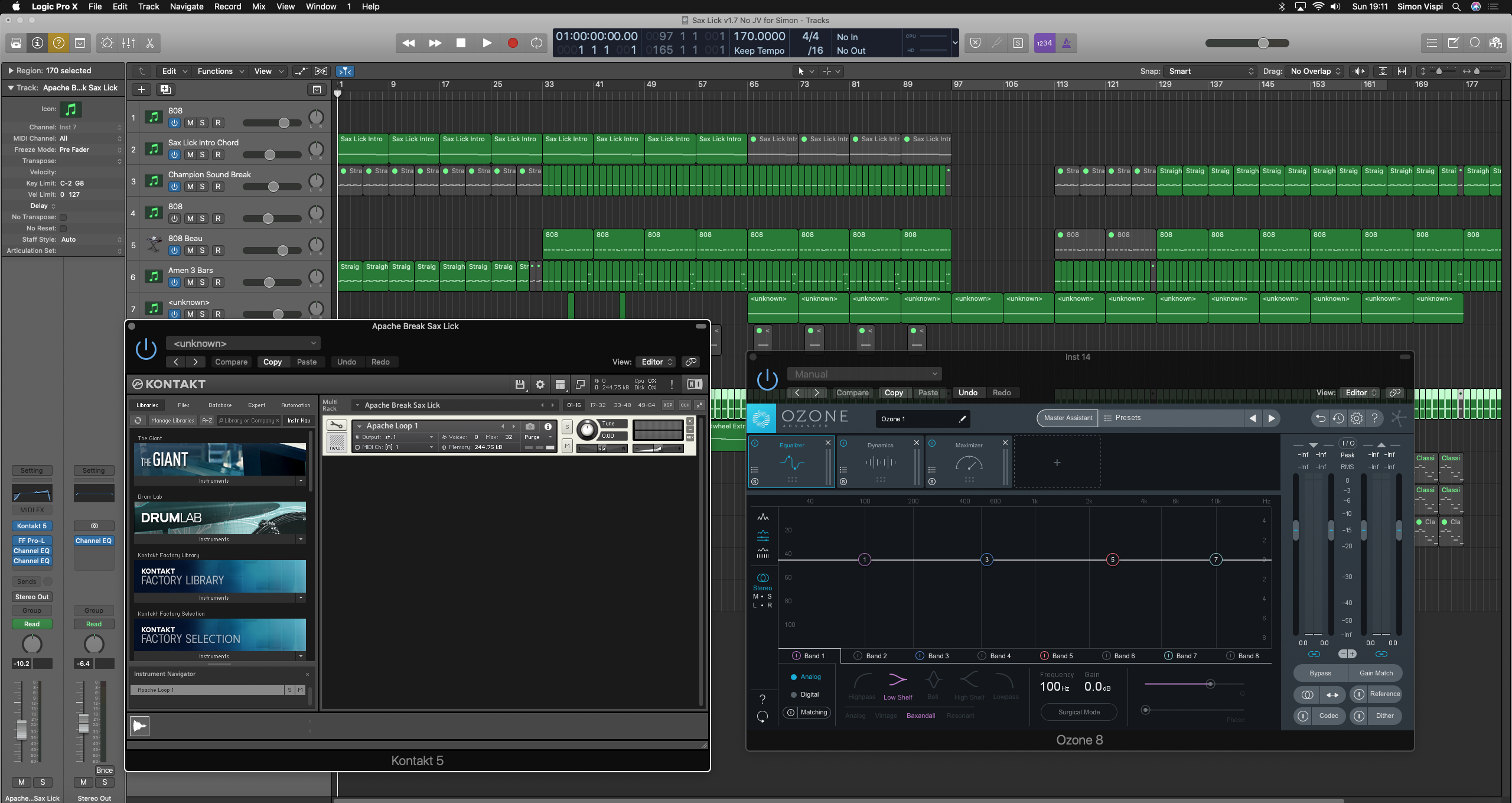

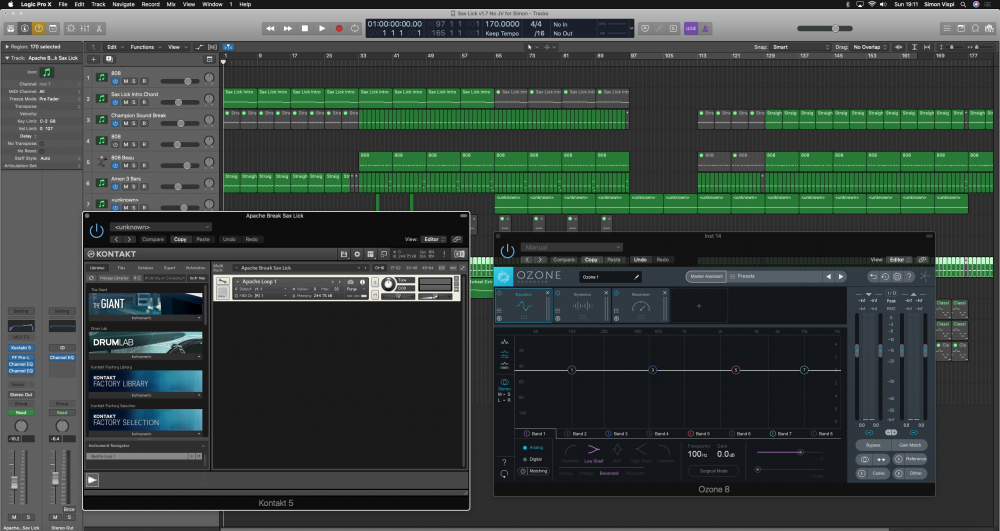

Ozone and Kontakt via Komplete in Logic. You can't get more conclusive then that B)



2081888698_Screenshot2019-12-29at19_11_38.thumb.png.6bf31ef09965cf4ff6795f0f7d5cdb4d.png

Edited by AudioGod
Link to comment
Share on other sites
Yayiin
Yayiin
Posted
Posted

Sorry, I hope this is my last question xD



But I can't boot my Windows partition because doesn't appear in clover, neither in my boot options in my BIOS. It is weird because when I remove the MB battery, all the boot options appears, but then, disappear xD



I tried to add in config.plist > GUI > Custom Entries my windows ssd, but nothing changed.



Again... any solutions? :(

Link to comment
Share on other sites
AudioGod
AudioGod
Posted
  • Author
Posted (edited)
1 hour ago, microsoftFTW said:

Sorry, I hope this is my last question xD



But I can't boot my Windows partition because doesn't appear in clover, neither in my boot options in my BIOS. It is weird because when I remove the MB battery, all the boot options appears, but then, disappear xD



I tried to add in config.plist > GUI > Custom Entries my windows ssd, but nothing changed.



Again... any solutions? :(


did you boot windows as a non UEFI install?

you can find out by enabling CSM Support and if it reappears then that’s the problem and personally if that is the case then I would consider a fresh install of windows or converting it to a UEFI Partition.



https://www.windowscentral.com/how-convert-mbr-disk-gpt-move-bios-uefi-windows-10



Edited by AudioGod
Link to comment
Share on other sites
pkdesign
pkdesign
Posted
Posted

Wow. Just wow. :thumbsup_anim: I have been patiently waiting for a configuration that would allow me to continue using the iMac19,1 SMBios. Call me stubborn, but since the specs of my system are most closely matched to the that model, I wanted to use it. After all, that is why I bought the components I did.



Thank YOU @AudioGod for your latest release. It works (almost) perfectly for my set-up. It also has the benefit of finally allowing me to get rid of the OsxAptioFix2Drv-free2000.efi driver. Nothing, and I mean nothing, worked for me except that along with EmuVariableUefi.efi. So far my system is up and running well since I switched over on Saturday.

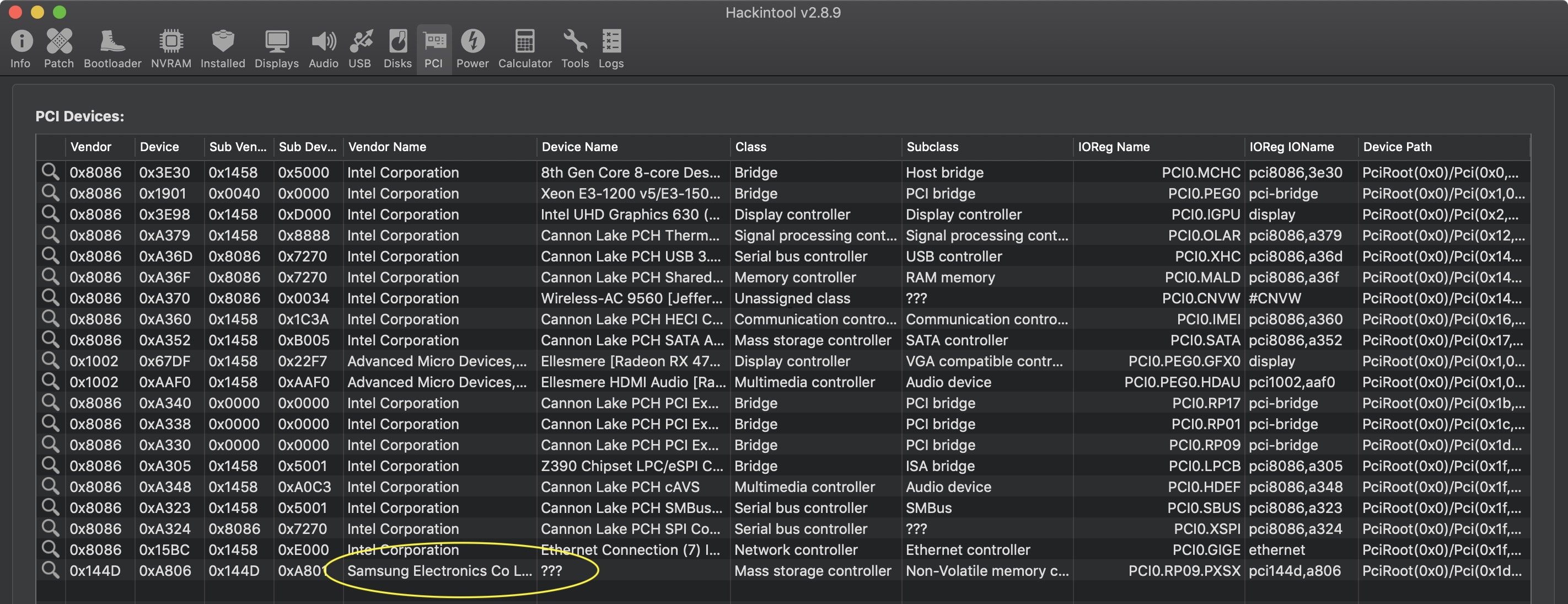

So far, the only thing that I see wrong is that the PCI device list shows my ADATA SX8200 Pro as a Samsung. This was showing up correctly with my older EFI:

980452974_ScreenShot2019-12-28at5_00_16PM.thumb.jpg.63e0eca14606f6d2cba40e51e5233f13.jpg



I was overclocking my system before and will have to go back to OCing once I give this a chance to see how well it works. I also want to try to get sleep working with my Corsair h115i Pro.



Thank you again hackintosh community!

Link to comment
Share on other sites
WizeMan
WizeMan
Posted
Posted (edited)
2 hours ago, AudioGod said:


...Infact I personally use 1,1 on my own system as I do not like having my igpu enabled at all but 19,1 is the correct smbios to b using. :)

 Do you happen to have 1,1 EFI with OcQuirks  & FwRuntimeServices but for RX 580 setup? :whistle:

Edited by WizeMan
Link to comment
Share on other sites
AudioGod
AudioGod
Posted
  • Author
Posted (edited)
35 minutes ago, WizeMan said:

 Do you happen to have 1,1 EFI with OcQuirks? :whistle:


Just change the smbios in the clover config buddy and put new details. No other changes other then disable igpu in bios. :thumbsup_anim:




35 minutes ago, pkdesign said:

Wow. Just wow. :thumbsup_anim: I have been patiently waiting for a configuration that would allow me to continue using the iMac19,1 SMBios. Call me stubborn, but since the specs of my system are most closely matched to the that model, I wanted to use it. After all, that is why I bought the components I did.



Thank YOU @AudioGod for your latest release. It works (almost) perfectly for my set-up. It also has the benefit of finally allowing me to get rid of the OsxAptioFix2Drv-free2000.efi driver. Nothing, and I mean nothing, worked for me except that along with EmuVariableUefi.efi. So far my system is up and running well since I switched over on Saturday.



So far, the only thing that I see wrong is that the PCI device list shows my ADATA SX8200 Pro as a Samsung. This was showing up correctly with my older EFI:

980452974_ScreenShot2019-12-28at5_00_16PM.thumb.jpg.63e0eca14606f6d2cba40e51e5233f13.jpg



I was overclocking my system before and will have to go back to OCing once I give this a chance to see how well it works. I also want to try to get sleep working with my Corsair h115i Pro.



Thank you again hackintosh community!


You need not worry about the pci device name being wrong as it’s purely aesthetic and has no effect or bearing on the system.
just enjoy buddy



best thing to do with the h115i is disconnect the usb connection from the motherboard as it does nothing what so ever in macOS and even in windows it’s only used to monitor stats and control it via icue

Edited by AudioGod
  • Thanks 1
Link to comment
Share on other sites
WizeMan
WizeMan
Posted
Posted (edited)
10 minutes ago, AudioGod said:


Just change the smbios in the clover config buddy and put new details. No other changes other then disable igpu in bios. :thumbsup_anim:


Awesome. Will do. But I have a question though, not to doubt you of course but I’m just trying to learn along:



Since the headless setup on the iMac19,1 EFI is based on the DSDT, won’t that be a conflict when I change the SMBIOS and turn off the IGPU? Nothing needs to be changed on the DSDT?



Again, I understand your time is valuable and not for answering probably stupid questions, but hey, this brotha is trying to learn :))

Edited by WizeMan
Link to comment
Share on other sites
AudioGod
AudioGod
Posted
  • Author
Posted (edited)
13 minutes ago, WizeMan said:


Awesome. Will do. But I have a question though, not to doubt you of course but I’m just trying to learn along:



Since the headless setup on the iMac19,1 EFI is based on the DSDT, won’t that be a conflict when I change the SMBIOS and turn off the IGPU? Nothing needs to be changed on the DSDT?



Again, I understand your time is valuable and not for answering probably stupid questions, but hey, this brotha is trying to learn :))


no it will not use it as it’s disabled in the bios.

its how I have always used my dsdt personally (1,1 with igpu disabled) and the dsdt is created from my build. The dsdt just gives the correct tables and device names etc etc but its not written in stone otherwise if it was then only people with my exact setup could use my EFIs :thumbsup_anim:

Edited by AudioGod
  • Like 1
Link to comment
Share on other sites
Bpars
Bpars
Posted
Posted (edited)

Wish I'd found this thread sooner - thanks for the amazing and ongoing effort, AudioGod!



I have a Z390 Aorus Ultra - not Pro like you - plus a 9900k and RX560. What would I need to do differently to use your build guide and EFI files with my Mobo? Different DSDT file specific to my Mobo?



I had used a different guide and everything mostly works except for shutdown/reboot/sleep just freeze/crash the system with a kernel panic, which worries me that other things might be wrong, so I'm thinking to re-do the whole install with your guide.

Edited by Bpars
  • Like 1
Link to comment
Share on other sites
AudioGod
AudioGod
Posted
  • Author
Posted
3 minutes ago, Bpars said:

Wish I'd found this thread sooner - thanks for the amazing and ongoing effort, AudioGod!



I have a Z390 Aorus Ultra - not Pro like you - plus a 9900k and RX560. What would I need to do differently to use your build guide and EFI files with my Mobo? Different DSDT file specific to my Mobo?



I used a different guide and everything kinda works except for shutdown/reboot/sleep just freeze/crash with a kernel panic, so I'm thinking to re-do the whole install with your guide once I know what to change for my Aorus Ultra Mobo.


Thank you buddy,

the Z390 Ultra isn’t a million miles apart from the pro but it does have differences so really the best thing you can do is ask MaLD0n to create you a DSDT specially for your board.
just follow the link below and put in a request with him and he will get back to you when he can. :)





To Create Your Own Patched DSDT Message @MaLd0n using the link bellow

https://olarila.com/forum/viewtopic.php?f=19&t=1131

(If you want a perfect setup then getting your own patched DSDT made would be the best thing to do, Mine will work perfectly fine but different hardware no matter how small a change it is can tend to have some sort of effect on the DSDT and your setup)

Link to comment
Share on other sites
tasc
tasc
Posted
Posted
22 hours ago, AudioGod said:



also smbios 1,1 does work perfectly fine as well as 19,1. Infact I personally use 1,1 on my own system as I do not like having my igpu enabled at all but 19,1 is the correct smbios to b using. :)



Here are some interesting notes on iMacPro1,1 vs iMac19,1. The one thing that caught my attention was around power management and CPU frequency scaling (doesn't seem to be natively supported on iMacPro for coffee lake):



https://www.reddit.com/r/hackintosh/comments/dwbncg/sidecar_and_smbios_imac191_vs_imacpro11/



Link to comment
Share on other sites
AudioGod
AudioGod
Posted
  • Author
Posted (edited)
8 minutes ago, tasc said:



Here are some interesting notes on iMacPro1,1 vs iMac19,1. The one thing that caught my attention was around power management and CPU frequency scaling (doesn't seem to be natively supported on iMacPro for coffee lake):



https://www.reddit.com/r/hackintosh/comments/dwbncg/sidecar_and_smbios_imac191_vs_imacpro11/



That’s true to a degree about that scaling but it’s only the lower end and not upper so really who cares?

honestly it doesn’t effect power draw bud.
it also a reason why when asked I always say 19,1 is the correct smbios to use.

Edited by AudioGod
Link to comment
Share on other sites
Yayiin
Yayiin
Posted
Posted
22 hours ago, AudioGod said:


did you boot windows as a non UEFI install?

you can find out by enabling CSM Support and if it reappears then that’s the problem and personally if that is the case then I would consider a fresh install of windows or converting it to a UEFI Partition.



https://www.windowscentral.com/how-convert-mbr-disk-gpt-move-bios-uefi-windows-10





Definitely, I dont really have luck xD



I format old windows drive to make a new Windows installation.. I try with multiple image (.iso) of windows 10. All of them say "A media driver your computer needs is missing. This could be a DVD, USB or Hard Disk driver...." I don't have more options to try xD



I did a usb boot from Catalina, using UNetbootin way and terminal way. Booting this usb with clover and without clover (f12)



What thing I am missing?

Link to comment
Share on other sites
AudioGod
AudioGod
Posted
  • Author
Posted
Just now, microsoftFTW said:



Definitely, I dont really have luck xD



I format old windows drive to make a new Windows installation.. I try with multiple image (.iso) of windows 10. All of them say "A media driver your computer needs is missing. This could be a DVD, USB or Hard Disk driver...." I don't have more options to try xD



I did a usb boot from Catalina, using UNetbootin way and terminal way. Booting this usb with clover and without clover (f12)



What thing I am missing?

To reboot windows disconnect the macOS ssd from the system while your installing windows.

do it with CSM mode disabled.

that should work for you.

let me know

Link to comment
