[Guide] HaC Mini - OSX Mojave on Intel Hades Canyon (NUC8i7HVK/NUC8i7HNK)


osy
 Share

229 posts in this topic

Recommended Posts



Do any of you still have these NUC models with ALC700 as codec??? I have a new layout to try 22 with this Kext.








AppleALC.Layout.22.kext.zip





This is how I found the nodes, obviously everything works on Windows, but on Linux the front jack doesn't work because it isn't mapped correctly. The Windows dump is the key.

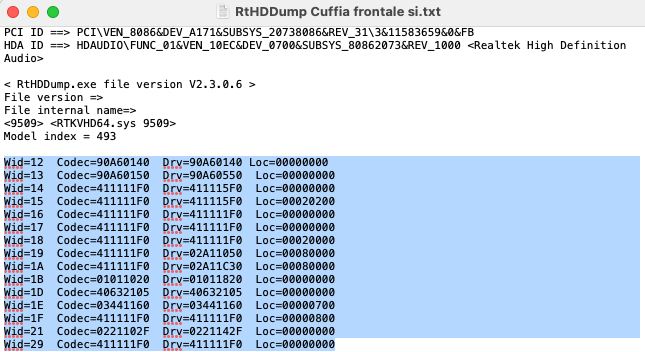

Wid=XX  Codec=Native codec nodes  Drv=Codec nodes after Windows Driver intervention





Screenshot 2024-04-24 alle 20.07.02.png

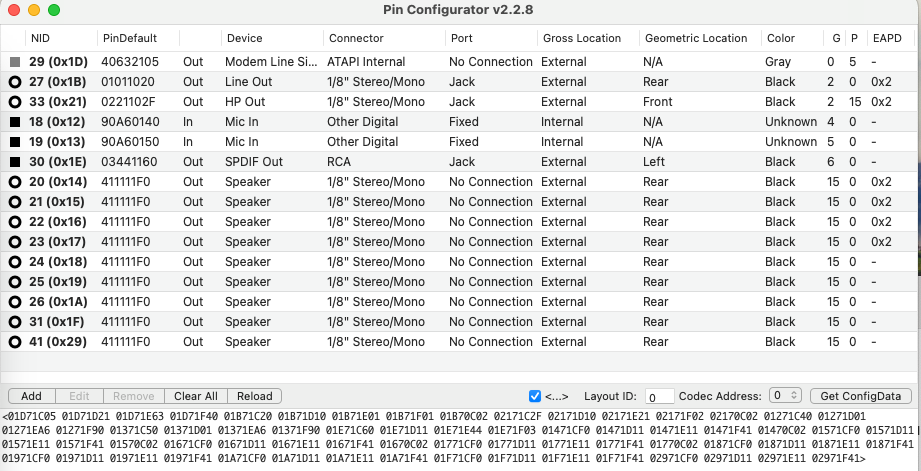

Dump Linux

Dump Linux.png

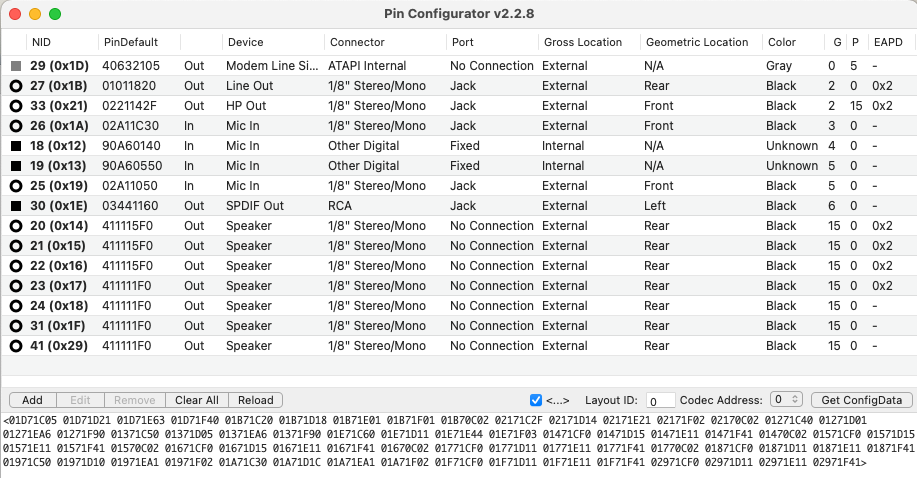

Dump Windows

Dump Windows.png





Edited by Baio77
  • Like 1
Link to comment
Share on other sites

  • 2 weeks later...
On 4/24/2024 at 11:32 PM, Baio77 said:



Do any of you still have these NUC models with ALC700 as codec??? I have a new layout to try 22 with this Kext.








AppleALC.Layout.22.kext.zip 63.68 kB · 1 download





This is how I found the nodes, obviously everything works on Windows, but on Linux the front jack doesn't work because it isn't mapped correctly. The Windows dump is the key.

Wid=XX  Codec=Native codec nodes  Drv=Codec nodes after Windows Driver intervention





Screenshot 2024-04-24 alle 20.07.02.png



Dump Linux

Dump Linux.png



Dump Windows

Dump Windows.png

yes i am using it

Thanks @Baio77
