asdesoso Posted August 1, 2019 Share Posted August 1, 2019 (edited) 5 minutes ago, chris1111 said: You said here all good for you no issue BETA 5 on your laptop Yes, in my laptop HP EliteBook I install the Beta 5 without any problem, but in the PC i5 4460 Desktop build it stucks in PCI configuration end, and I think changing EC0 to EC in DSDT Patches will solve the problem, but doesn´t seems to do anything. The strange thing is I could update from Beta 4 to Beta 5 in Desktop build, but after update it I can boot it. Thanks for your help. Best regards. Edited August 1, 2019 by asdesoso Link to comment Share on other sites More sharing options...
Guest ricoc90 Posted August 1, 2019 Share Posted August 1, 2019 (edited) 5 minutes ago, asdesoso said: Yes, in my laptop HP EliteBook I install the Beta 5 without any problem, but in the PC i5 4460 Desktop build it stucks in PCI configuration end, and I think changing EC0 to EC in DSDT Patches will solve the problem, but doesn´t seems to do anything. The strange thing is I could update from Beta 4 to Beta 5 in Desktop build, but after update it I can boot it. Thanks for your help. Best regards. Check your DSDT. Probably you need the H_EC to EC patch Edited August 1, 2019 by ricoc90 Link to comment Share on other sites More sharing options...
asdesoso Posted August 1, 2019 Share Posted August 1, 2019 1 minute ago, ricoc90 said: Check your DSDT. Probably you need the H_EC to EC patch I have put the H_EC to EC patch, EC0 to EC patch, and ECDV to EC patch, all in DSDT patches. Best regards. Link to comment Share on other sites More sharing options...
Guest ricoc90 Posted August 1, 2019 Share Posted August 1, 2019 3 minutes ago, asdesoso said: I have put the H_EC to EC patch, EC0 to EC patch, and ECDV to EC patch, all in DSDT patches. Best regards. Can you post your DSDT? Link to comment Share on other sites More sharing options...
asdesoso Posted August 1, 2019 Share Posted August 1, 2019 1 minute ago, ricoc90 said: Can you post your DSDT? I have put the values to replace it in config.plist via Clover Configurator > ACPI > DSDT Patches. I attached the config.plist here without Serial Number. Best regards. config.plist Link to comment Share on other sites More sharing options...
MaLd0n Posted August 1, 2019 Share Posted August 1, 2019 26 minutes ago, asdesoso said: I have put the values to replace it in config.plist via Clover Configurator > ACPI > DSDT Patches. I attached the config.plist here without Serial Number. Best regards. config.plist use only correct rename, only one, u need check ur tables or ioreg and rename only device with AppleACPIEC load 1 Link to comment Share on other sites More sharing options...
BALDY_MAN Posted August 1, 2019 Share Posted August 1, 2019 Update went well for me. I just needed to add ethernet again to net works settings and re boot 12 hours ago, Tony Arnold said: Those of you who are succeeding with this update - are you using Clover or OpenCore when you install the update? Ozmosis modded bios Link to comment Share on other sites More sharing options...
chris1111 Posted August 1, 2019 Share Posted August 1, 2019 Hi @MaLd0n do you have a patch.txt to do this rename AppleACPIE thanks again Link to comment Share on other sites More sharing options...
MaLd0n Posted August 1, 2019 Share Posted August 1, 2019 19 minutes ago, chris1111 said: Hi @MaLd0n do you have a patch.txt to do this rename AppleACPIE thanks again notebooks, this device have many entries in dsdt and dependencies with OEM SSDTs, let the bootloader work on it desktop, have only EC0 in some asus mobos and others, we can use it without any problem into_all device label EC0 set_label begin EC end 1 Link to comment Share on other sites More sharing options...
Joshua60 Posted August 1, 2019 Share Posted August 1, 2019 1 hour ago, asdesoso said: I have put the values to replace it in config.plist via Clover Configurator > ACPI > DSDT Patches. I attached the config.plist here without Serial Number. Best regards. config.plist try without -lilubeta and -alcbeta boot arguments 1 Link to comment Share on other sites More sharing options...

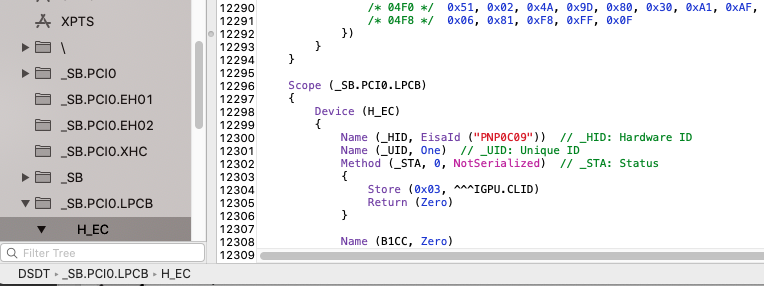

Guest ricoc90 Posted August 1, 2019 Share Posted August 1, 2019 (edited) 19 minutes ago, MaLd0n said: desktop, have only EC0 in some asus mobos and others, we can use it without any problem into_all device label EC0 set_label begin EC end my Dell Precision T1700 has H_EC, so for me that would be a problem Edited August 1, 2019 by ricoc90 Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted August 1, 2019 Share Posted August 1, 2019 6 minutes ago, ricoc90 said: my Dell Precision T1700 has H_EC, so for me that would be a problem No need to rename thing,, just add EC device if you don't have EC device in your system SSDT-EC.dsl from here https://github.com/acidanthera/OpenCorePkg/blob/master/Docs/AcpiSamples/SSDT-EC.dsl can be a sampel. If you used OpenCore bootloader then Renaming ACPI will affect in other OS too. Just add EC device with If _OSI method. No need combination of manual renaming, patch all OEM SSDT from Config.plist 1 Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted August 1, 2019 Share Posted August 1, 2019 (edited) Remove all patch about renaming acpi of EC or H_EC,, revert all ACPI renaming in ACPI DSDT, Just put this to EFI/CLOVER/ACPI/Patched or EFI/OC/ACPI. Problem will be solved,, with if _OSI of Darwin, then if you used OpenCore bootloader and boot to Windoes then EC device from this custom SSDT will not be loaded. So no worry. Renaming ACPI with OpenCore bootloader without if _OSI specific then it will appear in your device manager. I attached a sampel SSDT-ECUSBX.aml Edited August 1, 2019 by Andres ZeroCross 1 2 Link to comment Share on other sites More sharing options...
Guest ricoc90 Posted August 1, 2019 Share Posted August 1, 2019 2 minutes ago, Andres ZeroCross said: No need to rename thing,, just add EC device if you don't have EC device in your system SSDT-EC.dsl from here https://github.com/acidanthera/OpenCorePkg/blob/master/Docs/AcpiSamples/SSDT-EC.dsl can be a sampel. If you used OpenCore bootloader then Renaming ACPI will affect in other OS too. Just add EC device with If _OSI method. No need combination of manual renaming, patch all OEM SSDT from Config.plist I renamed H_EC to EC through the Clover patch mentioned by MaLd0n a couple of posts earlier. I was just mentioning that his patch.txt for maciasl won't work in my case (simply because mine is not EC0 but H_EC) 1 minute ago, Andres ZeroCross said: Remove all patch about renaming acpi of EC or H_EC,, revert all ACPI renaming in ACPI DSDT, Just put this to EFI/CLOVER/ACPI/Patched or EFI/OC/ACPI. Problem will be solved,, with if _OSI of Darwin, then if you used OpenCore bootloader EC device will not be loaded. So no worry. Renaming ACPI with OpenCore bootloader without if _OSI specific then it will appear in your device manager. SSDT-ECUSBX.aml I'l look into it later, thanks Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted August 1, 2019 Share Posted August 1, 2019 1 minute ago, ricoc90 said: I renamed H_EC to EC through the Clover patch mentioned by MaLd0n a couple of posts earlier. I was just mentioning that his patch.txt for maciasl won't work in my case (simply because mine is not EC0 but H_EC) No need to rename your DSDT device from Config.plist. Just use that SSDT. It will fix it Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted August 1, 2019 Share Posted August 1, 2019 51 minutes ago, chris1111 said: Hi @MaLd0n do you have a patch.txt to do this rename AppleACPIE thanks again Most of device has only EC0, H_EC or ECDV in DSDT only, but in certain device you will found those device in OEM SSDT too. Just renaming DSDT can cause trouble. if you rename this device from DSDT only, and if you have another H_EC/ECDV/EC0 ini other SSDT then you will need patch it from bootloader too. Simple thing just add EC device, no negative effect. Link to comment Share on other sites More sharing options...
MaLd0n Posted August 1, 2019 Share Posted August 1, 2019 if u have a native device why create other? is a non-sense way usbx is mandatory for skylake+, skylake- just need create or rename devices and kill EHCx devices, serie 8+ Link to comment Share on other sites More sharing options...
Dobry_Bodry Posted August 1, 2019 Share Posted August 1, 2019 (edited) Hello, mates! I have a problem updating to Catalina public beta 4. (currently i'm on beta 3, updated from latest Mojave) With verbose boot mode on, i'm stuck at "apfs module start 1682" message. Any suggestions? Thanks! Edited August 1, 2019 by Dobry_Bodry Link to comment Share on other sites More sharing options...
Guest ricoc90 Posted August 1, 2019 Share Posted August 1, 2019 Just now, Dobry_Bodry said: Hello, mates! I have a problem updating to Catalina public beta 4. With verbose boot mode on, i'm stuck at "apfs module start 1682" message. Any suggestions? Thanks! Look above Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted August 1, 2019 Share Posted August 1, 2019 2 minutes ago, Dobry_Bodry said: Hello, mates! I have a problem updating to Catalina public beta 4. (currently i'm on beta 3, updated from latest Mojave) With verbose boot mode on, i'm stuck at "apfs module start 1682" message. Any suggestions? Thanks! Try put that files in EFI/CLOVER/ACPI/patched,, reboot and check 1 Link to comment Share on other sites More sharing options...
Dobry_Bodry Posted August 1, 2019 Share Posted August 1, 2019 25 minutes ago, Andres ZeroCross said: Try put that files in EFI/CLOVER/ACPI/patched,, reboot and check I'm sorry, but i'm total noobie in ACPI and DSDT. What files i should move? Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted August 1, 2019 Share Posted August 1, 2019 1 minute ago, Dobry_Bodry said: I'm sorry, but i'm total noobie in ACPI and DSDT. What files i should move? This file SSDT-ECUSBX.aml.Put that file in EFI/CLOVER/ACPI/Patched. MOunt your EFI partition first Link to comment Share on other sites More sharing options...

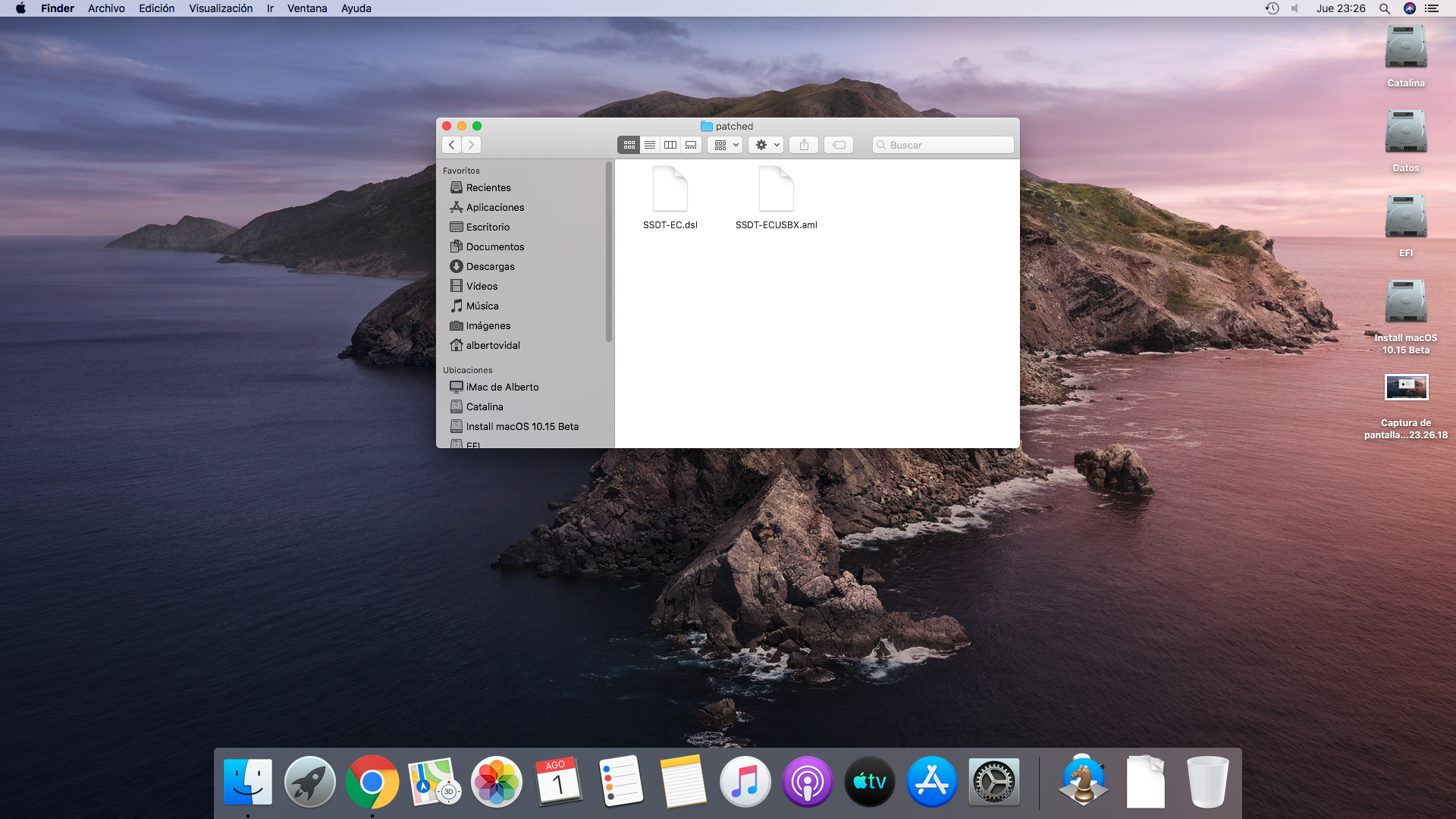

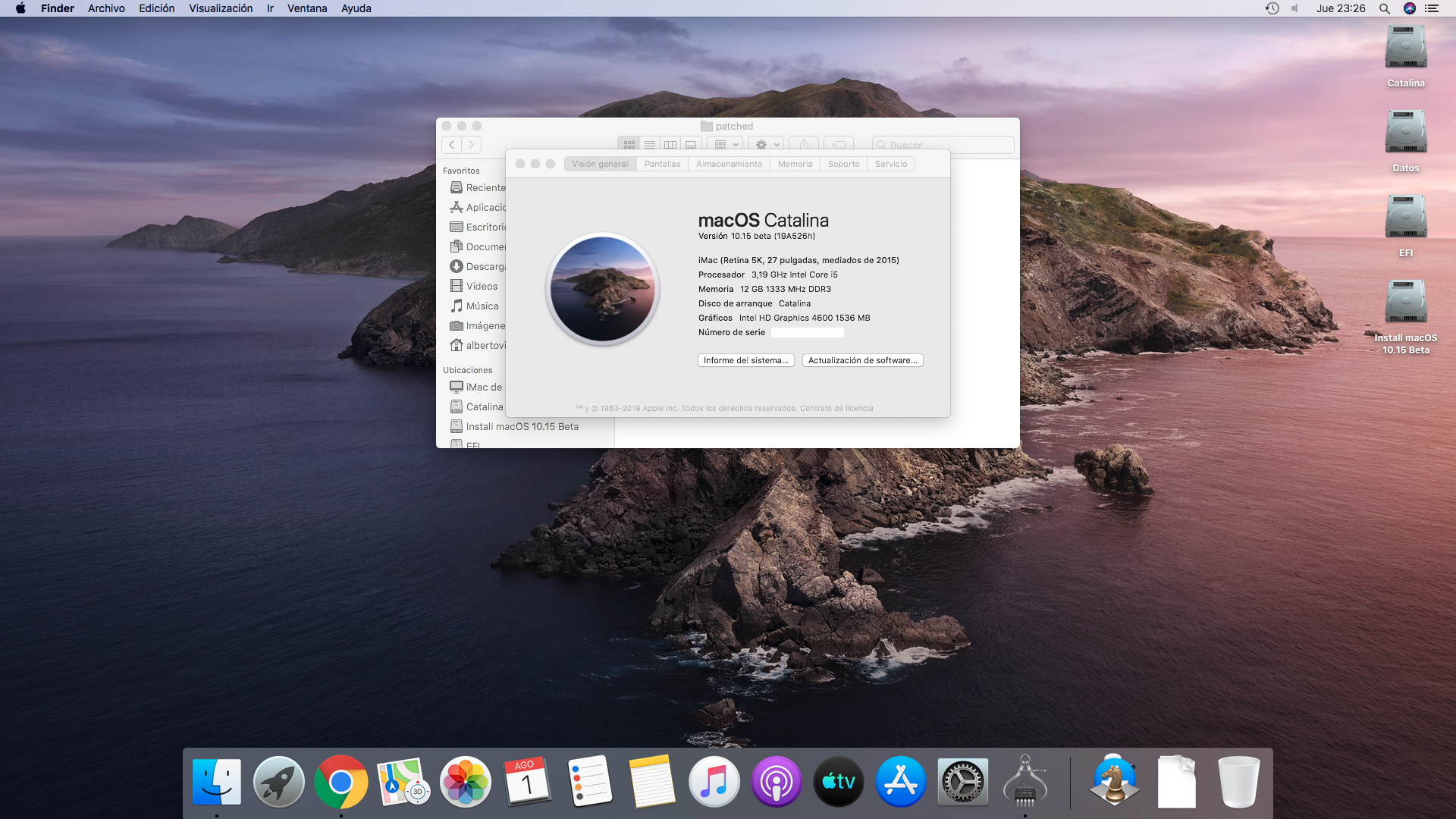

asdesoso Posted August 1, 2019 Share Posted August 1, 2019 1 hour ago, Andres ZeroCross said: Remove all patch about renaming acpi of EC or H_EC,, revert all ACPI renaming in ACPI DSDT, Just put this to EFI/CLOVER/ACPI/Patched or EFI/OC/ACPI. Problem will be solved,, with if _OSI of Darwin, then if you used OpenCore bootloader and boot to Windoes then EC device from this custom SSDT will not be loaded. So no worry. Renaming ACPI with OpenCore bootloader without if _OSI specific then it will appear in your device manager. I attached a sampel SSDT-ECUSBX.aml Copied the above .aml and previous .dst files to /EFI/CLOVER/ACPI/patched and finally my Desktop build with Catalina DP5 boot-up again. Thanks for all people that helped me. Here are some pictures. Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted August 1, 2019 Share Posted August 1, 2019 (edited) 1 minute ago, asdesoso said: Copied the above .aml and previous .dst files to /EFI/CLOVER/ACPI/patched and finally my Desktop build with Catalina DP5 boot-up again. Thanks for all people that helped me. Here are some pictures. Congratulations then Just remove SSDT-EC.dsl., you don't need DSL files ini ACPI It's not used Edited August 1, 2019 by Andres ZeroCross 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted August 1, 2019 Share Posted August 1, 2019 I did the cleaning bootloader issues, report to devs in apropriate topics 1 Link to comment Share on other sites More sharing options...
