[pre-release] macOS Catalina

[igorw]

1 hour ago, jsl2000 said:

In my Z97 hackintosh with RX 570 (disabled Intel HD 4600 by BIOS) only DP display and DP audio working.

It can sleep  in S3 mode and wake-up without black screen.

Try RadeonInit on and edit Device in Clover's config.plist too.





I tried RadeonDeinit, as well as changing numerous configurations, I can't get to the cause of this wake up issue. The problem persists if I disable iGPU in BIOS or set is as connectorless using device-id.



The only way I can get normal Wake is setting the iGPU as primary in BIOS. Then, onboard HDMI port works as well as all three RX 560 ports (DP, HDMI and DVI-D).



I'm just not sure if setting iGPU as primary is the right way to do it and if I'll have problems with apps later on.

[jsl2000]

On 7/20/2019 at 10:09 AM, igorw said:



I tried RadeonDeinit, as well as changing numerous configurations, I can't get to the cause of this wake up issue. The problem persists if I disable iGPU in BIOS or set is as connectorless using device-id.



The only way I can get normal Wake is setting the iGPU as primary in BIOS. Then, onboard HDMI port works as well as all three RX 560 ports (DP, HDMI and DVI-D).



I'm just not sure if setting iGPU as primary is the right way to do it and if I'll have problems with apps later on.

According to my past experience Mac need DP display to wake-up properly at Mojave and Catalina.

That means you need at least one DP display port working either from IGPU or from AMD GPU at Catalina.

[Edit]

Unless your hackintosh can wake-up properly by RadeonInit & Clover's patched config.plist from HDMI port at Mojave:

e.g. R9 380X in Z87 hackintosh and RX 560 in FX-6300 hackintosh.

Edited July 22, 2019 by jsl2000

[daniel_yplim]

after update beta 6, my wifi card cannot use.

what wifi card most suitable for catalina?

[sonicthehedgehog2]

8 minutes ago, daniel_yplim said:

after update beta 6, my wifi card cannot use.

what wifi card most suitable for catalina?

I'm using a Broadcom 4352 which is working great. I'm pretty sure my Broadcom 4360 will work fine too.



[chris1111]

The workaround for the CAPLOCKS Issue

See image

Setup the modification key



Now use this key for a CAP Letter





[Matgen84]

2 hours ago, daniel_yplim said:

after update beta 6, my wifi card cannot use.

what wifi card most suitable for catalina?



What wifi card? Please complete your signature.

[Pavo]

2 hours ago, daniel_yplim said:

after update beta 6, my wifi card cannot use.

what wifi card most suitable for catalina?

There is no beta 6 of Catalina, latest is beta 4.

[iCanaro]

1 hour ago, chris1111 said:

The workaround for the CAPLOCKS Issue

See image

Setup the modification key



Now use this key for a CAP Letter







disable num lock from BIOS

[luky35]

1 hour ago, chris1111 said:

The workaround for the CAPLOCKS Issue

See image

Setup the modification key



Now use this key for a CAP Letter





@chris1111



100 x thanks

Edited July 21, 2019 by luky35

[daniel_yplim]

i am using TP link TL-WN881ND

previously using kext from high-sierra, works fine in Mojave and beta 1, but now ti did not work.

maybe this will help me?



[Guest ricoc90]

49 minutes ago, daniel_yplim said:

i am using TP link TL-WN881ND

previously using kext from high-sierra, works fine in Mojave and beta 1, but now ti did not work.

maybe this will help me?

Yes. I have the same card in one of my hacks.

[igorw]

By the way, entering Time Machine on a multi-monitor setup is finally fixed in Catalina.

[Maf3r0]

seems that quicklook "bug" was fixed in Catalina -- at least worked here with no additional configuration

[The_Dave94]

I`m having trouble booting with clover versions newer than r496. The boot menu appears fine, but when i select my catalina drive to boot from it it just won`t and the computer restarts almost immediately. Any idea what might be the problem? r4961 boots just fine. I added my config just to be sure

config.plist

[igorw]

6 hours ago, The_Dave94 said:

I`m having trouble booting with clover versions newer than r496. The boot menu appears fine, but when i select my catalina drive to boot from it it just won`t and the computer restarts almost immediately. Any idea what might be the problem? r4961 boots just fine. I added my config just to be sure

config.plist



Seems like drivers missing. The new clover creates a "drivers" folder that doesn't load for me and causes the boot problem.



To solve it:

Go to the EFI where the new clover version is installed, remove the "drivers" folder

put your working drivers64 and drivers64UEFI folders into EFI\CLOVER

[Matgen84]

6 hours ago, The_Dave94 said:

I`m having trouble booting with clover versions newer than r496. The boot menu appears fine, but when i select my catalina drive to boot from it it just won`t and the computer restarts almost immediately. Any idea what might be the problem? r4961 boots just fine. I added my config just to be sure

config.plist



You could add debug=0x100 -v to boot-args. Update your kexts.



Post a screenshot if possible. And complete your signature.



Clover 2.5k don't load old directories such as drivers64 and drivers64UEFI as @Slice says





Edited July 25, 2019 by Matgen84

[The_Dave94]

2 hours ago, Matgen84 said:



You could add debug=0x100 -v to boot-args. Update your kexts.



Post a screenshot if possible. And complete your signature.



Clover 2.5k don't load old directories such as drivers64 and drivers64UEFI as @Slice says





After performing the steps of the post you linked it worked the second time. No idea why i didn`t the first time, but it doesn`t matter now

[Fergarth]

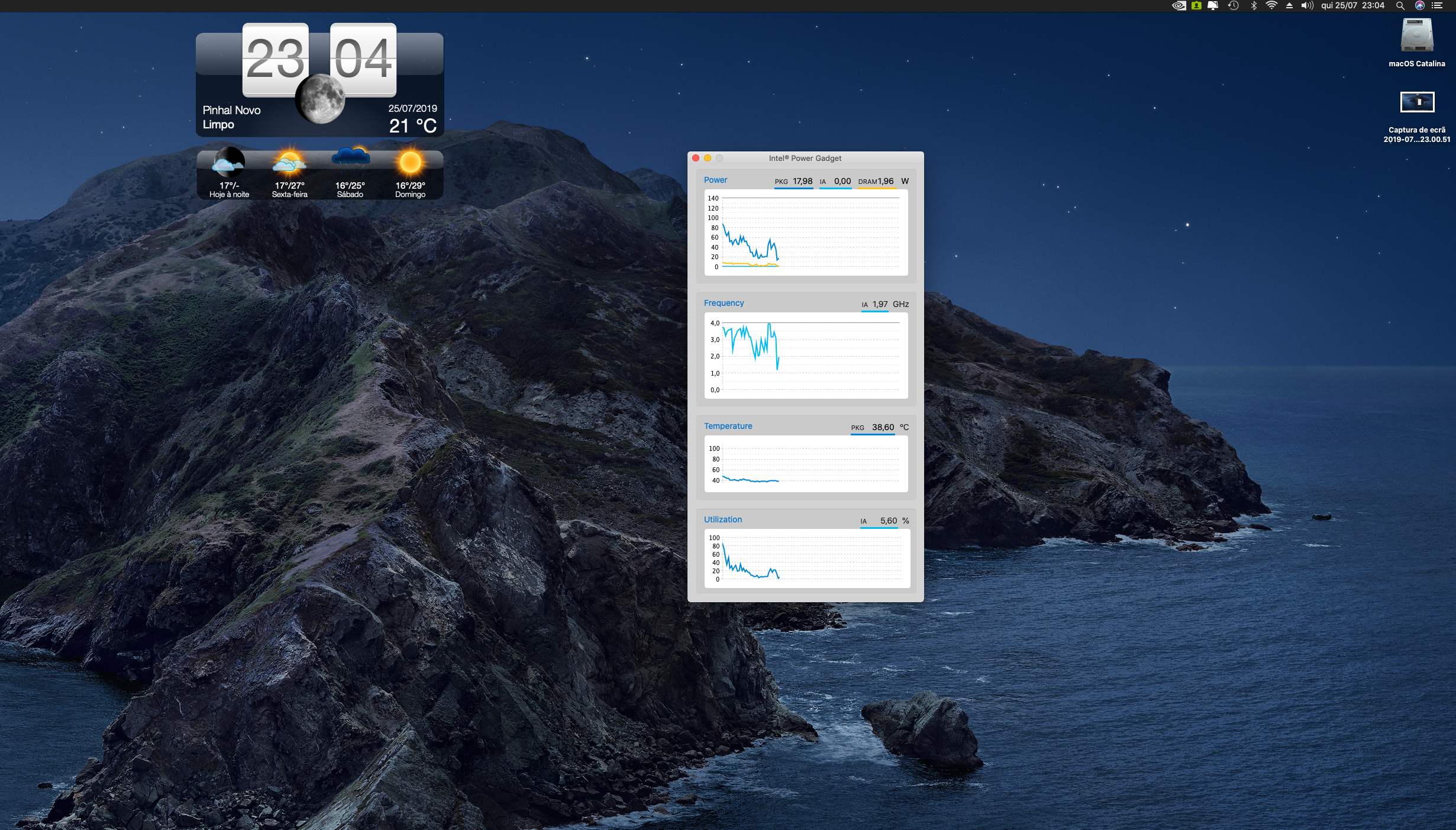

Update to macOS Catalina beta4 (19A512f) done...

[Andres ZeroCross]

For who get Kernel Panic / Freeze after Wake in Catalina (especially IGPU + Discrette GPU Computer), please try this



[Matgen84]

Hi Guys



I've got a black screen before apple logo/progress bar (verbose mode) on my Gigabyte Z390 Aorus Master config. No issue with Ivy config on Mojave.



Any idea. Please.

[igorw]

3 hours ago, Matgen84 said:

Hi Guys



I've got a black screen before apple logo/progress bar (verbose mode) on my Gigabyte Z390 Aorus Master config. No issue with Ivy config on Mojave.



Any idea. Please.



is Clover up to date? Are the filesystem drivers in EFI/drivers/UEFI ?

[Matgen84]

47 minutes ago, igorw said:



is Clover up to date? Are the filesystem drivers in EFI/drivers/UEFI ?



Yes they're both up to date.

[Andres ZeroCross]

9 minutes ago, Matgen84 said:



Yes they're both up to date.

Upload your CLOVER folder,, i will check it

[MaLd0n]

On 7/27/2019 at 5:38 AM, Andres ZeroCross said:

For who get Kernel Panic / Freeze after Wake in Catalina (especially IGPU + Discrette GPU Computer), please try this



the problem is just "hda-gfx", Buffer () {"onboard-x"}, inject simple _DSM without it

7 hours ago, Matgen84 said:

Hi Guys



I've got a black screen before apple logo/progress bar (verbose mode) on my Gigabyte Z390 Aorus Master config. No issue with Ivy config on Mojave.



Any idea. Please.

if u have a 2 seconds black screen and after it login screen appear without problem, just ignore, if u have infinite black screen just disable _csm

On 7/25/2019 at 7:57 PM, Fergarth said:

Update to macOS Catalina beta4 (19A512f) done...

=]

[Matgen84]

2 hours ago, Andres ZeroCross said:

Upload your CLOVER folder,, i will check it



Clover folder in attachement. Thanks





@MaLd0n says "if u have a 2 seconds black screen and after it login screen appear without problem, just ignore, if u have infinite black screen just disable _csm"



Apple says:

https://support.apple.com/en-mt/HT204156

CLOVER.zip
