Matgen84 Posted June 15, 2019 Share Posted June 15, 2019 12 minutes ago, gengik84 said: @Matgen84 have you tried the compiled version? You can find link at first post In case without -lilubetaall Thanks. I try latest WEG 1.3.0, without -lilubetaall. No succeed 1 Link to comment Share on other sites More sharing options...
JorgeMax Posted June 15, 2019 Share Posted June 15, 2019 Does anyone have the new "boot graphics glitch" patch? The former does not work in Catalina Thank you Link to comment Share on other sites More sharing options...
abdouoi Posted June 15, 2019 Share Posted June 15, 2019 12 minutes ago, chris1111 said: Please post complet EFI folder Thanks EFI.zip Link to comment Share on other sites More sharing options...
crazybirdy Posted June 15, 2019 Share Posted June 15, 2019 29 minutes ago, abdouoi said: Thanks EFI.zip Try this one added new KernelToPatch base on your config.plist. This KernelToPatch works fine here for kernel panic log disabled. config.plist.zip 2 1 Link to comment Share on other sites More sharing options...
chris1111 Posted June 15, 2019 Share Posted June 15, 2019 (edited) 1 hour ago, abdouoi said: Thanks EFI.zip For USB Install macOS Catalina 10.15 Replace EFI by the one ataching Boot ENTER that's it EFI.zip I forgot to add VoodooPS2Controller VoodooPS2Controller.kext.zip Edited June 15, 2019 by chris1111 VoodooPS2Controller 1 Link to comment Share on other sites More sharing options...
headkaze Posted June 15, 2019 Share Posted June 15, 2019 (edited) 8 hours ago, Sherlocks said: thanks a lot. you did place both kexts in other folder. was there no problem after wakeup? rehabman said that he recommend place both files in S/L/E to upload firmware. actually, i experienced fail upload firmware with other folder when wakeup I don't have any problems after wake. I need to power cycle my machine to clear the firmware on the BT hardware. I've always placed my BT kexts in EFI/CLOVER/kexts/Other. If you need to place them in L/E you need to use BrcmFirmwareRepo.kext instead of BrcmFirmwareData.kext. Looking at the source code to BrcmNonPatchRAM2.kext you can see it does not stay resident to re-upload during wake. Note in BrcmPatchRAM.h the following define: // 10.11 works better if probe simply exits after updating firmware #define NON_RESIDENT 1 So I'm using the same principle except instead of using IOCatalogue::addDrivers, IOCatalogue::removeDrivers and IOCatalogue::startMatching to switch out the drivers (which are not available in Catalina) I'm using BrcmBluetoothInjector.kext which will load the macOS drivers after the BrcmNonPatchRAM2.kext exits probe, returning NULL, which tells macOS to try a different driver. Edited June 15, 2019 by headkaze 1 Link to comment Share on other sites More sharing options...
abdouoi Posted June 15, 2019 Share Posted June 15, 2019 3 hours ago, crazybirdy said: Try this one added new KernelToPatch base on your config.plist. This KernelToPatch works fine here for kernel panic log disabled. config.plist.zip Now The kernel panic has changed 1 Link to comment Share on other sites More sharing options...
chris1111 Posted June 15, 2019 Share Posted June 15, 2019 (edited) 1 hour ago, abdouoi said: Now The kernel panic has changed you have change boot args probably the config.plist and I never put Brodcom kext for USB Installer So you have change the content of the EFI I told you boot enter, just add VoodooPS2Controller Edited June 15, 2019 by chris1111 Link to comment Share on other sites More sharing options...
abdouoi Posted June 15, 2019 Share Posted June 15, 2019 24 minutes ago, chris1111 said: you have change boot args probably the config.plist and I never put Brodcom kext for USB Installer So you have change the content of the EFI I told you boot enter, just add VoodooPS2Controller My problem is not with USB install. I already installed. It’s a boot issue Link to comment Share on other sites More sharing options...
chris1111 Posted June 15, 2019 Share Posted June 15, 2019 10 minutes ago, abdouoi said: My problem is not with USB install. I already installed. It’s a boot issue Use my EFI with a minimum of kext for make it boot Link to comment Share on other sites More sharing options...
abdouoi Posted June 15, 2019 Share Posted June 15, 2019 6 minutes ago, chris1111 said: Use my EFI with a minimum of kext for make it boot Issue solved with AirportBrcmFixup. Thanks 1 Link to comment Share on other sites More sharing options...
pcpaul Posted June 16, 2019 Share Posted June 16, 2019 So far all good here, straight upgrade from Mojave Link to comment Share on other sites More sharing options...
daniel_yplim Posted June 16, 2019 Share Posted June 16, 2019 Hi I still need to boot from installer USB, when I install clover bootloader to the SSD, it stops at CPU panic. Which clover version r u using? mine is v.4945 Link to comment Share on other sites More sharing options...
griven Posted June 16, 2019 Share Posted June 16, 2019 Has anyone found a new or usable patch for ICH10 Hotplugging issues in Catalina? It seems like the one used in Mojave Name Find Replace Comment MatchOS com.apple.driver.AppleAHCIPort 40600200 000000000 Patch Hotplug does not work anymore. Unfortunately my Thinkpad's Bios offers me no options to disable Hotplugging for the Ultrabay and without the patch Catalina is not able to use or see the Ultrabay. Link to comment Share on other sites More sharing options...
eSaF Posted June 16, 2019 Share Posted June 16, 2019 7 minutes ago, griven said: Has anyone found a new or usable patch for ICH10 Hotplugging issues in Catalina? It seems like the one used in Mojave Name Find Replace Comment MatchOS com.apple.driver.AppleAHCIPort 40600200 000000000 Patch Hotplug does not work anymore. Unfortunately my Thinkpad's Bios offers me no options to disable Hotplugging for the Ultrabay and without the patch Catalina is not able to use or see the Ultrabay. Unfortunately the patches (via Hackintool) that worked in Mojave does not work in Catalina, when applied it causes kp, but we must remember Catalina is still an early Beta so all hope is not lost Link to comment Share on other sites More sharing options...
TheMaciner Posted June 16, 2019 Share Posted June 16, 2019 1 hour ago, daniel_yplim said: Hi I still need to boot from installer USB, when I install clover bootloader to the SSD, it stops at CPU panic. Which clover version r u using? mine is v.4945 You could v.4961 give a try . At least it looks like all the others got it working then.... Link to comment Share on other sites More sharing options...
chris1111 Posted June 16, 2019 Share Posted June 16, 2019 38 minutes ago, griven said: Has anyone found a new or usable patch for ICH10 Hotplugging issues in Catalina? It seems like the one used in Mojave Name Find Replace Comment MatchOS com.apple.driver.AppleAHCIPort 40600200 000000000 Patch Hotplug does not work anymore. Unfortunately my Thinkpad's Bios offers me no options to disable Hotplugging for the Ultrabay and without the patch Catalina is not able to use or see the Ultrabay. Take a look here Link to comment Share on other sites More sharing options...
mick3lson Posted June 16, 2019 Share Posted June 16, 2019 There is any chance to change System logo in “About this Mac” I’ve tried with ThemeEngine editing asset.car but with Catalina don’t work, only on Mojave. Link to comment Share on other sites More sharing options...
Matgen84 Posted June 16, 2019 Share Posted June 16, 2019 Hi Has anyone found a new or usable patch for PCH 11 (Intel 11 series SATA, z390 mobo) Hot-Plug for Catalina (or Mojave)? Always WEG 1.3.0 panic Config i7 9700K Link to comment Share on other sites More sharing options...
griven Posted June 16, 2019 Share Posted June 16, 2019 @chris1111 unfortunately this one isn't working anymore. The "find" Term can not be found in Catalinas AHCIPort.kext I guess we need a new solution for Hotplug Issues in Catalina. 1 Link to comment Share on other sites More sharing options...
crazybirdy Posted June 16, 2019 Share Posted June 16, 2019 (edited) 1 hour ago, griven said: Has anyone found a new or usable patch for ICH10 Hotplugging issues in Catalina? It seems like the one used in Mojave Name Find Replace Comment MatchOS com.apple.driver.AppleAHCIPort 40600200 000000000 Patch Hotplug does not work anymore. Unfortunately my Thinkpad's Bios offers me no options to disable Hotplugging for the Ultrabay and without the patch Catalina is not able to use or see the Ultrabay. Did it work on Mojave? it should be 8 zero as 00000000, not 9 zero as your post. The Catalina patch code is the same as Mojave if not change too much. Find --> 40600200 Replace --> 00000000 Edited June 16, 2019 by crazybirdy 1 Link to comment Share on other sites More sharing options...
griven Posted June 16, 2019 Share Posted June 16, 2019 (edited) Well wow damn Typo... Sorry guys it's working as before if you get thinks right... So I can confirm that Name Find Replace Comment MatchOS com.apple.driver.AppleAHCIPort 40600200 00000000 Patch Hotplug with just 8 zeros it's working like a charm in Mojave and Catalina as well. Please forget about my stupid question Thanks to @crazybirdy for pointing me into the right direction. Edited June 16, 2019 by griven 1 Link to comment Share on other sites More sharing options...
eSaF Posted June 16, 2019 Share Posted June 16, 2019 12 minutes ago, griven said: Well wow damn Typo... Sorry guys it's working as before if you get thinks right... So I can confirm that Name Find Replace Comment MatchOS com.apple.driver.AppleAHCIPort 40600200 00000000 Patch Hotplug with just 8 zeros it's working like a charm in Mojave and Catalina as well. Please forget about my stupid question Thanks to @crazybirdy for pointing me into the right direction. Edited 10 minutes ago by griven Yep!!!!! - Can confirm it works, not only that for the first time correctly registering as external Drive - Thanks griven for the query and huge thanks to crazybirdy for the solution 1 1 Link to comment Share on other sites More sharing options...
daniel_yplim Posted June 16, 2019 Share Posted June 16, 2019 The clover bootloader is to install on catalina or catalina-data partition? Link to comment Share on other sites More sharing options...

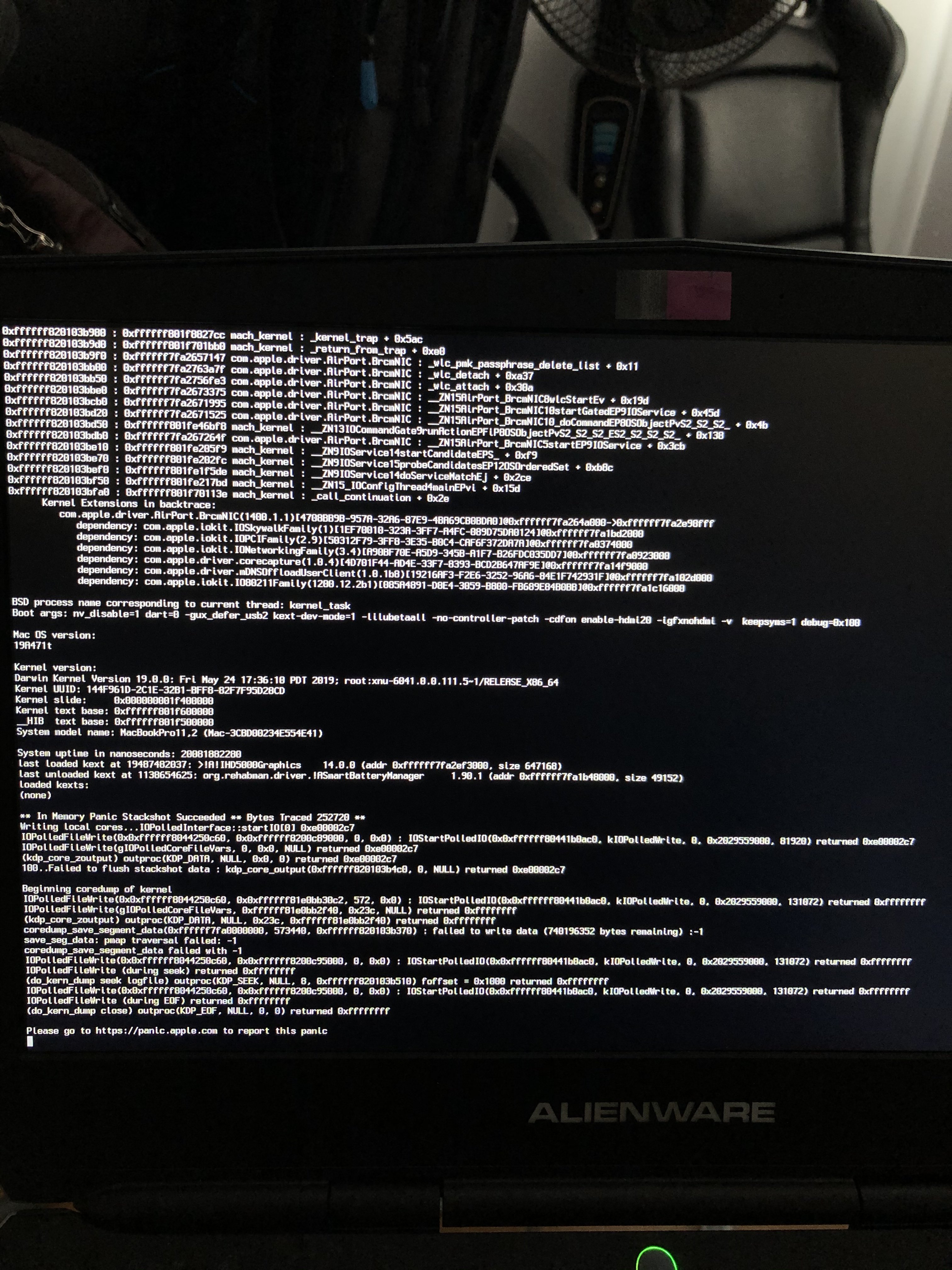

ITzTravelInTime Posted June 17, 2019 Share Posted June 17, 2019 5 hours ago, Jehoshua said: Can Install Catalina, no problem, but when I try to boot Catalina I get following error Anonymous UUID: 1285547D-16C1-1ECD-D513-E733CD7337C4 Sun Jun 16 07:37:02 2019 *** Panic Report *** panic(cpu 3 caller 0xffffff800c282aca): Kernel trap at 0xffffff7f8d0563d0, type 14=page fault, registers: CR0: 0x000000008001003b, CR2: 0x0000000000000000, CR3: 0x0000000022181000, CR4: 0x00000000003626e0 RAX: 0xffffff803cf71780, RBX: 0xffffff8207326000, RCX: 0xffffff803d8342f0, RDX: 0xffffff803d8342f0 RSP: 0xffffff81fb81bb80, RBP: 0xffffff81fb81bcb0, RSI: 0x0000000000000010, RDI: 0x0000000000000000 R8: 0x0000000029eae000, R9: 0x0000000000001000, R10: 0xffffff803d546eb0, R11: 0x0000000000000000 R12: 0xffffff800cc6b180, R13: 0xffffff800cc21730, R14: 0xffffff800cc20b70, R15: 0xffffff803d836c00 RFL: 0x0000000000010282, RIP: 0xffffff7f8d0563d0, CS: 0x0000000000000008, SS: 0x0000000000000000 Fault CR2: 0x0000000000000000, Error code: 0x0000000000000000, Fault CPU: 0x3, PL: 0, VF: 1 Backtrace (CPU 3), Frame : Return Address 0xffffff81fb81b5e0 : 0xffffff800c15b12b 0xffffff81fb81b630 : 0xffffff800c290a95 0xffffff81fb81b670 : 0xffffff800c28271b 0xffffff81fb81b6c0 : 0xffffff800c101bb0 0xffffff81fb81b6e0 : 0xffffff800c15a817 0xffffff81fb81b7e0 : 0xffffff800c15abf6 0xffffff81fb81b830 : 0xffffff800c8d2939 0xffffff81fb81b8a0 : 0xffffff800c282aca 0xffffff81fb81ba20 : 0xffffff800c2827cc 0xffffff81fb81ba70 : 0xffffff800c101bb0 0xffffff81fb81ba90 : 0xffffff7f8d0563d0 0xffffff81fb81bcb0 : 0xffffff7f8d05bd72 0xffffff81fb81bce0 : 0xffffff7f8d0367b6 0xffffff81fb81bd40 : 0xffffff7f8d056183 0xffffff81fb81bd60 : 0xffffff7f8d054fb4 0xffffff81fb81bda0 : 0xffffff7f8d054ae8 0xffffff81fb81bdd0 : 0xffffff7f8d054537 0xffffff81fb81be10 : 0xffffff800c8205f9 0xffffff81fb81be70 : 0xffffff800c8202fc 0xffffff81fb81bef0 : 0xffffff800c81f5de 0xffffff81fb81bf50 : 0xffffff800c8217bd 0xffffff81fb81bfa0 : 0xffffff800c10113e Kernel Extensions in backtrace: com.apple.iokit.IOAHCIFamily(290.0)[02BCB26F-F158-367C-BC8E-6B393038620E]@0xffffff7f8d035000->0xffffff7f8d04ffff com.apple.driver.AppleAHCIPort(999.50.2)[312FA732-CA91-3180-8373-5BE2E893339F]@0xffffff7f8d053000->0xffffff7f8d066fff dependency: com.apple.iokit.IOAHCIFamily(290)[02BCB26F-F158-367C-BC8E-6B393038620E]@0xffffff7f8d035000 dependency: com.apple.iokit.IOPCIFamily(2.9)[50312F79-3FF8-3E35-B0C4-CAF6F372DA7A]@0xffffff7f8caa7000 BSD process name corresponding to current thread: kernel_task Boot args: alcid=1 -lilubetaall -wegbeta dart=0 debug=0x100 -v Mac OS version: Not yet set Kernel version: Darwin Kernel Version 19.0.0: Fri May 24 17:36:10 PDT 2019; root:xnu-6041.0.0.111.5~1/RELEASE_X86_64 Kernel UUID: 144F961D-2C1E-32B1-BFF8-82F7F95D28CD Kernel slide: 0x000000000be00000 Kernel text base: 0xffffff800c000000 __HIB text base: 0xffffff800bf00000 System model name: iMac18,1 (Mac-4B682C642B45593E) System uptime in nanoseconds: 7401644185 last loaded kext at 6979664270: com.apple.driver.AirPort.BrcmNIC 1400.1.1 (addr 0xffffff7f8dc83000, size 8716288) loaded kexts: com.insanelymac.IntelMausiEthernet 2.4.0d0 as.vit9696.WhateverGreen 1.3.0 com.rehabman.driver.USBInjectAll 0.7.1 as.vit9696.AppleALC 1.3.9 as.vit9696.Lilu 1.3.7 org.netkas.driver.FakeSMC 1800 com.apple.driver.AirPort.BrcmNIC 1400.1.1 com.apple.driver.AppleAHCIPort 999.50.2 com.apple.driver.AppleFileSystemDriver 3.0.1 com.apple.driver.AppleVirtIO 1.0 com.apple.filesystems.hfs.kext 507 com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1 com.apple.BootCache 40 com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0 com.apple.private.KextAudit 1.0 com.apple.driver.AppleRTC 2.0 com.apple.driver.AppleHPET 1.8 com.apple.driver.AppleACPIButtons 6.1 com.apple.driver.AppleBacklight 170.17 com.apple.driver.AppleSMBIOS 2.1 com.apple.driver.AppleAPIC 1.7 com.apple.security.AppleImage4 1 com.apple.nke.applicationfirewall 201 com.apple.security.TMSafetyNet 8 com.apple.AppleSystemPolicy 2.0.0 com.apple.iokit.EndpointSecurity 1 com.apple.iokit.IO80211Family 1200.12.2b1 com.apple.driver.mDNSOffloadUserClient 1.0.1b8 com.apple.driver.corecapture 1.0.4 com.apple.iokit.IOSkywalkFamily 1 com.apple.iokit.IOAHCIFamily 290 com.apple.driver.usb.AppleUSBXHCIPCI 1.2 com.apple.driver.usb.AppleUSBXHCI 1.2 com.apple.iokit.IOSerialFamily 11 com.apple.iokit.IOSurface 269.2 com.apple.filesystems.hfs.encodings.kext 1 com.apple.driver.usb.AppleUSBHostPacketFilter 1.0 com.apple.driver.AppleEFINVRAM 2.1 com.apple.driver.AppleEFIRuntime 2.1 com.apple.iokit.IOHIDFamily 2.0.0 com.apple.driver.AppleBacklightExpert 1.1.0 com.apple.iokit.IONDRVSupport 555 com.apple.iokit.IOGraphicsFamily 555 com.apple.security.quarantine 4 com.apple.security.sandbox 300.0 com.apple.kext.AppleMatch 1.0.0d1 com.apple.driver.DiskImages 493.0.0 com.apple.driver.AppleFDEKeyStore 28.30 com.apple.driver.AppleEffaceableStorage 1.0 com.apple.driver.AppleKeyStore 2 com.apple.driver.AppleUSBTDM 483.0.0 com.apple.iokit.IOSCSIBlockCommandsDevice 416.0.0 com.apple.driver.AppleCredentialManager 1.0 com.apple.driver.KernelRelayHost 1 com.apple.driver.AppleSEPManager 1.0.1 com.apple.driver.IOSlaveProcessor 1 com.apple.iokit.IOUSBMassStorageDriver 155 com.apple.iokit.IOSCSIArchitectureModelFamily 416.0.0 com.apple.iokit.IOStorageFamily 2.1 com.apple.iokit.CoreAnalyticsFamily 1 com.apple.driver.AppleMobileFileIntegrity 1.0.5 com.apple.kext.CoreTrust 1 com.apple.iokit.IOTimeSyncFamily 800.8 com.apple.iokit.IONetworkingFamily 3.4 com.apple.iokit.IOReportFamily 47 com.apple.iokit.KLog 650.4.0 com.apple.iokit.IOUSBFamily 900.4.2 com.apple.iokit.IOUSBHostFamily 1.2 com.apple.driver.AppleUSBHostMergeProperties 1.2 com.apple.driver.usb.AppleUSBCommon 1.0 com.apple.driver.AppleBusPowerController 1.0 com.apple.driver.AppleACPIPlatform 6.1 com.apple.driver.AppleSMC 3.1.9 com.apple.driver.watchdog 1 com.apple.iokit.IOPCIFamily 2.9 com.apple.iokit.IOACPIFamily 1.4 com.apple.kec.pthread 1 com.apple.kec.corecrypto 1.0 com.apple.kec.Libm 1 EOF Model: iMac18,1, BootROM 172.0.0.0.0, 4 processors, Intel Core i3, 3.6 GHz, 16 GB, SMC 2.39f6 Graphics: kHW_IntelUHDGraphics630Item, Intel UHD Graphics 630, spdisplays_builtin Memory Module: BANK 0/DIMM1, 8 GB, DDR4, 2400 MHz, Corsair, CMK16GX4M2A2400C14 Memory Module: BANK 1/DIMM1, 8 GB, DDR4, 2400 MHz, Corsair, CMK16GX4M2A2400C14 AirPort: Third-Party Wireless Card Network Service: Wi-Fi, AirPort, en1 PCI Card: Intel UHD Graphics 630, VGA-Compatible Controller, PCI Slot 3 PCI Card: Intel Corporation, Series Chipset USB xHCI Host Controller, USB Controller, Built In PCI Card: Intel Corporation, Series Chipset SATA Controller, AHCI Controller, Built In PCI Card: Olarila - olarila.com/forum, Olarila, Built In PCI Card: Intel Corporation, Series Chipset SPI Controller, Serial Bus Controller, Built In PCI Card: Patched by MaLd0n - olarila.com, MaLd0n, Built In PCI Card: Intel I219V7 PCI Express Gigabit Ethernet, Ethernet Controller, Built In PCI Card: Intel Corporation, Series Chipset MEI Controller, IMEI Controller, Built In PCI Card: Apple High Definition Audio Controller, Audio Controller, Built In PCI Card: Broadcom Brcm43xx Wireless Network Adapter, AirPort Extreme, Built In Serial ATA Device: Samsung SSD 850 EVO 250GB, 250.06 GB Serial ATA Device: ST31000528AS, 1 TB Serial ATA Device: SPCC Solid State Disk, 128.04 GB Serial ATA Device: HL-DT-ST BD-RE BH16NS55 Serial ATA Device: INTEL SSDSCKKW240H6, 240.06 GB USB Device: USB 3.1 Bus USB Device: USB3.0 Hub USB Device: Miscellaneous Device USB Device: USB2.0 Hub USB Device: Logitech G15 Keyboard USB Device: USB Receiver USB Device: G15 Keyboard USB Device: Logitech Gaming Keyboard USB Device: USB 2.0 Hub Thunderbolt Bus: Anybody got any ideas Read the backtrace, it's clearly the sata system driver that crashes, probably just because you booted out of a drive attached to a non proprly configured or supported sata controller 1 Link to comment Share on other sites More sharing options...
