glasgood Posted May 15, 2019 Author Share Posted May 15, 2019 7 minutes ago, blackwalker said: I set “initial display output = IGFX” on bios start again, at around 2 min from end another error, but its different: I’ll try later Can you attach your EFI folder Link to comment Share on other sites More sharing options...
blackwalker Posted May 15, 2019 Share Posted May 15, 2019 sure, attached the EFI thanks Archive.zip Link to comment Share on other sites More sharing options...
glasgood Posted May 15, 2019 Author Share Posted May 15, 2019 15 minutes ago, blackwalker said: I set “initial display output = IGFX” on bios start again, at around 2 min from end another error, but its different: @blackwalker Ok your EFI is Intel, good! I'm assuming you have HDMI cable attached to Aorus Z390 Pro HDMI port and not the GTX1070. From guide, ensure you have correct BIOS settings. Try going back to BIOS default settings and then change BIOS settings as shown in the guide SCREEN DUMP SPOILERS. Make sure to have the following BIOS settings: Peripherals → Initial Display Output → IGFX Chipset → Internal Graphics → Enabled Chipset → DVMT Pre-Allocated → 64M Chipset → DVMT Total Gfx Mem → 256M 1 Link to comment Share on other sites More sharing options...
blackwalker Posted May 15, 2019 Share Posted May 15, 2019 7 minutes ago, glasgood said: @blackwalker Ok your EFI is Intel, good! I'm assuming you have HDMI cable attached to Aorus Z390 Pro HDMI port and not the GTX1070. From guide, ensure you have correct BIOS settings. Try going back to BIOS default settings and then change BIOS settings as shown in the guide SCREEN DUMP SPOILERS. Make sure to have the following BIOS settings: Peripherals → Initial Display Output → IGFX Chipset → Internal Graphics → Enabled Chipset → DVMT Pre-Allocated → 64M Chipset → DVMT Total Gfx Mem → 256M Yes: have HDMI cable attached to Aorus Z390 Pro HDMI port and not the GTX1070 and Here: Chipset → DVMT Pre-Allocated → 64M i have 256M i read it on your guide i'll check again the bios settings now! Thanks Link to comment Share on other sites More sharing options...
glasgood Posted May 15, 2019 Author Share Posted May 15, 2019 15 minutes ago, blackwalker said: sure, attached the EFI thanks Archive.zip Will later test Mojave USB installer for Intel with latest Mojave version 10.14.5. I know installer is good with version 10.14.4 1 Link to comment Share on other sites More sharing options...
blackwalker Posted May 15, 2019 Share Posted May 15, 2019 in the bios i dont have: Peripherals → Intel(R)Bios Guard → Intel BIOS Guard Support → Disable and in your bios settings you write: Chipset → DVMT Pre-Allocated → 256M but its: Chipset → DVMT Pre-Allocated → 64M the only thing i can do is reset and set again all bios settings with only this changed: Chipset → DVMT Pre-Allocated → 64M Link to comment Share on other sites More sharing options...
glasgood Posted May 15, 2019 Author Share Posted May 15, 2019 1 minute ago, blackwalker said: in the bios i dont have: Peripherals → Intel(R)Bios Guard → Intel BIOS Guard Support → Disable and in your bios settings you write: Chipset → DVMT Pre-Allocated → 256M but its: Chipset → DVMT Pre-Allocated → 64M the only thing i can do is reset and set again all bios settings with only this changed: Chipset → DVMT Pre-Allocated → 64M Go with Chipset → DVMT Pre-Allocated → 64M and all other BIOS settings 1 Link to comment Share on other sites More sharing options...
blackwalker Posted May 15, 2019 Share Posted May 15, 2019 Trying now! I see that your bios used is F5, now its F9 lets see now!! Link to comment Share on other sites More sharing options...
glasgood Posted May 15, 2019 Author Share Posted May 15, 2019 1 minute ago, blackwalker said: Trying now! I see that your bios used is F5, now its F9 lets see now!! I'm sticking with F5, no reason to update as yet. 1 Link to comment Share on other sites More sharing options...
blackwalker Posted May 15, 2019 Share Posted May 15, 2019 (edited) Same error... coffe pause, i’ll try later dunno what to try now... no fakesmc? what else i can try? i’m lost.... Edited May 15, 2019 by blackwalker Link to comment Share on other sites More sharing options...
glasgood Posted May 15, 2019 Author Share Posted May 15, 2019 1 minute ago, blackwalker said: Same error... coffe pause, i’ll try later dunno what to try now... I'm testing another USB Mojave Intel installer for 10.14.5 Will be ready later. 1 Link to comment Share on other sites More sharing options...
blackwalker Posted May 15, 2019 Share Posted May 15, 2019 8 minutes ago, glasgood said: I'm testing another USB Mojave Intel installer for 10.14.5 Will be ready later. Cool thx hope to have some chance to install mojave Link to comment Share on other sites More sharing options...
glasgood Posted May 15, 2019 Author Share Posted May 15, 2019 49 minutes ago, blackwalker said: Cool thx hope to have some chance to install mojave Hi, Find attached new PRE-INSTALL Aorus Pro Z390 EFI - Intel UHD630.zip Clover v4920 can confirm this is fully working with macOS Mojave 10.14.5. Remember during install, on each reboot, you have to press F12 and boot from installer and continue...such as... Boot macOS Install from Macintosh etc. 1 Link to comment Share on other sites More sharing options...
blackwalker Posted May 15, 2019 Share Posted May 15, 2019 Just now, glasgood said: Hi, Find attached new PRE-INSTALL Aorus Pro Z390 EFI - Intel UHD630.zip Clover v4920 can confirm this is fully working with macOS Mojave 10.14.5. Remember during install, on each reboot, you have to press F12 and boot from installer and continue...such as... Boot macOS Install from Macintosh etc. Wow thx I'll check it now! there is no "nvram.plist" is ok? what about "MacMini8,1 SMBIOS so it'll use iGP" or is ok? Link to comment Share on other sites More sharing options...
glasgood Posted May 15, 2019 Author Share Posted May 15, 2019 3 minutes ago, blackwalker said: Wow thx I'll check it now! there is no "nvram.plist" is ok? what about "MacMini8,1 SMBIOS so it'll use iGP" or is ok? Working, it's pre-install, don't need to worry. 1 Link to comment Share on other sites More sharing options...
blackwalker Posted May 15, 2019 Share Posted May 15, 2019 ok I have only to replace the EFI and try again Link to comment Share on other sites More sharing options...
glasgood Posted May 15, 2019 Author Share Posted May 15, 2019 (edited) 15/05/2019 Aorus Pro Z390 EFI - Intel UHD630 Update version 4871 to 4920 PRE-INSTALL Aorus Pro Z390 EFI - Intel UHD630 now Clover v 4920 POST-INSTALL Aorus Pro Z390 EFI - Intel UHD630 now Clover v 4920 15 minutes ago, blackwalker said: ok I have only to replace the EFI and try again Yes Edited May 15, 2019 by glasgood Link to comment Share on other sites More sharing options...

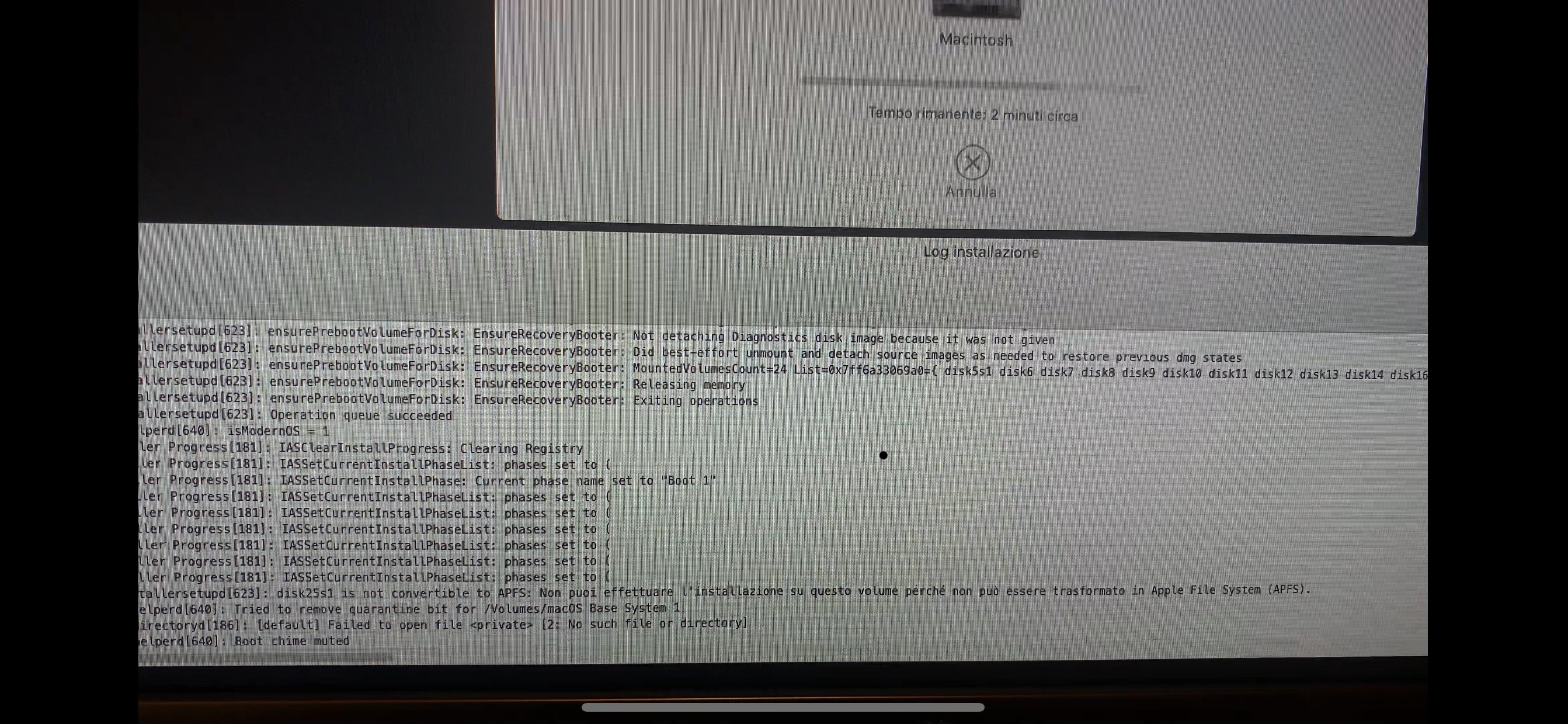

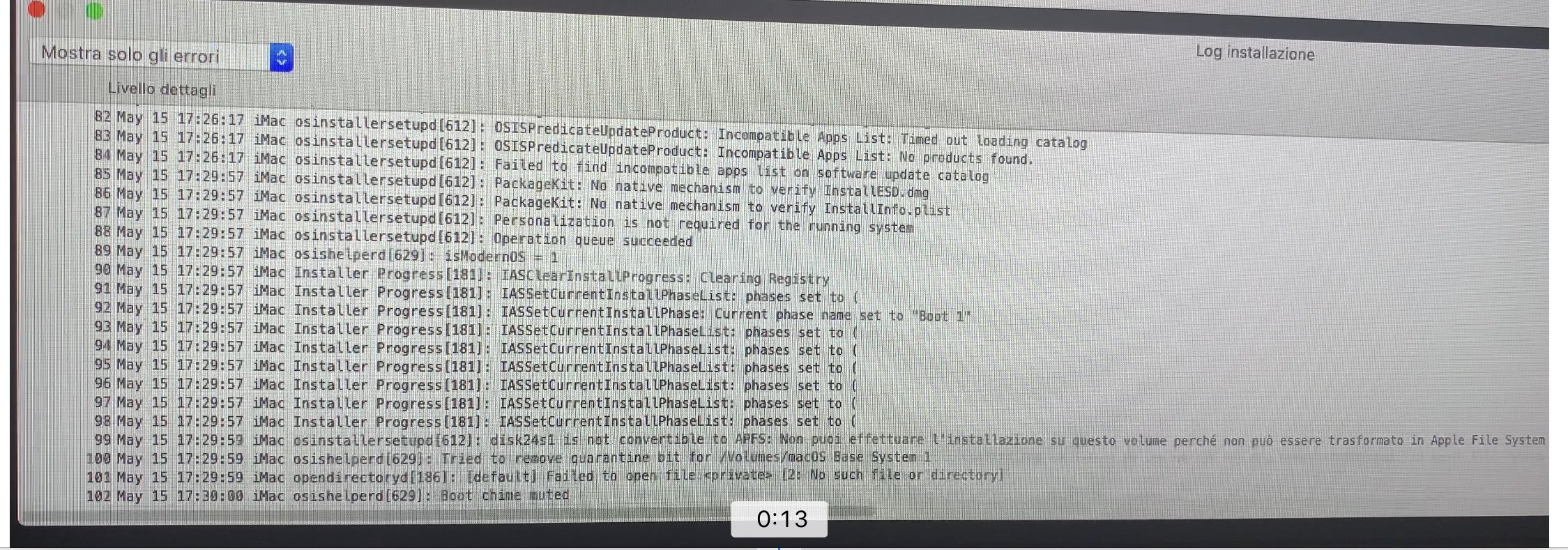

blackwalker Posted May 15, 2019 Share Posted May 15, 2019 Same error but I capture the log and say: “disk25s1 is not convertible to APFS: you can’t install on this volume because can’t be trasformed in Apple File System (APFS) “ dunno if it refer to the ssd that i erase and format correctly in APFS as you suggested or it refer to the usb??! I can do a video of the log if you like or it’s ok these screenshot? Link to comment Share on other sites More sharing options...

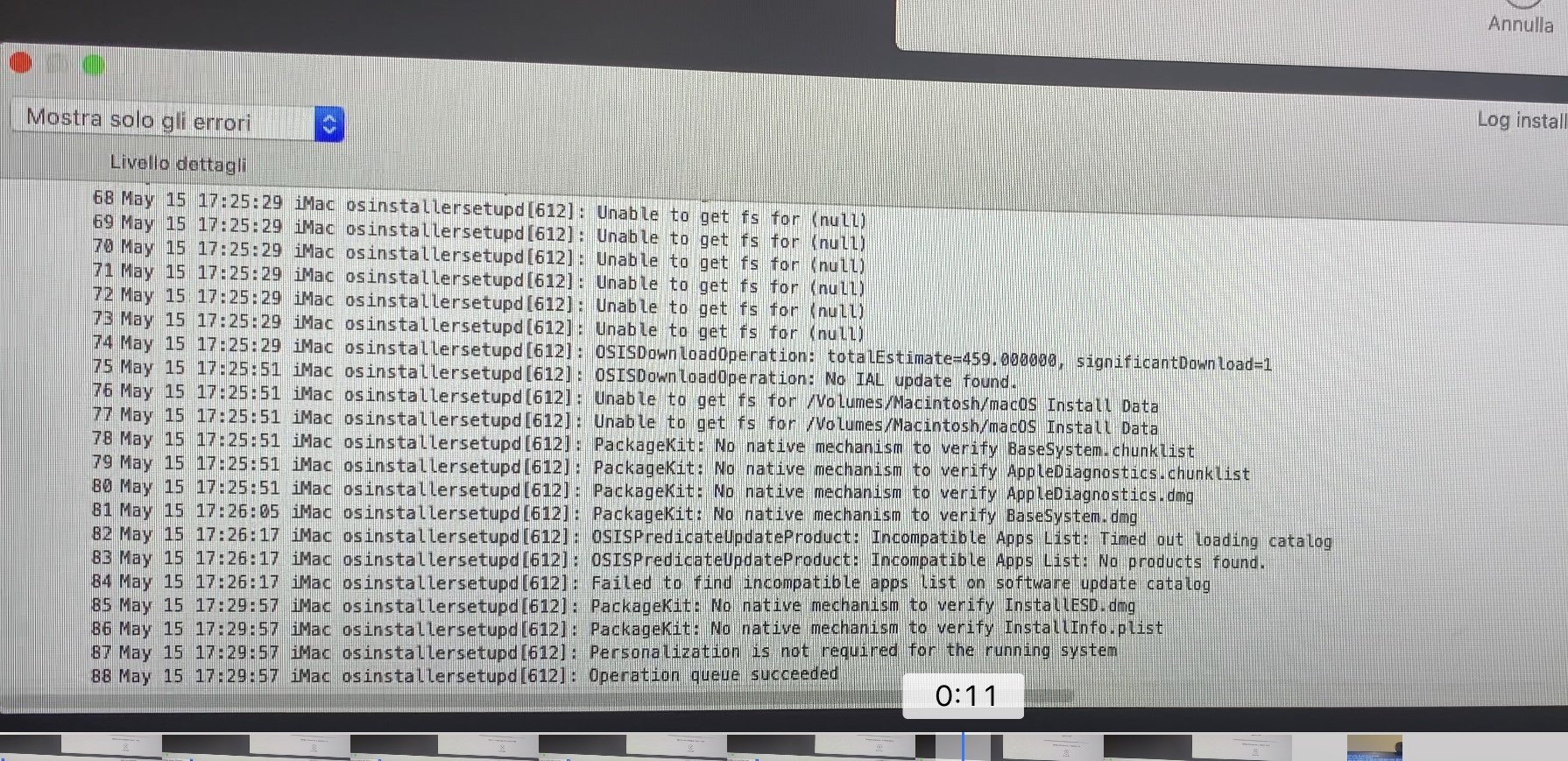

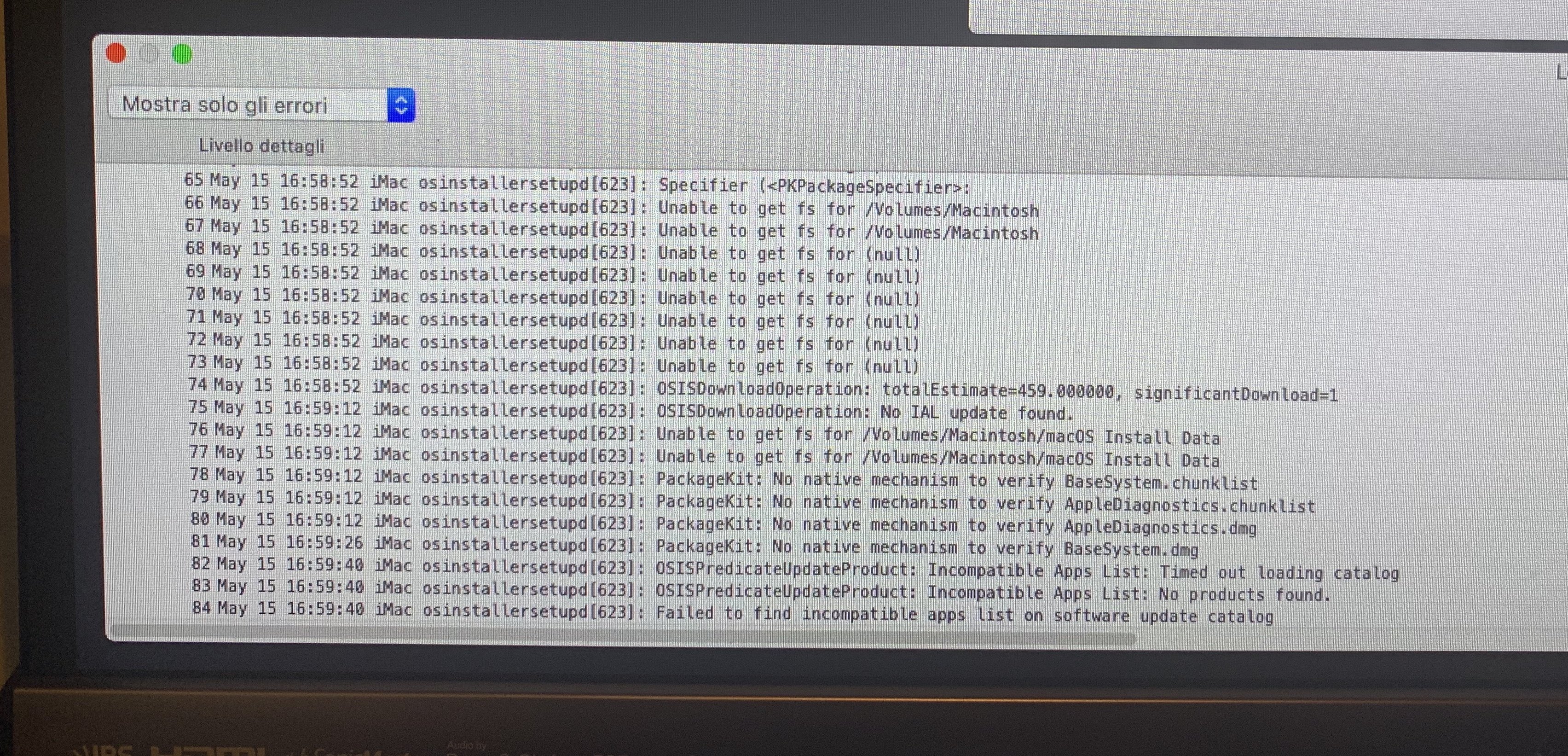

blackwalker Posted May 15, 2019 Share Posted May 15, 2019 (edited) I format the ssd in classic file sistem, same error I captured 2 screenshots that talk about: ”No native mechanism to verify InstallESD...” etc... Edited May 15, 2019 by blackwalker Link to comment Share on other sites More sharing options...
glasgood Posted May 15, 2019 Author Share Posted May 15, 2019 14 minutes ago, blackwalker said: Same error but I capture the log and say: “disk25s1 is not convertible to APFS: you can’t install on this volume because can’t be trasformed in Apple File System (APFS) “ dunno if it refer to the ssd that i erase and format correctly in APFS as you suggested or it refer to the usb??! I can do a video of the log if you like or it’s ok these screenshot? Try, physically remove all drives (m2 970 samsung, 2tb crucial ) from motherboard, have just the Samsung 860 EVO connected. So only have the Samsung 860 EVO connected to Motherboard. and remove 16GB of memory. Also: Ensure Above 4G Decoding is set to disabled in the BIOS And retry installation. Link to comment Share on other sites More sharing options...
blackwalker Posted May 15, 2019 Share Posted May 15, 2019 4 minutes ago, glasgood said: Try, physically remove all drives (m2 970 samsung, 2tb crucial ) from motherboard, have just the Samsung 860 EVO connected. So only have the Samsung 860 EVO connected to Motherboard. and remove 16GB of memory. Also: Ensure Above 4G Decoding is set to disabled in the BIOS And retry installation. ok i can try this, later! anyway, - Above 4G Decoding is set to disabled - what about the other error message like "”No native mechanism to verify InstallESD.dmg” and so on? thanks a lot for your time and patience Link to comment Share on other sites More sharing options...
glasgood Posted May 15, 2019 Author Share Posted May 15, 2019 (edited) 13 minutes ago, blackwalker said: ok i can try this, later! anyway, - Above 4G Decoding is set to disabled - what about the other error message like "”No native mechanism to verify InstallESD.dmg” and so on? thanks a lot for your time and patience In past, I've had similar problem at same state of install and it was because Above 4G Decoding was enabled. Also on another occasion, same stage during installation was because I tried to install onto an old WD black SATA drive, when drive was replaced the install was good. But first, try removing parts that I mentioned. Then if problem persists, would try and use another USB flash drive for Mojave Installer. Edited May 15, 2019 by glasgood Link to comment Share on other sites More sharing options...
blackwalker Posted May 15, 2019 Share Posted May 15, 2019 35 minutes ago, glasgood said: In past, I've had similar problem at same state of install and it was because Above 4G Decoding was enabled. Also on another occasion, same stage during installation was because I tried to install onto an old WD black SATA drive, when drive was replaced the install was good. But first, try removing parts that I mentioned. Then if problem persists, would try and use another USB flash drive for Mojave Installer. 4G decoding is disabled Removing all ssd and ram is ok but take some times trying another usb always 2.0 I suppose? i can do it before removing all ssd and ram Link to comment Share on other sites More sharing options...
blackwalker Posted May 15, 2019 Share Posted May 15, 2019 (edited) 56 minutes ago, glasgood said: In past, I've had similar problem at same state of install and it was because Above 4G Decoding was enabled. Also on another occasion, same stage during installation was because I tried to install onto an old WD black SATA drive, when drive was replaced the install was good. But first, try removing parts that I mentioned. Then if problem persists, would try and use another USB flash drive for Mojave Installer. 4G decoding is disabled (On other guide I read someone suggest enabled, but your guide is perfect and really good, one of the best i see!! And I want use it) Removing all ssd and ram is ok but take some times trying another usb always 2.0 I suppose? i can do it before removing all ssd and ram Removed ssd (not ram) and trying now hope... a new hope... the ssd is not on sata 0 or 1 Edited May 15, 2019 by blackwalker Link to comment Share on other sites More sharing options...
blackwalker Posted May 15, 2019 Share Posted May 15, 2019 (edited) Ho well, it make more operation on log but exit for the same reason..! i didnt remove the 16gb of ram, i’ll try removing ram, but why?? I hope then I can put it removed ram set ssd to sata 0 trying now.... Edited May 15, 2019 by blackwalker Link to comment Share on other sites More sharing options...
