larabee Posted May 14, 2019 Share Posted May 14, 2019 21 hours ago, glasgood said: No, possibly because I have RX580 and no Thunderbolt card. Did problem persists before adding the Thunderbolt card? @glasgood I have the problem before the thunderbolt card. I see the monitor randomly turns white or black during extended heavy load time (my temperature is within normal range, max 55C, Vega max at 62C) For the sake of my mental health, I will buy the same board as you haha. Having too many small hang during work is not good for my heart haha. I'll be trying Final Cut on the new update and let you know if that works fine after getting back from business trip. Thanks a lot for your hard work. Link to comment Share on other sites More sharing options...
glasgood Posted May 14, 2019 Author Share Posted May 14, 2019 4 minutes ago, larabee said: @glasgood I have the problem before the thunderbolt card. I see the monitor randomly turns white or black during extended heavy load time (my temperature is within normal range, max 55C, Vega max at 62C) For the sake of my mental health, I will buy the same board as you haha. Having too many small hang during work is not good for my heart haha. I'll be trying Final Cut on the new update and let you know if that works fine after getting back from business trip. Thanks a lot for your hard work. Enjoy the trip Link to comment Share on other sites More sharing options...
mfortuna Posted May 14, 2019 Share Posted May 14, 2019 1 hour ago, glasgood said: @mfortuna 16:33 --> just uploaded EFI again, forgot to include fix for sleep. Haha I was going to tell you! @glasgood Your work is awesome!! Just updated and everything working Got a little worried with time but took around 10 minutes in total 1 Link to comment Share on other sites More sharing options...
glasgood Posted May 14, 2019 Author Share Posted May 14, 2019 1 minute ago, mfortuna said: Haha I was going to tell you! @glasgood Your work is awesome!! Just updated and everything working Got a little worried with time but took around 10 minutes in total excellent Link to comment Share on other sites More sharing options...
Hifi33 Posted May 14, 2019 Share Posted May 14, 2019 All working with 10.14.5, Clover 5.4.4.0, 19,1 iMac here! Admittedly, a lot of teeth clenching and crossing fingers as it updated. 1 Link to comment Share on other sites More sharing options...
glasgood Posted May 14, 2019 Author Share Posted May 14, 2019 2 minutes ago, Hifi33 said: All working with 10.14.5, Clover 5.4.4.0, 19,1 iMac here! Admittedly, a lot of teeth clenching and crossing fingers as it updated. Definitely one of those moments when you dive in with a deep breath 1 Link to comment Share on other sites More sharing options...
Olion Posted May 14, 2019 Share Posted May 14, 2019 Thanks for this brilliant guide!) Yesterday I finished installation macOS with UHD 630 via HDMI LG-4k TV. All works great. Yeah. 1 Link to comment Share on other sites More sharing options...
glasgood Posted May 14, 2019 Author Share Posted May 14, 2019 4 minutes ago, Olion said: Thanks for this brilliant guide!) Yesterday I finished installation macOS with UHD 630 via HDMI LG-4k TV. All works great. Yeah. Thanks for taking time to share your success. Appreciated Link to comment Share on other sites More sharing options...
blackwalker Posted May 14, 2019 Share Posted May 14, 2019 thanks for this cool guide, hope to install mojave with it. my config: gigabyte aorus z390 pro i7-9700K nvidia gtx 1070 only for windows 10, with mojave i'll use UHD Graphics 630 of the cpu 4x8 gb g-skill ssd 2tb m2 970 samsung (for windows 10) ssd 500 gb samsung 860 evo (for mojave) Can i use both disk with win10 and Mojave? maybe switching on bios on saved profile? when i'll try to install mojave, the disk have to be on sata 0 or is ok any sata port? i can leave the m2 disk inside? i know is a lot of question, but i'll try to find a solution, if exist, to have both system on same machine anyway thx for now for this nice and unique guide 1 Link to comment Share on other sites More sharing options...
larabee Posted May 14, 2019 Share Posted May 14, 2019 3 minutes ago, blackwalker said: thanks for this cool guide, hope to install mojave with it. my config: gigabyte aorus z390 pro i7-9700K nvidia gtx 1070 only for windows 10, with mojave i'll use UHD Graphics 630 of the cpu 4x8 gb g-skill ssd 2tb m2 970 samsung (for windows 10) ssd 500 gb samsung 860 evo (for mojave) Can i use both disk with win10 and Mojave? maybe switching on bios on saved profile? when i'll try to install mojave, the disk have to be on sata 0 or is ok any sata port? i can leave the m2 disk inside? i know is a lot of question, but i'll try to find a solution, if exist, to have both system on same machine anyway thx for now for this nice and unique guide I've had setup similar to yours before. You can save bios and changed profile every time you want to switch OS. You don't need to change SATA port, but I'd prefer sata 0 for all OS, just my own preference so I know which port has which drive (I have all my SATA ports used up though) Leave your M.2 inside, not a big deal. You can use both disk with Mojave with additional software to read + write NTFS on Mac. On windows you will also need additional software to deal with apple file system. 1 Link to comment Share on other sites More sharing options...
blackwalker Posted May 14, 2019 Share Posted May 14, 2019 3 minutes ago, larabee said: I've had setup similar to yours before. You can save bios and changed profile every time you want to switch OS. You don't need to change SATA port, but I'd prefer sata 0 for all OS, just my own preference so I know which port has which drive (I have all my SATA ports used up though) Leave your M.2 inside, not a big deal. You can use both disk with Mojave with additional software to read + write NTFS on Mac. On windows you will also need additional software to deal with apple file system. Cool and thx for your help! Looks like a nice start (sorry but my english is not so good) now its time to prepare what i need and give it a try Link to comment Share on other sites More sharing options...
mfortuna Posted May 14, 2019 Share Posted May 14, 2019 (edited) 8 hours ago, glasgood said: @mfortuna 16:33 --> just uploaded EFI again, forgot to include fix for sleep. Just tested it and sleep is not working in my Hackintosh Also, after a while, my audio stops working Edited May 14, 2019 by mfortuna Link to comment Share on other sites More sharing options...
glasgood Posted May 15, 2019 Author Share Posted May 15, 2019 (edited) 5 hours ago, mfortuna said: Just tested it and sleep is not working in my Hackintosh Also, after a while, my audio stops working @mfortuna What happens when you put hack to sleep, does it sleep then immediately wake, or refuse to sleep ? Attach your EFI folder, i will have look. Edited May 15, 2019 by glasgood Link to comment Share on other sites More sharing options...
glasgood Posted May 15, 2019 Author Share Posted May 15, 2019 (edited) 9 hours ago, mfortuna said: Just tested it and sleep is not working in my Hackintosh Also, after a while, my audio stops working @mfortuna Try again, POST-INSTALL Aorus Pro Z390 EFI - RX580.zip I tested this on two hacks and can confirm that sleep and audio on wake from sleep are both working. ( Press power button to wake from sleep ) Edited May 15, 2019 by glasgood 1 Link to comment Share on other sites More sharing options...
blackwalker Posted May 15, 2019 Share Posted May 15, 2019 (edited) hi, USB wont boot! I follow the guide preparing the usb installer and i use VMware with Mojave installed to make it. I download the Mojave and put it in application. I notice that while i see the video, you have to mount the EFI partition of the usb installer everytime using esp mounter pro , if i click and open the "Install macOS Mojave" usb, i have all visible.... i mean i see and have all there whithout using esp mounter pro: - Applications (folder) - EFI (folder) - EFI-Backups (folder) - Install macOS Mojave - nvram.plist and i follow the guide! Maybe the problem is related to this? I mean, when i try to start from USB i see only "KingstonDataTraveler G3 PMAP" unit and not the Uefi one as i see on the pic what i'm doing wrong? ps: - i'm using the usb 2.0 port - when i create the usb installer i used the front usb 3.0 port Edited May 15, 2019 by blackwalker Link to comment Share on other sites More sharing options...
glasgood Posted May 15, 2019 Author Share Posted May 15, 2019 (edited) 7 minutes ago, blackwalker said: hi, USB wont boot! I follow the guide preparing the usb installer and i use VMware with Mojave installed to make it. I download the Mojave and put it in application. I notice that while i see the video, you have to mount the EFI partition of the usb installer everytime using esp mounter pro , if i click and open the "Install macOS Mojave" usb, i have all visible.... i mean i see and have all there whithout using esp mounter pro: - Applications (folder) - EFI (folder) - EFI-Backups (folder) - Install macOS Mojave - nvram.plist and i follow the guide! Maybe the problem is related to this? I mean, when i try to start from USB i see only "KingstonDataTraveler G3 PMAP" unit and not the Uefi one as i see on the pic what i'm doing wrong? Hello @blackwalker Do you have the following, when mounted on your desktop. Can you send a screen dump ? Edited May 15, 2019 by glasgood 1 Link to comment Share on other sites More sharing options...

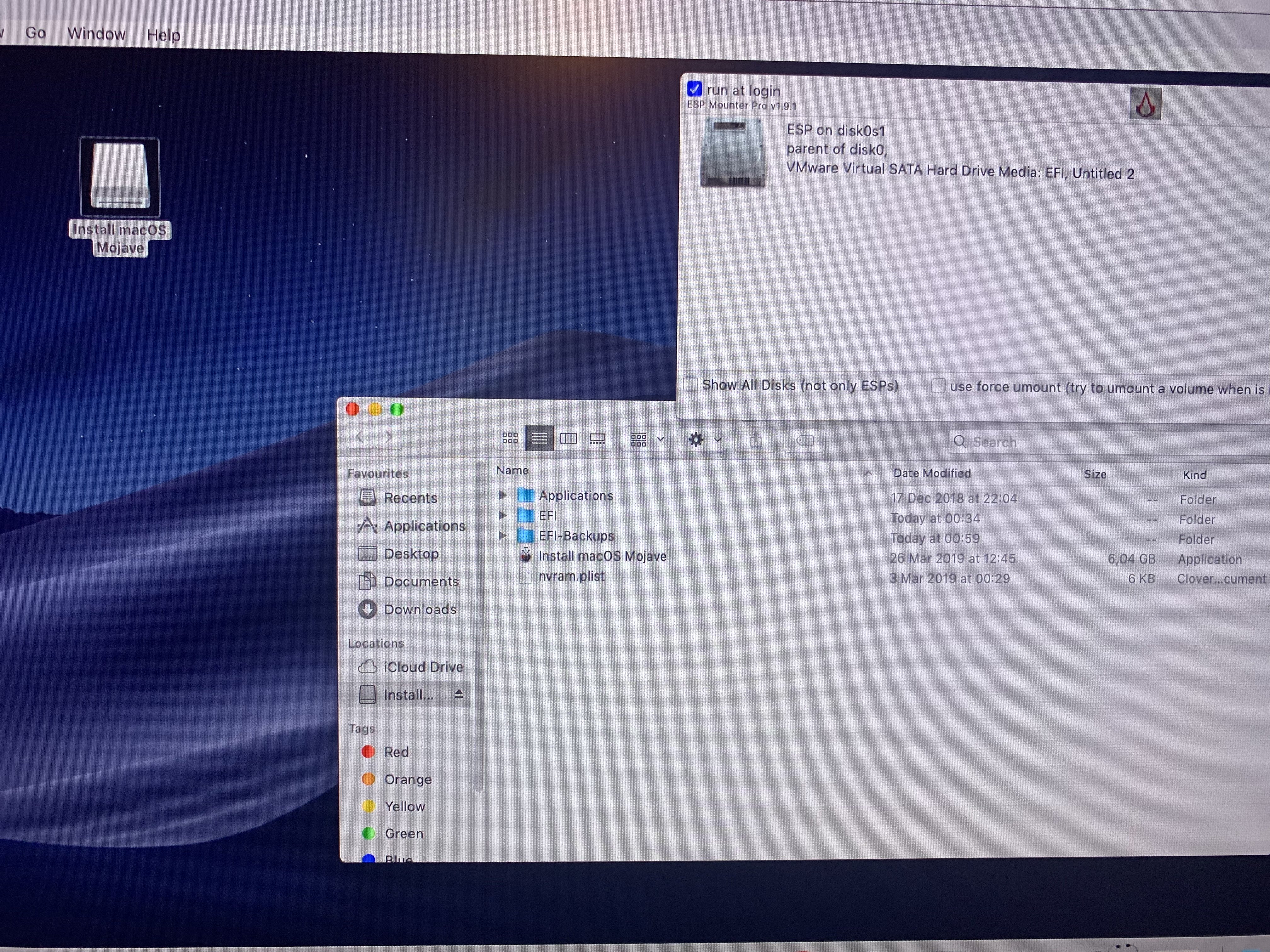

blackwalker Posted May 15, 2019 Share Posted May 15, 2019 Here is what i have: i dont have to mount efi and open it because i just have all there when open usb Link to comment Share on other sites More sharing options...
blackwalker Posted May 15, 2019 Share Posted May 15, 2019 (edited) maybe when i format the usb i miss the "guid" and left the "mbr record"..... i'm doing again all now .... maybe is this??? Edited May 15, 2019 by blackwalker Link to comment Share on other sites More sharing options...

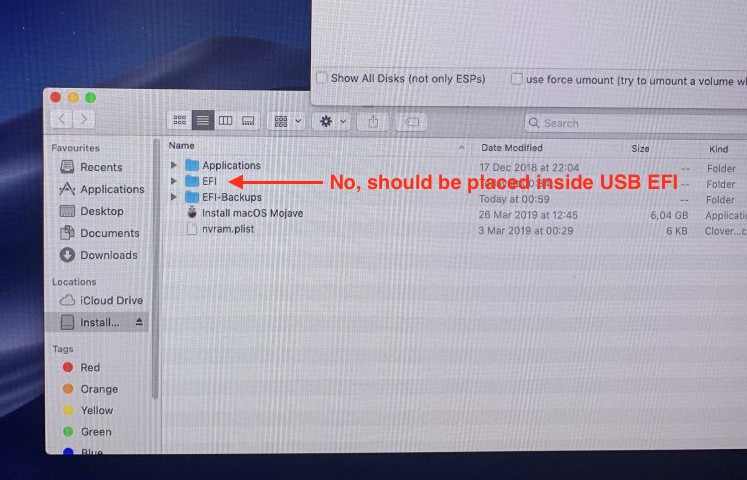

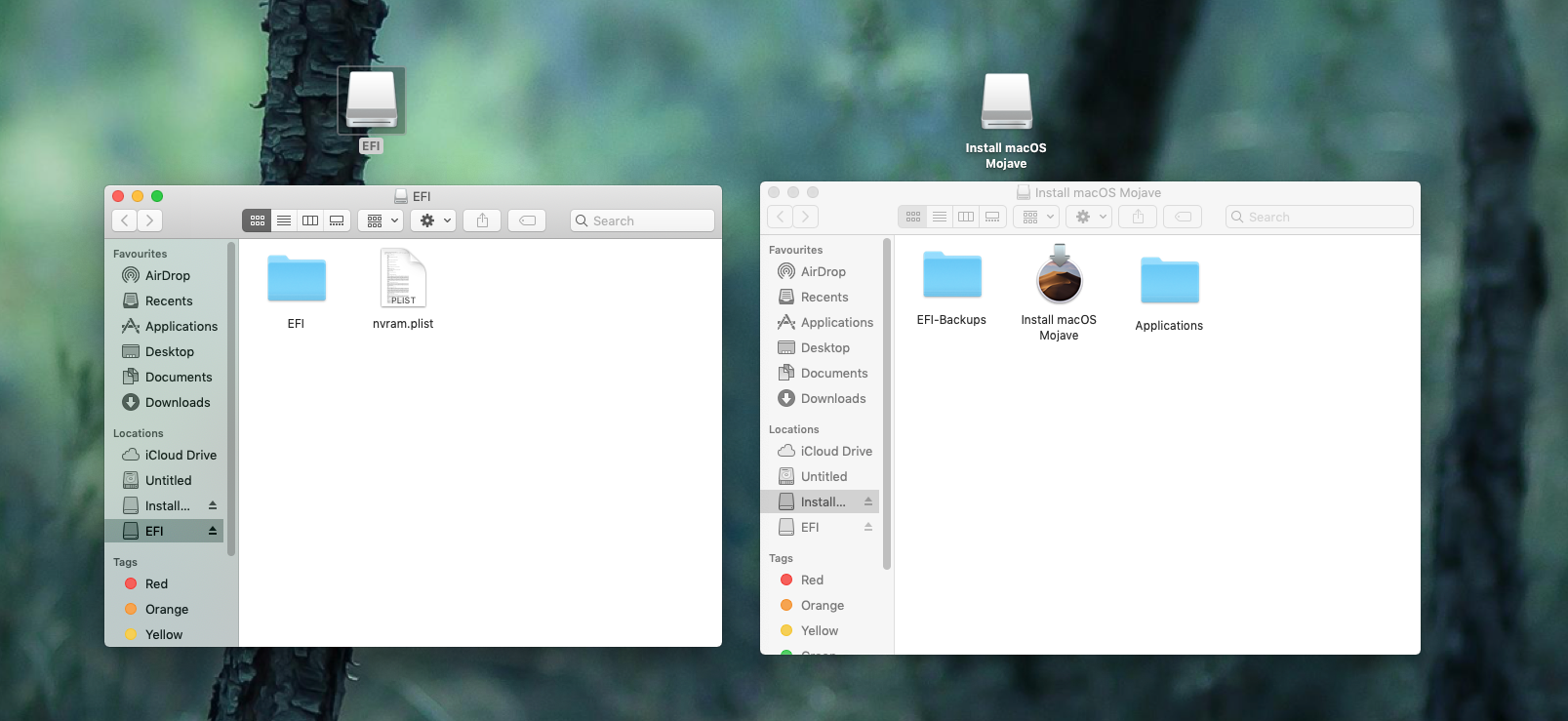

glasgood Posted May 15, 2019 Author Share Posted May 15, 2019 (edited) 12 minutes ago, blackwalker said: Here is what i have: i dont have to mount efi and open it because i just have all there when open usb Hello, It seem's like you do not have an EFI partition on your USB installer. Delete, EFI folder. Then follow. Then mount EFI partition from your USB installer then copy over EFI folder. Then you will have: Edited May 15, 2019 by glasgood 1 Link to comment Share on other sites More sharing options...
blackwalker Posted May 15, 2019 Share Posted May 15, 2019 erased with guid (i left mbr record) and now is like your video Now its time to create again usb installer! Thanks a lot for your help , i'll keep you updated later thanks thanks thanks 1 Link to comment Share on other sites More sharing options...
glasgood Posted May 15, 2019 Author Share Posted May 15, 2019 (edited) 15/05/2019 Updated Config.plist for POST-INSTALL Aorus Pro Z390 EFI - RX580 REMOVED FROM config.plist Graphics ig-platform-id 0x3E920003 REMOVED FROM config.plist Devices / Properties AAPL,ig-platform-id 07009B3E (0x3E9B007) REPLACED WITH AAPL,ig-platform-id 0300923E (0x3E92003) Edited May 15, 2019 by glasgood Link to comment Share on other sites More sharing options...
blackwalker Posted May 15, 2019 Share Posted May 15, 2019 (edited) Maybe i miss something! - Press f12 and select the usb installer efi - start the install from usb - so i format and select the ssd - at around 2 minutes it’ll stop and restart - i select now to Boot macOS Install from Macintosh - looks like the install continue again and finish ok and say it’ll restart in some seconds (With a different screen and dont ask for sistem settings...) - after reboot i select to boot from usb and then select boot from ssd but freeze something is wrong... Ps: i didnt find in bios settings the ”Intel(R) Bios Guard option”!!!! where is????? Edited May 15, 2019 by blackwalker Link to comment Share on other sites More sharing options...

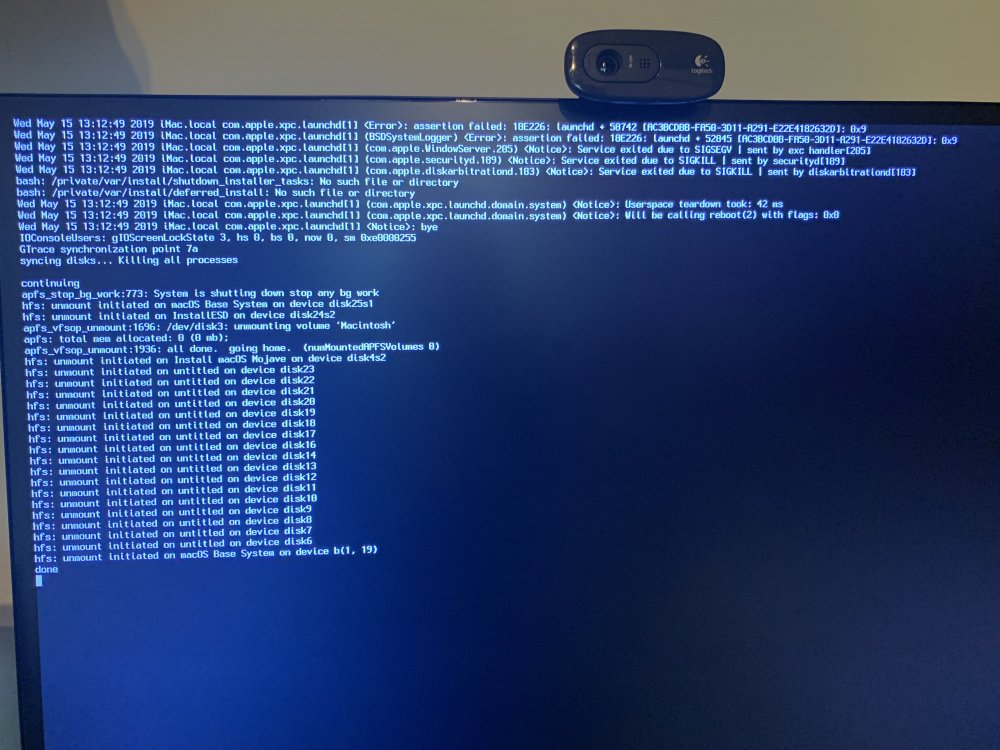

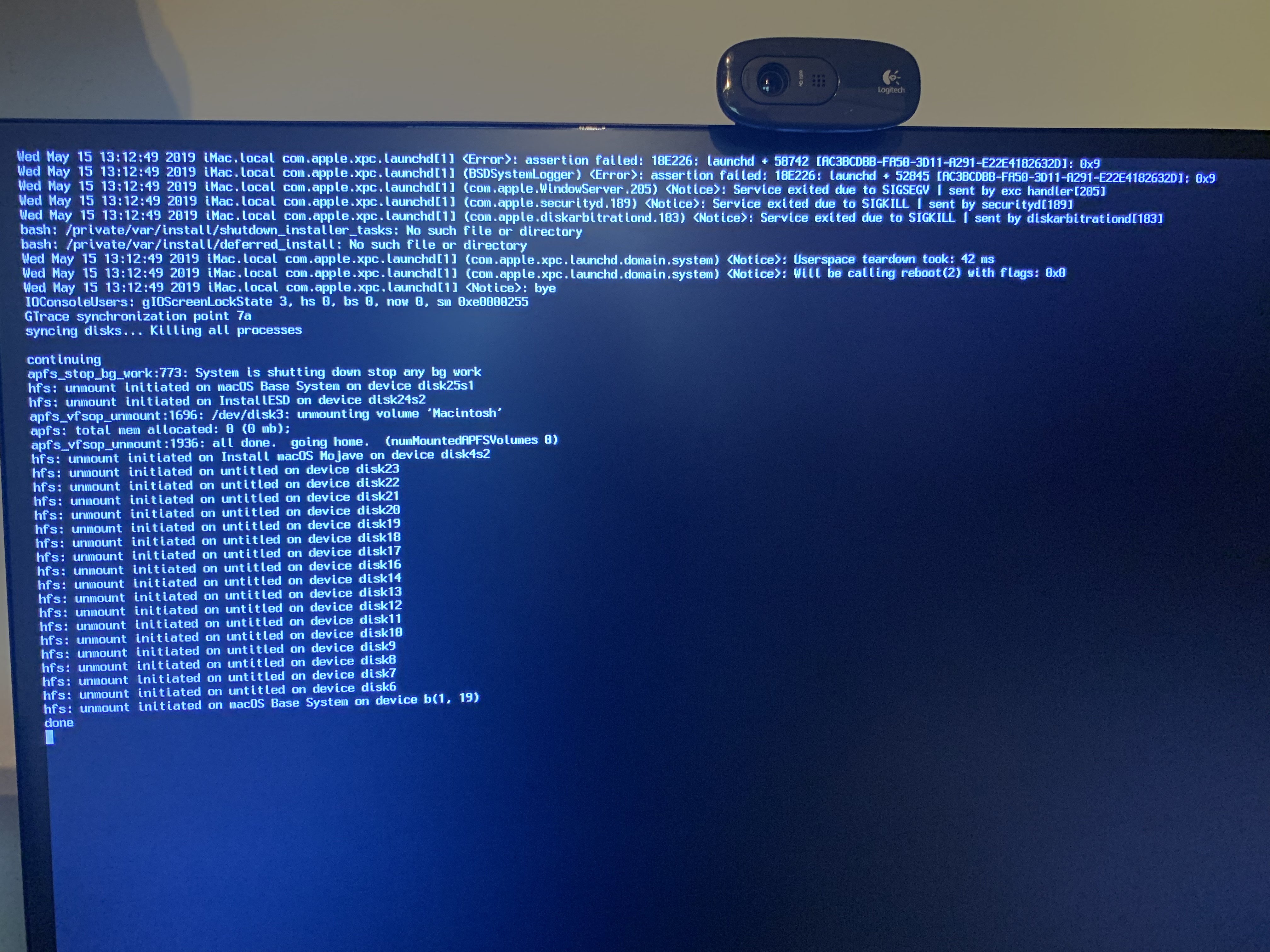

blackwalker Posted May 15, 2019 Share Posted May 15, 2019 The sequence starting from usb is not so clear for me This happen at 2 minutes Link to comment Share on other sites More sharing options...
blackwalker Posted May 15, 2019 Share Posted May 15, 2019 like i say before, i have the Evga gtx 1070 installed for win 10 but i need to use the i7-9700k UHD 630 maybe this can cause this crash? Link to comment Share on other sites More sharing options...

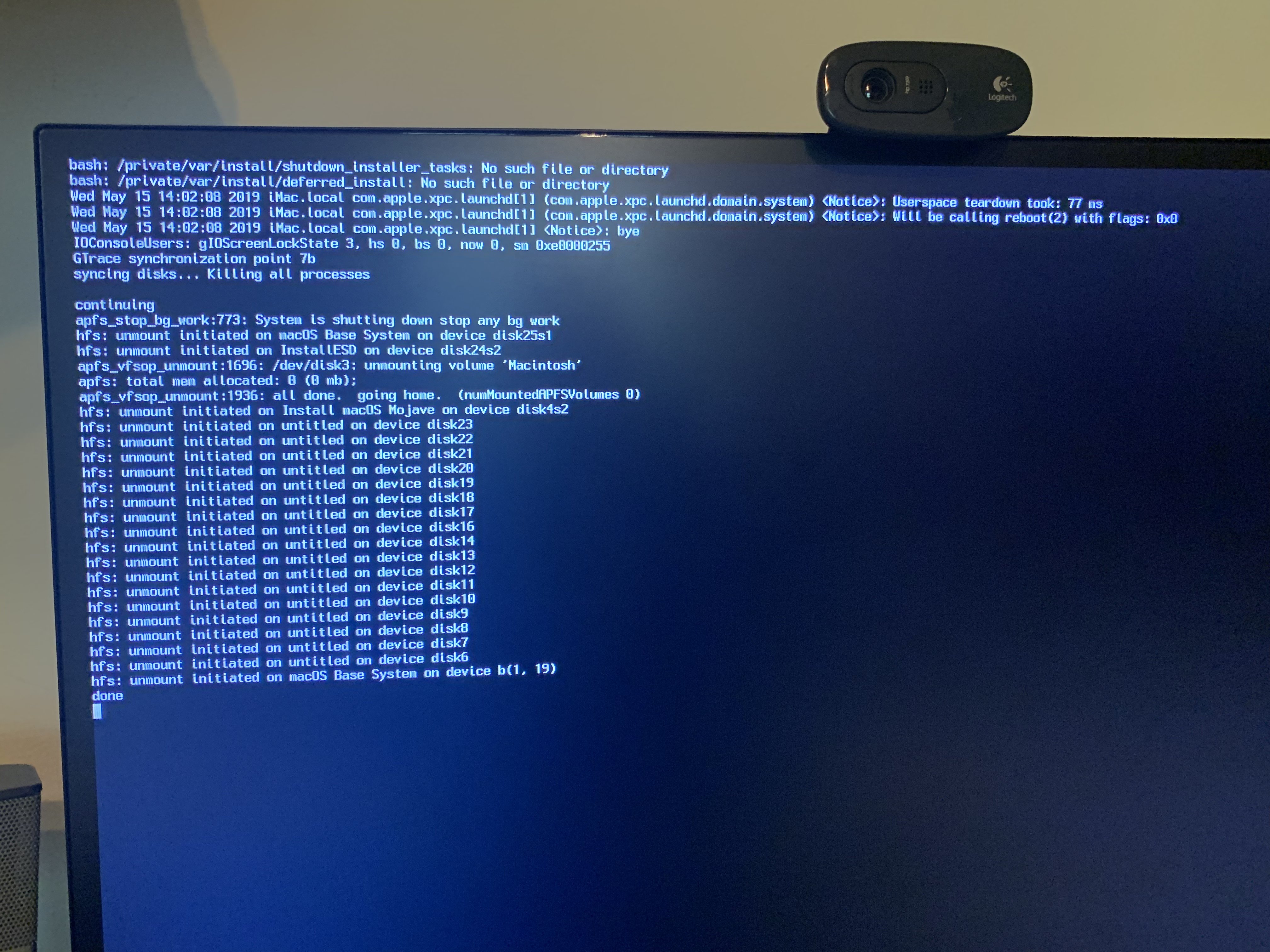

blackwalker Posted May 15, 2019 Share Posted May 15, 2019 I set “initial display output = IGFX” on bios start again, at around 2 min from end another error, but its different: I’ll try later Link to comment Share on other sites More sharing options...
