lvs1974
lvs1974
Posted
Posted (edited)

@fallen00sniper



Could you try the attached version?

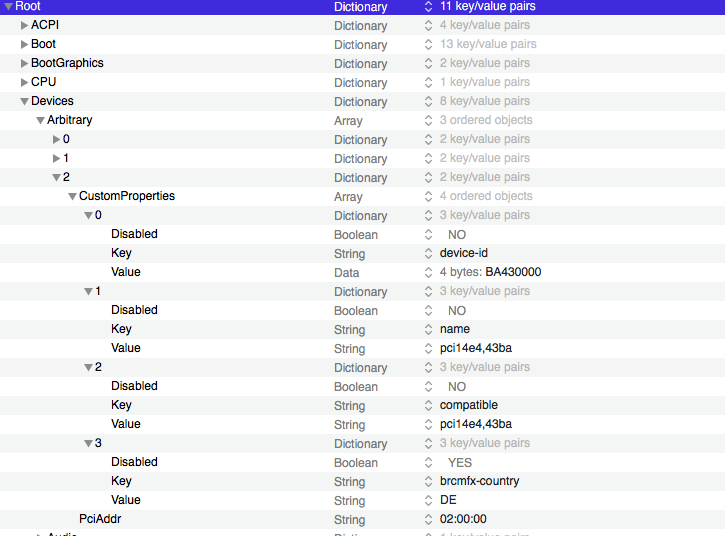

On the screenshot you will find the working example how to fake id to 43ba (my original is 43b1).

I don't have any additional patches/settings in config.plist for Wi-Fi.

I also can choose a driver: brcmfx-driver=0, and in IOReg I see AirPort_BrcmNIC-MFG,

brcmfx-driver=2, and in IOReg I see AirPort_BrcmNIC.

In logs I can see that 43b1 is replaced with 43ba.



If you can't get this card working in Mojave, may be it worth to try with 10.13.6...

1.1.6 (DEBUG).zip

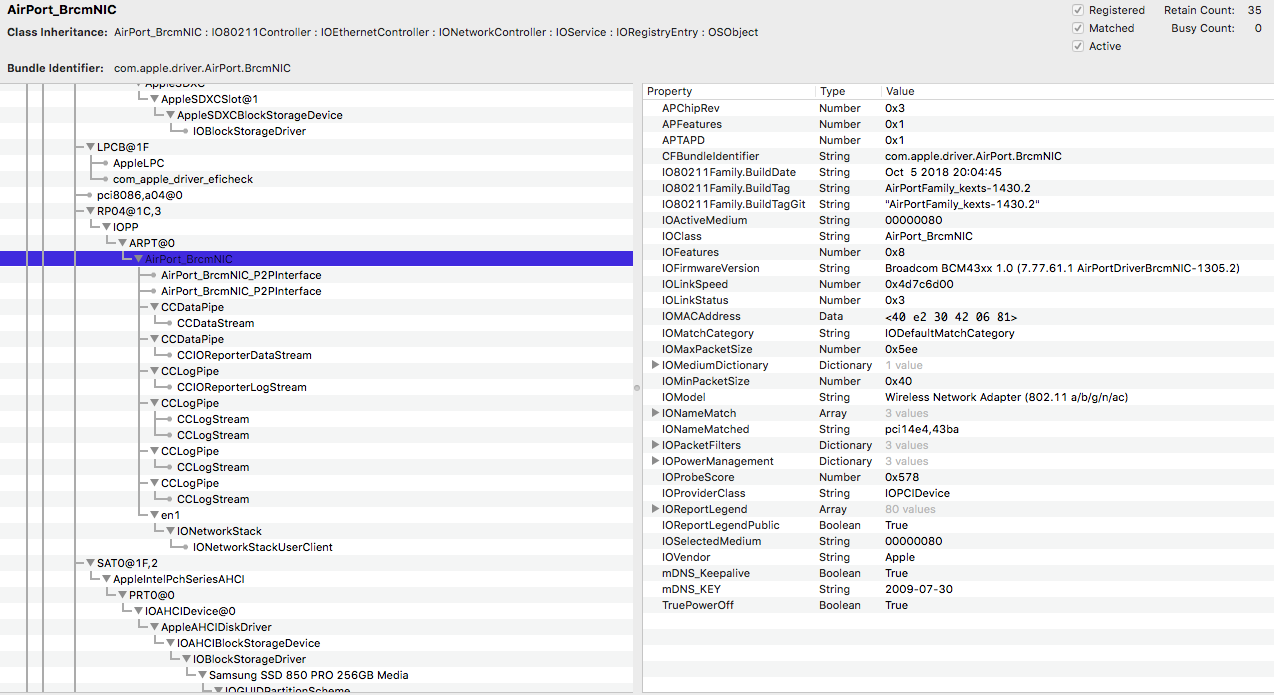

Screenshot 2018-11-04 at 09.24.35.png

Screenshot 2018-11-04 at 09.29.52.png

Edited by lvs1974
  • Like 1
Link to comment
Share on other sites
fallen00sniper
fallen00sniper
Posted
  • Author
Posted (edited)

@lvs1974



it wasn’t booting before because I did not see you were using data on property 0 and CCG defaults to string.



booted this time set as 43a3 and the results in io jones are reporting as 43a3.



43a3

brcmfx-driver=2

still goes to the hollow WiFi icon at scan.



brcmfx-driver=0

reacts the same.



43ba

brcmfx-driver=2

still goes to the hollow WiFi icon at scan.



brcmfx-driver=0

Hollow icon at boot



I will attach attach logs from my main and update this post.



also should I be using these custom properties for my hackbook pro? WiFi works right away with fixup and Bluetooth with fakeid.

brcmfx-debug-logs.zip

Edited by fallen00sniper
Link to comment
Share on other sites
lvs1974
lvs1974
Posted
Posted (edited)

@fallen00sniper



I had a look into your latest logs and discovered one strange thing:

In all 4 logs I see this string: "AirportBrcmFixup:  BRCMFX @ (DBG) probe: disable service AirPort_BrcmNIC_MFG".

It means there is a trouble with argument brcmfx-driver, since AirPort_BrcmNIC_MFG is disabled: by default (there is no boot-arg brcmfx-driver) and when brcmfx-driver is not zero. But for brcmfx-driver=0 this string must be different (disable service AirPort_BrcmNIC).

Could you post here your config.plist just to check it?

Edited by lvs1974
Link to comment
Share on other sites
lvs1974
lvs1974
Posted
Posted (edited)

@fallen00sniper



Ok, now I see a mistake:

You have:

Quote

-brcmfx-driver=2 npci=0x2000 dart=0 keepsyms=1 -brcmfxdbg -v

But it should be:

Quote

brcmfx-driver=0 npci=0x2000 dart=0 keepsyms=1 -brcmfxdbg -v



In macOS if you use "=" -> minus is never used.

So, just remove minus and set brcmfx-driver=0 to try MFG driver, I think this is a last chance.

Also please add boot-args wl_msg_level=0xff wl_msg_level2=0xff bcom.logging=0xff (to get more output in log from apple Broadcom driver).

Edited by lvs1974
Link to comment
Share on other sites
fallen00sniper
fallen00sniper
Posted
  • Author
Posted

@lvs1974



ah, guess it was a typo previously in one of the posts I saw from you.



fixed that and booted with 43BA and 43A3 with both driver=0 and driver=2.



no real change, but maybe now you will see something of value in my logs and think up a way to fix it or maybe there is a card I should be telling macOS I am using that is different than what I am?



hope you do find a way to fix it. :)

brcmfx-debug-logs-2.zip

Link to comment
Share on other sites
lvs1974
lvs1974
Posted
Posted (edited)

@fallen00sniper



I checked all my posts, there was no typo anywhere, in every post brcmfx-driver mentioned without minus.

I also checked all logs, and unfortunately our goal is not reached: MFG driver is not loaded (because of race condition).

I will try to fix it in AirportBrcmFixup (and hopefully MFG will be loaded), but I am not sure if it really helps you.

Just to be sure: what do yo mean by hollow WiFi icon at scan? How does it look like?

You see the icon and you can scan networks, but there are no any networks?

Edited by lvs1974
Link to comment
Share on other sites
fallen00sniper
fallen00sniper
Posted
  • Author
Posted

@lvs1974



I’ll try when I get home, I see a normal WiFi icon, when I click on it it says looking for networks, then it becomes empty and changes from turn WiFi off to turn WiFi on and is empty or just an outline of the icon.



with some tests at login it was empty.



if I don’t use brcmfx-driver boot arg MFG loads and I have seen it load with previous attempts to get it working, @Pavo

Got it to load by jumping things like whitelist check in the binary with kext to patch and still didn’t have WiFi, but that was with letting fixup handle normally.

Link to comment
Share on other sites
lvs1974
lvs1974
Posted
Posted (edited)

@fallen00sniper



Now I see that AirportBrcmFixup worked properly, and it managed to load AirPortBrcmNIC-MFG and AirPortBrcmNIC depending on brcmdx-driver.

BTW: if you see kext in kextstat, it does not necessarily mean it is started, it also can be a case that it was loaded and tried to start, but was stopped. Only class name in ioreg tells the true about which driver exactly is started.



Regarding your logs:

(AirPortBrcmNIC-MFG) ARPT: 17.625159: AirPort_Brcm43xx::setPowerCycleInProgress: state [0] -> [1], name['wl_fatal_error'] id[31664]
(AirPortBrcmNIC-MFG) ARPT: 17.757917: Fatal Error - Initiate powercycle
(AirPortBrcmNIC-MFG) ARPT: 17.757924: wl_fault_powercycle: thread_call_enter1 - Power Thread scheduled

(AirPortBrcmNIC) ARPT: 15.511240: AirPort_Brcm43xx::setPowerCycleInProgress: state [0] -> [1], name['wl_fatal_error'] id[31664]
(AirPortBrcmNIC) ARPT: 15.623120: Fatal Error - Initiate powercycle
(AirPortBrcmNIC) ARPT: 15.623128: wl_fault_powercycle: thread_call_enter1 - Power Thread scheduled

I can see the both drivers got this fatal error when try to turn on power for this board.
And both drivers tried to do this many times.



I am not good in hardware, but could it mean some hardware issues?

Do you have any other OS installed on this desktop pc, does this broardcom card work?



I would suggest you to run Sierra 10.12.6 and check whether this card still works.

If it works, you can try to install High Sierra DP1 and apply these Sherlock's patches in clover (and boot system without AirportBrcmFixup):

BCM4352-Airport-Extreme, (credit skvo)
com.apple.driver.AirPort.Brcm4360
6b100000 750d
6b100000 9090
10.13.x

BCM4352-Airport-Extreme, (credit Sherlocks based on skvo original)
com.apple.driver.AirPort.BrcmNIC
6b100000 750d
6b100000 9090

BCM4352-fvco, (credit Sherlocks based on the-darkvoid original)
com.apple.driver.AirPort.BrcmNIC
81f952aa 000074bf
81f952aa 00006690

BCM4352-iovar, (credit Sherlocks)
com.apple.driver.AirPort.BrcmNIC
85db4c8b 65c87971
85db4c8b 65c8eb71

BCM4352-iovar, (credit Sherlocks)
com.apple.driver.AirPort.BrcmNIC
4883c410 89c385db 7946
4883c410 89c385db eb46


BCM4352-Airport-Extreme, (credit Sherlocks based on skvo original)
com.apple.driver.AirPort.BrcmNIC-MFG
6b100000 750d
6b100000 9090

BCM4352-fvco, (credit Sherlocks based on the-darkvoid original)
com.apple.driver.AirPort.BrcmNIC-MFG
81ff52aa 000074c4
81ff52aa 00006690

BCM4352-iovar, (credit Sherlocks)
com.apple.driver.AirPort.BrcmNIC-MFG
0f896201 0000
0f886201 0000

BCM4352-iovar, (credit Sherlocks)
com.apple.driver.AirPort.BrcmNIC-MFG
4883c410 89c385db 7944
4883c410 89c385db eb44



If High Sierra DP1 works with these patches, try to turn them off in clover and boot with AirportBrcmFixup.

If it does not work with AirportBrcmFixup: turn on these patches one-by-one and try to find out which patch is critical for working Wi-Fi.



I think this is the only way to find out something, and most probably you fill wind the missing patch.

You can also try to fake-id to AirportBrcm4360 (brcmfx-driver=1), but I don't expect this can work.

And you can also try to post one of these logs in linux forum about Brcm43xx, and ask why could it happen (power issues).

Edited by lvs1974
  • Like 1
Link to comment
Share on other sites
fallen00sniper
fallen00sniper
Posted
  • Author
Posted (edited)

@ellaosx

It’s a desktop.



@lvs1974

I’ll look into that, I can boot with Linux and I’m sure the card will work. Fairly confident it’s macos blocking the card.

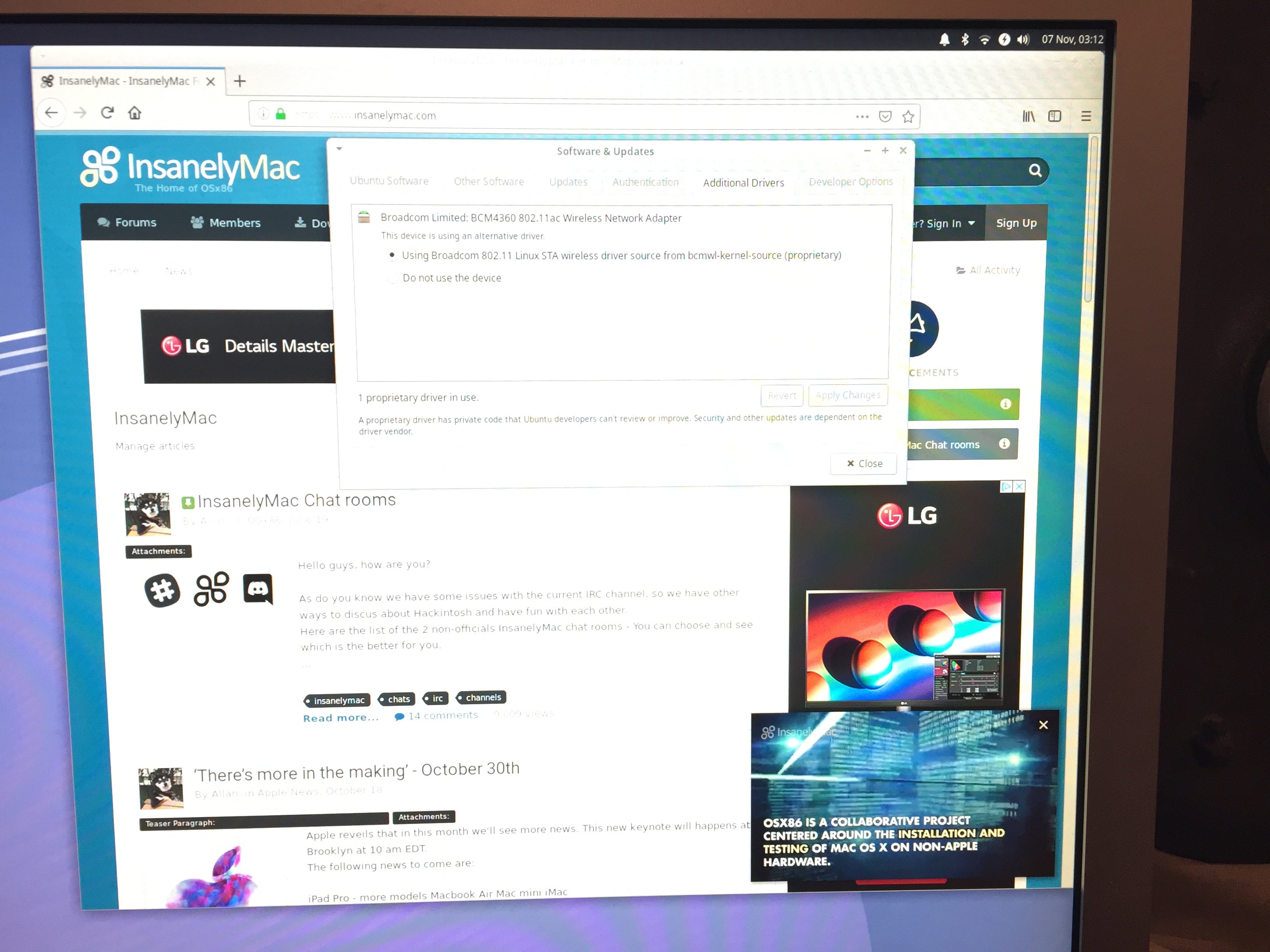

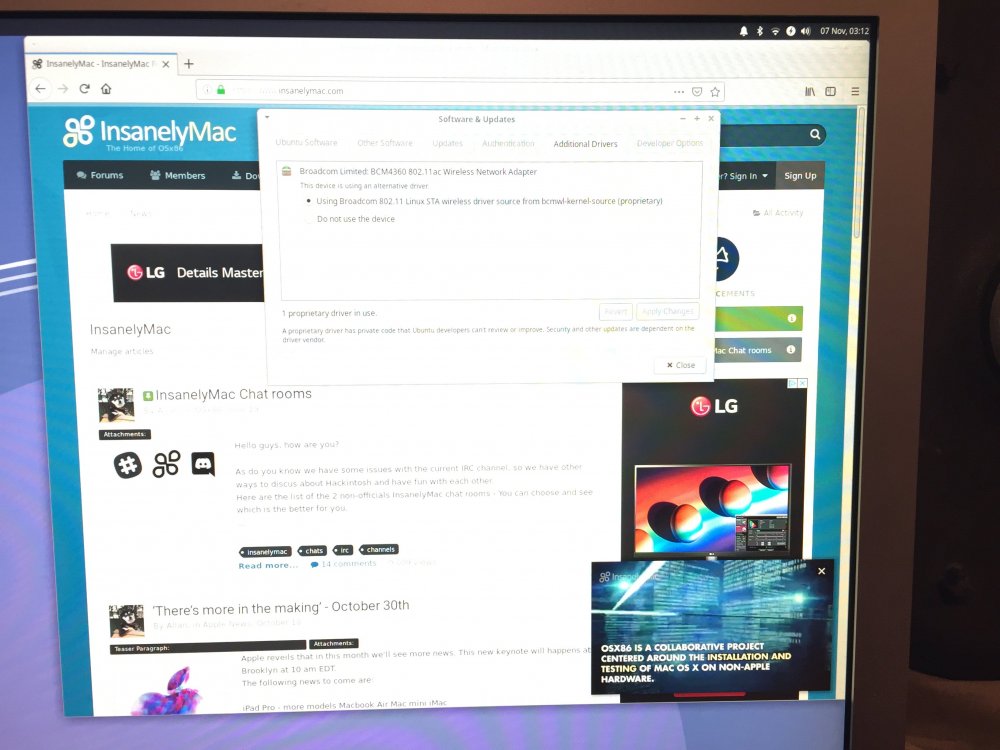

with the Broadcom Linux sta driver it is working fine on xubuntu 18.04 or 18.10.



i can test high Sierra 10.13.6, I do not have an installer available for anything older.


Edited by fallen00sniper
New info to add and image
Link to comment
Share on other sites
fallen00sniper
fallen00sniper
Posted
  • Author
Posted (edited)

@lvs1974

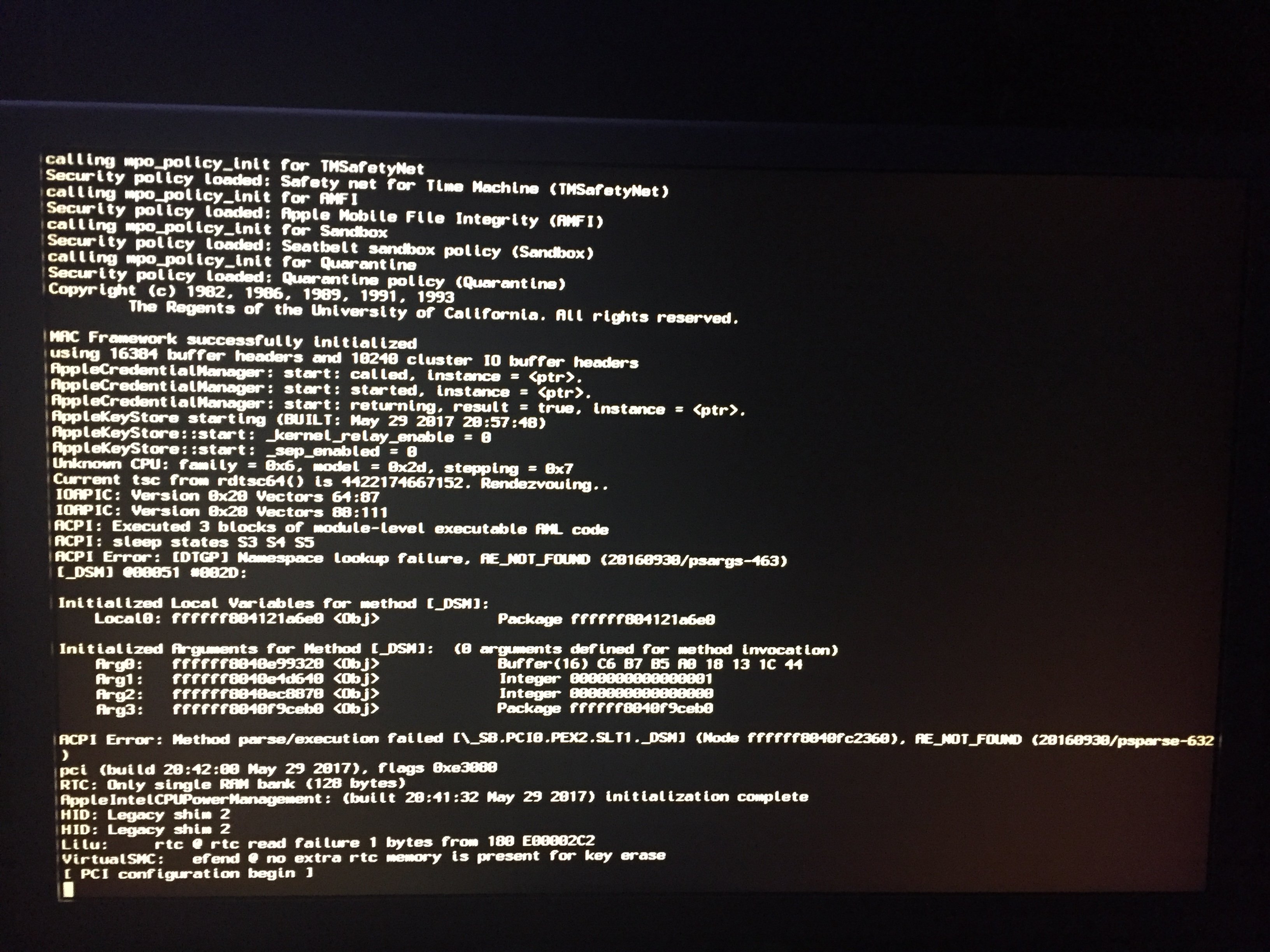

it continues to reboot, patches are disabled and fixup is removed.



its only booted once to desktop and since then it will no longer boot.



i would say it seems to not like my dsdt, but it wasn’t an issue before.



I’ve tried booting in safe mode as well, Mojave is still installed on the other drive that it has.




Edited by fallen00sniper
