vector sigma Posted January 19, 2020 Share Posted January 19, 2020 1 minute ago, jinbingmao said: SMCSuperIO not found. Did you use SMCSuperIO.kext v1.1.0? Link to comment Share on other sites More sharing options...
biciolino Posted January 19, 2020 Share Posted January 19, 2020 4 minutes ago, vector sigma said: Did you use SMCSuperIO.kext v1.1.0? Same here: SMCSuperIO not found: 0 0xffffff7f86631000 0xc000 0xc000 ru.joedm.SMCSuperIO (1.1.0) E57FF17D-A160-3C5C-AF5A-0087C646D8B3 <45 42 12 8 6 5 3 2 1> Link to comment Share on other sites More sharing options...
vector sigma Posted January 19, 2020 Share Posted January 19, 2020 Ok, thanks. I've to install VirtualSMC and try my self on Desktop pc... Link to comment Share on other sites More sharing options...
jinbingmao Posted January 19, 2020 Share Posted January 19, 2020 48 minutes ago, vector sigma said: Did you use SMCSuperIO.kext v1.1.0? Yes, I have it Link to comment Share on other sites More sharing options...
vector sigma Posted January 19, 2020 Share Posted January 19, 2020 (edited) @biciolino, @jinbingmao please test this: Edited January 20, 2020 by vector sigma program removed (see below) Link to comment Share on other sites More sharing options...
biciolino Posted January 19, 2020 Share Posted January 19, 2020 28 minutes ago, vector sigma said: @biciolino, @jinbingmao please test this: SMCSuperIO.zip VIN0 = <d578693f> VIN7 = <3e0ad73f> FAN5 = 0 FAN1 = 1099 VIN3 = <a470fd3f> VBAT = <ba49cc3f> VIN6 = <0000c03f> FAN4 = 0 VIN2 = <355efa3f> VIN5 = <022b873f> FAN3 = 0 VIN1 = <0000c03f> VIN4 = <17d90e40> FAN2 = 0 1 Link to comment Share on other sites More sharing options...
jinbingmao Posted January 19, 2020 Share Posted January 19, 2020 33 minutes ago, vector sigma said: @biciolino,@jinbingmao 请对此进行测试: SMCSuperIO.zip FAN2 = 324 VIN7 = <7593d83f> VIN3 = <5c8f0240> FAN1 = 1001 FAN5 = 0 VBAT = <6f12c33f> VIN6 = <6991ad3f> FAN4 = 0 VIN2 = <5c8f0240> VIN5 = <2fdde43f> VIN1 = <5c8f0240> FAN3 = 317 VIN4 = <a69b443c> VIN0 = <f853e33e> 1 Link to comment Share on other sites More sharing options...
vector sigma Posted January 19, 2020 Share Posted January 19, 2020 (edited) Thanks guys! Voltages needs a formula to be applied based on motherboards (on its capacitors/resistors), I'll create a method to let users to apply a custom configuration.. Edited January 19, 2020 by vector sigma 4 Link to comment Share on other sites More sharing options...
Mike Ranger Posted January 19, 2020 Share Posted January 19, 2020 VIN5 = <2eb21d3f> VTT = <b91e853f> AUXFAN3 = 0 3VCC = <3cdfcf3f> VIN3 = <24dbf93e> VIN8 = <5d8f0240> SYSFAN = 353 VIN1 = <0000803f> VBAT = <d0f7d33f> CPUFAN = 420 VIN6 = <90c2753f> VIN4 = <508d973e> AUXFAN0 = 362 3VSB = <d222db3f> VIN2 = <1b2fdd3e> AUXFAN1 = 0 VIN7 = <a69b443f> VIN0 = <2506813f> AUXFAN2 = 0 CPUVCORE = <d2225b3f> AVSB = <3cdfcf3f> 1 Link to comment Share on other sites More sharing options...

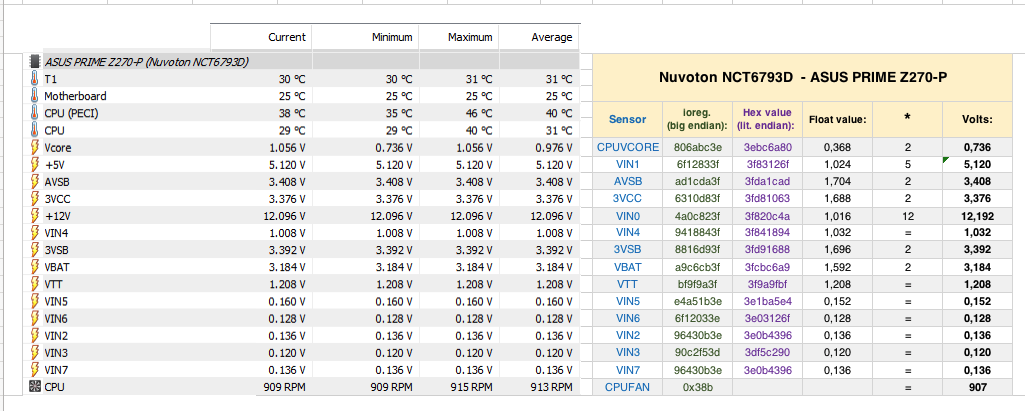

ctich Posted January 20, 2020 Share Posted January 20, 2020 7 hours ago, vector sigma said: Thanks guys! Voltages needs a formula to be applied based on motherboards (on its capacitors/resistors), I'll create a method to let users to apply a custom configuration.. Hi, this might be useful(?): Sensor readings taken in HWinfo64 https://www.hwinfo.com/ Sensor datasheet -> https://www.dropbox.com/sh/w57yqrzk8dmeng2/AABs51V5NbfZGKi2sAN1Ekk_a?dl=0 1 Link to comment Share on other sites More sharing options...

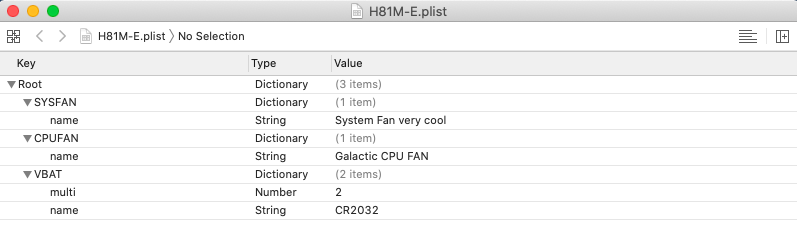

vector sigma Posted January 20, 2020 Share Posted January 20, 2020 (edited) On 1/20/2020 at 7:42 AM, ctich said: Hi, this might be useful(?): Oh yeah! ..... try there will be a folder inside HWMonitorSMC2.app/Contents/SharedSupport/, where sub folders and files will exists: ASUS/ H81M-E.plist PRIME Z270-P.plist ASROCK/ ... ... etc. ..but in the meantime this folder will be in your Desktop: SharedSupport.zip run this new one: [REMOVED] and you will see something like that: SMCSuperIO parser by vector sigma. Product = All Series Board = H81M-E Vendor = ASUS /Users/vectorsigma/Desktop/SharedSupport/ASUS/H81M-E.plist not found. now you have to create your configuration, i.e. SharedSupport/ASUS/H81M-E.plist (or what ever the program say to you). Take a look at ../ASUS/H81M-E.plist, it is easy: name to override the sensor name, if you want, for both fans and voltages. multi to moltiplicate the voltage if wrong. ... this for all the sensors shown. Soon in HWMonitorSMC2.app . let me know EDIT for Open Core see here Edited February 2, 2020 by vector sigma beta program removed 2 Link to comment Share on other sites More sharing options...
jinbingmao Posted January 20, 2020 Share Posted January 20, 2020 Product = Unknown Board = Unknown Vendor = Unknown FANS: FAN2 = 323 RPM FAN1 = 951 RPM FAN5 = 0 RPM FAN4 = 0 RPM FAN3 = 315 RPM VOLTAGES: VIN7 = 1.692 Volts VIN3 = 2.040 Volts VBAT = 1.524 Volts VIN6 = 1.356 Volts VIN2 = 2.040 Volts VIN5 = 1.788 Volts VIN1 = 2.040 Volts VIN4 = 0.012 Volts VIN0 = 0.552 Volts Gigabyte Z87X-HD3 Link to comment Share on other sites More sharing options...
vector sigma Posted January 20, 2020 Share Posted January 20, 2020 1 minute ago, jinbingmao said: Product = Unknown Board = Unknown Vendor = Unknown FANS: FAN2 = 323 RPM FAN1 = 951 RPM FAN5 = 0 RPM FAN4 = 0 RPM FAN3 = 315 RPM VOLTAGES: VIN7 = 1.692 Volts VIN3 = 2.040 Volts VBAT = 1.524 Volts VIN6 = 1.356 Volts VIN2 = 2.040 Volts VIN5 = 1.788 Volts VIN1 = 2.040 Volts VIN4 = 0.012 Volts VIN0 = 0.552 Volts Gigabyte Z87X-HD3 A ioreg please Link to comment Share on other sites More sharing options...
jinbingmao Posted January 20, 2020 Share Posted January 20, 2020 (edited) 8 小时前,矢量西格玛说: 请 还行 Edited January 21, 2020 by jinbingmao Link to comment Share on other sites More sharing options...
ctich Posted January 20, 2020 Share Posted January 20, 2020 @vector sigma ctich@iMac-Sergey ~ % /Users/ctich/Desktop/SMCSuperIO SMCSuperIO parser by vector sigma. Product = Unknown Board = Unknown Vendor = Unknown FANS: AUXFAN3 = 0 RPM SYSFAN = 0 RPM CPUFAN = 914 RPM AUXFAN0 = 0 RPM AUXFAN1 = 0 RPM AUXFAN2 = 0 RPM VOLTAGES: VIN5 = 0.160 Volts VTT = 1.208 Volts 3VCC = 1.688 Volts VIN3 = 0.120 Volts VIN8 = 0.152 Volts VIN1 = 1.024 Volts VBAT = 1.592 Volts VIN6 = 0.128 Volts VIN4 = 1.024 Volts 3VSB = 1.696 Volts VIN2 = 0.136 Volts VIN7 = 0.136 Volts VIN0 = 1.008 Volts CPUVCORE = 0.344 Volts AVSB = 1.704 Volts ctich@iMac-Sergey ~ % z270-p.zip Link to comment Share on other sites More sharing options...
vector sigma Posted January 20, 2020 Share Posted January 20, 2020 (edited) Guys, you don't have OEM informations under IODeviceTree:/efi/platform as Clover does. So try this: [REMOVED] and create ~/Desktop/SharedSupport/lpc.plist try again Edited February 2, 2020 by vector sigma beta program removed Link to comment Share on other sites More sharing options...
jinbingmao Posted January 20, 2020 Share Posted January 20, 2020 17 minutes ago, vector sigma said: Guys, you don't have OEM informations under IODeviceTree:/efi/platform as Clover does. So try this: SMCSuperIO.zip and create ~/Desktop/SharedSupport/lpc.plist try again SMCSuperIO parser by vector sigma. Product = Unknown Board = Unknown Vendor = Unknown FANS: FAN2 = 324 RPM FAN1 = 955 RPM FAN5 = 0 RPM FAN4 = 0 RPM FAN3 = 317 RPM VOLTAGES: VIN7 = 1.692 Volts VIN3 = 2.040 Volts VBAT = 1.524 Volts VIN6 = 1.356 Volts VIN2 = 2.040 Volts VIN5 = 1.788 Volts VIN1 = 2.040 Volts VIN4 = 0.012 Volts VIN0 = 0.444 Volts logout Link to comment Share on other sites More sharing options...

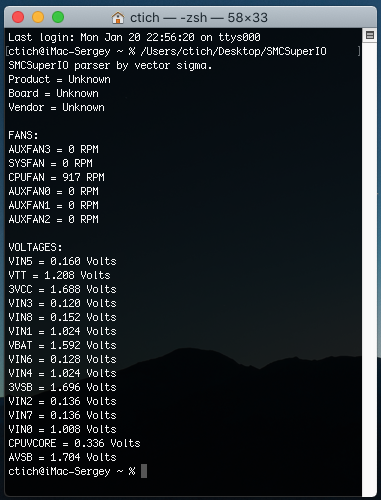

ctich Posted January 20, 2020 Share Posted January 20, 2020 19 minutes ago, vector sigma said: Guys, you don't have OEM informations under IODeviceTree:/efi/platform as Clover does. So try this: SMCSuperIO.zip and create ~/Desktop/SharedSupport/lpc.plist try again Link to comment Share on other sites More sharing options...
vector sigma Posted January 20, 2020 Share Posted January 20, 2020 (edited) @ctich, @jinbingmaomy mistake, use this Edited January 20, 2020 by vector sigma 1 Link to comment Share on other sites More sharing options...
ctich Posted January 20, 2020 Share Posted January 20, 2020 2 minutes ago, vector sigma said: @ctich my mistake, use this ctich@iMac-Sergey ~ % /Users/ctich/Desktop/SMCSuperIO SMCSuperIO parser by vector sigma. Product = Unknown Board = Unknown Vendor = Unknown Loading configuration from ../SharedSupport/lpc.plist. FANS: AUXFAN3 = 0 RPM SYSFAN = 0 RPM CPUFAN = 906 RPM AUXFAN0 = 0 RPM AUXFAN1 = 0 RPM AUXFAN2 = 0 RPM VOLTAGES: VIN5 = 0.160 Volts VTT = 1.208 Volts 3VCC = 3.376 Volts VIN3 = 0.120 Volts VIN8 = 0.152 Volts VIN1 = 5.120 Volts VBAT = 3.184 Volts VIN6 = 0.128 Volts VIN4 = 1.024 Volts 3VSB = 3.392 Volts VIN2 = 0.136 Volts VIN7 = 0.136 Volts VIN0 = 12.096 Volts CPUVCORE = 0.704 Volts AVSB = 3.408 Volts ctich@iMac-Sergey ~ % 1 Link to comment Share on other sites More sharing options...
jinbingmao Posted January 20, 2020 Share Posted January 20, 2020 Still the same Link to comment Share on other sites More sharing options...
vector sigma Posted January 20, 2020 Share Posted January 20, 2020 @ctich you can rename each entry if you want! 1 minute ago, jinbingmao said: Still the same be sure ~/Desktop/SharedSupport/lpc.plist exists 1 Link to comment Share on other sites More sharing options...
ctich Posted January 20, 2020 Share Posted January 20, 2020 3 minutes ago, vector sigma said: @ctich you can rename each entry if you want! yes it works, thanks. 1 Link to comment Share on other sites More sharing options...
Regi Yassin Posted January 21, 2020 Share Posted January 21, 2020 7 hours ago, vector sigma said: Guys, you don't have OEM informations under IODeviceTree:/efi/platform as Clover does. So try this: SMCSuperIO.zip and create ~/Desktop/SharedSupport/lpc.plist try again because virtualsmc doesn't set IODeviceTree:/efi/platform/oem information, so we need lpc.plist? there is no way to auto detect the board itself? Link to comment Share on other sites More sharing options...
Andrey1970 Posted January 21, 2020 Share Posted January 21, 2020 @vector sigma multi it not always integer. Link to comment Share on other sites More sharing options...
