yapan4 Posted October 24, 2019 Share Posted October 24, 2019 No, this is EC0->EC IOReg, your SSDT not tasted yet(will do it after beta3 install) Link to comment Share on other sites More sharing options...
obus Posted October 24, 2019 Author Share Posted October 24, 2019 2 minutes ago, yapan4 said: No, this is EC0->EC IOReg, your SSDT not tasted yet(will do it after beta3 install) That driver (device) appleACPIEC shouldnt't be there for working AppleBusPowerController. 1 Link to comment Share on other sites More sharing options...
yapan4 Posted October 24, 2019 Share Posted October 24, 2019 I noticed a problem with malfunctioning USB 3.0-3.1 lately. Probably because of EC0-> EC. I will see the difference EC0-> EC vs your SSDT... Link to comment Share on other sites More sharing options...
obus Posted October 24, 2019 Author Share Posted October 24, 2019 1 minute ago, yapan4 said: I noticed a problem with malfunctioning USB 3.0-3.1 lately. Probably because of EC0-> EC. I will see the difference EC0-> EC vs your SSDT... Use this kext for working USB-ports 15 limit. Two of the USB 3.1 ports on the rear is excluded because of the 15 limit (The one from the right if you look from backwards I think) Don't use USBInjectAll or 15 limit patch. C422-XHCI.kext.zip 1 Link to comment Share on other sites More sharing options...

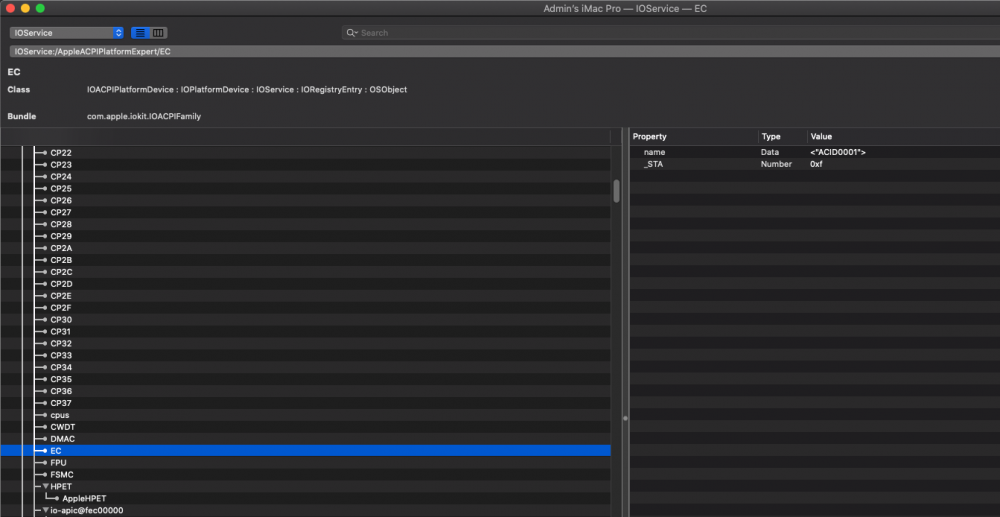

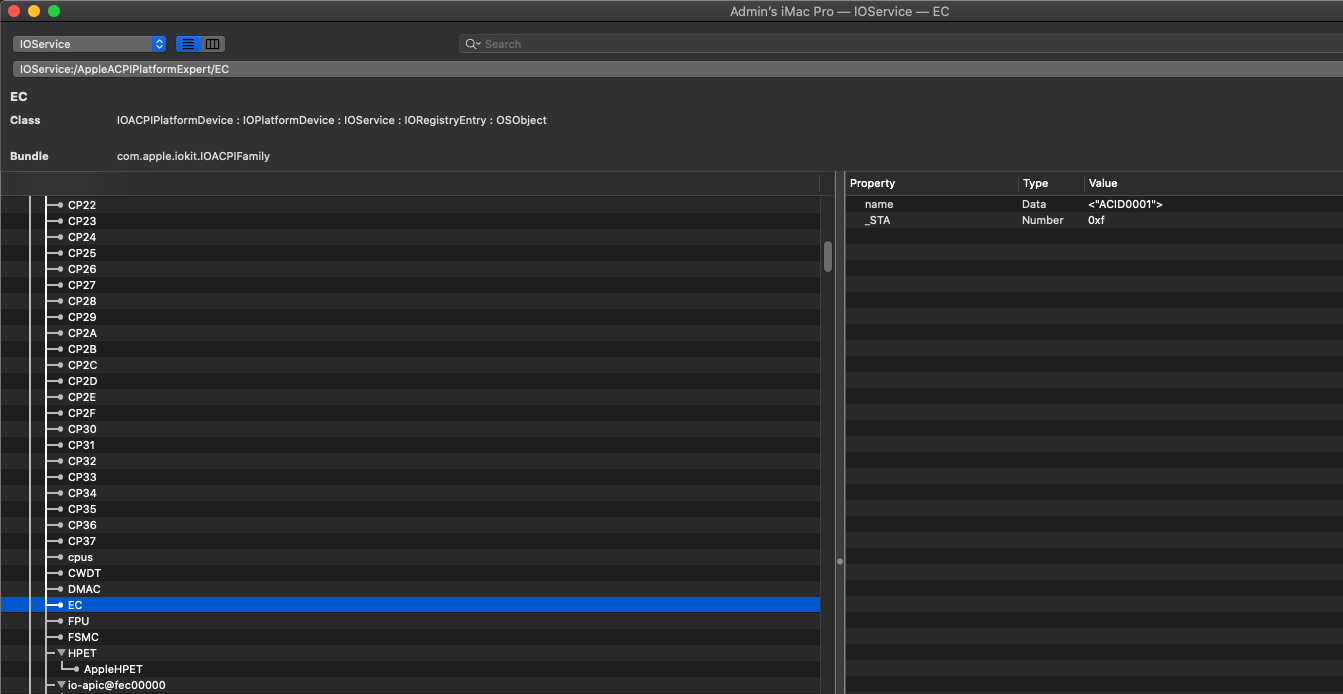

yapan4 Posted October 25, 2019 Share Posted October 25, 2019 (edited) Some initial results: 1. Your SSDT works fine, now IOReg show me the same as yours 2. C422-XHCI.kext work for me on ~90% because two USB 2.0 on back panel don't work with him. Edited October 25, 2019 by yapan4 Link to comment Share on other sites More sharing options...
obus Posted October 25, 2019 Author Share Posted October 25, 2019 (edited) 1 hour ago, yapan4 said: Some initial results: 1. Your SSDT works fine, now IOReg show me the same as yours 2. C422-XHCI.kext work for me on ~90% because two USB 2.0 on back panel don't work with him. No and that is correct. macOS supports only 15 ports in total. Thats why I have disabled 2 ports in the rear. There is two ways to achieve this. One way is with a SSDT and the second way is with a kext. I preferred the kext before the SSDT. You can read this if you want to learn the SSDT-way:https://www.travelertechie.com/2019/02/create-ssdt-to-fix-usb-rehabmans-way.html. If not you can test my SSDT. So be happy everything is working as it should. SSDT-UIAC-C422-ALL.aml Edited October 25, 2019 by obus 1 Link to comment Share on other sites More sharing options...
yapan4 Posted October 26, 2019 Share Posted October 26, 2019 Thanks @obus The current condition of USB on my Hackintosh is satisfying to me. We may come back to this in the future, as there are some questions about the 15 port limit. Link to comment Share on other sites More sharing options...
yapan4 Posted October 31, 2019 Share Posted October 31, 2019 BIOS 3003 released and my Hackintosh not bootable again Link to comment Share on other sites More sharing options...
obus Posted October 31, 2019 Author Share Posted October 31, 2019 (edited) 5 hours ago, yapan4 said: BIOS 3003 released and my Hackintosh not bootable again Can you downgrade? What is the problem? where does it get stuck? Edited October 31, 2019 by obus Link to comment Share on other sites More sharing options...
yapan4 Posted October 31, 2019 Share Posted October 31, 2019 3 hours ago, obus said: Can you downgrade? What is the problem? where does it get stuck? First at all - old new CPUPM. Kernel patch for MSR 0x1AA write don't work now, old _xcpm_pkg_scope_msrs_PMheart_10.15 plus FakeCPUID - Model 0xE (0x5E, SKL)_10.15 still work and allow run kernel. Simultaneously Clover turns on KernelPM and IntelCPUPM patches independently and KernelPM must be enabled for run kernel. Otherwise "End randomseed" ( looks different now). Then stop (not kernel panic) with different errors, Later I will try to make and upload screenshots. I'll experiment again and then I'll try to go back to the previous BIOS. Also in BIOS change log nothing about Cascade Lake CPU support, only CPU microcode update. But the list of supported CPUs for the C422-ACE motherboard has changed, no more i9-10xxx, only Xeon W-21xx and W-22xx. Apparently it was a joke from ASUS Link to comment Share on other sites More sharing options...
obus Posted October 31, 2019 Author Share Posted October 31, 2019 (edited) 21 minutes ago, yapan4 said: First at all - old new CPUPM. Kernel patch for MSR 0x1AA write don't work now, old _xcpm_pkg_scope_msrs_PMheart_10.15 plus FakeCPUID - Model 0xE (0x5E, SKL)_10.15 still work and allow run kernel. Simultaneously Clover turns on KernelPM and IntelCPUPM patches independently and KernelPM must be enabled for run kernel. Otherwise "End randomseed" ( looks different now). Then stop (not kernel panic) with different errors, Later I will try to make and upload screenshots. I'll experiment again and then I'll try to go back to the previous BIOS. Also in BIOS change log nothing about Cascade Lake CPU support, only CPU microcode update. But the list of supported CPUs for the C422-ACE motherboard has changed, no more i9-10xxx, only Xeon W-21xx and W-22xx. Apparently it was a joke from ASUS Same behaviour with new bios 1303 in 10.15.0 or does it happened after upgrading to 10.15.1? Edited October 31, 2019 by obus Link to comment Share on other sites More sharing options...
yapan4 Posted October 31, 2019 Share Posted October 31, 2019 1 hour ago, obus said: Same behaviour with new bios 1303 in 10.15.0 or does it happened after upgrading to 10.15.1? No, all OK on Catalina 10.15.1 beta 1, 2, 3 and 10.15.1 on BIOS 1202. Important! I couldn't go back from 3003 to 1202, so ASUS probably doesn't allow it!!!! So I do not recommend updating!!!! Link to comment Share on other sites More sharing options...
obus Posted October 31, 2019 Author Share Posted October 31, 2019 Already done. This is so typical. I was suspecting that. Link to comment Share on other sites More sharing options...
yapan4 Posted October 31, 2019 Share Posted October 31, 2019 (edited) The first bug found - does not work MSR Lock Control. No difference is enabled or disabled, Clover reported locked MSR 0xE2 Probably significantly changed ACPI tables preboot.log Edited November 1, 2019 by yapan4 Link to comment Share on other sites More sharing options...
obus Posted October 31, 2019 Author Share Posted October 31, 2019 1 minute ago, yapan4 said: Found the first defect - does not work MSR Lock Controll. No difference is enabled or disabled, Clover reported locked MSR 0xE2 Downgrading was no problem for me. I'am back on 1202 again. Link to comment Share on other sites More sharing options...
yapan4 Posted October 31, 2019 Share Posted October 31, 2019 1 minute ago, obus said: Downgrading was no problem for me. I'am back on 1202 again. How? Link to comment Share on other sites More sharing options...
obus Posted October 31, 2019 Author Share Posted October 31, 2019 (edited) 14 minutes ago, yapan4 said: How? Use this bios on a FAT 32 USB-stick in the USB 2.0 port in the rear. And push the button for three sec. WSCSE.CAP Edited October 31, 2019 by obus 1 Link to comment Share on other sites More sharing options...
obus Posted October 31, 2019 Author Share Posted October 31, 2019 (edited) Hey @yapan4 Check my log on opencore-forum. locked MSR 0xE2 is not my problem Because with OC my rig is booting and not stuck at "end random seed" Edited October 31, 2019 by obus Link to comment Share on other sites More sharing options...
yapan4 Posted October 31, 2019 Share Posted October 31, 2019 (edited) Thank you, @obus. Back to 1202 over flashback button worked. I reviewed you screenshot, yes this is the same stop as my, probably not related with locked MSR 0xE2. There may be something with ACPI or FakeSMC Edited October 31, 2019 by yapan4 Link to comment Share on other sites More sharing options...
obus Posted October 31, 2019 Author Share Posted October 31, 2019 34 minutes ago, yapan4 said: Thank you, @obus. Back to 1202 over flashback button worked. I reviewed you screenshot, yes this is the same stop as my, probably not related with locked MSR 0xE2. There may be something with ACPI or FakeSMC Not FakeSMC because I was booting with VirtualSMC when my log was produced. Maybe ACPI but what? Link to comment Share on other sites More sharing options...
yapan4 Posted October 31, 2019 Share Posted October 31, 2019 I'm not sure, but it seems to me that this BIOS is focused on Cascade Like CPU and may be on W-22xx will be normal boot. Link to comment Share on other sites More sharing options...

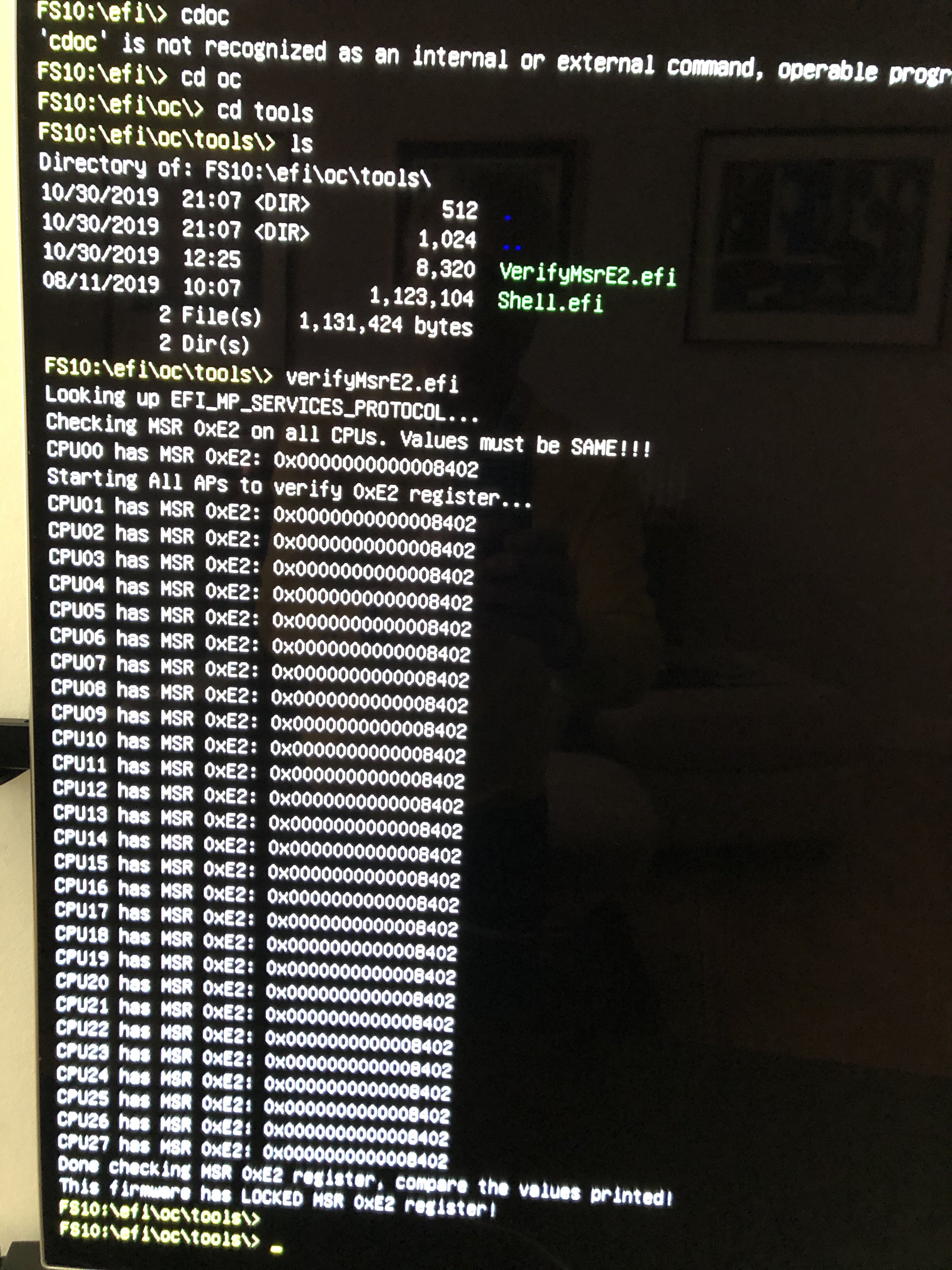

obus Posted November 1, 2019 Author Share Posted November 1, 2019 (edited) 13 hours ago, yapan4 said: Thank you, @obus. Back to 1202 over flashback button worked. I reviewed you screenshot, yes this is the same stop as my, probably not related with locked MSR 0xE2. There may be something with ACPI or FakeSMC The firmware has locked MSR 0xE2. We need it to be unlocked and I don't know how? Any ideas? Edited November 1, 2019 by obus Link to comment Share on other sites More sharing options...
yapan4 Posted November 1, 2019 Share Posted November 1, 2019 7 hours ago, obus said: The firmware has locked MSR 0xE2. I think it's a bug in v3003 from ASUS Link to comment Share on other sites More sharing options...
obus Posted November 1, 2019 Author Share Posted November 1, 2019 34 minutes ago, yapan4 said: I think it's a bug in v3003 from ASUS I tried to unlock the MSR 0xE2 register today with Grub but with no go. Will test a little bit more tomorrow. Link to comment Share on other sites More sharing options...

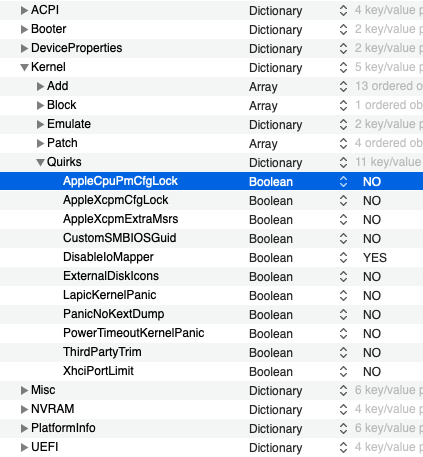

Ellybz Posted November 1, 2019 Share Posted November 1, 2019 (edited) 1 hour ago, obus said: I tried to unlock the MSR 0xE2 register today with Grub but with no go. Will test a little bit more tomorrow. Have you tried enabling the AppleCpuPmCfgLock option in OC? (MSR 0xE2 write protection) You can also try to mod your Bios with the UEFITool from Longsoft if you feel adventurous & the option in OC doesn't work. Edited November 1, 2019 by Ellybz Link to comment Share on other sites More sharing options...
