parseInt32 Posted January 12, 2019 Share Posted January 12, 2019 i've a similar issue of @black.dragon74 on my 8700k, but only the animations are lagging, like the one in the video at 0:10 Link to comment Share on other sites More sharing options...
SavageAUS Posted January 23, 2019 Share Posted January 23, 2019 (edited) Can anyone see why my iGPU does not appear in System Report? iMac.ioreg.zip CLOVER.zip Edited January 23, 2019 by SavageAUS Link to comment Share on other sites More sharing options...

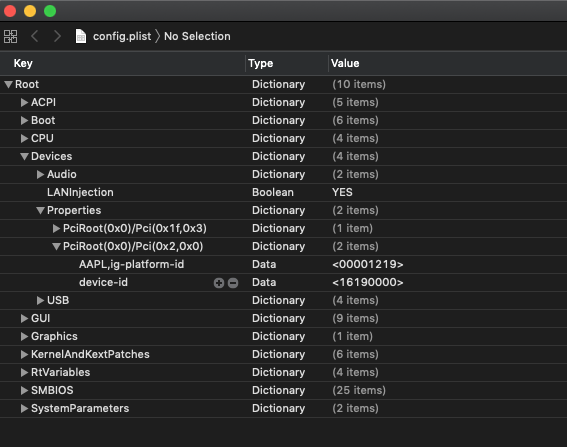

SavageAUS Posted January 31, 2019 Share Posted January 31, 2019 Can i dump my iGPU framebuffer info while using a dGPU? I have both Lilu + WEG debug version and booted with -igfxfbdump and did not get anything in my root folder. Or is this enough? Or will i need to remove my dGPU to patch iGPU properly? I just wanna make sure i have both fully working just in case. And even though my iGPU is enabled in bios it does not show up in system information. Link to comment Share on other sites More sharing options...
Andrey1970 Posted February 1, 2019 Share Posted February 1, 2019 @SavageAUS Use IGPU only for IQSV, as on real iMac. https://translate.google.com/translate?hl=ru&sl=auto&tl=en&u=https%3A%2F%2Fwww.applelife.ru%2Fthreads%2Fzavod-intel-quick-sync-video.817923%2F Link to comment Share on other sites More sharing options...
SavageAUS Posted February 2, 2019 Share Posted February 2, 2019 7 hours ago, Andrey1970 said: @SavageAUS Use IGPU only for IQSV, as on real iMac. https://translate.google.com/translate?hl=ru&sl=auto&tl=en&u=https%3A%2F%2Fwww.applelife.ru%2Fthreads%2Fzavod-intel-quick-sync-video.817923%2F So this is a good result? GVA info: Successfully connected to the Intel plugin, offline Gen9 Hardware acceleration is fully supported Even though my igpu does not appear in system report? Link to comment Share on other sites More sharing options...
Andrey1970 Posted February 3, 2019 Share Posted February 3, 2019 Yes. But you shall use a framebuffer 0 connectors 0x19120001 Remove PciRoot(0x0)/Pci(0x2,0x0) 0x19120001 will be injected automatically using WEG. (Under a condition dGPU) In detail on my link. 1 Link to comment Share on other sites More sharing options...

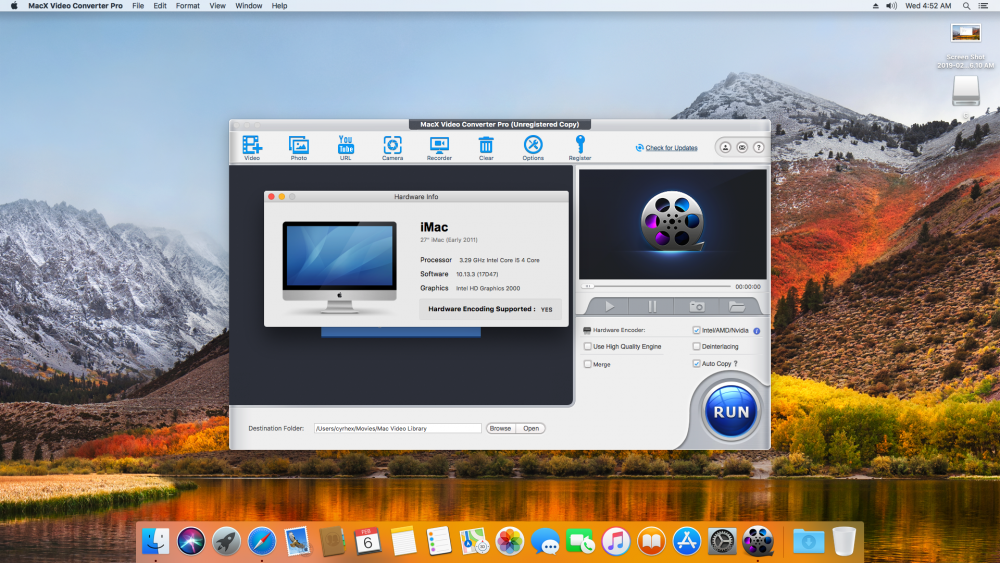

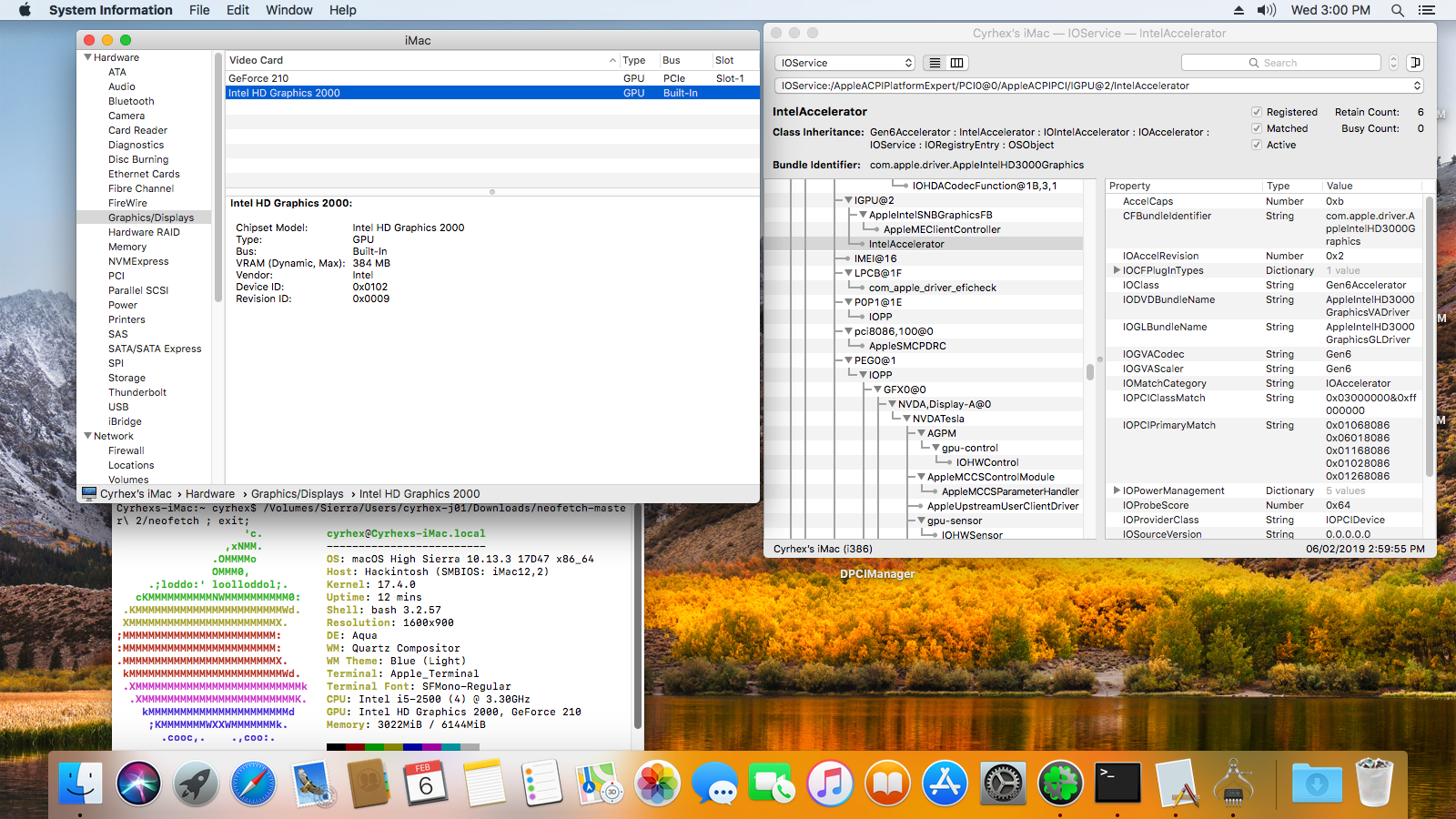

Mc Jacej Posted February 6, 2019 Share Posted February 6, 2019 (edited) got my intel hd 2000 working,thnx andrey1970 for your tutorials,anyway my motherboard is asus b75m-a,, set 128mb dvmt in bios..devid 102,,i use 00000500 ig_platform id Edited February 6, 2019 by Mc Jacej 1 Link to comment Share on other sites More sharing options...
Mc Jacej Posted February 6, 2019 Share Posted February 6, 2019 2 minutes ago, onemanOSX said: Please share, I'd like to know how since have a HD2000 gfx too just follow andrey1970 tutorials Link to comment Share on other sites More sharing options...
Andrey1970 Posted February 6, 2019 Share Posted February 6, 2019 8 hours ago, Mc Jacej said: use 00000500 ig_platform id AAPL,snb-platform-id 2 Link to comment Share on other sites More sharing options...
adysowsky12 Posted February 8, 2019 Share Posted February 8, 2019 Hi to all, I am trying to make hackintosh for friends' laptop: Lenovo W540 i7 4800MQ GeForce Quadro M1100 Intel HD 4600 32GB RAM FHD Display, eDP connector Bios memory setting: 256/512MB I cant make that Intel work, there is no option in bios to disable/enable quadro, so im stuck with intel, whatever ig-platform-id i tried always says "7MB" without qe/ci. What may be wrong? Link to comment Share on other sites More sharing options...
Andrey1970 Posted February 8, 2019 Share Posted February 8, 2019 20 hours ago, adysowsky12 said: Hi to all, I am trying to make hackintosh for friends' laptop: Lenovo W540 i7 4800MQ GeForce Quadro M1100 Intel HD 4600 32GB RAM FHD Display, eDP connector Bios memory setting: 256/512MB I cant make that Intel work, there is no option in bios to disable/enable quadro, so im stuck with intel, whatever ig-platform-id i tried always says "7MB" without qe/ci. What may be wrong? device-id 12040000 disable-external-gpu 01000000 https://github.com/acidanthera/WhateverGreen/blob/master/Manual/FAQ.IntelHD.en.md 1 Link to comment Share on other sites More sharing options...
malek_bh Posted February 9, 2019 Share Posted February 9, 2019 (edited) i have asus P8H61/USB3 with intel HD2000 how to enable it Edited February 9, 2019 by malek_bh Link to comment Share on other sites More sharing options...
Andrey1970 Posted February 9, 2019 Share Posted February 9, 2019 5 minutes ago, malek_bh said: i have asus P8H61/USB3 with intel HD2000 how to enable it Présentation Caractéristiques Galerie Support HD2000 doesn't work as a full-featured graphics card in macOS, but you can (and should) use it with an "empty framebuffer" (0 connectors) for IQSV. Only the HD3000 can work with a display. https://github.com/acidanthera/WhateverGreen/blob/master/Manual/FAQ.IntelHD.en.md Link to comment Share on other sites More sharing options...
adysowsky12 Posted February 9, 2019 Share Posted February 9, 2019 okay, added that values, but still no progress SMBIOS MacBookPro11,2 i attached config.plist and ioreg of that laptop ignore ig-platform-id in ioreg, exported when i was testing desktop id still shows up as a "7MB" and no QE/CI thank you config_ioreg.zip Link to comment Share on other sites More sharing options...
Andrey1970 Posted February 9, 2019 Share Posted February 9, 2019 You shall specify a framebuffer in Properties AAPL,ig-platform-id or in boot-arg. Link to comment Share on other sites More sharing options...
nysander Posted February 19, 2019 Share Posted February 19, 2019 I work to make my screen wake after sleep. As I was told on the other thread too many frame buffers may cause black screen after wake (no backlit, just black as turned off) even after waiting 5-10 minutes of waiting. So I found this topic and was able to remove one FB with FB limit patch. everything works I got also 2GB of mem but situation with screen waking did not changed. I'm sure that laptop wakes is that I can connect to it via TeamViewer. my specs Lenovo Thinkpad W540 Haswell i7-4700MQ HD4600. LID is connected via eDP and the only ig-platform-id on which I got full memory is Haswell desktop one. I attach my current clover config. file tested name is config-kopia.plist I've also tested boot flag igfxclfbklt: wrap - sleep but reboot after wake freq - screen went off, but after button click backlight on black screen was going on/off - no sleep at all any hints what to check more? CLOVER.zip 1 Link to comment Share on other sites More sharing options...
LostShadow Posted February 23, 2019 Share Posted February 23, 2019 (edited) Can somebody please help! I am all new to mac osx and hackintosh and ıt really is too much to digest at once. My system specs are: Motherboard : MSI MS-16j9 CPU: Intel I7 7700HQ Graphics: Intel HD 630+ Nvdia GTX 1050 I have found an EFI that gave audio, although not very good my HDMI output does not work (it is attached to Intel HD 630) Mac specs show 7MB video ram...I would like to fix this....I downloaded intel's own utility and I have the exact card ID: Intel Corporation Video ProcessorIntel® HD Graphics Family Resolution1920 x 1080 Bits Per Pixel32 LocationPCI bus 0, device 2, function 0 Device Id PCI\VEN_8086&DEV_591B &SUBSYS_11C81462&REV_04\3&11583659&0&10 so its 591B I have attached the current clover configplist file I am using, can you please nake the adjustments and send it back to me...as I understand using kext apps to place kexts in to extensions library is not enough to make the necessarry changes....can you please provide step by step instructions config.plist Edited February 23, 2019 by LostShadow Link to comment Share on other sites More sharing options...
kultrun Posted March 6, 2019 Share Posted March 6, 2019 Hi, could you help me with a little problem with my hack? I installed Mojave on my CPU: MOBO Gigabyte Z370 HD3 Intel i5 8400 the video card is onboard: Intel UHD 630 SSD Samsung Evo 860 Everything works great, I have done de USB patch with hackintool and I have a DSDT (thanks to Maldon) But... I have some issues when the hack goes to sleep. Initially, it seemed to work well when going to sleep, but it took about 10 seconds to reactivate when you operated the keyboard or mouse. But on another occasion it did not even return from sleep with the keyboard or mouse, or even the power button So, for now I have decided to disable the option to sleep: I have enabled the option "Prevent computer from sleeping automatically when the display is off" and disable the option "put hard disk to sleep when possible" anyway, is it a configuration error in my igfx intel uhd 630? Is it necessary to patch something in the configurations? I am new in the hack world and I do not understand in depth some things, like the "Intel framebuffer patching..." I send my config.plist and my clover folder, if someone can help me with this ... Many thanks, friends! CLOVER.rar config.plist Link to comment Share on other sites More sharing options...
c4103 Posted April 5, 2019 Share Posted April 5, 2019 Hey there, So I've been trying to get dual monitors to work on my system: 10.12.6 Sierra MSI Z87-GD65 Motherboard Intel HD 4600 i5 4690k 24GB RAM The DVI port on my motherboard works fine, the HD 4600 is fully detected and acceleration is working. However, when I plug a monitor into the HDMI port, the DVI monitor goes black for a moment and then comes back (as if macOS has detected a second monitor) and then when it comes back the second monitor is not present. I've attached output from my system from running the debug script in the original post. Let me know if you can help, thanks! debug_c4103_stage.zip Link to comment Share on other sites More sharing options...
CMMChris Posted May 3, 2019 Share Posted May 3, 2019 (edited) Currently trying to get macOS running on a Cenava I7T All in One PC from China. Got it fully working except for graphics. Processor is an Intel Core i7-7600U. Acceleration with stable HDMI output only works with HD Graphics 520 Spoof. Using the proper HD Graphics 620 device-id and platform IDs results in the output crashing (flickering) after a couple seconds. Replugging the HDMI port fixes is for a few seconds, then starts flickering again. The biggest issue however is that the internal screen stops working once acceleration is active. I only get a picture with fake ID 0x12345678. With acceleration it goes blank and isn't even recognized by the system. Backlight turns off as well. Internal screen is attached via eDP. Tried tons of different IDs and framebuffer patches with no luck. Any idea how to get the internal eDP screen working? Edited May 3, 2019 by CMMChris Link to comment Share on other sites More sharing options...
Nick14 Posted May 5, 2019 Share Posted May 5, 2019 I'm running an HP 840 G2 with HD5500 and I face a problem. When using docking station and two DP ports it mirror the screen on both monitors as if they are one. Any idea how to start troubleshooting ? Link to comment Share on other sites More sharing options...

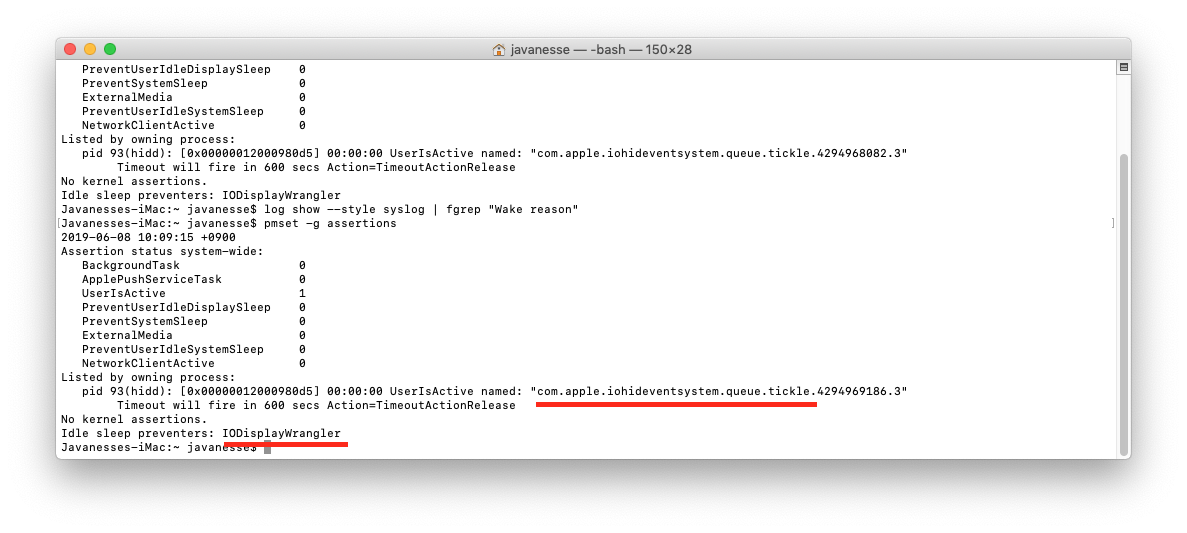

javanesse Posted June 8, 2019 Share Posted June 8, 2019 (edited) so, my hackintosh wont sleep at all, because prevented by IODisplayWrangler that owned by iohideventsystem then i read this quote Quote - Disabling connectors to enable sleep (framebuffer-pipecount / framebuffer-portcount / framebuffer-conX-type=-1) how to do this? Edited June 8, 2019 by javanesse add screenshot Link to comment Share on other sites More sharing options...
javanesse Posted June 10, 2019 Share Posted June 10, 2019 On 6/8/2019 at 9:45 AM, javanesse said: so, my hackintosh wont sleep at all, because prevented by IODisplayWrangler that owned by iohideventsystem then i read this quote how to do this? Solved by removing some PCI Devices properties in DSDT nor clover config Link to comment Share on other sites More sharing options...
whatnameisit Posted June 14, 2019 Share Posted June 14, 2019 On 7/18/2018 at 6:04 AM, headkaze said: Binary patching framebuffers using KextsToPatch in Clover is no longer a viable method in Mojave for Skylake and above. Now you need to use Lilu + WhateverGreen. Why is this method still supported in Hackintool for SKL+? Link to comment Share on other sites More sharing options...
headkaze Posted June 14, 2019 Author Share Posted June 14, 2019 8 hours ago, displhehynehym said: Why is this method still supported in Hackintool for SKL+? I don't assume the user is configuring for the system their running Hackintool on so I don't disable patching using the old method. If you try the patches will just fail silently anyway. 1 Link to comment Share on other sites More sharing options...
