Pavo
Pavo
Posted
Posted
1 minute ago, crazybirdy said:







Test is done.

Works fine here with Core2 Duo E7400 CPU with only SSE4.1, without SSE4.2.:thumbsup_anim::thumbsup_anim:

Replace only one file from 10.13.5.


/System/Library/UserEventPlugins/com.apple.telemetry.plugin


Can you upload the /System/Library/UserEventPlugins/com.apple.telemetry.plugin file from HS so I can take a look at what changed, to make a patch for it.

  • Like 3
  • Thanks 1
Link to comment
Share on other sites
Lucy183
Lucy183
Posted
Posted
6 minutes ago, Pavo said:

Again upload your entire EFI folder

It's a bit messy now since I'm trying to get Mojave running.

config.plist is the one I'm using my main Sierra.

config2.plist have only smbios changed and it's the one I'm booting Mojave with.

EFI 2.zip

Link to comment
Share on other sites
Badruzeus
Badruzeus
Posted
Posted (edited)
29 minutes ago, crazybirdy said:

Test is done.

Works fine here with Core2 Duo E7400 CPU with only SSE4.1, without SSE4.2.:thumbsup_anim::thumbsup_anim:

Replace only one file from 10.13.5.


/System/Library/UserEventPlugins/com.apple.telemetry.plugin





Good old day! :P though I've difficulties installing Mojave on an unsupported Real MacBook4,1 with Intel Core2Duo T8300 Penryn CPU (SSE4.1) and Intel GMA X3100. Seems my brain has poisoned with hackintosh method which is simpler configured through Clover Bootloader #LoL

Edited by Badruzeus
  • Like 2
  • Haha 1
Link to comment
Share on other sites
Pavo
Pavo
Posted
Posted
22 minutes ago, LuCyr04 said:

It's a bit messy now since I'm trying to get Mojave running.

config.plist is the one I'm using my main Sierra.

config2.plist have only smbios changed and it's the one I'm booting Mojave with.

EFI 2.zip

Try adding these to EFI>Clover>ACPI>patched, and remove WhateverGreen.kext from other folder

SSDT-DTGP.aml

SSDT-GFX.aml

Link to comment
Share on other sites
Sniki
Sniki
Posted
Posted (edited)

macOS Mojave Public Beta 1 changes the MinStolenSize Patches, after two days of attempting, i thought that this should be the only issue that i failed to boot my Lenovo V330-15IKB with Intel UHD 620 Graphics.



Checked Framebuffers with HexFiend and results were positive.

So far i haven't seen someone post them so i guess i deserve the credits as my nickname "Sniki"



Here are the new Patches:



Disable minStolenSize less or equal fStolenMemorySize assertion, 10.14 PB1 Credits (Sniki)



KabyLake:

Name: com.apple.driver.AppleIntelKBLGraphicsFramebuffer
Find: 764648FF 05E25108
Replace: EB4648FF 05E25108


Skylake:

Name: com.apple.driver.AppleIntelSKLGraphicsFramebuffer
Find : 764048FF 05927E07
Replace: EB404FF 05927E07


Broadwell:
Name: com.apple.driver.AppleIntelBDWGraphicsFramebuffer
Find: 764048FF 05122B06
Replace: EB4048FF 05122B06





Edited by "Sniki"
  • Like 2
Link to comment
Share on other sites
Sniki
Sniki
Posted
Posted

(Correction, the ones from previous post were for Public Beta 1)



Here are also the new macOS Mojave Public Beta 2 "MinStolenSize" DVMT Patches:



Name: Disable minStolenSize less or equal fStolenMemorySize assertion, 10.14 PB2 Credits (Sniki)



Kabylake:



Name: com.apple.driver.AppleIntelKBLGraphicsFramebuffer
Find: 764648FF 05225508
Replace: EB4648FF 05225508





Skylake:



Name: com.apple.driver.AppleIntelSKLGraphicsFramebuffer
Find: 764048FF 05F1E907
Replace: EB404FF 05F1E907





Broadwell:



Name: com.apple.driver.AppleIntelBDWGraphicsFramebuffer
Find: 764048FF 05422B06
Replace: EB4048FF 05422B06



Credits: Sniki







  • Like 1
Link to comment
Share on other sites
Sniki
Sniki
Posted
Posted (edited)

macOS Mojave "MinStolenSize" / DVMT-prealloc Patches



@Sherlocks @PMheart i quoted you since im kinda new here and i noticed that you are one of the most active people on this forum (caught my attention).



I noticed that during the Beta updates, the "MinStolenSize" patches are changing from what we previously had / on previous betas, after examining the binary files of the 3 respective platforms: KabyLake, SkyLake, Broadwell i noticed that the:

on AppleIntelKBLGraphicsFramebuffer.kext

Find: 764648FF 05

Replace: EB4648FF 05

values should be enough as it's only in one place in the binary file with a HexFiend search, same for Skylake & Broadwell:

Find: 764048FF 05
Replace: EB404FF 05

on 2 of the binary files of the kexts if you try to search such result.

so lets take KabyLake as example from my previous post:



Kabylake:
Name: com.apple.driver.AppleIntelKBLGraphicsFramebuffer
Find: 764648FF 05225508
Replace: EB4648FF 05225508

from the code above on the binary file: 764648FF 05E25108 the code highlighted with red (which was present on previous betas of Mojave but kept changing during newer betas), is unnecessary as after verifying that the code: 764648FF 05 is present only once on KabyLake framebuffer binary file and we can replace it with: EB4648FF 05 this way the patch should be update proof "based on the fact that this part of code didn't change across betas.



So in short words the code after "05" is/was unncessary and the supposedly Update Proof Patches for:

macOS Mojave "MinStolenSize" / DVMT-prealloc Patches





KabyLake:

Comment: Disable minStolenSize less or equal fStolenMemorySize assertion, 10.14 Credits (Sniki)

Name: com.apple.driver.AppleIntelKBLGraphicsFramebuffer
Find: 764648FF 05
Replace: EB4648FF 05





SkyLake:

Comment: Disable minStolenSize less or equal fStolenMemorySize assertion, 10.14 Credits (Sniki)

Name: com.apple.driver.AppleIntelSKLGraphicsFramebuffer
Find: 764048FF 05
Replace: EB4048FF 05





Broadwell:

Comment: Disable minStolenSize less or equal fStolenMemorySize assertion, 10.14 Credits (Sniki)

Name: com.apple.driver.AppleIntelBDWGraphicsFramebuffer
Find: 764048FF 05
Replace: EB4048FF 05

Edited by "Sniki"
  • Like 4
Link to comment
Share on other sites
cichowlasp
cichowlasp
Posted
Posted
1 hour ago, "Sniki" said:

SkyLake:

Comment: Disable minStolenSize less or equal fStolenMemorySize assertion, 10.14 Credits (Sniki)

Name: com.apple.driver.AppleIntelSKLGraphicsFramebuffer
Find: 764048FF 05
Replace: EB404FF 05



Shouldn't it be

Find: 764048FF 05
Replace: EB4048FF 05

?

Link to comment
Share on other sites
nmano
nmano
Posted
Posted (edited)

I test now Intel(R) Xeon(R) CPU           X5460

ITs worked to replace com.apple.telemetry.plugin



still no success GTX 480

x86info v1.31pre
Found 4 identical CPUs
Extended Family: 0 Extended Model: 1 Family: 6 Model: 23 Stepping: 6
Type: 0 (Original OEM)
CPU Model (x86info's best guess): Core 2 Duo P8600
Processor name string (BIOS programmed): Intel(R) Xeon(R) CPU           X5460  @ 3.16GHz

eax in: 0x00000000, eax = 0000000a ebx = 756e6547 ecx = 6c65746e edx = 49656e69
eax in: 0x00000001, eax = 00010676 ebx = 01040800 ecx = 000ce3bd edx = bfebfbff
eax in: 0x00000002, eax = 05b0b101 ebx = 005657f0 ecx = 00000000 edx = 2cb4304e
eax in: 0x00000003, eax = 00000000 ebx = 00000000 ecx = 00000000 edx = 00000000
eax in: 0x00000004, eax = 0c000121 ebx = 01c0003f ecx = 0000003f edx = 00000001
eax in: 0x00000005, eax = 00000040 ebx = 00000040 ecx = 00000003 edx = 00002220
eax in: 0x00000006, eax = 00000001 ebx = 00000002 ecx = 00000001 edx = 00000000
eax in: 0x00000007, eax = 00000000 ebx = 00000000 ecx = 00000000 edx = 00000000
eax in: 0x00000008, eax = 00000400 ebx = 00000000 ecx = 00000000 edx = 00000000
eax in: 0x00000009, eax = 00000000 ebx = 00000000 ecx = 00000000 edx = 00000000
eax in: 0x0000000a, eax = 07280202 ebx = 00000000 ecx = 00000000 edx = 00000503

eax in: 0x80000000, eax = 80000008 ebx = 00000000 ecx = 00000000 edx = 00000000
eax in: 0x80000001, eax = 00000000 ebx = 00000000 ecx = 00000001 edx = 20100000
eax in: 0x80000002, eax = 65746e49 ebx = 2952286c ecx = 6f655820 edx = 2952286e
eax in: 0x80000003, eax = 55504320 ebx = 20202020 ecx = 20202020 edx = 58202020
eax in: 0x80000004, eax = 30363435 ebx = 20402020 ecx = 36312e33 edx = 007a4847
eax in: 0x80000005, eax = 00000000 ebx = 00000000 ecx = 00000000 edx = 00000000
eax in: 0x80000006, eax = 00000000 ebx = 00000000 ecx = 18008040 edx = 00000000
eax in: 0x80000007, eax = 00000000 ebx = 00000000 ecx = 00000000 edx = 00000000
eax in: 0x80000008, eax = 00003026 ebx = 00000000 ecx = 00000000 edx = 00000000

Cache info
 L1 Instruction cache: 32KB, 8-way associative. 64 byte line size.
 L1 Data cache: 32KB, 8-way associative. 64 byte line size.
 L2 cache: 6MB, 24-way set associative, 64-byte line size.
TLB info
 Instruction TLB: 4x 4MB page entries, or 8x 2MB pages entries, 4-way associative
 Instruction TLB: 4K pages, 4-way associative, 128 entries.
 Data TLB: 4MB pages, 4-way associative, 32 entries
 Data TLB0: 4KB pages, 4-way associative, 16 entries
 Data TLB0: 4MB pages, 4-way associative, 16 entries
 Data TLB1: 4KB pages, 4-way associative, 256 entries
 64 byte prefetching.
Feature flags:
 fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflsh ds acpi mmx fxsr sse sse2 ss ht tm pbe sse3 dtes64 monitor ds-cpl vmx est tm2 ssse3 cx16 xTPR pdcm dca sse4_1
Extended feature flags:
 xd em64t lahf_lm dts
Long NOPs supported: yes

Address sizes : 38 bits physical, 48 bits virtual
3.20GHz processor (estimate).

Total processor threads: 4
This system has 1 quad-core processor running at an estimated 3.20GHz

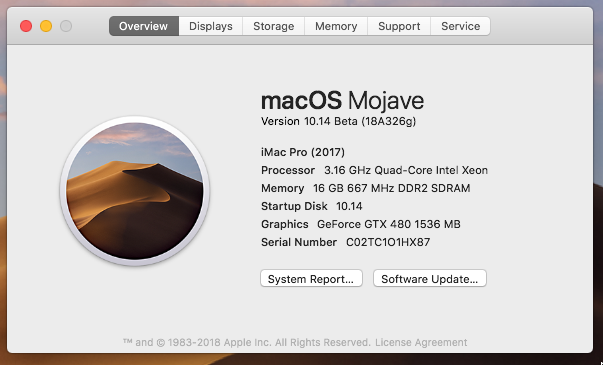

Screen Shot 2018-07-08 at 2.28.36 p.m..png

Edited by nmano
  • Like 2
Link to comment
Share on other sites
nmano
nmano
Posted
Posted

May be This kext 10.14 need patch

pmtelemetry.kext

com.apple.driver.pmtelemetry

Link to comment
Share on other sites
crazybirdy
crazybirdy
Posted
Posted (edited)
6 hours ago, ANONIMNIQ said:

@crazybirdy can you uload your CLOVER folder please!



I keep only EFI/CLOVER/kexts/10.14 FYI. work with MBR.

EFI-1014only.zip



5 hours ago, Pavo said:

The only difference I see in the binary HS: c806000085 Mojave: 2807000085



Perl code works fine with 10.14.db3, but Clover's patch on the fly didn't work here.

Thanks a lot.:thumbsup_anim::thumbsup_anim:

perl -pi -e 's|\x28\x07\x00\x00\x85|\xC8\x06\x00\x00\x85|g' com.apple.telemetry.plugin/Contents/MacOS/com.apple.telemetry

Of course you need to copy it to desktop, patch it, and copy it back to the location.

/System/Library/UserEventPlugins/com.apple.telemetry.plugin

com.apple.telemetry.plugin-patched-1014db3.zip

Edited by crazybirdy
  • Like 4
  • Thanks 1
Link to comment
Share on other sites
nmano
nmano
Posted
Posted

For GTX 480

If I want to replace NV kexts

10.13.4 to 10.14

How many files I need to replace.please give me list:D

Link to comment
Share on other sites
Badruzeus
Badruzeus
Posted
Posted (edited)
1 hour ago, nmano said:

For GTX 480

If I want to replace NV kexts

10.13.4 to 10.14

How many files I need to replace.please give me list:D

GeForce* NVDA*.kext

Though I've reinstalled Mojave more than 5 times, only for testing Nvidia Drivers from prev. mac versions; w/o success. It' s ez changing RequiredOS from NVDAStartup  Info.plist, kext for Fermi (NVDAGF100*) is loaded just fine, but nor with GeForce.kext, so we'll lost nvAccelerator.

Edited by Badruzeus
  • Like 1
Link to comment
Share on other sites
jsl2000
jsl2000
Posted
Posted (edited)
9 hours ago, crazybirdy said:







Test is done.

Works fine here with Core2 Duo E7400 CPU with only SSE4.1, without SSE4.2.:thumbsup_anim::thumbsup_anim:

Replace only one file from 10.13.5.


/System/Library/UserEventPlugins/com.apple.telemetry.plugin

[edit]

here for you, if anyone need it.

telemetry-plugin-10135.zip




Any chance to get Nvidia GTM-9600 working with CI/QE in Mojave betax ?

My real Mac Book Pro 5,2 can login desktop, but both Finder and USB ports are failed !

Need fixed by USB & Nvidia Graphics related patches.



Edited by jsl2000
  • Like 1
Link to comment
Share on other sites
crazybirdy
crazybirdy
Posted
Posted
3 minutes ago, jsl2000 said:

Any chance to get Nvidia GTM-9600 working with CI/QE in Mojave betax ?



My nVidia 9300GE use NVDANV50HalTesla.kext with 10.13 before version, but removed on 10.14.

Get no lucky to work with old kexts copy from 10.13 to 10.14.:wallbash:



I bought a cheap second hand GT640 works great on 10.14 now, use NVDAGK100Hal.kext native.:thumbsup_anim:



If you need NVDANV50HalTesla.kext, I think you need a lots of lucky!:yes:

  • Like 2
Link to comment
Share on other sites
LockDown
LockDown
Posted
Posted
4 hours ago, crazybirdy said:



I keep only EFI/CLOVER/kexts/10.14 FYI. work with MBR.

EFI-1014only.zip





Perl code works fine with 10.14.db3, but Clover's patch on the fly didn't work here.

Thanks a lot.:thumbsup_anim::thumbsup_anim:


perl -pi -e 's|\x28\x07\x00\x00\x85|\xC8\x06\x00\x00\x85|g' com.apple.telemetry.plugin/Contents/MacOS/com.apple.telemetry

Of course you need to copy it to desktop, patch it, and copy it back to the location.

/System/Library/UserEventPlugins/com.apple.telemetry.plugin

com.apple.telemetry.plugin-patched-1014db3.zip

I think this can be done via lilu as a plugin

  • Like 2
Link to comment
Share on other sites
crazybirdy
crazybirdy
Posted
Posted
1 minute ago, ellaosx said:

I think this can be done via lilu as a plugin



Good ideal.

I think OSInstaller patch for MBR, HFS+, Firmware check can be done as lilu plugin too.

But, I'm not a coder, that's out of my.......imagination.:D

  • Like 1
  • Haha 2
Link to comment
Share on other sites
fantomas
fantomas
Posted
  • Author
Posted

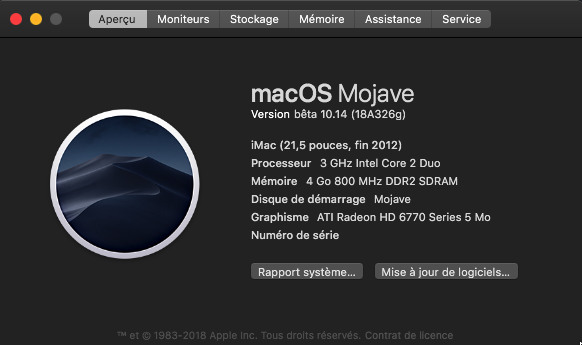

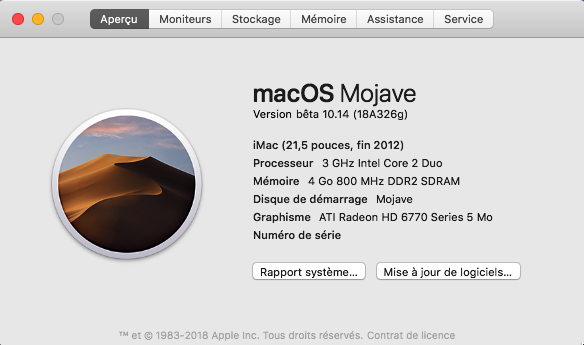

macOS Mojave beta 3 on Intel Core2Duo E8400 (SSE4,1)



E8400_Mojave_BETA3.png E8400_Mojave_BETA3_dark.png





Used @crazybirdy MBR script to create Mojave USB installer + Clover r4515 - I have only 1 HDD with 1 HFS+J partition for HS. I just created a second HFS+J partition for Mojave  and that did the job. As in a post-installation, manually patching of com.apple.telemetry.plugin (Clover patch on the fly didn't work. :( )  and voilà.  :)

  • Like 3
  • Haha 2
Link to comment
Share on other sites
ANONIMNIQ
ANONIMNIQ
Posted
Posted

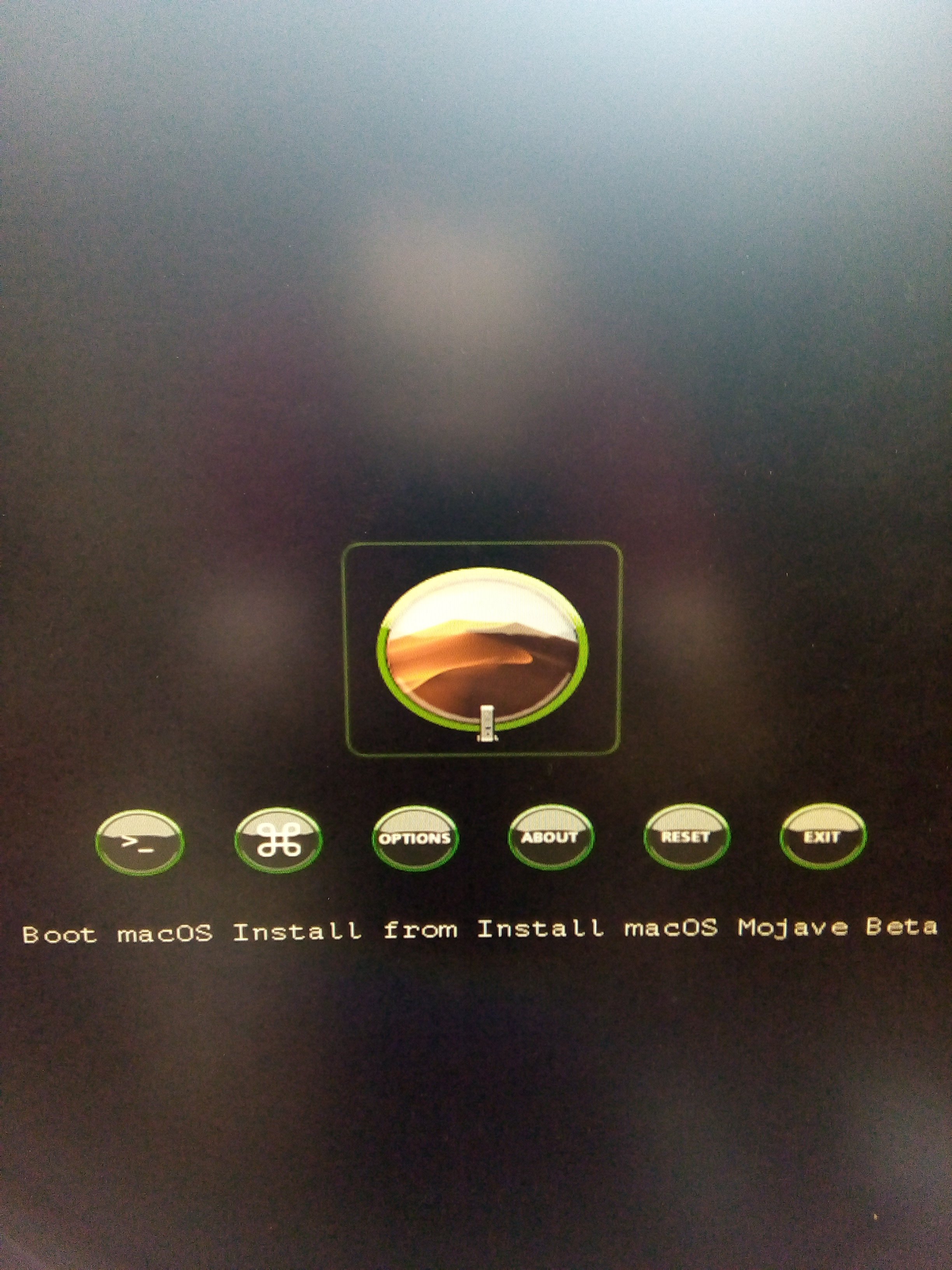

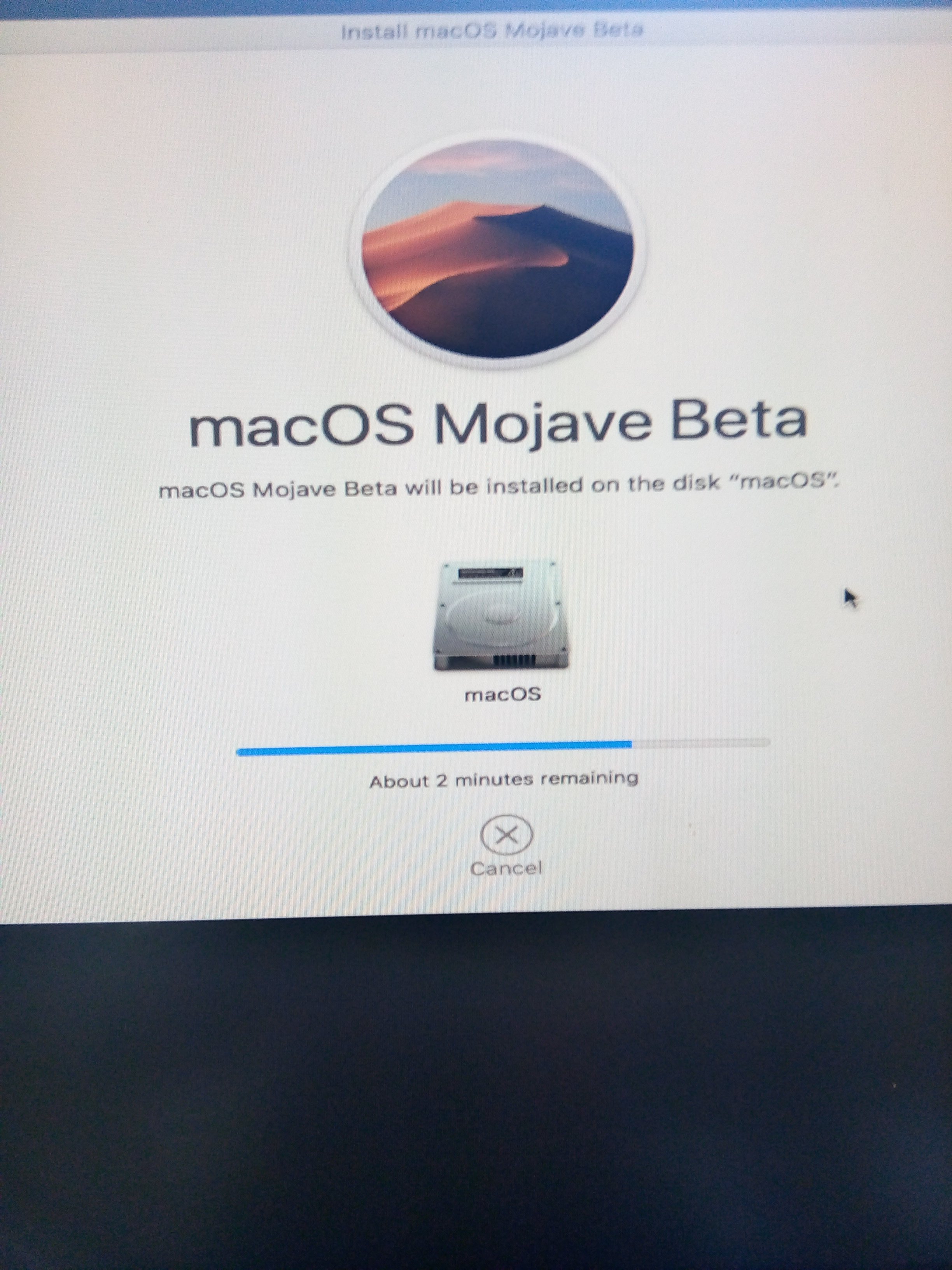

@crazybirdy I use your CLOVER folder and removed some drivers to load the installer successfully but PC restarts at this point of the installation and CLOVER don't detect the HDD to continue installation process. What I'm doing wrong? I create the installer from the Terminal. Is it possible that the installer is damaged?



Link to comment
Share on other sites
Guest
This topic is now closed to further replies.
 Share
Go to topic listing
×
×
  • Create New...
