diepnt Posted June 29, 2018 Share Posted June 29, 2018 Hi all, Today i installed Mojave and still got freeze issue on my hackintosh. it happens randomly. my specs: H170N-wifi i3 6100 OCZ nvme 2k minitor Before i did not get this issue when using GTX 750. After changing the case,power supply and graphic from 750 ti to HD530 i got this problem. tried many ways by searching not work. today in Mojave still get this issue. I only need to throw it and buy new one :( CLOVER.zip Link to comment https://www.insanelymac.com/forum/topic/334731-my-hackintosh-stil-freeze-from-high-sierra-to-mojave/ Share on other sites More sharing options...
Cyberdevs Posted June 29, 2018 Share Posted June 29, 2018 Try this folder. I updated your SMBIOS, Kexts and drivers. CLOVER.zip 1 Link to comment https://www.insanelymac.com/forum/topic/334731-my-hackintosh-stil-freeze-from-high-sierra-to-mojave/#findComment-2623006 Share on other sites More sharing options...
diepnt Posted June 30, 2018 Author Share Posted June 30, 2018 14 hours ago, Cyberdevs said: Try this folder. I updated your SMBIOS, Kexts and drivers. CLOVER.zip Thank you so much. Let me try and test it. Link to comment https://www.insanelymac.com/forum/topic/334731-my-hackintosh-stil-freeze-from-high-sierra-to-mojave/#findComment-2623191 Share on other sites More sharing options...
diepnt Posted June 30, 2018 Author Share Posted June 30, 2018 (edited) without EFI, my hackintosh could not boot. verbose shows some reports then restart. please help me to check Edited: with the original config.plist and new kext and driveruefi. i can boot into hackintosh. may be the config.plist you edited has some problems. i also see that before freeze the mouse spin 3-4 second. and it happened when computer loads something like i change tabs of clover configuration, change safari tabs... i leaved the computer to play youtube playlist automatically and it did not freeze for 1 day. can you guess the cause? thank you. Edited June 30, 2018 by diepnt Link to comment https://www.insanelymac.com/forum/topic/334731-my-hackintosh-stil-freeze-from-high-sierra-to-mojave/#findComment-2623193 Share on other sites More sharing options...
Cyberdevs Posted June 30, 2018 Share Posted June 30, 2018 3 hours ago, diepnt said: without EFI, my hackintosh could not boot. verbose shows some reports then restart. please help me to check Edited: with the original config.plist and new kext and driveruefi. i can boot into hackintosh. may be the config.plist you edited has some problems. i also see that before freeze the mouse spin 3-4 second. and it happened when computer loads something like i change tabs of clover configuration, change safari tabs... i leaved the computer to play youtube playlist automatically and it did not freeze for 1 day. can you guess the cause? thank you. I made some changes to your config.plist who I guess they where not necessary but I removed the EmuVariable.efi and OsxAoptioFix2Drv and replaced it with AptioMemoryFix-64.efi which is a newer driver and updated some of the kexts. So my guess is that drivers and the kexts were the cause. 1 Link to comment https://www.insanelymac.com/forum/topic/334731-my-hackintosh-stil-freeze-from-high-sierra-to-mojave/#findComment-2623209 Share on other sites More sharing options...
diepnt Posted June 30, 2018 Author Share Posted June 30, 2018 3 hours ago, Cyberdevs said: I made some changes to your config.plist who I guess they where not necessary but I removed the EmuVariable.efi and OsxAoptioFix2Drv and replaced it with AptioMemoryFix-64.efi which is a newer driver and updated some of the kexts. So my guess is that drivers and the kexts were the cause. but the config.plist you edited not work. now my hackintosh is running with old config.plist and new kexts and eufi folders you edited. could you recheck the config.plist ? thank you 1 Link to comment https://www.insanelymac.com/forum/topic/334731-my-hackintosh-stil-freeze-from-high-sierra-to-mojave/#findComment-2623243 Share on other sites More sharing options...
Cyberdevs Posted June 30, 2018 Share Posted June 30, 2018 (edited) 10 minutes ago, diepnt said: but the config.plist you edited not work. now my hackintosh is running with old config.plist and new kexts and eufi folders you edited. could you recheck the config.plist ? thank you Do you still have the same issue with your old config? If not config.plist.zip Edited June 30, 2018 by Cyberdevs 1 Link to comment https://www.insanelymac.com/forum/topic/334731-my-hackintosh-stil-freeze-from-high-sierra-to-mojave/#findComment-2623245 Share on other sites More sharing options...
diepnt Posted June 30, 2018 Author Share Posted June 30, 2018 12 minutes ago, Cyberdevs said: Do you still have the same issue with your old config? still testing and no freeze for 2 hours. but i just use for surfing internet with chrome only. let me try to do with other tasks Link to comment https://www.insanelymac.com/forum/topic/334731-my-hackintosh-stil-freeze-from-high-sierra-to-mojave/#findComment-2623248 Share on other sites More sharing options...
Cyberdevs Posted June 30, 2018 Share Posted June 30, 2018 3 minutes ago, diepnt said: still testing and no freeze for 2 hours. but i just use for surfing internet with chrome only. let me try to do with other tasks I attached a config.plist with minimum changes to my previous post and test and see if it works. And if your current config works without and issue you can keep using it though. 1 Link to comment https://www.insanelymac.com/forum/topic/334731-my-hackintosh-stil-freeze-from-high-sierra-to-mojave/#findComment-2623250 Share on other sites More sharing options...
diepnt Posted June 30, 2018 Author Share Posted June 30, 2018 4 hours ago, Cyberdevs said: I attached a config.plist with minimum changes to my previous post and test and see if it works. And if your current config works without and issue you can keep using it though. thanks so much for your help and time. this config.plist you gave works. now i'm monitoring the hackinosh. 1 Link to comment https://www.insanelymac.com/forum/topic/334731-my-hackintosh-stil-freeze-from-high-sierra-to-mojave/#findComment-2623343 Share on other sites More sharing options...
Cyberdevs Posted June 30, 2018 Share Posted June 30, 2018 1 minute ago, diepnt said: thanks so much for your help and time. this config.plist you gave works. now i'm monitoring the hackinosh. You're welcome I hope it solves the freezing issue completely 1 Link to comment https://www.insanelymac.com/forum/topic/334731-my-hackintosh-stil-freeze-from-high-sierra-to-mojave/#findComment-2623344 Share on other sites More sharing options...
diepnt Posted June 30, 2018 Author Share Posted June 30, 2018 26 minutes ago, Cyberdevs said: You're welcome I hope it solves the freezing issue completely I got panic when using clover configuration. Everytime i used it. Clover configuration class newest verion below the logs of this panic. may be related to GPU https://justpaste.it/754tw Link to comment https://www.insanelymac.com/forum/topic/334731-my-hackintosh-stil-freeze-from-high-sierra-to-mojave/#findComment-2623359 Share on other sites More sharing options...
Cyberdevs Posted June 30, 2018 Share Posted June 30, 2018 Yup, as far as I can see the issue is happening because of the Intel GPU /Library/Caches/com.apple.xbs/Sources/GPUDriversIntel/GPUDriversIntel-12.0.12.2/Common/GLKernel/Intel/skl/IntelAccelerator.cpp:7763 Try doing a cache cleanup and see if that helps to resolve the issue. 1 Link to comment https://www.insanelymac.com/forum/topic/334731-my-hackintosh-stil-freeze-from-high-sierra-to-mojave/#findComment-2623360 Share on other sites More sharing options...
diepnt Posted June 30, 2018 Author Share Posted June 30, 2018 15 minutes ago, Cyberdevs said: Yup, as far as I can see the issue is happening because of the Intel GPU /Library/Caches/com.apple.xbs/Sources/GPUDriversIntel/GPUDriversIntel-12.0.12.2/Common/GLKernel/Intel/skl/IntelAccelerator.cpp:7763 Try doing a cache cleanup and see if that helps to resolve the issue. yeb thank you. just delete clover configuration class and download global version to edit Serial number, uuid successfully. then clean cache and continues monitoring 1 Link to comment https://www.insanelymac.com/forum/topic/334731-my-hackintosh-stil-freeze-from-high-sierra-to-mojave/#findComment-2623363 Share on other sites More sharing options...
diepnt Posted July 1, 2018 Author Share Posted July 1, 2018 12 hours ago, Cyberdevs said: Yup, as far as I can see the issue is happening because of the Intel GPU /Library/Caches/com.apple.xbs/Sources/GPUDriversIntel/GPUDriversIntel-12.0.12.2/Common/GLKernel/Intel/skl/IntelAccelerator.cpp:7763 Try doing a cache cleanup and see if that helps to resolve the issue. Today i got freeze. only using chrome with some tabs. below is the system logs. freeze happened 08:55 AM https://justpaste.it/6xndo could you please check and have any idea ? Link to comment https://www.insanelymac.com/forum/topic/334731-my-hackintosh-stil-freeze-from-high-sierra-to-mojave/#findComment-2623498 Share on other sites More sharing options...

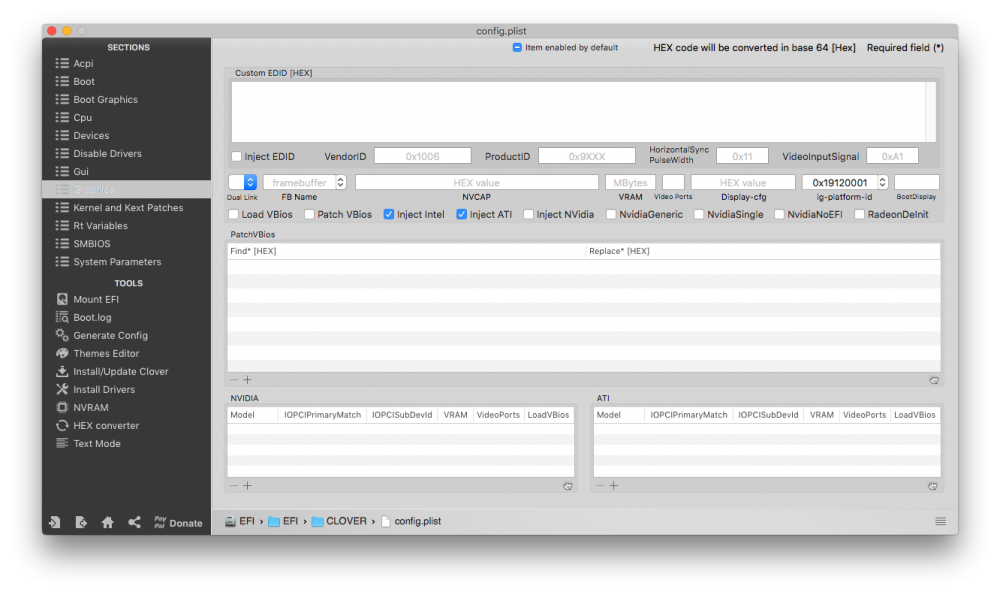

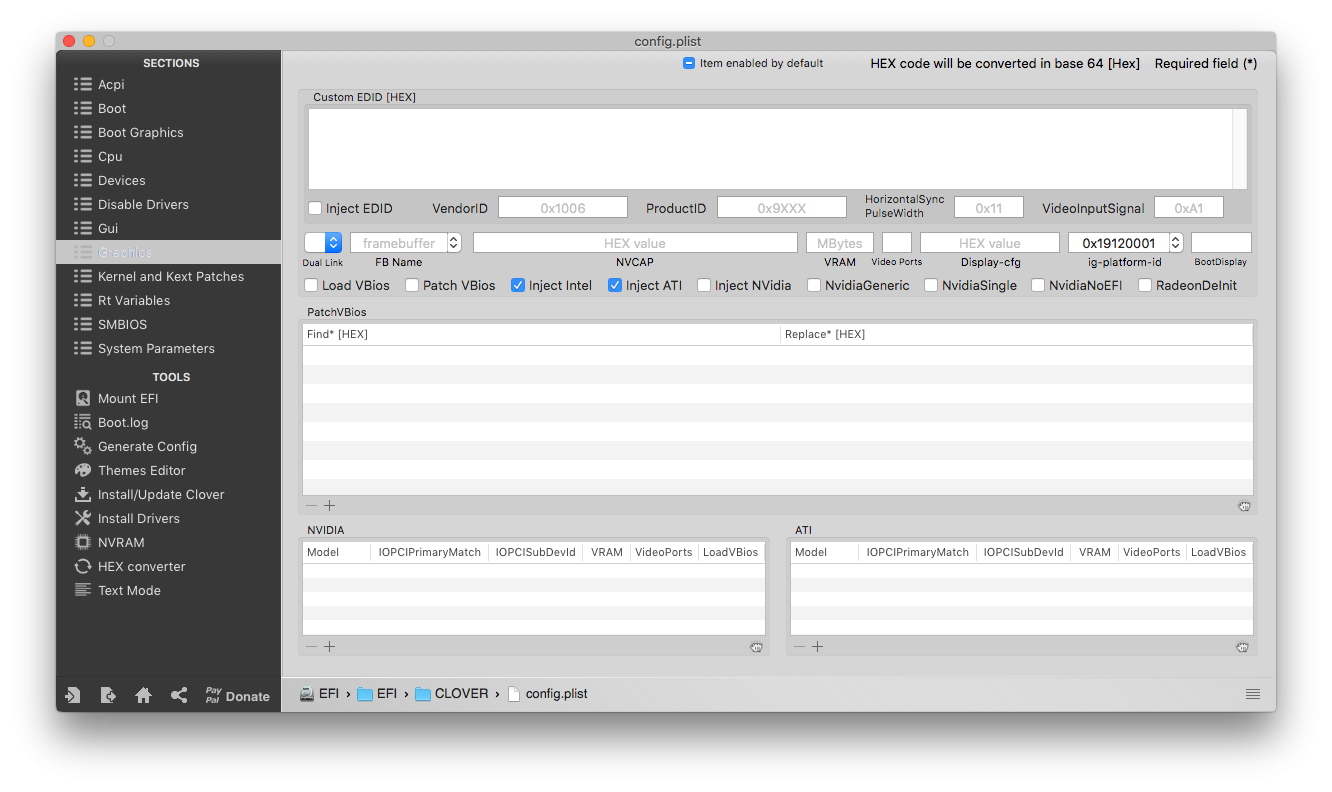

Cyberdevs Posted July 1, 2018 Share Posted July 1, 2018 As far as the log said there's an issue is related to your graphics settings. Make sure you have configured the Graphics parameters correctly and double check the ig-platform-id injection on your intel graphics I use 0x19120001 as ig-platform-id for my Intel HD530 Check this picture and remember you don't need to use Inject ATI. From the System Parameters generate a new UUID as well and save the config. 1 Link to comment https://www.insanelymac.com/forum/topic/334731-my-hackintosh-stil-freeze-from-high-sierra-to-mojave/#findComment-2623521 Share on other sites More sharing options...
diepnt Posted July 1, 2018 Author Share Posted July 1, 2018 1 hour ago, Cyberdevs said: As far as the log said there's an issue is related to your graphics settings. Make sure you have configured the Graphics parameters correctly and double check the ig-platform-id injection on your intel graphics I use 0x19120001 as ig-platform-id for my Intel HD530 Check this picture and remember you don't need to use Inject ATI. From the System Parameters generate a new UUID as well and save the config. thank you. let me do it and monitoring. i use dual boot windows and hackintosh. windows no freeze so i think it is no by hardware Link to comment https://www.insanelymac.com/forum/topic/334731-my-hackintosh-stil-freeze-from-high-sierra-to-mojave/#findComment-2623528 Share on other sites More sharing options...
diepnt Posted July 1, 2018 Author Share Posted July 1, 2018 1 hour ago, Cyberdevs said: As far as the log said there's an issue is related to your graphics settings. Make sure you have configured the Graphics parameters correctly and double check the ig-platform-id injection on your intel graphics I use 0x19120001 as ig-platform-id for my Intel HD530 Check this picture and remember you don't need to use Inject ATI. From the System Parameters generate a new UUID as well and save the config. 0x19120001 not work. it made the loop boot. I changed it to 0x19120000 and it works. below is the current config.plist config.plist 1 Link to comment https://www.insanelymac.com/forum/topic/334731-my-hackintosh-stil-freeze-from-high-sierra-to-mojave/#findComment-2623529 Share on other sites More sharing options...
Cyberdevs Posted July 1, 2018 Share Posted July 1, 2018 1 hour ago, diepnt said: 0x19120001 not work. it made the loop boot. I changed it to 0x19120000 and it works. below is the current config.plist config.plist Monitor the performance and the activities and see if the freezing is still happening. The ig-platform-id 0x19120000 is the original value of the intel hd 530 but in some cases changing it to something rather than the original value has a better impact. But if you are using your GTX 750ti along side with the iGPU in Mojave you need to know that until nVidia release the web drivers for Mojave the performance on your hack can't be as optimal as you need ti to be. 1 Link to comment https://www.insanelymac.com/forum/topic/334731-my-hackintosh-stil-freeze-from-high-sierra-to-mojave/#findComment-2623535 Share on other sites More sharing options...
diepnt Posted July 1, 2018 Author Share Posted July 1, 2018 2 hours ago, Cyberdevs said: Monitor the performance and the activities and see if the freezing is still happening. The ig-platform-id 0x19120000 is the original value of the intel hd 530 but in some cases changing it to something rather than the original value has a better impact. But if you are using your GTX 750ti along side with the iGPU in Mojave you need to know that until nVidia release the web drivers for Mojave the performance on your hack can't be as optimal as you need ti to be. before i used GTX750 there was no issue. but i've changed to case to mini case. so it does not fit with GTX so only use internal graphic Link to comment https://www.insanelymac.com/forum/topic/334731-my-hackintosh-stil-freeze-from-high-sierra-to-mojave/#findComment-2623569 Share on other sites More sharing options...
Cyberdevs Posted July 1, 2018 Share Posted July 1, 2018 So if I understood correctly you are only using the Intel Graphics there is no second GPU? Correct? Run this app and send me the results I will check again. RunMe.app.zip 1 Link to comment https://www.insanelymac.com/forum/topic/334731-my-hackintosh-stil-freeze-from-high-sierra-to-mojave/#findComment-2623586 Share on other sites More sharing options...
diepnt Posted July 1, 2018 Author Share Posted July 1, 2018 (edited) 2 hours ago, Cyberdevs said: So if I understood correctly you are only using the Intel Graphics there is no second GPU? Correct? Run this app and send me the results I will check again. RunMe.app.zip Yes, correctly. Now i'm only using internal graphic HD530 of i3 6100 Below is my history in hackintosh 1. using i3 6100 with MSI h110 with out any problem ( EL Caption 10.11) 2. Change to use GTX 750 TI without problem (El CAP then Sierra) 3. Change from MSI H110 to H170N ( Sierra then High sierra) without problem - Still using GTX 750 TI 4. Now change to use back HD530 with H170N wifi and got freeze randomly. ( High Sierra then Mojave) Thank so much for your time and help. RunMe-Output.txt Send me Dieps-iMac.zip Edited July 1, 2018 by diepnt Link to comment https://www.insanelymac.com/forum/topic/334731-my-hackintosh-stil-freeze-from-high-sierra-to-mojave/#findComment-2623624 Share on other sites More sharing options...
diepnt Posted July 4, 2018 Author Share Posted July 4, 2018 @Cyberdevs did you help to check it for me? thank you. Link to comment https://www.insanelymac.com/forum/topic/334731-my-hackintosh-stil-freeze-from-high-sierra-to-mojave/#findComment-2624127 Share on other sites More sharing options...
Cyberdevs Posted July 4, 2018 Share Posted July 4, 2018 27 minutes ago, diepnt said: @Cyberdevs did you help to check it for me? thank you. Yes I did check the settings, as far as I can tell everything seems to be in order expect the clover revision is a bit outdated you can update it and you can also remover the SSDT-XCPM.aml and SSDT-HDEF-HDAS-1.aml you don't need that either because you are using the ACPI fix for that. Remove these files or the ACPI fixes in the config.plist and test and monitor the system. Does the audio work properly in Mojave? You are using the layout-id=1 which might need to be changed to 2. 1 Link to comment https://www.insanelymac.com/forum/topic/334731-my-hackintosh-stil-freeze-from-high-sierra-to-mojave/#findComment-2624131 Share on other sites More sharing options...
diepnt Posted July 4, 2018 Author Share Posted July 4, 2018 29 minutes ago, Cyberdevs said: Yes I did check the settings, as far as I can tell everything seems to be in order expect the clover revision is a bit outdated you can update it and you can also remover the SSDT-XCPM.aml and SSDT-HDEF-HDAS-1.aml you don't need that either because you are using the ACPI fix for that. Remove these files or the ACPI fixes in the config.plist and test and monitor the system. Does the audio work properly in Mojave? You are using the layout-id=1 which might need to be changed to 2. Thanks for your checking. Let me remove them. About audio, it works when i updated applealc to 1.2.8 1 Link to comment https://www.insanelymac.com/forum/topic/334731-my-hackintosh-stil-freeze-from-high-sierra-to-mojave/#findComment-2624134 Share on other sites More sharing options...
