Vector Themes

[Slice]

19 hours ago, blackosx said:

That looks good.

My file has frame 1 -> frame 39

So frame 0 -> frame 38 is fine.

This is the first issue. It was not found frame_0 and then

      if (Screen->Film[0] != NULL) {



Looking more...

[blackosx]

Ooops. Good spot!

[Slice]

And second issue is initializing values

  Anime->FilmX = INITVALUE;
  Anime->FilmY = INITVALUE;
  Anime->NudgeX = INITVALUE;
  Anime->NudgeY = INITVALUE;

As well time should be reduced

FrameTime="50"

And Voila!



Committed to 4789

[blackosx]

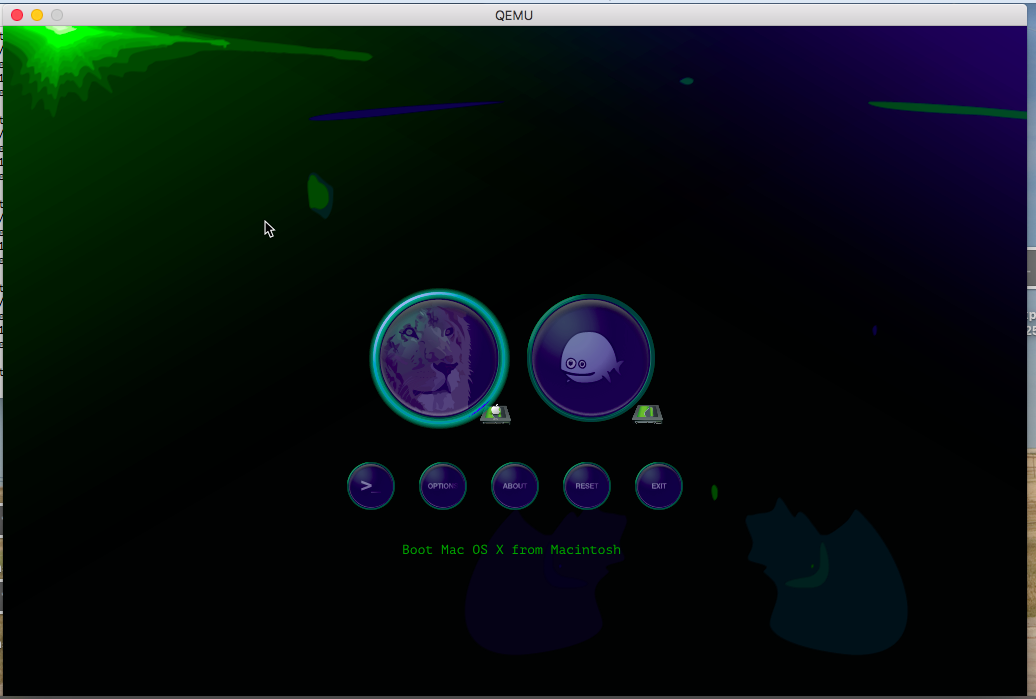

Just tested and I see animation works!



But it's not right.

It should look like Anim_1_Logo animation from BGM.



Each frame has size boundingrect set to 800x100, for example:

<rect visibility="hidden" id="BoundingRect_74_" y="0" class="NoFill" width="800" height="100"/>

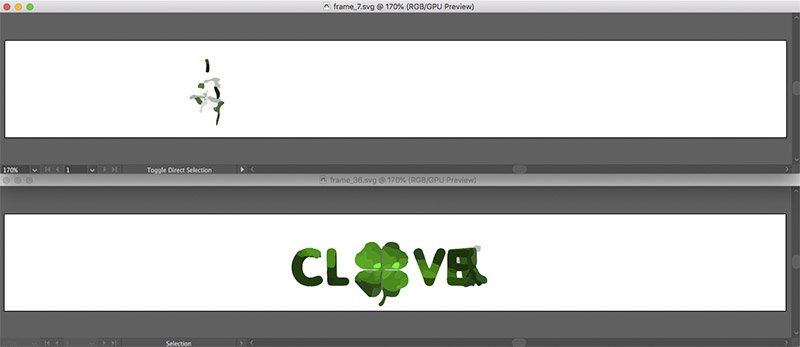

Should look like this (here's frame 7 and 36).



But all whitespace/empty space is cropped, leaving each image centred.



Can you retain the full bounding rect and not crop on empty space?



[Slice]

Understand. It looks like in VectorGraphics.c line 204

  if ((Id != BUILTIN_ICON_BACKGROUND) && (strcmp(IconName, "Banner") != 0)) {

    float realWidth = (bounds[2] - bounds[0]) * Scale;

    float realHeight = (bounds[3] - bounds[1]) * Scale;

    tx = (Width - realWidth) * 0.5f;

    ty = (Height - realHeight) * 0.5f;

  }

should add condition

&& (Id != BUILTIN_ICON_ANIME)



Can you check?

[blackosx]

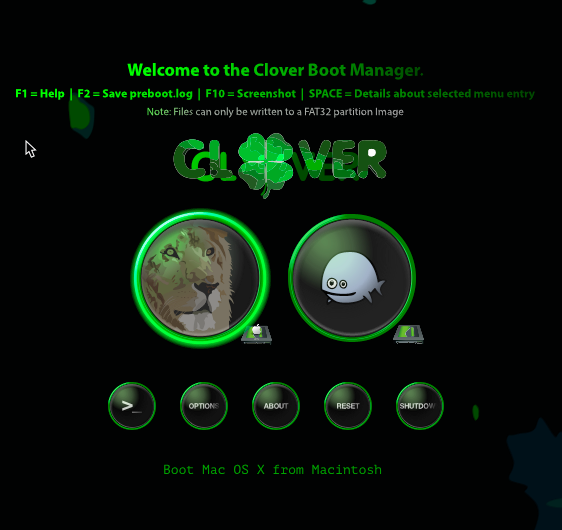

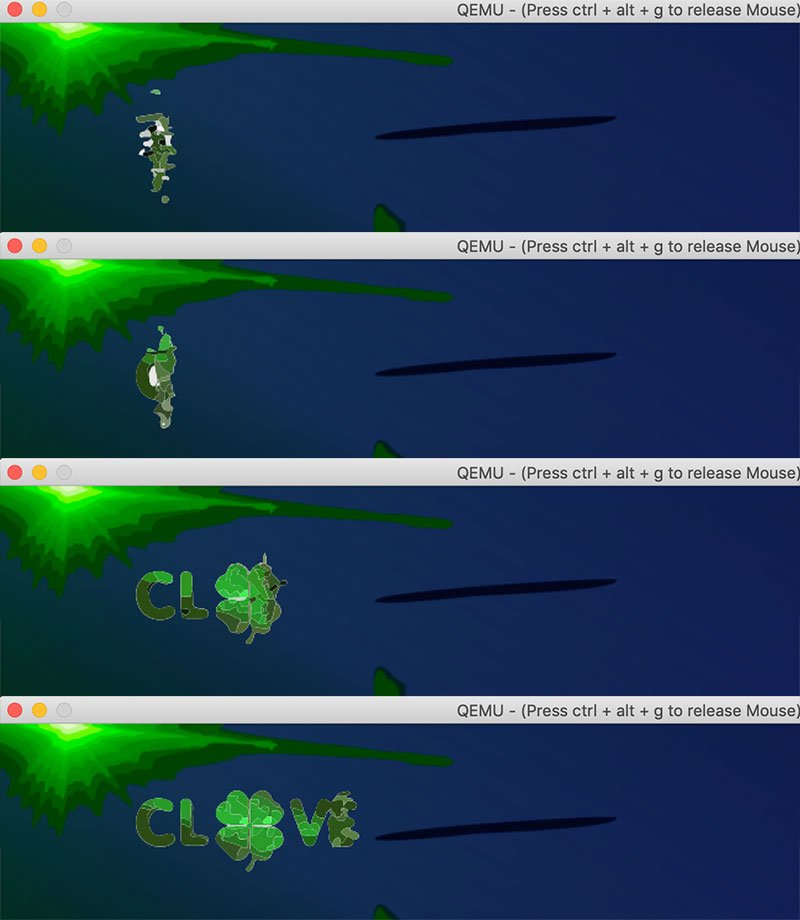

It's better, but still not completely correct as all images are now ranged left. This is good.



But left side of image is still cropped (has whitespace removed) resulting in all image content being aligned to same X position.





Where in post above I show the content in frame 7 (the fragments) is further left that the CLOVER word/icons



[Slice]

May be reduce BoundingRect width?

Or make transform="translate(100)"?

[blackosx]

Okay. I'll take a look at animation again soon.



Moving away from animation for now, can you check 2 things for me when you get time?

1 - I cannot figure out why Banner_night does not show. Am I missing something obvious?

2 - Background does not scale?, even though I have set BackgroundScale="scale"



EDIT: Attachment removed



Edited December 6, 2018 by blackosx

[Slice]

Something wrong here

17:196  0:009  Use anime=<null string> frames=65535
17:208  0:012  icon 'frame_1' not loaded, status=Not Found
17:220  0:011  icon 'frame_2' not loaded, status=Not Found
17:231  0:010  icon 'frame_3' not loaded, status=Not Found
...
72:301  0:011  icon 'frame_4545' not loaded, status=Not Found
72:315  0:014  icon 'frame_4546' not loaded, status=Not Found
72:327  0:011  icon 'frame_4547' not loaded, status=Not Found
72:338  0:010  icon 'frame_4548' not loaded, status=Not Found
...



[blackosx]

Ah.. that’d be down to my having AnimeFrames=“” in my settings.

Any ideas on my 2 questions?

[Slice]

class=""

should be class="DisplayNone"



Background does not scale because you have scale=1.0. You screen=768 in height as well as theme design.

[blackosx]

Thank you for taking the time to check my theme slice.



EDIT: Making suggested changes:

- 1 - Fix AnimeFrames=“"

- 2 - Remove class=""

- 3 - Change background size to 1920x1080.

- 4 - Remove transform scale=1

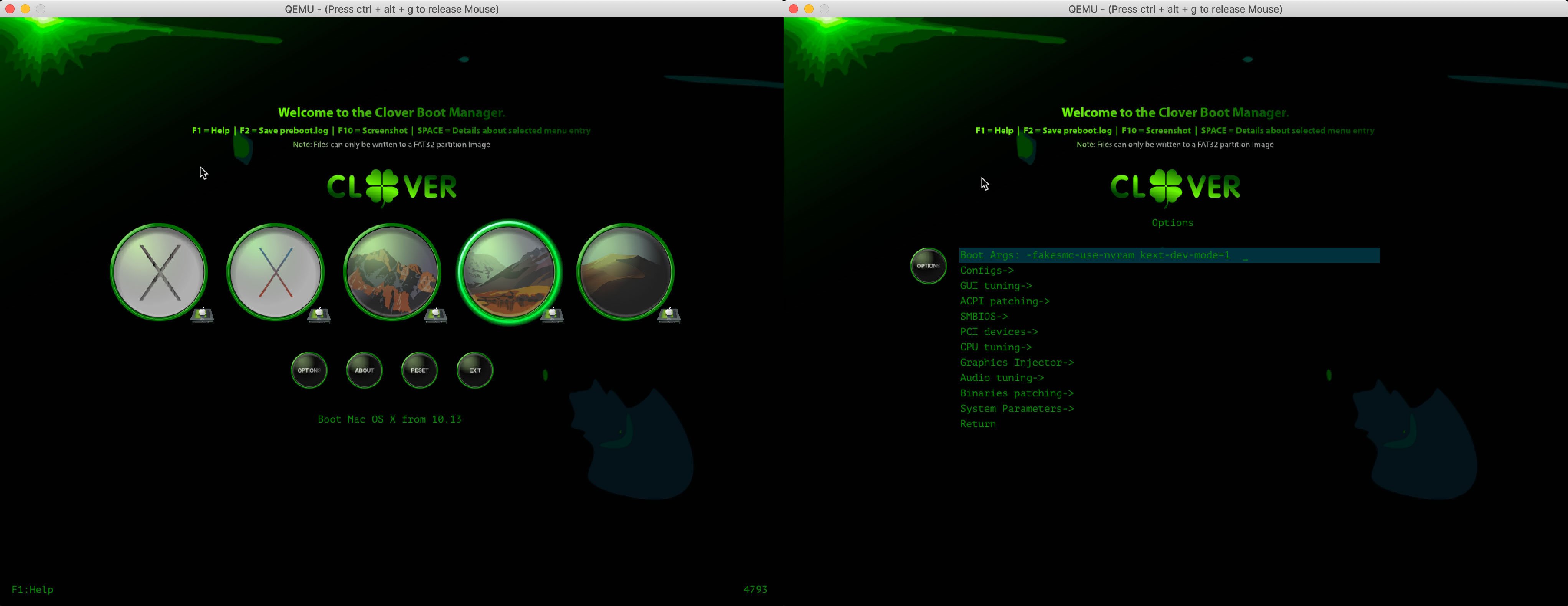

Banner_night still not showing.

Background not being scaled horizontally.



I'll try to run a debug and see what's going on.







Edited December 6, 2018 by blackosx
Removed images of work-in-progress theme

[blackosx]

@Slice

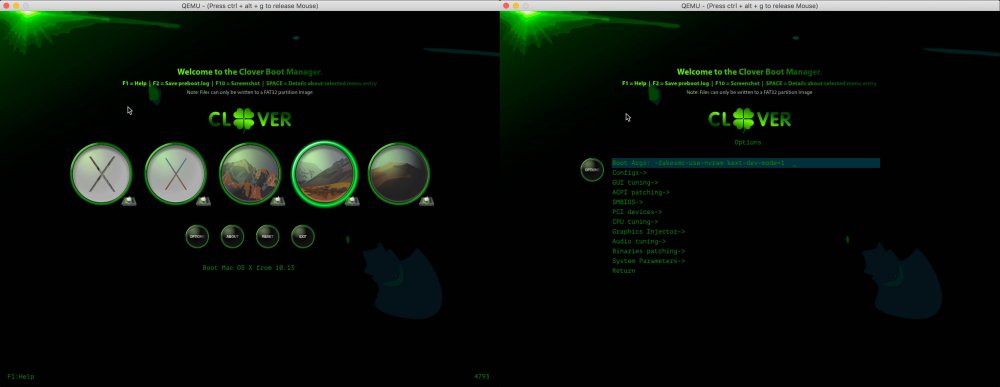

Day
Banner position [375,105]

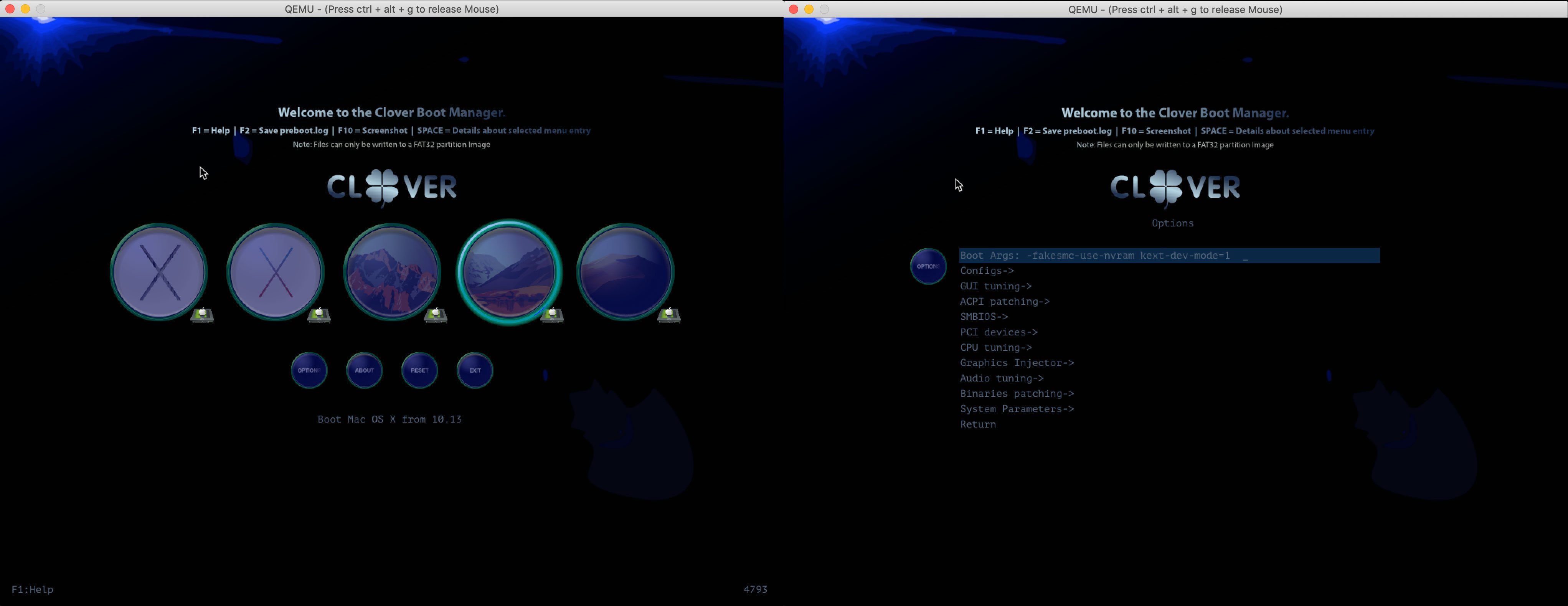

Night
Banner position [65535,65535]



VectorGraphics.c line #177 is only checking for Banner and not Banner_night!



Adding check for banner_night resolves issue.

[Slice]

Just improve

(strstr(IconName, "Banner") == NULL)

[blackosx]

You mean ?

(strstr(IconName, "Banner") != NULL)



EDIT: Works

Edited December 5, 2018 by blackosx

[Slice]

22 minutes ago, blackosx said:

You mean ?

(strstr(IconName, "Banner") != NULL)



EDIT: Works

There is another place several lines below

  if ((Id != BUILTIN_ICON_BACKGROUND) &&
      (Id != BUILTIN_ICON_ANIME) &&
      (strstr(IconName, "Banner") == NULL)) {
    float realWidth = (bounds[2] - bounds[0]) * Scale;
    float realHeight = (bounds[3] - bounds[1]) * Scale;
    tx = (Width - realWidth) * 0.5f;
    ty = (Height - realHeight) * 0.5f;
  }



[blackosx]

@Slice

I wish to apply a different colour to the typeface and also SelectionColor when in night mode.

What's the best way to achieve this?





[Slice]

To do this we should implement SelectionColorNight="..." and insert parsing into nanosvg.c here

    } else if (strcmp(dict, "SelectionColor") == 0) {

      GlobalConfig.SelectionColor = getIntegerDict(dict[i + 1]);

with checking time of day.

For example



    } else if (strcmp(dict, "SelectionColor") == 0) {

      if (DayLight)

      GlobalConfig.SelectionColor = getIntegerDict(dict[i + 1]);

    } else if (strcmp(dict, "SelectionColorNight") == 0) {

      if (!DayLight)

      GlobalConfig.SelectionColor = getIntegerDict(dict[i + 1]);



But typefaces is more complex.

[Slice]

May be implement something like "TextColorNightShift"?

textFace[1].color = text->fontColor + TextColorNightShift;

[Slice]

I think it is better to implement night menu

Daylight as usual

<g id="MenuRows" class="st0"><text class="st1">Menu</text></g>
<g id="HelpRows" class="st0"><text class="st2">Help</text></g>
<g id="MessageRow" class="st0"><text class="st3">Boot macOS from HDD</text></g>

and for night

<g id="MenuRows_night" class="st0"><text class="st1n">Menu</text></g>
<g id="HelpRows_night" class="st0"><text class="st2n">Help</text></g>
<g id="MessageRow_night" class="st0"><text class="st3n">Boot macOS from HDD</text></g>



[blackosx]

Thanks for the SelectionColorNight instructions.

And yes, a separate night menu would be cleaner to visualise and handle.



I will try later when I get time.

[Slice]

1 hour ago, blackosx said:

Thanks for the SelectionColorNight instructions.

And yes, a separate night menu would be cleaner to visualise and handle.



I will try later when I get time.

I committed these advances for you to draw and test when you will have a time and wish.

[blackosx]

Thanks @Slice

Works



[SavageAUS]

Not sure if here is appropriate but I just downloaded the 10.14.2 combo update and rebooted, I am using the Clovy theme but when I chose the install macOS drive file on the GUI it just froze. I tried this three times with no success until I changed to a standard theme then I could boot the install macOS from xxxx drive.


Sent from my iPhone using Tapatalk

[blackosx]

@Slice

I'm testing using symbols for OSBadge but not having success getting Clover to load it. Can you help?



Here are two files which I've created to test the elements.

test_basic_badge_offset_in_finder_good_in_ai.svg

Test_os_cap_not_bad_in_finder_wrong_in_ai.svg



However, when I put this in to theme.svg for Clover I'm not seeing the Badge. Debug shows:

2:893  0:003  search for os_mac
2:905  0:002  load os_mac status=Not Found
2:907  0:002  OSicon os_mac not parsed

Here's are 2 slightly different theme.svg files I'm using.

Theme.svg

Theme2.svg

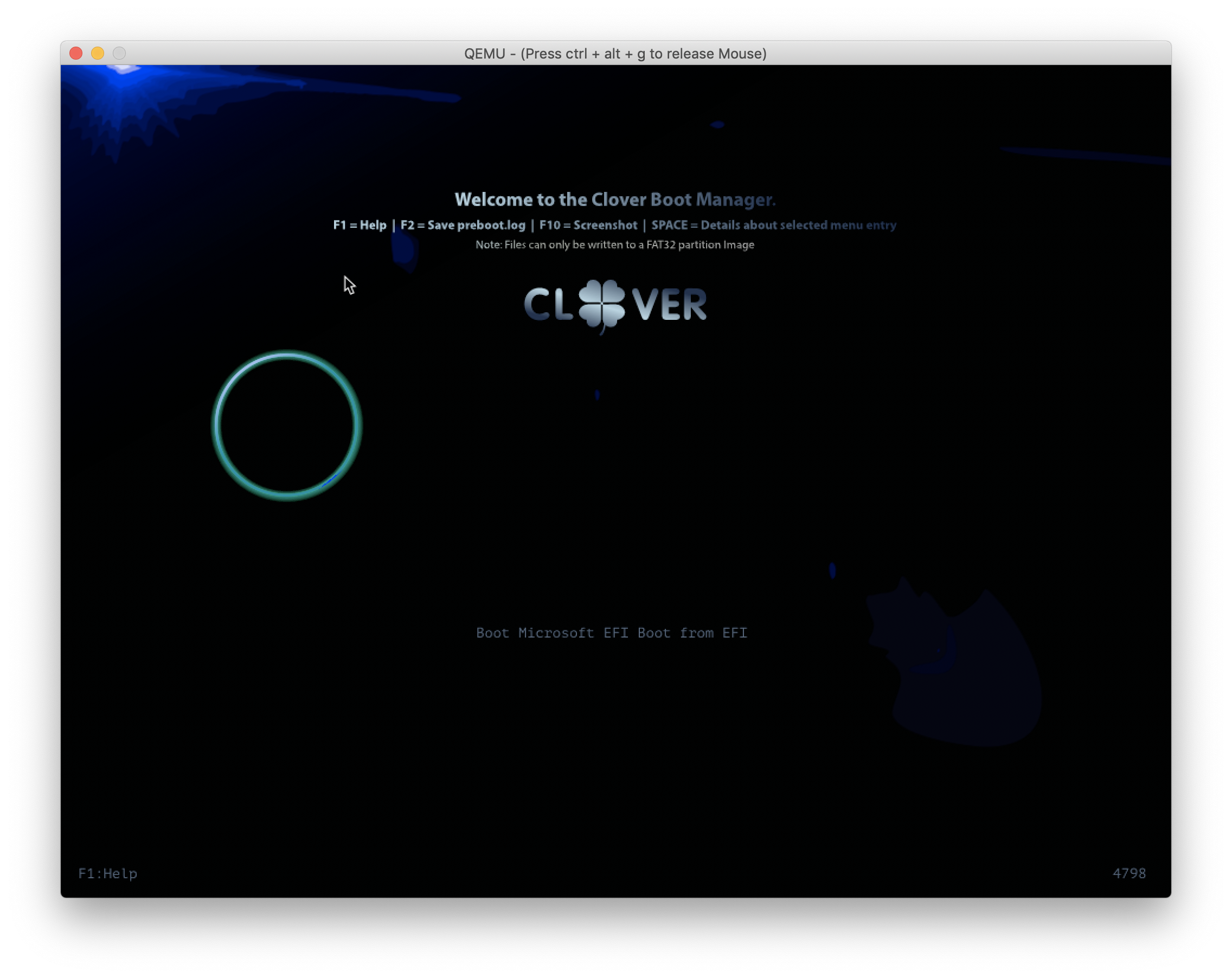

Gives me the following result.



Can you identify what's wrong and why the os_mac badge is not showing?



Thanks
