WeBeRiO Posted November 23, 2018 Share Posted November 23, 2018 5 hours ago, SavageAUS said: Las barras negras están fijas, pero la palabra Administrador se corta y preferiría un ícono de Windows diferente, vista fue horrible. Can use icon without name down, only icon.Windows 7 - Win10 (Black) - Win10 (Blue) - Win Colored - More logos ... Link to comment Share on other sites More sharing options...

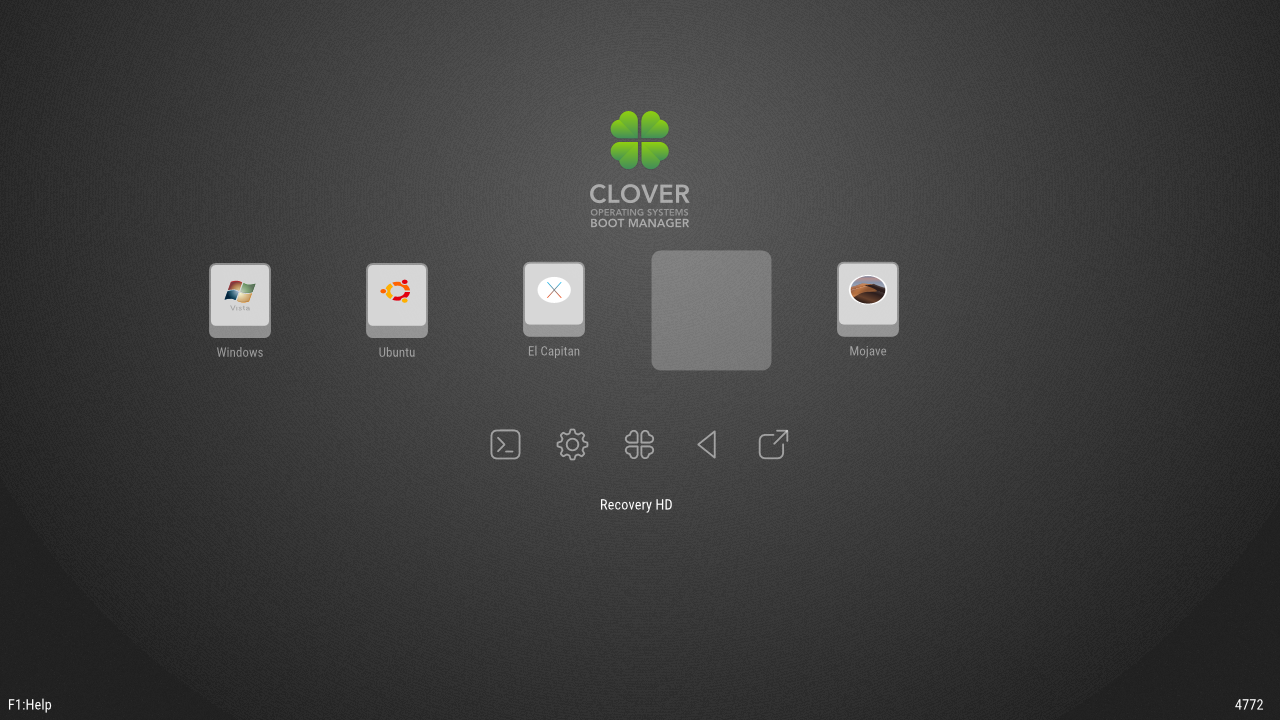

Badruzeus Posted November 23, 2018 Share Posted November 23, 2018 (edited) Clovy theme is still missing os_ / vol_recovery (mac) and other distros than Ubuntu not show any icon (on my case). Oh ya, plus empty icon for cd_ / vol_optical device. (not a request btw, just a report). Thanks. #EDIT: Also found an issue that; after using (for example) any Raster theme with 256px for MainEntries then switch to Clovy, the last space between Entries will follow those (previous) 256px one. Edited November 23, 2018 by Badruzeus 2 Link to comment Share on other sites More sharing options...
SavageAUS Posted November 25, 2018 Share Posted November 25, 2018 (edited) Is there a way to reset nvram on a system that gets stuck at scanning entries? I switched to the Clovy theme and now it’s stuck at scanning entries. F11 does nothing. Theme is set in nvram so booting from a usb inst working either. I can access my config.plist from windows. Is there a way to clear nvram via UEFI shell? EDIT: I installed an older version of clover prior to vector themes being added and i could boot from USB into my OS and now i have been able to remove my nvram theme. Edited November 25, 2018 by SavageAUS 1 Link to comment Share on other sites More sharing options...

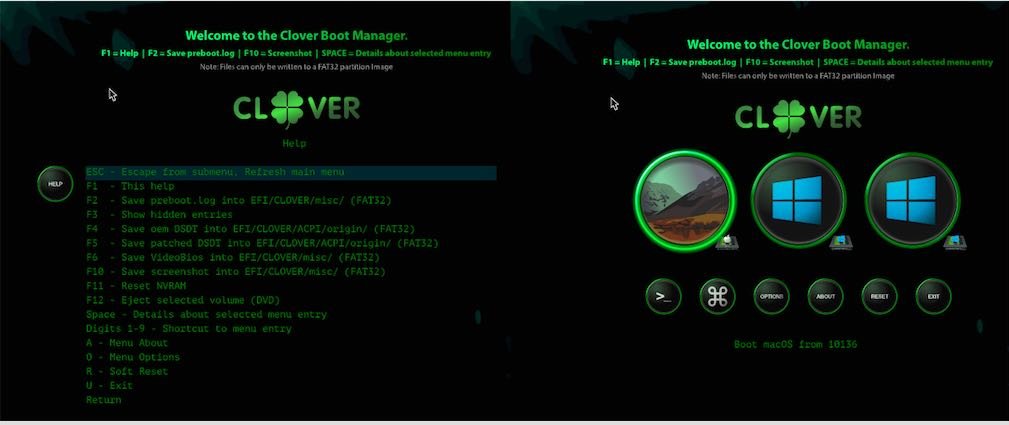

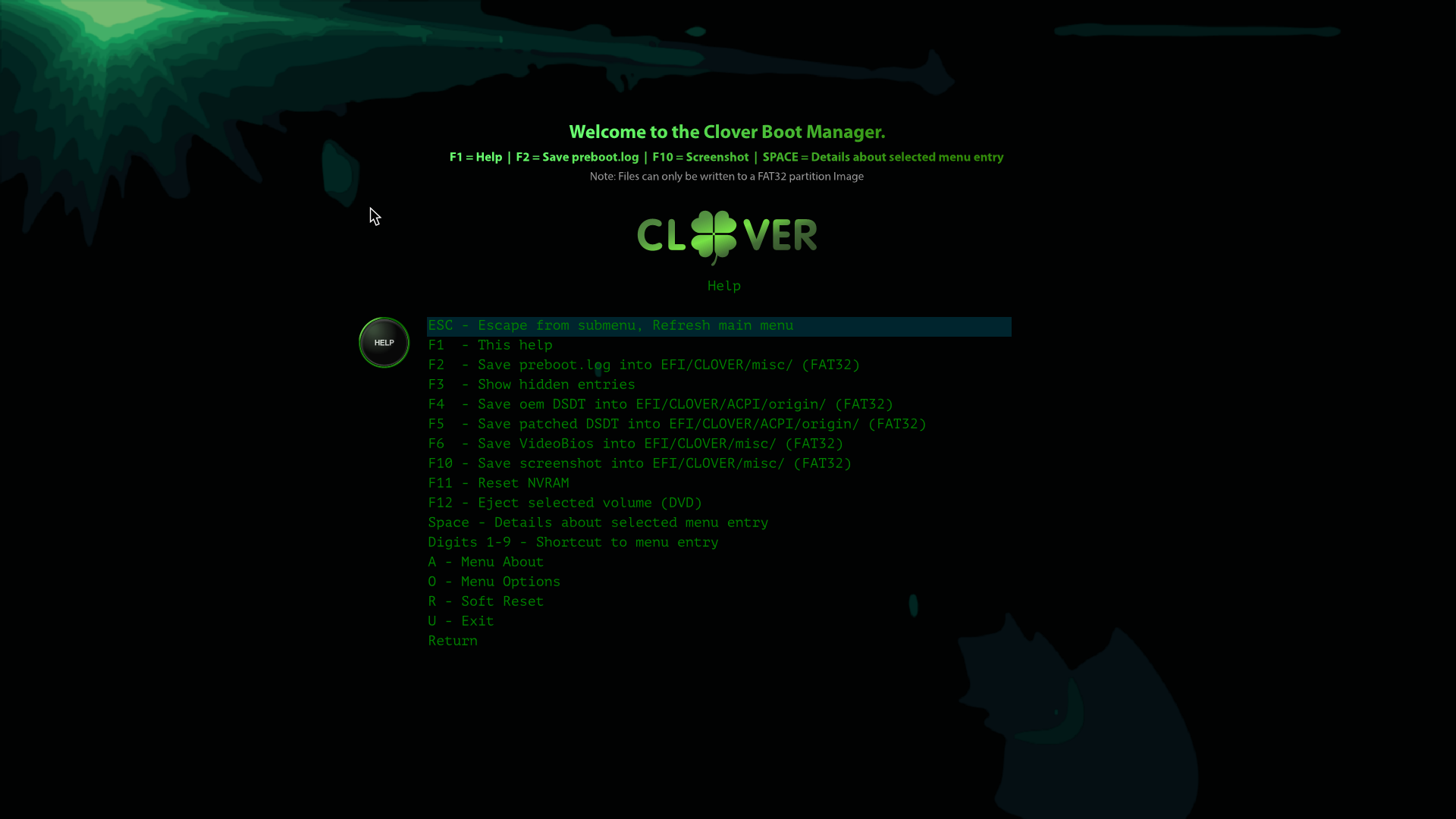

blackosx Posted November 26, 2018 Share Posted November 26, 2018 (edited) BGM_SVG is coming along. Yes, there are still some incomplete/missing icons and others need a re-work etc. The background is not done yet and the checkboxes and radio buttons don't align properly blah blah... ... But here's an updated version if anyone's interested EDIT: Attachment removed Edited November 30, 2018 by blackosx 4 Link to comment Share on other sites More sharing options...
Slice Posted November 27, 2018 Author Share Posted November 27, 2018 Hi blackosx, We can make animation for vector theme same way as in raster themes. <g id="BannerAnimation"> <g id="frame_1">... <g id="frame_2">... etc. Just draw them and I can write the support. 1 Link to comment Share on other sites More sharing options...
blackosx Posted November 27, 2018 Share Posted November 27, 2018 Hi Slice. Great :) Okay. I'll test soon. 1 Link to comment Share on other sites More sharing options...

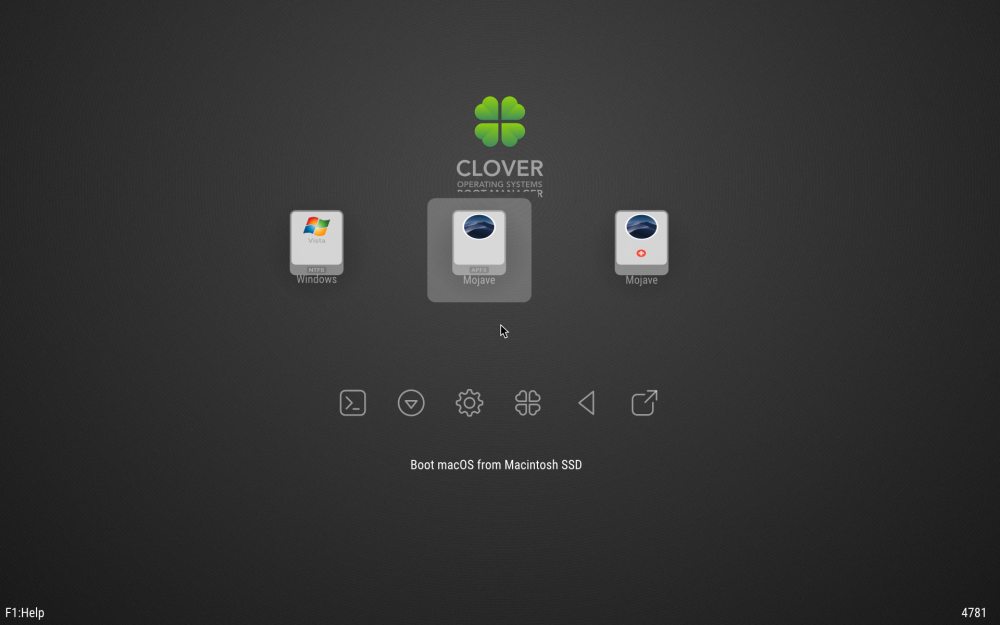

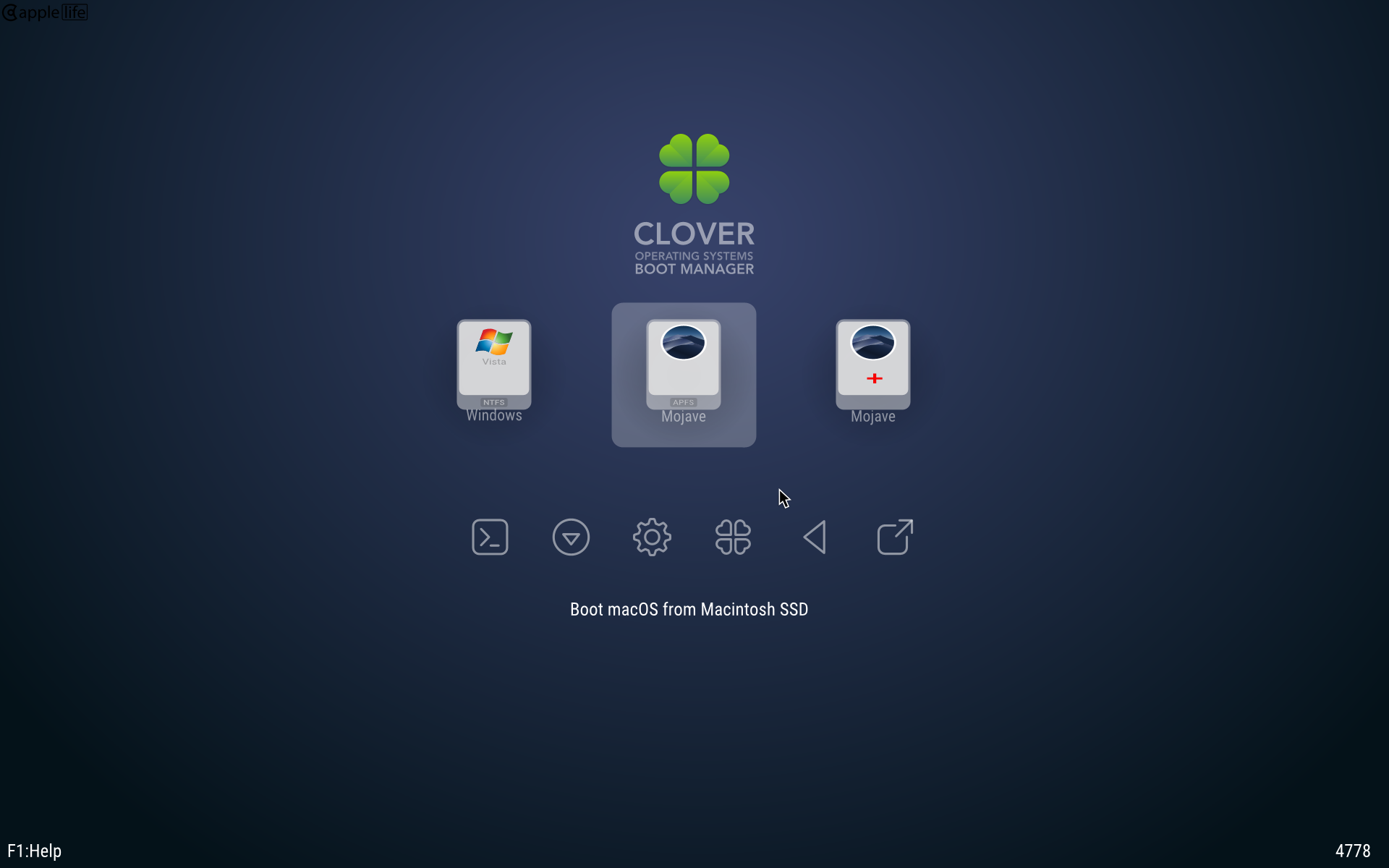

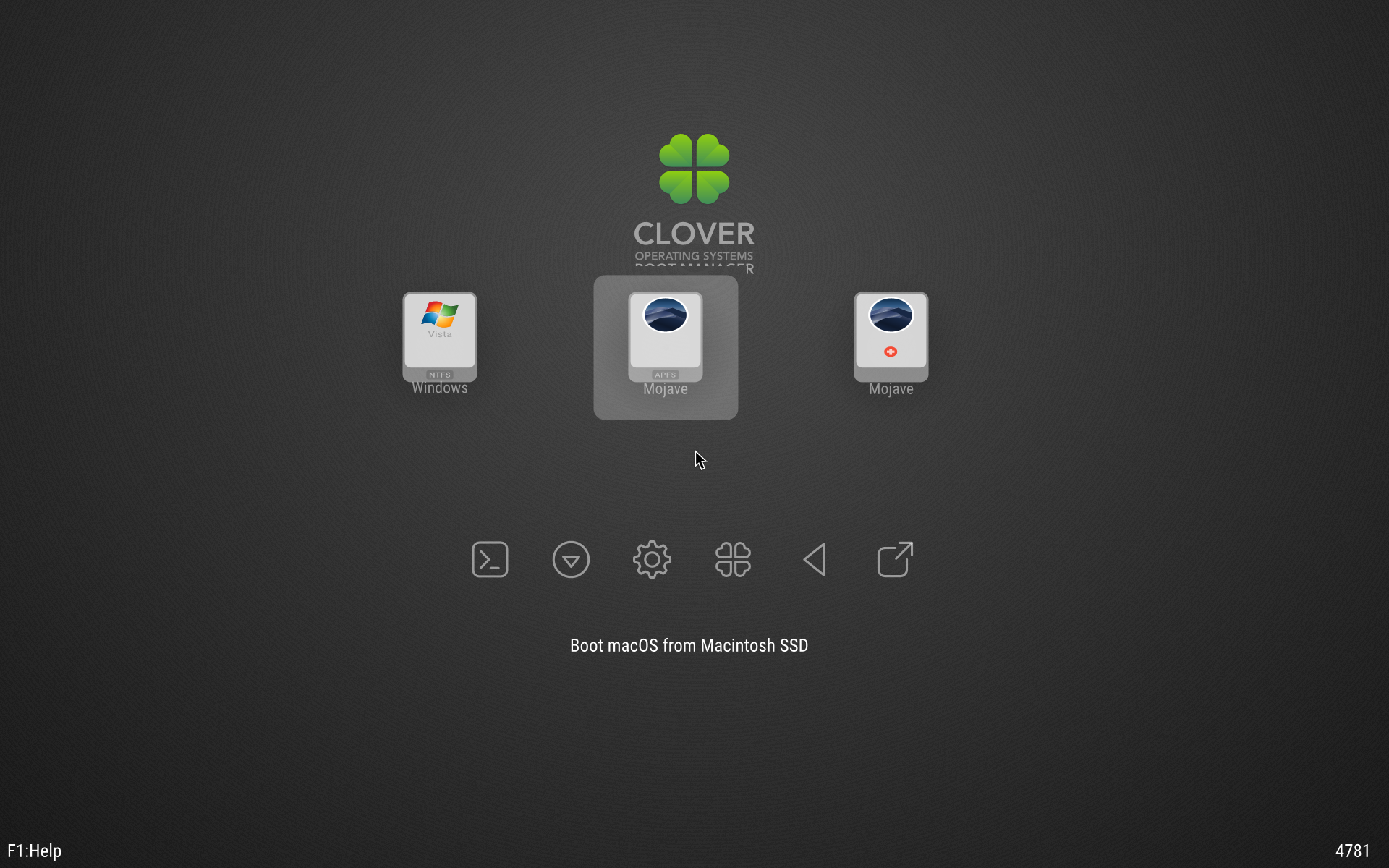

Ingwar77 Posted November 29, 2018 Share Posted November 29, 2018 (edited) r4778 r4781 Edited November 29, 2018 by Ingwar77 Link to comment Share on other sites More sharing options...
Slice Posted November 30, 2018 Author Share Posted November 30, 2018 On 11/26/2018 at 7:17 PM, blackosx said: BGM_SVG is coming along. Yes, there are still some incomplete/missing icons and others need a re-work etc. The background is not done yet and the checkboxes and radio buttons don't align properly blah blah... ... But here's an updated version if anyone's interested BGM_SVG_v0.6b.zip Great to see your theme is SVG variant! I made support for missing icons: All missing macOS will be replaced by common os_mac icon All missing linuxes (?) with os_linux. Not sure about different linux names. Also I continue working on proper alignments. 1 1 Link to comment Share on other sites More sharing options...
blackosx Posted November 30, 2018 Share Posted November 30, 2018 No problem. Thanks for the continued updates. I'll keep updating the theme as necessary to keep up with Clover changes. I'll also continue to work on Clover SVG Theme Builder to help others create simple themes. 1 1 Link to comment Share on other sites More sharing options...
Slice Posted November 30, 2018 Author Share Posted November 30, 2018 I implemented <symbol> support, it will be a great help to create themes because of many similar elements. <?xml version="1.0" encoding="utf-8"?> <!-- Generator: Adobe Illustrator 22.1.0, SVG Export Plug-In . SVG Version: 6.00 Build 0) --> <svg version="1.1" id="Layer_1" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" x="0px" y="0px" viewBox="0 0 128 128" style="enable-background:new 0 0 128 128;" xml:space="preserve"> <style type="text/css"> .st0{fill:#E30313;fill-opacity:0.75;stroke:#F9B233;stroke-width:5;stroke-miterlimit:10;stroke-opacity:0.5;} </style> <symbol id="rombs" viewBox="-44.515 11.475 48.051 48.051"> <path class="st0" d="M-20.49,43.294l-6.348,6.348l6.348,6.348l6.348-6.348L-20.49,43.294z M-28.284,35.5l-6.348,6.348L-40.98,35.5 l6.348-6.348L-28.284,35.5z M0,35.5l-6.348,6.348l-6.348-6.348l6.348-6.348L0,35.5z M-14.142,21.358l-6.348,6.348l-6.348-6.348 l6.348-6.348L-14.142,21.358z"/> </symbol> <use xlink:href="#rombs" width="48.051" height="48.051" x="-44.515" y="11.475" transform="matrix(1 0 0 -1 54.1565 66.8333)" style="overflow:visible;"/> <use xlink:href="#rombs" width="48.051" height="48.051" x="-44.515" y="11.475" transform="matrix(0.6453 0.7639 0.7639 -0.6453 79.8232 84.2069)" style="overflow:visible;"/> <use xlink:href="#rombs" width="48.051" height="48.051" x="-44.515" y="11.475" transform="matrix(1.773 0 0 -0.5535 100.3277 122.8862)" style="overflow:visible;"/> </svg> 1 Link to comment Share on other sites More sharing options...
blackosx Posted November 30, 2018 Share Posted November 30, 2018 Great Link to comment Share on other sites More sharing options...
Slice Posted November 30, 2018 Author Share Posted November 30, 2018 On 11/23/2018 at 1:15 PM, WeBeRiO said: Can use icon without name down, only icon.Windows 7 - Win10 (Black) - Win10 (Blue) - Win Colored - More logos ... For this design no. It should be other theme. Link to comment Share on other sites More sharing options...

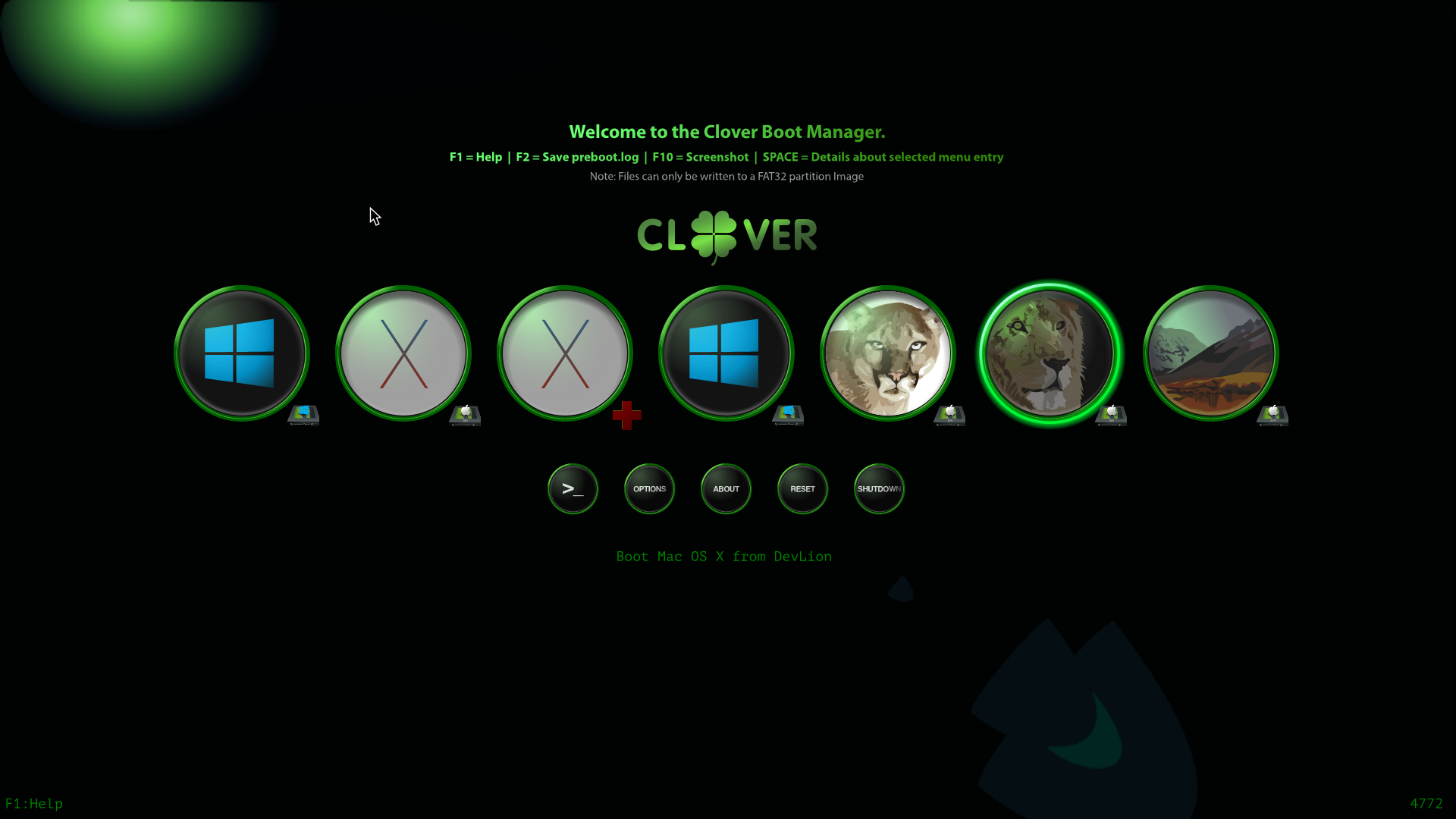

blackosx Posted November 30, 2018 Share Posted November 30, 2018 Small update to BGM_SVG BGM_SVG_v0.7b.zip Link to comment Share on other sites More sharing options...

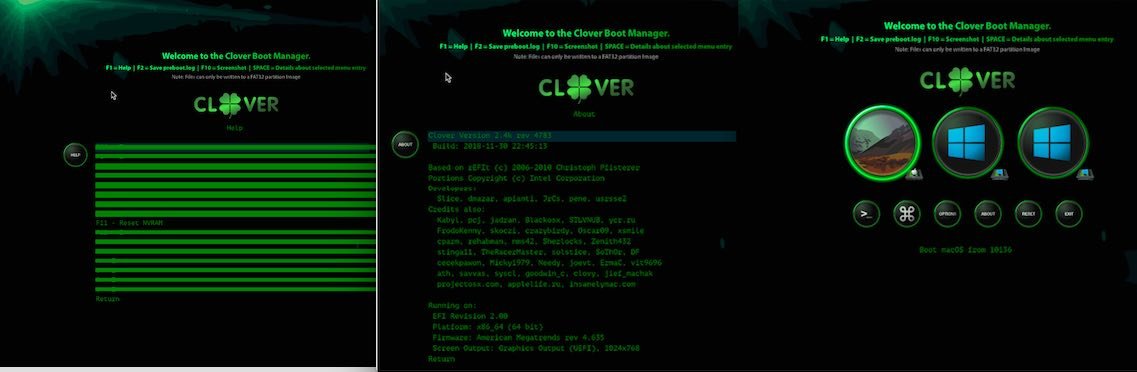

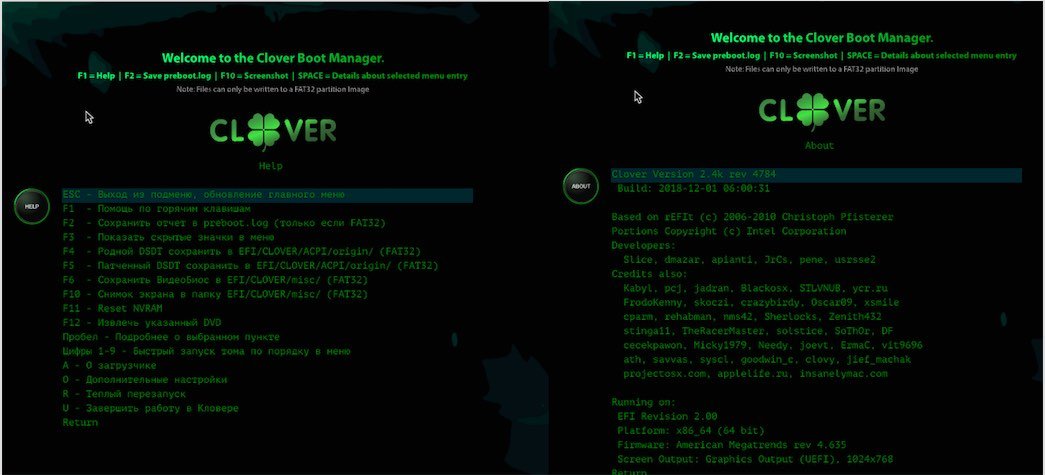

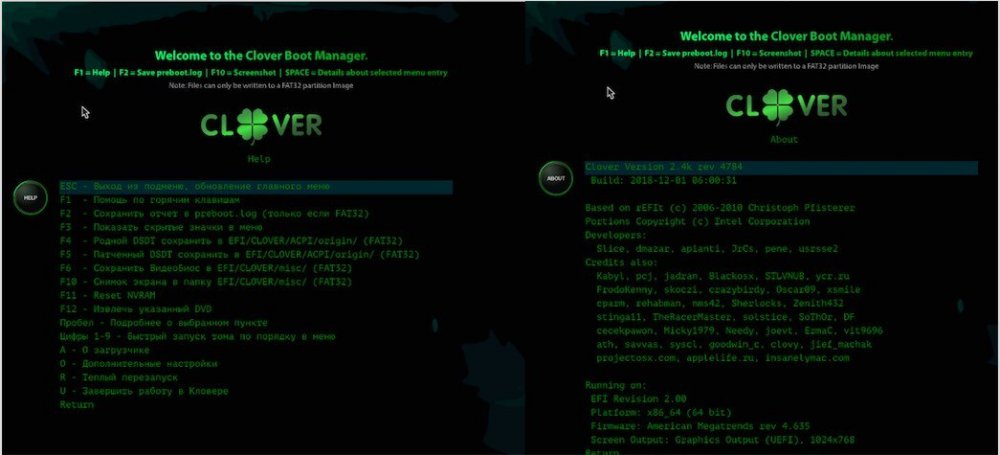

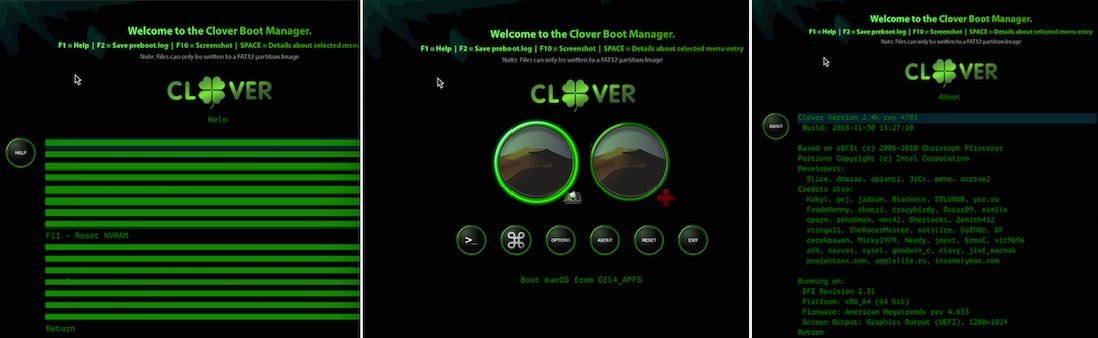

droples Posted November 30, 2018 Share Posted November 30, 2018 (edited) BGM_SVG_v0.6b,BGM_SVG_v0.7b. Hi,blackosx! I have some problems when choosing F1 on two different systems Spoiler [/spoiler} Edited November 30, 2018 by droples Link to comment Share on other sites More sharing options...

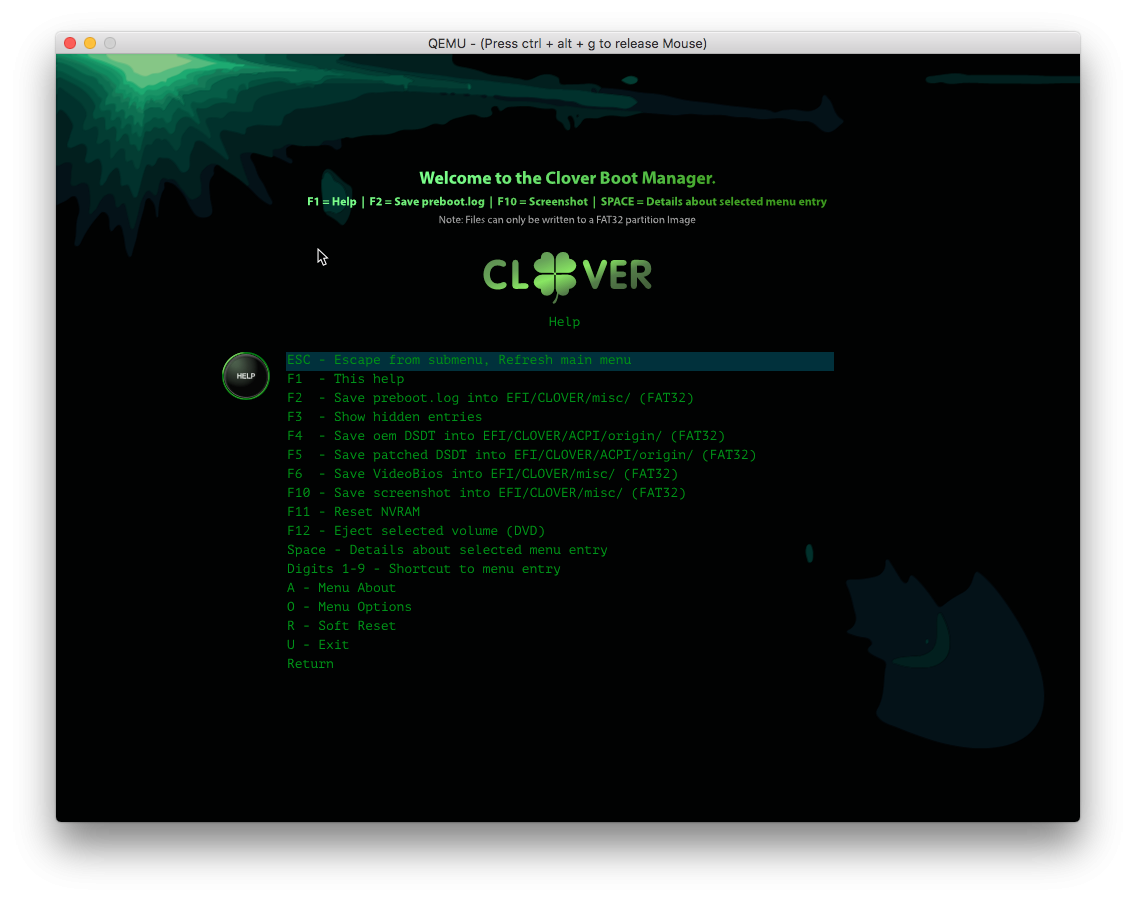

blackosx Posted November 30, 2018 Share Posted November 30, 2018 Thanks for the report droples. Though I don't see that here in either QEMU of booting my hack (Legacy boot using r4784) Could it be a language issue? Do you normally see that page in Russian? The font I'm using doesn't contain any cyrillic glyphs. But then, no it can't be as your screenshot shows F11 - Reset NVRAM... I don't know then, other than a bug. Link to comment Share on other sites More sharing options...
droples Posted December 1, 2018 Share Posted December 1, 2018 (edited) @blackosx,hanks for the answer. After removing the national language(RU) from the config.plist - the information is displayed correctly. Edited December 1, 2018 by droples 1 Link to comment Share on other sites More sharing options...
Slice Posted December 1, 2018 Author Share Posted December 1, 2018 It is clover bug. Some glyphs causes such picture. Link to comment Share on other sites More sharing options...
Slice Posted December 1, 2018 Author Share Posted December 1, 2018 We have a feature in the vector theme support that we can use three different fonts for common Menu, for Help and About, and for Message Row. <g id="MenuRows"><text style="font-family:sans-serif;font-size:14;font-color:white">Menu</text><g> <g id="HelpRows"><text style="font-family:full-unicode;font-size:16;font-color:darkgreen">Help</text><g> <g id="MessageRow"><text style="font-family:beuty-script;font-size:30;font-color:yellow">Boot macOS from HDD</text><g> And this additional SVG fonts can be placed near theme.svg. 1 Link to comment Share on other sites More sharing options...
apianti Posted December 1, 2018 Share Posted December 1, 2018 For some reason there are no translations for F11 - Reset NVRAM for any language, they are all english, so that's why it's appearing like that. 1 Link to comment Share on other sites More sharing options...

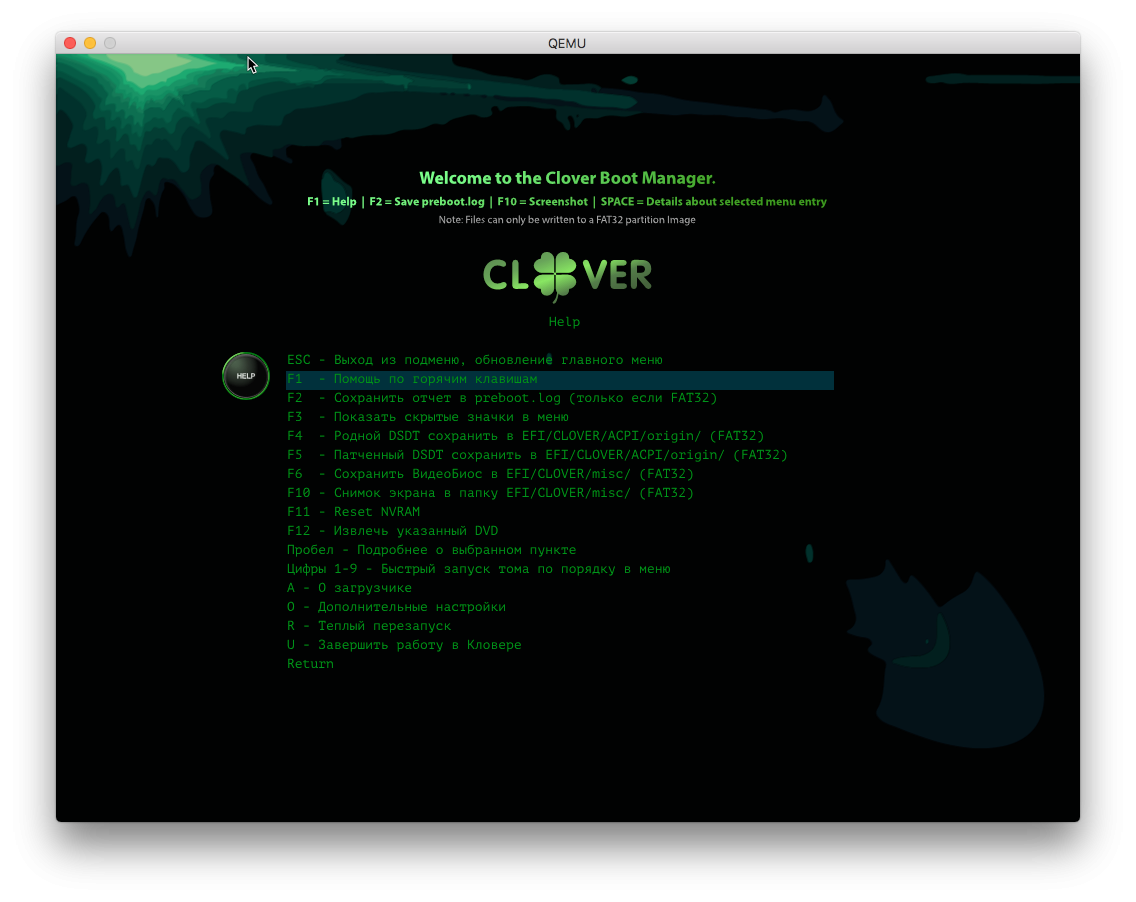

blackosx Posted December 1, 2018 Share Posted December 1, 2018 (edited) @droples Try this version with cyrillic font support. EDIT: Attachment removed Edited December 6, 2018 by blackosx 2 Link to comment Share on other sites More sharing options...

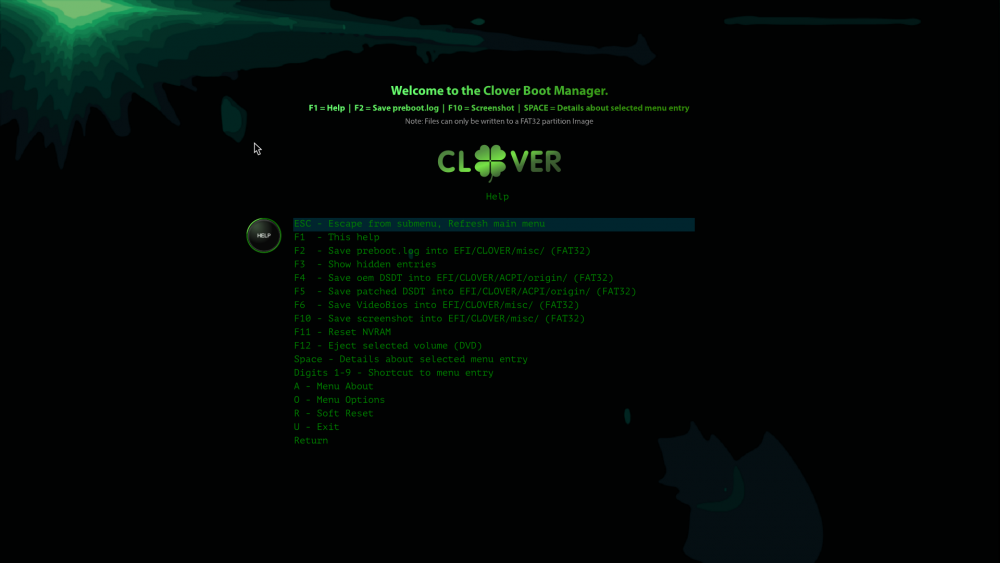

droples Posted December 1, 2018 Share Posted December 1, 2018 40 minutes ago, blackosx said: @droples Try this version with cyrillic font support. BGM_SVG_v0.71b.zip Thank! Everything is working. 1 Link to comment Share on other sites More sharing options...
blackosx Posted December 1, 2018 Share Posted December 1, 2018 (edited) Update to BGM_SVG. EDIT: Attachment removed Edited December 4, 2018 by blackosx Link to comment Share on other sites More sharing options...

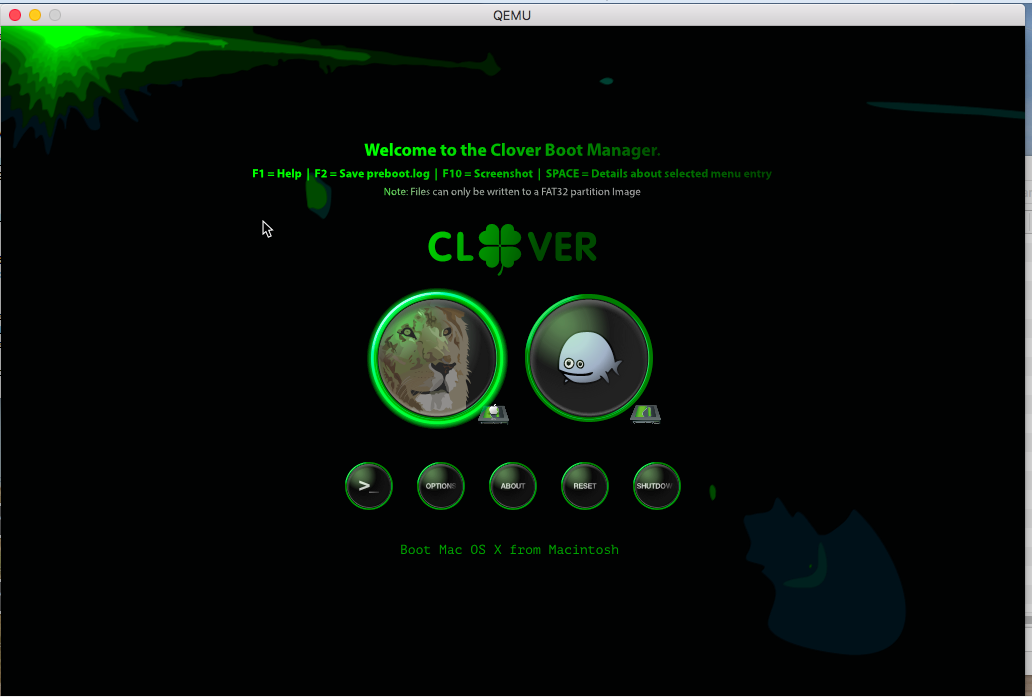

blackosx Posted December 2, 2018 Share Posted December 2, 2018 Hi blackosx, We can make animation for vector theme same way as in raster themes. ... ... etc. Just draw them and I can write the support. Hi Slice, I've created a theme file with a trial animation for the banner logo. It will need work moving forward but for now, I’d like to see if you can work with it? BGM_SVG_with_test_animation.zip Link to comment Share on other sites More sharing options...
Slice Posted December 2, 2018 Author Share Posted December 2, 2018 6 hours ago, blackosx said: Hi Slice, I've create a theme file with animation for banner logo. It's just a test for now. Can you see if you can work with it? BGM_SVG_with_test_animation.zip Hi, I made alpha version of animation support and committed to 4788. It should work but I forget something. Hope tomorrow I'll make it working all frames loaded 13:681 0:017 frame 0 loaded 13:699 0:018 frame 1 loaded 13:715 0:016 frame 2 loaded 13:732 0:017 frame 3 loaded 13:750 0:017 frame 4 loaded 13:769 0:019 frame 5 loaded 13:786 0:016 frame 6 loaded 13:807 0:020 frame 7 loaded 13:830 0:023 frame 8 loaded 13:853 0:022 frame 9 loaded 13:879 0:025 frame 10 loaded 13:902 0:023 frame 11 loaded 13:924 0:022 frame 12 loaded 13:945 0:020 frame 13 loaded 13:968 0:023 frame 14 loaded 13:995 0:026 frame 15 loaded 14:018 0:023 frame 16 loaded 14:040 0:022 frame 17 loaded 14:064 0:023 frame 18 loaded 14:085 0:021 frame 19 loaded 14:110 0:024 frame 20 loaded 14:133 0:022 frame 21 loaded 14:159 0:026 frame 22 loaded 14:185 0:025 frame 23 loaded 14:209 0:024 frame 24 loaded 14:235 0:025 frame 25 loaded 14:261 0:026 frame 26 loaded 14:291 0:029 frame 27 loaded 14:320 0:028 frame 28 loaded 14:352 0:032 frame 29 loaded 14:383 0:031 frame 30 loaded 14:417 0:033 frame 31 loaded 14:449 0:031 frame 32 loaded 14:482 0:033 frame 33 loaded 14:516 0:033 frame 34 loaded 14:549 0:033 frame 35 loaded 14:581 0:032 frame 36 loaded 14:613 0:032 frame 37 loaded 14:650 0:036 frame 38 loaded 16:091 1:441 User offset X 255 is out of range 16:106 0:014 corrected to default 104 16:114 0:008 User offset Y 255 is out of range 16:123 0:009 corrected to default 104 except frame 39. Why? EDITED: To the theme.svg I added into section <clover:theme ... AnimeFrames="39" FrameTime="2000" ... /> 1 Link to comment Share on other sites More sharing options...
blackosx Posted December 2, 2018 Share Posted December 2, 2018 43 minutes ago, Slice said: all frames loaded except frame 39. Why? That looks good. My file has frame 1 -> frame 39 So frame 0 -> frame 38 is fine. Link to comment Share on other sites More sharing options...
