Help installing HighSierra on Xeon W-2175 and Asus WS C422 mobo


obus
 Share

316 posts in this topic

Recommended Posts

I think after ++++++++++++++ should appear the Clover interface....not sure but I will try to change settings under GUI section.

Select Auto=Yes and try a lower resolution...maybe a 1920x1080, change also theme with embedded (I think the simplest)

Edited by Dan968
Link to comment
Share on other sites

Just now, Dan968 said:

I think after ++++++++++++++ should appear the Clover interface....not sure but I will try to change settings under GUI section.

Select Auto=Yes and try a lower resolution...maybe a 1920x1080

Ok guys.

Tried now with Matthew:s config list and SMBIOS 18.3,OsxAptioFix3Drv-64.efi and Resolution 1920x1080. No difference stuck at ++++++++++++++



0:826  0:000  Using ProductName from config: iMac18,3
0:826  0:000  Using latest BiosVersion from clover
0:826  0:000  BiosVersion: IM183.88Z.0154.B00.1712220135
0:826  0:000  BiosReleaseDate: 12/22/2017
0:826  0:000  Using FirmwareFeatures from config: 0xFC0FE136
0:826  0:000  Using FirmwareFeaturesMask from config: 0xFF1FFF3F
0:826  0:000  Board-ID set from config as Mac-BE088AF8C5EB4FA2





preboot.log

Link to comment
Share on other sites

Dan968.

Will try again with your last suggestion Auto=Yes.

The thing now is that I have so many different config.plist:s so I am quite confused. maybe it's better to stick with one basic?



Link to comment
Share on other sites

Yes I saw that in the preboot.log earlier today and wasn't really reflecting because I've just made a NEW  install USB after KGP:s skylake guide.

But the fact is that I used the same Install macOS High Sierra.app to upgrade my mac mini and that is after upgrade definitely macOS 10.13.3 (17D2047).

I took out three dim out of four

Edited by obus
Link to comment
Share on other sites

Sorry, watch better...you are trying HS installer...ok.

Strange for only one DIMM...XEON W is a 4 channels memory CPU....maybe that is not a problem.

to avoid problems with the installer... I usually do so:

with a real Mac I install my OS in a SSD with usb to sata adapter...then I install the EFI with Clover and configure it.

The only problem is that if you want to install the iMac Pro version of HS.... you'll need a real iMac Pro...I think.

Edited by Dan968
Link to comment
Share on other sites

2 minutes ago, Dan968 said:

Sorry, watch better...you are trying HS installer...ok.

Strange for only one DIMM...XEON W is a 4 channels memory CPU....maybe that is not a problem.

to avoid problems with the installer... I usually do so:

with a real Mac I install my OS in a SSD with usb to sata adapter...then I install the EFI with Clover and configure it.



No problem.

I've took three of the DIMM:S out when I stripped my rig earlier today. I will put them in again if you think that could be a problem.

I am trying to uplod some pics from my biossettings and my EFI folder but it dosen't work. Any ideas+

Link to comment
Share on other sites

1 hour ago, fabiosun said:

Could you post your exact EFI folder and also some Bios setting (cpu/usb/boot section)?



@fabiosun

Hi and thanks for your help.

I took some pics of my bios settings but it's impossible for me to upload. The same with my EFI folder.  I get some error -200.

I need to figure out why upload not working for me.

Edited by obus
Link to comment
Share on other sites

46 minutes ago, Dan968 said:



The only problem is that if you want to install the iMac Pro version of HS.... you'll need a real iMac Pro...I think.

So do you think that this installer might only works on a real iMac Pro?

This Installer works according to KGP:s guide here: http://www.insanelymac.com/forum/topic/331658-how-to-build-your-own-imac-pro-successful-buildextended-guide/ so it should work as I understand it.



Link to comment
Share on other sites

5 minutes ago, obus said:

So do you think that this installer might only works on a real iMac Pro?

This Installer works according to KGP:s guide here: http://www.insanelymac.com/forum/topic/331658-how-to-build-your-own-imac-pro-successful-buildextended-guide/ so it should work as I understand it.



Try to not concentrate on this guide. You have some working MacMini so download HighSierra from AppStore and make usb for exemple with this app https://www.macupdate.com/app/mac/55532/install-disk-creator.

Download last clovers version. Install to USB, copy FakeSMC to kext>other and paste your config.plist.

Link to comment
Share on other sites

2 minutes ago, Matthew82 said:

Try to not concentrate on this guide. You have some working MacMini so download HighSierra from AppStore and make usb for exemple with this app https://www.macupdate.com/app/mac/55532/install-disk-creator.

Download last clovers version. Install to USB, copy FakeSMC to kext>other and paste your config.plist.

Ok Matthew82.

I will do that and try again.

By the way do you know why I can't upload stuff?

Am I making something wrong or isn't its just drag and drop.

Link to comment
Share on other sites

13 minutes ago, obus said:

So do you think that this installer might only works on a real iMac Pro?

This Installer works according to KGP:s guide here: http://www.insanelymac.com/forum/topic/331658-how-to-build-your-own-imac-pro-successful-buildextended-guide/ so it should work as I understand it.



Yes, I would create a macOS High Sierra 10.13.3 (17D2047) installer....surely most compatible with Xeon-W CPU

Link to comment
Share on other sites

1 hour ago, Dan968 said:

But...I think the problem is concerning graphic setup:

from your log: "Custom boot screen not used because entry has unset use graphics"

no chance of getting an AMD video card?

@Dan968

I have a RX Vega 56 and I tried that too with the same result. The reason I don't use that is it get overheated because there is fan issues in HighSierra.

This problem might be solved in the upcoming 10.13.4 version.

Link to comment
Share on other sites

1 hour ago, obus said:

Ok Matthew82.

I will do that and try again.

By the way do you know why I can't upload stuff?

Am I making something wrong or isn't its just drag and drop.

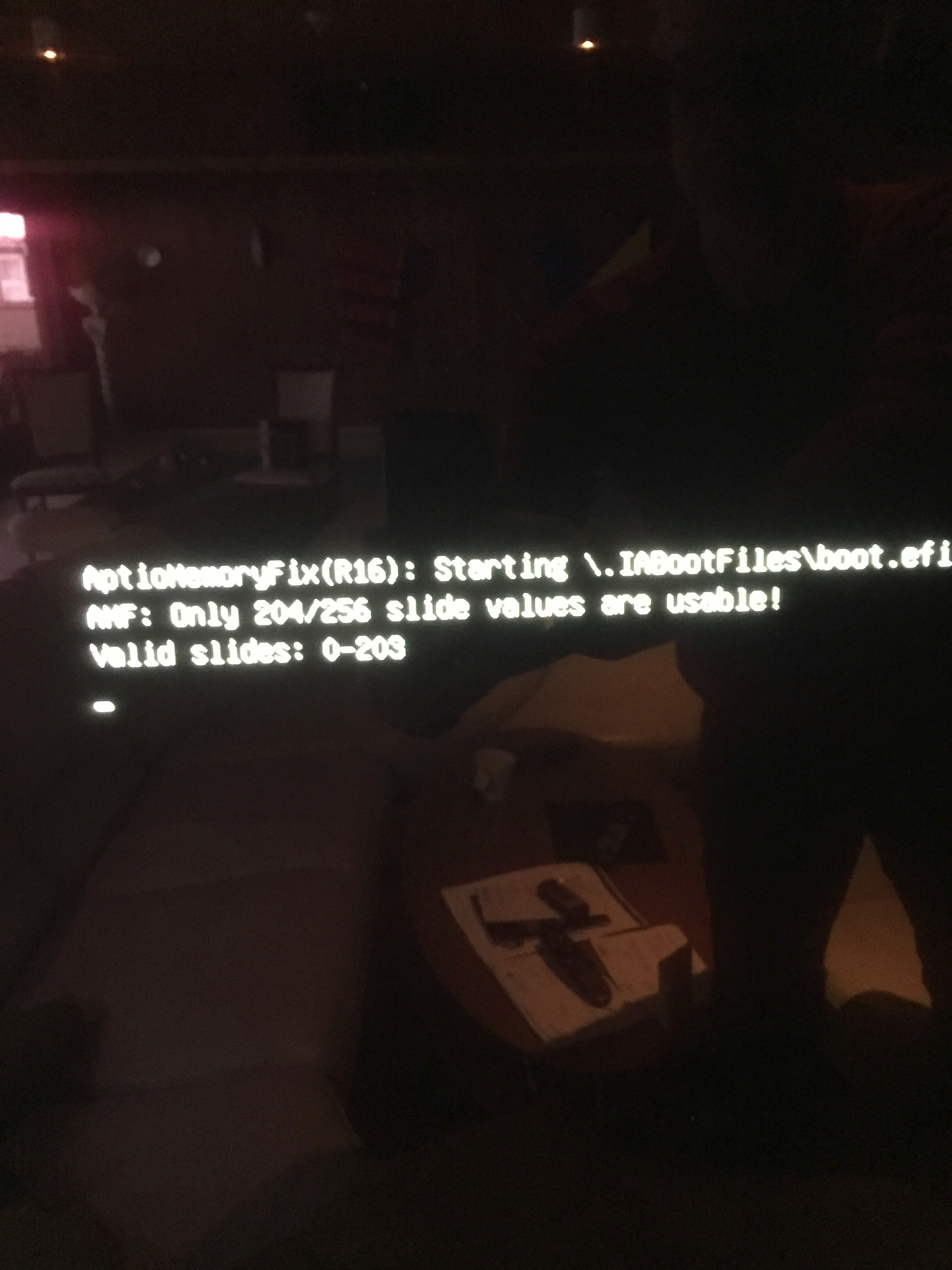

Made a brand new USB installer from my Mac Mini with the same EFI and clover 4411 and tried to boot with this result:


Link to comment
Share on other sites

3 hours ago, fabiosun said:

Could you post your exact EFI folder and also some Bios setting (cpu/usb/boot section)?



I have only permission for small files so I had to convert them to PDF.

My EFI i still to big to upload but I will try again tomorrow.

Nothing in ACPI folder

Three kext: FakeSMC.kext, SmallTree-Intel-211-AT-PCIe-GBE.kext and TSCAdjustReset.kext

Config.plist: attached

Drivers 64UEFI: The only (in Clover) selected driver is AptioMemoryFix.efi (RC16) + HFSPLUS.efi

Clover version 4411

180313205922.BMP.pdf

180313210034.BMP.pdf

180313210057.BMP.pdf

180313210108.BMP.pdf

180313210122.BMP.pdf

180313210128.BMP.pdf

180313210147.BMP.pdf

180313210301.BMP.pdf

180313210312.BMP.pdf

180313210324.jpg.pdf

config.plist

Link to comment
Share on other sites

when you stuck at this point, the kernel could not be loaded and causes a panic/halt.

I know this situation with my X99 system. This happens always when the kernel calls a specific register of your CPU or a resource in Bios/Motherboard.

Link to comment
Share on other sites

5 hours ago, jaraheel said:

try with the attached drivers64UEFI, and config.plist. Remove the SmallTree kext, and disable your network controller in BIOS, and other settings I previously mentioned. Also try a different USB port, as others have suggested.

drivers64UEFI.zip

config.plist

Thanks @jaraheel I will try this.



Visiting my three son:s in Stockholm. Back on friday for with new forces.

Link to comment
Share on other sites

2 hours ago, SammlerG said:

when you stuck at this point, the kernel could not be loaded and causes a panic/halt.

I know this situation with my X99 system. This happens always when the kernel calls a specific register of your CPU or a resource in Bios/Motherboard.

Did you pinpoint what was wrong.

Was it a driver some graphics problem or something with your bios?

Link to comment
Share on other sites

On ‎3‎/‎13‎/‎2018 at 11:47 PM, obus said:

I have only permission for small files so I had to convert them to PDF.

My EFI i still to big to upload but I will try again tomorrow.

Nothing in ACPI folder

Three kext: FakeSMC.kext, SmallTree-Intel-211-AT-PCIe-GBE.kext and TSCAdjustReset.kext

Config.plist: attached

Drivers 64UEFI: The only (in Clover) selected driver is AptioMemoryFix.efi (RC16) + HFSPLUS.efi

Clover version 4411

180313205922.BMP.pdf

180313210034.BMP.pdf

180313210057.BMP.pdf

180313210108.BMP.pdf

180313210122.BMP.pdf

180313210128.BMP.pdf

180313210147.BMP.pdf

180313210301.BMP.pdf

180313210312.BMP.pdf

180313210324.jpg.pdf

config.plist

I will start enabling EIST in bios (you have a Xeon) and many guide are done for more consumers or extreme CPU

then I would try with only my config.plist (only one config in clover folder at time)

Then if always stuck in ++++++++ stage I would try my boot loader and drivers64uefi

I think only one from old brumbaer patch or Pikeralpha reboot fix I have added in your config could be useful to pass your hang





Edited by Guest
Link to comment
Share on other sites
