Matthew82 Posted March 11, 2018 Share Posted March 11, 2018 It is need wen you have not patched bios. You can extract ACPI tables in clover menu and send it. Press F4 and they will be in Clover>ACPI>original. May by we will found some information there. Also press F2 and boot.log will be write in Clove>Misc Link to comment Share on other sites More sharing options...
obus Posted March 11, 2018 Author Share Posted March 11, 2018 Ok. Here you have preboot.log and ACPI tables. Please take a look and see if you can find anything. origin.zip preboot.log Link to comment Share on other sites More sharing options...
Matthew82 Posted March 11, 2018 Share Posted March 11, 2018 Everything look similar like in me hardware. Led try last time with this EFI https://drive.google.com/file/d/12-ii4HZwUDqZIDrTb7AwZgYd5njUb4SW/view?usp=sharing Link to comment Share on other sites More sharing options...
jaraheel Posted March 12, 2018 Share Posted March 12, 2018 Try with the attached config.plist and the TSCAdjust kext edited to match the number of threads for your CPU. Be a bit patient when booting for the first time to the installation menu. config.plist TSCAdjustReset.kext.zip Link to comment Share on other sites More sharing options...
obus Posted March 12, 2018 Author Share Posted March 12, 2018 (edited) Hallo Mattthew82 and jaraheel. Tried your last EFI respectively config.plist/TSCAdjust kext without success. It seems everything is loading according to the preboot.log. I can read in the log "Custom boot screen not used because entry has unset use graphics" what's that.,could it be something with the graphics? If I use my RX Vega 56 or my GTX 680 no difference. This time the log shows that disk volume is set up: 16:878 0:005 SetStartupDiskVolume: 16:878 0:000 * Volume: 'Install macOS High Sierra' 16:878 0:000 * LoaderPath: '\.IABootFiles\boot.efi' 16:878 0:000 * DevPath: Install macOS High Sierra 16:878 0:000 * GUID = 02B7273F-D02C-426C-A620-3C9B0462CCF3 16:881 0:002 * efi-boot-device: <array><dict><key>IOMatch</key><dict><key>IOProviderClass</key><string>IOMedia</string><key>IOPropertyMatch</key><dict><key>UUID</key><string>02B7273F-D02C-426C-A620-3C9B0462CCF3</string></dict></dict></dict></array> 16:882 0:000 Custom boot screen not used because entry has unset use graphics 16:884 0:002 Closing logpreboot.log Edited March 12, 2018 by obus Link to comment Share on other sites More sharing options...
jaraheel Posted March 12, 2018 Share Posted March 12, 2018 are you getting a kernel panic at boot attempt? In your BIOS settings: Disable the network adapters In the CPU Configuration/CPU Power Management Configuration/: disable the EIST Set autonomous core C-states to enabled Set enhanced halt state to enabled Set CPU C6 report to enabled Set Package C-State to C6(non retention) disable the Intel SpeedShift technology set MFC mode override to OS Native In your EFT/Clover/kexts/Other try removing all kexts and have just the FakeSMC, and TSCAdjustReset Link to comment Share on other sites More sharing options...
jaraheel Posted March 12, 2018 Share Posted March 12, 2018 Oh you have patched BIOS, so you do not need the TSCAdjustReset kext either... Link to comment Share on other sites More sharing options...
obus Posted March 12, 2018 Author Share Posted March 12, 2018 Hi jaraheel. I flashed back to normal bios so I keep that kext. Thank's for your effort and I will try later today. Link to comment Share on other sites More sharing options...
obus Posted March 12, 2018 Author Share Posted March 12, 2018 Tried the new settings in bios sadly without any further improvement. Could it be anything with nvram and/or AptioMemoryFix.efi? Any other ideas? preboot.log Link to comment Share on other sites More sharing options...
SammlerG Posted March 12, 2018 Share Posted March 12, 2018 test this config config.plist Link to comment Share on other sites More sharing options...
obus Posted March 12, 2018 Author Share Posted March 12, 2018 (edited) Hi SammlerG! Thank's for your help...... Tested with your config.plist without success. I have never been in this situation and this is my fifth hackintosh since 2012. I have never been stucked just before boot. I don't no if it's kernel panic or something else. Normaly something crash or stop loading but in this case I have no clue. preboot.log Edited March 12, 2018 by obus Link to comment Share on other sites More sharing options...
SammlerG Posted March 12, 2018 Share Posted March 12, 2018 are u using the correct PlatformSupport.plist for iMac Pro ? Link to comment Share on other sites More sharing options...
obus Posted March 12, 2018 Author Share Posted March 12, 2018 (edited) I created my USB install media on my Mac mini following KGP:s instruction here: Is it a better or safer way to do it? Edited March 12, 2018 by obus Link to comment Share on other sites More sharing options...
SammlerG Posted March 12, 2018 Share Posted March 12, 2018 Check platformsupport.plist, is the imacpro BoardID in the plist? or test with Macpro6,1 smbios Link to comment Share on other sites More sharing options...
obus Posted March 12, 2018 Author Share Posted March 12, 2018 (edited) Ok. Booted with SMBIOS mac Pro6.1 (board id Mac-F60DEB81FF30ACF6 plist attached) Exact same behaviour. preboot.log config.plist Edited March 12, 2018 by obus Link to comment Share on other sites More sharing options...
Matthew82 Posted March 12, 2018 Share Posted March 12, 2018 Try to download and create one more time USB Installer. Or install from your MacMini system to external HD, then insert this HD to WS C422 and try to boot. Link to comment Share on other sites More sharing options...
obus Posted March 12, 2018 Author Share Posted March 12, 2018 I've already have a disk with working iMac Pro installation from my other rig (Kabylake z270 setup). I've tried to boot on that with the same result as with my USB-stick. This is so funny and weird. Is there another way to create the installer? Link to comment Share on other sites More sharing options...
surfinchina Posted March 13, 2018 Share Posted March 13, 2018 (edited) 8 hours ago, obus said: Ok. Booted with SMBIOS mac Pro6.1 (board id Mac-F60DEB81FF30ACF6 plist attached) Exact same behaviour. preboot.log config.plist A few times the boot has stalled there for me because that USB port has stopped. Simple and you might have thought of it, but try a few different ports. Another thing that helped me sometimes was different OsxAptioFixDrv-64.efi versions and once setting different slide values. I feel your pain. When I did this on my X299 it was before anyone else and it took quite a while... You should remove as much as you can and then add kexts, drivers and patches, rather than removing them. Otherwise you end up chasing your tail. My config.plist has pretty well no patches and it works nicely. I'll attach it just in case it helps config.plist Edited March 13, 2018 by surfinchina Link to comment Share on other sites More sharing options...
obus Posted March 13, 2018 Author Share Posted March 13, 2018 (edited) Cheers Surfinchina. How do I change slides and what exactly is it. Is it memory/NVRAM related! I was thinking it perhaps could have something to do with my ECC SDRAM memory. Are you using the MSR 0xE2 register UEFI-patch. I'm not sure about this patch I mean if it works on my mobo. I initially patched my bios with the one I found on KGP:s excellent skylake-guide. But now I'm not sure if I can use that so I went back to use TSCAdjustReset.kext and PikeRAlphas kernel patch. Is there a generic patch for all ASUS - boards? Edited March 13, 2018 by obus Link to comment Share on other sites More sharing options...

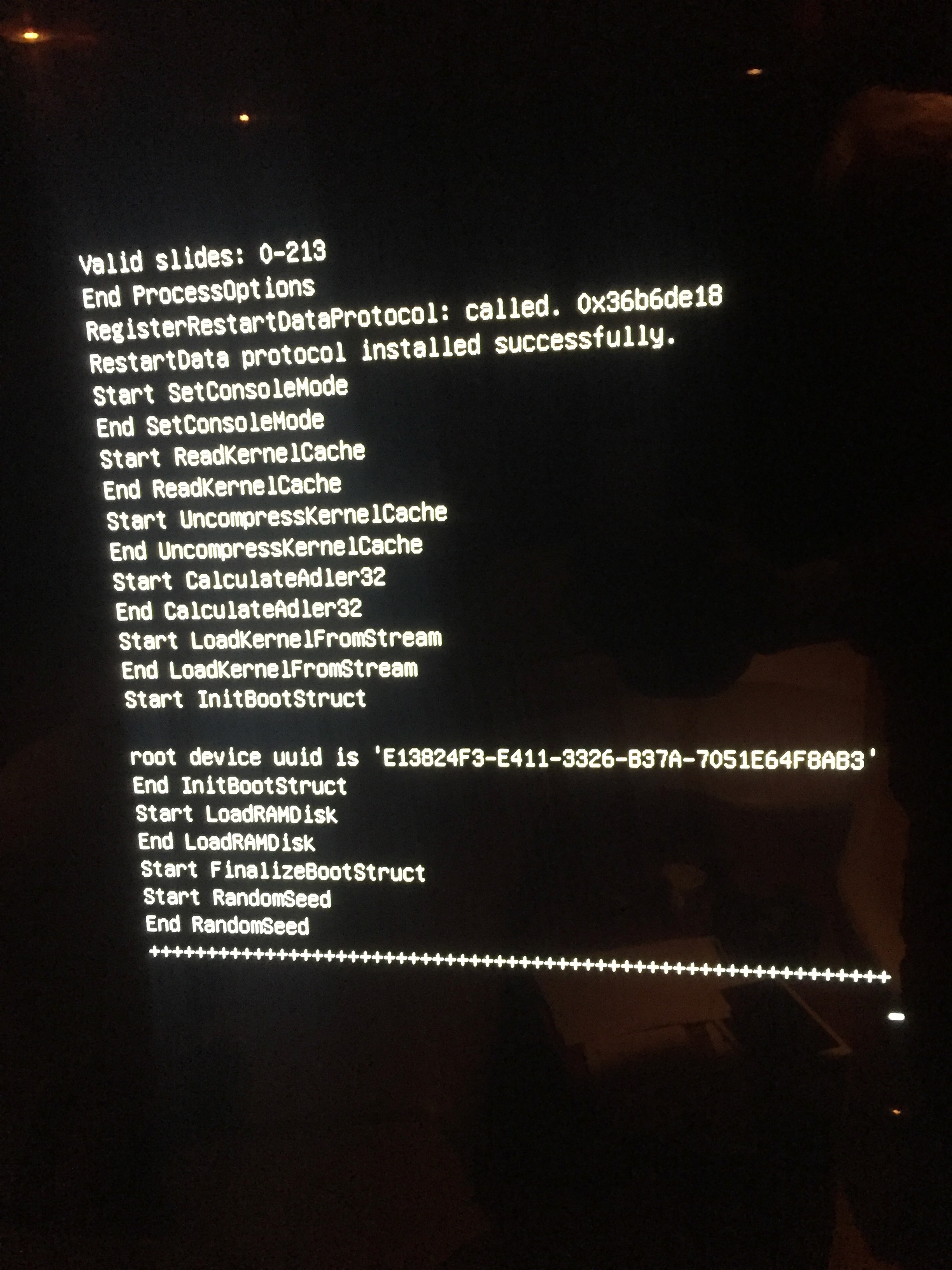

obus Posted March 13, 2018 Author Share Posted March 13, 2018 (edited) Ok. So i stripped down everything on my rig. Just using USB-keyboard/mouse,Nvidia GTX 680 graphics card, a clean 240 GB Samsung ssd and only one 16 GB ram. Using attached config.plist and this time Lilu.kext and NvidiaGraphicsFixup.kext for the graphics. FakeSMC.kext, TSCAdjustReset.kext and SmallTree-Intel-211-AT-PCIe-GBE.kext for my ethernet. Unfortunately with the same result as earlier "End random seed" +++++++++++++++++++++++ In the Q-code table I can see that the system get stucked on 04 or "system is entering S4 sleep state". Could this maybe shed some light over my problems? During the day I tried at least 10 different releases of AptioMemoryFix.efi. For me with only basic knowledge it's most about t trial and error but this a little bit harder. Starting to get a little bit frustrating now. I'am 66 years old and have all the time in the world on daytime (my wife is still working so...) but you know it's always good to see some progress. Any creativity out there? This is the hackintosh set up for the future so the problem must be solved. config.plist Edited March 13, 2018 by obus Link to comment Share on other sites More sharing options...
Matthew82 Posted March 13, 2018 Share Posted March 13, 2018 (edited) Did you also try OsxAptioFix3Drv-64 ? Ad to yor config SMBIOS like MP 6.1 or iMac 18,3. There are always bigger probability for success boot. I ad some extra kernel patch. It will not hurt to try. config.plist Edited March 13, 2018 by Matthew82 Link to comment Share on other sites More sharing options...
obus Posted March 13, 2018 Author Share Posted March 13, 2018 Yes I'm sure but I will try it immediately. Link to comment Share on other sites More sharing options...

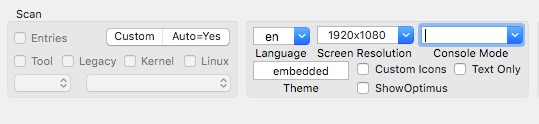

Dan968 Posted March 13, 2018 Share Posted March 13, 2018 Sorry, but could it be simply that you have a wrong graphical boot setting? I think it doesn't open the Clover graphical interface! I see you have 4k setting...do you have a 4k monitor?? Try to reset to default: Link to comment Share on other sites More sharing options...
surfinchina Posted March 13, 2018 Share Posted March 13, 2018 10 hours ago, obus said: Cheers Surfinchina. How do I change slides and what exactly is it. Is it memory/NVRAM related! I was thinking it perhaps could have something to do with my ECC SDRAM memory. Are you using the MSR 0xE2 register UEFI-patch. I'm not sure about this patch I mean if it works on my mobo. I initially patched my bios with the one I found on KGP:s excellent skylake-guide. But now I'm not sure if I can use that so I went back to use TSCAdjustReset.kext and PikeRAlphas kernel patch. Is there a generic patch for all ASUS - boards? I'm not using the MSR patch. The Gigabyte boards thankfully don't need them. The slide is in the boot arguments and in clover you have the choice of slide=0 or no slide. You can set different numbers in slide though, in the custom flags. If you google it you'll get how to calculate slide While you're in boot arguments you might as well go through experimenting with some of the others. What you need is to get past the + signs. First steps lol. Link to comment Share on other sites More sharing options...
obus Posted March 13, 2018 Author Share Posted March 13, 2018 (edited) 31 minutes ago, Dan968 said: Sorry, but could it be simply that you have a wrong graphical boot setting? I think it doesn't open the Clover graphical interface! I see you have 4k setting...do you have a 4k monitor?? Try to reset to default: Hi Dan968. Yes I'm using a 4k samsung oled 55 inch Tv screen. Please what do you mean by reseat? Do you mea n 1920x1080? Edited March 13, 2018 by obus Link to comment Share on other sites More sharing options...
