[Guide] macOS High Sierra 10.13 - Dell Optiplex 780 (760) (755) (790) (990)


MacPeet
 Share

673 posts in this topic

Recommended Posts

6 hours ago, socam77 said:

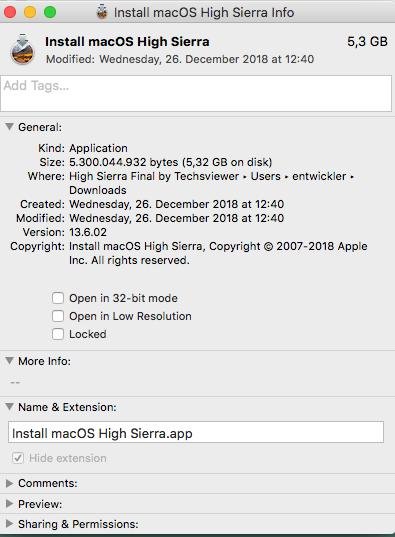

Download didn't work for full-download, but only the 22MB installer. So I start the installation and first Step of Installer is to download the stuff.
Before starting the real installation-Process I quit the installer.
Than I've created a Package on CLI described here:  https://support.apple.com/en-us/HT201372

Do you think the Install-ISO might me broken? Should I try to create an new ISO and try again?
BTW: Might my Hardware also work with Mojave

Try this

https://github.com/chris1111/Create-Install-Media

See the complete video then when your install Clover your not need to change the EFI

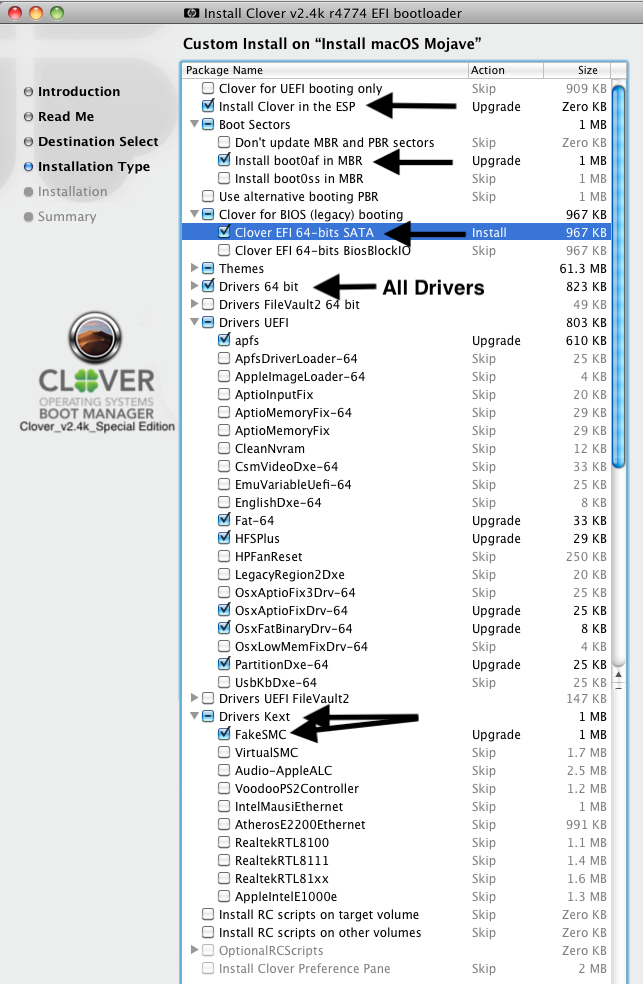

Look secound image for the setup Clover ESP for legacy config like you

Spoiler



68747470733a2f2f6932352e73657276696d672e636f6d2f752f6632352f31382f35302f31382f36392f65737031302e706e67.thumb.png.03817d8122486b35bab00cc490f523fd.png



Edited by chris1111
Link to comment
Share on other sites

On 12/20/2018 at 3:23 AM, chris1111 said:

Try this

https://github.com/chris1111/Create-Install-Media

See the complete video then when your install Clover your not need to change the EFI

Look secound image for the setup Clover ESP for legacy config like you

  Reveal hidden contents



68747470733a2f2f6932352e73657276696d672e636f6d2f752f6632352f31382f35302f31382f36392f65737031302e706e67.thumb.png.03817d8122486b35bab00cc490f523fd.png




@chris1111

Today I've time to retry the installation. Thanks a lot for your Video.
All in the Video is crystal clear, but up from Minute 7:00 I don't know what you mean with this.
Should I restart MacOS and run the CreateInstallMedia-Applilcation again?

Edited by socam77
  • Like 1
Link to comment
Share on other sites

On 12/25/2018 at 11:12 AM, socam77 said:


@chris1111

Today I've time to retry the installation. Thanks a lot for your Video.
All in the Video is crystal clear, but up from Minute 7:00 I don't know what you mean with this.
Should I restart MacOS and run the CreateInstallMedia-Applilcation again?

I mean restart then Install macOS

After installing macOS on SSD run Clover inside bundle application for post installation. This is for making the drive bootable without USB

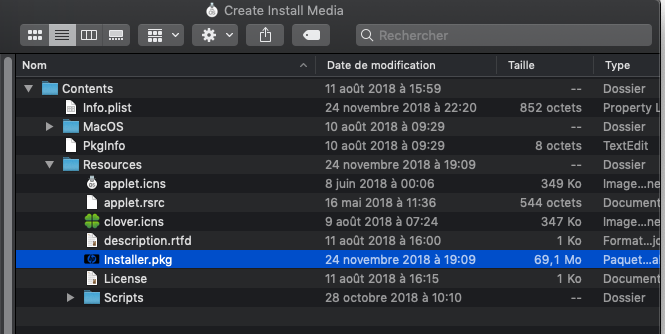

Right click /Show package contents /Resources




EDIT ******

With the latest release its no longer necessary

https://github.com/chris1111/Create-Install-Media#post-install-hackintosh

Edited by chris1111
  • Thanks 1
Link to comment
Share on other sites

Restart from USB-Stick didn't work for me.
Give me some notice, that I should activate UEFI in BIOS (default is Legacy).
But it seems he didn't find any tile which could be added to the BootMenu for EFI.
Did you have a hint? Which File should I choose for the UEFI Bootentry?

Link to comment
Share on other sites

36 minutes ago, socam77 said:

Restart from USB-Stick didn't work for me.
Give me some notice, that I should activate UEFI in BIOS (default is Legacy).
But it seems he didn't find any tile which could be added to the BootMenu for EFI.
Did you have a hint? Which File should I choose for the UEFI Bootentry?

I told you what the choose you have to select for ESP Legacy

Link to comment
Share on other sites

@chris1111

Good and bad news.
Good: The Install-Process seems to take longer than before. (Figured out, seems to be caused of the connected Network-Cable. Installer download some Packages from com.apple.dmg...)

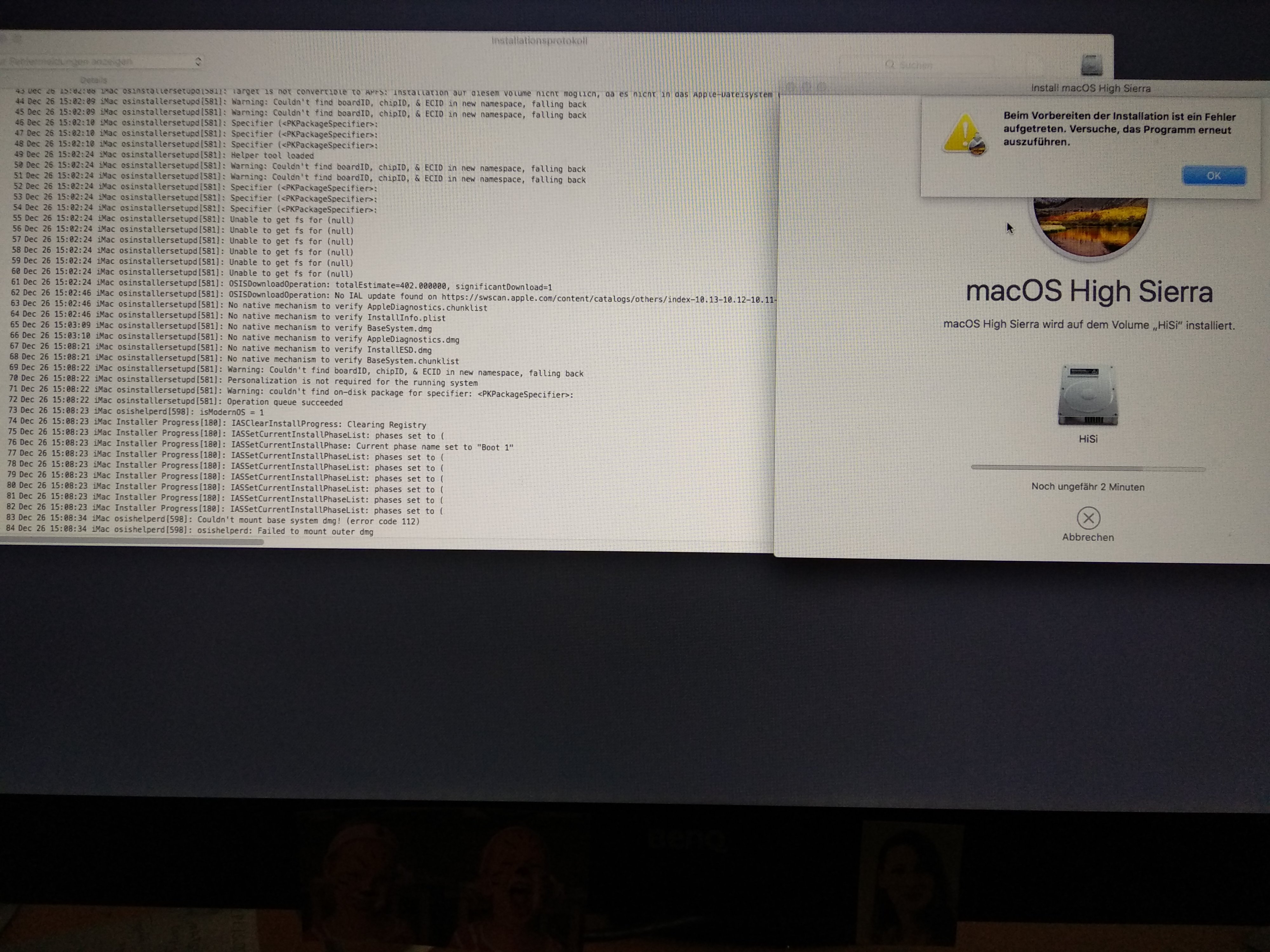

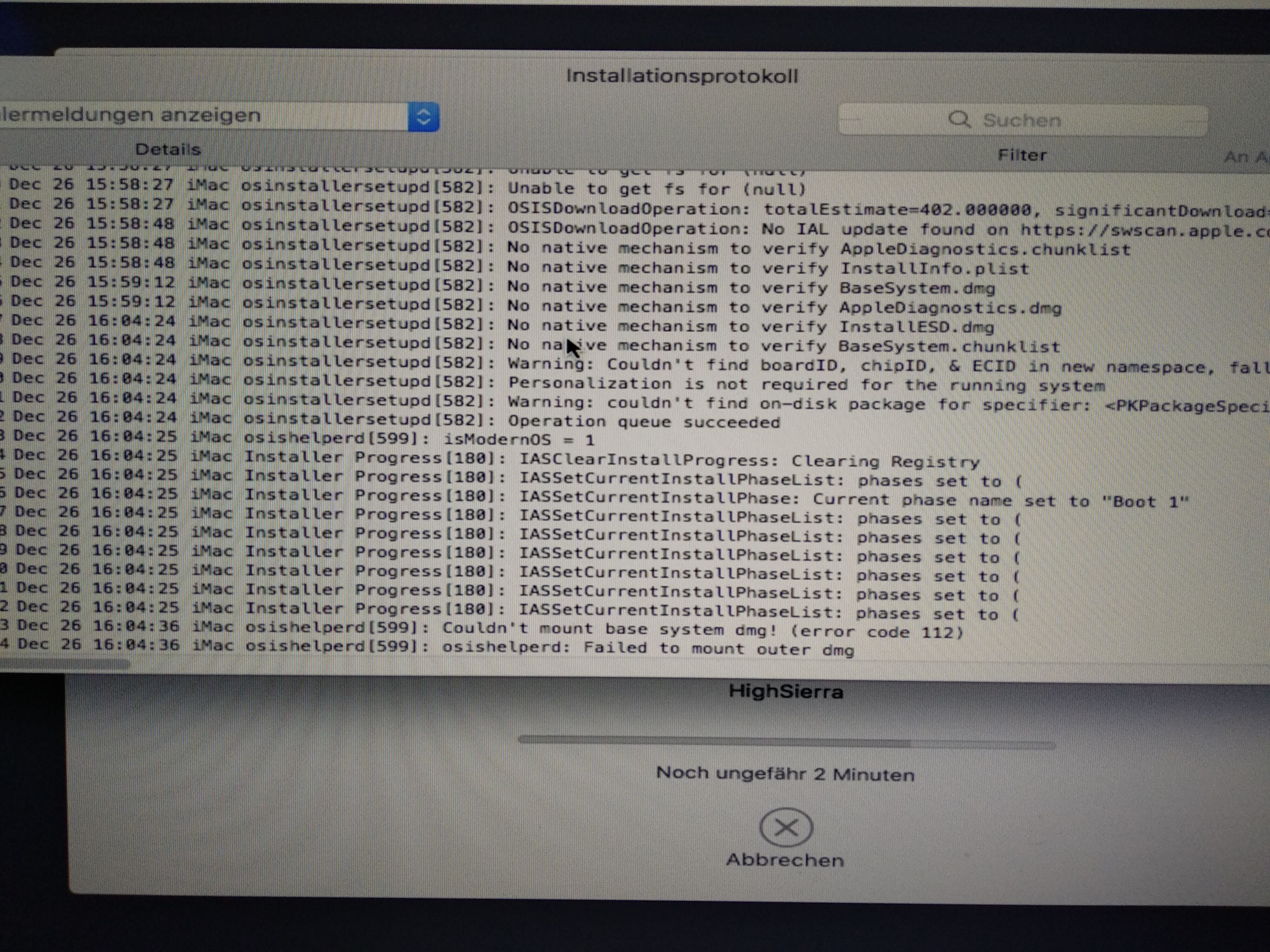

Bed: The Installation abort again with this error:


Edited by socam77
Link to comment
Share on other sites

@chris1111
Ok, so maybe it's better to give it a try with a new graphic-card?!
what's a better choice for a low-budget Card with highest possible performance?
You notice GT 710. What are other Cards in this price-range (maybe from ATI) which works OOB.
So I could have a look at classifieds to find some used hardware... or should I better upgrade the CPU with one that had Intel HD3000 build in?

Link to comment
Share on other sites

14 minutes ago, socam77 said:

@chris1111
Ok, so maybe it's better to give it a try with a new graphic-card?!
what's a better choice for a low-budget Card with highest possible performance?
You notice GT 710. What are other Cards in this price-range (maybe from ATI) which works OOB.
So I could have a look at classifieds to find some used hardware... or should I better upgrade the CPU with one that had Intel HD3000 build in?

Gigabyte GT 710 is the one I have



Try another tings maybe works

Try to add  EmuVariableUefi-64.efi

EFI/CLOVER/drivers64UEF/EmuVariableUefi-64.efi



EmuVariableUefi-64.efi.zip

Link to comment
Share on other sites

@fedaamahmoud
A GT710 would be better, OOB works with Mojave with Metal.

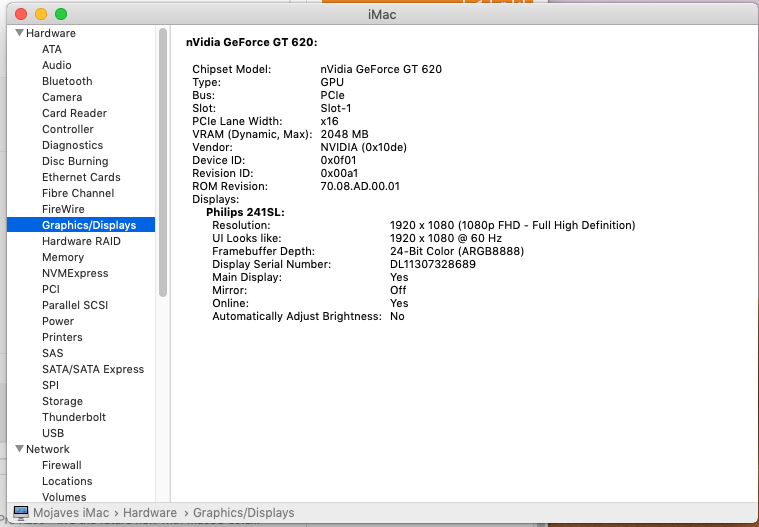

The GT620 can not do metal and therefore needs the rollback from the HighSierra.

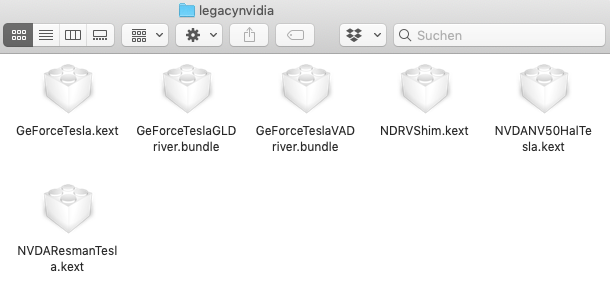

Install this Kext from HS with KextUtility2.6.6:






Unfortunately, I can not upload, it is larger than 10MB.



EDIT:

look here

http://dosdude1.com/mojave/



all resources for unsupported Mojave Hardware:

macOS Mojave Patcher.app/Contents/Resources/macOS Post Install.app/Contents/Resources/...

Edited by MacPeet
Link to comment
Share on other sites

18 minutes ago, socam77 said:

@chris1111 But mine is HighSierra, not Mojave
I would try mojave, but it will not work, because I only had an HD2000 & Nvidia GT220 card. Both are not supported by Mojave, right?!

ok my bad  sorry yes Mojave not working for you

Edited by chris1111
Link to comment
Share on other sites

Anyone encounter a situation which clover always boot twice before login macOS successfully?

Detail:

Dell 780 SFF/ CPU x3363 / 10.13.6 / GT710



Is there anyway to make the esata port on motherboard works?



Update: Solved second boot issue by uninstall the Nvidia web driver.

Edited by gaodake
Link to comment
Share on other sites

@chris1111 Ok, good news. Thanks a lot so far for helping hands.

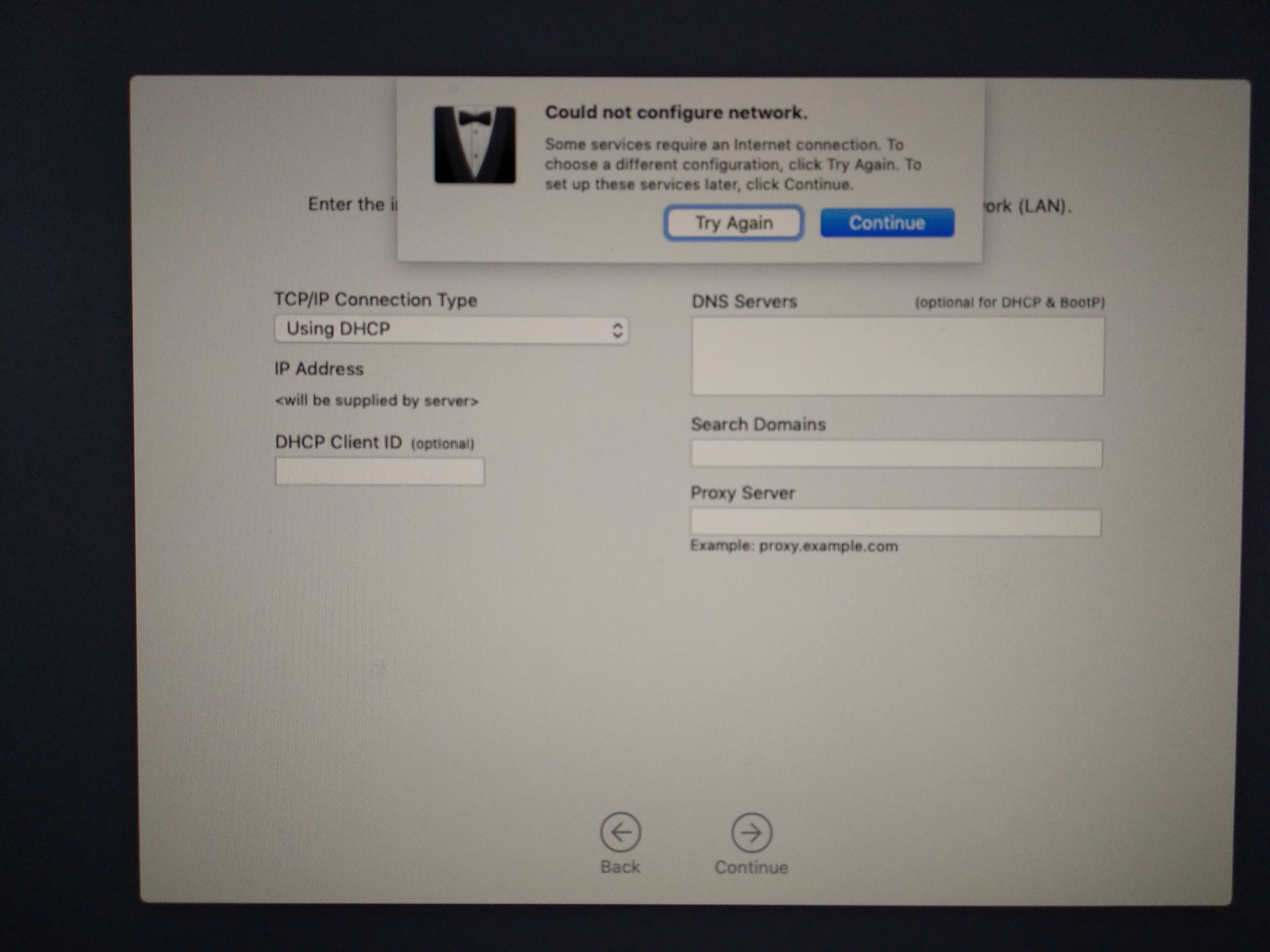

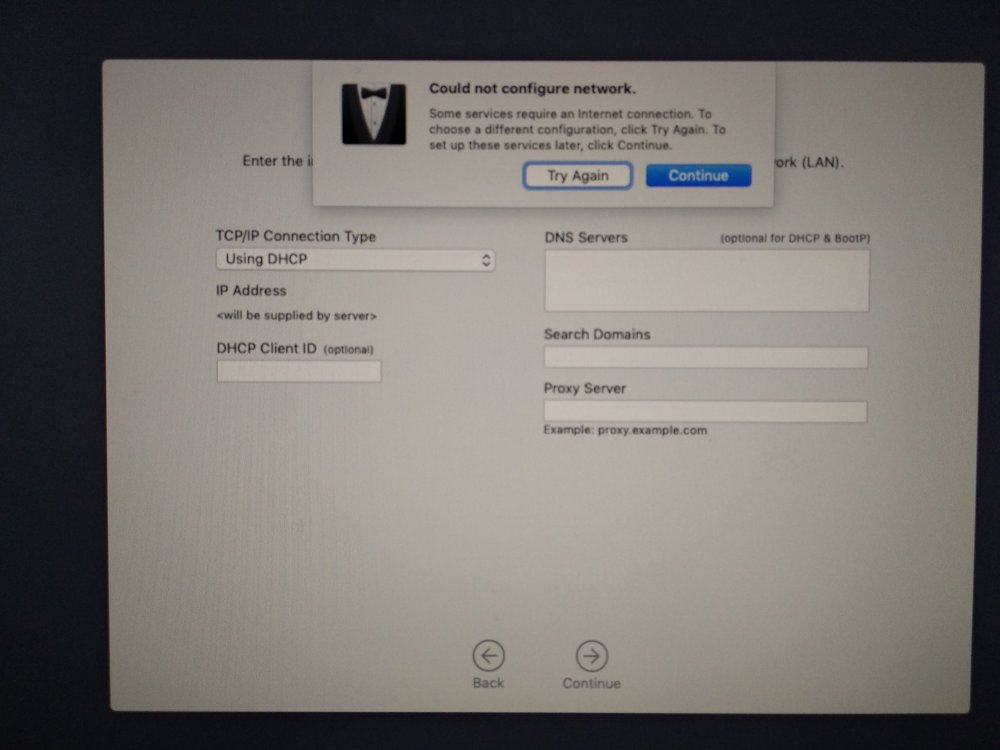

I'm now on the Install-Panel of Mojave... :thumbsup_anim: Your Internet-Connection
I've connected the LAN-Cable, and my fritz.box (router) is configured as dhcp. So by default, nevertheless what PC I've connected to the LAN-Cable, the I-Net connection work. But If I choose Using DHCP, I got an message that connection couldn't established. Does I have to configure it later ?






Link to comment
