chris1111
chris1111
Posted
Posted
4 minutes ago, socam77 said:

Since 3 Days I tried many hours to get the installation to work. Read all I got in the forum, and try many things, but don't get HighSierra installed at my device.

My Hardware:
Optiplex 990 i5-2500k

Bios A24

NVidia GT 220
Samsung EVO 850 SSD



The Issue:

I run the High-Sierra installer and first I recreate the partition (tried both APFS and MAC OS Extended (Journaled).

But even if I close the Partition-Tool, start the Installer and open the Install-Log (before I click on the first Install-Stelp), I see some messages like:
    iMac osinstallersetupd[587]: Target is not convertible to APFS: This Volume is not Mac OS Extended (Journald)

If I format the Disk as APFS, the next Line is:
    isConvertableToAPFS: was called on a APFS disk.



Then some lines later I see:

   Warning: Couldn't find boardID, chipID, & ECID in new namespace, falling back



Then I run the Installer ("Next-Step Button) and run the install-process. Here is a Video, what's the output of the log is. https://youtu.be/AG4kwTlemvg
And after short time, the PC reboots.



At the next reboot, cloverscreen have 3 entries. My USB-Installer, and two APFS- One is named Install Prebooter from Preboot, the other Install from HighSierra.

If I start the Install from HighSierra, I get a message, macOS could not be installed at your computer

If I open the log, there are errors like Couldn't mount diskimage, and Failed to open installer document

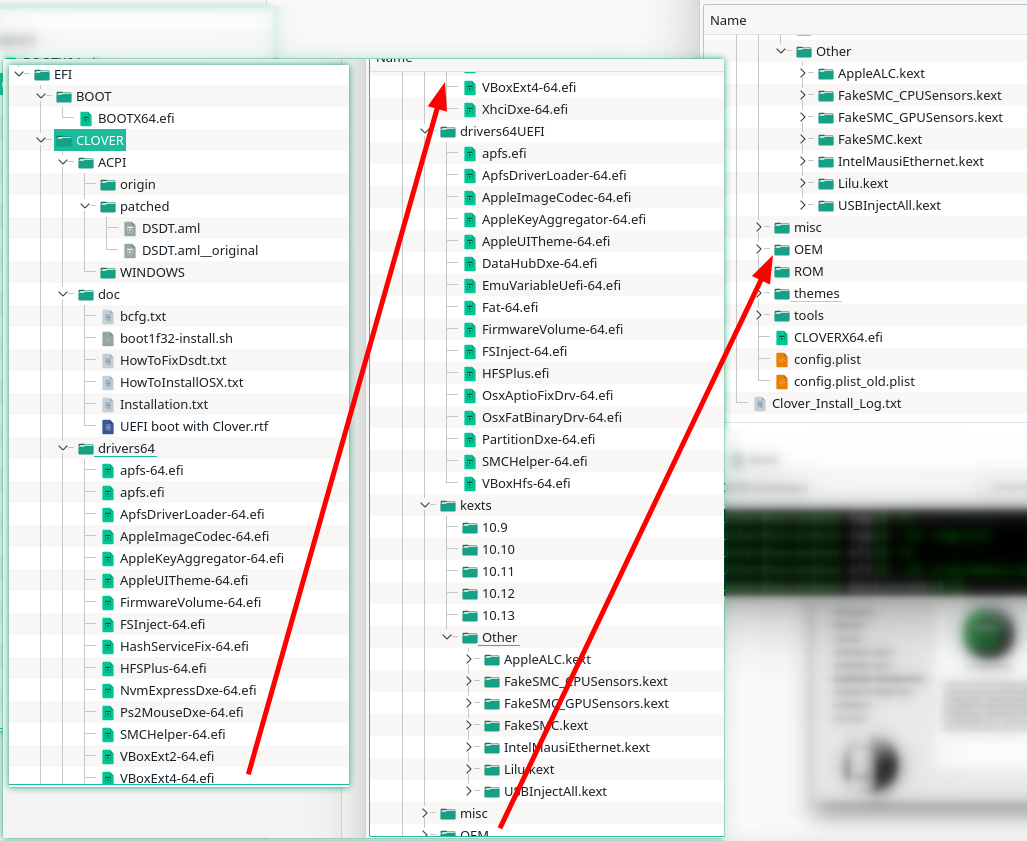

And here is a screenshot of my Folder-Structure of the Installer-Stick.


Because I thought, the SSD might be the cause of the error, I even try an hdd. But got the same error.


I hope, anybody can help me. It's my first try to get a hackintosh to run, and I thought I had wisely choosed my Harddware. But I'm at the end. Have no clue what else I could try.



video not available



share the complet EFI you have using

Link to comment
Share on other sites
chris1111
chris1111
Posted
Posted (edited)
2 hours ago, socam77 said:

Thank you for your response, I've created an new Video-Link (https://youtu.be/AG4kwTlemvg) now to my posting.
What do you mean with share the complete EFI you have using? You mean as Zip-File? You mean the one I've made a screenshot of in the previous Post?

efi_optiplex990.zip

Video not available

Your EFI is not good! You have mixed Driver fileVault and driversUEFI

You have also a DSDT patch for Radeon HD

try this EFI and let me known

Change the EFI Folder by this one attaching here

Reboot type F12 select USB Device then boot

Type space bar select Verbose boot then go up then boot to macOS



EFI.zip

Edited by chris1111
  • Thanks 1
Link to comment
Share on other sites
socam77
socam77
Posted
Posted

I've replaced my /EFI at USB-Stick with yours.
Thats the results:

  • Booting -v show the output at booting-time
  • at the Moment the GUI is loaded, the Screen becomes light, and the Fan of the GT 220 stops (or runs slower)
  • You can't see anything at the screen, but only that it's light gray (even not the mousepointer). You can wait as long you wan't nothing else happend.

So I tried to put Nvidia to vesa-mode.

  • That starts the GUI in right way.
  • After this, I'd do like before:
  1. Remove partition
  2. Create a new one.
  3. Start the installer.

But installation abort like before. Here the Video:



Link to comment
Share on other sites
chris1111
chris1111
Posted
Posted
4 minutes ago, socam77 said:

I've replaced my /EFI at USB-Stick with yours.
Thats the results:

  • Booting -v show the output at booting-time
  • at the Moment the GUI is loaded, the Screen becomes light, and the Fan of the GT 220 stops (or runs slower)
  • You can't see anything at the screen, but only that it's light gray (even not the mousepointer). You can wait as long you wan't nothing else happend.

So I tried to put Nvidia to vesa-mode.

  • That starts the GUI in right way.
  • After this, I'd do like before:
  1. Remove partition
  2. Create a new one.
  3. Start the installer.

But installation abort like before. Here the Video:



Do you have latest BIOS from Dell for the Optiplex 990

Link to comment
Share on other sites
chris1111
chris1111
Posted
Posted
Just now, socam77 said:

Yes, I have A24, that's the latest one for my optiplex 990 I've found

at clover boot screen type space bar then select disable Nvidia Drivers also verbose boot -v

nv_disable=1

Link to comment
Share on other sites
chris1111
chris1111
Posted
Posted (edited)
3 minutes ago, socam77 said:

I did this, that was what I meant with put Nvidia to VESA-Mode.
If I choose nv_disable=1, I'm able to run the installer, else I only see an lighted-screen without anything on it (even not the mouse-pointer)

ok just try to inject Nvidia =false in config.plist

or at clover boot screen go to option /Graphics injector / Inject Nvidia

deselect this option

Edited by chris1111
Link to comment
Share on other sites
chris1111
chris1111
Posted
Posted
1 hour ago, socam77 said:

Ok, if I remove Inject Nvidia, the Installer GUI didn't appear. On loading the Installer, the system only reboot.
Should I fully remove the NVidia-Card for the install-process?

Are you in the DVI port to the graphics card?

You can try to remove Video card but use the integrate DisplayPort to HDMI screen or DVI



Link to comment
Share on other sites
chris1111
chris1111
Posted
Posted (edited)
11 minutes ago, socam77 said:

I use the HDMI-Port of the graphics-card.
The Optiplex 990 doesn't has an integrated hdmi-port as far as I can see.

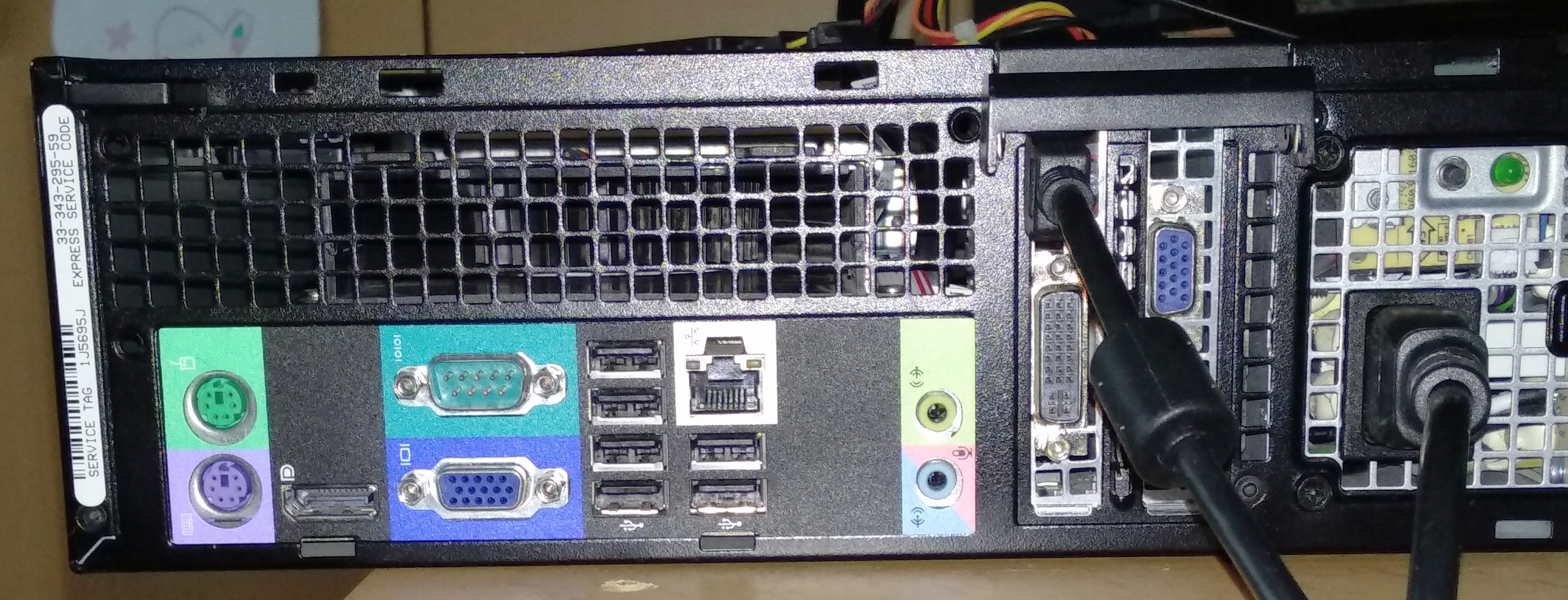

I think yes

its a DiplayPort



1910592798_IMG_20181217_1526322.thumb.jpg.64eaa97e31a59db4ccf4889fd606cdda.jpg.77877deb48e70b107ebc9ad5e99831da.jpg



You can Buying a  Gigabyte GeForce GT 710 working OOB



See my signature

Edited by chris1111
Link to comment
Share on other sites
socam77
socam77
Posted
Posted

I've searched the web and forums arround, and found, that GT 220 even should be supported very good.
The pitty is, I don't have a Display-Port Cable, only HDMI: https://de.wikipedia.org/wiki/High_Definition_Multimedia_Interface
220px-HDMI_connector-male_2_sharp_PNr%C2
And this doesn't fit in there.


But do you think it's caused of the graphics-card... even if the errors are thrown notice for the apfs-filesystem at the harddrive?

Link to comment
Share on other sites
theandrewgordon
theandrewgordon
Posted
Posted
On 10/5/2018 at 4:48 AM, morpheousman said:





I ordered a Gigabyte Geforce 710 2GB for my 790 i-7 core.



A few days ago, I started testing with an Optiplex 9020 SFF, i-5 Core.  (about $160 US on eBay).



I have it running Mojave on the internal HD 4600 Graphics, no graphics card needed!  :thumbsup_anim:



Using AppleALC device ID 15, with MacPeets Dell T20 patch.



Everything is working except HDMI audio.

I am having a heck of a time not getting stripes on my 9020, could I get your config.plist? as well as drivers list or something?

thanks!! In a PM or on here.. :)

Link to comment
Share on other sites
chris1111
chris1111
Posted
Posted
49 minutes ago, socam77 said:

And the build-in HD2000 didn't work at HighSierra, right?

Your CPU is i5-2500k this is Intel HD 3000 Graphics, I have the same CPU

its work under Sierra and High Sierra with the integrate GPU; that's why I told you testing boot to the IGPU

Link to comment
Share on other sites
theandrewgordon
theandrewgordon
Posted
Posted
9 hours ago, theandrewgordon said:

I am having a heck of a time not getting stripes on my 9020, could I get your config.plist? as well as drivers list or something?

thanks!! In a PM or on here.. :)

here is my efi folder/ config.plist... It still has a stock serial in there, so I am not too worried about it... Just trying to get my display to work for starts.

EFI.zip

Link to comment
Share on other sites
socam77
socam77
Posted
Posted

@chris1111

I don't have i5-2500k like you, mine is i5-2400k 3,1 Ghz, which has an HD2000

https://ark.intel.com/products/52207/Intel-Core-i5-2400-Processor-6M-Cache-up-to-3_40-GHz



But anyway, I found a trick.
I've booted with your EFI, then the screen comes light. Wait...wait...wait, the screen comes darker and stay this way (nevertheless how long you wait).
So  I've unplugged and replugged the HDMI-Cable and I see the Installer now (Language-Selection). (BTW, in really nice high-resolution)

But bad news is, that there is still the "device is not convertible to APFS" error.
So what could I try next to try?

Link to comment
Share on other sites
chris1111
chris1111
Posted
Posted (edited)

This is what you write

My Hardware:
Optiplex 990 i5-2500k

Bios A24

NVidia GT 220
Samsung EVO 850 SSD





For your last questions

You have to formate the drive in Disk Utility



Edited by chris1111
Link to comment
Share on other sites
socam77
socam77
Posted
Posted (edited)

My fail, have checked the CPU again, its an i5-2400k.

I've formatted the disk nearly 50 Times... to apfs or to hfs+.
I've even tried to changed my ssd with an hdd, Same error, all the time.
Have no clue, what else I could do.




Edited by socam77
Link to comment
Share on other sites
socam77
socam77
Posted
Posted

Download didn't work for full-download, but only the 22MB installer. So I start the installation and first Step of Installer is to download the stuff.
Before starting the real installation-Process I quit the installer.
Than I've created a Package on CLI described here:  https://support.apple.com/en-us/HT201372

Do you think the Install-ISO might me broken? Should I try to create an new ISO and try again?
BTW: Might my Hardware also work with Mojave

Link to comment
