jcmrdc Posted January 28, 2018 Share Posted January 28, 2018 Hello everyone, Greetings form Brazil! My sound used to be fine with Voodoo Universal 2.8 kext up to macOS High Sierra 10.12, but now that I installed macOS High Sierra 10.13.3 the sound is breaking up and crackling. Any ideas on what it could be? Thank you very much for your time and help. I really appreciate it! ************************************************ macOS High Sierra 10.13.3 from App Store Motherboard Gigabyte G41MT-S2P F3 (legacy boot only) Processor Intel Core 2 Quad Q9400 EVGA GTX 1050 Ti (4GB) 8GB of RAM HD Samsung SATA 1TB ************************************************ Sound Device Info VoodooHDA 2.9.1 Codec: VT2021 Vendor 8086 Device 27D8 Sub Ven: 1458 Sub Dev: A014 ************************************************ Link to comment Share on other sites More sharing options...
bronxteck Posted January 28, 2018 Share Posted January 28, 2018 try changing the Khz variable in your audio midi setup prefpane utility. 1 Link to comment Share on other sites More sharing options...
jcmrdc Posted January 28, 2018 Author Share Posted January 28, 2018 Hi bronxteck, I tried that with every single Khz option in the Audio MIDI Setup and nothing worked... But thanks for your suggestion anyway. 1 Link to comment Share on other sites More sharing options...
bronxteck Posted January 29, 2018 Share Posted January 29, 2018 well you can try latest build here https://sourceforge.net/projects/voodoohda/files/?source=navbaralso keep an eye on your system time and see if it stays current. if not you might need to patch your HPET device and or you might need TSC syncing like voodootscsync.kext. Link to comment Share on other sites More sharing options...
jcmrdc Posted January 29, 2018 Author Share Posted January 29, 2018 I already have the latest version of voodooHDA installed (2.9.1). Link to comment Share on other sites More sharing options...
bronxteck Posted January 29, 2018 Share Posted January 29, 2018 then keep an eye on your system clock and see if it has a delay or runs faster then it should Link to comment Share on other sites More sharing options...
jcmrdc Posted January 29, 2018 Author Share Posted January 29, 2018 Interesting... I keep having to reset my clock, but it always delays two minutes. What should I do? I'm almost going back to Windows 10 because I do sound editing and a Hackintosh with no sound is useless to me. Link to comment Share on other sites More sharing options...
Gigamaxx Posted January 30, 2018 Share Posted January 30, 2018 Interesting... I keep having to reset my clock, but it always delays two minutes. What should I do? I'm almost going back to Windows 10 because I do sound editing and a Hackintosh with no sound is useless to me. Do you have a small battery on the motherboard? Check aound (google) your processor specs and timings like QP,I bus speed etc... These can be set in clover in CPU section using clover configurator. Link to comment Share on other sites More sharing options...
jcmrdc Posted January 30, 2018 Author Share Posted January 30, 2018 Yes, my motherboard has a BIOS battery on it. I'm a newbie so I don't really know how to proceed now. I was able to get a lot done by myself simply by searching and reading guides and help forums online, but this audio issue totally baffles me. I have found very little info on it, maybe it's because version 10.13.3 is so new. None of the solutions I found fixed the problem... Link to comment Share on other sites More sharing options...
bronxteck Posted January 30, 2018 Share Posted January 30, 2018 ok so you confirm your system time is delayed. that is most likely the source or your audio issue. you can try VoodooTSCsync kext or try clover lapic patch fix or try letting clover patch HPET device. Link to comment Share on other sites More sharing options...
jcmrdc Posted January 30, 2018 Author Share Posted January 30, 2018 Hi bronxteck. I have an Intel Core 2 Quad Q9400 processor and the only VoodooTSCSync.Kext I found for a four-core processor is specific for LGA2011 CPUs and mine is a LGA775. Should I install it anyway? Thanks! Link to comment Share on other sites More sharing options...
MaLd0n Posted January 30, 2018 Share Posted January 30, 2018 u can check many infos here http://olarila.com/forum/viewtopic.php?f=28&t=454 last voodoohda, just add info in plist VoodooHDA.kext.zip use patches in Clover: HPET, PIC, TMR and RTC Link to comment Share on other sites More sharing options...
jcmrdc Posted January 30, 2018 Author Share Posted January 30, 2018 Hi MaLdOn, I'm pretty new at this level of 'hackintoshing', so please forgive me if I ask a stupid question. 1) Do you mean config.plist or info.plist ? 2) The VoodooHDA.kext should be installed in /Library/Extensions or in /System/Library/Extensions ? Thank you for your feedback! Link to comment Share on other sites More sharing options...
MaLd0n Posted January 30, 2018 Share Posted January 30, 2018 info.plist inside voodoohda kext u can use in clover/ketxs/other, Library/Extensions or System/Library/Extensions i prefer Library/Extensions Link to comment Share on other sites More sharing options...
jcmrdc Posted January 30, 2018 Author Share Posted January 30, 2018 So, do I have to enter a string of my audio device to replace the one that's already there? I noticed that under CFBundleSignature there are four question marks ????. Do I need to put anything there? Link to comment Share on other sites More sharing options...

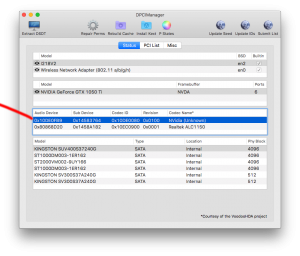

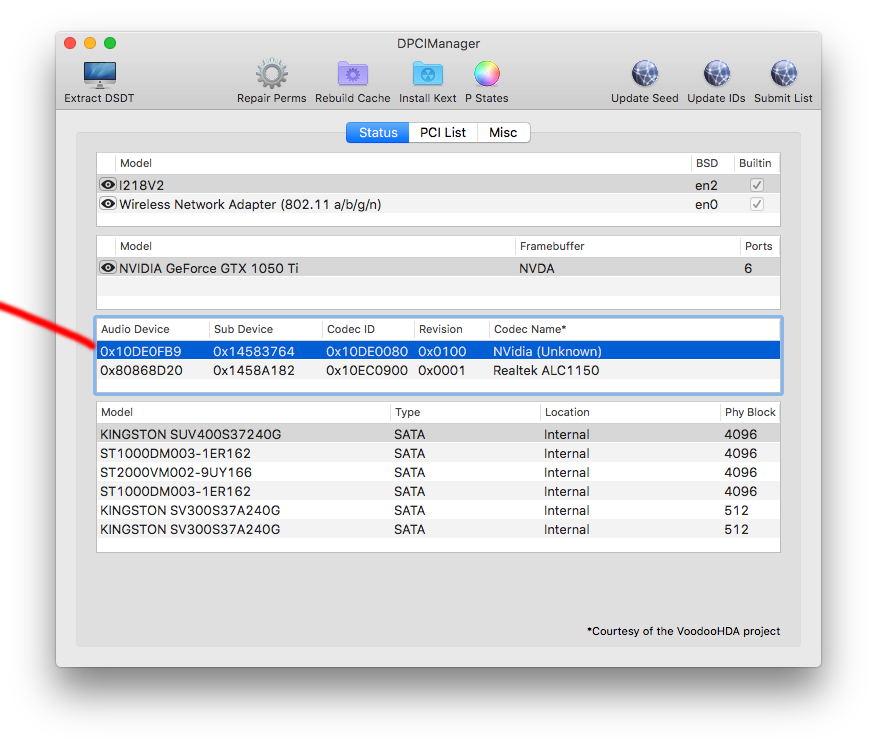

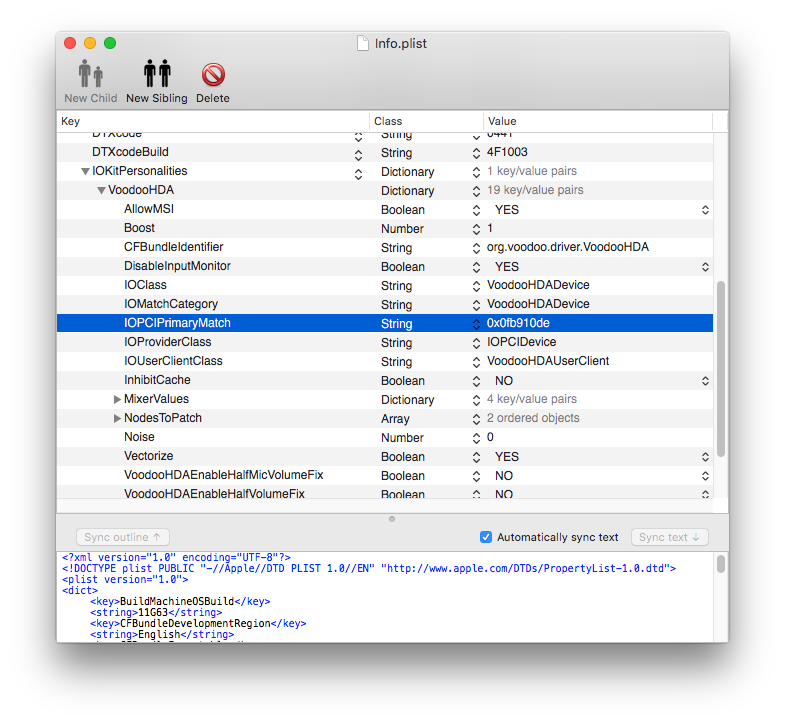

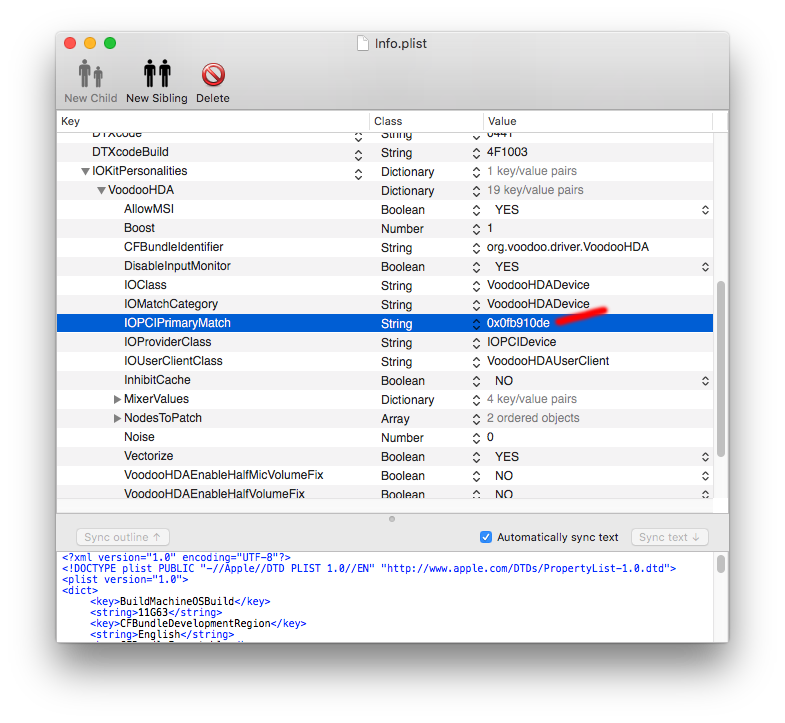

MaLd0n Posted January 30, 2018 Share Posted January 30, 2018 Example my HDMI Nvidia Pascal check here add here Link to comment Share on other sites More sharing options...
jcmrdc Posted January 30, 2018 Author Share Posted January 30, 2018 Ok, I tried your instructions, but it didn't work. I'm enclosing the voodooHDA.kext you sent me with my audio device string (0x808627d8) and my config.plist file. Would you please take a look at them? I'd really appreciate it, MaLdOn. jcrcarmo.zip Link to comment Share on other sites More sharing options...
MaLd0n Posted January 30, 2018 Share Posted January 30, 2018 VoodooHDA.kext.zip Link to comment Share on other sites More sharing options...
jcmrdc Posted January 30, 2018 Author Share Posted January 30, 2018 Hi MaLdOn, unfortunately it did not work. Now I've decided to get a decent (newer) motherboard. I'll choose one that is most compatible in order to avoid problems such as the one I'm having with audio. Thank you very much for all your time and help. You're the best! Link to comment Share on other sites More sharing options...
MaLd0n Posted January 30, 2018 Share Posted January 30, 2018 u can try a old version VoodooHDA.kext.zip Link to comment Share on other sites More sharing options...
bronxteck Posted January 30, 2018 Share Posted January 30, 2018 http://www.insanelymac.com/forum/topic/323366-voodootscsync-configurator-create-a-custom-version-of-voodoo-tsc-sync/you can try that i guess. Link to comment Share on other sites More sharing options...
jcmrdc Posted January 30, 2018 Author Share Posted January 30, 2018 Hi MaLdOn, I reinstalled macOS High Sierra 10.13.3 and used your latest version of voodooHDA.kext and it's perfect now! Everything related to audio is working great! I guess my previous install was too messed up, so I gave it a fresh new start and it worked! Thank you very much for all your time and help. You've been very patient. 1 Link to comment Share on other sites More sharing options...
axlenick Posted January 12, 2019 Share Posted January 12, 2019 On 1/28/2018 at 2:13 PM, bronxteck said: try changing the Khz variable in your audio midi setup prefpane utility. Fixed my headphone audio!!! Thanks Sounds really good now Link to comment Share on other sites More sharing options...
Dreamer... Posted March 29, 2019 Share Posted March 29, 2019 On 1/28/2018 at 10:13 PM, bronxteck said: try changing the Khz variable in your audio midi setup prefpane utility. Changing to 16 bit has solve my trouble! Tnx so much! 1 Link to comment Share on other sites More sharing options...
