Matgen84 Posted August 14, 2018 Share Posted August 14, 2018 Hi @Slice How to choose DarkEmbedded theme? Please. Link to comment Share on other sites More sharing options...
Trung_Nguyen Posted August 14, 2018 Share Posted August 14, 2018 (edited) 2 hours ago, Slice said: Yes, it is related to SMCHelper. It reported that the key "blah" is absent is nvram. It should be looking in boot.log as follow 1:300 0:060 Loading nvram.plist from Vol 'MacHD' - loaded, size=3072 1:327 0:026 === [ PutNvramPlistToRtVars ] ============================= 1:327 0:000 Adding Key: ActualDensity: Size = 2, Data: E1 00 1:327 0:000 Adding Key: BootCampHD: Size = 32, Data: 02 01 0C 00 D0 41 03 0A 00 00 00 00 01 01 06 00 02 1F 03 12 0A 00 00 00 00 00 00 00 7F FF 04 00 1:327 0:000 Adding Key: DensityThreshold: Size = 2, Data: 96 00 1:327 0:000 Adding Key: EFILoginHiDPI: Size = 4, Data: 01 00 00 00 1:327 0:000 Skipping EmuVariableUefiPresent 1:327 0:000 Adding Key: IOHibernateRTCVariables: Size = 44, Data: 41 41 50 4C 01 00 00 00 99 06 1D 18 CE 2D 50 43 FA C4 5C 8D AD DA D6 32 7D 5A F6 C1 7F 0E F1 DE 5B 23 C8 31 49 E2 52 E2 25 48 BD 68 1:327 0:000 Adding Key: LocationServicesEnabled: Size = 1, Data: 01 1:327 0:000 Adding Key: backlight-level: Size = 2, Data: 01 01 1:327 0:000 Adding Key: boot-args: String: Size = 10, Val = 'nvda_drv=1' 1:327 0:000 Adding Key: bootercfg: Size = 2, Data: 28 00 1:327 0:000 Adding Key: csr-active-config: Size = 4, Data: E7 03 00 00 1:327 0:000 Adding Key: efi-boot-device: Size = 216, Data: 3C 61 72 72 61 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 50 72 6F 76 69 64 65 72 43 6C 61 73 73 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 49 4F 4D 65 64 69 61 3C 2F 73 74 72 69 6E 67 3E 3C 6B 65 79 3E 49 4F 50 72 6F 70 65 72 74 79 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 55 55 49 44 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 39 42 38 46 33 42 39 41 2D 46 31 33 45 2D 34 36 44 41 2D 41 38 45 38 2D 43 42 42 34 35 39 30 34 45 31 35 34 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 2F 64 69 63 74 3E 3C 2F 64 69 63 74 3E 3C 2F 61 72 72 61 79 3E 1:327 0:000 Adding Key: efi-boot-device-data: Size = 74, Data: 02 01 0C 00 D0 41 03 0A 00 00 00 00 01 01 06 00 02 1F 03 12 0A 00 00 00 FF FF 00 00 04 01 2A 00 05 00 00 00 90 19 75 0E 00 00 00 00 D8 71 BA 16 00 00 00 00 9A 3B 8F 9B 3E F1 DA 46 A8 E8 CB B4 59 04 E1 54 02 02 7F FF 04 00 1:327 0:000 Adding Key: fakesmc-key-#KEY-ui32: Size = 4, Data: 00 00 00 11 1:327 0:000 Adding Key: fakesmc-key-$Adr-ui32: Size = 4, Data: 00 00 03 00 1:327 0:000 Adding Key: fakesmc-key-$Num-ui8: Size = 1, Data: 01 1:327 0:000 Adding Key: fakesmc-key-BATP-flag: Size = 1, Data: 00 1:327 0:000 Adding Key: fakesmc-key-BBIN-ui8: Size = 1, Data: 01 1:327 0:000 Adding Key: fakesmc-key-BEMB-flag: Size = 1, Data: 01 1:327 0:000 Adding Key: fakesmc-key-BNum-ui8: Size = 1, Data: 01 1:327 0:000 Adding Key: fakesmc-key-CLKH-{clh: Size = 8, Data: 00 00 70 80 00 01 19 40 1:327 0:000 Adding Key: fakesmc-key-CLKT-ui32: Size = 4, Data: 00 01 3C B8 1:327 0:000 Adding Key: fakesmc-key-EPCI-ui32: Size = 4, Data: 06 40 07 00 1:327 0:000 Adding Key: fakesmc-key-HE0N-ui8: Size = 1, Data: 0E 1:327 0:000 Adding Key: fakesmc-key-MSAc-ui16: Size = 2, Data: 00 00 1:327 0:000 Adding Key: fakesmc-key-MSDW-ui8: Size = 1, Data: 01 1:327 0:000 Adding Key: fakesmc-key-MSFW-ui8: Size = 2, Data: 01 00 1:327 0:000 Adding Key: fakesmc-key-MSPS-ui16: Size = 2, Data: 00 03 1:327 0:000 Adding Key: fakesmc-key-MSTc-ui8: Size = 1, Data: 00 1:327 0:000 Adding Key: fakesmc-key-MSWr-ui8: Size = 1, Data: 00 1:327 0:000 Adding Key: fakesmc-key-NATJ-ui8: Size = 1, Data: 02 1:327 0:000 Adding Key: fakesmc-key-NATi-ui16: Size = 2, Data: 00 1E 1:327 0:000 Adding Key: fakesmc-key-NTOK-ui8: Size = 1, Data: 01 1:327 0:000 Adding Key: fakesmc-key-RBr -ch8*: Size = 8, Data: 64 32 00 6A 31 33 00 00 1:327 0:000 Adding Key: fakesmc-key-REV -ch8*: Size = 6, Data: 02 03 0F 00 00 36 1:327 0:000 Adding Key: fakesmc-key-RMde-char: Size = 1, Data: 41 1:327 0:000 Adding Key: fakesmc-key-RPlt-ch8*: Size = 8, Data: 64 32 00 00 00 00 00 00 Well, I use AptioMemoryFix, not EmuVariableUEFI, also, I can't find any lines of these in bdmesg Edited August 14, 2018 by Trung_Nguyen Link to comment Share on other sites More sharing options...
Slice Posted August 14, 2018 Share Posted August 14, 2018 @ Trung_Nguyen type in terminal nvram -p 1 hour ago, Matgen84 said: Hi @Slice How to choose DarkEmbedded theme? Please. https://www.insanelymac.com/forum/topic/304530-clover-change-explanations/?do=findComment&comment=2629641 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted August 14, 2018 Share Posted August 14, 2018 Thanks a lot Is it possible to have a USB icon for external volumes Embedded Theme? Please. Link to comment Share on other sites More sharing options...
Slice Posted August 14, 2018 Share Posted August 14, 2018 2 hours ago, Matgen84 said: Thanks a lot Is it possible to have a USB icon for external volumes Embedded Theme? Please. It is already here. 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted August 14, 2018 Share Posted August 14, 2018 1 hour ago, Slice said: It is already here. I explained myself badly: I want to talk about the USB logo on vol-external icon and vol_clover icon Embedded theme. Link to comment Share on other sites More sharing options...

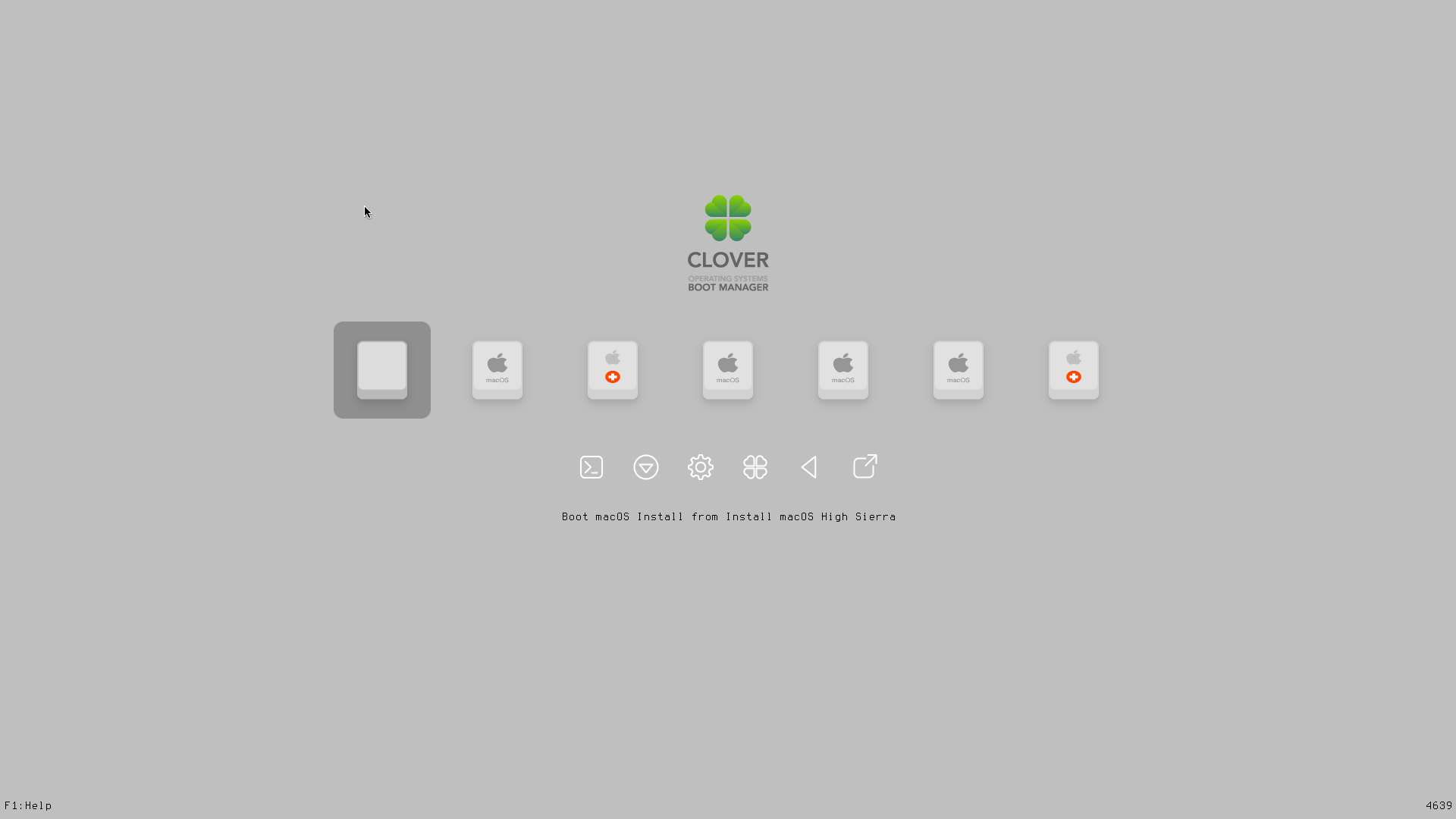

Slice Posted August 14, 2018 Share Posted August 14, 2018 1 minute ago, Matgen84 said: I explained myself badly: I want to talk about the USB logo on vol-external icon and vol_clover icon Embedded theme. This is screenshot of Clover 4639 2 Link to comment Share on other sites More sharing options...

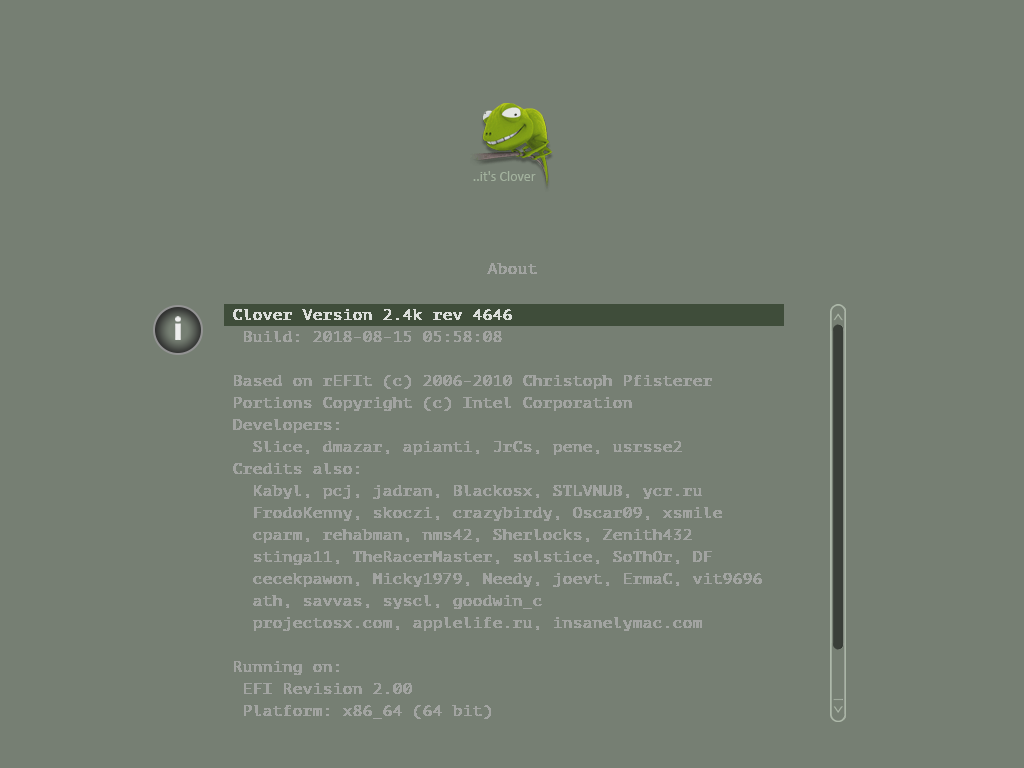

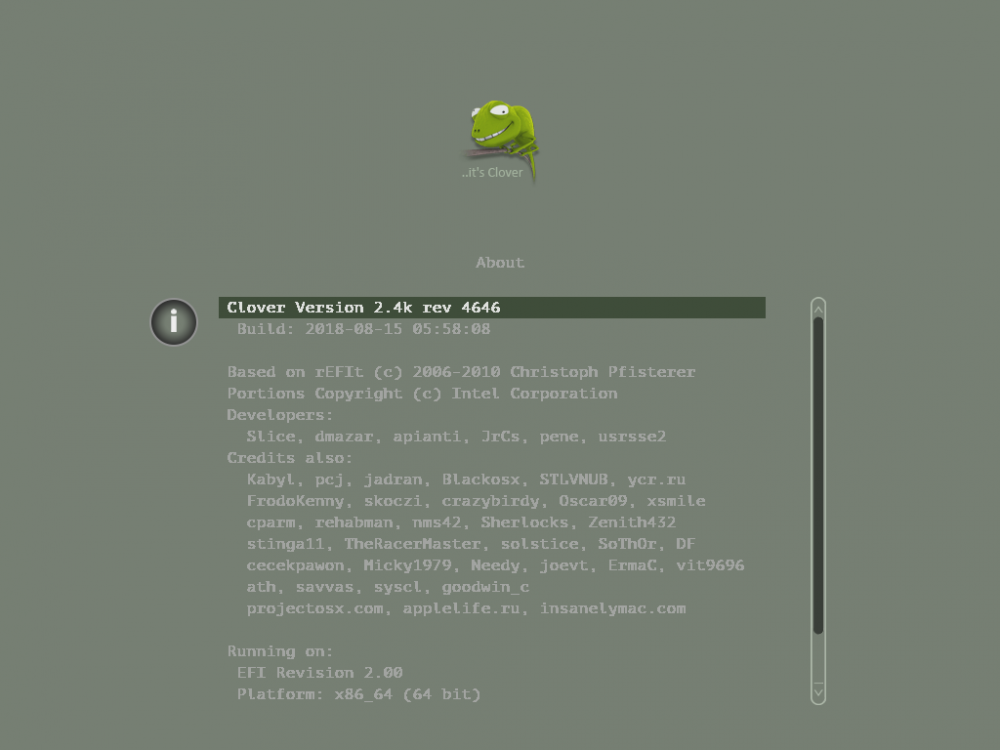

Matgen84 Posted August 14, 2018 Share Posted August 14, 2018 21 minutes ago, Slice said: This is screenshot of Clover 4639 Correct. I build and try Clover 4646: it's OK. Great job for new Embedded theme Link to comment Share on other sites More sharing options...
dgsga Posted August 14, 2018 Share Posted August 14, 2018 Can anyone explain why I get no icon for my main APFS Mojave beta volume when using the new embedded theme (just the yellow and gray striped 'no image' box). The volume is located on the NVME SSD in my hack. All the other APFS volumes show up fine (including a clone of the main volume on another SATA SSD) Thanks very much for any help here... Link to comment Share on other sites More sharing options...
Slice Posted August 14, 2018 Share Posted August 14, 2018 Because NVME is not SATA. Can you provide boot.log to see what Clover found? Link to comment Share on other sites More sharing options...
dgsga Posted August 14, 2018 Share Posted August 14, 2018 Thanks Slice. Here you go... bdmesg.txt Link to comment Share on other sites More sharing options...
Badruzeus Posted August 15, 2018 Share Posted August 15, 2018 Hello @Slice, sorry for reporting this issue.. With "EmbeddedThemeType=Dark" key enabled on config.plist, it breaks another theme's font appearance on Clover GUI. Thanks. Link to comment Share on other sites More sharing options...
Slice Posted August 15, 2018 Share Posted August 15, 2018 31 minutes ago, Badruzeus said: Hello @Slice, sorry for reporting this issue.. With "EmbeddedThemeType=Dark" key enabled on config.plist, it breaks another theme's font appearance on Clover GUI. Thanks. Yes, it influences. Use this key only if embedded theme. There will be more changes in theme support so I somehow will resolve this problem too. 2 1 Link to comment Share on other sites More sharing options...
Trung_Nguyen Posted August 15, 2018 Share Posted August 15, 2018 fakesmc-key-BBIN-ui8 %01 fakesmc-key-MSWr-ui8 %00 fakesmc-key-RPlt-ch8* j30%00%00%00%00%00 fakesmc-key-RBr -ch8* branch%00%00 EFILoginHiDPI %00%00%00%00 efi-boot-device <array><dict><key>IOMatch</key><dict><key>IOProviderClass</key><string>IOMedia</string><key>IOPropertyMatch</key><dict><key>UUID</key><string>D1D17580-8D7B-44EB-9587-9744768E0ADE</string></dict></dict></dict></array> fakesmc-key-#KEY-ui32 %00%00%00%11 SystemAudioVolumeDB %00 prev-lang:kbd en:0 fakesmc-key-BATP-flag %00 fakesmc-key-MSTc-ui8 %00 LocationServicesEnabled %01 security-mode none fakesmc-key-BNum-ui8 %01 csr-active-config g%00%00%00 fakesmc-key-$Num-ui8 %01 fakesmc-key-MSFW-ui8 %01%00 fakesmc-key-REV -ch8* %02%02%0f%00%00D fakesmc-key-MSPS-ui16 %00%03 fmm-computer-name Trung%e2%80%99s MacBook Pro backlight-level %0a%07 fakesmc-key-$Adr-ui32 %00%00%03%00 fakesmc-key-EPCI-ui32 %06`%07%00 bluetoothActiveControllerInfo %97%81<A%00%00%00%00%14%1a$%fdR2%b8} fakesmc-key-MSAc-ui16 %00%00 SystemAudioVolume %1f specialbootdevice %02%01%0c%00%d0A%03%0a%00%00%00%00%01%01%06%00%02%1f%03%12%0a%00%00%00%ff%ff%00%00%04%01*%00%02%00%00%00%80`%1f%00%00%00%00%00%08%d2%af%1d%00%00%00%00%80u%d1%d1{%8d%ebD%95%87%97Dv%8e%0a%de%02%02%04%03$%00%f7%fct%be|%0b%f3I%91G%01%f4%04.hBX`%efZ%8f@%97M%b5d%02%b2.C%f9%a4%7f%ff%04%00 fakesmc-key-RMde-char A flagstate %00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00 efi-boot-device-data %02%01%0c%00%d0A%03%0a%00%00%00%00%01%01%06%00%02%1f%03%12%0a%00%00%00%ff%ff%00%00%04%01*%00%02%00%00%00%80`%1f%00%00%00%00%00%08%d2%af%1d%00%00%00%00%80u%d1%d1{%8d%ebD%95%87%97Dv%8e%0a%de%02%02%04%03$%00%f7%fct%be|%0b%f3I%91G%01%f4%04.hBX`%efZ%8f@%97M%b5d%02%b2.C%f9%a4%7f%ff%04%00 fakesmc-key-BEMB-flag %01 Here you go Link to comment Share on other sites More sharing options...
WeBeRiO Posted August 16, 2018 Share Posted August 16, 2018 On 14/8/2018 at 19:28, dgsga said: ¿Alguien puede explicar por qué no obtengo un ícono para mi principal volumen beta de APFS Mojave cuando uso el nuevo tema incrustado (solo el cuadro amarillo y gris con rayas "sin imagen"). El volumen está ubicado en el SSD NVME en mi hack. Todos los demás volúmenes APFS aparecen bien (incluyendo un clon del volumen principal en otro SSD SATA) Muchas gracias por cualquier ayuda aquí ... The same thing happens to me with the icons and the nvme unit. On 14/8/2018 at 21:45, Slice said: Porque NVME no es SATA. ¿Puedes proporcionar boot.log para ver qué encontró Clover? Waiting for a possible solution with the help of @slice thk.- Link to comment Share on other sites More sharing options...
Slice Posted August 16, 2018 Share Posted August 16, 2018 On 8/14/2018 at 9:26 PM, dgsga said: Thanks Slice. Here you go... bdmesg.txt I don't know what is the bug Starting Clover revision: 4780 on American Megatrends EFI There is no messages from Clover about icons used for each entry 8:479 0:004 === [ ScanLoader ] ======================================== 8:479 0:000 - [09]: 'EFI' 8:489 0:010 AddLoaderEntry for Volume Name=EFI 8:489 0:000 skipped because entry is hidden 8:489 0:000 - [12]: 'Windows 10' 8:489 0:000 - [13]: '' 8:489 0:000 - [14]: 'EFI' 8:498 0:009 AddLoaderEntry for Volume Name=EFI 8:503 0:004 AddLoaderEntry for Volume Name=EFI 8:503 0:000 skipped because entry is hidden 8:503 0:000 - [16]: 'EFI' 8:503 0:000 AddLoaderEntry for Volume Name=EFI 8:503 0:000 skipped because entry is hidden 8:503 0:000 - [18]: 'Preboot', hidden 8:503 0:000 - [19]: 'System' 8:641 0:137 AddLoaderEntry for Volume Name=System 8:710 0:069 - [20]: 'Recovery', hidden 8:710 0:000 - [21]: 'VM' 8:711 0:000 - [22]: 'Preboot', hidden 8:711 0:000 - [23]: 'Morgaine' 8:836 0:124 AddLoaderEntry for Volume Name=Morgaine 8:911 0:075 - [24]: 'Recovery', hidden 8:911 0:000 - [25]: 'VM' 1 Link to comment Share on other sites More sharing options...
bronxteck Posted August 16, 2018 Share Posted August 16, 2018 does adding the clover NVME driver help with this issue? Link to comment Share on other sites More sharing options...

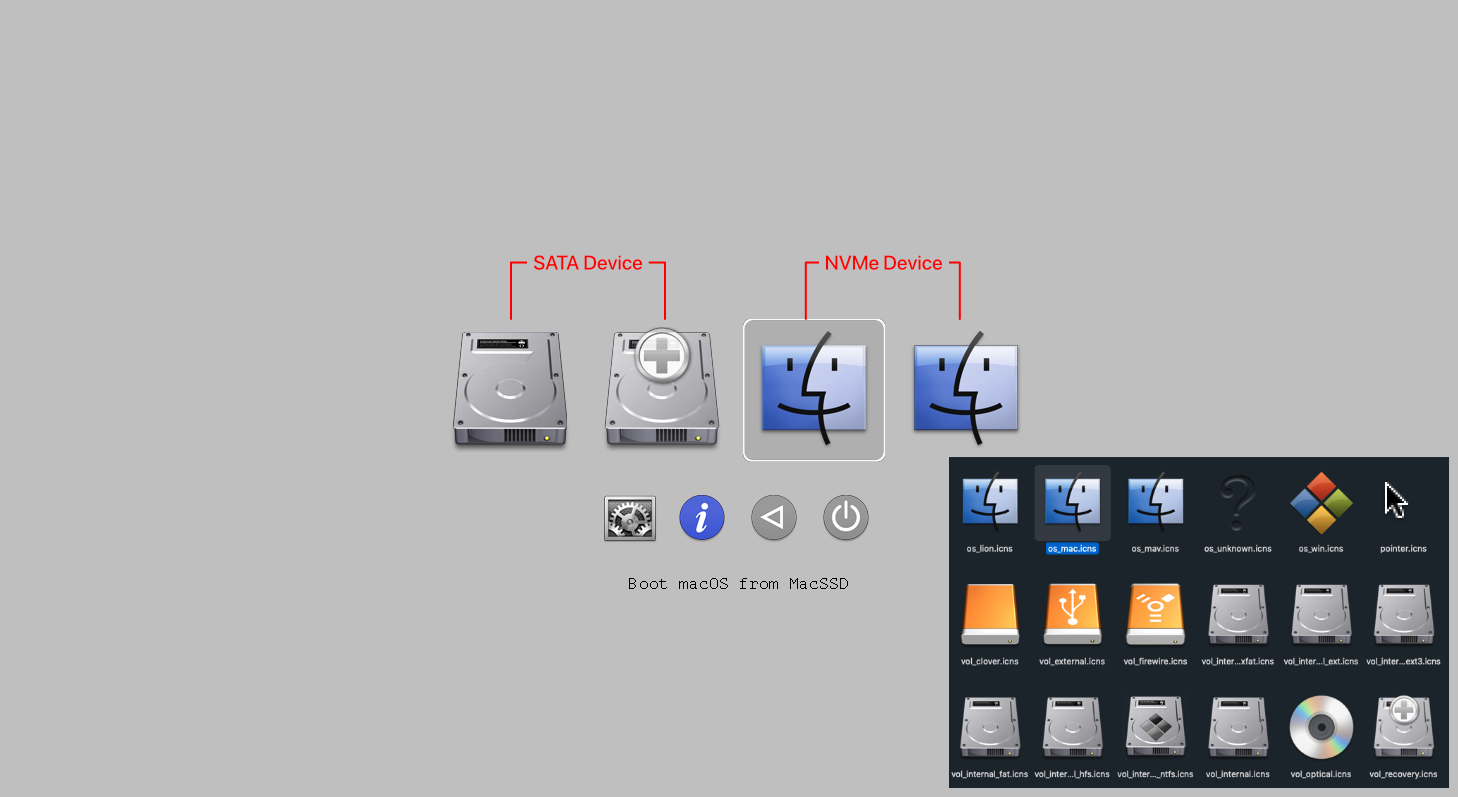

Slice Posted August 17, 2018 Share Posted August 17, 2018 12 hours ago, bronxteck said: does adding the clover NVME driver help with this issue? I have another question. If Clover found a drive it will use vol_internal.icns. What Clover found to show bee? Link to comment Share on other sites More sharing options...
紫米 Posted August 17, 2018 Share Posted August 17, 2018 4 hours ago, Slice said: I have another question. If Clover found a drive it will use vol_internal.icns. What Clover found to show bee? I thought that it would use os_mac.icns to show. Link to comment Share on other sites More sharing options...

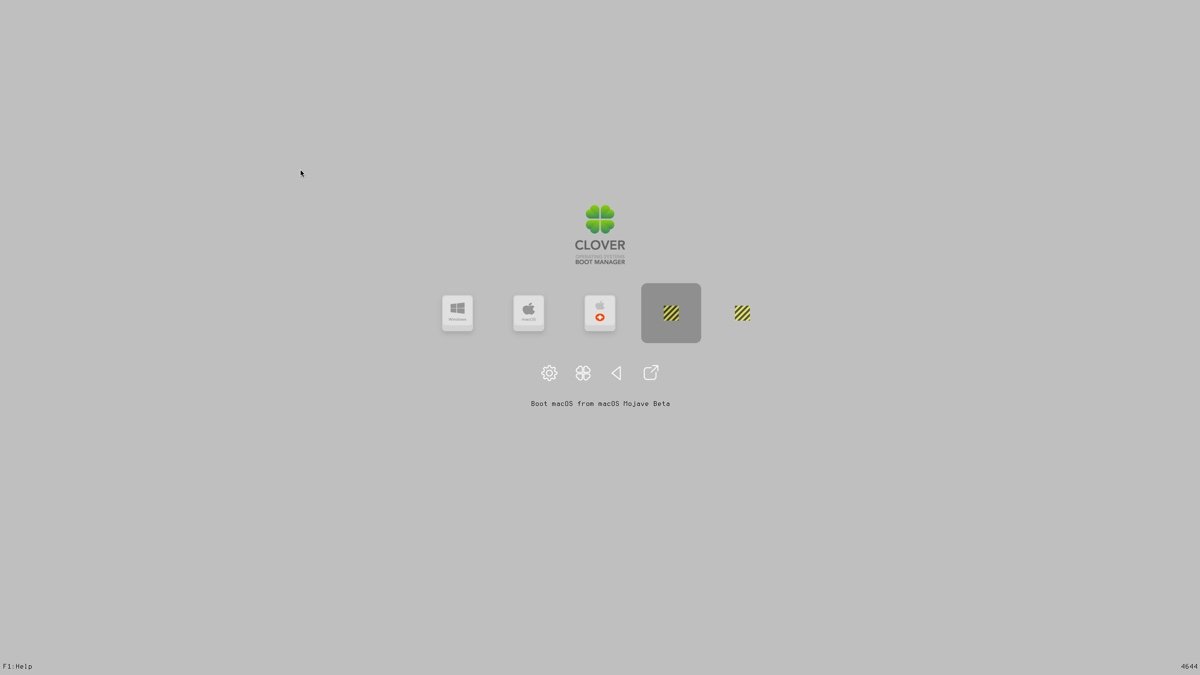

pbryanw Posted August 17, 2018 Share Posted August 17, 2018 (edited) Hi, I'm using Clover 4644, and when I'm using the external USB drive that holds my Mojave Beta, this is what my Clover boot screen looks like (with new embedded theme): Edited August 17, 2018 by pbryanw Link to comment Share on other sites More sharing options...
Sherlocks Posted August 18, 2018 Share Posted August 18, 2018 On 8/15/2018 at 12:17 PM, Badruzeus said: Hello @Slice, sorry for reporting this issue.. With "EmbeddedThemeType=Dark" key enabled on config.plist, it breaks another theme's font appearance on Clover GUI. Thanks. still not fix? therefore do we need to consider EmbeddedThemeType for only Embedded Theme? 1 Link to comment Share on other sites More sharing options...

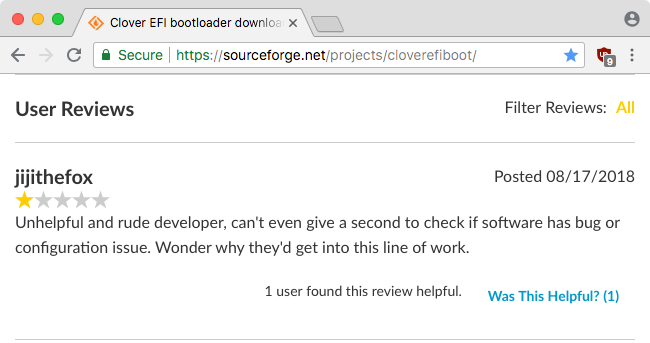

Badruzeus Posted August 18, 2018 Share Posted August 18, 2018 12 minutes ago, Sherlocks said: still not fix? therefore do we need to consider EmbeddedThemeType for only Embedded Theme? Not yet.. Spoiler Sorry bit OffTopic, @Sherlocks or any Admins on Clover SF's page, plz can you remove this annoying Review? Thanks. Link to comment Share on other sites More sharing options...
Sherlocks Posted August 18, 2018 Share Posted August 18, 2018 (edited) 33 minutes ago, Badruzeus said: Not yet.. Reveal hidden contents Sorry bit OffTopic, @Sherlocks or any Admins on Clover SF's page, plz can you remove this annoying Review? Thanks. please check latest commit. ofc, i checked it in all cases. Edited August 18, 2018 by Sherlocks 1 Link to comment Share on other sites More sharing options...
Badruzeus Posted August 18, 2018 Share Posted August 18, 2018 1 minute ago, Sherlocks said: please check latest commit. ofc, i checked it in all cases. With pleasure, UDK build seems faster.. wait. 1 Link to comment Share on other sites More sharing options...
Badruzeus Posted August 18, 2018 Share Posted August 18, 2018 31 minutes ago, Sherlocks said: please check latest commit. ofc, i checked it in all cases. r4651; It's OK with another Themes, but now "Embedded" DarkMode has gone. Link to comment Share on other sites More sharing options...
