Clover4384, AptioMemoryFixRC5.

I have no problems so far.

Z170m-Plus,OS X 10.13.DB5,Apfs





0:100  0:100  MemLog inited, TSC freq: 3504495820
0:104  0:004  CPU was calibrated with RTC
0:107  0:003
0:108  0:000  Now is 18.1.2018,  7:42:27 (GMT)
0:112  0:004  Starting Clover revision: 4384 on American Megatrends EFI
0:119  0:007  Build with: [Args: -x64 -D USE_BIOS_BLOCKIO -D NO_GRUB_DRIVERS_EMBEDDED -D ENABLE_VBIOS_PATCH_CLOVEREFI -D DEBUG_ON_SERIAL_PORT -t XCODE5 | -D USE_BIOS_BLOCKIO -D NO_GRUB_DRIVERS_EMBEDDED -D ENABLE_VBIOS_PATCH_CLOVEREFI -D DEBUG_ON_SERIAL_PORT -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE5 -n 9 | OS: 10.13.2 | XCODE: 9.2]
0:141  0:022  SelfDevicePath=PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,98AC6E18-2974-4432-9E76-18772C419C46,0x28,0x64000) @B0CCD9D8
0:155  0:013  SelfDirPath = \EFI\BOOT
0:174  0:018  === [ Get Smbios ] ========================================
.....................
0:328  0:005  Boot status=0
0:331  0:002  Running on: 'System Product Name' with board 'Z170M-PLUS'
0:337  0:006  === [ GetCPUProperties ] ==================================





Z77-ds3h,OS X 10.13.2





0:100  0:100  MemLog inited, TSC freq: 3403351673
0:104  0:004  CPU was calibrated with ACPI PM Timer
0:108  0:004
0:109  0:000  Now is 18.1.2018,  7:43:24 (GMT)
0:113  0:004  Starting Clover revision: 4384 on American Megatrends EFI
0:120  0:006  Build with: [Args: -x64 -D USE_BIOS_BLOCKIO -D NO_GRUB_DRIVERS_EMBEDDED -D ENABLE_VBIOS_PATCH_CLOVEREFI -D DEBUG_ON_SERIAL_PORT -t XCODE5 | -D USE_BIOS_BLOCKIO -D NO_GRUB_DRIVERS_EMBEDDED -D ENABLE_VBIOS_PATCH_CLOVEREFI -D DEBUG_ON_SERIAL_PORT -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE5 -n 9 | OS: 10.13.2 | XCODE: 9.2]
0:142  0:021  SelfDevicePath=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,0863F066-65A6-46F9-B747-72F25E463E02,0x28,0x64000) @C8975E18
0:155  0:013  SelfDirPath = \EFI\BOOT
.............................
0:314  0:005  Boot status=0
0:317  0:002  Running on: 'To be filled by O.E.M.' with board 'Z77-DS3H'
0:323  0:006  === [ GetCPUProperties ] ==================================
0:331  0:007  CPU Vendor = 756E6547 Model=206A7





N53SV,OS X 10.9.5





0:100  0:100  MemLog inited, TSC freq: 1995465558
0:100  0:000  CPU was calibrated with ACPI PM Timer
0:100  0:000
0:100  0:000  Now is 18.1.2018,  7:36:52 (GMT)
0:100  0:000  Starting Clover revision: 4384 on American Megatrends EFI
0:100  0:000  Build with: [Args: -x64 -D USE_BIOS_BLOCKIO -D NO_GRUB_DRIVERS_EMBEDDED -D ENABLE_VBIOS_PATCH_CLOVEREFI -D DEBUG_ON_SERIAL_PORT -t XCODE5 | -D USE_BIOS_BLOCKIO -D NO_GRUB_DRIVERS_EMBEDDED -D ENABLE_VBIOS_PATCH_CLOVEREFI -D DEBUG_ON_SERIAL_PORT -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE5 -n 9 | OS: 10.13.2 | XCODE: 9.2]
0:101  0:000  SelfDevicePath=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,F61211C5-87B9-4CDD-BE33-9DC9BD4A478E,0x28,0x64000) @22FF618
0:101  0:000  SelfDirPath = \EFI\CLOVER
...................
0:106  0:000  Running on: 'N53SV' with board 'N53SV'
0:106  0:000  === [ GetCPUProperties ] ==================================
0:106  0:000  CPU Vendor = 756E6547 Model=206A7
0:107  0:000   The CPU supported SSE4.1
0:107  0:000  BrandString = Intel(R) Core(TM) i7-2630QM CPU @ 2.00GHz
......................
2:003  0:000  PrepareHibernation:
2:003  0:000      read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Success
2:003  0:000      SleepImage name from pref: ImageVolume = 'OSX10.9.5', ImageName = '\private\var\vm\sleepimage'
2:004  0:000      returning previously calculated offset: B24ECD000
2:004  0:000   SleepImageOffset: B24ECD000
2:004  0:000  02 01 0C 00 D0 41 03 0A 00 00 00 00 01 01 06 00 | .....A..........
2:004  0:000  02 1F 03 12 0A 00 01 00 FF FF 00 00 04 04 18 00 | ................
2:005  0:000  42 00 32 00 34 00 45 00 43 00 44 00 30 00 30 00 | B.2.4.E.C.D.0.0.
2:005  0:000  30 00 00 00 7F FF 04 00                         | 0.......
2:005  0:000  boot-image before: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\B24ECD000
2:009  0:003  DeleteBootOption: Boot0082
2:012  0:003   Boot0082 deleted
2:012  0:000  DeleteFromBootOrder: 0082
2:012  0:000  BootOrder: 3: Boot0003, Boot0000, Boot0082
2:013  0:001   found at index 2
2:016  0:003  SetVariable: BootOrder = Success
2:017  0:000   IOHibernateRTCVariables found - will be used as boot-switch-vars
2:029  0:012  SetScreenResolution: 800x600 - already set
2:029  0:000  Custom boot is disabled
2:029  0:000  Closing events for wake





Link to comment
Share on other sites

Anybody tried 4384, don't work here, had to revert to 4380

r4384 works just fine here on my legacy mach (sig)  :)

Whole "CloverV2" built with GCC under Ubuntu 17.10: Drive

.....  .....
1:403  0:000  Now is 18.1.2018,  6:12:30 (GMT)
1:403  0:000  Starting Clover revision: 4384 on CLOVER EFI
1:403  0:000  Build with: [Args: -mc --no-usb -D NO_GRUB_DRIVERS_EMBEDDED -t GCC53 | -D DISABLE_USB_SUPPORT -D NO_GRUB_DRIVERS_EMBEDDED -D USE_BIOS_BLOCKIO -D USE_LOW_EBDA -a X64 -b RELEASE -t GCC53 -n 5 | OS: Ubuntu 17.10]
.....  .....

Thanks.

preboot.log-r4384-gcc.zip

Link to comment
Share on other sites

Same here with r4384



I had to use AptioMemory instead of AptioFix3drv to start my system :yes:

Same issue here all I got in Verbose was lots of +'s with r4384.

Reverted to r4382 no issue.





Sent from my SM-G930F using Tapatalk

  • Like 1
Link to comment
Share on other sites

Before 4385, if you had both OsxAptioFixDrv and OsxAptioFix2Drv in drivers64UEFI, it would pick up the one that occurs first in the FAT32 directory iteration.  After 4385 there is a prioritisation, so OsxAptioFix2Drv is picked up first.  I suggest you keep just the one that works for use in drivers64UEFI and move the others to drivers-Off/drivers64UEFI.



Had to change OsxAptioFixDrv2 to  OsxAptioFixDrv for 4385  :thumbsup_anim:

  • Like 1
Link to comment
Share on other sites

Hello,

Is possible to Clover recognize nvram plist files created for Chameleon based bootloaders (such as Enoch), since it has one already when emuvariable driver is used? I mean, if it could recognize and handle with these plist files, it would be possible to have only one plist file storing nvram variables visible and acessible to both bootloaders for the same system. This would be nice in a multibootloader installation. Thanks.

Link to comment
Share on other sites

Hello,

Is possible to Clover recognize nvram plist files created for Chameleon based bootloaders (such as Enoch), since it has one already when emuvariable driver is used? I mean, if it could recognize and handle with these plist files, it would be possible to have only one plist file storing nvram variables visible and acessible to both bootloaders for the same system. This would be nice in a multibootloader installation. Thanks.

Let Chameleon to be "like Clover".

nvram.plist is created by very common command

$ nvram -x -p>nvram.plist

so it will not depend on bootloader.

  • Like 2
Link to comment
Share on other sites

Let Chameleon to be "like Clover".

nvram.plist is created by very common command

$ nvram -x -p>nvram.plist

so it will not depend on bootloader.

Thank you for your reply. This solution works very well for Clover, since it can see the new nvram.plist and so it recognizes nvram variables defined in a Chameleon boot session. I've written a bash script and used a daemon to do this at every boot. In the other direction, I've had to use PlistBuddy to edit a nvram.plist file in the formatting that Chameleon expects, so that it can see nvram variables defined in a Clover session. Now I'm trying to make this also "scriptized". Thanks again.

Link to comment
Share on other sites

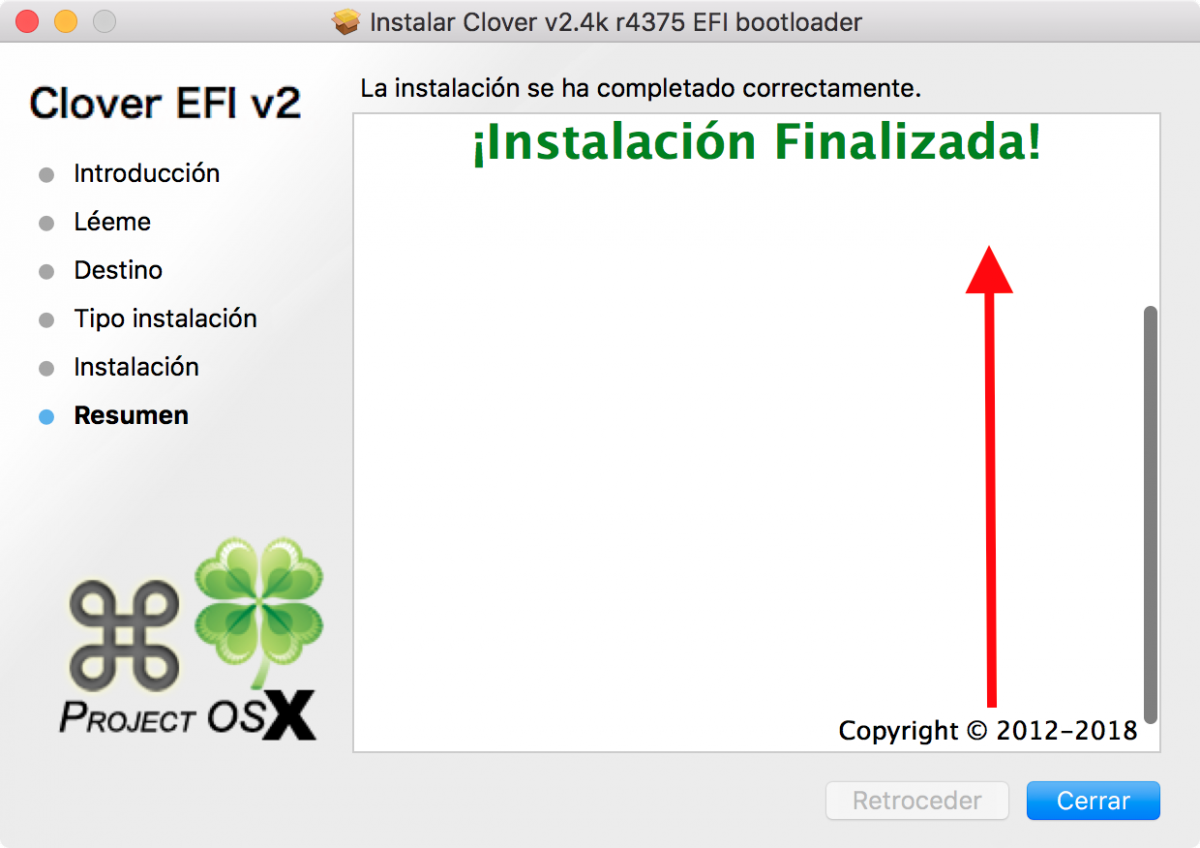

Hola y gracias por el cambio que propuse anteriormente.
Subir para evitar desplazarse y barra desplazamiento.



Hello and thank you for the change I proposed earlier.
Go up to avoid scrolling and scrolling.


  • Like 4
Link to comment
Share on other sites

Hola y gracias por el cambio que propuse anteriormente.

Subir para evitar desplazarse y barra desplazamiento.





Hello and thank you for the change I proposed earlier.

Go up to avoid scrolling and scrolling.

try to replace the original one with this... and compile/build a new pkg...



Prueba con este html remplazando el original y luego vuelve a crear el pkg.



--> Conclusion.html.zip



ErmaC

  • Like 4
Link to comment
Share on other sites

  • 3 weeks later...

report lang issue to dev.
i reported this issue before
http://www.insanelymac.com/forum/topic/284656-clover-general-discussion/?p=2565871
i traced this issue point. but not sure. I just want to report this point.
https://sourceforge.net/p/cloverefiboot/code/4414/tree/rEFIt_UEFI/Platform/DataHubCpu.c#l213
but surely effect lang after update with osxaptiofixv2+emul+ko set(config).

but if use osxaptiofixv3 or aptiomemoryfix without emul, what i mentioned above presents lang issue(ko+eng)
i checked this is OS X's business. so i checked realmac nvram dump.

realmac has this nvram vals
------------------------------------------------------------------------------
8BE4DF61-93CA-11D2-AA0D-00E098032B8C:Lang
------------------------------------------------------------------------------
000000: 65 6e 67 00 |eng.|

------------------------------------------------------------------------------
8BE4DF61-93CA-11D2-AA0D-00E098032B8C:LangCodes
------------------------------------------------------------------------------
000000: 65 6e 67 00 |eng.|

------------------------------------------------------------------------------
8BE4DF61-93CA-11D2-AA0D-00E098032B8C:PlatformLang
------------------------------------------------------------------------------
000000: 65 6e 2d 55 53 00 |en-US.|

------------------------------------------------------------------------------
8BE4DF61-93CA-11D2-AA0D-00E098032B8C:PlatformLangCodes
------------------------------------------------------------------------------
000000: 65 6e 2d 55 53 00 |en-US.|



but clover has only

------------------------------------------------------------------------------
8BE4DF61-93CA-11D2-AA0D-00E098032B8C:PlatformLang
------------------------------------------------------------------------------
000000: 65 6e 2d 55 53 00 |en-US.|

------------------------------------------------------------------------------
8BE4DF61-93CA-11D2-AA0D-00E098032B8C:PlatformLangCodes
------------------------------------------------------------------------------
000000: 65 6e 2d 55 53 3b 6a 61 2d 4a 50 3b 66 72 2d 46 |en-US;ja-JP;fr-F|
000010: 52 3b 6b 6f 2d 4b 52 00 |R;ko-KR.|

------------------------------------------------------------------------------

does it effect lang issue after update?

thanks in advance.



EDIT1.

my friend's real MBP11,5 has

<key>prev-lang:kbd</key>

<data>

a286MjUy

</data>



and

------------------------------------------------------------------------------
8BE4DF61-93CA-11D2-AA0D-00E098032B8C:Lang
------------------------------------------------------------------------------
000000: 65 6e 67                                         |eng|

------------------------------------------------------------------------------
8BE4DF61-93CA-11D2-AA0D-00E098032B8C:LangCodes
------------------------------------------------------------------------------
000000: 65 6e 67                                         |eng|

there are not PlatformLang/PlatformLangCodes
Link to comment
Share on other sites

report lang issue to dev.

i reported this issue before

http://www.insanelymac.com/forum/topic/284656-clover-general-discussion/?p=2565871

i traced this issue point. but not sure. I just want to report this point.

https://sourceforge.net/p/cloverefiboot/code/4414/tree/rEFIt_UEFI/Platform/DataHubCpu.c#l213

but surely effect lang after update with osxaptiofixv2+emul+ko set(config).



but if use osxaptiofixv3 or aptiomemoryfix without emul, what i mentioned above presents lang issue(ko+eng)

i checked this is OS X's business. so i checked realmac nvram dump.



realmac has this nvram vals

------------------------------------------------------------------------------

8BE4DF61-93CA-11D2-AA0D-00E098032B8C:Lang

------------------------------------------------------------------------------

000000: 65 6e 67 00 |eng.|



------------------------------------------------------------------------------

8BE4DF61-93CA-11D2-AA0D-00E098032B8C:LangCodes

------------------------------------------------------------------------------

000000: 65 6e 67 00 |eng.|



------------------------------------------------------------------------------

8BE4DF61-93CA-11D2-AA0D-00E098032B8C:PlatformLang

------------------------------------------------------------------------------

000000: 65 6e 2d 55 53 00 |en-US.|



------------------------------------------------------------------------------

8BE4DF61-93CA-11D2-AA0D-00E098032B8C:PlatformLangCodes

------------------------------------------------------------------------------

000000: 65 6e 2d 55 53 00 |en-US.|







but clover has only



------------------------------------------------------------------------------

8BE4DF61-93CA-11D2-AA0D-00E098032B8C:PlatformLang

------------------------------------------------------------------------------

000000: 65 6e 2d 55 53 00 |en-US.|



------------------------------------------------------------------------------

8BE4DF61-93CA-11D2-AA0D-00E098032B8C:PlatformLangCodes

------------------------------------------------------------------------------

000000: 65 6e 2d 55 53 3b 6a 61 2d 4a 50 3b 66 72 2d 46 |en-US;ja-JP;fr-F|

000010: 52 3b 6b 6f 2d 4b 52 00 |R;ko-KR.|



------------------------------------------------------------------------------



does it effect lang issue after update?



thanks in advance.



EDIT1.

my friend's real MBP11,5 has

<key>prev-lang:kbd</key>

<data>

a286MjUy

</data>



and



------------------------------------------------------------------------------

8BE4DF61-93CA-11D2-AA0D-00E098032B8C:Lang

------------------------------------------------------------------------------

000000: 65 6e 67                                         |eng|



------------------------------------------------------------------------------

8BE4DF61-93CA-11D2-AA0D-00E098032B8C:LangCodes

------------------------------------------------------------------------------

000000: 65 6e 67                                         |eng|





there are not PlatformLang/PlatformLangCodes



Apple uses a modified EFI 1.10 firmware so it probably never updated from previous protocols those variables are deprecated variables in UEFI:

Lang      NV, BS, RT The language code that the system is configured for. This value is deprecated.
LangCodes BS, RT     The language codes that the firmware supports. This value is deprecated.
Lang has been deprecated. If the platform supports this variable, it must map any changes in the Lang variable into PlatformLang in the appropriate format.
[LangCodes] has been deprecated. If the platform supports this variable, it must map any changes in the [LangCodes] variable into [PlatformLangCodes] in the appropriate format.
*I made some corrections to what seem like obvious mistakes in the specification language

PlatformLang and PlatformLangCodes use RFC 4646, where Lang and LangCodes use ISO 639-2. But none the less, we should set them if they are not present.

Link to comment
Share on other sites

Apple uses a modified EFI 1.10 firmware so it probably never updated from previous protocols those variables are deprecated variables in UEFI:

Lang      NV, BS, RT The language code that the system is configured for. This value is deprecated.LangCodes BS, RT     The language codes that the firmware supports. This value is deprecated.
Lang has been deprecated. If the platform supports this variable, it must map any changes in the Lang variable into PlatformLang in the appropriate format.[LangCodes] has been deprecated. If the platform supports this variable, it must map any changes in the [LangCodes] variable into [PlatformLangCodes] in the appropriate format.*I made some corrections to what seem like obvious mistakes in the specification language
PlatformLang and PlatformLangCodes use RFC 4646, where Lang and LangCodes use ISO 639-2. But none the less, we should set them if they are not present.
Thanks. So how can i test? Just add lang and lang code?

Current, pre-lang:kbd nvram key effects system lang after update. Because aptiofixv2+emu combination is no problem.



Does it equal pre-lang:kbd and lang?



나의 LG-F800S 의 Tapatalk에서 보냄

Link to comment
Share on other sites

Thanks. So how can i test? Just add lang and lang code?



Yeah, just add them. But you have to use ISO 639-2, so they are different language codes. Lang and LangCodes are firmware variables, they are almost surely not supported by almost all UEFI firmware, so you'd have to still set the others still too. This probably means that it might not be able to find some protocols that relied on this language code format because they have been switched to work with RFC4646 and PlatformLang(Codes). Like EFI_UNICODE_COLLATION_PROTOCOL...



Current, pre-lang:kbd nvram key effects system lang after update. Because aptiofixv2+emu combination is no problem.



Does it equal pre-lang:kbd and lang?



No, that is an Apple GUID variable, that should get set by setting a keyboard and language in system preferences (or when you do that during install). Did you remember to apply all the variables from your nvram.plist to your native NVRAM after removing EmuVar?

Link to comment
Share on other sites

Yeah, just add them. But you have to use ISO 639-2, so they are different language codes. Lang and LangCodes are firmware variables, they are almost surely not supported by almost all UEFI firmware, so you'd have to still set the others still too. This probably means that it might not be able to find some protocols that relied on this language code format because they have been switched to work with RFC4646 and PlatformLang(Codes). Like EFI_UNICODE_COLLATION_PROTOCOL...





No, that is an Apple GUID variable, that should get set by setting a keyboard and language in system preferences (or when you do that during install). Did you remember to apply all the variables from your nvram.plist to your native NVRAM after removing EmuVar?

Thank you for info. Yes. I checked it with several test times. I removed EmuVar+osaptiofixv2 and rcscript and nvram.plist. then sudo nvram -c. And check nvram -p until update beta. Then put osxaptiofixv3 or aptiomemoryfix in driver64uefi folder, then update beta. Then i found lang issue of reboot windows.



So, i just saw difference between emul+fixv2+ko(config) and (fixv3 or memoryfix). Just there is whethe pre-lang:kdb exist. Iike you said before, this key osx business(recorded in code). I didn't understand. It means what. So i compared my nvram dump and realmac from darwindump tool to close to problem.



나의 LG-F800S 의 Tapatalk에서 보냄

Link to comment
Share on other sites

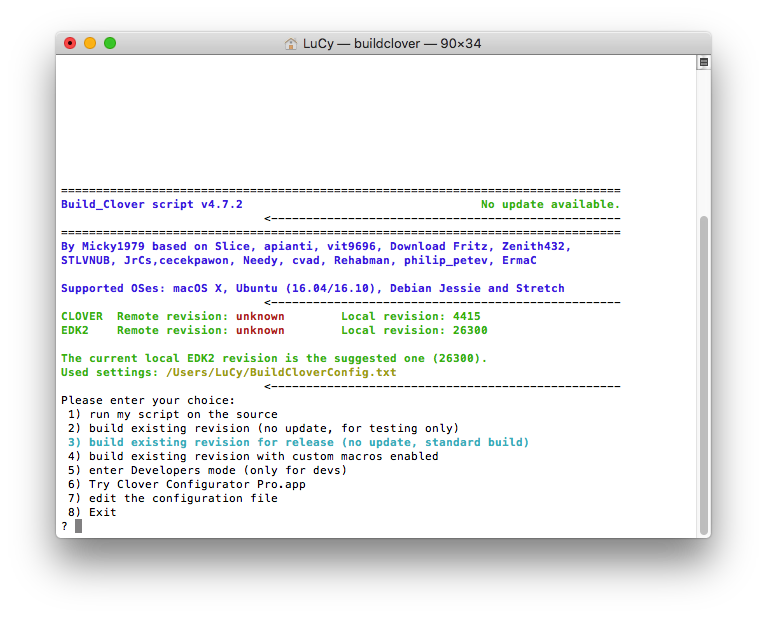

I just got the same issue you have after I deleted src folder for second time to see if I got your issue and I did. I did a ping test to both repo's edk and clover and it returned results so that means there is internet access.

 I then manually tried svn up the clover directory and it updated to 4415 so it must be something in the script. maybe the way it checks for the revisions accessing sourcrforge changed.

 I also noticed that because of the issue it did not check for aptiofix updates

  • Like 2
