SavageAUS Posted October 20, 2018 Share Posted October 20, 2018 (edited) 1 hour ago, Sherlocks said: froze up -> processing -> reboot okay? i know vit9696 nvram clear has bootorder remove. i think he want all nvram value initialized. i will add that avoid to remove boot option. 나의 LG-F800S 의 Tapatalk에서 보냄 Was a hard freeze up, had to hold power button. Updating to 4717 now AptioMemory, VirtualSMC. Edited October 20, 2018 by SavageAUS Link to comment Share on other sites More sharing options...
Sherlocks Posted October 20, 2018 Share Posted October 20, 2018 Just now, Badruzeus said: OK, not a big issue for me since I have "Boot entry" options on my Aptio BIOS (firmware) and could be re-ordered easily. my peonix bios laptop, i did lost clover boot option(initialized) if BootOrder was removed. only boot windows. so i added boot entry again in bios. your bios is good. anyways removing the nvram value associated with the boot is not currently the best option. thanks 1 Link to comment Share on other sites More sharing options...
SavageAUS Posted October 20, 2018 Share Posted October 20, 2018 (edited) 4717 still hard froze twice when pressing F11. Will boot to 10.14 then reboot and try again. Edit: Still hard freeze American Megatrends BIOS Vendor Aptio Setup Utility. Boot option no longer removed and order not changed. Cleared? MacBook-Pro:~ shane$ nvram -p fmm-computer-name MacBook Pro security-mode none specialbootdevice %02%01%0c%00%d0A%03%0a%00%00%00%00%01%01%06%00%02%1f%03%12%0a%00%00%00%ff%ff%00%00%04%01*%00%04%00%00%00%00h%1f%1d%00%00%00%00%08%f8%18%1d%00%00%00%00%e4%dee%86%de%c8%e9K%a2%a6<%fbhi%fbe%02%02%04%03$%00%f7%fct%be|%0b%f3I%91G%01%f4%04.hB%a1%16|%98%96%cd%13H%9e%15%cd%c2%df6%c4%1d%7f%ff%04%00 EFILoginHiDPI %00%00%00%00 backlight-level %d9%0a bluetoothActiveControllerInfo %044%d3%13%00%00%00%00 %14t%c6;O%9e%ef SystemAudioVolume A csr-active-config g%00%00%00 SystemAudioVolumeDB %f0 flagstate %00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00 Sent from my iPhone using Tapatalk Edited October 20, 2018 by SavageAUS Link to comment Share on other sites More sharing options...
Badruzeus Posted October 20, 2018 Share Posted October 20, 2018 20 minutes ago, Sherlocks said: my peonix bios laptop, i did lost clover boot option(initialized) if BootOrder was removed. only boot windows. so i added boot entry again in bios. your bios is good. anyways removing the nvram value associated with the boot is not currently the best option. thanks Yeah, same as @SavageAUS for r4717.. it cleared NVRAM properly, though Clover freeze immediately when pressing "F11" key. Boot Entries are still there (previous r4716 actually, not only changed bootloader entries order, but removed them #LoL). 1 Link to comment Share on other sites More sharing options...
Pavo Posted October 20, 2018 Share Posted October 20, 2018 2 hours ago, Sherlocks said: @Pavo. i worked NVRAM cleaner and tested all. its same that CleanNvram.efi of vit9696. try latest clover. 나의 LG-F800S 의 Tapatalk에서 보냄 Will do and report back Link to comment Share on other sites More sharing options...
Pavo Posted October 20, 2018 Share Posted October 20, 2018 (edited) Hard freeze, had to manually power cycle the machine, only using VirutalSMC.kext. Top before and Bottom after. Edited October 20, 2018 by Pavo Link to comment Share on other sites More sharing options...
Sherlocks Posted October 20, 2018 Share Posted October 20, 2018 Hard freeze, had to manually power cycle the machine, only using VirutalSMC.kext. Top before and Bottom after. okay did you try cleanvram.efi?나의 LG-F800S 의 Tapatalk에서 보냄 Link to comment Share on other sites More sharing options...
Pavo Posted October 20, 2018 Share Posted October 20, 2018 Just now, Sherlocks said: okay did you try cleanvram.efi? 나의 LG-F800S 의 Tapatalk에서 보냄 I have not, will try now Link to comment Share on other sites More sharing options...
moldus Posted October 20, 2018 Share Posted October 20, 2018 1 hour ago, Sherlocks said: try latest version r4717. cleannvram.efi has deleting the boot menu option. i added that disabled this option. i tested again. there is no problem. 나의 LG-F800S 의 Tapatalk에서 보냄 Tested with r4717 Apple NVRAM was cleared, the boot variables were not. Thanks! nvram.zip 1 Link to comment Share on other sites More sharing options...
Sherlocks Posted October 20, 2018 Share Posted October 20, 2018 Tested with r4717 Apple NVRAM was cleared, the boot variables were not. Thanks!nvram.zip great. we can't see nvram boot order variables in macos. it's normal.your system shown good result. thanks for report. 나의 LG-F800S 의 Tapatalk에서 보냄 Link to comment Share on other sites More sharing options...
Pavo Posted October 20, 2018 Share Posted October 20, 2018 Just now, Sherlocks said: great. we can't see boot variables in macos. it's normal. your system shown good result. 나의 LG-F800S 의 Tapatalk에서 보냄 clearnvram.efi also freezes machine with a required manual power cycle. result are the same in nvram -p 1 Link to comment Share on other sites More sharing options...
Sherlocks Posted October 20, 2018 Share Posted October 20, 2018 clearnvram.efi also freezes machine with a required manual power cycle. result are the same in nvram -pokay. seems logic is not univeral for all bios.i will check it tommorow. and i will upload test file here.나의 LG-F800S 의 Tapatalk에서 보냄 Link to comment Share on other sites More sharing options...
Sherlocks Posted October 21, 2018 Share Posted October 21, 2018 14 hours ago, SavageAUS said: 4717 still hard froze twice when pressing F11. Will boot to 10.14 then reboot and try again. Edit: Still hard freeze American Megatrends BIOS Vendor Aptio Setup Utility. Boot option no longer removed and order not changed. Cleared? MacBook-Pro:~ shane$ nvram -p fmm-computer-name MacBook Pro security-mode none specialbootdevice %02%01%0c%00%d0A%03%0a%00%00%00%00%01%01%06%00%02%1f%03%12%0a%00%00%00%ff%ff%00%00%04%01*%00%04%00%00%00%00h%1f%1d%00%00%00%00%08%f8%18%1d%00%00%00%00%e4%dee%86%de%c8%e9K%a2%a6<%fbhi%fbe%02%02%04%03$%00%f7%fct%be|%0b%f3I%91G%01%f4%04.hB%a1%16|%98%96%cd%13H%9e%15%cd%c2%df6%c4%1d%7f%ff%04%00 EFILoginHiDPI %00%00%00%00 backlight-level %d9%0a bluetoothActiveControllerInfo %044%d3%13%00%00%00%00 %14t%c6;O%9e%ef SystemAudioVolume A csr-active-config g%00%00%00 SystemAudioVolumeDB %f0 flagstate %00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00 Sent from my iPhone using Tapatalk your nvram was clean. 13 hours ago, Pavo said: clearnvram.efi also freezes machine with a required manual power cycle. result are the same in nvram -p try this test file for freeze problem. little freeze happen when removing nvram values. but after freezing, your system have to reboot. if hold on freezing option long time, it's problem. test.zip Link to comment Share on other sites More sharing options...
SavageAUS Posted October 21, 2018 Share Posted October 21, 2018 try this test file for freeze problem. little freeze happen when removing nvram values. but after freezing, your system have to reboot. if hold on freezing option long time, it's problem.test.zipTest files still hard freeze for me. Sent from my iPhone using Tapatalk Link to comment Share on other sites More sharing options...
Sherlocks Posted October 21, 2018 Share Posted October 21, 2018 17 minutes ago, SavageAUS said: Test files still hard freeze for me. Sent from my iPhone using Tapatalk try this test1.zip Link to comment Share on other sites More sharing options...
SavageAUS Posted October 21, 2018 Share Posted October 21, 2018 (edited) 3 hours ago, Sherlocks said: try this test1.zip Hard freeze again. Is there anything I can provide to help? 4717 Works fine clearing nvram with F11 at clover GUI on my skylake hack. Edited October 21, 2018 by SavageAUS Link to comment Share on other sites More sharing options...

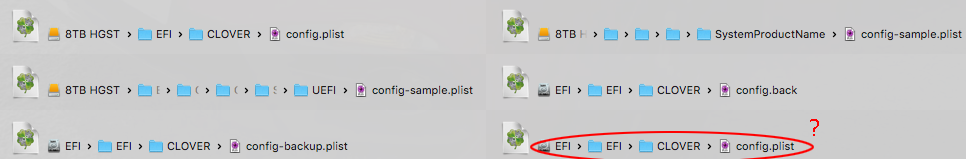

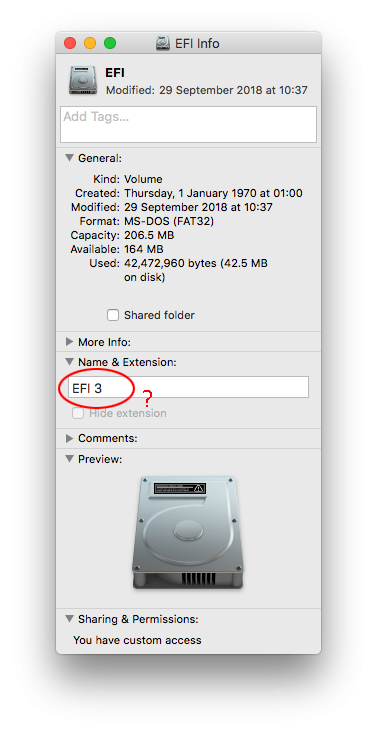

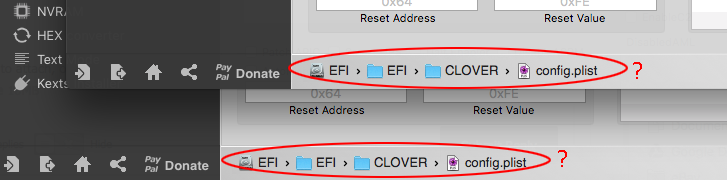

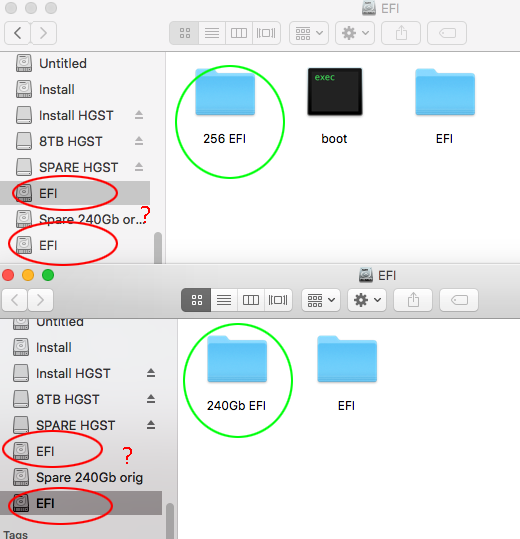

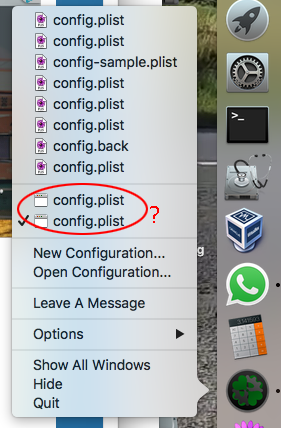

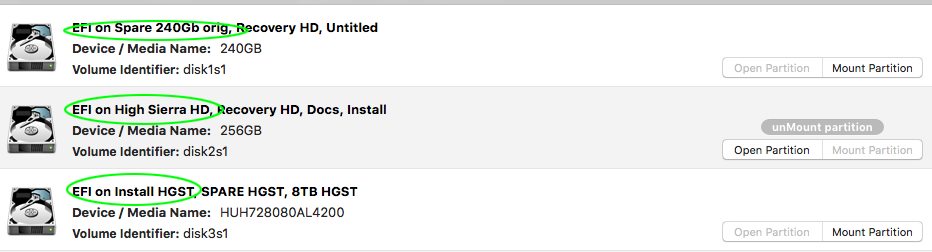

kurbads Posted October 21, 2018 Share Posted October 21, 2018 (edited) It does not say which disk the EFI partition belongs to anywhere. It does say EFI on Install or EFI on High Sierra HD in Mount EFI section But it does not say what drive does the EFI partition belongs to nor which which drive does the config.plist belongs not in acquired configurations list and not in the file path on status bar It is not possible to tell which drive the EFI belongs to neither in Finder nor Desktop Not through the Get Info I have created empty folders on each EFI partition with names which tell which is which. It is not right. It should be visible in Clover too. You should be able to tell which config.plist you are editing. At least make the disk volume folder name e.g. EFI on Install instead of EFI 3... Edited October 21, 2018 by kurbads Link to comment Share on other sites More sharing options...
Badruzeus Posted October 21, 2018 Share Posted October 21, 2018 (edited) 23 minutes ago, kurbads said: It does not say which disk the EFI partition belongs to anywhere. It does say EFI on Install or EFI on High Sierra HD in Mount EFI section But it does not say what drive does the EFI partition belongs to nor which which drive does the config.plist belongs not in acquired configurations list and not in the file path on status bar It is not possible to tell which drive the EFI belongs to neither in Finder nor Desktop Not through the Get Info I have created empty folders on each EFI partition with names which tell which is which. It is not right. It should be visible in Clover too. You should be able to tell which config.plist you are editing. At least make the disk volume folder name e.g. EFI on Install instead of EFI 3... Sorry, I don't get what's your point. How did you get lots of EFI Partitions? Anyway, I usually use only 1 EFI (with Clover Bootloader inside) on a mach with Multibooting. On my case, I created GPT partition map for another Disks with gParted (or similar 3rd party apps) so it didn't create new EFI. But if you're referring to Clover Configurator.app, this question should be addressed to @mackie100. Edited October 21, 2018 by Badruzeus 1 Link to comment Share on other sites More sharing options...
kurbads Posted October 21, 2018 Share Posted October 21, 2018 (edited) 5 minutes ago, Badruzeus said: Sorry, I don't get what's your point. How did you get lots of EFI Partitions? Anyway, I usually use only 1 EFI on a mach with Multibooting. On my case, I create GPT partition map for another Disks with gParted (or similar 3rd party apps) so it didn't create new EFI. But if you're referring to Clover Configurator.app, this question should be addressed to @mackie100. I am sorry that you do not understand how because you only use one disk in your computer. I however use several. And I can potentially have an EFI partition on USB drive. It is completely clear that there can be and in my case there are several HDDs and several EFIs from the first screen in my post. Did you look at my question before answering it? Edited October 21, 2018 by kurbads 1 Link to comment Share on other sites More sharing options...
Badruzeus Posted October 21, 2018 Share Posted October 21, 2018 1 minute ago, kurbads said: Did you look at my question before answering it? 29 minutes ago, kurbads said: It does not say which disk the EFI partition belongs to anywhere. It does say EFI on Install or EFI on High Sierra HD in Mount EFI section But it does not say what drive does the EFI partition belongs to nor which which drive does the config.plist belongs not in acquired configurations list and not in the file path on status bar It is not possible to tell which drive the EFI belongs to neither in Finder nor Desktop Not through the Get Info I have created empty folders on each EFI partition with names which tell which is which. It is not right. It should be visible in Clover too. You should be able to tell which config.plist you are editing. At least make the disk volume folder name e.g. EFI on Install instead of EFI 3... OK, bit confusing sorry .. I think your question is this one: CMIIW "At least make the disk volume folder name e.g. EFI on Install instead of EFI 3..." 1. If what you mean is "Disk volume folder name" to appears on Clover Configurator, so this question should be addressed to @mackie100: CC dev. (Clover Configurator is 3rd party app, I love it, it helps me a lot, but I've to say it's not related to Clover Project, AFAIK) 2. No idea with Volumes info on Finder, it's Apple macOS feature.. nor Clover. Thanks. 1 Link to comment Share on other sites More sharing options...
SavageAUS Posted October 21, 2018 Share Posted October 21, 2018 I am sorry that you do not understand how because you only use one disk in your computer. I however use several. And I can potentially have an EFI partition on USB drive. It is completely clear that there can be and in my case there are several HDDs and several EFIs from the first screen in my post. Did you look at my question before answering it?Well you have 3 options, none of which belong in this thread.Option 1. Use 1 EFI partition only. Option 2. Mount EFI partitions 1 at a time so you know what is what. Option 3. Take it up with the developer of Clover Configurator as it’s unrelated to clover. Sent from my iPhone using Tapatalk 1 Link to comment Share on other sites More sharing options...
kurbads Posted October 21, 2018 Share Posted October 21, 2018 Ah, yes, sorry, I will post at their forum. It is just that you can open this forum from Clover Configurator Help menu. 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted October 21, 2018 Share Posted October 21, 2018 (edited) 45 minutes ago, kurbads said: It does not say which disk the EFI partition belongs to anywhere. It does say EFI on Install or EFI on High Sierra HD in Mount EFI section But it does not say what drive does the EFI partition belongs to nor which which drive does the config.plist belongs not in acquired configurations list and not in the file path on status bar It is not possible to tell which drive the EFI belongs to neither in Finder nor Desktop Not through the Get Info I have created empty folders on each EFI partition with names which tell which is which. It is not right. It should be visible in Clover too. You should be able to tell which config.plist you are editing. At least make the disk volume folder name e.g. EFI on Install instead of EFI 3... @Badruzeus says: For "Clover Configurator.app, this question should be addressed to @mackie100." it's the right thing to do. With clover configurator, you can't mount/open EFI Partition at the same time, there is some problems. I test on my system (multi HDD) Sorry for my bad english Edited October 21, 2018 by Matgen84 Link to comment Share on other sites More sharing options...

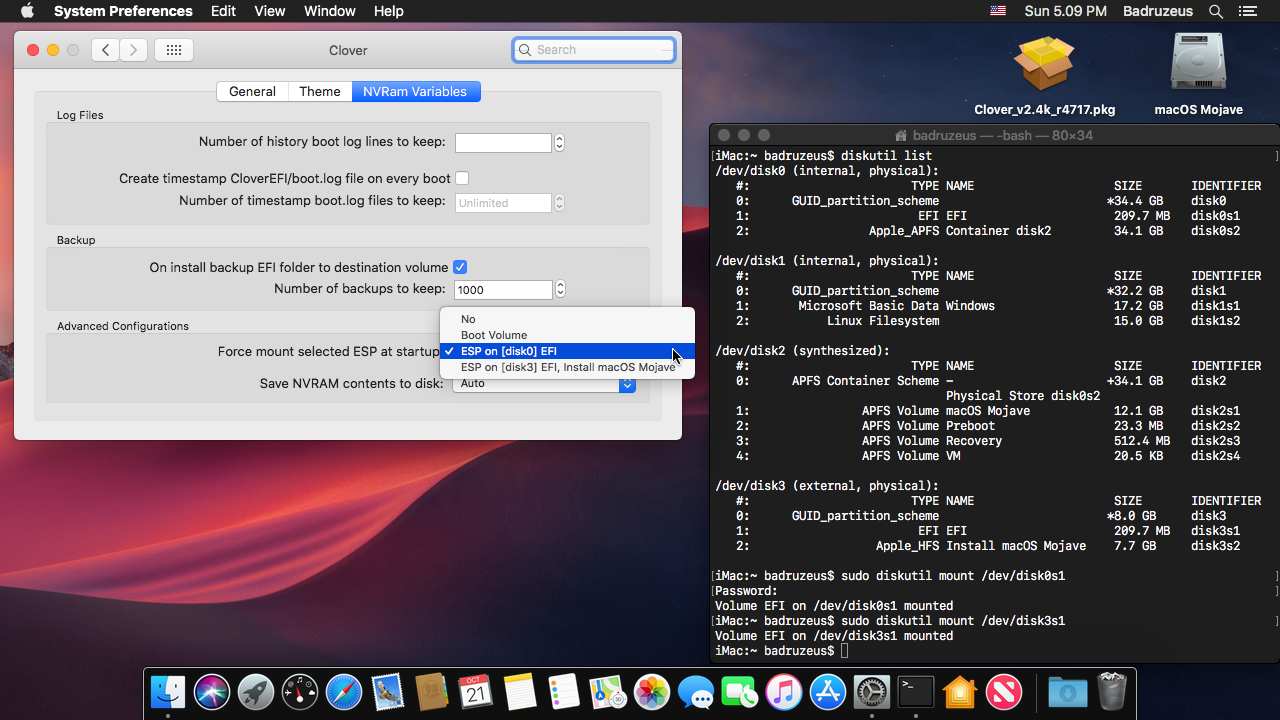

Badruzeus Posted October 21, 2018 Share Posted October 21, 2018 29 minutes ago, Matgen84 said: With clover configurator, you can't mount/open EFI Partition at the same time, there is some problems. I test on my system (multi HDD) Wait, did you mean mouting multi EFI partitions upon system startup or..? No idea do we need this. Anyway, have you tried "NVRAM Variable > Force Mount selected EFI..." on Clover pref? Yeah, OFC you've to get a working NVRAM for sure. Link to comment Share on other sites More sharing options...
Matgen84 Posted October 21, 2018 Share Posted October 21, 2018 58 minutes ago, Badruzeus said: Wait, did you mean mouting multi EFI partitions upon system startup or..? No idea do we need this. Anyway, have you tried "NVRAM Variable > Force Mount selected EFI..." on Clover pref? Yeah, OFC you've to get a working NVRAM for sure. I answers to @kurbads about Clover Configurator.app. Take a look my comment before react I don't talk about CloverPref pane or what else. @kurbads has mounted several EFI partitions at the same time: look his post 1 Link to comment Share on other sites More sharing options...
