3 hours ago, Dids said:

Due to various 3rd party package changes (EfiPkg's development branch got renamed to develop, and OcSupportPkg is now also required) Clover's build script (ebuild.sh) --ext-co build flag no longer works.



Here's a quick diff/patch for fixing it (tested and confirmed on latest revision):


--- Clover/ebuild.sh
+++ Clover/ebuild.sh
@@ -801,7 +801,8 @@
                                   'https://github.com/acidanthera/AppleSupportPkg'
                                   'https://github.com/CupertinoNet/CupertinoModulePkg'
                                   'https://github.com/CupertinoNet/EfiMiscPkg'
-                                  'https://github.com/CupertinoNet/EfiPkg')
+                                  'https://github.com/CupertinoNet/EfiPkg'
+                                  'https://github.com/acidanthera/OcSupportPkg')
     # add below drivers you want to build
     local externalDrivers=( AptioFixPkg AppleSupportPkg )

@@ -824,7 +825,7 @@
         local branch=master

         case $pkg in
-        CupertinoModulePkg | EfiMiscPkg | EfiPkg)
+        CupertinoModulePkg | EfiMiscPkg)
           branch=development
         ;;
         esac





You're right :) in other topic, @fusion71au says: "Just a heads up that @vit9696 has removed EfiMiscPkg (and added OcSupportPkg) in his latest commits to AppleSupportPkg. "





Link to comment
Share on other sites

@vit9696

I have tried to compile the latest commit of AppleSupportPkg on GitHub using gcc 8.2 rather than Xcode 10 and get the following error:

[CC] DevicePathUtilities
~/edk2/OcSupportPkg/Library/OcOverflowLib/NativeOverflow.c: In function 'OcOverflowAddUN':
~/edk2/OcSupportPkg/Library/OcOverflowLib/NativeOverflow.c:44:34: error: passing argument 3 of 'OcOverflowAddU32' from incompatible pointer type [-Werror=incompatible-pointer-types]
   return OcOverflowAddU32 (A, B, Result);
                                  ^~~~~~
In file included from ~/edk2/OcSupportPkg/Library/OcOverflowLib/NativeOverflow.c:19:
~/edk2/OcSupportPkg/Include/Library/OcOverflowLib.h:51:12: note: expected 'UINT32 *' {aka 'unsigned int *'} but argument is of type 'UINTN *' {aka 'long long unsigned int *'}
   UINT32  *Result
   ~~~~~~~~~^~~~~~
~/edk2/OcSupportPkg/Library/OcOverflowLib/NativeOverflow.c: In function 'OcOverflowSubUN':
~/edk2/OcSupportPkg/Library/OcOverflowLib/NativeOverflow.c:58:34: error: passing argument 3 of 'OcOverflowSubU32' from incompatible pointer type [-Werror=incompatible-pointer-types]
   return OcOverflowSubU32 (A, B, Result);
                                  ^~~~~~
In file included from ~/edk2/OcSupportPkg/Library/OcOverflowLib/NativeOverflow.c:19:
~/edk2/OcSupportPkg/Include/Library/OcOverflowLib.h:58:12: note: expected 'UINT32 *' {aka 'unsigned int *'} but argument is of type 'UINTN *' {aka 'long long unsigned int *'}
   UINT32  *Result
   ~~~~~~~~~^~~~~~
~/edk2/OcSupportPkg/Library/OcOverflowLib/NativeOverflow.c: In function 'OcOverflowMulUN':
~/edk2/OcSupportPkg/Library/OcOverflowLib/NativeOverflow.c:72:34: error: passing argument 3 of 'OcOverflowMulU32' from incompatible pointer type [-Werror=incompatible-pointer-types]
   return OcOverflowMulU32 (A, B, Result);
                                  ^~~~~~
[CC] Allocate
In file included from ~/edk2/OcSupportPkg/Library/OcOverflowLib/NativeOverflow.c:19:
~/edk2/OcSupportPkg/Include/Library/OcOverflowLib.h:65:12: note: expected 'UINT32 *' {aka 'unsigned int *'} but argument is of type 'UINTN *' {aka 'long long unsigned int *'}
   UINT32  *Result
   ~~~~~~~~~^~~~~~
~/edk2/OcSupportPkg/Library/OcOverflowLib/NativeOverflow.c: In function 'OcOverflowAddSN':
~/edk2/OcSupportPkg/Library/OcOverflowLib/NativeOverflow.c:86:34: error: passing argument 3 of 'OcOverflowAddS32' from incompatible pointer type [-Werror=incompatible-pointer-types]
   return OcOverflowAddS32 (A, B, Result);
                                  ^~~~~~
In file included from ~/edk2/OcSupportPkg/Library/OcOverflowLib/NativeOverflow.c:19:
~/edk2/OcSupportPkg/Include/Library/OcOverflowLib.h:104:11: note: expected 'INT32 *' {aka 'int *'} but argument is of type 'INTN *' {aka 'long long int *'}
   INT32  *Result
   ~~~~~~~~^~~~~~
~/edk2/OcSupportPkg/Library/OcOverflowLib/NativeOverflow.c: In function 'OcOverflowSubSN':
~/edk2/OcSupportPkg/Library/OcOverflowLib/NativeOverflow.c:100:34: error: passing argument 3 of 'OcOverflowSubS32' from incompatible pointer type [-Werror=incompatible-pointer-types]
   return OcOverflowSubS32 (A, B, Result);
                                  ^~~~~~
[SLINK] UefiRuntimeServicesTableLib
In file included from ~/edk2/OcSupportPkg/Library/OcOverflowLib/NativeOverflow.c:19:
~/edk2/OcSupportPkg/Include/Library/OcOverflowLib.h:111:11: note: expected 'INT32 *' {aka 'int *'} but argument is of type 'INTN *' {aka 'long long int *'}
   INT32  *Result
   ~~~~~~~~^~~~~~
~/edk2/OcSupportPkg/Library/OcOverflowLib/NativeOverflow.c: In function 'OcOverflowMulSN':
Building ... ~/edk2/MdePkg/Library/UefiBootServicesTableLib/UefiBootServicesTableLib.inf [X64]
~/edk2/OcSupportPkg/Library/OcOverflowLib/NativeOverflow.c:114:34: error: passing argument 3 of 'OcOverflowMulS32' from incompatible pointer type [-Werror=incompatible-pointer-types]
   return OcOverflowMulS32 (A, B, Result);
                                  ^~~~~~
In file included from ~/edk2/OcSupportPkg/Library/OcOverflowLib/NativeOverflow.c:19:
~/edk2/OcSupportPkg/Include/Library/OcOverflowLib.h:118:11: note: expected 'INT32 *' {aka 'int *'} but argument is of type 'INTN *' {aka 'long long int *'}
   INT32  *Result
   ~~~~~~~~^~~~~~
cc1: all warnings being treated as errors
make: *** [~/edk2/Build/AppleSupportPkg/RELEASE_GCC82/X64/OcSupportPkg/Library/OcOverflowLib/OcOverflowLib/OUTPUT/NativeOverflow.obj] Error 1


build.py...
 : error 7000: Failed to execute command
	make tbuild [~/edk2/Build/AppleSupportPkg/RELEASE_GCC82/X64/OcSupportPkg/Library/OcOverflowLib/OcOverflowLib]


build.py...
 : error F002: Failed to build module
	~/edk2/OcSupportPkg/Library/OcOverflowLib/OcOverflowLib.inf [X64, GCC82, RELEASE]

- Failed -
Build end time: 19:26:54, Oct.09 2018
Build total time: 00:00:05

I've tried to fix these errors but with my limited coding skills I have so far failed. Is it possible to tweak the code to compile using gcc or would you prefer just to stick to Xcode?

  • Like 1
Link to comment
Share on other sites

14 hours ago, Matgen84 said:



Tienes razón  :) en otro tema, @ fusion71au dice: "Sólo una cabeza que @ vit9696 ha quitado EfiMiscPkg (y agregados OcSupportPkg) en su último se compromete a AppleSupportPkg."





Hi Matgen84, I could share your modified Dids Build Clover. I have not got Clover to build virtualSMC.efi in my configuration. Thank you for your attention.

Link to comment
Share on other sites

33 minutes ago, camillionario said:

Hi Matgen84, I could share your modified Dids Build Clover. I have not got Clover to build virtualSMC.efi in my configuration. Thank you for your attention.



I have also not got Clover to build virtualSMC.efi in my configuration. For now, this driver compiles with an xcode5 toolchain, instead of xcode8 toolchain for clover

  • Thanks 1
Link to comment
Share on other sites

@Rehabman



Hi Rehabman



I havv saw you have commit twice related with EDID injection and Devices-Properties and i have test the latest Clover r4707 and still cant inject EDID correctly when i set values in Devices-Properties.



Here are the logs show EDID injection but actually it dont be injected successfully,



25:354  0:000  === [ RestSetup macOS ] ===================================
25:354  0:000  EdidDiscovered size=128
25:354  0:000  --- Discovered EDID Table size:128
25:354  0:000  000  |  00  FF  FF  FF  FF  FF  FF  00  16  83
25:354  0:000  010  |  00  00  00  00  00  00  1A  16  01  04
25:354  0:000  020  |  A5  0F  14  78  06  EF  05  A3  54  4C
25:354  0:000  030  |  99  26  0F  50  54  00  00  00  01  01
25:354  0:000  040  |  01  01  01  01  01  01  01  01  01  01
25:354  0:000  050  |  01  01  01  01  20  4E  00  53  60  00
25:354  0:000  060  |  0B  80  10  0F  71  00  94  C5  00  00
25:354  0:000  070  |  00  18  00  00  00  10  00  00  00  00
25:355  0:000  080  |  00  00  00  00  00  00  00  00  00  00
25:355  0:000  090  |  00  00  00  FE  00  4C  50  30  39  37
25:355  0:000  100  |  51  58  32  2D  53  50  41  56  00  00
25:355  0:000  110  |  00  FC  00  43  6F  6C  6F  72  20  4C
25:355  0:000  120  |  43  44  0A  20  20  20  00  A8
25:355  0:000      HorizontalSyncPulseWidth = 0x0F changed to 0x20
25:355  0:000  --- Patched EDID Table size:128
25:355  0:000  000  |  00  FF  FF  FF  FF  FF  FF  00  16  83
25:355  0:000  010  |  00  00  00  00  00  00  1A  16  01  04
25:355  0:000  020  |  A5  0F  14  78  06  EF  05  A3  54  4C
25:355  0:000  030  |  99  26  0F  50  54  00  00  00  01  01
25:355  0:000  040  |  01  01  01  01  01  01  01  01  01  01
25:355  0:000  050  |  01  01  01  01  20  4E  00  53  60  00
25:355  0:000  060  |  0B  80  10  20  71  00  94  C5  00  00
25:355  0:000  070  |  00  18  00  00  00  10  00  00  00  00
25:355  0:000  080  |  00  00  00  00  00  00  00  00  00  00
25:355  0:000  090  |  00  00  00  FE  00  4C  50  30  39  37
25:355  0:000  100  |  51  58  32  2D  53  50  41  56  00  00
25:355  0:000  110  |  00  FC  00  43  6F  6C  6F  72  20  4C
25:355  0:000  120  |  43  44  0A  20  20  20  00  97
25:355  0:000  add device: PciRoot(0x0)/Pci(0x2,0x0)
25:355  0:000     Add key=framebuffer-stolenmem valuelen=4
25:355  0:000     Add key=framebuffer-patch-enable valuelen=4
25:355  0:000     Add key=framebuffer-fbmem valuelen=4
25:355  0:000     Add key=AAPL,ig-platform-id valuelen=4
25:355  0:000  Intel HD Graphics 5300 [8086:161E] :: PciRoot(0x0)\Pci(0x2,0x0)
25:355  0:000    Found Unknown Resolution Display - ?:? :: Width=1536 Height=2048
25:355  0:000    AAPL00,override-no-connect: added
25:355  0:000    Beginning DualLink auto-detection
25:355  0:000    Unknown Resolution Display
25:355  0:000    AAPL00,DualLink = 1
25:355  0:000    FakeID Intel GFX: not set
25:355  0:000    ig-platform-id = 0x16260006
25:355  0:000    Beginning Intel GFX auto-detection with ACPI injection
25:355  0:000    Found FakeID Intel GFX = 0x161E8086
25:355  0:000  Intel GFX revision  = 0x9
25:355  0:000  stringlength = 2600
25:355  0:000  CurrentMode: Width=1536 Height=2048



Throughout the boot.log it shows it inject EDID first and then inject Properties later and the EDID injection failed when Properties injected.

Link to comment
Share on other sites

5 hours ago, gujiangjiang said:

@Rehabman



Hi Rehabman



I havv saw you have commit twice related with EDID injection and Devices-Properties and i have test the latest Clover r4707 and still cant inject EDID correctly when i set values in Devices-Properties.



Here are the logs show EDID injection but actually it dont be injected successfully,




25:354  0:000  === [ RestSetup macOS ] ===================================
25:354  0:000  EdidDiscovered size=128
25:354  0:000  --- Discovered EDID Table size:128
25:354  0:000  000  |  00  FF  FF  FF  FF  FF  FF  00  16  83
25:354  0:000  010  |  00  00  00  00  00  00  1A  16  01  04
25:354  0:000  020  |  A5  0F  14  78  06  EF  05  A3  54  4C
25:354  0:000  030  |  99  26  0F  50  54  00  00  00  01  01
25:354  0:000  040  |  01  01  01  01  01  01  01  01  01  01
25:354  0:000  050  |  01  01  01  01  20  4E  00  53  60  00
25:354  0:000  060  |  0B  80  10  0F  71  00  94  C5  00  00
25:354  0:000  070  |  00  18  00  00  00  10  00  00  00  00
25:355  0:000  080  |  00  00  00  00  00  00  00  00  00  00
25:355  0:000  090  |  00  00  00  FE  00  4C  50  30  39  37
25:355  0:000  100  |  51  58  32  2D  53  50  41  56  00  00
25:355  0:000  110  |  00  FC  00  43  6F  6C  6F  72  20  4C
25:355  0:000  120  |  43  44  0A  20  20  20  00  A8
25:355  0:000      HorizontalSyncPulseWidth = 0x0F changed to 0x20
25:355  0:000  --- Patched EDID Table size:128
25:355  0:000  000  |  00  FF  FF  FF  FF  FF  FF  00  16  83
25:355  0:000  010  |  00  00  00  00  00  00  1A  16  01  04
25:355  0:000  020  |  A5  0F  14  78  06  EF  05  A3  54  4C
25:355  0:000  030  |  99  26  0F  50  54  00  00  00  01  01
25:355  0:000  040  |  01  01  01  01  01  01  01  01  01  01
25:355  0:000  050  |  01  01  01  01  20  4E  00  53  60  00
25:355  0:000  060  |  0B  80  10  20  71  00  94  C5  00  00
25:355  0:000  070  |  00  18  00  00  00  10  00  00  00  00
25:355  0:000  080  |  00  00  00  00  00  00  00  00  00  00
25:355  0:000  090  |  00  00  00  FE  00  4C  50  30  39  37
25:355  0:000  100  |  51  58  32  2D  53  50  41  56  00  00
25:355  0:000  110  |  00  FC  00  43  6F  6C  6F  72  20  4C
25:355  0:000  120  |  43  44  0A  20  20  20  00  97
25:355  0:000  add device: PciRoot(0x0)/Pci(0x2,0x0)
25:355  0:000     Add key=framebuffer-stolenmem valuelen=4
25:355  0:000     Add key=framebuffer-patch-enable valuelen=4
25:355  0:000     Add key=framebuffer-fbmem valuelen=4
25:355  0:000     Add key=AAPL,ig-platform-id valuelen=4
25:355  0:000  Intel HD Graphics 5300 [8086:161E] :: PciRoot(0x0)\Pci(0x2,0x0)
25:355  0:000    Found Unknown Resolution Display - ?:? :: Width=1536 Height=2048
25:355  0:000    AAPL00,override-no-connect: added
25:355  0:000    Beginning DualLink auto-detection
25:355  0:000    Unknown Resolution Display
25:355  0:000    AAPL00,DualLink = 1
25:355  0:000    FakeID Intel GFX: not set
25:355  0:000    ig-platform-id = 0x16260006
25:355  0:000    Beginning Intel GFX auto-detection with ACPI injection
25:355  0:000    Found FakeID Intel GFX = 0x161E8086
25:355  0:000  Intel GFX revision  = 0x9
25:355  0:000  stringlength = 2600
25:355  0:000  CurrentMode: Width=1536 Height=2048



Throughout the boot.log it shows it inject EDID first and then inject Properties later and the EDID injection failed when Properties injected.

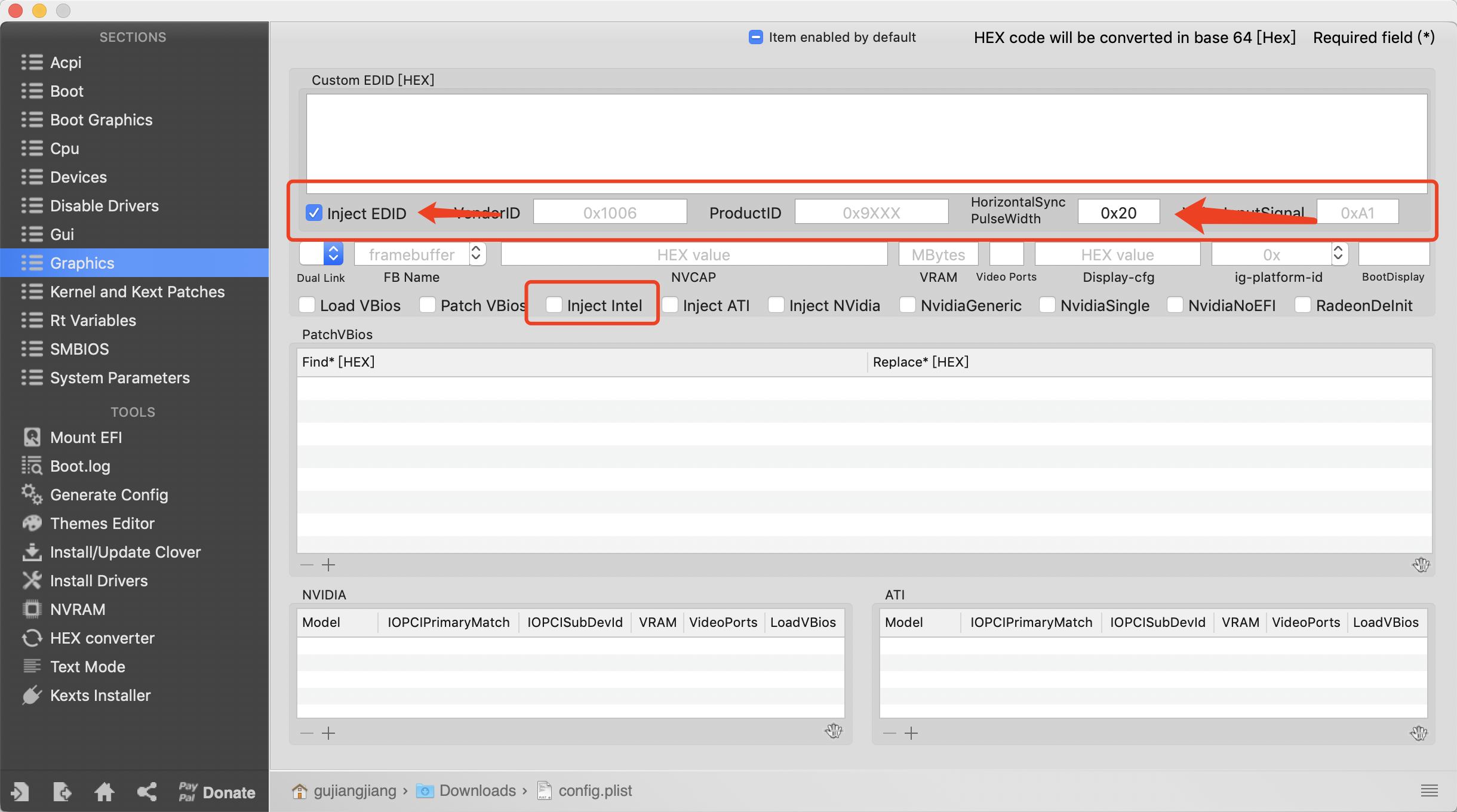

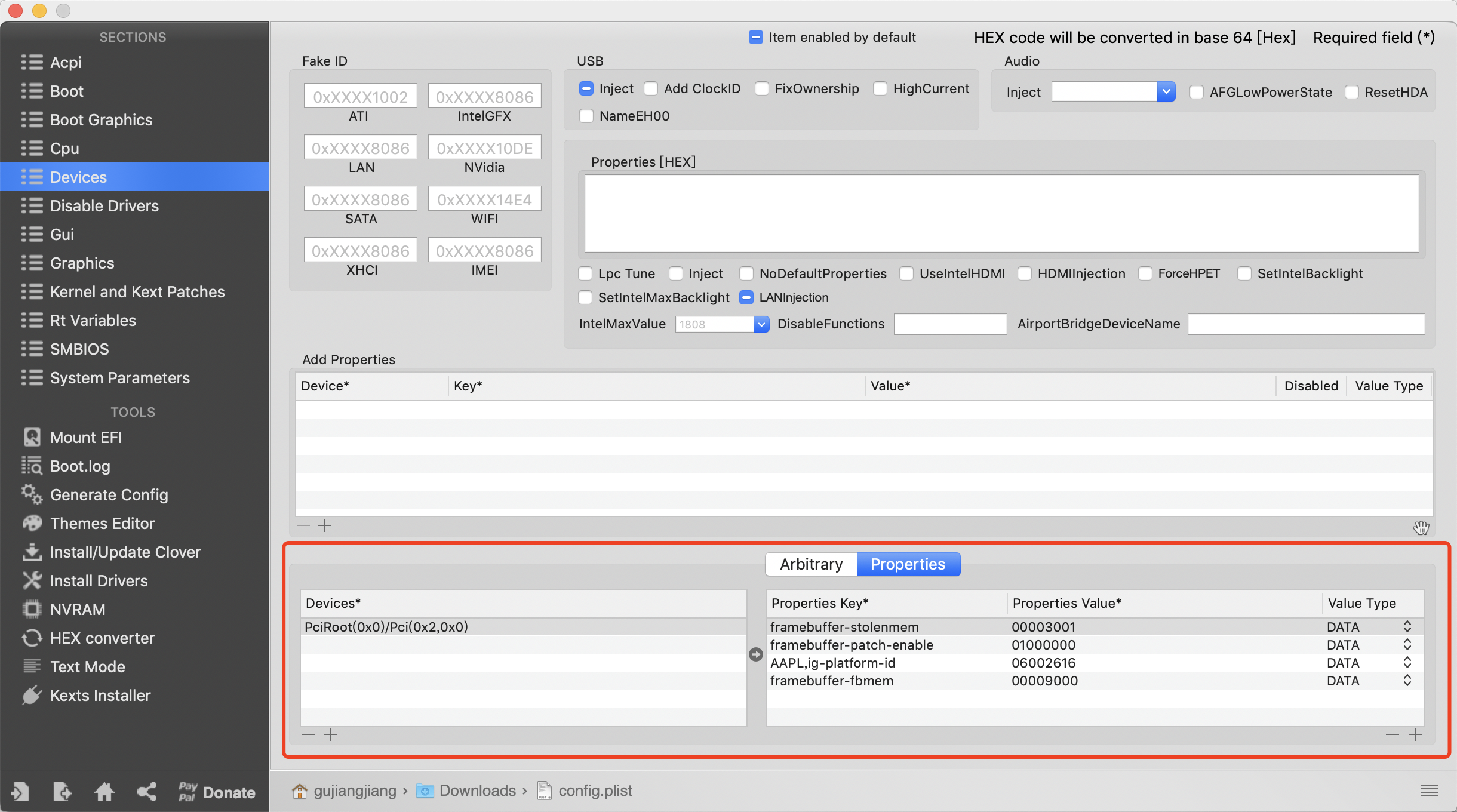

case1

no intel injection, Device/Properties, inject EDID



case2

no intel injection, no inject EDID, Device/Properties(AAPL00,override-no-connect)



case3

intel injection, Device/AddProperties(IntelGFX), inject EDID



i'm using case3

Link to comment
Share on other sites

3 hours ago, Sherlocks said:



case1

no intel injection, Device/Properties, inject EDID



case2

no intel injection, no inject EDID, Device/Properties(AAPL00,override-no-connect)



case3

intel injection, Device/AddProperties(IntelGFX), inject EDID



i'm using case3



i'm using case1(no intel injection, Device/Properties, inject EDID) because i need Intel Framebuffer patching using WhateverGreen with DVMT patch but i must use patched EDID to solve the display problem.



but case1 have conflict between EDID injection and Device/Properties.



Edited by gujiangjiang
Link to comment
Share on other sites

17 hours ago, gujiangjiang said:



i'm using case1(no intel injection, Device/Properties, inject EDID) because i need Intel Framebuffer patching using WhateverGreen with DVMT patch but i must use patched EDID to solve the display problem.



but case1 have conflict between EDID injection and Device/Properties.



I have to remind you a condition for the inject

You must inject override-no-edid manually even if empty.

  • Like 1
Link to comment
Share on other sites

I have to remind you a condition for the inject
You must inject override-no-edid manually even if empty.


Sorry for my ignorance.

I will look into this post carefully and thanks for your help and reply.

Good wishes!


从我的 iPhone 发送,使用 Tapatalk
Link to comment
Share on other sites

On 10/16/2018 at 9:49 AM, Pavo said:

Would like to report F11 in Clover menu isn't clearing all the NVRAM anymore.

@Pavo. i traced NVRAM values and i checked vit9696 cleanvram efi file.

i saw many nvram values for system.

if ease all option, maybe we can lost our system. therefore specific nvram values were removed.



2:259  0:000  DIAGSPLSHSCRN
2:259  0:000  SetupMode
2:259  0:000  SignatureSupport
2:259  0:000  SecureBoot
2:260  0:000  VendorKeys
2:260  0:000  XVar
2:260  0:000  TxeUnlockBootCount
2:260  0:000  BootOptionSupport
2:260  0:000  PlatformLangCodes
2:261  0:000  SctCapResvMemAddr
2:261  0:000  SctCapResvMemSize
2:261  0:000  SetupVolatileData
2:261  0:000  CpuSetupVolatileData
2:262  0:000  ColdReset
2:262  0:000  SaColdReset
2:262  0:000  MeColdReset
2:262  0:000  CpuColdReset
2:262  0:000  PchColdReset
2:262  0:000  IccMbpData
2:263  0:000  ConOutDev
2:263  0:000  ErrOutDev
2:263  0:000  ConInDev
2:263  0:000  MeInfoSetup
2:264  0:000  OsIndicationsSupported
2:264  0:000  BootCurrent
2:264  0:000  AuthVarKeyDatabase
2:264  0:000  VendorKeysNv
2:264  0:000  SaDataBase
2:264  0:000  PbaStatusVar
2:265  0:000  XnoteFpVar
2:265  0:000  SecureBootEnable
2:265  0:000  PciBusSetup
2:265  0:000  MeBiosExtensionSetup
2:265  0:000  SelectView
2:265  0:000  UCR
2:266  0:000  CustomMode
2:266  0:000  MemoryOverwriteRequestControlLock
2:266  0:000  TcgSetup
2:266  0:000  RTC
2:267  0:000  MemoryConfig
2:267  0:000  AcpiGlobalVariable
2:267  0:000  PlatformLang
2:267  0:000  SctLoadDefaultCreateFlag
2:267  0:000  ExFPDT
2:267  0:000  SetupCpuFeatures
2:268  0:000  HDDPWD
2:268  0:000  SinitSvnSetup
2:268  0:000  InitSetupVariable
2:268  0:000  OsProfile
2:268  0:000  TREE_CONFIGURATION
2:268  0:000  Boot0010
2:269  0:000  Boot0011
2:269  0:000  Boot0012
2:269  0:000  Boot0013
2:269  0:000  BootMenu
2:269  0:000  Boot0014
2:270  0:000  Boot0015
2:270  0:000  Boot0016
2:270  0:000  Boot0017
2:270  0:000  Boot0018
2:270  0:000  BootAllPciLan
2:270  0:000  Boot0019
2:271  0:000  BootOrderDefault
2:271  0:000  ProtectedBootOptions
2:271  0:000  Key0000
2:271  0:000  Key0001
2:271  0:000  Key0002
2:272  0:000  Key0003
2:272  0:000  Key0004
2:272  0:000  Key0005
2:272  0:000  Key0006
2:272  0:000  ConOut
2:272  0:000  TrEEPhysicalPresenceFlags
2:273  0:000  TrEEPhysicalPresence
2:273  0:000  BootState
2:273  0:000  S3MemoryVariable
2:273  0:000  CapsuleLongModeBuffer
2:273  0:000  FirmwarePerformance
2:273  0:000  HSTI_RESULTS
2:274  0:000  PlatformConfigurationChange
2:274  0:000  MemoryTypeInformation
2:274  0:000  MeSetupStorage
2:274  0:000  SystemAccess
2:274  0:000  CpuSmm
2:275  0:000  PNP0604_1_VV
2:275  0:000  PNP0604_1_NV
2:275  0:000  PNP0501_0_VV
2:275  0:000  PNP0501_0_NV
2:275  0:000  PNP0510_1_VV
2:275  0:000  PNP0510_1_NV
2:276  0:000  PNP0400_0_VV
2:276  0:000  PNP0400_0_NV
2:276  0:000  PNP0604_0_VV
2:276  0:000  PNP0604_0_NV
2:276  0:000  PNP0501_2_VV
2:277  0:000  PNP0501_2_NV
2:277  0:000  PNP0400_1_VV
2:277  0:000  PNP0400_1_NV
2:277  0:000  PNP0604_2_VV
2:277  0:000  PNP0604_2_NV
2:277  0:000  PNP0501_3_VV
2:278  0:000  PNP0501_3_NV
2:278  0:000  PNP0501_4_VV
2:278  0:000  PNP0501_4_NV
2:278  0:000  PNP0400_2_VV
2:278  0:000  PNP0400_2_NV
2:278  0:000  UserManagerVar
2:279  0:000  Timeout
2:279  0:000  CurrentActivePolicy
2:279  0:000  certdb
2:279  0:000  CurrentPolicy
2:279  0:000  BootDebugPolicyApplied
2:280  0:000  Kernel_SiStatus
2:280  0:000  Kernel_RvkSiStatus
2:280  0:000  Kernel_SkuSiStatus
2:280  0:000  Kernel_WinSiStatus
2:280  0:000  Kernel_ATPSiStatus
2:280  0:000  Kernel_EntRevokeSiStatus
2:281  0:000  WindowsBootChainSvn
2:281  0:000  BootingDeviceTypeInfo
2:281  0:000  UnlockID
2:281  0:000  UnlockIDCopy
2:281  0:000  OfflineUniqueIDEKPub
2:282  0:000  OfflineUniqueIDEKPubCRC
2:282  0:000  dbx
2:282  0:000  MemoryOverwriteRequestControl
2:282  0:000  Boot0001
2:282  0:000  Boot0000
2:282  0:000  UIScale
2:283  0:000  current-network
2:283  0:000  XnoteStat
2:283  0:000  System
2:283  0:000  HDD_Password_Status
2:283  0:000  boot-feature-usage
2:284  0:000  Boot0081
2:284  0:000  Boot0080
2:284  0:000  LastBootOrder
2:284  0:000  LastBootCurrent
2:284  0:000  BiosSetup
2:284  0:000  XnoteBootFailCounts
2:285  0:000  Setup
2:285  0:000  SaSetup
2:285  0:000  PchSetup
2:285  0:000  CpuSetup
2:285  0:000  MeSetup
2:286  0:000  PlatformInfo
2:286  0:000  BootOrder
2:286  0:000  fakesmc-key-$Num-ui8
2:286  0:000  csr-active-config
2:286  0:000  specialbootdevice
2:286  0:000  backlight-level
2:287  0:000  preferred-networks
2:287  0:000  preferred-count
2:287  0:000  bluetoothActiveControllerInfo
2:287  0:000  fakesmc-key-$Adr-ui32
2:287  0:000  fakesmc-key-RMde-char
2:288  0:000  security-mode
2:288  0:000  EFILoginHiDPI
2:288  0:000  flagstate
2:288  0:000  fakesmc-key-RPlt-ch8*
2:288  0:000  fakesmc-key-RBr -ch8*
2:288  0:000  fakesmc-key-EPCI-ui32
2:289  0:000  fakesmc-key-REV -ch8*
2:289  0:000  fakesmc-key-BEMB-flag
2:289  0:000  fakesmc-key-BATP-flag
2:289  0:000  fakesmc-key-BNum-ui8
2:289  0:000  fakesmc-key-BBIN-ui8
2:290  0:000  fakesmc-key-MSTc-ui8
2:290  0:000  fakesmc-key-MSAc-ui16
2:290  0:000  fakesmc-key-MSWr-ui8
2:290  0:000  fakesmc-key-MSFW-ui8
2:290  0:000  fakesmc-key-MSPS-ui16
2:290  0:000  SystemAudioVolumeDB
2:291  0:000  fmm-computer-name
2:291  0:000  fakesmc-key-#KEY-ui32
2:291  0:000  AAPL,PanicInfoLog
2:291  0:000  SystemAudioVolume
2:291  0:000  security-mode
2:292  0:000  backlight-level
2:292  0:000  EFILoginHiDPI
2:292  0:000  flagstate
2:292  0:000  csr-active-config
2:292  0:000  specialbootdevice
2:292  0:000  AAPL,PathProperties0000
2:293  0:000  PVar
2:293  0:000  OpromDevicePath
2:293  0:000  ConIn
2:293  0:000  MTC

Now the macOS nvram value is mixed with the nvram values of my laptop.



what is your left nvram values?

Link to comment
Share on other sites

@Pavo. i worked NVRAM cleaner and tested all.its same that CleanNvram.efi of vit9696. try latest clover.



나의 LG-F800S 의 Tapatalk에서 보냄







Pressing F11 at clover GUI froze up the GUI and deleted the boot option for clover. But it did in fact clean the nvram.



Edit: second reboot cleared nvram, reset boot order and removed custom boot entry but didn’t freeze. I think I had windows highlighted the first time, would that have caused the freeze?



Sent from my iPhone using Tapatalk



Link to comment
Share on other sites


Pressing F11 at clover GUI froze up the GUI and deleted the boot option for clover.


Sent from my iPhone using Tapatalk
froze up -> processing -> reboot okay?
i know vit9696 nvram clear has bootorder remove. i think he want all nvram value initialized. i will add that avoid to remove boot option.

나의 LG-F800S 의 Tapatalk에서 보냄

  • Sad 1
Link to comment
Share on other sites

3 minutes ago, Sherlocks said:

froze up -> processing -> reboot okay?
i know vit9696 nvram clear has bootorder remove. i think he want all nvram value initialized. i will add that avoid to remove boot option.



Then "/EFI/CLOVER/tools/CleanNvram.efi" no longer needed with this rev?

Link to comment
Share on other sites

54 minutes ago, Badruzeus said:

Then "/EFI/CLOVER/tools/CleanNvram.efi" no longer needed with this rev?

right. if you want, press f11 in gui



in r4717. it's fixed.

some users use virtualsmc. but there is previous fakesmc values in NVRAM. in mojave, it's hard to remove it.

because nvram -c command is not working. so you usually use CleanNvram.efi. now in GUI, press f11, you easily remove NVRAM values.


나의 LG-F800S 의 Tapatalk에서 보냄


Edited by Sherlocks
  • Thanks 1
Link to comment
Share on other sites

1 hour ago, Sherlocks said:

froze up -> processing -> reboot okay?
i know vit9696 nvram clear has bootorder remove. i think he want all nvram value initialized. i will add that avoid to remove boot option.

나의 LG-F800S 의 Tapatalk에서 보냄


Thanks, deleting the boot menu will break other OS installations. May prevent booting at all on some systems.

Link to comment
Share on other sites

Thanks, deleting the boot menu will break other OS installations. May prevent booting at all on some systems.
try latest version r4717. cleannvram.efi has deleting the boot menu option. i added that disabled this option. i tested again. there is no problem.

나의 LG-F800S 의 Tapatalk에서 보냄

  • Like 1
Link to comment
Share on other sites

1 minute ago, Sherlocks said:

".. cleannvram.efi has deleting the boot menu option."

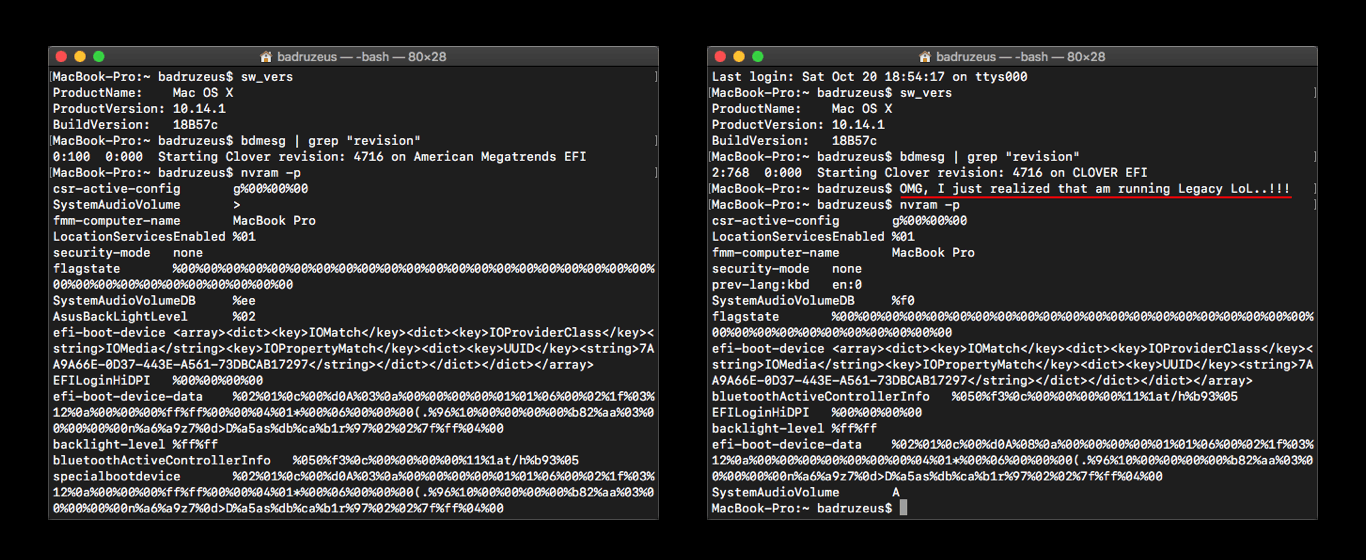

Sorry, I've removed this *.efi before (on last r4716 test) and it still changed bootloader orders.

OK, I'll try again with r4717.

Link to comment
Share on other sites

7 minutes ago, Badruzeus said:



Sorry, I've removed this *.efi before (on last r4716 test) and it still changed bootloader orders.

OK, I'll try again with r4717.



you can't see BootOrder nnvram in macos. cleannvram.efi remove BootOrder nvram value and other from filter that has Boot####.

it affects our clover boot option entry in BIOS.



after press f11, my nvram result(aptiomemoryfix, vitrualsmc). it's very clean status.

Last login: Sat Oct 20 21:15:07 on ttys000
SherloccBookPro:~ sherlocks$ nvram -p
fmm-computer-name	Sherlocks%ec%9d%98 MacBook%c2%a0Pro
security-mode	none
bluetoothActiveControllerInfo	z%e0%89%04%00%00%00%000%14%ac%d1%b8%e2%a4%d0
EFILoginHiDPI	%00%00%00%00
specialbootdevice	%02%01%0c%00%d0A%03%0a%00%00%00%00%01%01%06%00%00%17%03%12%0a%00%01%00%00%00%00%00%04%01*%00%02%00%00%00%00H%06%00%00%00%00%00%00(*%08%00%00%00%00%8f%0a5%8c%c6P%e6C%ad%a6^%16p%d2e%d9%02%02%04%03$%00%f7%fct%be|%0b%f3I%91G%01%f4%04.hB%ba%afc~%ff%1e%a9M%b0%d2$%86%1e%e2HD%7f%ff%04%00
SystemAudioVolume	#
SystemAudioVolumeDB	%d9
csr-active-config	w%00%00%00
backlight-level	i%05
flagstate	%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00
SherloccBookPro:~ sherlocks$



Edited by Sherlocks
  • Confused 1
Link to comment
Share on other sites

3 minutes ago, Sherlocks said:



you can't see BootOrder nnvram in macos. cleannvram.efi remove BootOrder nvram value and other from filter that has Boot####.

it affects our clover boot option entry in BIOS.

OK, not a big issue for me since I have "Boot entry" options on my Aptio BIOS (firmware) and could be re-ordered easily.

  • Like 1
Link to comment
Share on other sites

×
×
  • Create New...
