tivimac Posted November 22, 2006 Share Posted November 22, 2006 Don't worry, I´ll release a test version for alc880 in the next 6 hours Taruga, please check the ALC861 --- THANKS.... Link to comment Share on other sites More sharing options...
shmk Posted November 22, 2006 Share Posted November 22, 2006 Can I ask what files this overwrites? I installed it and everything was fine but I seem to be having a few issues with logic now that I never had before Link to comment Share on other sites More sharing options...
giandal Posted November 22, 2006 Share Posted November 22, 2006 Tried on ASUS p5w dh deluxe. LineOut works great as well as microphone (seen as internal mic). Keyboard volume control is not working, though. I have an Apple pro keyboard. When I press the volume buttons I get the visual feedback correctly, but the volume does not change... the system preferences volume signals a different level than that controlled by the keyboard. Anyway, this is really great!!! Thanks Taruga!!!!! Link to comment Share on other sites More sharing options...
sg Posted November 22, 2006 Share Posted November 22, 2006 Tried on ASUS p5w dh deluxe.LineOut works great as well as microphone (seen as internal mic). Keyboard volume control is not working, though. I have an Apple pro keyboard. When I press the volume buttons I get the visual feedback correctly, but the volume does not change... the system preferences volume signals a different level than that controlled by the keyboard. Anyway, this is really great!!! Thanks Taruga!!!!! are you sure micrphone is actually picking up audio? if so what port are you connecting it to. Link to comment Share on other sites More sharing options...
Taruga Posted November 22, 2006 Author Share Posted November 22, 2006 Can I ask what files this overwrites? I installed it and everything was fine but I seem to be having a few issues with logic now that I never had before There´s no 'logic' with that I use logic too, and got no problems. This installs two kexts, ALCinject.kext and AppleHDA.ext, nothing else. Link to comment Share on other sites More sharing options...
giandal Posted November 22, 2006 Share Posted November 22, 2006 are you sure micrphone is actually picking up audio? if so what port are you connecting it to. It does. I just had a skype conversation! It's the Microphone pink port. Just in case, I've been using the v0.2b. Link to comment Share on other sites More sharing options...
Taruga Posted November 22, 2006 Author Share Posted November 22, 2006 Tried on ASUS p5w dh deluxe.LineOut works great as well as microphone (seen as internal mic). Keyboard volume control is not working, though. I have an Apple pro keyboard. When I press the volume buttons I get the visual feedback correctly, but the volume does not change... the system preferences volume signals a different level than that controlled by the keyboard. Anyway, this is really great!!! Thanks Taruga!!!!! Are you using 0.2b ? or the first one ? Keyboard volume works fine with me with 0.2b Link to comment Share on other sites More sharing options...
giandal Posted November 22, 2006 Share Posted November 22, 2006 Are you using 0.2b ? or the first one ? Keyboard volume works fine with me with 0.2b As in my second message up here, I am using the 0.2b (312.9k)... I did not even try the first one. Is there any kernel dependence or mainboard, or anything that may explain it?? Link to comment Share on other sites More sharing options...
Taruga Posted November 22, 2006 Author Share Posted November 22, 2006 Perhaps there is... As I wrote at the first post, this was tested with an Asus P5LD2-VM ALC882, and may not work the same way with other mobos as with mine. Problems are being reported, and I´ll try to fix them, that´s why I wrote for you guys to report success or problems with this solution to be able to see how things are going with diferent hardware. At the moment, notebooks seem to not work at all. I´ve started gathering info on diferent hardware to be able to support things even better. Link to comment Share on other sites More sharing options...
ldti Posted November 22, 2006 Share Posted November 22, 2006 on the realtek 882d , the mic needs to be amplified greatly. there is some change if i blow air into the mic , but no sound is detected if i speak into it. Link to comment Share on other sites More sharing options...
Rene204 Posted November 22, 2006 Share Posted November 22, 2006 Hi, want to give my feedback too... after install the 0.2b, i had to reboot twice times to get my system connecting to network and start all apps properly. had to repair permissions and prebindings too.. in systemprofiler / extensions, i have seen, that the ALCinject.kext not loaded. But i have still Sound Out, Mic In, but no Headphone here. have tried two Times with Reboot... ALCinject.kext did not load again. everything is working like the 0.1b, but no more. Same Error that is the "Output (gemeral) shown as Port(Line In) and is not working. Line Out and Spdif out is working, same as Mic (internal mic). Hope that Helps.. Rene Link to comment Share on other sites More sharing options...
giandal Posted November 22, 2006 Share Posted November 22, 2006 in systemprofiler / extensions, i have seen, that the ALCinject.kext not loaded.But i have still Sound Out, Mic In, but no Headphone here. I loaded manually ALCinject... now I see that the keyboard controls the volume for the Headphones, but still it is not controlling the volume when Line out is selected... I hope this helps Edit: After rebooting both the Headphones and the Line out are controlled from the keyboard.... I guess there were still some caches somewhere (I hade deleted Extensions.mkext and kextcache, but maybe it was not enough) Now everything works! Thanks once more Taruga!! Link to comment Share on other sites More sharing options...
tomtefar Posted November 22, 2006 Share Posted November 22, 2006 Taruga: I can't use IRC currently but I'm dying .. well.. ok I can't wait.. ehh am anqu.. naah can't spell that.. gonna stick to dying ... to try this out. I'm on an Abit AB9 Pro which uses an ALC882D so I'm thinking I might have to do such a dump as asapreta (and some other guy/girl) did. How do I do that? Cheers! Link to comment Share on other sites More sharing options...
Taruga Posted November 22, 2006 Author Share Posted November 22, 2006 Linux codec dumps helps me a lot to understand why things don´t work on some cases. You can use a live cd distro like Knoppix and then look inside /proc/asound Somewhere there, will be a file named codec#0, do: cat codec#0 > /tmp/alc882d.txt This will create a txt file with what I need in /tmp directory, then send it to me. I loaded manually ALCinject... now I see that the keyboard controls the volume for the Headphones, but still it is not controlling the volume when Line out is selected...I hope this helps Edit: After rebooting both the Headphones and the Line out are controlled from the keyboard.... I guess there were still some caches somewhere (I hade deleted Extensions.mkext and kextcache, but maybe it was not enough) Now everything works! Thanks once more Taruga!! I´m glad to hear that Please note that I´m posting this as beta, and with your help maybe we can make this a complete sound working driver... And not only for ALC882. I started this because of my friends need of Line In and that´s funny because it´s seems it will be the last thing I´ll do to complete this Step by step things are moving, we should be all happy. I´m working now on ALC880... so just keep coming here for news ALC880 users. Link to comment Share on other sites More sharing options...
ldti Posted November 22, 2006 Share Posted November 22, 2006 the new version is better , but still needs some amplification on the mic port Link to comment Share on other sites More sharing options...
Taruga Posted November 22, 2006 Author Share Posted November 22, 2006 the new version is better , but still needs some amplification on the mic port For people with the same problem as ldti, edit AppleHDA.kext Info.plist <key>PathMapID</key> <integer>8</integer> </dict> <dict> <key>PathMap</key> <array> <array> <array> <array> <dict> <key>Amp</key> <dict> <key>Channels</key> <array> <dict> <key>Bind</key> <integer>1</integer> <key>Channel</key> <integer>1</integer> </dict> <dict> <key>Bind</key> <integer>2</integer> <key>Channel</key> <integer>2</integer> </dict> </array> <key>MuteInputAmp</key> <true/> <key>PublishMute</key> <true/> <key>PublishVolume</key> <true/> <key>VolumeInputAmp</key> <true/> </dict> <key>NodeID</key> <integer>7</integer> </dict> <dict> <key>NodeID</key> <integer>36</integer> </dict> <dict> <key>Boost</key> <integer>3</integer> <key>NodeID</key> <integer>24</integer> </dict> </array> </array> </array> And insert what´s in bold. Thanx for reporting that ldti Link to comment Share on other sites More sharing options...
ldti Posted November 22, 2006 Share Posted November 22, 2006 no problem. all of my sound card issues are solved now! p5wd2 premium ICH7 ALC882D Link to comment Share on other sites More sharing options...
Prasys Posted November 22, 2006 Share Posted November 22, 2006 So would it work with a Sigmatel ?. I mean are there any chances for us to port Link to comment Share on other sites More sharing options...
Taruga Posted November 22, 2006 Author Share Posted November 22, 2006 I think I can get it to work with sigmatel too, I´m working now on ALC880 and ALC883, and maybe this weekend I´ll be working on Sigmatel Link to comment Share on other sites More sharing options...
joe75 Posted November 22, 2006 Share Posted November 22, 2006 That would be greatly appreciated Link to comment Share on other sites More sharing options...
Taruga Posted November 22, 2006 Author Share Posted November 22, 2006 I know it would I was sick too of having appleazallia with only line out. Link to comment Share on other sites More sharing options...

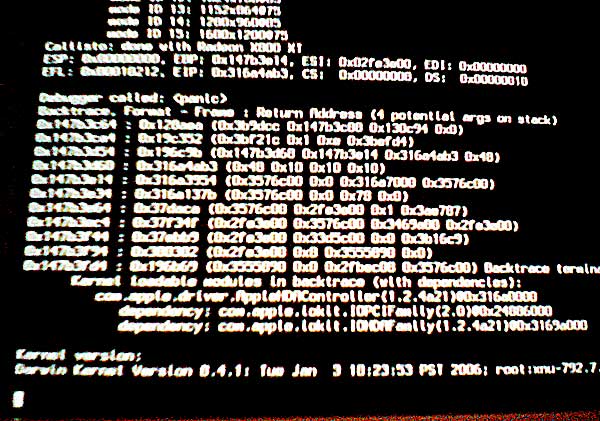

R3TR0 Posted November 22, 2006 Share Posted November 22, 2006 ALC882 Sound Fix v0.2b Was tested with an Asus P5LD2-VM What´s working ... No luck for me =( 0.2b couse kernel panic intel 630 p5wd2prem 10.4.7 (Jas) Realtek alc882 (Azalia was been removed for it) Asus eax800xt (Callisto 008) (azalia works pretty well (but only analog 0ut)) :pirate2: Link to comment Share on other sites More sharing options...
ldti Posted November 22, 2006 Share Posted November 22, 2006 it works here on a p5wd2 prem , but using the new 10.4.8 .... you really should download the new system and kernel Link to comment Share on other sites More sharing options...
jpschoute Posted November 22, 2006 Share Posted November 22, 2006 Hi i have a P5LD2. I installed the b0.2 and i see nothing in my audio hw. What r the steps to take ?! im kinda a noob Link to comment Share on other sites More sharing options...
tokra128 Posted November 22, 2006 Share Posted November 22, 2006 Tanks inm advance Taruga for starting working on sigmatel too, it will be a dream come true - I use sigmatel 9220, the sound it is working at this point, but coming from the wrong jack , and as 5.1 ... it is a dream that I hope will become true with your help ! Link to comment Share on other sites More sharing options...
