AppleHDA Solution - Work in progress


Taruga
 Share

4,108 posts in this topic

Recommended Posts

Some thoughts about the ALC880, I found the AppleHDA.kext from 10.4.8 don't work with ALC880 in any way, so, probably, the one to be modified is the one from 10.4.3; can the Dev take a look on this?. :2cents:

















----------------------------------------------------------------------------------------------------------------------------------

JaS 10.4.8 reseeded DVD.

Intel915gux mobo

GMA900 with full resolutions and QE/CI working

USB working

Firewire pc card working

Bluetooth working

Realtek HD Audio (ALC880, 10ec0880, 26688086) partially working, Line out ok (only stereo). Line in with no boost, with the 10.4.3 kext modified, no mic no spdif.

P-4 2.8 processor reported as 3.06 in About this Mac

2 Gig ddr2 memory

Link to comment
Share on other sites

I'm a little confused. I have an Intel D915GAG, and I thought I had ALC861. Well, I looked in device manager in Windows, and it tellls me I have 880. Is 880 the same as 861? Will the solution you guys are working on work for me, too? Currently, with Azalia, I have the sound out but no sound in.

Link to comment
Share on other sites

Guest bikedude880
Hi i was wonderimg if anyone could help me. I have an INTEL 925XECV motherboard with onboard sound chip.What should I do to make my hackintosh SOUND work?

Any advise would be grately appreciated.



THANX



Any possibility that you could post the specs of you motherboard (chipsets, audio controller, etc.)? Oh wait, never mind... I did it for you:



Intel® Desktop Board D925XECV2



Audio controller: Realtek ALC880D

Chipset: ICH6/ICH6R and 925XE Chipset

Link to comment
Share on other sites

maybe stupid (shure stupid) but how the f**k to get a linux codec dump ? I have finish downloadin ubuntu ... I am on a intel d945gntd mb with a sigmatel 9220 ..... HELP ! what command to write ?



Hey, have you tried this kext:



http://forum.insanelymac.com/index.php?s=&...st&p=249727



It is for 9223, but I think it works for 9220 too.



It is not perfect yet, but at least outputs sound through the correct jack.



Credits to Skippyretard...

Link to comment
Share on other sites

Skippy, GREAT WORK!!!

But Im tested All releases ALC883

RC1 dosnt work for me it just dont load

i tried manually repairing permissions for both files and no way it just dont load

notebook (Acer Aspire 5602)

(i945) IntelHDA. This is results: - ALL VARIANTS down't have any effect! :-(

SPDIF and internal speaker in my laptop have no sound!!!



ALC883 Alpha - input devices is work!

otput (all) line out and internal speaker does'nt work!!

ALC883 beta - the same....

ALC883 RC1 - ALCinject can't loadd...

(permissiont -is ok!)

kextload -t /System/Library/Extensions/ALCinject.kext

kextload: extension /System/Library/Extensions/ALCinject.kext appears to be valid

kextload: /System/Library/Extensions/ALCinject.kext loaded successfully

-BUT in system profiler ALCInject disabled!!!

After changing this kext on the same from ALC883 beta I have result as previos variant...

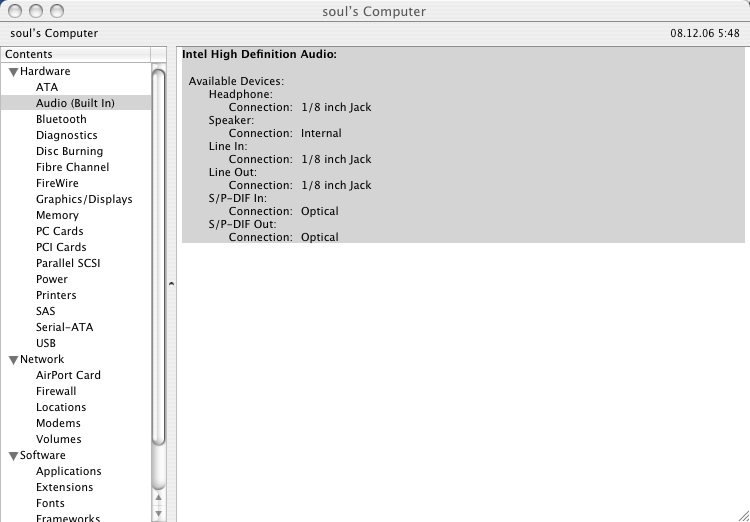

Intel High Definition Audio:



Available Devices:

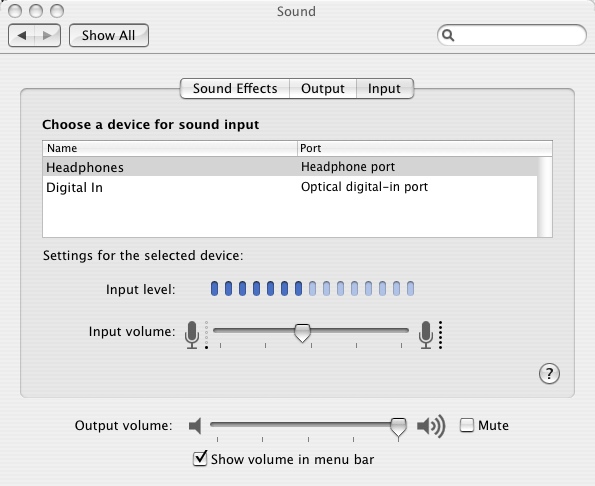

Headphone: Connection: 1/8 inch Jack -NO SOUND but this connector placed in INPUT DEVICES!!!

-it's normally??? this is Mic!!!

Speaker: Connection: Internal-NO SOUND AND THIS DEVICE D'T EXIST IN OTPUT DEVICES

(this may be my problem ? (in mmy notebook) ???

Line In: Connection: 1/8 inch Jack- not tested (this device don't exist in INPUT devices)

Line Out: Connection: 1/8 inch Jack - NO SOUND !!!

S/P-DIF In: Connection: Optical

S/P-DIF Out: Connection: Optical

--------------------------------------------

ALCinject:



Version: 1.0.0d1

Load Address: 0x20872000

Last Modified: 15.11.06 9:18

kext Version: 1.0.0d1

Dependencies: Satisfied

Integrity: Unknown

AppleHDA: Version: 1.2.4

Last Modified: 26.11.06 18:20

kext Version: 1.2.4a21

Load Address: 0x2da9e000

Dependencies: Satisfied

Integrity: Kext is modified

AppleHDAController: Version: 1.2.4

Last Modified: 26.11.06 18:20

kext Version: 1.2.4a21

Load Address: 0x25a25000

Dependencies: Satisfied

Integrity: Kext is modified



PLEASE inser in kex support for internal speaker and SPDF (for all laptop owners) ;-)




Link to comment
Share on other sites

Skippy, GRAET WORK!!!

But Im tested All releases ALC883

RC1 dosnt work for me it just dont load

i tried manually repairing permissions for both files and no way it just dont load

notebook (Acer Aspire 5602)

(i945) IntelHDA. This is results: - ALL VARIANTS down't have any effect! :-(

SPDIF and internal speaker in my laptop have no sound!!!



ALC883 Alpha - input devices is work!

otput (all) line out and internal speaker does'nt work!!

ALC883 beta - the same....

ALC883 RC1 - ALCinject can't loadd...

(permissiont -is ok!)

kextload -t /System/Library/Extensions/ALCinject.kext

kextload: extension /System/Library/Extensions/ALCinject.kext appears to be valid

kextload: /System/Library/Extensions/ALCinject.kext loaded successfully

-BUT in system profiler ALCInject disabled!!!

After changing this kext on the same from ALC883 beta I have result as previos variant...

Intel High Definition Audio:



Available Devices:

Headphone: Connection: 1/8 inch Jack -NO SOUND but this connector placed in INPUT DEVICES!!!

-it's normally??? this is Mic!!!

Speaker: Connection: Internal-NO SOUND AND THIS DEVICE D'T EXIST IN OTPUT DEVICES

(this may be my problem ? (in mmy notebook) ???

Line In: Connection: 1/8 inch Jack- not tested (this device don't exist in INPUT devices)

Line Out: Connection: 1/8 inch Jack - NO SOUND !!!

S/P-DIF In: Connection: Optical

S/P-DIF Out: Connection: Optical

--------------------------------------------

ALCinject:



Version: 1.0.0d1

Load Address: 0x20872000

Last Modified: 15.11.06 9:18

kext Version: 1.0.0d1

Dependencies: Satisfied

Integrity: Unknown

AppleHDA: Version: 1.2.4

Last Modified: 26.11.06 18:20

kext Version: 1.2.4a21

Load Address: 0x2da9e000

Dependencies: Satisfied

Integrity: Kext is modified

AppleHDAController: Version: 1.2.4

Last Modified: 26.11.06 18:20

kext Version: 1.2.4a21

Load Address: 0x25a25000

Dependencies: Satisfied

Integrity: Kext is modified



PLEASE inser in kex support for internal speaker and SPDF (for all laptop owners) ;-)

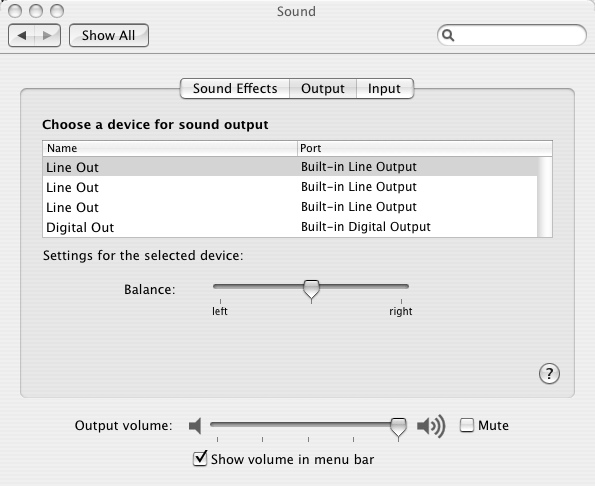

looks like you have alot of out put, do you have more than 2 channels?

Link to comment
Share on other sites

I also have a ConroeXfire as with several people in this thread.



The ConroeXfire uses onboard ALC888 ICH7.



I've tried everything in this thread (Yes, I've actually looked through all 21 pages) and have had no success.



Anyone else with this board that has a solution?

Link to comment
Share on other sites

Guest bikedude880

Almost have full audio under 10.5 9a303 on an ASUS P5LD2-VM w/ALC882 codec. It's all come down to the pinouts.



EDIT: Currently I only have front and rear stereo input/output.

Link to comment
Share on other sites

Guest bikedude880
You suck :pirate2:



Right now I'm trying to figure out how the Info.plist works. I'm hoping that I've changed the Digital Out (which I don't have) to a rear jack (black). Heh... Jack Black... :censored2:

Link to comment
Share on other sites

This is weird.

I can control my headset volume (and separately the main volume) with the keyboard since v0.2 and I have the same motherboard.

I have the same problem with the front mic, though I did not try replacing the nodeid... at least, not yet!



Following Taruga's suggestion and replacing 24 with 25 in the appropriate place I got front mic working, but now I have Kasper's problem: the keyboard does not control my headset volume anymore...

Kasper: Do you still have this problem? How did you solve it?

Link to comment
Share on other sites

Sound card : Sigmatel 9220

Mainboard - Intel D945GNTD

OSx - 10.4.8 - latest beta kernel for sse3 (version 8)

I was try all the version regarding sigmatel on this forum, none work

Finnaly, I have put my hands on ubuntu, and here is the codec dump



At this point I have sound using the patch from JaS dvd, but is comming from the wrong Jack (blue instead of green) and the microphone is unnusable.... the recorded sound is to low .. Maybe someone will help me with this one... Tanks if it will be possible !

sigmatel.txt

Link to comment
Share on other sites

Guest
This topic is now closed to further replies.
