soundandvision88
soundandvision88
Posted
Posted

I have a Lenovo N100 as well and got the audio working (with no volume control unfortunately... but hey, it's audio) with ALCInject.kext . I forget which codec it is exactly but that can be found out pretty easy. Search the forums and you'll come across it pretty easy. I'd give you more details but unfortunately I'm in a hurry now. If you don't have any luck PM me and I'll point you in the right direction later. Good luck!

Link to comment
Share on other sites
a6d9cmro
a6d9cmro
Posted
Posted

@Stellarolla: How did you get your sound to stay once the dump was done? I used V1.20 and the linux dump I created. As soon as I did it, my sound icon showed up. I repaired permissions, rebooted, and no more audio. What did I do wrong.



In order to get this to hopefully work again, I removed the ALCinject and appleHDA kexts.



After I did the above, sound shows back up again. I am definitely confused.

Link to comment
Share on other sites
weisman87
weisman87
Posted
Posted

Taruga:



I'm using an Intel D975XBX2 with SigmaTel STAC9247D (that's what the manual says), is this the same as STAC9274D? I tried using the AppleHDAPatcher with the 9274D codec, but it said I had an "unsupported codec." Could you please tell me where I can get the codec I need or if you could walk me through how to do this? I'm desperate! Please message me back...

Link to comment
Share on other sites
VampireMI2
VampireMI2
Posted
Posted

I Have Problem about my audio, I have ASUS P5GD1 with ALC861.

But, my system(10.4.11-Darwin 8.9.1) have only output audio (Stereo)

And Front panel (Mic n Headphone) not work



Here is My Code Dump



Codec: Realtek ALC880
Address: 0
Vendor Id: 0x10ec0880
Subsystem Id: 0x8800000
Revision Id: 0x90500
Default PCM:
   rates [0x560]: 44100 48000 96000 192000
   bits [0xe]: 16 20 24
   formats [0x1]: PCM
Default Amp-In caps: N/A
Default Amp-Out caps: N/A
Node 0x02 [Audio Output] wcaps 0x411: Stereo
 PCM:
   rates [0x560]: 44100 48000 96000 192000
   bits [0xe]: 16 20 24
   formats [0x1]: PCM
 Power: 0x0
Node 0x03 [Audio Output] wcaps 0x411: Stereo
 PCM:
   rates [0x560]: 44100 48000 96000 192000
   bits [0xe]: 16 20 24
   formats [0x1]: PCM
 Power: 0x0
Node 0x04 [Audio Output] wcaps 0x411: Stereo
 PCM:
   rates [0x160]: 44100 48000 96000
   bits [0xe]: 16 20 24
   formats [0x1]: PCM
 Power: 0x0
Node 0x05 [Audio Output] wcaps 0x411: Stereo
 PCM:
   rates [0x160]: 44100 48000 96000
   bits [0xe]: 16 20 24
   formats [0x1]: PCM
 Power: 0x0
Node 0x06 [Audio Output] wcaps 0x211: Stereo Digital
 PCM:
   rates [0x160]: 44100 48000 96000
   bits [0x1e]: 16 20 24 32
   formats [0x1]: PCM
Node 0x07 [Audio Input] wcaps 0x10051b: Stereo Amp-In
 Amp-In caps: ofs=0x00, nsteps=0x23, stepsize=0x03, mute=1
 Amp-In vals:  [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00]
 PCM:
   rates [0x160]: 44100 48000 96000
   bits [0x6]: 16 20
   formats [0x1]: PCM
 Power: 0x0
 Connection: 7
    0x18* 0x19 0x1a 0x1b 0x1c 0x14 0x15
Node 0x08 [Audio Input] wcaps 0x10051b: Stereo Amp-In
 Amp-In caps: ofs=0x00, nsteps=0x23, stepsize=0x03, mute=1
 Amp-In vals:  [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00]
 PCM:
   rates [0x160]: 44100 48000 96000
   bits [0x6]: 16 20
   formats [0x1]: PCM
 Power: 0x0
 Connection: 7
    0x18* 0x19 0x1a 0x1b 0x1c 0x14 0x15
Node 0x09 [Audio Input] wcaps 0x10051b: Stereo Amp-In
 Amp-In caps: ofs=0x00, nsteps=0x23, stepsize=0x03, mute=1
 Amp-In vals:  [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00]
 PCM:
   rates [0x160]: 44100 48000 96000
   bits [0x6]: 16 20
   formats [0x1]: PCM
 Power: 0x0
 Connection: 10
    0x18* 0x19 0x1a 0x1b 0x1c 0x0b 0x14 0x15 0x16 0x17
Node 0x0a [Audio Input] wcaps 0x100391: Stereo Digital
 PCM:
   rates [0x160]: 44100 48000 96000
   bits [0x1e]: 16 20 24 32
   formats [0x1]: PCM
 Connection: 1
    0x1f
Node 0x0b [Audio Mixer] wcaps 0x20010b: Stereo Amp-In
 Amp-In caps: ofs=0x23, nsteps=0x41, stepsize=0x03, mute=1
 Amp-In vals:  [0x80 0x80] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x34 0x34] [0xa3 0xa3] [0xa3 0xa3] [0xa3 0xa3]
 Connection: 8
    0x18 0x19 0x1a 0x1b 0x1c 0x1d 0x14 0x15
Node 0x0c [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out
 Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
 Amp-In vals:  [0x00 0x00] [0x00 0x00]
 Amp-Out caps: ofs=0x40, nsteps=0x40, stepsize=0x03, mute=0
 Amp-Out vals:  [0x34 0x34]
 Connection: 2
    0x02 0x0b
Node 0x0d [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out
 Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
 Amp-In vals:  [0x80 0x80] [0x80 0x80]
 Amp-Out caps: ofs=0x40, nsteps=0x40, stepsize=0x03, mute=0
 Amp-Out vals:  [0x00 0x00]
 Connection: 2
    0x03 0x0b
Node 0x0e [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out
 Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
 Amp-In vals:  [0x80 0x80] [0x80 0x80]
 Amp-Out caps: ofs=0x40, nsteps=0x40, stepsize=0x03, mute=0
 Amp-Out vals:  [0x00 0x00]
 Connection: 2
    0x04 0x0b
Node 0x0f [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out
 Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
 Amp-In vals:  [0x80 0x80] [0x80 0x80]
 Amp-Out caps: ofs=0x40, nsteps=0x40, stepsize=0x03, mute=0
 Amp-Out vals:  [0x00 0x00]
 Connection: 2
    0x05 0x0b
Node 0x10 [Audio Selector] wcaps 0x300101: Stereo
 Connection: 4
    0x0c 0x0d 0x0e* 0x0f
Node 0x11 [Audio Selector] wcaps 0x300101: Stereo
 Connection: 4
    0x0c* 0x0d 0x0e 0x0f
Node 0x12 [Audio Selector] wcaps 0x300101: Stereo
 Connection: 4
    0x0c 0x0d* 0x0e 0x0f
Node 0x13 [Audio Selector] wcaps 0x300101: Stereo
 Connection: 4
    0x0c* 0x0d 0x0e 0x0f
Node 0x14 [Pin Complex] wcaps 0x40018d: Stereo Amp-Out
 Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
 Amp-Out vals:  [0x00 0x00]
 Pincap 0x083f: IN OUT HP Detect
 Pin Default 0x01014120: [Jack] Line Out at Ext Rear
   Conn = 1/8, Color = Green
 Pin-ctls: 0xc0: OUT HP
 Connection: 1
    0x0c
Node 0x15 [Pin Complex] wcaps 0x40018d: Stereo Amp-Out
 Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
 Amp-Out vals:  [0x80 0x80]
 Pincap 0x083f: IN OUT HP Detect
 Pin Default 0x01011121: [Jack] Line Out at Ext Rear
   Conn = 1/8, Color = Black
 Pin-ctls: 0x40: OUT
 Connection: 1
    0x0d
Node 0x16 [Pin Complex] wcaps 0x40018d: Stereo Amp-Out
 Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
 Amp-Out vals:  [0x80 0x80]
 Pincap 0x083f: IN OUT HP Detect
 Pin Default 0x01016122: [Jack] Line Out at Ext Rear
   Conn = 1/8, Color = Orange
 Pin-ctls: 0x40: OUT
 Connection: 1
    0x0e
Node 0x17 [Pin Complex] wcaps 0x40018d: Stereo Amp-Out
 Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
 Amp-Out vals:  [0x80 0x80]
 Pincap 0x083f: IN OUT HP Detect
 Pin Default 0x40000000: [N/A] Line Out at Ext N/A
   Conn = Unknown, Color = Unknown
 Pin-ctls: 0x40: OUT
 Connection: 1
    0x0f
Node 0x18 [Pin Complex] wcaps 0x40018d: Stereo Amp-Out
 Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
 Amp-Out vals:  [0x80 0x80]
 Pincap 0x08133f: IN OUT HP Detect
 Pin Default 0x01a19140: [Jack] Mic at Ext Rear
   Conn = 1/8, Color = Pink
 Pin-ctls: 0x24: IN
 Connection: 1
    0x10
Node 0x19 [Pin Complex] wcaps 0x40018d: Stereo Amp-Out
 Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
 Amp-Out vals:  [0x80 0x80]
 Pincap 0x08133f: IN OUT HP Detect
 Pin Default 0x02a19160: [Jack] Mic at Ext Front
   Conn = 1/8, Color = Pink
 Pin-ctls: 0x24: IN
 Connection: 1
    0x11
Node 0x1a [Pin Complex] wcaps 0x40018d: Stereo Amp-Out
 Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
 Amp-Out vals:  [0x80 0x80]
 Pincap 0x08133f: IN OUT HP Detect
 Pin Default 0x01813130: [Jack] Line In at Ext Rear
   Conn = 1/8, Color = Blue
 Pin-ctls: 0x20: IN
 Connection: 1
    0x12
Node 0x1b [Pin Complex] wcaps 0x40018d: Stereo Amp-Out
 Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
 Amp-Out vals:  [0x80 0x80]
 Pincap 0x08133f: IN OUT HP Detect
 Pin Default 0x02214150: [Jack] HP Out at Ext Front
   Conn = 1/8, Color = Green
 Pin-ctls: 0x40: OUT
 Connection: 1
    0x13
Node 0x1c [Pin Complex] wcaps 0x400001: Stereo
 Pincap 0x0820: IN
 Pin Default 0x99331100: [Fixed] CD at Int ATAPI
   Conn = ATAPI, Color = Black
 Pin-ctls: 0x00:
Node 0x1d [Pin Complex] wcaps 0x400000: Mono
 Pincap 0x0820: IN
 Pin Default 0x40000000: [N/A] Line Out at Ext N/A
   Conn = Unknown, Color = Unknown
 Pin-ctls: 0x00:
Node 0x1e [Pin Complex] wcaps 0x400300: Mono Digital
 Pincap 0x0810: OUT
 Pin Default 0x01451110: [Jack] SPDIF Out at Ext Rear
   Conn = Optical, Color = Black
 Pin-ctls: 0x00:
 Connection: 1
    0x06
Node 0x1f [Pin Complex] wcaps 0x400200: Mono Digital
 Pincap 0x0820: IN
 Pin Default 0x40000000: [N/A] Line Out at Ext N/A
   Conn = Unknown, Color = Unknown
 Pin-ctls: 0x00:
Node 0x20 [Vendor Defined Widget] wcaps 0xf00040: Mono
Node 0x21 [Volume Knob Widget] wcaps 0x600080: Mono



Can someone help me pleases!!!!!

Or Send to me Pleases

vampiremi2@hotmail.com

Link to comment
Share on other sites
teka
teka
Posted
Posted

I've spent the last few hours searching and going through countless threads here trying to find a way to get my hackintosh (dell 8400 running kalyway 10.5.2) to have sound enabled. I've tried getting codec dumps from both Ubuntu (edgey) and Knoppix 5.1, but my /proc/asound dumps look like this, though a few of the numbers/descriptions may change.



knoppix@Knoppix:~$ cat /proc/asound/card0/codec97#0/ac97#0-0

0-0/0: SigmaTel STAC9750,51



PCI Subsys Vendor: 0x0000

PCI Subsys Device: 0x0000



Capabilities : -headphone out-

DAC resolution : 20-bit

ADC resolution : 20-bit

3D enhancement : SigmaTel 3D Enhancement



Current setup

Mic gain : +0dB [+0dB]

POP path : pre 3D

Sim. stereo : off

3D enhancement : off

Loudness : off

Mono output : MIX

Mic select : Mic1

ADC/DAC loopback : off

Extended ID : codec=0 rev=1 AMAP DSA=0 SPDIF VRA

Extended status : SPCV SPDIF=7/8

PCM front DAC : 48000Hz

PCM ADC : 48000Hz

SPDIF Control : Consumer PCM Copyright Category=0x0 Generation=0 Rate=48kHz



There are of course a few deviations depending on whether I'm doing card0, card1, or card2, and while I'm in Knoppix or Ubuntu I have sound, but my output doesn't look anything like that of every other codec dump I've seen.



Is this behaviour indicative of Dell's earlier systems, or something else? I'm really running an Audigy ZS 2, but I have onboard sound, and ensured that it was enabled from within my BIOS.



If anyone could shed any light on what else I could possibly try so that I can use the HDA patcher, I would be much obliged.



I did notice while Knoppix was starting that it said it found an unidentified sound card, 0556:0001. I'm guessing those were the vendor/device IDs, right?



I've tried a few different SigmaTel dumps to write to a new kext, but to no avail.



I thought I wasn't a noob, but now I'm not quite so sure! :(



Thank you in advance if you can help.



Cheers,

Teka

Link to comment
Share on other sites
peptonite
peptonite
Posted
Posted

I have a dell inspiron 6400 and as i install the taruga patch for sigmatel 92xx on my laptop i get kernel panic when i shut down on battery and have to press the power button to shut down.

Any suggestion? I have kalyway 10.5.1 with vanilla kernel efi mbr. It's very strange because it does it only when i shut down in battery not when ac is plugged.

Thanx for the help.

Link to comment
Share on other sites
DaveGee
DaveGee
Posted
Posted
Taruga:



I'm using an Intel D975XBX2 with SigmaTel STAC9247D (that's what the manual says), is this the same as STAC9274D? I tried using the AppleHDAPatcher with the 9274D codec, but it said I had an "unsupported codec." Could you please tell me where I can get the codec I need or if you could walk me through how to do this? I'm desperate! Please message me back...





It would seem ALL versions of Taruga's patcher **AFTER** 1.16 are **SCREWED** when it comes to the Intel Bad Axe 2 mobo (STAC9274D). This has come up quite a few times in this message thread but nothing was ever done to rectify the problem (not that I've been able to find anyway)... The only solution that worked for me is to download v1.16 (download link available on 1st page of this thread) -- it is working for me and my 10.5.2 booted system...



Hope this helps



Dave

Link to comment
Share on other sites
ixFOCUSxi
ixFOCUSxi
Posted
Posted

ok im Useing the AppleHDAPatcher_v1.13.app & AppleHDAPatcherv1.20.app & code ------- STAC9227_83847618.txt





on My DELL XPS 420

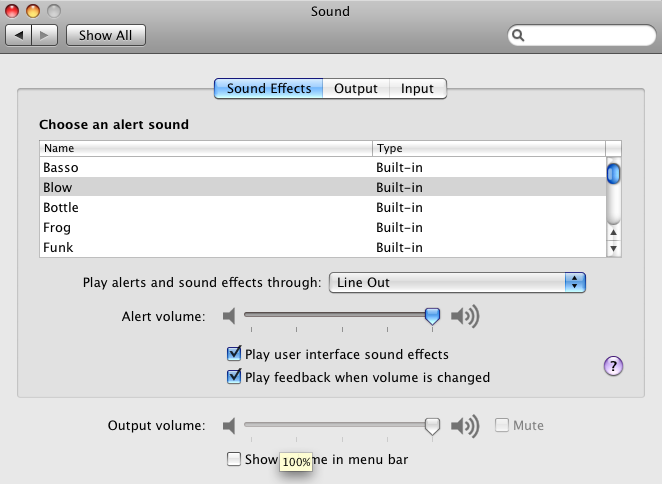

ANd it work 100% but when restart the Pc is gone and the code is not working what do i have to do?

Link to comment
Share on other sites
Headrush69
Headrush69
Posted
Posted
ANd it work 100% but when restart the Pc is gone and the code is not working what do i have to do?

I told you already this was a know problem and we don't have a complete solution yet.



Try with v1.13, reboot, do with v1.2, reboot, and may appear in afew seconds after booting.

Link to comment
Share on other sites
wolf
wolf
Posted
Posted

Hi!

I have an issue with sound. I don't know how to fix it!

Info first :

MB 945gnt

P P4 630

OSX 10.5.2 (ToH 10.5 than netkas guide update to 10.5.2, than graphic update)

sound:sigmatel. AppleHDA.kext from 10.5.2. Pclinuxos cat gives 9221 a1 dump, Knopix gives same (does not say 9221 a1 but generic though) It does not work with any of Taruga's hda patchers.

No sound at all!



But, when I install Sigmatel9220Audio.Support.pkg, repair permissions and reboot I get the sound like I used to have on Tiger. Blue port sound out. Mic works great from pink port. UPON REBOOT I GET NO SOUND AGAIN. If I install Sigmatel9220Audio.Support.pkg again then repair permissions reboot I do have sound again. And on and on... I DO NOT GET sound every other reboot after successful instalation of Sigmatel9220Audio.Support.pkg. WHAT AM I MISSING?



I just wander if I should add some lines to com.apple.boot.plist Seems like sound chip is initialized and then after second reboot is not. And then I have to install kexts again. I am kind of confused. I have never had this kind of problem.!

Thanx in advance! :D

Link to comment
Share on other sites
wolf
wolf
Posted
Posted

UPDATE:

I have found out that AppleHDA.kext does not load upon restart. How to make it loadable all the time? Even when I load it manually in terminal with kextload -t and then restart, it does not load. It is loaded only after installation of Sigmatel9220Audio.Support.pkg and it works only after ONE restart. Tonight I am downloading UBUNTU just to check if I can get the right sigmatel codec from cat.!!!

I need a beer!

Cheers!

;)

Link to comment
Share on other sites
Viko
Viko
Posted
Posted

Thanks for the apple patcher taruga

i used the patcher on a acl662 that had sound working from a iatkos 10.5.1 but no mic or in-input after using the patch my sound decided to go on vacation now i got mic and input but no sound great, but a computer without sound basically useless.

again thanks for your hard work if you could see on this problem would be very grateful.

thanks again

Link to comment
Share on other sites
morph
morph
Posted
Posted

I got ALC861_0x10ec0861Installer.zip works (ALC861.zip works too) on ASUS F3JC laptop :) . There is no sound from headset, just internal speakers :( .

Could be posible fix headset or Taruga are working on it? I´m thinking connect my laptop to TV but need headset. Thanks.

Link to comment
Share on other sites
michaspoli
michaspoli
Posted
Posted

I have a Problem to get my Micro (input) to work.



Motherboard Abit LG-95C - I Think ALC822 - Kalyway 10.5.2



Do someone have this Realtek HDA Soundcard fully working? I need Microfon for Skype.



Thanks for help



I am googling and reading since 4 hours and testing so much kext files..... Always no input :(

Link to comment
Share on other sites
jjduro
jjduro
Posted
Posted
I got ALC861_0x10ec0861Installer.zip works (ALC861.zip works too) on ASUS F3JC laptop :) . There is no sound from headset, just internal speakers :D .

Could be posible fix headset or Taruga are working on it? I´m thinking connect my laptop to TV but need headset. Thanks.





You have in fact sound on your headphones. The thing is, it's just in a very low level. try do connect your external speakers to the output jack, and turn the sound to the max...



Taruga says that problem will, probably, be fixed on V2... Just have to wait

Link to comment
Share on other sites
kiboo
kiboo
Posted
Posted

hello,

I'm trying to run my stupid built-in Sigmatel sound card (Dell XPS 420) on 10.5.1

tried different versions of AppleHDAPatcher and different Dump files

nothing seems to make audio works!



in C:\Program Files\SigmaTel\C-Major Audio\



there's a Version.txt file:

Title: Audio: SIGMATEL STAC 92XX C-Major HD Audio Driver

Version : A04

OEM name : SIGMATEL

OEM Version: 6.10.0.5511

Computers : Dimension: 9100, C521, DM061, DXC061, DXP061, E521; OptiPlex: 740; Precision: 390, 490, 690; XPS: 420, XPS710



any one with similar pc been able to solve this?

any suggestions?

thanks

Link to comment
Share on other sites
.ark
.ark
Posted
Posted

No dice on 10.5.1 for the Sigmatel 9271 on the Intel DG33TL board. If anybody can find it useful, I've included the linux codec dump. This mess is giving me incentive to learn how to write an audio driver :/ Using the provided kexts from the first post results in an output device but no sound.



Pity, since this was an awesome combo deal. I'm really not too happy about the state of Apple Audio Hardware support (or lack thereof). Then again, with processors these days, you probably don't need dedicated hardware processing for home PC use. I'm currently using the USB dongle that came with my voip headset as a pass-through to my speakers so I can get sound.

stac9271.txt

Link to comment
Share on other sites
kiboo
kiboo
Posted
Posted

@bigdaddyrob2g

yeah I had to use the Natit.kext to get my ATI HD 2600 XT to work,

before that I was getting mosaic-like display!



I read your post about using only sound in EFI...

and tried to copy the com.apple.Boot.plist into LaunchDaemosn(?) and delete the ACLinject.kext then reboot..



nothing happens!

thanks

Link to comment
Share on other sites
Guest
This topic is now closed to further replies.
 Share
Go to topic listing
×
×
  • Create New...
