WhatEverGreen Support Topic

[pink101]

hello, i need help regarding lilu and whatevergreen. I tried to install high sierra on my legacy system, it's an DFI DK X58=T3eH6 mobo with xeon processor and amd radeon hd 7770 2GB. after installation, when i boot with radpg=15 it shows white screen, then i tried to boot with -radvesa and it can enter the login screen without acceleration, so to do some setting i temporarily use -radvesa to get into high sierra, then when i erase the -radvesa from boot argument and change it back to radpg=15, it still enter vesa mode, how do i fix this? i already tried booting with -f and it still boot to vesa mode. Also, in the Radeon FAQ file, it said that we should empty the framebuffer setting in clover, so inside the config.plist i already deleted the framebuffer setting, but when i boot to clover and scroll to the framebuffer setting, it automaticly filled with my last setting, i have to delete it manually everytime i boot, is there a cache or something that clover do to make the setting re-appeared in clover boot menu? because i check the config.plist and the framebuffer isnt there...

[Anonym323]

Any news on Ice Lake Intel Iris Plus Support?





[dragonmel]

I have been having issues getting a intel DX58so with a gulftown W3680 running smothly with Mojave



I can only boot with one monitor on (DP-HDMI Adapter) and the other monitor off (HDMI)



to use both, I have to boot and sleep/wake (which sometimes doesnt wake the monitor console showing gpu restarts) then it will work with dual monitors



A have been stuck at WEG 1.3.8 but noticed in the latest WEG release specific updates for WESTMERE



will the latest WEG/LILU improvoe my situation?



booting UEFI (although this was intels first UEFI effort and its purportidly buggy)

clover 5115

split personallity Mac Pro 5.1 sysdef with imac pro id

w3680 VEGA 56 airboost



everything works except for dual monitor black screen if both are on at boot time.. very frustrating







[pkendall]

Hi, I have a dell optiplex 9020 running nicely with opencore 0.6.0 and friends. The machine has a Yeston RX 550 640SP 4GB video card with device-id 67ff and this works really nicely. I have a 3440x1440 UWQHD display.

The problem that I have is when I wake the machine from sleep, I get the top left 640x480 part of the screen centred in the display flashing alternating white and the correct part of the image.



If anyone has seen this or knows of a fix please let me know. I've searched in vain for the last couple of days and found nothing. If there is any info I can provide, just let me know.



[v.osypets]

Hello, guys.



Is there anyone know how to properly make mask for Whatevergreen parameter igfxonlnfbs=MASK when I have need to force online only one connector, which has number 2?



Thank you

[joevt]

27 minutes ago, v.osypets said:

Hello, guys.



Is there anyone know how to properly make mask for Whatevergreen parameter igfxonlnfbs=MASK when I have need to force online only one connector, which has number 2?



Thank you





The boot-args are documented (but only briefly) at https://github.com/acidanthera/WhateverGreen

I think most of them could use a little more detail.



For igfxonlnfbs, you also need igfxonln=1 (this is not clearly stated in the doc).

igfxonlnfbs has the same format as igfxfcmsfbs .





[v.osypets]

57 minutes ago, joevt said:





The boot-args are documented (but only briefly) at https://github.com/acidanthera/WhateverGreen

I think most of them could use a little more detail.



For igfxonlnfbs, you also need igfxonln=1 (this is not clearly stated in the doc).

igfxonlnfbs has the same format as igfxfcmsfbs .



Wow. Thank you for explanation. I saw that documentation, but there is no any clear connection between those two arguments, except of their functional similarity.



So, do I need just add in boot-args these two arguments?



igfxonln=1 igfxonlnfbs=0x02

Is that right?

[joevt]

8 hours ago, v.osypets said:



Wow. Thank you for explanation. I saw that documentation, but there is no any clear connection between those two arguments, except of their functional similarity.



So, do I need just add in boot-args these two arguments?



igfxonln=1 igfxonlnfbs=0x02

Is that right?

Seems correct.

[vladie]

Have some problems with Amd Radeon Pro w5500 (navi) card. It works only with agdpmod=pikera, but have cursor lagging problem (cursor freezes for a 1/10s every two seconds). Vega64 works like a charm. ps. Tested with latest catalina and latest big sur beta.

Edited September 5, 2020 by vladie

[v.osypets]

Hey guys!

I bought a new machine - hp elite desk 800 g5 with i5-9500T and RX560X on board. I thought it will easy thing to run there Catalina, but something is going wrong, because after boot process and apple logo I have black screen (display illuminated, system booted and even sound via DP works) with discrete card and connected with it through DP monitor.

Here is the list what I have tried to do:



- CSM - on/off;

- boot with and without Whatevergreen;

- boot with ejected 0300913E framebuffer;



Videocard has supported device-id - 0x67ff.

I use iMac19,1 SMBIOS.



All my attempts was with latest Catalina release.



Is there something which I missing? Maybe it need to do some additional tuning, because it's proprietary video card with some tricky vBIOS?



Thank you

[aeroxy]

GFX0 failed to be recognized as iGPU on GA-Z270P-D3, also the HDMI output has a weird green tint (forcing the framebuffer-conX to HDMI would add weird occational short black screens), 1.4.2, on OS 10.15.6.

[viktr]

shiki/drm stopped working with safari 14. Is there a way to fix it? Ty!

[Neblogas]

Hi everyone,



I've been trying to run my Laptop HDMI port in 4K30Hz for days now. I'm pulling my hair off!!I've tried various configurations with Hackintool. Most of the time I get LV display going on and off when connecting to HDMI cable. The monitor itself is trying to connect but stays black. I also can see that the monitor is detected in about my Mac.



What is weird - sometimes it works and I get full 4K30Hz, but after sleep monitor stays black. 1080p monitors work without big issues. also deleting Colorsync profiles, most of the time i get the monitor to work.



I'm using OC 0.6.1 with newest kexts

i7 10510U with UHD Graphics

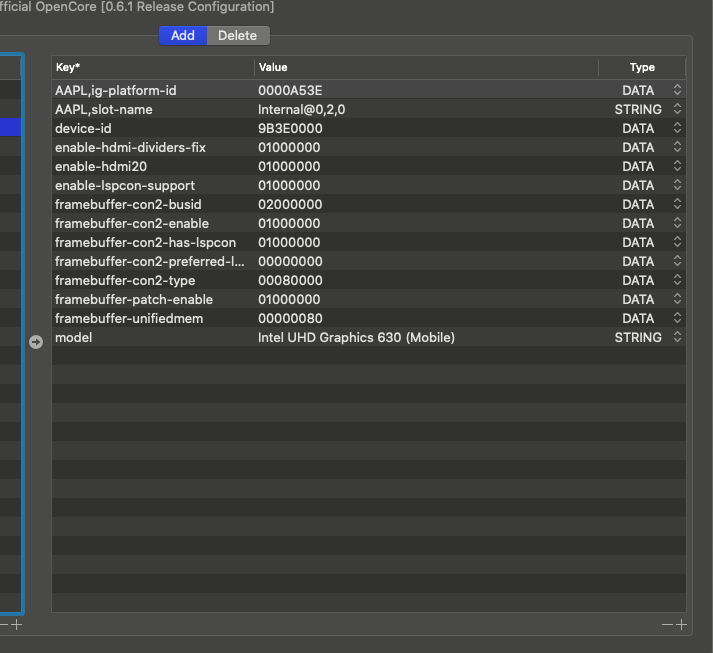

Current config: see screenshot

I've attached a log with lots of IGFB erros, but don't understand a thing.











logconnectedafterdeletingcolorsyncprofiles.rtf

logconnectfailed.rtf

Edited September 27, 2020 by Neblogas
Added new logs

[canyondust]

Hi all! Looking for a bit of insight on iGPU frequency:



My iGPU doesn't go above 0.15Ghz under load, can i can't figure out why. Config as follows:



System Specs:

iMac 20,2 (Z490 Vision G) with an RX 5700XT, OC 0.6.2, MacOS 10.15.7



Boot Args:

keepsyms=1 dart=0 darkwake=0 debug=0x100  agdpmod=pikera shikigva=80

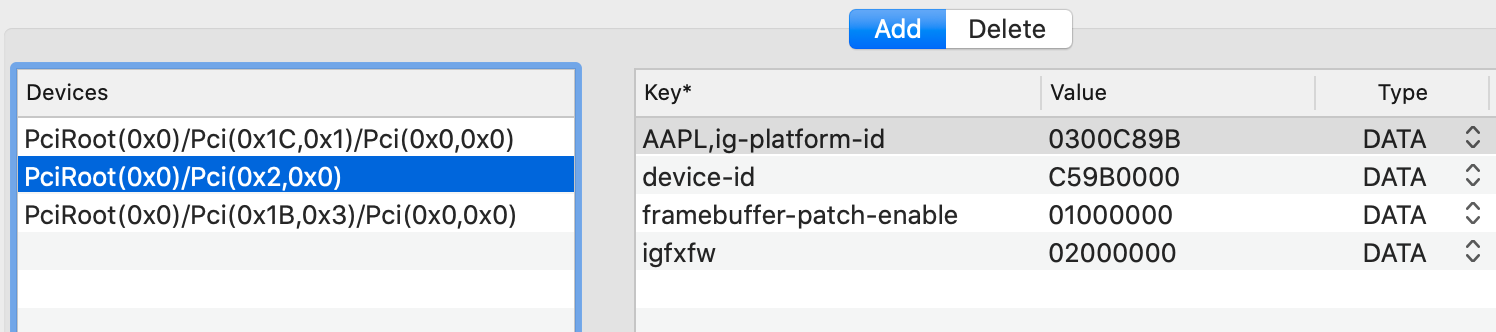

Device Properties: (see attached)





output of :

log show --predicate 'process == "kernel"' --style syslog --source --last boot | grep -i IGPU

Spoiler

2020-10-09 14:19:35.309216-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::populateAccelConfig(IOAccelConfig*)> [IGPU] Ring Size: 32 KB
2020-10-09 14:19:35.309218-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::populateAccelConfig(IOAccelConfig*)> [IGPU] Ring Size: 32 KB
2020-10-09 14:19:35.309226-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::populateAccelConfig(IOAccelConfig*)> [IGPU] Graphics Scheduler Preemption Enabled!
2020-10-09 14:19:35.309227-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::populateAccelConfig(IOAccelConfig*)> [IGPU] Graphics Scheduler Preemption Enabled!
2020-10-09 14:19:35.309227-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::populateAccelConfig(IOAccelConfig*)> [IGPU] Setting preemptionDelayIntervalUS to 400 microseconds
2020-10-09 14:19:35.309229-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::populateAccelConfig(IOAccelConfig*)> [IGPU] Setting preemptionDelayIntervalUS to 400 microseconds
2020-10-09 14:19:35.309229-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::populateAccelConfig(IOAccelConfig*)> [IGPU] Setting preemptionTimerIntervalUS to 2000 microseconds
2020-10-09 14:19:35.309231-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::populateAccelConfig(IOAccelConfig*)> [IGPU] Setting preemptionTimerIntervalUS to 2000 microseconds
2020-10-09 14:19:35.309231-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::populateAccelConfig(IOAccelConfig*)> [IGPU] Will NOT fallback to host-side scheduling if graphics firmware fails to load
2020-10-09 14:19:35.309233-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::populateAccelConfig(IOAccelConfig*)> [IGPU] Will NOT fallback to host-side scheduling if graphics firmware fails to load
2020-10-09 14:19:35.309233-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::populateAccelConfig(IOAccelConfig*)> [IGPU] Scheduler Tail Coalescing Enabled.
2020-10-09 14:19:35.309235-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::populateAccelConfig(IOAccelConfig*)> [IGPU] Scheduler Tail Coalescing Enabled.
2020-10-09 14:19:35.309235-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::populateAccelConfig(IOAccelConfig*)> [IGPU] Scheduler Page Fault Handling Enabled.
2020-10-09 14:19:35.309236-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::populateAccelConfig(IOAccelConfig*)> [IGPU] Scheduler Page Fault Handling Enabled.
2020-10-09 14:19:35.309236-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::populateAccelConfig(IOAccelConfig*)> [IGPU] Scheduler Single Channel Index Disabled
2020-10-09 14:19:35.309237-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::populateAccelConfig(IOAccelConfig*)> [IGPU] Scheduler Single Channel Index Disabled
2020-10-09 14:19:35.309238-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::populateAccelConfig(IOAccelConfig*)> [IGPU] Scheduler Channel Wait For Complete Disabled
2020-10-09 14:19:35.309239-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::populateAccelConfig(IOAccelConfig*)> [IGPU] Scheduler Channel Wait For Complete Disabled
2020-10-09 14:19:35.309240-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::populateAccelConfig(IOAccelConfig*)> [IGPU] Scheduler: Process CSB using HWS.
2020-10-09 14:19:35.309241-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::populateAccelConfig(IOAccelConfig*)> [IGPU] Scheduler: Process CSB using HWS.
2020-10-09 14:19:35.309241-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::populateAccelConfig(IOAccelConfig*)> [IGPU] Scheduler: PM notify enabled
2020-10-09 14:19:35.309242-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::populateAccelConfig(IOAccelConfig*)> [IGPU] Scheduler: PM notify enabled
2020-10-09 14:19:35.309247-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::populateAccelConfig(IOAccelConfig*)> [IGPU] Selected Apple Firmware Scheduler
2020-10-09 14:19:35.309248-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::populateAccelConfig(IOAccelConfig*)> [IGPU] Selected Apple Firmware Scheduler
2020-10-09 14:19:35.311530-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::start(IOService*)> [IGPU] Graphics Address: PPGTT, Separate Address Space
2020-10-09 14:19:35.311532-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::start(IOService*)> [IGPU] Graphics Address: PPGTT, Separate Address Space
2020-10-09 14:19:35.311532-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::start(IOService*)> [IGPU] MultiForceWake Enabled: Using 3D Driver
2020-10-09 14:19:35.311534-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::start(IOService*)> [IGPU] MultiForceWake Enabled: Using 3D Driver
2020-10-09 14:19:35.311534-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::start(IOService*)> [IGPU] Render Compression Enabled.
2020-10-09 14:19:35.311535-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::start(IOService*)> [IGPU] Render Compression Enabled.
2020-10-09 14:19:35.311535-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::start(IOService*)> [IGPU] Render Compression for IOSurface is Enabled.
2020-10-09 14:19:35.311536-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::start(IOService*)> [IGPU] Render Compression for IOSurface is Enabled.
2020-10-09 14:19:35.315980-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IGGuC::LogGuCLoadRetry(char const*, unsigned int)> [IGPU] Begin Gfx firmware load process
2020-10-09 14:19:35.315982-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IGGuC::LogGuCLoadRetry(char const*, unsigned int)> [IGPU] Begin Gfx firmware load process
2020-10-09 14:19:35.315983-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IGGuC::LogGuCLoadRetry(char const*, unsigned int)> [IGPU]    ForceWake Multithread = 0x30002
2020-10-09 14:19:35.315984-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IGGuC::LogGuCLoadRetry(char const*, unsigned int)> [IGPU]    ForceWake Multithread = 0x30002
2020-10-09 14:19:35.315985-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IGGuC::LogGuCLoadRetry(char const*, unsigned int)> [IGPU]    CONFIG0 (0xD00)       = 0x8000000e
2020-10-09 14:19:35.315986-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IGGuC::LogGuCLoadRetry(char const*, unsigned int)> [IGPU]    CONFIG0 (0xD00)       = 0x8000000e
2020-10-09 14:19:35.315987-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IGGuC::LogGuCLoadRetry(char const*, unsigned int)> [IGPU]    GT_THREAD_STATUS      = 0x400b0000
2020-10-09 14:19:35.315988-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IGGuC::LogGuCLoadRetry(char const*, unsigned int)> [IGPU]    GT_THREAD_STATUS      = 0x400b0000
2020-10-09 14:19:35.315988-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IGGuC::LogGuCLoadRetry(char const*, unsigned int)> [IGPU]    Doing retry #0
2020-10-09 14:19:35.315989-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IGGuC::loadBinary(bool)> [IGPU]    Doing retry #0
2020-10-09 14:19:35.349748-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IGGuC::loadBinary(bool)> [IGPU] Graphics Firmware Version: 2.14.0.0
2020-10-09 14:19:35.349751-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IGGuC::loadBinary(bool)> [IGPU] Graphics Firmware Version: 2.14.0.0
2020-10-09 14:19:35.352395-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::start(IOService*)> [IGPU] Graphics accelerator is using scheduler: Apple Firmware
2020-10-09 14:19:35.352397-0400  localhost kernel[0]: (AppleIntelKBLGraphics) <AppleIntelKBLGraphics`IntelAccelerator::start(IOService*)> [IGPU] Graphics accelerator is using scheduler: Apple Firmware
2020-10-09 14:19:39.679915-0400  localhost kernel[0]: (AppleGraphicsDeviceControl) <AppleGraphicsDeviceControl`AppleGraphicsDeviceControlClient::authorizeTask(AppleGraphicsDeviceControl*, task*, unsigned int)> AGDCC: Unauthorized client 'PerfPowerService' (IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IGPU@2/AppleIntelFramebufferController/IntelFBClientControl)





Any thoughts are greatly appreciated.

[pkdesign]

I get the following errors in my log:



Lilu) Lilu   patcher: @ failed to solve __ZN31AppleIntelFramebufferController17IsTypeCOnlySystemEv, err 2
(Lilu) WhateverGreen      igfx: @ failed to route IsTypeCOnlySystem



Where should I look to figure out what the problem is?

[stevezheng]

@vit9696 Hi, I'd like to report an issue about IsTypeCOnlySystem related function. I am using UHD620 (ig-platform-id: 00001659), and tested on both macOS10.14.6 and macOS10.15.6.



I get these errors in my system log:

2020-10-25 06:10:30.944449-0400  localhost kernel[0]: (Lilu) Lilu   patcher: @ failed to solve __ZN31AppleIntelFramebufferController17IsTypeCOnlySystemEv, err 2
2020-10-25 06:10:30.944453-0400  localhost kernel[0]: (Lilu) WhateverGreen      igfx: @ failed to route IsTypeCOnlySystem

I don't have -igfxtypec boot-args. Could you have a check?

I just noticed I am having the exact same issue with @pkdesign

[shantur]

Hi all,



Does anyone know how to fix? Is there anyway to increase more logging to find out what could be leading to these IOGraphicsAccelerator2 failure?



Thanks



2020-10-26 08:14:13.847015-0700  localhost kernel[0]: (Lilu) WhateverGreen       rad: @ (DBG) starting controller 0xFFFFFF802A8C9000
2020-10-26 08:14:13.847021-0700  localhost kernel[0]: (Lilu) WhateverGreen       rad: @ (DBG) starting controller 0xFFFFFF802C7E5000
2020-10-26 08:14:13.847050-0700  localhost kernel[0]: (Lilu) WhateverGreen       rad: @ (DBG) GetProperty discovered property merge request for aty_properties
2020-10-26 08:14:13.847067-0700  localhost kernel[0]: (Lilu) WhateverGreen       rad: @ (DBG) GetProperty discovered property merge request for aty_config
2020-10-26 08:14:13.850173-0700  localhost kernel[0]: (Lilu) WhateverGreen       rad: @ (DBG) starting controller done 0 0xFFFFFF802C7E5000
2020-10-26 08:14:13.853252-0700  localhost kernel[0]: (Lilu) WhateverGreen       rad: @ (DBG) GetProperty discovered property merge request for aty_properties
2020-10-26 08:14:13.853950-0700  localhost kernel[0]: (Lilu) WhateverGreen       rad: @ (DBG) GetProperty discovered property merge request for aty_config
2020-10-26 08:14:13.854896-0700  localhost kernel[0]: (Lilu) WhateverGreen       rad: @ (DBG) starting controller done 0 0xFFFFFF802A8C9000
2020-10-26 08:14:13.861667-0700  localhost kernel[0]: (IOAcceleratorFamily2) <IOAcceleratorFamily2`IOGraphicsAccelerator2::start(IOService*)> virtual bool IOGraphicsAccelerator2::start(IOService *): configureDevice failed
2020-10-26 08:14:13.861668-0700  localhost kernel[0]: (IOAcceleratorFamily2) <IOAcceleratorFamily2`IOGraphicsAccelerator2::start(IOService*)> IOGraphicsAccelerator::start: Failure exit
2020-10-26 08:14:13.862804-0700  localhost kernel[0]: (Lilu) WhateverGreen       rad: @ (DBG) starting controller 0xFFFFFF802C7E5000
2020-10-26 08:14:13.863380-0700  localhost kernel[0]: (IOAcceleratorFamily2) <IOAcceleratorFamily2`IOGraphicsAccelerator2::start(IOService*)> virtual bool IOGraphicsAccelerator2::start(IOService *): configureDevice failed
2020-10-26 08:14:13.863382-0700  localhost kernel[0]: (IOAcceleratorFamily2) <IOAcceleratorFamily2`IOGraphicsAccelerator2::start(IOService*)> IOGraphicsAccelerator::start: Failure exit
2020-10-26 08:14:13.864456-0700  localhost kernel[0]: (Lilu) WhateverGreen       rad: @ (DBG) starting controller 0xFFFFFF802A8C9000
2020-10-26 08:14:13.865455-0700  localhost kernel[0]: (Lilu) WhateverGreen       rad: @ (DBG) GetProperty discovered property merge request for aty_properties
2020-10-26 08:14:13.865470-0700  localhost kernel[0]: (Lilu) WhateverGreen       rad: @ (DBG) GetProperty discovered property merge request for aty_config
2020-10-26 08:14:13.865527-0700  localhost kernel[0]: (Lilu) WhateverGreen       rad: @ (DBG) starting controller done 0 0xFFFFFF802A8C9000
2020-10-26 08:14:13.866281-0700  localhost kernel[0]: (Lilu) WhateverGreen       rad: @ (DBG) GetProperty discovered property merge request for aty_properties
2020-10-26 08:14:13.866300-0700  localhost kernel[0]: (Lilu) WhateverGreen       rad: @ (DBG) GetProperty discovered property merge request for aty_config
2020-10-26 08:14:13.866349-0700  localhost kernel[0]: (Lilu) WhateverGreen       rad: @ (DBG) starting controller done 0 0xFFFFFF802C7E5000
2020-10-26 08:14:13.877323-0700  localhost kernel[0]: (IOAcceleratorFamily2) <IOAcceleratorFamily2`IOGraphicsAccelerator2::start(IOService*)> virtual bool IOGraphicsAccelerator2::start(IOService *): configureDevice failed
2020-10-26 08:14:13.877324-0700  localhost kernel[0]: (IOAcceleratorFamily2) <IOAcceleratorFamily2`IOGraphicsAccelerator2::start(IOService*)> IOGraphicsAccelerator::start: Failure exit
2020-10-26 08:14:13.878113-0700  localhost kernel[0]: (IOAcceleratorFamily2) <IOAcceleratorFamily2`IOGraphicsAccelerator2::start(IOService*)> virtual bool IOGraphicsAccelerator2::start(IOService *): configureDevice failed
2020-10-26 08:14:13.878114-0700  localhost kernel[0]: (IOAcceleratorFamily2) <IOAcceleratorFamily2`IOGraphicsAccelerator2::start(IOService*)> IOGraphicsAccelerator::start: Failure exit



[oSxFr33k]

So is there still no support for Laptops with Discrete only Graphics and Intel Integrated Graphics which are disabled by default in many legacy gaming Laptops and possible future gaming laptops.  I am speaking for example the Asus G750JX which has Nvidia GTX 770m Discrete only Graphics or for example an older Dell XPS M1530 with only Nvidia GS 8400 Discrete only graphics and no Intel Integrated Graphics.  I am still able to get LCD brightness to work in Catalina 10.15.7 using Rehabman's AppleBacklightFixup.kext but it would be nice to get this to work with WEG alone with supported flags.



I Posted more specifics about 10 pages back.





[Alexco]

Dear all,



I am trying to update my System for BigSur and for that I started updating Clover and all kext. With Clover 5115 everything looks fine, my primary monitor (via HDMI) and my secondary monitor (via DVI) work fine.

After updating Clover to 5126 my HDMI monitor is switched off and my DVI monitor becomes the primary one. I used different settings and boot flags, but this won't change. Finally, I gathered the debug logs (see attachments Lilu_Clover5126.txt and Lilu_Clover5115.txt) for WEG and Lilu with both Clover versions and I can see some differences here.



Any idea how can I get my HDMI primary monitor back?



BTW: my graphics card is a XFX Radeon 280x, which needs to load a new BIOS via Clover. This is also the reason why I can't use OpenCore...

[amuse.me]

Hi all,



OC 0.6.1 + Catalina  + i7 6700 + XFX RX470 = OK (Apple TV, Amazon Prime, Quick Time) & Not OK (Netflix Safari error S7706)

updated to below

OC 0.6.3 + Big Sur 11.0.1  + i7 6700 + XFX RX470 = OK (Amazon Prime, Quick Time) & Not OK (Apple TV, Quick Time, Netflix Safari error S7706).



both uses Shikigva = 80

SMBIOS iMac 17,1

HD 530 running headless.



 hope to get fix for this.



[SOLVED]

update: i updated to Big Sur 11.1 and now safari netflix problem is now FIXED.



Edited December 19, 2020 by amuse.me

[LockDown]

On 10/10/2020 at 3:39 AM, pkdesign said:

I get the following errors in my log:



Lilu) Lilu   patcher: @ failed to solve __ZN31AppleIntelFramebufferController17IsTypeCOnlySystemEv, err 2
(Lilu) WhateverGreen      igfx: @ failed to route IsTypeCOnlySystem



Where should I look to figure out what the problem is?

I too have that but no problem afaik

[Planet X]

When I do a Geekbench Compute test with my AMD RX590 selected  Metal after boot my score is around 38000 which is really low for this card. But when I put my Computer to sleep and do the same test after wake the Computer again I have scores like 52000 and 54000 what is almost similar to Windows. So something is strange here. I use OpenCore 6.4 at the moment and I have the low scores already a while. Today I found out that after wake sleep the scores are "normal". I have attached my config. May be that is a bug and could be solved in the future?

config.plist

Edited December 13, 2020 by Planet X

[MacNB]

13 minutes ago, Planet X said:

When I do a Geekbench Compute test with my AMD RX590 selected  Metal after boot my score is around 3800 which is really low for this card. But when I put my Computer to sleep and do the same test after wake the Computer again I have scores like 52000 and 54000 what is almost similar to Windows. So something is strange here. I use OpenCore 6.4 at the moment and I have the low scores already since then. Today I found out that after wake sleep the scores are "normal". I have attached my config. May be that is a bug and could be solved in the future?

config.plist



Well it is not "normal" but consistent with what I observe with my RX580. If I run the GB5 straight after booting, I get around 25000 score but if  macOS goes to sleep and wakes, and then I run GB, I get around 42000. I have had this for a long time. It is the same whether I boot via Clover or OC so it is not boot loader related. It does not appear to be WEG related either since I get the same result if I disable WEG.



Interestingly, LUXMARK scores are NOT affected - that is, same score before and after a system wake.



Many folks have this problem and some do not and so the cause is obvious.

[DevilCry]

Hai, i have mobo gigabyte H110M S2 and i5 6500 + intel hd 530. This mobo only have 1 VGA port, and i don't have any vga card. So how can iu add support for this kind output ?

from what i read :

Quote

VGA Support

In most cases with Intel Skylake and newer it works by default.
For Ivy Bridge and possibly other generations there are the options to patch your connectors with the following:
06020000 02000000 30000000 // Option 1
06020000 01000000 30000000 // Option 2
On OS X 10.8.2 and newer it is impossible to have VGA on Ivy Bridge systems.
Hot-plugging VGA usually does not work.
In case this doesn't help - there are no other known solutions at this time.

But from my experience, i always have black screen everytime i boot with proper configuration.

[Neblogas]

I'Ve some strange issue with the latest kext. System boots normal in verbose, but at the time when apple logo appears(see it very dimmed) the display goes black and stays so for few minutes and gets back to normal again.



With older versions is everything ok.
