Vega Frontier Edition on High Sierra

[Pavo]

XFX GPUs have always had and will probably always have issues in macOS.

[Pavo]

9 minutes ago, meaganmargaret said:

Well, Pavo, thanks for NOT answering my question.   That was really really helpful....



And, just as an aside, you can check out which Vega 64 cards are recommended by Apple for their external GPU configurations.....https://support.apple.com/en-us/HT208544



My, how odd that they recommend an XFX Vega 64.....and no, Developer or legend or whatever you are, I don't care....

Just gonna point out that these GPUs are only recommended in a "external" GPU configuration. Which we all, assuming yourself knows that we are not using a "external" GPU configuration. My point was its a known fact that XFX GPUs have always had issues in internal GPU configuration in macOS.

[Max.1974]

On 10/10/2018 at 7:05 PM, meaganmargaret said:



So, again, this has nothing to do with the question I asked.   Please go away and fight with someone else over XFX hardware.



As for the XFX not working with macOS, mine works just fine.  I've had it in High Sierra and Mojave - I'm just trying to fine tune it, but as for any major problems, there just haven't been any.....I was hoping to improve it by using the parameters in the Windows driver, but maybe I'll just post elsewhere.....



On 10/10/2018 at 5:18 PM, meaganmargaret said:

Okay, I have a perfect driver in Windows, but in trying to convert the values from Windows to Mac, I can't find PP_PhmSoftPowerPlayTable in the registry for my XFX Vega 64 air cooled unit.



If I could find it, I'm sure I can use the process Iodine131 identified to convert it.  I've looked very extensively and I can't find it, no matter how long I look.



The only value that I've found that's even close is PP_PhmSoftWTable, and it's clearly not the same.



Any thoughts out there?



Does anyone want to attempt to answer my question?



Hi @meaganmargaret its true!!! Im not find too PP_PhmSoftPowerPlayTable in the regedit... its because PP_PhmSoftPowerPlayTable exist only in BIOS. Some guys find a away to copy PP_PhmSoftPowerPlayTable directly from BIOS, but have some especie that security mode, so im not know if is possible change the values...another guys was create a regedit file .reg and just insert in regedit...im not sure if works in models like mine and yours...



Maybe some cards not have same registry on regedit. My card Gigabyte not have, im expend hours looking, and nothing... its binary number, and since now im not find too...



My Bios have but you will need see how to find...



BUT...



See this video, maybe you are understand a little bit... and find a away ...





This guys only change those BIOS and reinsert on GPU.



Im think is too much risk...so im use only in kext or Clover...



Its sounds like proposital that we not have windows registry to copy or compare ...



BUT ... im sure that the "normal" settings you can copy if you use Windows, and with GPU-Z, save the BIOS and make the changes like video above... my card already on warranty and im not change anything... other think is you will need some boring apps in windows like Bios reader, find PP_ and copy then to your info.plist kext...



Just use iHex and copy setting directly to iHex and not need find space etc...









Edited October 11, 2018 by max.1974

[Max.1974]

3 minutes ago, meaganmargaret said:

Thank you, Max!!!



I mean, it works now, and it's not bad, but I'd just like to tune it a bit, and the Windows version of the driver is just a little better, so I thought I'd take a shot at seeing if I could convert it.



Again, thank you very much!



Oh great...!!! Did you find it? Show me a away, please...!!!

Edited October 10, 2018 by max.1974

[rna23]

On 5/2/2018 at 4:27 PM, wyhtc said:

This is my way，copy the info.plist from AMD10000Controller.kext，and make a kext injector. Put it in EFI/CLOVER/kexts/Other，and it works。。For example，I upload a kext，

Core: 1442MHz/1075mV ，Memory: 1045MHz/1075mV，Temp target: 57，Idle fan: 700rpm.

RadeonVegaLowFansSpeed.kext.zip

Hi, I found a link to Your kext on Tonymacx86 and I use it to reduce the fan speed of my Vega64. But while using this kext my Final Cut Pro X is crashing. When I remove it, it works fine, but noisy ... It is probably due to being a different GPU than Yours. The question is how can I adapt it to my GPU? My knowledge in this field is very limited ...

I was looking at the info.plist and couldn't find any figures similar to the values in MHz or mV ...

Could You help me please?

[ICULikeMac]

Hello all!

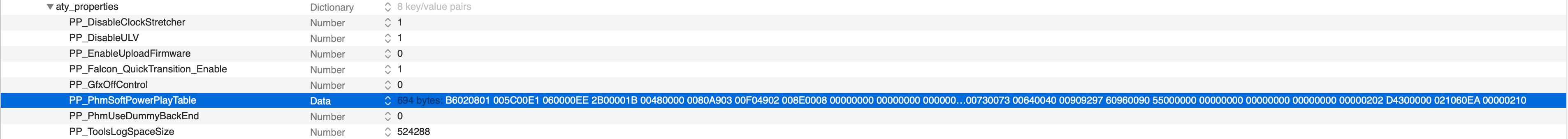

I too had fan issues with the Vega 64 on Mojave and have edited my AMD10000Controller.kext to insert PP_PhmSoftPowerPlayTable as suggest around page 6 (I'll attached the one I used) and is working well however I'm worried it may be slightly different for my particular card? Would this cause any issues?



I have a Sapphire Radeon RX Vega 64 with i7 8700(non K).



Thank you in advance!





AMD10000Controller.kext.zip

[Max.1974]

9 hours ago, ICULikeMac said:

Hello all!



I too had fan issues with the Vega 64 on Mojave and have edited my AMD10000Controller.kext to insert PP_PhmSoftPowerPlayTable as suggest around page 6 (I'll attached the one I used) and is working well however I'm worried it may be slightly different for my particular card? Would this cause any issues?



I have a Sapphire Radeon RX Vega 64 with i7 8700(non K).



Thank you in advance!





AMD10000Controller.kext.zip

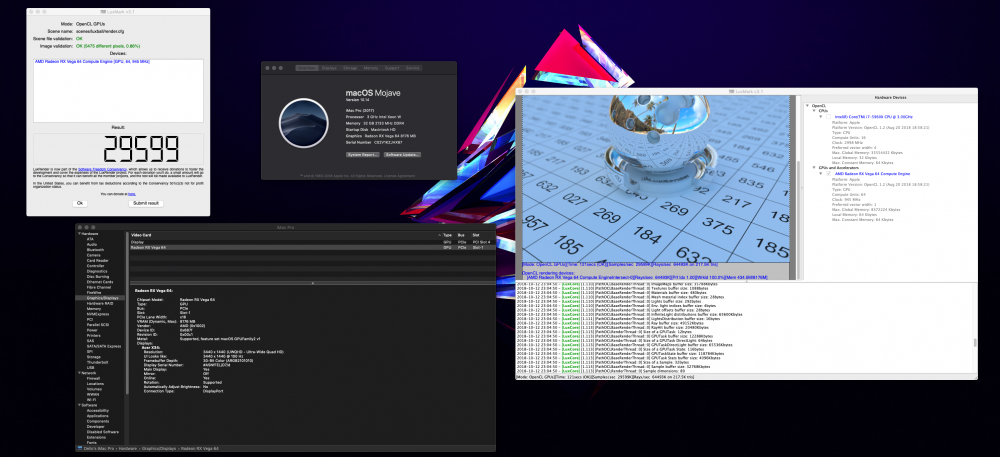

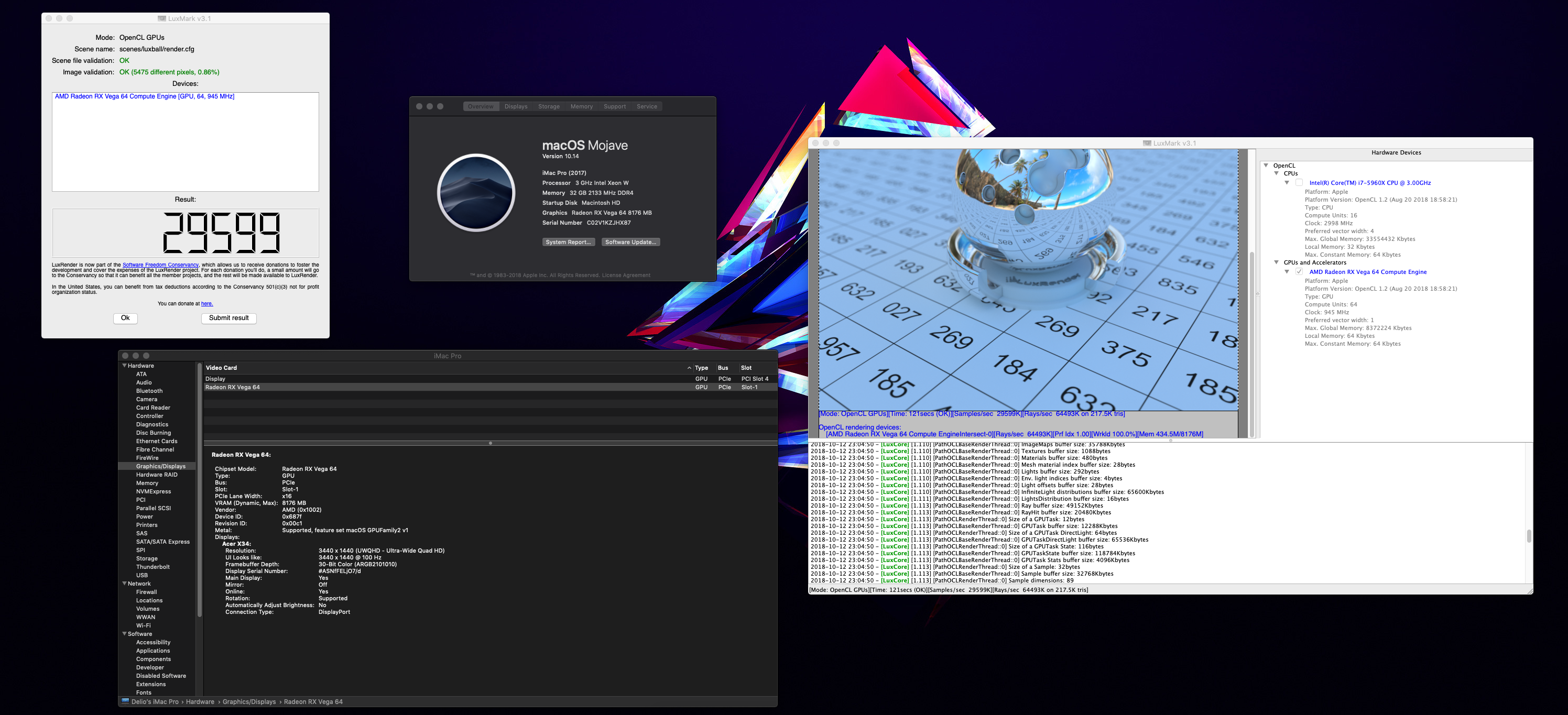

Hi my friend, what is your system ? Maybe you could try this settings:



 1642MHz/1150mV, Memory: 1045MHz/1075mV, SOC: 1199MHz, Temp target: 75, Idle fan: 1000rpm







[delioroman]

Hey guys, first and foremost, thank you to everyone who has contributed. Great information.



Here is my issue:

I used your patched ATI10000 kext @max.1974 and the fans seemed to be fixed on my Vega 64 but all of a sudden, my Vega GPUTach lights all light up and macOS freezes (I assume the gpu gets too hot) and the system is unusable and I have to force shut down. I don't want to cause any damage to the card but is anyone experiencing the same? Any fixes?



I also have my Vega 64 displaying output through DisplayPort 1.2 and I upped the refresh rate to 100hz. Refresh rate is stable and smooth. No issues there.

Edited October 12, 2018 by delioroman

[Max.1974]

24 minutes ago, delioroman said:

Hey guys, first and foremost, thank you to everyone who has contributed. Great information.



Here is my issue:

I used your patched ATI10000 kext @max.1974 and the fans seemed to be fixed on my Vega 64 but all of a sudden, my Vega GPUTach lights all light up and macOS freezes (I assume the gpu gets too hot) and the system is unusable and I have to force shut down. I don't want to cause any damage to the card but is anyone experiencing the same? Any fixes?



I also have my Vega 64 displaying output through DisplayPort 1.2 and I upped the refresh rate to 100hz. Refresh rate is stable and smooth. No issues there.



Hi @delioroman thanks a lot for your post....



I need know whats of my settings you used ... if you can quot for know how im appreciated...if was that yellow its not good for macOs, however...works like charm in Windows...



Try use this settings, is very stable:



B6020801 005C00E1 060000EE 2B00001B 00480000 0080A903 00F04902 008E0008 00000000 00000000 00000000 00000201 5C004F02 46029400 9E01BE00 28017A00 8C00BC01 00000000 72020000 9000A802 6D014301 9701F049 02007102 02020000 00000000 08000000 00000000 05000700 03000500 00000000 00000108 84038403 B603E803 1A044C04 60047E04 01013304 01018403 000860EA 00000040 19010001 80380100 02DC4A01 0003905F 01000400 77010005 90910100 0650BD01 00070108 D04C0100 00008000 00000000 00448D01 00010000 00000000 0000DCC7 01000200 00000000 00000098 FC010003 00000000 00000000 D81B0200 04000000 00000000 00F44002 00050000 00000100 00001C64 02000600 00000001 00000068 81020007 00000000 01000000 000560EA 00000040 19010000 80380100 00DC4A01 0000905F 01000000 08286E00 00002CC9 000001F8 0B010002 80380100 03905F01 0004F491 010005D0 B0010006 38C10100 0700086C 39000000 245E0000 01FC8500 0002ACBC 00000334 D0000004 686E0100 05089701 0006B0AD 01000700 01683C01 00000104 3C410000 00000050 C3000000 00008038 01000200 00349801 00040000 01080098 85000040 B5000060 EA000050 C3000001 80BB0000 60EA0000 940B0100 50C30000 0200E100 00940B01 00401901 0050C300 000378FF 00004019 01008826 010050C3 00000440 19010080 38010080 38010050 C3000005 80380100 DC4A0100 DC4A0100 50C30000 06007701 00007701 00905F01 0050C300 00079091 01009091 01000077 010050C3 00000118 00000000 0000000B E412D007 24134B00 0A005403 90019001 90019001 90019001 90010000 00000002 04310790 01900190 01900100 00590069 004A004A 005F0073 00730064 00400090 92976096 00905500 00000000 00000000 00000000 00000000 0202D430 00000210 60EA0000 0210



"Fan Speed(%)"=31

"Core Clock(MHz)"=1629

"Memory Clock(MHz)"=1045

"Fan Speed(RPM)"=1542

"Temperature(C)"=75

Edited October 12, 2018 by max.1974

[delioroman]

On 9/28/2018 at 1:24 AM, max.1974 said:



Its almost same BIOS my friend, so try this kext that im post. That gave me quiet fans, and good bench scores...

Back up your kext, install with Kext Utility, and run this command in Terminal after kext finish to install:



sudo touch /System/Library/Extensions && sudo kextcache -u /



Restart/Reboot...

Enjoy...



MOD AMD 10000 10.14 GM.zip



PS: The VGTab-en.app to me is completely fake... kkkkkk  its a Joke for someone who created...not change the settings...doesnt matter what I do...



Look at this BIOS settings its for XFX...



https://www.techpowerup.com/vgabios/200858/200858











This is the patched kext I am using. It's your GM modified kext @max.1974. I am on Mojave 10.14.



This is my Vega 64 card that I'm using:



https://www.powercolor.com/product?id=1503544206



DisplayPort and HDMI ports all work perfectly. Audio works perfectly as well.

[Max.1974]

59 minutes ago, delioroman said:



This is the patched kext I am using. It's your GM modified kext @max.1974. I am on Mojave 10.14.



This is my Vega 64 card that I'm using:



https://www.powercolor.com/product?id=1503544206



DisplayPort and HDMI ports all work perfectly. Audio works perfectly as well.



Hi my friend, backup your kext and try use this...



MOD AMD 10000 10.14 GM 1630 2000rpm.zip Very awesome stable on Mojave beta 2 and High Sierra.



Im use Mojave Developer Program Beta 2 (its out after Movaje GM), and im feeling thats better than Mojave GM for stable use for RX Vega .



MOD AMD 10000 10.14 GM 1630 700rpm.zip More quiet fan but just a little bit...

Edited October 12, 2018 by max.1974

[delioroman]

Thanks my friend @max.1974! I will give it a shot later today and I'll report back with my results. Do you think this will fix the sudden overheat of the Vega 64?

[Max.1974]

1 hour ago, delioroman said:

Thanks my friend @max.1974! I will give it a shot later today and I'll report back with my results. Do you think this will fix the sudden overheat of the Vega 64?



Very Nice @delioroman!!! Im been using with this settings a little while, and in "normal" tasks im not have any issue...but is always better check the temperature, my friend!!!



Good hack!!! Use 2000 rpm first, im use only this settings ...





Edited October 12, 2018 by max.1974

[Yangbe]

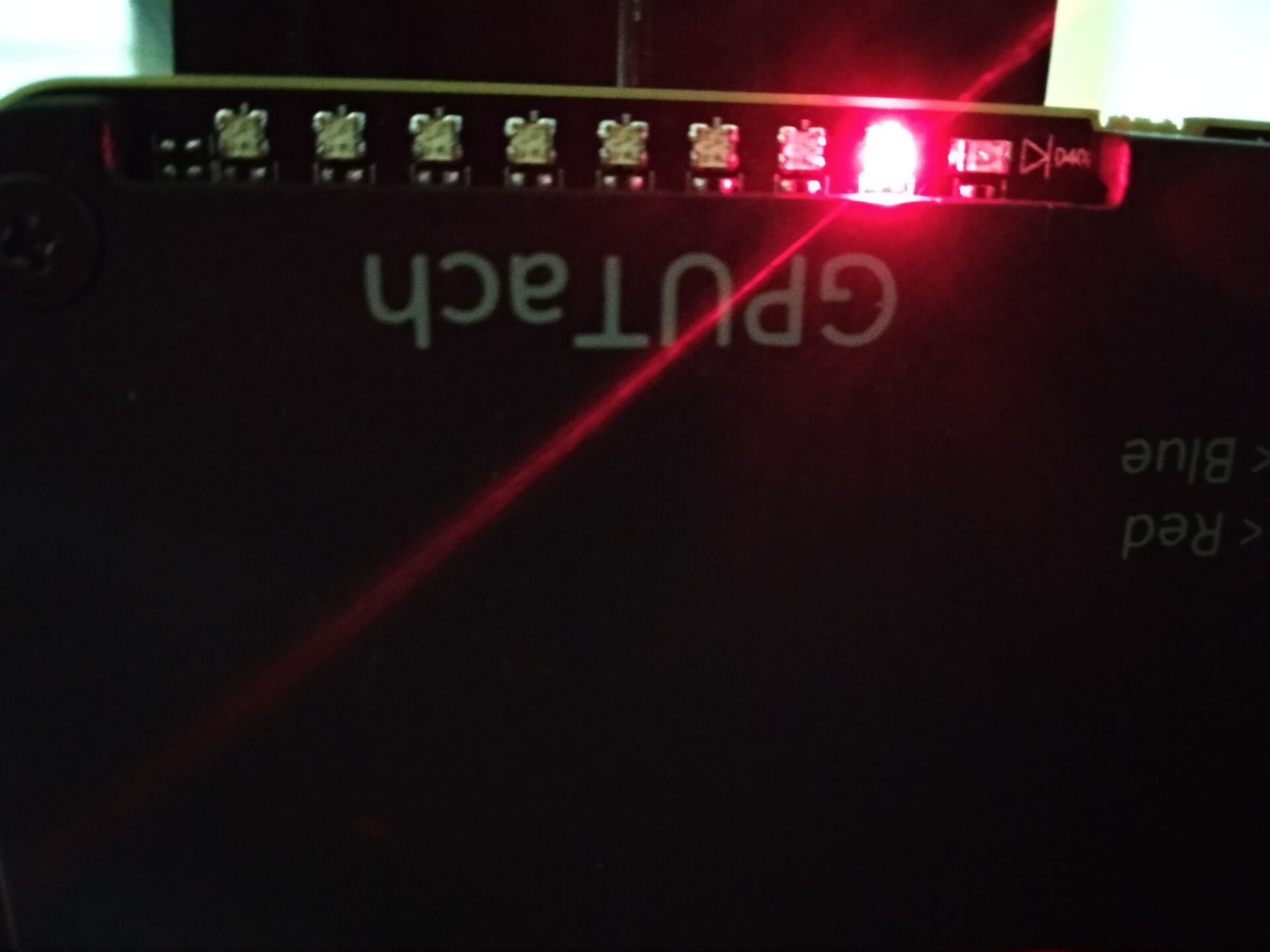

Please Check this GPUTach LED. Compared with Windows, I can see it flicker abnormality in Mac OSX. Anyone has idea??



But, when I open a video with Quicktime, GPUTach LED works great. It is just confusing.

Edited October 13, 2018 by Yangbe

[ICULikeMac]

13 hours ago, max.1974 said:



Hi my friend, what is your system ? Maybe you could try this settings:



 1642MHz/1150mV, Memory: 1045MHz/1075mV, SOC: 1199MHz, Temp target: 75, Idle fan: 1000rpm







Hey @max.1974 thank you so much for your reply and assistance!



I am running MacOS Mojave (build 18A391) with a coffeelake intel i7 8700 (non K) and the Sapphire RX Vega 64 (See image below).



I have no intentions of overclocking it or anything, just a nice stable cool set up that I can use the occasional FCP / Photoshop etc.



Also I am very new to all this kext modifying etc so are you able to explain how I put those settings into the Kext? All that I copied was that table with B6020801 005C00E1 060000EE 2B00001B... etc? How does that translate into the settings you've suggested?



Many thanks!

Edited October 13, 2018 by ICULikeMac

[delioroman]

23 hours ago, max.1974 said:



Hi my friend, backup your kext and try use this...



MOD AMD 10000 10.14 GM 1630 2000rpm.zip Very awesome stable on Mojave beta 2 and High Sierra.



Im use Mojave Developer Program Beta 2 (its out after Movaje GM), and im feeling thats better than Mojave GM for stable use for RX Vega .



MOD AMD 10000 10.14 GM 1630 700rpm.zip More quiet fan but just a little bit...



20 hours ago, max.1974 said:



Very Nice @delioroman!!! Im been using with this settings a little while, and in "normal" tasks im not have any issue...but is always better check the temperature, my friend!!!



Good hack!!! Use 2000 rpm first, im use only this settings ...







So, @max.1974, I tested out the 2000rpm kext that you provided last night and at first it ran perfectly! The fans adjusted perfectly under load and the card worked very well! I scored a decent score in LuxMark and was very happy. Here is a screenshot:





Unfortunately, my system still suffers the GPU randomly going to 100% utilization randomly and it just stays there until the temps start creeping up. The system now although still functions and doesn't freeze up but I just don't understand why the processor clock just randomly jumps to 100%. I won't have any programs open and it'll randomly jump up to 100%. Sometimes it can be right at boot, or sometimes it doesn't take until 10-15 min until it jumps to 100% and the GPUTach lights will all light up. It is random.



I deleted lilu and whatevergreen kexts from Clover/kexts/other folder and no change. So I infer, it must be the ATI10000Controller kext.



I am using iStat Menu's to monitor my Vega's temps and clocks. Processor clock max 1600ish MHz and the temps start to creep up from 50C up to 70C.



14 hours ago, Yangbe said:



Please Check this GPUTach LED. Compared with Windows, I can see it flicker abnormality in Mac OSX. Anyone has idea??



But, when I open a video with Quicktime, GPUTach LED works great. It is just confusing.



Mine will also do this @Yangbe. Anytime i scroll down on a webpage, the lights will flicker. I guess anytime the GPU processes any data, is when those lights go a little crazy under macOS. Under Windows, the light's are fine. Seems like a driver issue. Windows drivers are much more polished than those on macOS.



[Max.1974]

1 hour ago, delioroman said:





So, @max.1974, I tested out the 2000rpm kext that you provided last night and at first it ran perfectly! The fans adjusted perfectly under load and the card worked very well! I scored a decent score in LuxMark and was very happy. Here is a screenshot:





Unfortunately, my system still suffers the GPU randomly going to 100% utilization randomly and it just stays there until the temps start creeping up. The system now although still functions and doesn't freeze up but I just don't understand why the processor clock just randomly jumps to 100%. I won't have any programs open and it'll randomly jump up to 100%. Sometimes it can be right at boot, or sometimes it doesn't take until 10-15 min until it jumps to 100% and the GPUTach lights will all light up. It is random.



I deleted lilu and whatevergreen kexts from Clover/kexts/other folder and no change. So I infer, it must be the ATI10000Controller kext.



I am using iStat Menu's to monitor my Vega's temps and clocks. Processor clock max 1600ish MHz and the temps start to creep up from 50C up to 70C.





Mine will also do this @Yangbe. Anytime i scroll down on a webpage, the lights will flicker. I guess anytime the GPU processes any data, is when those lights go a little crazy under macOS. Under Windows, the light's are fine. Seems like a driver issue. Windows drivers are much more polished than those on macOS.





Hi my friend!! Sorry about the issue ... im just try help you and others guys...im using Lilu and Whatevergreen last release...



Try use this please:

kexts MOJAVE GM 14.10.zip



Use Lilu + Whatevergreen + Fakesmc and another Amd10000controller.kext (good performance and low fan).



I hope so you can get fix that!!









[CMMChris]

New Config for everyone to try out: GPU 1500MHz @ 1.025V | HBM2 1074MHz @ 0.925V

If you have a card that shuts fans off under Windows when it's not under load it will do this under macOS as well. Trick is to set idle and min. fan speed to 100.

DUE TO LOW VOLTAGE IT MIGHT NOT RUN STABLE FOR EVERYONE! Use this setting if not stable: Click!



Code for Clover Inject:

B6020801 005C00E1 060000EE 2B00001B 00480000 0080A903 00F04902 00320008 00000000 00000000 00000000 00000201 5C004F02 46029400 9E01BE00 28017A00 8C00BC01 00000000 72020000 9000A802 6D014301 9701F049 02007102 02020000 00000000 08000000 00000000 05000700 03000500 00000000 00000108 20035203 8403B603 CF03E803 01041A04 01019D03 01018403 000860EA 00000040 19010001 80380100 02DC4A01 0003905F 01000400 77010005 90910100 066CB001 00070108 80380100 00008000 00000000 00905F01 00010000 00000000 0000A086 01000200 00000000 000000B0 AD010003 00000000 00000000 C0D40100 04000000 00000000 00D0FB01 00050000 00000100 0000E022 02000600 00000001 000000F0 49020007 00000000 01000000 000560EA 00000040 19010000 80380100 00DC4A01 0000905F 01000000 08286E00 00002CC9 000001F8 0B010002 80380100 03905F01 0004F491 010005D0 B0010006 C0D40100 0700086C 39000000 245E0000 01FC8500 0002ACBC 00000334 D0000004 686E0100 05089701 0006ECA3 01000700 01683C01 00000104 3C410000 00000050 C3000000 00008038 01000200 00ECA301 00040000 01080098 85000040 B5000060 EA000050 C3000001 80BB0000 60EA0000 940B0100 50C30000 0200E100 00940B01 00401901 0050C300 000378FF 00004019 01008826 010050C3 00000440 19010080 38010080 38010050 C3000005 80380100 DC4A0100 DC4A0100 50C30000 06007701 00007701 00905F01 0050C300 00079091 01009091 01000077 010050C3 00000118 00000000 0000000B E4126400 280A3700 0A005403 90019001 90019001 90019001 90010000 00000002 011E07DC 00DC00DC 002C0100 00590069 004A004A 005F0073 00730064 00400090 92976096 00905500 00000000 00000000 00000000 00000000 0202D430 00000210 60EA0000 0210

Code for Kext Injector

tgIIAQBcAOEGAADuKwAAGwBIAAAAgKkDAPBJAgAyAAgA
AAAAAAAAAAAAAAAAAAIBXABPAkYClACeAb4AKAF6AIwA
vAEAAAAAcgIAAJAAqAJtAUMBlwHwSQIAcQICAgAAAAAA
AAgAAAAAAAAABQAHAAMABQAAAAAAAAABCCADUgOEA7YD
zwPoAwEEGgQBAZ0DAQGEAwAIYOoAAABAGQEAAYA4AQAC
3EoBAAOQXwEABAB3AQAFkJEBAAZssAEABwEIgDgBAAAA
gAAAAAAAAJBfAQABAAAAAAAAAACghgEAAgAAAAAAAAAA
sK0BAAMAAAAAAAAAAMDUAQAEAAAAAAAAAADQ+wEABQAA
AAABAAAA4CICAAYAAAAAAQAAAPBJAgAHAAAAAAEAAAAA
BWDqAAAAQBkBAACAOAEAANxKAQAAkF8BAAAACChuAAAA
LMkAAAH4CwEAAoA4AQADkF8BAAT0kQEABdCwAQAGwNQB
AAcACGw5AAAAJF4AAAH8hQAAAqy8AAADNNAAAARobgEA
BQiXAQAG7KMBAAcAAWg8AQAAAQQ8QQAAAAAAUMMAAAAA
AIA4AQACAADsowEABAAAAQgAmIUAAEC1AABg6gAAUMMA
AAGAuwAAYOoAAJQLAQBQwwAAAgDhAACUCwEAQBkBAFDD
AAADeP8AAEAZAQCIJgEAUMMAAARAGQEAgDgBAIA4AQBQ
wwAABYA4AQDcSgEA3EoBAFDDAAAGAHcBAAB3AQCQXwEA
UMMAAAeQkQEAkJEBAAB3AQBQwwAAARgAAAAAAAAAC+QS
ZAAoCjcACgBUA5ABkAGQAZABkAGQAZABAAAAAAACAR4H
3ADcANwALAEAAFkAaQBKAEoAXwBzAHMAZABAAJCSl2CW
AJBVAAAAAAAAAAAAAAAAAAAAAAACAtQwAAACEGDqAAAC
EA==

For me this setting runs super quiet and cool. Near to no coil whine. 190,000 in Geekbench and 29,000 in Luxmark.

Edited October 20, 2018 by CMMChris

[Max.1974]

18 hours ago, ICULikeMac said:

Hey @max.1974 thank you so much for your reply and assistance!



I am running MacOS Mojave (build 18A391) with a coffeelake intel i7 8700 (non K) and the Sapphire RX Vega 64 (See image below).



I have no intentions of overclocking it or anything, just a nice stable cool set up that I can use the occasional FCP / Photoshop etc.



Also I am very new to all this kext modifying etc so are you able to explain how I put those settings into the Kext? All that I copied was that table with B6020801 005C00E1 060000EE 2B00001B... etc? How does that translate into the settings you've suggested?



Many thanks!





Hi @ICULikeMac



Sorry im not see your post above...so sorry!!!



Are you can try the best kexts to slow fan and good performance...

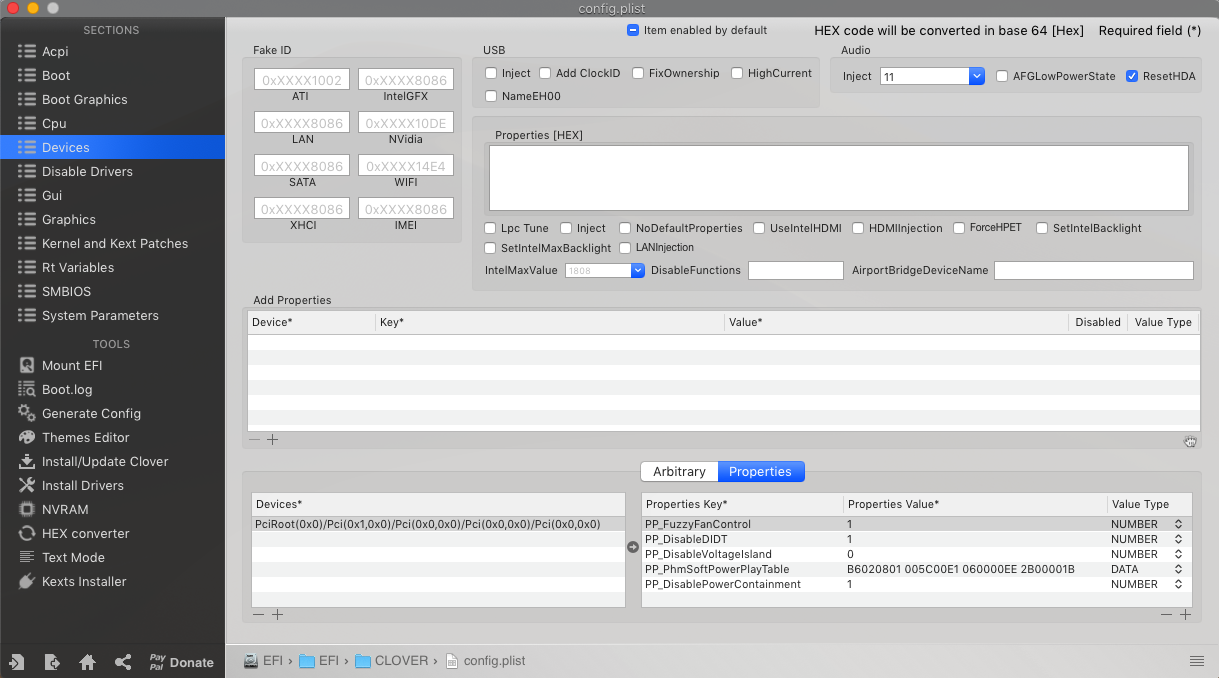

If you are new im suggest you to add on clover settings.



Post your info.plist without serial on SMBIOS, im will insert settings on clover.



Im try very hard learning how can adjust the configurations, so im recomend you use standart settings.





See my explain in Youtube channel:







Edited October 13, 2018 by max.1974

[Max.1974]

56 minutes ago, CMMChris said:

New Config for everyone to try out: GPU 1500MHz @ 1.025V | HBM2 1074MHz @ 0.925V

If you have a card that shuts fans off under Windows when it's not under load it will do this under macOS as well. Trick is to set idle and min. fan speed to 100.

DUE TO LOW VOLTAGE IT MIGHT NOT RUN STABLE FOR EVERYONE!



Code for Clover Inject:

B6020801 005C00E1 060000EE 2B00001B 00480000 0080A903 00F04902 00320008 00000000 00000000 00000000 00000201 5C004F02 46029400 9E01BE00 28017A00 8C00BC01 00000000 72020000 9000A802 6D014301 9701F049 02007102 02020000 00000000 08000000 00000000 05000700 03000500 00000000 00000108 20035203 8403B603 CF03E803 01041A04 01019D03 01018403 000860EA 00000040 19010001 80380100 02DC4A01 0003905F 01000400 77010005 90910100 066CB001 00070108 80380100 00008000 00000000 00905F01 00010000 00000000 0000A086 01000200 00000000 000000B0 AD010003 00000000 00000000 C0D40100 04000000 00000000 00D0FB01 00050000 00000100 0000E022 02000600 00000001 000000F0 49020007 00000000 01000000 000560EA 00000040 19010000 80380100 00DC4A01 0000905F 01000000 08286E00 00002CC9 000001F8 0B010002 80380100 03905F01 0004F491 010005D0 B0010006 C0D40100 0700086C 39000000 245E0000 01FC8500 0002ACBC 00000334 D0000004 686E0100 05089701 0006ECA3 01000700 01683C01 00000104 3C410000 00000050 C3000000 00008038 01000200 00ECA301 00040000 01080098 85000040 B5000060 EA000050 C3000001 80BB0000 60EA0000 940B0100 50C30000 0200E100 00940B01 00401901 0050C300 000378FF 00004019 01008826 010050C3 00000440 19010080 38010080 38010050 C3000005 80380100 DC4A0100 DC4A0100 50C30000 06007701 00007701 00905F01 0050C300 00079091 01009091 01000077 010050C3 00000118 00000000 0000000B E4126400 280A3700 0A005403 90019001 90019001 90019001 90010000 00000002 011E07DC 00DC00DC 002C0100 00590069 004A004A 005F0073 00730064 00400090 92976096 00905500 00000000 00000000 00000000 00000000 0202D430 00000210 60EA0000 0210

Code for Kext Injector

tgIIAQBcAOEGAADuKwAAGwBIAAAAgKkDAPBJAgAyAAgA
AAAAAAAAAAAAAAAAAAIBXABPAkYClACeAb4AKAF6AIwA
vAEAAAAAcgIAAJAAqAJtAUMBlwHwSQIAcQICAgAAAAAA
AAgAAAAAAAAABQAHAAMABQAAAAAAAAABCCADUgOEA7YD
zwPoAwEEGgQBAZ0DAQGEAwAIYOoAAABAGQEAAYA4AQAC
3EoBAAOQXwEABAB3AQAFkJEBAAZssAEABwEIgDgBAAAA
gAAAAAAAAJBfAQABAAAAAAAAAACghgEAAgAAAAAAAAAA
sK0BAAMAAAAAAAAAAMDUAQAEAAAAAAAAAADQ+wEABQAA
AAABAAAA4CICAAYAAAAAAQAAAPBJAgAHAAAAAAEAAAAA
BWDqAAAAQBkBAACAOAEAANxKAQAAkF8BAAAACChuAAAA
LMkAAAH4CwEAAoA4AQADkF8BAAT0kQEABdCwAQAGwNQB
AAcACGw5AAAAJF4AAAH8hQAAAqy8AAADNNAAAARobgEA
BQiXAQAG7KMBAAcAAWg8AQAAAQQ8QQAAAAAAUMMAAAAA
AIA4AQACAADsowEABAAAAQgAmIUAAEC1AABg6gAAUMMA
AAGAuwAAYOoAAJQLAQBQwwAAAgDhAACUCwEAQBkBAFDD
AAADeP8AAEAZAQCIJgEAUMMAAARAGQEAgDgBAIA4AQBQ
wwAABYA4AQDcSgEA3EoBAFDDAAAGAHcBAAB3AQCQXwEA
UMMAAAeQkQEAkJEBAAB3AQBQwwAAARgAAAAAAAAAC+QS
ZAAoCjcACgBUA5ABkAGQAZABkAGQAZABAAAAAAACAR4H
3ADcANwALAEAAFkAaQBKAEoAXwBzAHMAZABAAJCSl2CW
AJBVAAAAAAAAAAAAAAAAAAAAAAACAtQwAAACEGDqAAAC
EA==

For me this setting runs super quiet and cool. Near to no coil whine. 190,000 in Geekbench and 29,000 in Luxmark.



Hi Chris, what app are you using to edit this? VGATab-en.app?

[ICULikeMac]

Hi @max.1974



Thank you again for your replies and continued support.



Sorry I probably wasn't clear in my first post, I had previously added a softpowertable in the info.plist as pictured below. This worked and the fans are at idle 700RPM with normal activity; temps around 40c & Luxmark score 30800 so that is fine but all I wanted to know was whether that softpowertable configuration I added is safe for the card I'm running? I just don't know what all the number mean after the entry.



Also just to confirm you wanted the info.plist from the AMDController10000.Kext not the clover config.plist from the EFI file right?



Thanks again.

[couleurs]

Does anyone know if this works with a RX580 too?

It uses the AMD9500controller.kext instead of AMD10000controller.kext so we should be able to inject similar values?

I want to undervolt and adjust the fan curve...



I'm using a Sapphire RX580 4GB Pulse and it works great in Windows 10 using latest AMD drivers but in macOS 10.14 the card runs +5c hotter and fans start to spin up 20% when the card hits 50c. I have tried editing the BIOS using Polaris Editor (undervolt, adjust mhz, fans etc) which works fine in Windows (confirmed in GPU-Z and AMD Wattman) but in macOS the AMD9500controller.kext seems to take over BIOS settings and adjust to its own defaults!!

Edited October 14, 2018 by couleurs

[CMMChris]

10 hours ago, max.1974 said:



Hi Chris, what app are you using to edit this? VGATab-en.app?



Yup

[Max.1974]

On 10/13/2018 at 10:04 PM, ICULikeMac said:

Hi @max.1974



Thank you again for your replies and continued support.



Sorry I probably wasn't clear in my first post, I had previously added a softpowertable in the info.plist as pictured below. This worked and the fans are at idle 700RPM with normal activity; temps around 40c & Luxmark score 30800 so that is fine but all I wanted to know was whether that softpowertable configuration I added is safe for the card I'm running? I just don't know what all the number mean after the entry.



Also just to confirm you wanted the info.plist from the AMDController10000.Kext not the clover config.plist from the EFI file right?



Thanks again.



Hi My friend!! Im use just 2 settings, because im never change with another or try another...not is good to my Vega...



is this:



Core: 1642MHz/1150mV, Memory: 1045MHz/1075mV, SOC: 1199MHz, Temp target: 70, Idle fan: 700rpm - probably yours



and



Core: 1642MHz/1150mV, Memory: 1045MHz/1075mV, SOC: 1199MHz, Temp target: 75, Idle fan: 1000rpm



You can choice and just add in softpowertable. Im recommend for you, add in Clover, like CMMChris use, and add with my method here:





And settings to choice was here:





Sorry im not advanced user, im just use okrasit settings, and try best performance. To me now is very good.

Any models can use powersofttable because the Bios is almost the same. So settings are the same, doesn't matter the models...sorry to me if my English is not so acure...



I Hope you enjoy this much is I am...

[Yangbe]

On 10/1/2018 at 5:41 PM, CMMChris said:

@okrasit Thanks! I meanwhile fixed it myself though. Created an undervolted custom config with VGTab and 1500MHz max clock that runs stable on my machine. Gets me a solid 185k score in Geekbench and 29k score in Luxmark. Also, coil whine is completely gone. Sweet! Here is my code if anyone wants to try:





I am using Clover now to inject the settings. Much more convenient than Kext edits / injectors:



Hey Man, Can you share your config.plist about this part??



Thanks a lot
