wen1
wen1
Posted
Posted



SSDT-HDEF-3.aml is loading but ignored

config.plist/ACPI/DSDT/Fixes/ - all properties set to YES, unusual.

Set: config.plist/ACPI/DSDT/Fixes/FixHDA_8000/NO

Save, restart, reply with new files.



Thanks for the quick response.

Some progress...



I set config.plist/ACPI/DSDT/Fixes/FixHDA_8000/NO

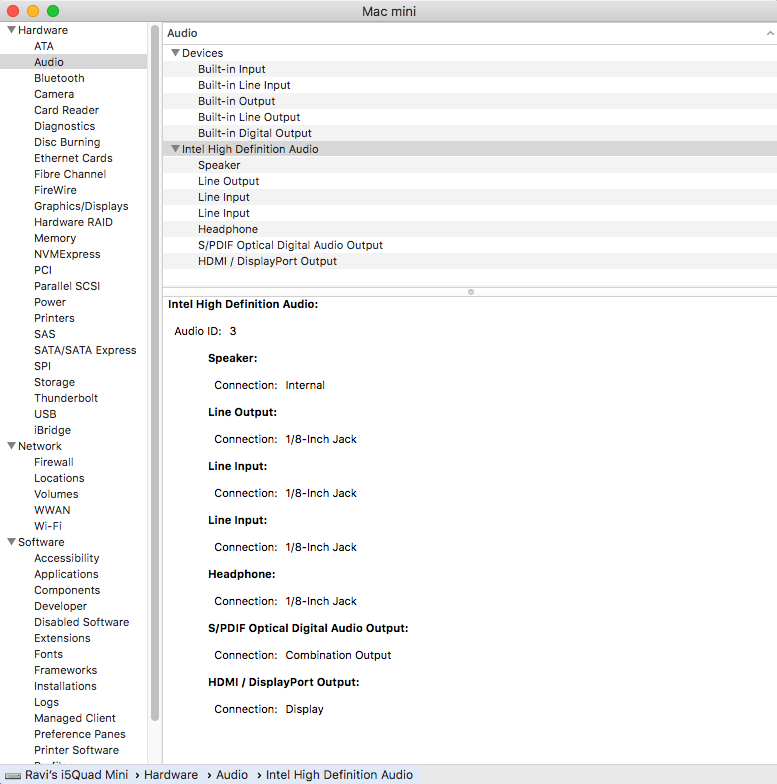

And now the HDMI port shows up in system report. But still not available in the sound as an option for output.



​Edit: anyway to makee the SSDT-HDEF3.aml not be ignored? I see a message that says the patch was a success in the boot log.


Link to comment
Share on other sites
wen1
wen1
Posted
Posted

Also, I see that in IORegExplorer my monitor (Display0 - AppleDisplay) is connected to Port 0x6.

But the script says that HD4000 port 0x7 is a native HDMI port.



Is there something special about my system that I need to manually correct? Given that this is an IVY bridge CPU on a 6-series motherboard.

Link to comment
Share on other sites
toleda
toleda
Posted
  • Author
Posted

I see that in IORegExplorer my monitor (Display0 - AppleDisplay) is connected to Port 0x6.



No IOReg attached, no ideas. Ignored Post #25/"reply with new files."

See Post #1/IV. Problem Reporting; attach all requested files

Link to comment
Share on other sites
toleda
toleda
Posted
  • Author
Posted

see attached terminal output

Apologies for the delay in replying.

Ignored "attach all requested files"

Edit config.plist/Devices/Audio/Inject/0 to 1

Save, restart, run cloverHDMI, restart, reply with all requested files.

Link to comment
Share on other sites
Joshua60
Joshua60
Posted
Posted

Apologies for the delay in replying.

Ignored "attach all requested files"

Edit config.plist/Devices/Audio/Inject/0 to 1

Save, restart, run cloverHDMI, restart, reply with all requested files.



Hi Toleda, here we are:



1. No HDMI audio output, no output devices found



2. macOS High Sierra 10.13.2 / Asus Z170-A / Bios 3504 (last) / Intel i7-6700K / Intel HD530



3. AppleHDA HDMI Audio / Post #1



4. Attached, AppleHDA.kext version 280.12



5. ‘my iMac’ attached



6.1 WARNING! Malware Detected, Download at your own risk



6.2 Attached screenshot system info



7. See 6.1



8. Attached MaciASL



9. Attached Terminal Saved Output



11.1 Attached config.plist



11.2  See 6.1





11.4 Attached SSDT-HDEF and SSDT-HDMI





if you need more ...

Attachments for Toleda.zip

Link to comment
Share on other sites
toleda
toleda
Posted
  • Author
Posted

1. No HDMI audio output, no output devices found



Missed Post #1/V. Requirements/2. Native AppleHDA.kext/4. Remove/Disable Clover audio/HDMI audio patches ...



change HDAS to HDEF disables SSDT-HDEF-HDAS-1 ssdt



Remove config.plist/ACPI/DSDT/Patches/Item 0 (change HDAS to HDEF)



Restart, reply with new files

Link to comment
Share on other sites
Joshua60
Joshua60
Posted
Posted

Missed Post #1/V. Requirements/2. Native AppleHDA.kext/4. Remove/Disable Clover audio/HDMI audio patches ...



change HDAS to HDEF disables SSDT-HDEF-HDAS-1 ssdt



Remove config.plist/ACPI/DSDT/Patches/Item 0 (change HDAS to HDEF)



Restart, reply with new files



hope it helps



V. Requirements



2. Native AppleHDA.kext attached



2.4 Remove Item 0: done

Attachments_2.zip

Link to comment
Share on other sites
Joshua60
Joshua60
Posted
Posted

A few files, not helpful.



Post #1/IV. Problem Reporting; attach all requested files.



Hi Toleda, thanks for your support, here we go again



1. About this Mac / System Report / Audio -> no devices

    System Preferences / Sound / No output devices found



2. macOS High Sierra 10.13.3 beta 1 / Asus Z170-A / Bios 3504 (last) / Intel i7-6700K / Intel HD530 / Clover 4334



3. AppleHDA HDMI Audio / Post #1



4. Attached, AppleHDA.kext version 280.12



5. ‘my iMac’ attached



6.1 WARNING! Malware Detected, Download at your own risk



6.2 Attached screenshot system info



7. See 6.1



8. Attached MaciASL



9. Attached Terminal Saved Output



11.1 Attached config.plist



11.2  See 6.1



11.4 Attached SSDT-HDEF and SSDT-HDMI

Attachments_3.zip

Link to comment
Share on other sites
Joshua60
Joshua60
Posted
Posted

See V. Requirements/2. Native AppleHDA.kext/4. Remove/Disable Clover audio/HDMI audio patches

Edit config.plist as noted, save.

Restart, reply with new files





4.1 I do not have patches in my config.plist. Is that right?







1. About this Mac / System Report / Audio -> no devices

    System Preferences / Sound / No output devices found



2. macOS High Sierra 10.13.3 beta 1 / Asus Z170-A / Bios 3504 (last) / Intel i7-6700K / Intel HD530 / Clover 4334



3. AppleHDA HDMI Audio / Post #1



4. Attached, AppleHDA.kext version 280.12



5. ‘my iMac’ attached



6.1 WARNING! Malware Detected, Download at your own risk



6.2 Attached screenshot system info



7. See 6.1



8. Attached MaciASL



9. Attached Terminal Saved Output



11.1 Attached config.plist



11.2  See 6.1



11.4 Attached SSDT-HDEF and SSDT-HDMI

Attachments_4.zip

Link to comment
Share on other sites
toleda
toleda
Posted
  • Author
Posted

4.1 I do not have patches in my config.plist. Is that right?

Your config.plist has lots of problems.

Unfortunately, all files attached are not helpful.

Ignored Post #36.

config.plist in next post is correct

Reply with new requested files.

What device is connected to what motherboard port?

Link to comment
Share on other sites
Joshua60
Joshua60
Posted
Posted

Your config.plist has lots of problems.

Unfortunately, all files attached are not helpful.

Ignored Post #36.

config.plist in next post is correct

Reply with new requested files.

What device is connected to what motherboard port?



Hi Toleda, here my 2 Cents,



1. About this Mac / System Report / Audio -> no devices

    System Preferences / Sound / No output devices found



2. macOS High Sierra 10.13.3 beta 1 / Asus Z170-A / Bios 3504 (last) / Intel i7-6700K / Intel HD530 / Clover 4359



3. AppleHDA HDMI Audio / Post #1



4. Attached, AppleHDA.kext version 280.12



5. ‘my iMac’ attached



6.1 WARNING! Malware Detected, Download at your own risk



6.2 Attached screenshot system info



7. See 6.1



8. Attached MaciASL



9. Attached Terminal Saved Output



11.1 Attached config.plist



11.2  See 6.1



11.4 Attached SSDT-HDEF and SSDT-HDMI





Device connected:



Display HDMI Philips 247E6 on HDMI port



Keyboard/Mouse Logitech MK270 wireless on USB port



Ethernet



PCIe 3.0 x4 ASUS HYPER M.2 X4 MINI adapter, Samsung 950 PRO M.2 NVMe SSD (Windows 10) 256GB



SATA HDD multi boot High Sierra, Sierra, El Capitan





Hope it helps.

Attachments_5.zip

Link to comment
Share on other sites
toleda
toleda
Posted
  • Author
Posted

my 2 Cents

Clover is blocking SSDT-SSDT-HDEF-HDAS-1

set config.plist/ACPI/DSDT/Fixes/FixHDA/NO

cloverHDMI:

Confirm DP to HDMI connector edit on port 0x6 (y/n): n
Ignore port 0x6
No framebuffer edits requested

Answer y for display on HDMI connector

Edit config.plist, above, and save

Run cloverHDMI

Restart, reply with new files

Include Clover boot log

Link to comment
Share on other sites
Joshua60
Joshua60
Posted
Posted

Clover is blocking SSDT-SSDT-HDEF-HDAS-1

set config.plist/ACPI/DSDT/Fixes/FixHDA/NO

cloverHDMI:

Confirm DP to HDMI connector edit on port 0x6 (y/n): n
Ignore port 0x6
No framebuffer edits requested

Answer y for display on HDMI connector

Edit config.plist, above, and save

Run cloverHDMI

Restart, reply with new files

Include Clover boot log



To make things easier I removed  the PCIe mini adapter card.





1. About this Mac / System Report / Audio -> no devices

    System Preferences / Sound / No output devices found



2. macOS High Sierra 10.13.3 beta 1 / Asus Z170-A / Bios 3504 (last) / Intel i7-6700K / Intel HD530 / Clover 4359



3. AppleHDA HDMI Audio / Post #1



4. Attached, AppleHDA.kext version 280.12



5. ‘my iMac’ attached



6.1 WARNING! Malware Detected, Download at your own risk



6.2 Attached screenshot system info



7. See 6.1



8. Attached MaciASL



9. Attached Terminal Saved Output



11.1 Attached config.plist



11.2  See 6.1



11.4 Attached SSDT-HDEF and SSDT-HDMI





Clover Install log included

Attachments_6.zip

Link to comment
Share on other sites
toleda
toleda
Posted
  • Author
Posted

1. About this Mac / System Report / Audio -> no devices

    System Preferences / Sound / No output devices found

To clarify, this thread is for HDMI audio only; advise if you are interested in 892 audio.

Problem with config.plist: Entry, ":KernelAndKextPatches:KextsToPatch:", Does Not Exist

Run cloverHDMI again, answer yes to connector edit

Reply with new files.

Link to comment
Share on other sites
Joshua60
Joshua60
Posted
Posted (edited)

To clarify, this thread is for HDMI audio only; advise if you are interested in 892 audio.

Problem with config.plist: Entry, ":KernelAndKextPatches:KextsToPatch:", Does Not Exist

Run cloverHDMI again, answer yes to connector edit

Reply with new files.



Hi Toleda, no, I'm not interested in 892 audio. I just need HDMI audio. I will change 1. to 'no HDMI audio'.



Answering 'yes' to connector edit, cloverHDMI replies



Entry, ":KernelAndKextPatches:KextsToPatch:", Does Not Exist



forever ...



Config.plist was damaged, switched to Sierra 10.12.6

Edited by Joshua60
Link to comment
Share on other sites
Joshua60
Joshua60
Posted
Posted

To clarify, this thread is for HDMI audio only; advise if you are interested in 892 audio.

Problem with config.plist: Entry, ":KernelAndKextPatches:KextsToPatch:", Does Not Exist

Run cloverHDMI again, answer yes to connector edit

Reply with new files.



here we go:



1. No HDMI audio



2. macOS Sierra 10.12.6 / Asus Z170-A / Bios 3504 (last) / Intel i7-6700K / Intel HD530 / Clover 4359



3. AppleHDA HDMI Audio / Post #1



4. Attached, AppleHDA.kext version 279.48



5. ‘my iMac’ attached



6.1 WARNING! Malware Detected, Download at your own risk



6.2 Attached screenshot system info



7. See 6.1



8. Attached MaciASL



9. Attached Terminal Saved Output



11.1 Attached config.plist



11.2  See 6.1



11.4 Attached SSDT-HDEF and SSDT-HDMI



X. Clover bootlog attached

Attachments_7.zip

Link to comment
Share on other sites
