Ryzen Clover Installation Guide macOS Sierra


Gigamaxx
 Share

1,334 posts in this topic

Recommended Posts



The USB installer is only able to boot for loading of "Install macOS Sierra" once it is on HDD or SSD the USB won't boot the SSD or HDD.



You need to Put Clover on HDD or SSD with Sierra.    Post Install method.




Do you have a config.plist?     Just checking, you need to select one and add it to clover folder.





That doesn't make sense.. boot up your pc and have it boot up with your pandora installer

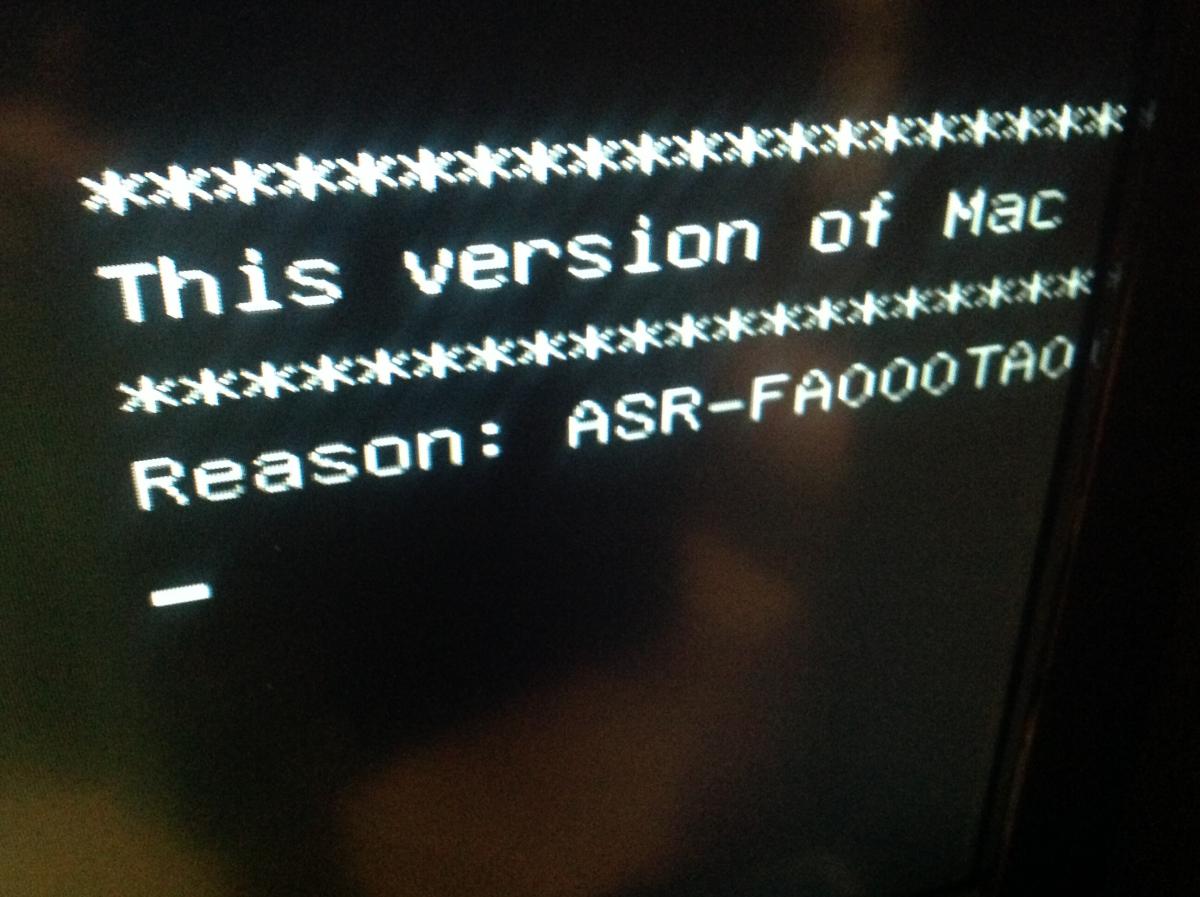

I have tried to boot off of the Installer but am still getting the same message(it is on the edge of the screen so it might be getting cut off). post-2128334-0-90248100-1499725343_thumb.jpg I am not sure why this is happening though I think the first three letters ASR refer to my ASRock Motherboard? I am using a config.plist. The exact same one is being used on both the SATA and the USB. Thank you for all of your help Gigamaxx and bbmatias3.

Link to comment
Share on other sites







I have tried to boot off of the Installer but am still getting the same message(it is on the edge of the screen so it might be getting cut off). I am not sure why this is happening though I think the first three letters ASR refer to my ASRock Motherboard? I am using a config.plist. The exact same one is being used on both the SATA and the USB. Thank you for all of your help Gigamaxx and bbmatias3.

So you try to boot your USB pandora installer to get to the installation??? Sorry you keep mentioning your hard drive as well? The main thing to do is to get the pandora installer to boot to get to the installation



You have a USB installer and a hard drive you want to install in right?



Check this link out

#####################################



I would suggest changing your smbios to 14,2



What graphics card are you using?

Edited by fantomas1
link to tonymac site removed!
Link to comment
Share on other sites

Anyone know any good wifi pcie adapters?



TP-Link N900 Wireless Dual Band PCI Express Adapter.



$40 - $45 US, It works natively in Mac OS X and Windows, no drivers needed for dual boot.  Its OOB for both platforms.



I have three of them, and one Broadcom 4360 wifi Bluetooth adapter.     The Broadcom is faster but more expensive $100 and the Bluetooth hasn't worked for Ryzen but it does for Intel.

Link to comment
Share on other sites

TP-Link N900 Wireless Dual Band PCI Express Adapter.



$40 - $45 US, It works natively in Mac OS X and Windows, no drivers needed for dual boot. Its OOB for both platforms.



I have three of them, and one Broadcom 4360 wifi Bluetooth adapter. The Broadcom is faster but more expensive $100 and the Bluetooth hasn't worked for Ryzen but it does for Intel.

To-Link n900 it is! I like plug and play lol

Link to comment
Share on other sites

Hi pro's need your help

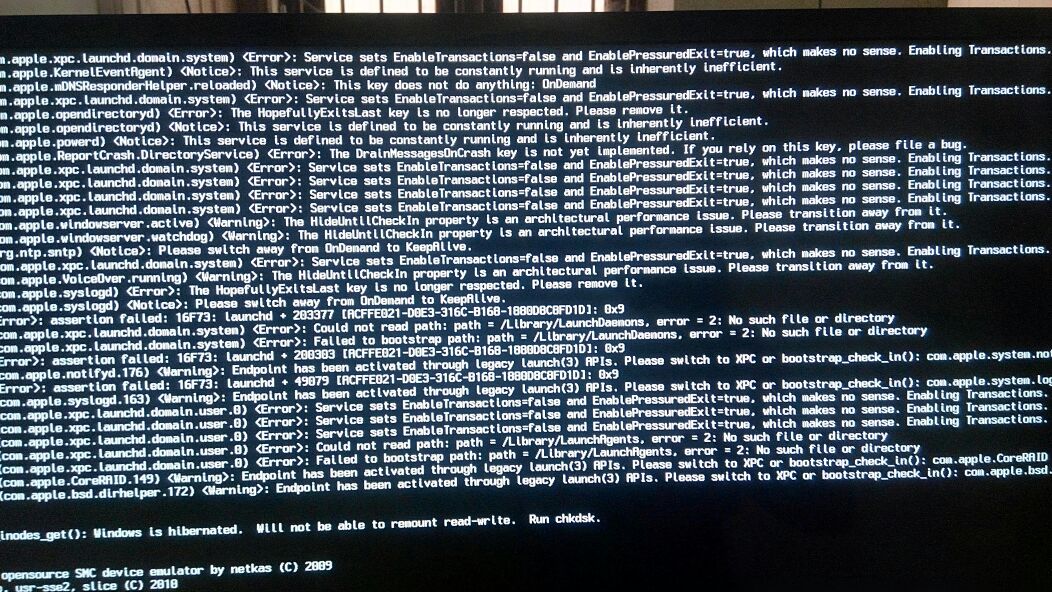

im getting error while clover usb install

path = /library/launcdaemons, error = 2 no such file or directory

path = /library/launchagents, error = 2 no such file or directory

Ryzen 1700

b350 tomahawk

1050ti GPU


Link to comment
Share on other sites

Hi pro's need your help

im getting error while clover usb install

path = /library/launcdaemons, error = 2 no such file or directory

path = /library/launchagents, error = 2 no such file or directory



Ryzen 1700

b350 tomahawk

1050ti GPU

You mean the pandora installer? Did you hit space and entered the 5 comands listed in the tutorial?

Also did you use correct npci and bus ratio? Did you inject nvidia as well? For installation only?

https://youtu.be/qSDzGk18rjY

If it doesnt look like this you missed a step

Link to comment
Share on other sites

You mean the pandora installer? Did you hit space and entered the 5 comands listed in the tutorial?

Also did you use correct npci and bus ratio? Did you inject nvidia as well? For installation only?

If it doesnt look like this you missed a step



You mean the pandora installer? Did you hit space and entered the 5 comands listed in the tutorial?

Also did you use correct npci and bus ratio? Did you inject nvidia as well? For installation only?

If it doesnt look like this you missed a step

First of all thanks for reply BBmatias3 :)

yes pandora installer... i ran in verbose mode,i followed gigamax video (

) and there were no commands

yes i copied nvidia pascal drivers in the folder(i thinks thats injecting ryt? sorry for being noob )

can u please give instructions about the command lines or a video wud be greqat

Link to comment
Share on other sites

You mean the pandora installer? Did you hit space and entered the 5 comands listed in the tutorial?

Also did you use correct npci and bus ratio? Did you inject nvidia as well? For installation only?

If it doesnt look like this you missed a step

i got the same thing as in ur video cheers :)  :thumbsup_anim:  ,

Can u please give the link to the five commands you told me  :wink_anim:

Link to comment
Share on other sites



You have another problem,

The GTX 750/950/960/970/980/1030/1050/1060/1080 / Titan work with web drivers on AMD or Intel.
The HD 4670/5770/5850/5870/6850/6870/7850/7950/7970 / R9 280 / 280x do not need any flag or injection and full of other GPUs work that I no longer have in mind.

Not knowing fiji and Polaris, I do not advance

the HD 6670 1024 works with FBConfig=Lotus with clover ;)





Hm, dont know what could be the problem.



With 1080Ti it works, but only poor performance if you think of cards potential. Then if I switch to 1060, I survive for like 5-10 seconds before OS restarts. Even if I try to uninstall and install freshly nvidia drivers.



And for Ati, I have tried that HD 7950 with various combinations.. With nvidia drivers installed or uninstalled. With ATI injection, witch boot buffers etc.. but I only get it running once very luckily, just after removing 1080 Ti I only inserted this 7950 and it worked. Reboot later, did not and then never again even though I tried all those stuff I write above.. But it is booted in system, I can hear sounds, but screen is black.

Link to comment
Share on other sites

Hm, dont know what could be the problem.



With 1080Ti it works, but only poor performance if you think of cards potential. Then if I switch to 1060, I survive for like 5-10 seconds before OS restarts. Even if I try to uninstall and install freshly nvidia drivers.



And for Ati, I have tried that HD 7950 with various combinations.. With nvidia drivers installed or uninstalled. With ATI injection, witch boot buffers etc.. but I only get it running once very luckily, just after removing 1080 Ti I only inserted this 7950 and it worked. Reboot later, did not and then never again even though I tried all those stuff I write above.. But it is booted in system, I can hear sounds, but screen is black.



The black screen is a frame buffer or port issue.     Try the HD 7950 without inject ATI, or inject ATI= false, and no framebuffer.     Also, when you had black screen did you try different outputs from the card, HDMI, Displayport, etc...?



It sounds like the card is working you just need to find the correct frame buffer or port configuration.

Link to comment
Share on other sites

Hm, dont know what could be the problem.



With 1080Ti it works, but only poor performance if you think of cards potential. Then if I switch to 1060, I survive for like 5-10 seconds before OS restarts. Even if I try to uninstall and install freshly nvidia drivers.



And for Ati, I have tried that HD 7950 with various combinations.. With nvidia drivers installed or uninstalled. With ATI injection, witch boot buffers etc.. but I only get it running once very luckily, just after removing 1080 Ti I only inserted this 7950 and it worked. Reboot later, did not and then never again even though I tried all those stuff I write above.. But it is booted in system, I can hear sounds, but screen is black.



??



and PCIRootUID=1 or/and msibase=0x90 ?

Link to comment
Share on other sites

You need to close sierra installer program and unmount it.. use disk utility and unmount sierra installer



Did you hit space and hit the 5 commands mentioned in the tutorial? Did you use correct npci and busratio ? And did you use correct graphic settings?

I got the USB to work. I did all that you said but now it's stuck at the Mac logo that comes just before the install guide.

You need to close sierra installer program and unmount it.. use disk utility and unmount sierra installer



Did you hit space and hit the 5 commands mentioned in the tutorial? Did you use correct npci and busratio ? And did you use correct graphic settings?

I got the USB to work. I did all that you said but now it's stuck at the Mac logo that comes just before the install guide.

Link to comment
Share on other sites

I have redone the installer and the hard drive multiple times checking that everything is correct. However every time I try to boot I get the text going across the screen as in bbmatias3's video but then when it gets to the apple screen it always freezes after barely starting to fill the bar. I am not sure how to fix this as it seems I have tried all possible options.

Link to comment
Share on other sites

@Gigamaxx I ended up going with the tp-link ac 1300 it was 40 US dollars not to hard to set up internet works great now

I have redone the installer and the hard drive multiple times checking that everything is correct. However every time I try to boot I get the text going across the screen as in bbmatias3's video but then when it gets to the apple screen it always freezes after barely starting to fill the bar. I am not sure how to fix this as it seems I have tried all possible options.

Not sure all I did was follow the tutorial .... after that hit the 5 commands / options npci and bus ratio and graphics card options and that's it... when all the colored text did you type in the other two commands mount something and fsky something then after that exit? In my video it didn't ask me to do that because I had done it already but first time it will

  • Like 1
Link to comment
Share on other sites

I have redone the installer and the hard drive multiple times checking that everything is correct. However every time I try to boot I get the text going across the screen as in bbmatias3's video but then when it gets to the apple screen it always freezes after barely starting to fill the bar. I am not sure how to fix this as it seems I have tried all possible options./



Have you tried nv_disable=1 ?   Boot arg. along with npci=0x3000 and busratio=xx

Link to comment
Share on other sites

Have you tried nv_disable=1 ?   Boot arg. along with npci=0x3000 and busratio=xx

Yes tried that too. Now getting an error:



Error allocating 0x253c pages at 0x0000000007e45000 alloc type 2

Error loading kernel chache (0x9)

Boot failed, sleeping for 10 seconds before exiting...

Link to comment
Share on other sites

Yes tried that too. Now getting an error:



Error allocating 0x253c pages at 0x0000000007e45000 alloc type 2

Error loading kernel chache (0x9)

Boot failed, sleeping for 10 seconds before exiting...





Kernel is not loading. Try replacing kernel and prelinked kernel and run kext wizzard before reboot. Hit space bar on first boot and do the 5 commands. Then reboot normally.

Link to comment
Share on other sites

Yes tried that too. Now getting an error:



Error allocating 0x253c pages at 0x0000000007e45000 alloc type 2

Error loading kernel chache (0x9)

Boot failed, sleeping for 10 seconds before exiting...

Try replacing the kernel like Gigamaxx said, I use to get that error because my npci didn't match my busratio. My computer is at stock 3000mhz so I would type in npci=0x3000 busratio=30

And also make sure you use correct setting for your graphic card sometimes you don't have to click anything, it it doesn't work you might have to inject nvidia for installation (web drivers come later)

Link to comment
Share on other sites

@Gigamaxx I ended up going with the tp-link ac 1300 it was 40 US dollars not to hard to set up internet works great now



Not sure all I did was follow the tutorial .... after that hit the 5 commands / options npci and bus ratio and graphics card options and that's it... when all the colored text did you type in the other two commands mount something and fsky something then after that exit? In my video it didn't ask me to do that because I had done it already but first time it will



I can not get the system to boot and made a video to show what happened:

Have you tried nv_disable=1 ?   Boot arg. along with npci=0x3000 and busratio=xx

I did try this as well but the exact same thing happened



Thank you for your help

Link to comment
Share on other sites

I can not get the system to boot and made a video to show what happened:

I did try this as well but the exact same thing happened



Thank you for your help



How long did you wait with the apple logo?    It can hang there for 10-15 minutes before it starts to load, but not more than 20 minutes.



It has a bug where it finally stops for the mount -uw point.     You made it to the loading point it doesn't get much closer to booting than that.



Try not injecting Nvidia for 1070 and add nv_disable=1 to boot args after busratio=30.    I'll bet that if you had a Gt210 it would've booted.
