[pre-release] macOS High Sierra

[arsradu]

-lilubeta

Sent from my SM-G930F using Tapatalk





Corrected. Thank you.

[Cyberdevs]

FWIW regarding patching of Nvidia drivers for High Sierra, I just upgraded to 17A315i and had to do it all over again, so I snapped the command-line in case it proves helpful to you.

NB that in /Volumes/macOS RAID/ I have 10.12.6 installed with 378.05.05.25f01 and that I have already installed in /System/Library/Extensions the same version (from a patched .pkg so the installer doesn't complain) AND I have edited the relevant Info.plist file in NVDAStartupWeb.kext to require 17A315i instead as per usual procedure. Then I just do:



Screen Shot 2017-07-26 at 20.49.27.png

Thanks I will give it a try

[Sherlocks]

apfs beta4 log free.

© cecekpawon

apfs.efi-beta4 log free.zip

[nmano]

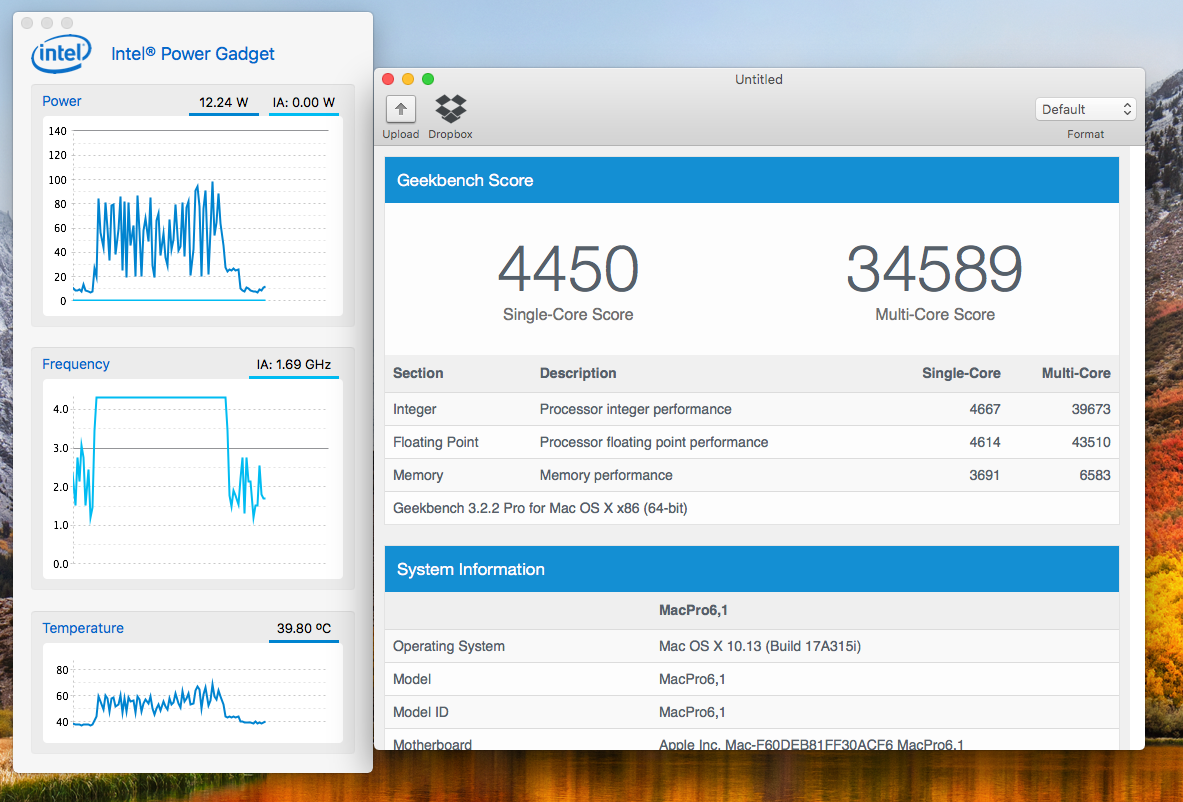

XCPM 10.12 and 10.13 new update Haswell-E family with Gigabyte boards.

Thank you guys.

Bios settings

C1E: Disabled

C6/C7: Enabled

EIST-Enabled

EIST: EnabledLast login: Thu Jul 27 14:38:58 on console
navaratnams-Pro:~ navaratnam$ sudo chown -R root:wheel /Users/navaratnam/Desktop/AppleIntelInfo.kext
Password:
navaratnams-Pro:~ navaratnam$ sudo chmod -R 755 /Users/navaratnam/Desktop/AppleIntelInfo.kext
navaratnams-Pro:~ navaratnam$ sudo kextload /Users/navaratnam/Desktop/AppleIntelInfo.kext
navaratnams-Pro:~ navaratnam$ sudo cat /tmp/AppleIntelInfo.dat

AppleIntelInfo.kext v2.0 Copyright © 2012-2016 Pike R. Alpha. All rights reserved
enableHWP................................: 0

Settings:
------------------------------------------
logMSRs..................................: 1
logIGPU..................................: 0
logCStates...............................: 1
logIPGStyle..............................: 1
InitialTSC...............................: 0xe512306e128e (8395 MHz)
MWAIT C-States...........................: 8480

Processor Brandstring....................: Intel(R) Core(TM) i7-5960X CPU @ 3.00GHz

Processor Signature..................... : 0x306F2
------------------------------------------
 - Family............................... : 6
 - Stepping............................. : 2
 - Model................................ : 0x3F (63)

Model Specific Registers (MSRs)
------------------------------------------

MSR_CORE_THREAD_COUNT............(0x35)  : 0x1E
------------------------------------------
 - Core Count........................... : 8
 - Thread Count......................... : 16

MSR_PLATFORM_INFO................(0xCE)  : 0x80C3BF3811E00
------------------------------------------
 - Maximum Non-Turbo Ratio.............. : 0x1E (3000 MHz)
 - Ratio Limit for Turbo Mode........... : 1 (programmable)
 - TDP Limit for Turbo Mode............. : 1 (programmable)
 - Low Power Mode Support............... : 1 (LPM supported)
 - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available)
 - Maximum Efficiency Ratio............. : 12
 - Minimum Operating Ratio.............. : 8

MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x7E000403
------------------------------------------
 - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT)
 - CFG Lock............................. : 0 (MSR not locked)
 - C3 State Auto Demotion............... : 1 (enabled)
 - C1 State Auto Demotion............... : 1 (enabled)
 - C3 State Undemotion.................. : 1 (enabled)
 - C1 State Undemotion.................. : 1 (enabled)
 - Package C-State Auto Demotion........ : 1 (enabled)
 - Package C-State Undemotion........... : 1 (enabled)

MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x10414
------------------------------------------
 - LVL_2 Base Address................... : 0x414
 - C-state Range........................ : 1 (C6 is the max C-State to include)

IA32_MPERF.......................(0xE7)  : 0x2308028639
IA32_APERF.......................(0xE8)  : 0x26137394DB

MSR_FLEX_RATIO...................(0x194) : 0xE0000
------------------------------------------

MSR_IA32_PERF_STATUS.............(0x198) : 0x280400000C00
------------------------------------------
 - Current Performance State Value...... : 0xC00 (1200 MHz)

MSR_IA32_PERF_CONTROL............(0x199) : 0xFF00
------------------------------------------
 - Target performance State Value....... : 0xFF00 (25500 MHz)
 - Intel Dynamic Acceleration........... : 0 (IDA engaged)

IA32_CLOCK_MODULATION............(0x19A) : 0x0

IA32_THERM_INTERRUPT.............(0x19B) : 0x0

IA32_THERM_STATUS................(0x19C) : 0x883C0000
------------------------------------------
 - Thermal Status....................... : 0
 - Thermal Log.......................... : 0
 - PROCHOT # or FORCEPR# event.......... : 0
 - PROCHOT # or FORCEPR# log............ : 0
 - Critical Temperature Status.......... : 0
 - Critical Temperature log............. : 0
 - Thermal Threshold #1 Status.......... : 0
 - Thermal Threshold #1 log............. : 0
 - Thermal Threshold #2 Status.......... : 0
 - Thermal Threshold #2 log............. : 0
 - Power Limitation Status.............. : 0
 - Power Limitation log................. : 0
 - Current Limit Status................. : 0
 - Current Limit log.................... : 0
 - Cross Domain Limit Status............ : 0
 - Cross Domain Limit log............... : 0
 - Digital Readout...................... : 60
 - Resolution in Degrees Celsius........ : 1
 - Reading Valid........................ : 1 (valid)

MSR_THERM2_CTL...................(0x19D) : 0x0

IA32_MISC_ENABLES................(0x1A0) : 0x850089
------------------------------------------
 - Fast-Strings......................... : 1 (enabled)
 - FOPCODE compatibility mode Enable.... : 0
 - Automatic Thermal Control Circuit.... : 1 (enabled)
 - Split-lock Disable................... : 0
 - Performance Monitoring............... : 1 (available)
 - Bus Lock On Cache Line Splits Disable : 0
 - Hardware prefetch Disable............ : 0
 - Processor Event Based Sampling....... : 0 (PEBS supported)
 - GV1/2 legacy Enable.................. : 0
 - Enhanced Intel SpeedStep Technology.. : 1 (enabled)
 - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)
 - Adjacent sector prefetch Disable..... : 0
 - CFG Lock............................. : 0 (MSR not locked)
 - xTPR Message Disable................. : 1 (disabled)

MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x591200
------------------------------------------
 - Turbo Attenuation Units.............. : 0
 - Temperature Target................... : 89
 - TCC Activation Offset................ : 0

MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000
------------------------------------------
 - EIST Hardware Coordination........... : 0 (hardware coordination enabled)
 - Energy/Performance Bias support...... : 1
 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)
 - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores)

MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2B2B2B2B2B2B2B2B
------------------------------------------
 - Maximum Ratio Limit for C01.......... : 2B (4300 MHz)
 - Maximum Ratio Limit for C02.......... : 2B (4300 MHz)
 - Maximum Ratio Limit for C03.......... : 2B (4300 MHz)
 - Maximum Ratio Limit for C04.......... : 2B (4300 MHz)
 - Maximum Ratio Limit for C05.......... : 2B (4300 MHz)
 - Maximum Ratio Limit for C06.......... : 2B (4300 MHz)
 - Maximum Ratio Limit for C07.......... : 2B (4300 MHz)
 - Maximum Ratio Limit for C08.......... : 2B (4300 MHz)

IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x1
------------------------------------------
 - Power Policy Preference...............: 1 (highest performance)

MSR_POWER_CTL....................(0x1FC) : 0x21040059
------------------------------------------
 - Bi-Directional Processor Hot..........: 1 (enabled)
 - C1E Enable............................: 0 (disabled)

MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03
------------------------------------------
 - Power Units.......................... : 3 (1/8 Watt)
 - Energy Status Units.................. : 14 (61 micro-Joules)
 - Time Units .......................... : 10 (976.6 micro-Seconds)

MSR_PKG_POWER_LIMIT..............(0x610) : 0x7FFD00014EA82
------------------------------------------
 - Package Power Limit #1............... : 3408 Watt
 - Enable Power Limit #1................ : 1 (enabled)
 - Package Clamping Limitation #1....... : 0 (disabled)
 - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds)
 - Package Power Limit #2............... : 4090 Watt
 - Enable Power Limit #2................ : 1 (enabled)
 - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2)
 - Time Window for Power Limit #2....... : 3 (20 milli-Seconds)
 - Lock................................. : 0 (MSR not locked)

MSR_PKG_ENERGY_STATUS............(0x611) : 0x628157E
------------------------------------------
 - Total Energy Consumed................ : 6304 Joules (Watt = Joules / seconds)

MSR_PKG_POWER_INFO...............(0x614) : 0x1280460
------------------------------------------
 - Thermal Spec Power................... : 140 Watt
 - Minimum Power........................ : 0
 - Maximum Power........................ : 0
 - Maximum Time Window.................. : 0

MSR_PP0_POWER_LIMIT..............(0x638) : 0x14FFD0
------------------------------------------
 - Power Limit.......................... : 4090 Watt
 - Enable Power Limit................... : 1 (enabled)
 - Clamping Limitation.................. : 0 (disabled)
 - Time Window for Power Limit.......... : 10 (10240 milli-Seconds)
 - Lock................................. : 0 (MSR not locked)

MSR_PP0_ENERGY_STATUS............(0x639) : 0x0

MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0

MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x1E
MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x940000001B0460
MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000
MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0
MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0
MSR_PKGC6_IRTL...................(0x60b) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x1F5349EC84
MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x1FB600C
MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x8157003B82

IA32_TSC_DEADLINE................(0x6E0) : 0xE5123B05752C

CPU Ratio Info:
------------------------------------------
Base Clock Frequency (BLCK)............. : 100 MHz
Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz)
Maximum non-Turbo Ratio/Frequency........: 30 (3000 MHz)
Maximum Turbo Ratio/Frequency............: 43 (4300 MHz)
P-State ratio * 100 = Frequency in MHz
------------------------------------------
CPU P-States [ (12) 35 ]
CPU C3-Cores [ 0 4 6 9 11 14 ]
CPU C6-Cores [ 0 2 4 6 8 10 12 14 ]
CPU P-States [ (12) 23 35 ]
CPU C3-Cores [ 0 1 4 6 8 9 11 14 ]
CPU C6-Cores [ 0 2 4 6 8 9 10 12 14 ]
CPU P-States [ (12) 23 32 35 ]
CPU C3-Cores [ 0 1 4 6 8 9 11 14 15 ]
CPU P-States [ 12 23 26 32 35 (43) ]
CPU C3-Cores [ 0 1 4 6 8 9 10 11 14 15 ]
CPU P-States [ (12) 20 23 26 32 35 43 ]
CPU P-States [ (12) 20 23 26 32 35 39 43 ]
CPU P-States [ (12) 20 23 24 26 32 35 39 43 ]
CPU C3-Cores [ 0 1 4 6 7 8 9 10 11 14 15 ]
CPU P-States [ 12 20 23 24 (25) 26 32 35 39 43 ]
CPU P-States [ (12) 20 23 24 25 26 27 32 35 39 43 ]
CPU C6-Cores [ 0 1 2 4 6 8 9 10 12 14 ]
CPU P-States [ (12) 20 23 24 25 26 27 32 34 35 39 43 ]
CPU C6-Cores [ 0 1 2 4 6 8 9 10 12 14 15 ]
CPU C3-Cores [ 0 1 4 5 6 7 8 9 10 11 14 15 ]
CPU P-States [ (12) 20 23 24 25 26 27 31 32 34 35 39 43 ]
CPU P-States [ (12) 20 23 24 25 26 27 28 31 32 34 35 39 43 ]
CPU P-States [ 12 18 20 (21) 23 24 25 26 27 28 31 32 34 35 39 43 ]
CPU P-States [ (12) 18 20 21 23 24 25 26 27 28 30 31 32 34 35 39 43 ]
CPU P-States [ (12) 16 18 20 21 23 24 25 26 27 28 30 31 32 34 35 39 43 ]
CPU P-States [ (12) 16 18 20 21 22 23 24 25 26 27 28 30 31 32 34 35 39 43 ]
navaratnams-Pro:~ navaratnam$

XCPM 10.12 and 10.13 update.zip

[Wppley2]

Hi all! I'm trying to get DP4 with NvidiaGraphicsFixUp.kext and latest Lilu.kext for 4 days and nothing with webdrivers for me at the moment. i'm getting a annoying black hole screen. I've did all exactly same with DP3, but it cannot works like before with my GTX 750 Ti. Can anyone tell me what i'm missing, please?

[Balamut]

XCPM 10.12 and 10.13 new update Haswell-E family with Gigabyte boards.

Thank you guys.

Bios settings

C1E: Disabled

C6/C7: Enabled

EIST-Enabled

EIST: EnabledLast login: Thu Jul 27 14:38:58 on console
navaratnams-Pro:~ navaratnam$ sudo chown -R root:wheel /Users/navaratnam/Desktop/AppleIntelInfo.kext
Password:
navaratnams-Pro:~ navaratnam$ sudo chmod -R 755 /Users/navaratnam/Desktop/AppleIntelInfo.kext
navaratnams-Pro:~ navaratnam$ sudo kextload /Users/navaratnam/Desktop/AppleIntelInfo.kext
navaratnams-Pro:~ navaratnam$ sudo cat /tmp/AppleIntelInfo.dat

AppleIntelInfo.kext v2.0 Copyright © 2012-2016 Pike R. Alpha. All rights reserved
enableHWP................................: 0

Settings:
------------------------------------------
logMSRs..................................: 1
logIGPU..................................: 0
logCStates...............................: 1
logIPGStyle..............................: 1
InitialTSC...............................: 0xe512306e128e (8395 MHz)
MWAIT C-States...........................: 8480

Processor Brandstring....................: Intel(R) Core(TM) i7-5960X CPU @ 3.00GHz

Processor Signature..................... : 0x306F2
------------------------------------------
 - Family............................... : 6
 - Stepping............................. : 2
 - Model................................ : 0x3F (63)

Model Specific Registers (MSRs)
------------------------------------------

MSR_CORE_THREAD_COUNT............(0x35)  : 0x1E
------------------------------------------
 - Core Count........................... : 8
 - Thread Count......................... : 16

MSR_PLATFORM_INFO................(0xCE)  : 0x80C3BF3811E00
------------------------------------------
 - Maximum Non-Turbo Ratio.............. : 0x1E (3000 MHz)
 - Ratio Limit for Turbo Mode........... : 1 (programmable)
 - TDP Limit for Turbo Mode............. : 1 (programmable)
 - Low Power Mode Support............... : 1 (LPM supported)
 - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available)
 - Maximum Efficiency Ratio............. : 12
 - Minimum Operating Ratio.............. : 8

MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x7E000403
------------------------------------------
 - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT)
 - CFG Lock............................. : 0 (MSR not locked)
 - C3 State Auto Demotion............... : 1 (enabled)
 - C1 State Auto Demotion............... : 1 (enabled)
 - C3 State Undemotion.................. : 1 (enabled)
 - C1 State Undemotion.................. : 1 (enabled)
 - Package C-State Auto Demotion........ : 1 (enabled)
 - Package C-State Undemotion........... : 1 (enabled)

MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x10414
------------------------------------------
 - LVL_2 Base Address................... : 0x414
 - C-state Range........................ : 1 (C6 is the max C-State to include)

IA32_MPERF.......................(0xE7)  : 0x2308028639
IA32_APERF.......................(0xE8)  : 0x26137394DB

MSR_FLEX_RATIO...................(0x194) : 0xE0000
------------------------------------------

MSR_IA32_PERF_STATUS.............(0x198) : 0x280400000C00
------------------------------------------
 - Current Performance State Value...... : 0xC00 (1200 MHz)

MSR_IA32_PERF_CONTROL............(0x199) : 0xFF00
------------------------------------------
 - Target performance State Value....... : 0xFF00 (25500 MHz)
 - Intel Dynamic Acceleration........... : 0 (IDA engaged)

IA32_CLOCK_MODULATION............(0x19A) : 0x0

IA32_THERM_INTERRUPT.............(0x19B) : 0x0

IA32_THERM_STATUS................(0x19C) : 0x883C0000
------------------------------------------
 - Thermal Status....................... : 0
 - Thermal Log.......................... : 0
 - PROCHOT # or FORCEPR# event.......... : 0
 - PROCHOT # or FORCEPR# log............ : 0
 - Critical Temperature Status.......... : 0
 - Critical Temperature log............. : 0
 - Thermal Threshold #1 Status.......... : 0
 - Thermal Threshold #1 log............. : 0
 - Thermal Threshold #2 Status.......... : 0
 - Thermal Threshold #2 log............. : 0
 - Power Limitation Status.............. : 0
 - Power Limitation log................. : 0
 - Current Limit Status................. : 0
 - Current Limit log.................... : 0
 - Cross Domain Limit Status............ : 0
 - Cross Domain Limit log............... : 0
 - Digital Readout...................... : 60
 - Resolution in Degrees Celsius........ : 1
 - Reading Valid........................ : 1 (valid)

MSR_THERM2_CTL...................(0x19D) : 0x0

IA32_MISC_ENABLES................(0x1A0) : 0x850089
------------------------------------------
 - Fast-Strings......................... : 1 (enabled)
 - FOPCODE compatibility mode Enable.... : 0
 - Automatic Thermal Control Circuit.... : 1 (enabled)
 - Split-lock Disable................... : 0
 - Performance Monitoring............... : 1 (available)
 - Bus Lock On Cache Line Splits Disable : 0
 - Hardware prefetch Disable............ : 0
 - Processor Event Based Sampling....... : 0 (PEBS supported)
 - GV1/2 legacy Enable.................. : 0
 - Enhanced Intel SpeedStep Technology.. : 1 (enabled)
 - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)
 - Adjacent sector prefetch Disable..... : 0
 - CFG Lock............................. : 0 (MSR not locked)
 - xTPR Message Disable................. : 1 (disabled)

MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x591200
------------------------------------------
 - Turbo Attenuation Units.............. : 0
 - Temperature Target................... : 89
 - TCC Activation Offset................ : 0

MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000
------------------------------------------
 - EIST Hardware Coordination........... : 0 (hardware coordination enabled)
 - Energy/Performance Bias support...... : 1
 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)
 - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores)

MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2B2B2B2B2B2B2B2B
------------------------------------------
 - Maximum Ratio Limit for C01.......... : 2B (4300 MHz)
 - Maximum Ratio Limit for C02.......... : 2B (4300 MHz)
 - Maximum Ratio Limit for C03.......... : 2B (4300 MHz)
 - Maximum Ratio Limit for C04.......... : 2B (4300 MHz)
 - Maximum Ratio Limit for C05.......... : 2B (4300 MHz)
 - Maximum Ratio Limit for C06.......... : 2B (4300 MHz)
 - Maximum Ratio Limit for C07.......... : 2B (4300 MHz)
 - Maximum Ratio Limit for C08.......... : 2B (4300 MHz)

IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x1
------------------------------------------
 - Power Policy Preference...............: 1 (highest performance)

MSR_POWER_CTL....................(0x1FC) : 0x21040059
------------------------------------------
 - Bi-Directional Processor Hot..........: 1 (enabled)
 - C1E Enable............................: 0 (disabled)

MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03
------------------------------------------
 - Power Units.......................... : 3 (1/8 Watt)
 - Energy Status Units.................. : 14 (61 micro-Joules)
 - Time Units .......................... : 10 (976.6 micro-Seconds)

MSR_PKG_POWER_LIMIT..............(0x610) : 0x7FFD00014EA82
------------------------------------------
 - Package Power Limit #1............... : 3408 Watt
 - Enable Power Limit #1................ : 1 (enabled)
 - Package Clamping Limitation #1....... : 0 (disabled)
 - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds)
 - Package Power Limit #2............... : 4090 Watt
 - Enable Power Limit #2................ : 1 (enabled)
 - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2)
 - Time Window for Power Limit #2....... : 3 (20 milli-Seconds)
 - Lock................................. : 0 (MSR not locked)

MSR_PKG_ENERGY_STATUS............(0x611) : 0x628157E
------------------------------------------
 - Total Energy Consumed................ : 6304 Joules (Watt = Joules / seconds)

MSR_PKG_POWER_INFO...............(0x614) : 0x1280460
------------------------------------------
 - Thermal Spec Power................... : 140 Watt
 - Minimum Power........................ : 0
 - Maximum Power........................ : 0
 - Maximum Time Window.................. : 0

MSR_PP0_POWER_LIMIT..............(0x638) : 0x14FFD0
------------------------------------------
 - Power Limit.......................... : 4090 Watt
 - Enable Power Limit................... : 1 (enabled)
 - Clamping Limitation.................. : 0 (disabled)
 - Time Window for Power Limit.......... : 10 (10240 milli-Seconds)
 - Lock................................. : 0 (MSR not locked)

MSR_PP0_ENERGY_STATUS............(0x639) : 0x0

MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0

MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x1E
MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x940000001B0460
MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000
MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0
MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0
MSR_PKGC6_IRTL...................(0x60b) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x1F5349EC84
MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x1FB600C
MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x8157003B82

IA32_TSC_DEADLINE................(0x6E0) : 0xE5123B05752C

CPU Ratio Info:
------------------------------------------
Base Clock Frequency (BLCK)............. : 100 MHz
Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz)
Maximum non-Turbo Ratio/Frequency........: 30 (3000 MHz)
Maximum Turbo Ratio/Frequency............: 43 (4300 MHz)
P-State ratio * 100 = Frequency in MHz
------------------------------------------
CPU P-States [ (12) 35 ]
CPU C3-Cores [ 0 4 6 9 11 14 ]
CPU C6-Cores [ 0 2 4 6 8 10 12 14 ]
CPU P-States [ (12) 23 35 ]
CPU C3-Cores [ 0 1 4 6 8 9 11 14 ]
CPU C6-Cores [ 0 2 4 6 8 9 10 12 14 ]
CPU P-States [ (12) 23 32 35 ]
CPU C3-Cores [ 0 1 4 6 8 9 11 14 15 ]
CPU P-States [ 12 23 26 32 35 (43) ]
CPU C3-Cores [ 0 1 4 6 8 9 10 11 14 15 ]
CPU P-States [ (12) 20 23 26 32 35 43 ]
CPU P-States [ (12) 20 23 26 32 35 39 43 ]
CPU P-States [ (12) 20 23 24 26 32 35 39 43 ]
CPU C3-Cores [ 0 1 4 6 7 8 9 10 11 14 15 ]
CPU P-States [ 12 20 23 24 (25) 26 32 35 39 43 ]
CPU P-States [ (12) 20 23 24 25 26 27 32 35 39 43 ]
CPU C6-Cores [ 0 1 2 4 6 8 9 10 12 14 ]
CPU P-States [ (12) 20 23 24 25 26 27 32 34 35 39 43 ]
CPU C6-Cores [ 0 1 2 4 6 8 9 10 12 14 15 ]
CPU C3-Cores [ 0 1 4 5 6 7 8 9 10 11 14 15 ]
CPU P-States [ (12) 20 23 24 25 26 27 31 32 34 35 39 43 ]
CPU P-States [ (12) 20 23 24 25 26 27 28 31 32 34 35 39 43 ]
CPU P-States [ 12 18 20 (21) 23 24 25 26 27 28 31 32 34 35 39 43 ]
CPU P-States [ (12) 18 20 21 23 24 25 26 27 28 30 31 32 34 35 39 43 ]
CPU P-States [ (12) 16 18 20 21 23 24 25 26 27 28 30 31 32 34 35 39 43 ]
CPU P-States [ (12) 16 18 20 21 22 23 24 25 26 27 28 30 31 32 34 35 39 43 ]
navaratnams-Pro:~ navaratnam$

XCPM 10.12 and 10.13 update.zip



Much difference for Broadwells?

[nmano]

Much difference for Broadwells?



IF you have gigabyte board you can test.

[xtddd]

13 beta4 can be installed with smbios macpro5.1?

[Cyberdevs]

13 beta4 can be installed with smbios macpro5.1?

I don't see why not. It should be supported.

[Lucy183]

Sorry for off-topic.

My integrated webcam(usb host) prevents sleep(laptop enter sleep and instantly wakes).

Does exists any method to disable wake from usb?

[arsradu]

Sorry for off-topic.

My integrated webcam(usb host) prevents sleep(laptop enter sleep and instantly wakes).

Does exists any method to disable wake from usb?

Have you tried from Bios -> wake events? Or usb options. Depends on the board, of course.



Sent from my D5803 using Tapatalk

[Lucy183]

Have you tried from Bios -> wake events? Or usb options. Depends on tje board, of course.



Sent from my D5803 using Tapatalk

I don't have much options at usb because it is an laptop..

Second in signature if this matters.

[xtddd]

@ cyberdevs mac pro5.1 has no updated biosversion in smbios.

[Lucy183]

@ cyberdevs mac pro5.1 has no updated biosversion in smbios.

I have HS DB4 installed with MacPro5,1 on APFS and all it's ok except sleep because of my HD5870

[Cyberdevs]

@ cyberdevs mac pro5.1 has no updated biosversion in smbios.

Maybe MacPro5,1 doesn't need the firmware update. I'm not sure

[xtddd]

I have HS DB4 installed with MacPro5,1 on APFS and all it's ok except sleep because of my HD5870

good news for me...my gtx 960 has no black screen problems with macpro5.1..

Maybe MacPro5,1 doesn't need the firmware update. I'm not sure

maybe..it is good that hs can run with mp5.1

[camillionario]

Sorry for off-topic.

My integrated webcam(usb host) prevents sleep(laptop enter sleep and instantly wakes).

Does exists any method to disable wake from usb?

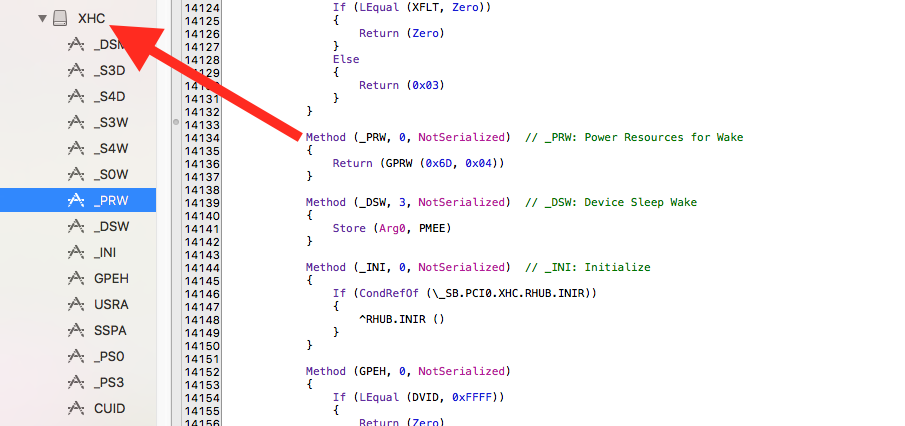

Test delete this from usb device (DSDT)



[Lucy183]

Test delete this from usb device (DSDT)



Captura de pantalla 2017-07-28 a las 10.59.25.png

My EHC1 and EHC2 looks like this:

[camillionario]

My EHC1 and EHC2 looks like this:

Look for that method in xhc and try to delete, restart.





Or see in ioreg the cause of awakening an delete this method.



[Lucy183]

Look for that method in xhc and try to delete, restart.

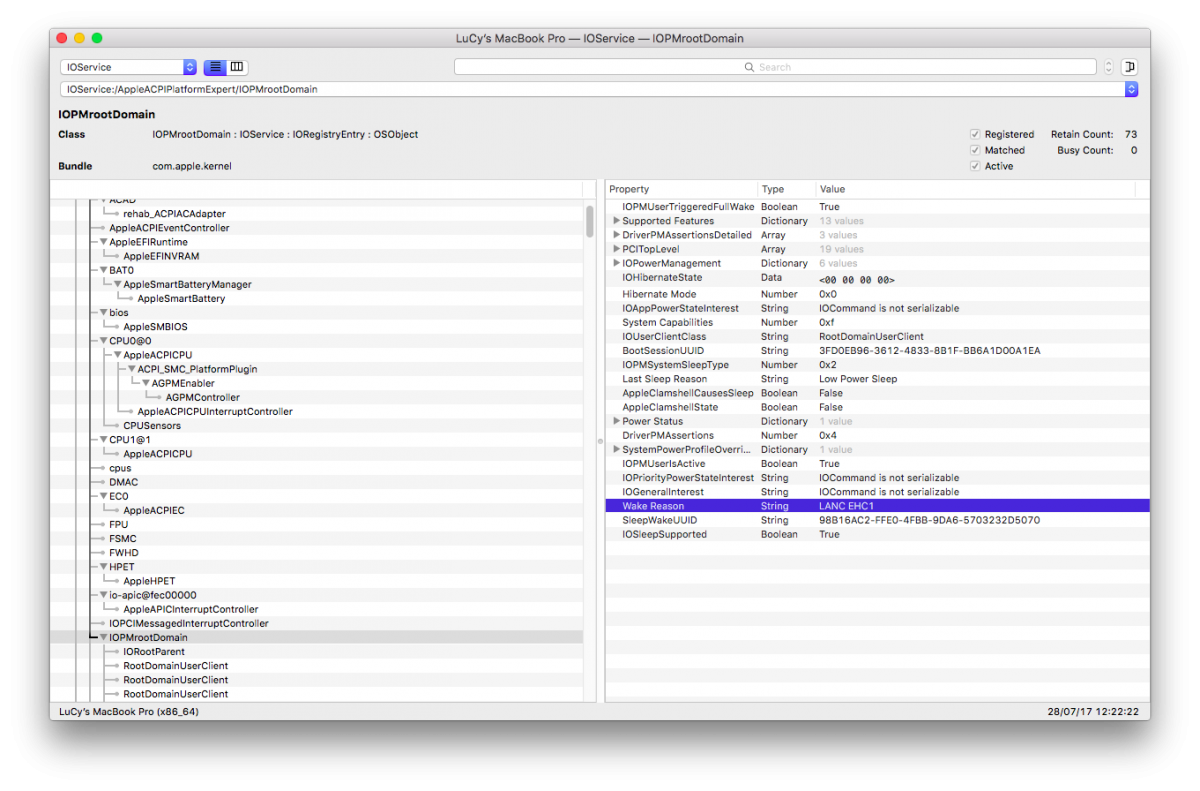

Captura de pantalla 2017-07-28 a las 11.13.42.png



I don't have USB3(XHC)

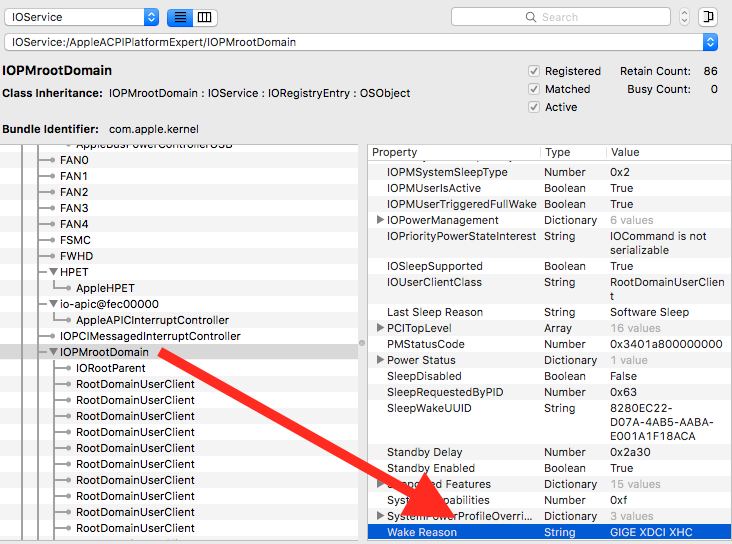

Or see in ioreg the cause of awakening an delete this method.



Captura de pantalla 2017-07-28 a las 11.12.34.png

[camillionario]

The device that causes this problem on your DSDT try to delete this method, XHC, EHC2, or EHC1

Or you look in your ioreg the device that causes the wakening, look for it in your DSDT and delete that method.

[Lucy183]

The device that causes this problem on your DSDT try to delete this method, XHC, EHC2, or EHC1

Or you look in your ioreg the device that causes the wakening, look for it in your DSDT and delete that method.

Captura de pantalla 2017-07-28 a las 11.12.34.png



Thanks, I removed PRW from LANC and now sleep is working but I have another problem now: Sleep works only by closing lid, sleep button from apple logo menu don't do anything and power button don't do anything.

[Badruzeus]

Thanks, I removed PRW from LANC and now sleep is working but I have another problem now: Sleep works only by closing lid, sleep button from apple logo menu don't do anything and power button don't do anything.

Instead of deleting it, U could also try to only change it' s values to.. (for example)

Method (_PRW, 0, NotSerialized)  // _PRW: Power Resources for Wake
       {
         Return (GPRW (0x09, 0x04))
       }

#Edit: Another workarround is finding for "_PRW" method from EHCx or EH0x and use values above, but it depends on ur mach I guess.

[Lucy183]

Instead of deleting it, U could also try to only change it' s values to.. (for example)

Method (_PRW, 0, NotSerialized)  // _PRW: Power Resources for Wake
       {
         Return (GPRW (0x09, 0x04))
       }

#Edit: Another workarround is finding for "_PRW" method from EHCx or EH0x and use values above, but it depends on ur mach I guess.

I fixed sleep now, and after a reboot sleep from apple menu is working, only power button doesn't do anything but I think It'll never worked, isn't any fix for it?

And isn't any chance to fix brightness control in 10.12.4 and up on only nvidia GPU? I'm stuck with El Capitan because this issue

[Badruzeus]

I fixed sleep now, and after a reboot sleep from apple menu is working, only power button doesn't do anything but I think It'll never worked, isn't any fix for it?

And isn't any chance to fix brightness control in 10.12.4 and up on only nvidia GPU? I'm stuck with El Capitan because this issue

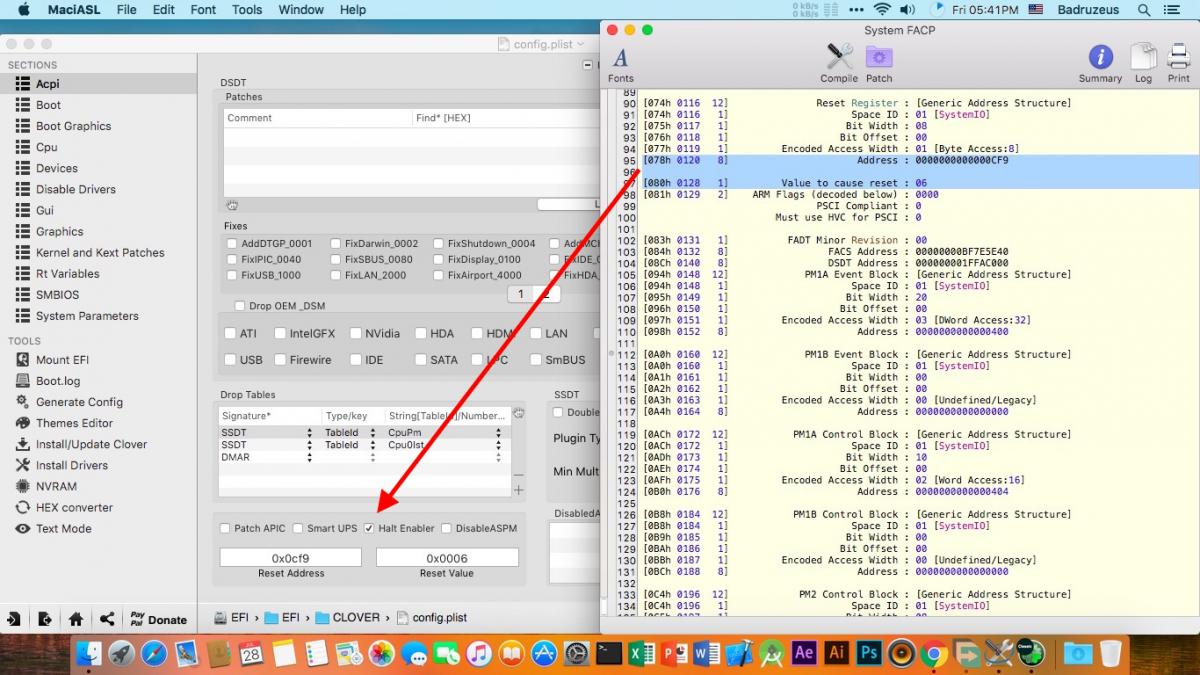

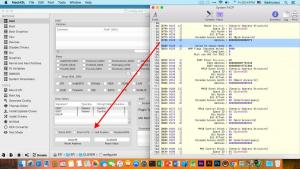

Uhmmb, did u try both @Rehabman's Shutdown fixes.. yeah, on Laptop has these 2 patches, not checked yet for this on another Desktop repo. Also try checking "Halt Enabler" from ACPI section within Clover Configurator, at least this one works on my mach.. urs, just try it..
