Cyberdevs Posted June 8, 2017 Share Posted June 8, 2017 Just open them in a hex editor and you can read the BIOS version. Thanks man! Link to comment Share on other sites More sharing options...
Riley Freeman Posted June 8, 2017 Share Posted June 8, 2017 MP5.1 can install hs with apfs smoothly? I'm installing with HFS right now but I'll try that next. I'm guessing it'll work OK if I put the apfs.efi into my EFI folder. I only have a hard disk to install to so APFS will be super slow. Link to comment Share on other sites More sharing options...
Ricky1994 Posted June 8, 2017 Share Posted June 8, 2017 Are you trying to install macOS HS from a usb drive? If yes, then that's an issue caused by the creation media, have no clue why. Try direct install with the app itself. thanks, i tried by usb drive,then i'll try it in 10.12.5 and install to another volume Link to comment Share on other sites More sharing options...
xtddd Posted June 8, 2017 Share Posted June 8, 2017 Just open them in a hex editor and you can read the BIOS version. MP51.88Z.007F.B03.1010071432 I'm installing with HFS right now but I'll try that next. I'm guessing it'll work OK if I put the apfs.efi into my EFI folder. I only have a hard disk to install to so APFS will be super slow. i get it..thanks Link to comment Share on other sites More sharing options...
Needy Posted June 8, 2017 Share Posted June 8, 2017 I'm installing with HFS right now but I'll try that next. I'm guessing it'll work OK if I put the apfs.efi into my EFI folder. I only have a hard disk to install to so APFS will be super slow. Just out of curiosity is there anything in EFI/Apple/* ? If yes, I would like to see what's inside Firmware. Link to comment Share on other sites More sharing options...
chris1111 Posted June 8, 2017 Share Posted June 8, 2017 @Neady I have exactly the right bios in the IM121_0047_33B_LOCKED.scap What do I need now for Clover Seeing APFS Link to comment Share on other sites More sharing options...
Needy Posted June 8, 2017 Share Posted June 8, 2017 @Neady I have exactly the right bios in the IM121_0047_33B_LOCKED.scap What do I need now for make it Clover Seeing APFS Mount BaseSystem.dmg, go to /usr/standalone/i386/ and copy apfs.efi to EFI/Clover/"drivers64UEFI or drivers64". Link to comment Share on other sites More sharing options...
chris1111 Posted June 8, 2017 Share Posted June 8, 2017 Mount BaseSystem.dmg, go to /usr/standalone/i386/ and copy apfs.efi to EFI/Clover/"drivers64UEFI or drivers64". My System Sierra 10.13 is Install perfectly everything works like Sierra 10.12 I have the apfs driver for the first Day SierraHigh Link to comment Share on other sites More sharing options...
Riley Freeman Posted June 8, 2017 Share Posted June 8, 2017 Just out of curiosity is there anything in EFI/Apple/* ? If yes, I would like to see what's inside Firmware. Just the usual "old" 88Z.0002.B00.0710231738 firmware.scap file. Installation finished fine. Gonna wipe and try again with APFS. 1 Link to comment Share on other sites More sharing options...
Needy Posted June 8, 2017 Share Posted June 8, 2017 Just the usual "old" 88Z.0002.B00.0710231738 firmware.scap file. Installation finished fine. Gonna wipe and try again with APFS. I see. Thanks. Link to comment Share on other sites More sharing options...
p.H Posted June 8, 2017 Share Posted June 8, 2017 i'm on 4082 and as soon as i click "install macOS 10.13 Beta" from the clover boot screen. I get the following: (http://imgur.com/kXBxWdL) This isn't my laptop, but its the same screen image i get on my xps 15 screen with the immediate Appleapciplatform error. I'm wondering if Kaby Lake even works on this 10.13 right now. What or is there anything that can be done to get this working? Well, mine is quite different from yours. http://imgur.com/0kQVOzC Btw, did you use nullCPU.kext? I suggest you experiment with nullCPU.kext together with KernelCPU patch from clover. Link to comment Share on other sites More sharing options...
Cyberdevs Posted June 8, 2017 Share Posted June 8, 2017 Tried all three suggestions and none worked . Post your EFI folder to see what's wrong. Link to comment Share on other sites More sharing options...
Anonym323 Posted June 8, 2017 Share Posted June 8, 2017 Thanks at@Matthew82! I can boot now and everything but stillhaving one big problem. I use Clover 4084 but no Kext injection works... all my files I used with Sierra 10.12.5 are useless... Link to comment Share on other sites More sharing options...
p.H Posted June 8, 2017 Share Posted June 8, 2017 Thanks at@Matthew82! I can boot now and everything but stillhaving one big problem. I use Clover 4084 but no Kext injection works... all my files I used with Sierra 10.12.5 are useless... 4084 should be fine as for kext injection. How about you specify true in config.plist for kext injection? Link to comment Share on other sites More sharing options...
Riley Freeman Posted June 8, 2017 Share Posted June 8, 2017 Installation to APFS with MP51 smbios and the old FF/FFM values seems to be going fine here. I put apfs.efi and the apfsjumpstart.efi files into Drivers64UEFI. Link to comment Share on other sites More sharing options...
blayze® Posted June 8, 2017 Share Posted June 8, 2017 Well, mine is quite different from yours. http://imgur.com/0kQVOzC Btw, did you use nullCPU.kext? I suggest you experiment with nullCPU.kext together with KernelCPU patch from clover. where can i get nullCPU.kext? Link to comment Share on other sites More sharing options...
Kynyo Posted June 8, 2017 Share Posted June 8, 2017 Here Link to comment Share on other sites More sharing options...
macq Posted June 8, 2017 Share Posted June 8, 2017 @ Riley My new attempt installing on usb hd using apfs fails with screen showing cannot make preboot apfs image,seems like a new one, any suggestions Link to comment Share on other sites More sharing options...
chris1111 Posted June 8, 2017 Share Posted June 8, 2017 Its work now Thanks Neady 1 Link to comment Share on other sites More sharing options...
macq Posted June 8, 2017 Share Posted June 8, 2017 @chris1111 could you post a brief guide for apfs install using installer usb using clover. just with all must dos to get it working. thanks Link to comment Share on other sites More sharing options...
p.H Posted June 8, 2017 Share Posted June 8, 2017 where can i get nullCPU.kext? check out #458 Link to comment Share on other sites More sharing options...
chris1111 Posted June 8, 2017 Share Posted June 8, 2017 @chris1111 could you post a brief guide for apfs install using installer usb using clover. just with all must dos to get it working. thanks I have already post a guide in the couple above page For APFS see Neady Guide and its work Link to comment Share on other sites More sharing options...

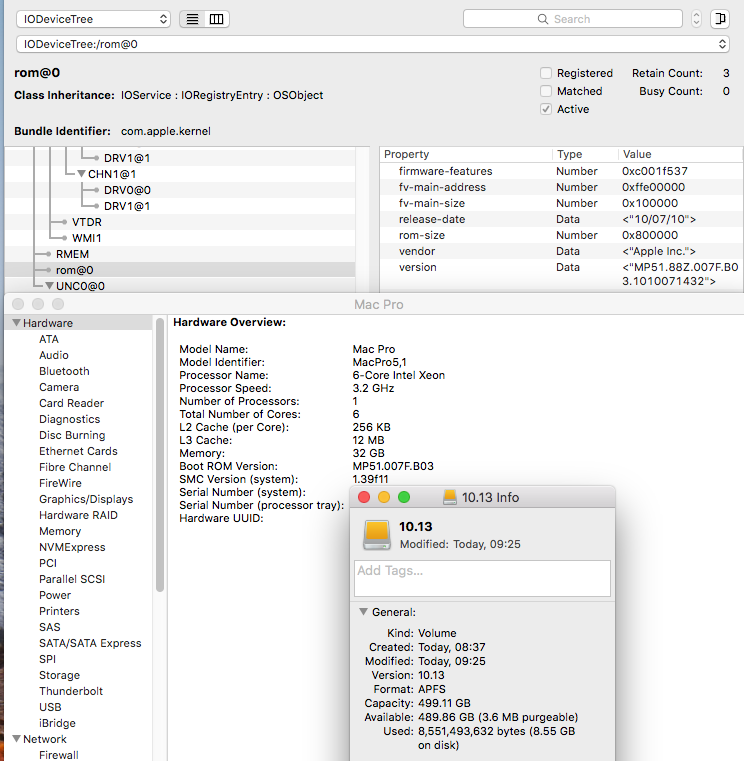

Riley Freeman Posted June 8, 2017 Share Posted June 8, 2017 @ Riley My new attempt installing on usb hd using apfs fails with screen showing cannot make preboot apfs image,seems like a new one, any suggestions I didn't see that here so I can't think of a way around it. Installing to APFS seems to be no different than HFS except for needing the extra efi file. Installation is almost done here. It hung for some reason before the setup stage so I reset and second time around it loaded fine. It's at the desktop now, grinding away. And we're done: Link to comment Share on other sites More sharing options...
macq Posted June 8, 2017 Share Posted June 8, 2017 @Riley I I have done most of the modifications as said by neady, others etc from the previous pages, my install goes through the first stage after partitoning but after boot I dont have the install volume in the boot screen . Is there any thing left .Please suggest. SO far I have used clover 4084, apfs driver in uefi64 clover, added firmware in smbios as said by neady, mac book pro 6.1 in my case. Install completes but no boot volume on clover screen to compete setup.. So I know my system is capable and works!!! So frustrating. I can do a hfs install from the installer .app from within sierra and it works. Is there a way to install apfs from within the installer.n @ riley freeman please post the apfsjumpstart.efi for download. thanks Link to comment Share on other sites More sharing options...
Riley Freeman Posted June 8, 2017 Share Posted June 8, 2017 Here you go. I've zipped up both apfs efi files. I'm not sure if the jumpstart one does anything. In hindsight I should have left it out when doing this apfs test. apfs.zip 1 Link to comment Share on other sites More sharing options...
