Sherlocks Posted September 4, 2017 Share Posted September 4, 2017 in here thank you for info but 0x3ff is no luck like 0x3e7 Sherlocksui-MacBook-Pro:~ sherlocks$ csrutil status System Integrity Protection status: enabled (Custom Configuration). Configuration: Apple Internal: disabled Kext Signing: disabled Filesystem Protections: disabled Debugging Restrictions: disabled DTrace Restrictions: disabled NVRAM Protections: disabled BaseSystem Verification: disabled This is an unsupported configuration, likely to break in the future and leave your machine in an unknown state. Sherlocksui-MacBook-Pro:~ sherlocks$ 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted September 4, 2017 Share Posted September 4, 2017 thank you for info but 0x3ff is no luck like 0x3e7 In find cecekpawon'post http://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page-691?do=findComment&comment=2467180 And try this tool: csrstat. Give me your opinion on the results for csrutil status? Under Sierra with 0x3e7 1 Link to comment Share on other sites More sharing options...
Sherlocks Posted September 4, 2017 Share Posted September 4, 2017 In find cecekpawon'post http://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page-691?do=findComment&comment=2467180 And try this tool: csrstat. Give me your opinion on the results for csrutil status? Under Sierra with 0x3e7 okay. good script. i don't know crsutil detail. i just checked system profiler's difference on each crsutil value. i will check more 0x67 result Sherlocksui-MacBook-Pro:~ sherlocks$ /Users/sherlocks/Downloads/csrstat System Integrity Protection status: disabled. Configuration: (0x00000067) Apple Internal...........: disabled Kext Signing Restrictions: disabled Task for PID Restrictions: disabled Filesystem Protections...: disabled Debugging Restrictions...: disabled DTrace Restrictions......: disabled NVRAM Protections........: disabled Device Configuration.....: enabled BaseSystem Verification..: enabled Sherlocksui-MacBook-Pro:~ sherlocks$ 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted September 4, 2017 Share Posted September 4, 2017 okay. good script. i don't know crsutil detail. i just checked system profiler's difference on each crsutil value. i will check more 0x67 result Strange: with this tool, crsutil detail show "Configuration: (0x000001e7) " with crs 0x3e7. While with 0x67 result "Configuration: (0x00000067)" 1 Link to comment Share on other sites More sharing options...
ergot Posted September 4, 2017 Share Posted September 4, 2017 update from App Store not working, I update my r`MBP than clone again and applied clover etc. working good...is there NVIDIA drivers for this beta? Link to comment Share on other sites More sharing options...
wellcome Posted September 4, 2017 Share Posted September 4, 2017 thanks sandro I was hoping I wouldn't have to fix dsdt and ssdts. I did disable gpu with DSDT reg fix but don't think thats enough.will have another go later cheers! Please, niknod could teach me how to disable the Nvidia card through SSDT. You could send me your patched SSDT. As you know I had the same problem as you with MacOS High Sierra update beta 8 (WindowServer) Thank you P.D.: I extend my request to any other member who can help me http://www.insanelymac.com/forum/uploads/monthly_08_2017/post-527851-0-59137000-1503037981.png Link to comment Share on other sites More sharing options...
Sherlocks Posted September 4, 2017 Share Posted September 4, 2017 Strange: with this tool, crsutil detail show "Configuration: (0x000001e7) " with crs 0x3e7. While with 0x67 result "Configuration: (0x00000067)" i tested all. in script, some parts shown wrong info that you mentioned 0x3FF all flags are disabled. just shown System Integrity Protection status: enabled on system profile, actually disabled all csr flags, script also shown enabled with "Custom Configuration" 0x3e7 except CSR_ALLOW_KERNEL_DEBUGGER, CSR_ALLOW_APPLE_INTERNAL, all flags are disabled. i don't exactly know role of each flags. just if 0x67 crsactive config, system profiler recoginzed "SIP: disabled". At high Sierra, the value 0x67 does not seem to be a big problem. because The 0x67 value contains the flags we need most. as result, i think that useful values is 0x3FF to avoid any situation in future 2 Link to comment Share on other sites More sharing options...
Matgen84 Posted September 4, 2017 Share Posted September 4, 2017 i tested all. in script, some parts shown wrong info that you mentioned 0x3FF all flags are disabled. just shown System Integrity Protection status: enabled on system profile, actually disabled all csr flags, script also shown enabled with "Custom Configuration" 0x3e7 except CSR_ALLOW_KERNEL_DEBUGGER, CSR_ALLOW_APPLE_INTERNAL, all flags are disabled. i don't exactly know role of each flags. just if 0x67 crsactive config, system profiler recoginzed "SIP: disabled". At high Sierra, the value 0x67 does not seem to be a big problem. because The 0x67 value contains the flags we need most. as result, i think that useful values is 0x3FF to avoid any situation in future ThanKs. I will follow your advice Link to comment Share on other sites More sharing options...
niknod Posted September 4, 2017 Share Posted September 4, 2017 Please, niknod could teach me how to disable the Nvidia card through SSDT. You could send me your patched SSDT. As you know I had the same problem as you with MacOS High Sierra update beta 8 (WindowServer) Thank you P.D.: I extend my request to any other member who can help me http://www.insanelymac.com/forum/uploads/monthly_08_2017/post-527851-0-59137000-1503037981.png ok Wellcome here my 3 ssdts that did the trick.but don't think they will for you as different laptop good luck! Wellcome.zip Link to comment Share on other sites More sharing options...
tj5 Posted September 4, 2017 Share Posted September 4, 2017 Anyone noticing slow boot speeds? My Computer has Sierra on a ssd and High Sierra on a Samsung 960 NVMe m.2 and booting the Sierra drive I get to the login in about 8 seconds. The High Sierra boot process takes almost 30 seconds to get to the login screen. I thought by now that High Sierra (using DP9) that my boot time would be at least equal to or faster than the Sierra ssd. I get reads of 3000mb/s on the High Sierra drive vs 460mb/s on Sierra drive. 2 Link to comment Share on other sites More sharing options...
wellcome Posted September 4, 2017 Share Posted September 4, 2017 ok Wellcome here my 3 ssdts that did the trick.but don't think they will for you as different laptop good luck! Ok.Thank you.I'll try to do the complete procedure that is more complicated and you will report regards Link to comment Share on other sites More sharing options...
LockDown Posted September 5, 2017 Share Posted September 5, 2017 i tested all. in script, some parts shown wrong info that you mentioned 0x3FF all flags are disabled. just shown System Integrity Protection status: enabled on system profile, actually disabled all csr flags, script also shown enabled with "Custom Configuration" 0x3e7 except CSR_ALLOW_KERNEL_DEBUGGER, CSR_ALLOW_APPLE_INTERNAL, all flags are disabled. i don't exactly know role of each flags. just if 0x67 crsactive config, system profiler recoginzed "SIP: disabled". At high Sierra, the value 0x67 does not seem to be a big problem. because The 0x67 value contains the flags we need most. as result, i think that useful values is 0x3FF to avoid any situation in future from PMheart reply Link to comment Share on other sites More sharing options...
erice Posted September 5, 2017 Share Posted September 5, 2017 Anyone noticing slow boot speeds? My Computer has Sierra on a ssd and High Sierra on a Samsung 960 NVMe m.2 and booting the Sierra drive I get to the login in about 8 seconds. The High Sierra boot process takes almost 30 seconds to get to the login screen. I thought by now that High Sierra (using DP9) that my boot time would be at least equal to or faster than the Sierra ssd. I get reads of 3000mb/s on the High Sierra drive vs 460mb/s on Sierra drive. Update DP9 succeed As Beta 7, Beta 8, Beta 9 not allowed Hot-swap (Hot-Plug) internal hard drive on my system. Nobody has an answer, a tip, a suggestion for these problems, which are also my problems? Thanks in advance. 1 Link to comment Share on other sites More sharing options...
stehor Posted September 5, 2017 Share Posted September 5, 2017 interesting hot plug works for me beta 9 Link to comment Share on other sites More sharing options...
SavageAUS Posted September 5, 2017 Share Posted September 5, 2017 okay. good script. i don't know crsutil detail. i just checked system profiler's difference on each crsutil value. i will check more 0x67 result Shanes-iMac:~ shane$ /Users/shane/Downloads/csrstat System Integrity Protection status: disabled. Configuration: (0x00000067) Apple Internal...........: disabled Kext Signing Restrictions: disabled Task for PID Restrictions: disabled Filesystem Protections...: disabled Debugging Restrictions...: enabled DTrace Restrictions......: disabled NVRAM Protections........: disabled Device Configuration.....: enabled BaseSystem Verification..: enabled Shanes-iMac:~ shane$ 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted September 5, 2017 Share Posted September 5, 2017 Nobody has an answer, a tip, a suggestion for these problems, which are also my problems? Thanks in advance. I found no solutions for this problem. Despite search and search on several forum. Sorry for my bad english interesting hot plug works for me beta 9 Can you share your EFI folder, Bios settings? I see you have an Ozmosis Bios patched, mine is not. Thanks Sorry for my bad english Link to comment Share on other sites More sharing options...
prud28 Posted September 5, 2017 Share Posted September 5, 2017 (edited) Wellcome NVOP 5b810e50 43415003 0040084c 43544c10141f5f49 4e490070 005c2f05 5f53425f50434930 52503035 50585358 5f41445214400d ----> 5b810e50 43415003 0040084c 43544c1014235f49 4e490070 005c2f05 5f53425f50434930 52503035 50585358 5f4144525f4f4646 14400d Disable nvidia I do not speak English Edited September 5, 2017 by Allan Translated 2 Link to comment Share on other sites More sharing options...
stehor Posted September 5, 2017 Share Posted September 5, 2017 Matgen84 there is no ozmosis support on this mobo as its a 100 series board. x99/100/200 have no support so i am using clover on this rig. i have hot plug enabled on my sata 4 port in bios for hot plug 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted September 5, 2017 Share Posted September 5, 2017 Matgen84 there is no ozmosis support on this mobo as its a 100 series board. x99/100/200 have no support so i am using clover on this rig. i have hot plug enabled on my sata 4 port in bios for hot plug Sorry for my mistake: I've read Osmozis in your "interest" under your avatar. Like you, I have hot plug enabled on my 6 sata port in Bios. Hot Plug work like a charm under Sierra and under High Sierra up to Developer Beta 6. Since Beta 7, don't work as I say before. Link to comment Share on other sites More sharing options...
Sherlocks Posted September 5, 2017 Share Posted September 5, 2017 from PMheart reply i saw. also i calculated each parts. what she said is right. crsactiveconfig is as users prefer. some users want to disable all flags, other users don't want to disable all flags. at least crsactiveconfig 0x67 or over, no problem. i now used 0x67. In my case, do not need to disable all flags. Link to comment Share on other sites More sharing options...
fusion71au Posted September 5, 2017 Share Posted September 5, 2017 fusion71au, on 30 Aug 2017 - 12:51 AM, said: Thank. I try but don't work... Edit: Asmedia1061-Asmedia1062 with with AHCIPortInjector.kext. Since beta 7 and of course with Beta 8, I can no longer use the hot-plugging of internal hard drives. I can't insert HDD when High Sierra is running. Does anyone even have same problem? Hot-pluggging HDD work like a charm under Sierra. According to kextstat, the kexts loading on my system related to AHCI are fusion71aus-iMac:~ fusion71au$ kextstat | grep AHCI 64 3 0xffffff7f81f3f000 0x1a000 0x1a000 com.apple.iokit.IOAHCIFamily (288) F3AC999A-975D-3D01-82D4-8ACCB4A885B1 <5 4 3 1> 65 0 0xffffff7f82b6b000 0x14000 0x14000 com.apple.driver.AppleAHCIPort (328) 440D7F9B-DE37-375D-AFE0-EABC372B001E <64 12 5 4 3 1> 78 0 0xffffff7f81f69000 0x27000 0x27000 com.apple.iokit.IOAHCIBlockStorage (301.1.2) 81611BFF-AE58-3937-A337-1731E734B3C2 <64 27 6 5 4 3 1> 85 0 0xffffff7f81f5c000 0xd000 0xd000 com.apple.iokit.IOAHCISerialATAPI (267) BA23AC56-7AB4-3898-A468-B18B1550E039 <64 28 5 4 3 1> Maybe try downgrading both AppleAHCIPort and IOAHCIFamily kexts to versions before DB7 (after making backups of current kexts). Attached are AHCI kexts from High Sierra PB1_17A291m. Note IOAHCIBlockStorage and IOAHCISerialATAPI are Plugin kexts inside IOAHCIFamily.kext. Don't forget to set correct kext permissions and rebuild caches (sudo touch /System/Library/Extensions && sudo kextcache -u /). Can check kexts are loadable with kextutil -tn command eg fusion71aus-iMac:~ fusion71au$ sudo kextutil -tn /System/Library/Extensions/AppleAHCIPort.kext Password: /System/Library/Extensions/AppleAHCIPort.kext appears to be loadable (including linkage for on-disk libraries). Good Luck! AHCI kexts from PB1_17A291m.zip 2 Link to comment Share on other sites More sharing options...

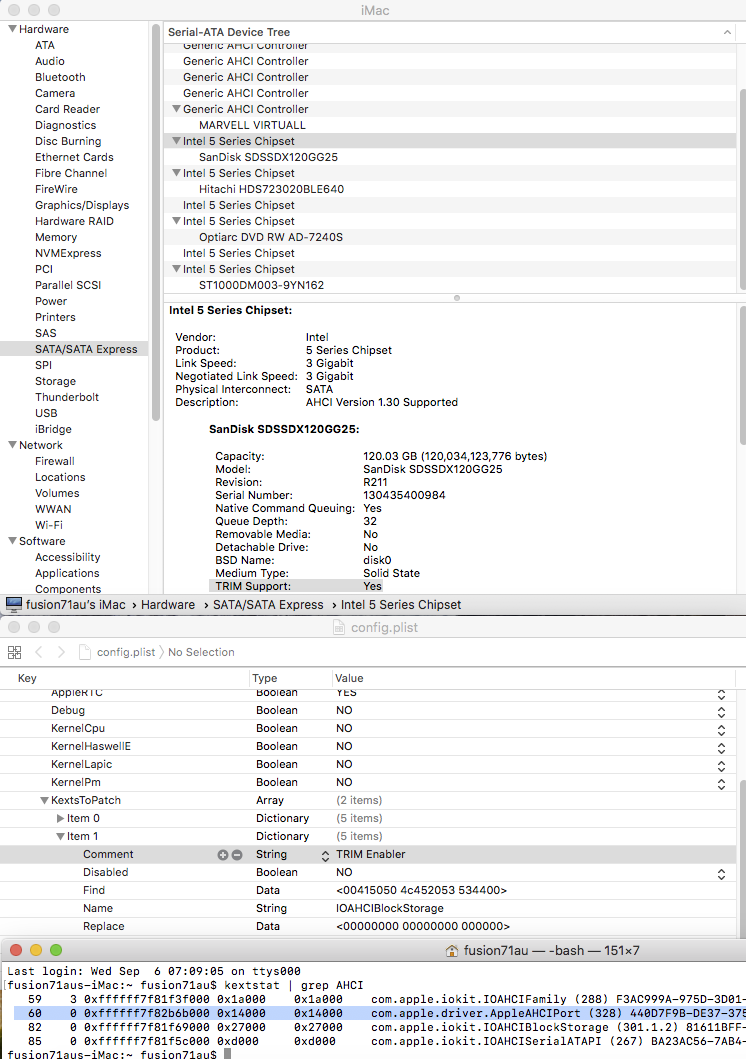

Matgen84 Posted September 5, 2017 Share Posted September 5, 2017 According to kextstat, the kexts loading on my system related to AHCI are fusion71aus-iMac:~ fusion71au$ kextstat | grep AHCI 64 3 0xffffff7f81f3f000 0x1a000 0x1a000 com.apple.iokit.IOAHCIFamily (288) F3AC999A-975D-3D01-82D4-8ACCB4A885B1 <5 4 3 1> 65 0 0xffffff7f82b6b000 0x14000 0x14000 com.apple.driver.AppleAHCIPort (328) 440D7F9B-DE37-375D-AFE0-EABC372B001E <64 12 5 4 3 1> 78 0 0xffffff7f81f69000 0x27000 0x27000 com.apple.iokit.IOAHCIBlockStorage (301.1.2) 81611BFF-AE58-3937-A337-1731E734B3C2 <64 27 6 5 4 3 1> 85 0 0xffffff7f81f5c000 0xd000 0xd000 com.apple.iokit.IOAHCISerialATAPI (267) BA23AC56-7AB4-3898-A468-B18B1550E039 <64 28 5 4 3 1> Maybe try downgrading both AppleAHCIPort and IOAHCIFamily kexts to versions before DB7 (after making backups of current kexts). Attached are AHCI kexts from High Sierra PB1_17A291m. Note IOAHCIBlockStorage and IOAHCISerialATAPI are Plugin kexts inside IOAHCIFamily.kext. Don't forget to set correct kext permissions and rebuild caches (sudo touch /System/Library/Extensions && sudo kextcache -u /). Can check kexts are loadable with kextutil -tn command eg fusion71aus-iMac:~ fusion71au$ sudo kextutil -tn /System/Library/Extensions/AppleAHCIPort.kext Password: /System/Library/Extensions/AppleAHCIPort.kext appears to be loadable (including linkage for on-disk libraries). Good Luck! Thanks. I try this. I've forgotten: I use under Sierra and High Sierra, AHCIPortInjector.kext (Fabio version 2016) in EFI/CLOVER/KEXT and I can Hot-Plugging. It does the job now only in Sierra. Update: with only AppleAHCIPort version 328 instead of version 329 in S/L/E and AHCIPortInjector.kext (Fabio version 2016) in EFI/CLOVER/KEXT Hot-Plug work again under High Sierra. I don't know why? these two versions, both of which date back to 2016, appear to be identical. Should I do the same manipulation for the release? 1 Link to comment Share on other sites More sharing options...
macinsane Posted September 5, 2017 Share Posted September 5, 2017 Just an experience: I reverted back to HFS+ because Clover lost track of my APFS partion for two times now: once boot error, the other time the drive simply didn't show up. Both times out of nowhere, just after a regular shutdown. I had to reinstall DP9-update each time to get Clover recognize the drive again, using different apfs.efi's didn't make any difference. So I stay on HFS+ until the new file system proves itself reliable within the next months. Link to comment Share on other sites More sharing options...
erice Posted September 5, 2017 Share Posted September 5, 2017 According to kextstat, the kexts loading on my system related to AHCI are fusion71aus-iMac:~ fusion71au$ kextstat | grep AHCI 64 3 0xffffff7f81f3f000 0x1a000 0x1a000 com.apple.iokit.IOAHCIFamily (288) F3AC999A-975D-3D01-82D4-8ACCB4A885B1 <5 4 3 1> 65 0 0xffffff7f82b6b000 0x14000 0x14000 com.apple.driver.AppleAHCIPort (328) 440D7F9B-DE37-375D-AFE0-EABC372B001E <64 12 5 4 3 1> 78 0 0xffffff7f81f69000 0x27000 0x27000 com.apple.iokit.IOAHCIBlockStorage (301.1.2) 81611BFF-AE58-3937-A337-1731E734B3C2 <64 27 6 5 4 3 1> 85 0 0xffffff7f81f5c000 0xd000 0xd000 com.apple.iokit.IOAHCISerialATAPI (267) BA23AC56-7AB4-3898-A468-B18B1550E039 <64 28 5 4 3 1> Maybe try downgrading both AppleAHCIPort and IOAHCIFamily kexts to versions before DB7 (after making backups of current kexts). Attached are AHCI kexts from High Sierra PB1_17A291m. Note IOAHCIBlockStorage and IOAHCISerialATAPI are Plugin kexts inside IOAHCIFamily.kext. Don't forget to set correct kext permissions and rebuild caches (sudo touch /System/Library/Extensions && sudo kextcache -u /). Can check kexts are loadable with kextutil -tn command eg fusion71aus-iMac:~ fusion71au$ sudo kextutil -tn /System/Library/Extensions/AppleAHCIPort.kext Password: /System/Library/Extensions/AppleAHCIPort.kext appears to be loadable (including linkage for on-disk libraries). Good Luck! Thanks first of all to the suggestion. The hot plug now works; but trim activation no longer works. ??? Thanks first of all to the suggestion. The hot plug now works; but trim activation no longer works. ??? AppleDataSetManagement.kext Dependency Resolution Failures: Kexts already loaded for these libraries have no OSBundleCompatibleVersion: com.apple.iokit.IOAHCIBlockStorage 1 Link to comment Share on other sites More sharing options...

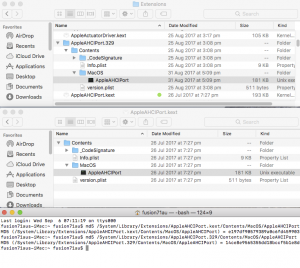

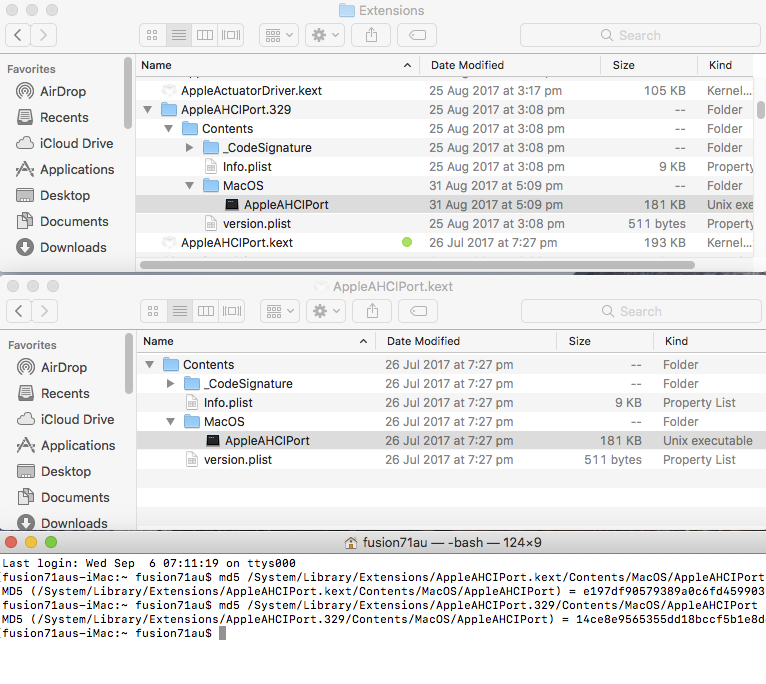

fusion71au Posted September 5, 2017 Share Posted September 5, 2017 Update: with only AppleAHCIPort version 328 instead of version 329 in S/L/E and AHCIPortInjector.kext (Fabio version 2016) in EFI/CLOVER/KEXT Hot-Plug work again under High Sierra. I don't know why? these two versions, both of which date back to 2016, appear to be identical. Should I do the same manipulation for the release? When you compare the MD5 values of the binaries inside AppleAHCIPort kexts v328 vs v329, you will find that they are different... We will have to wait for the final release before knowing if regressing the kext still works . It seems v329 is still buggy on quite a few older hardwares eg Disks not recognised on ICH10 chipset Certain disks not recognised/fail to be initialised on my 5 series motherboard whereas other disks recognised OK, even using the same or different port. Your own experience with hot plugging drives on Asmedia 1061. Thanks first of all to the suggestion. The hot plug now works; but trim activation no longer works. Downgrade only AppleAHCIPort v329 to v328 (restore original IOAHCIFamily with IOAHCIBlockStorage kext in /S/L/E, repair permissions & rebuild kext cache etc) Enable Trim with Clover KextsToPatch.... <key>KextsToPatch</key> <array> <dict> <key>Comment</key> <string>TRIM Enabler</string> <key>Disabled</key> <false/> <key>Find</key> <data> AEFQUExFIFNTRAA= </data> <key>Name</key> <string>IOAHCIBlockStorage</string> <key>Replace</key> <data> AAAAAAAAAAAAAAA= </data> </dict> 3 Link to comment Share on other sites More sharing options...
