Wppley2
Wppley2
Posted
Posted

Anybody with this problem? Can anybody help me please?



"Sherlocks, can you help me with my GTX 750 Ti? Since DP4 I can't get my video card to work properly: with web drivers, clover inject Nvidia and fake id, I get video on just one monitor (I have 3), without fake id I get black screen (no signal). In Sierra 10.12.6 all works fine, 3 monitors, HDMI sound, etc."

Link to comment
Share on other sites
fusion71au
fusion71au
Posted
Posted

I always clean install with MBR patch for db1~db6, all work fine without firmware error cause of it been removed. :P






For those with firmware errors during installation, I can confirm that @crazybirdy's modified BaseSystem Installer method works well for upgrading or clean installing High Sierra DB6 on my legacy BIOS desktop (GA-P55a-UD3/Intel i5-750/ATI HD5770).

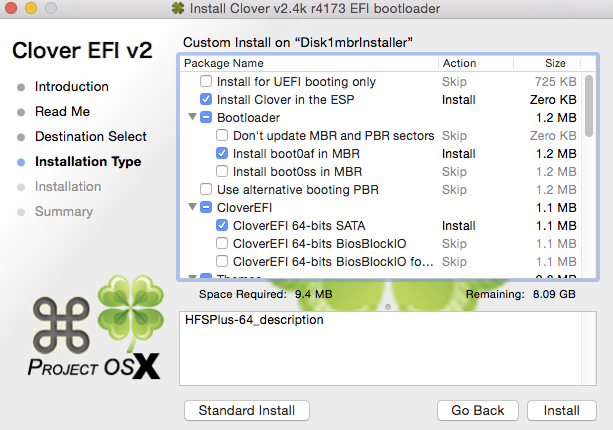

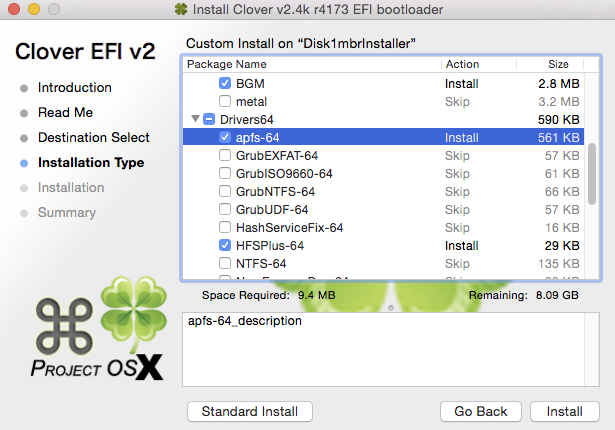

  • Clover legacy r4173, latest DB6 apfs.efi in /EFI/CLOVER/drivers64
  • SMBIOS iMac11,3, no FF/FFM/PF or Board-ID/BIOS ver/date set in config.plist
  • Deleted all NVRAM.plist files from all EFI partitions (including on the USB Installer), ran sudo NVRAM -c in terminal before upgrade
  • Created USB installer using @crazybirdy's modified "Base System Restore Method" and patched OSInstaller

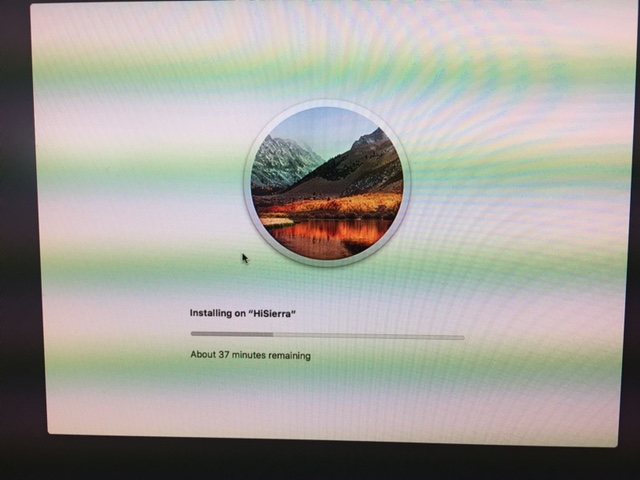

  • Ran "Install macOS High Sierra Beta.app" targetting my HiSierra partition ---> automatically creates /HiSierra/macOS\ Install\ Data folder
  • At the first restart, booted to my "Disk1mbrInstaller" USB

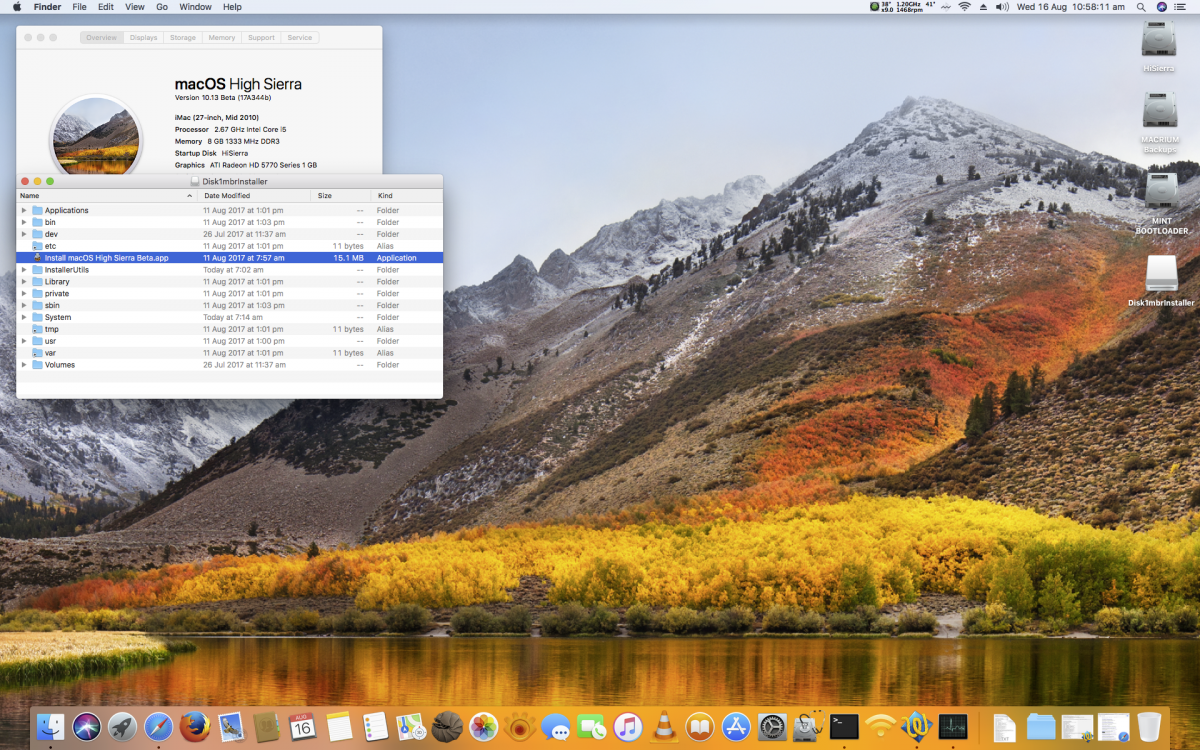

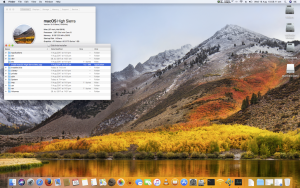

  • At second restart, booted into fully updated HiSierra DB6_17A344B



Notes
  • An advantage of this method is that you can change kexts in the installer's /S/L/E eg you can replace AppleAHCIPort.kext v329 with v328, to fix "Still Waiting for Root Device Error" on systems with ICH10

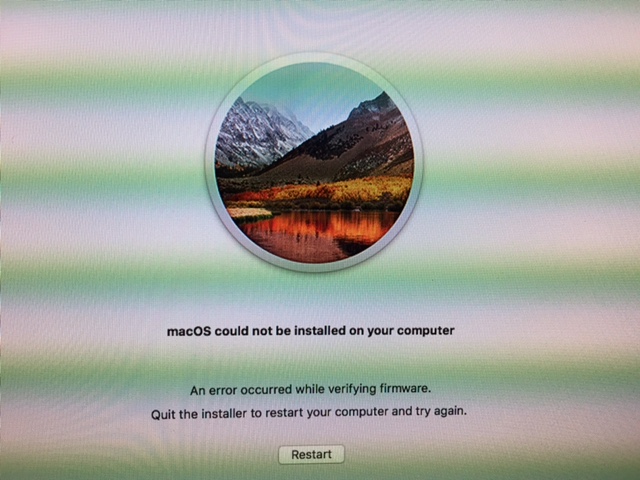

  • Directly booting to /HiSierra/macOS Install Data at first restart (instead of Disk1mbrInstaller) ---> firmware error preventing further installation
  • On my newer UEFI system with functioning hardware NVRAM (NUC6i5SYH/Intel i5-6260U/Iris Graphics 540), I updated DB5 to DB6 normally through App Store upgrade without incident (SMBIOS iMac17,1, Clover r4167, no FF/FFM/PF set in config.plist)

apfs_DB6.efi.zip

AppleAHCIPort_v328.kext.zip

Clover_v2.4k_r4173.zip

Clover r4173 bootlog.txt.zip

  • Like 4
Link to comment
Share on other sites
Badruzeus
Badruzeus
Posted
Posted

After sucess install, upload full log.



Now. Im gathering info for resolve issue.

Thanks in advance.

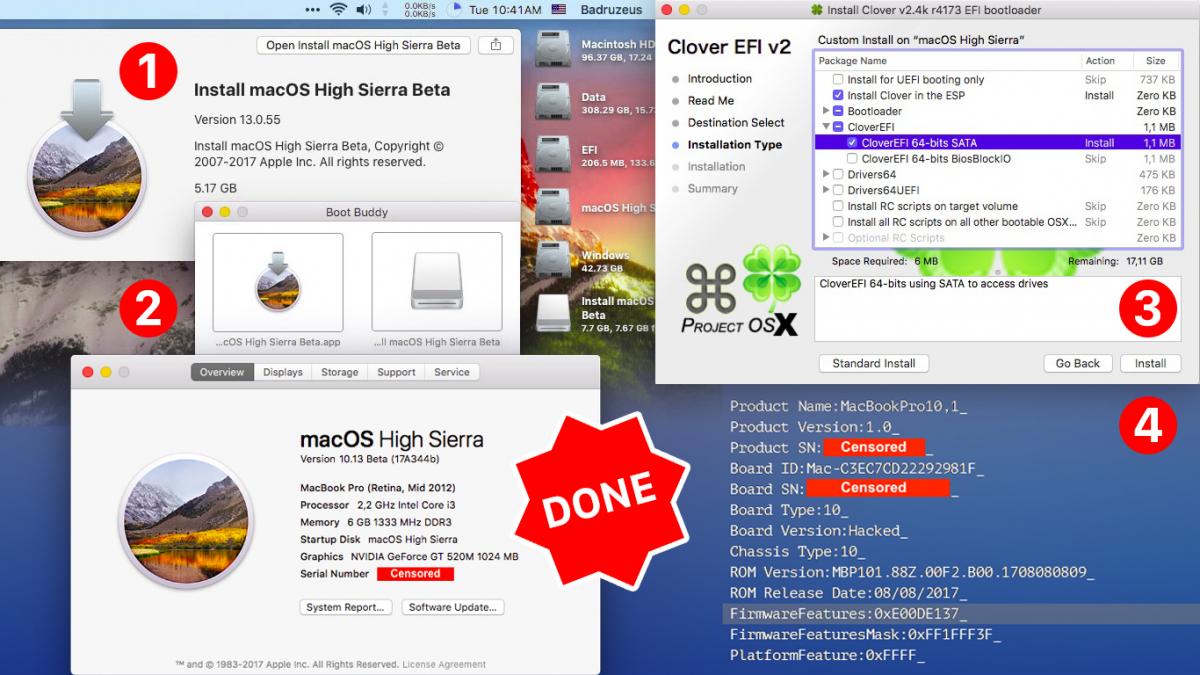

Perfecto..!!! :thumbsup_anim: Succeeded with 2nd time "Clean Install" using USB Installer Method.



My configs are:

1. macOS 10.13 High Sierra (17A344b) downloaded from AppStore.

2. Create USB Installer with createinstallmedia (Boot Buddy.app here's just another GUI version)

3. Using Clover v2.4k r4173 Legacy on USB's ESP w/o rc.script for succeeded install purpose only

4. My SMBios Datas:



Product Name: MacBookPro10,1
Board ID: Mac-C3EC7CD22292981F

(for Datas below are autogenerated by Clover)

ROM Version: MBP101.88Z.00F2.B00.1708080809
ROM Release Date: 08/08/2017
FirmwareFeature: 0xE00DE137
FirmwareFeatureMask : 0xFF1FFF3F
PlatformFeature: 0xFFFF







>> DONE..!!! Thanks @Sherlocks, @PMheart, @Slice, @ErmaC, @Apianti, @syscl etc. for great support.



#EDIT: as @fusion71 has said, I also removed any nvram.plist found from all bootable macOS Volumes just b4 install proccess.

#EDIT2: on my EFI/CLOVER/kexts/10.13 I only use @rehabman's FakeSMC v6.25-333 and @EmlyDinesh's ApplePS2SmartTouchpad v4.7 Beta 5 (ELAN_101).


install-A43SJ-17A344b.log.zip

preboot.log.zip

  • Like 3
Link to comment
Share on other sites
chris1111
chris1111
Posted
Posted

Clover r4173 Works with startosinstall or MACOSInstaller Updated  to r4173  :)



smbios macBookPro 10

macBookPro 11.4

iMac 13

Not need

FirmwareFeature

FirmwareFeatureMask
PlatformFeature

B)

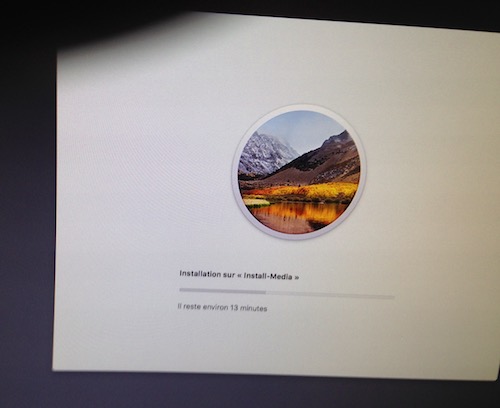

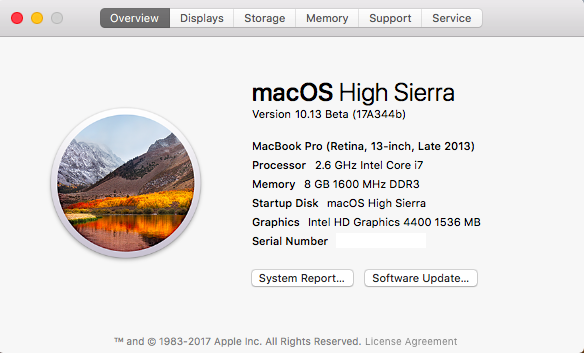

Confirming here first pics MacBook Pro 11.4

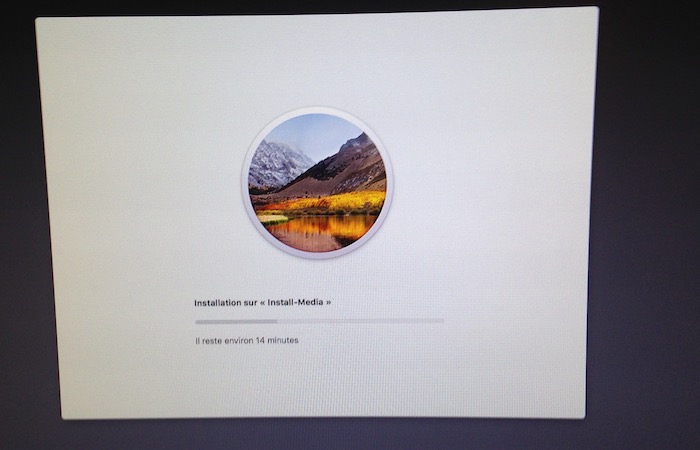

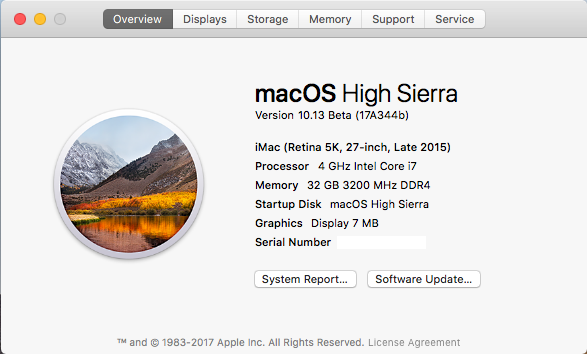

Second Pics iMac 13.1



  • Like 4
Link to comment
Share on other sites
xtddd
xtddd
Posted
Posted

Clover r4173 Works with startosinstall or MACOSInstaller Updated  to r4173  :)



smbios macBookPro 10

iMac 13

Not need

FirmwareFeature

FirmwareFeatureMask

PlatformFeature

B)

Confirming here

biosversion should be updated lately

Link to comment
Share on other sites
Sherlocks
Sherlocks
Posted
Posted

Perfecto..!!! :thumbsup_anim: Succeeded with 2nd time "Clean Install" using USB Installer Method.



My configs are:

1. macOS 10.13 High Sierra (17A344b) downloaded from AppStore.

2. Create USB Installer with createinstallmedia (Boot Buddy.app here's just another GUI version)

3. Using Clover v2.4k r4173 Legacy on USB's ESP w/o rc.script for succeeded install purpose only

4. My SMBios Datas:



Product Name: MacBookPro10,1Board ID: Mac-C3EC7CD22292981F(for Datas below are autogenerated by Clover)ROM Version: MBP101.88Z.00F2.B00.1708080809ROM Release Date: 08/08/2017FirmwareFeature: 0xE00DE137FirmwareFeatureMask : 0xFF1FFF3FPlatformFeature: 0xFFFF





>> DONE..!!! Thanks @Sherlocks, @PMheart, @Slice, @ErmaC, @Apianti, @syscl etc. for great support.



#EDIT: as @fusion71 has said, I also removed any nvram.plist found from all bootable macOS Volumes just b4 install proccess.

#EDIT2: on my EFI/CLOVER/kexts/10.13 I only use @rehabman's FakeSMC v6.25-333 and @EmlyDinesh's ApplePS2SmartTouchpad v4.7 Beta 5 (ELAN_101).

Great! Thanks for clean report.

Enjoy



나의 LG-F800S 의 Tapatalk에서 보냄

yes.right...should change in smbios?

No need. Clover detect latest bios version between your config and clover smbios data. I already implement this function on latest clover r4173.



나의 LG-F800S 의 Tapatalk에서 보냄

  • Like 2
Link to comment
Share on other sites
Wppley2
Wppley2
Posted
Posted

Sherlocks, can you help me with my GTX 750 Ti? Since DP4 I can't get my video card to work properly: with web drivers, clover inject Nvidia and fake id, I get video on just one monitor (I have 3), without fake id I get black screen (no signal). In Sierra 10.12.6 all works fine, 3 monitors, HDMI sound, etc.

Link to comment
Share on other sites
xtddd
xtddd
Posted
Posted

Great! Thanks for clean report.

Enjoy



나의 LG-F800S 의 Tapatalk에서 보냄

No need. Clover detect latest bios version between your config and clover smbios data. I already implement this function on latest clover r4173.



나의 LG-F800S 의 Tapatalk에서 보냄

good function!   :thumbsup_anim:  :thumbsup_anim:  :thumbsup_anim:

  • Like 1
Link to comment
Share on other sites
Sherlocks
Sherlocks
Posted
Posted

Sherlocks, can you help me with my GTX 750 Ti? Since DP4 I can't get my video card to work properly: with web drivers, clover inject Nvidia and fake id, I get video on just one monitor (I have 3), without fake id I get black screen (no signal). In Sierra 10.12.6 all works fine, 3 monitors, HDMI sound, etc.

I think web driver issue or something. Still DP. Need to consider HS release and web driver official version in future.



나의 LG-F800S 의 Tapatalk에서 보냄

Link to comment
Share on other sites
Sherlocks
Sherlocks
Posted
Posted

how do we determine the correct BiosReleaseDate?

No need to determine biosreleasedate. R4173 clover automately determine it.



Ofc you can use both MM/DD/YY and MM/DD/YYYY.



Sorry for my bad english.





나의 LG-F800S 의 Tapatalk에서 보냄

  • Like 2
Link to comment
Share on other sites
SavageAUS
SavageAUS
Posted
Posted

What is ffm ff? Just not use in config?

How about B.I? Thanks in advance



나의 LG-F800S 의 Tapatalk에서 보냄

Thats correct, i did not use any ff or ffm in config.

Well for B.I it was working fine with a fresh install of beta 5 (yes i created the wrong USB  :hysterical: ) but updating to beta 6 now and will let you know.

Link to comment
Share on other sites
surfinchina
surfinchina
Posted
Posted

Great! Thanks for clean report.

Enjoy



나의 LG-F800S 의 Tapatalk에서 보냄

No need. Clover detect latest bios version between your config and clover smbios data. I already implement this function on latest clover r4173.



나의 LG-F800S 의 Tapatalk에서 보냄



Hi Sherlocks,

Sorry for the dumb question, but if I'm running an earlier version of clover installer, I can update it just by running it over the top of the current install? Would I still select some of the efi patches??

Thanks in advance and thanks for your work! :)

Link to comment
Share on other sites
SavageAUS
SavageAUS
Posted
Posted

Hi Sherlocks,

Sorry for the dumb question, but if I'm running an earlier version of clover installer, I can update it just by running it over the top of the current install? Would I still select some of the efi patches??

Thanks in advance and thanks for your work! :)

No question is dumb.

Yes you can just install a newer version over the top of the old.

No you wont need to select drivers as they should be preselected on what you already have.

  • Like 1
Link to comment
Share on other sites
Sherlocks
Sherlocks
Posted
Posted

Hi Sherlocks,

Sorry for the dumb question, but if I'm running an earlier version of clover installer, I can update it just by running it over the top of the current install? Would I still select some of the efi patches??

Thanks in advance and thanks for your work! :)

Hi.

If you have early clover version,

1. Just update clover r4173

2. No consider smbios part. R4173 automately determine to keep latest info between your smbios data at config and clover data.



If use any other patches(related kernel), cant boot(if kernel patches change on dp6. I didnt check it). Maybe your system doesnt have kernel patches as result boot is no problem on your system



Sorry for my bad english





나의 LG-F800S 의 Tapatalk에서 보냄

Link to comment
Share on other sites
surfinchina
surfinchina
Posted
Posted

No question is dumb.

Yes you can just install a newer version over the top of the old.

No you wont need to select drivers as they should be preselected on what you already have.

Actually I have another question that isn't dumb haha.

So I did the install over but it went to the main drive partition. This is because I'm running apfs.

What files should I copy from that EFI to the actual one that I use?

Link to comment
Share on other sites
Sherlocks
Sherlocks
Posted
Posted

Actually I have another question that isn't dumb haha.

So I did the install over but it went to the main drive partition. This is because I'm running apfs.

What files should I copy from that EFI to the actual one that I use?

Aha need to update apfs file for dp6 with vanilla.





나의 LG-F800S 의 Tapatalk에서 보냄

ahh, so we can skip that part in config>smbios section

Yes. Or if release dp7, you can manually add biosversion, releasedate, ffm and ff



나의 LG-F800S 의 Tapatalk에서 보냄

  • Like 1
Link to comment
Share on other sites
SavageAUS
SavageAUS
Posted
Posted

Actually I have another question that isn't dumb haha.

So I did the install over but it went to the main drive partition. This is because I'm running apfs.

What files should I copy from that EFI to the actual one that I use?

What I find easier but longer is to copy "my files" eg: config.plist, kexts, dsdt, ssdt's etc to the main drive EFI, delete the proper EFI one then copy and paste the main drive stuff to real EFI. Make sense?



Always have a backup.



Sent from my SM-G930F using Tapatalk

Link to comment
Share on other sites
