SavageAUS Posted May 25, 2018 Share Posted May 25, 2018 [mention=1083558]SavageAUS[/mention] Hey buddy I decided to continue our conversation here. The old DSDT for Sierra has several ACPI errors on boot in macOS High Sierra so I decided to go DSDT free. Everything has been working OK os so far with the exception of my boot time on the NVME drive. On SSD it loads way faster and I guess the reason might be that the NVME has Trim support enable by default and I think you're right we need to ask [mention=557433]MaLd0n[/mention] to doo his magic on a new DSDT for the latest BIOS update and new settings. I made some changes in my rig which won't matter that much because the only major change is that I just added a NVME drive for booting to macOS and I changed the case for better cooling and add some extra fans. I switched to AMD RX580 and all the headaches from the nVidia web drivers and lags (which I know is resolved now) are gone.I'm on bios F22f as that's the latest as of now. I've been hoping and waiting for a new bios but I guess (as long as [mention=1376005]MaLdOn[/mention] can work his magic) we can use F22f as the base for the next DSDT for the gaming 5. Just waiting for input from MaLdOn. Sent from my SM-G930F using Tapatalk Link to comment Share on other sites More sharing options...
Cyberdevs Posted May 25, 2018 Author Share Posted May 25, 2018 Yeah I'm use the same BIOS version. But I think there should be another BIOS release soon to address the new Spectre/Meltdown bugs Link to comment Share on other sites More sharing options...
SavageAUS Posted May 25, 2018 Share Posted May 25, 2018 (edited) Isn't that what F22f did? With the update to cpu microcode? F22c was also Update Intel ME for security vulnerabilities Edited May 25, 2018 by SavageAUS Link to comment Share on other sites More sharing options...
Cyberdevs Posted May 25, 2018 Author Share Posted May 25, 2018 They have found new bugs which Intel is working for new updates. (If I'm not mistaking) Link to comment Share on other sites More sharing options...
Cyberdevs Posted May 25, 2018 Author Share Posted May 25, 2018 @SavageAUS Here it is, sorry for the delay I wasn't at my desk: SSDT-HDEF.aml.zip I use it for activating audio and this one is for the HDMI audio SSDT-HDMI-NVIDIA-PEG0.aml.zip Link to comment Share on other sites More sharing options...
MaLd0n Posted May 25, 2018 Share Posted May 25, 2018 2 hours ago, Cyberdevs said: @SavageAUS Hey buddy I decided to continue our conversation here. The old DSDT for Sierra has several ACPI errors on boot in macOS High Sierra so I decided to go DSDT free. Everything has been working OK os so far with the exception of my boot time on the NVME drive. On SSD it loads way faster and I guess the reason might be that the NVME has Trim support enable by default and I think you're right we need to ask @MaLd0n to doo his magic on a new DSDT for the latest BIOS update and new settings. I made some changes in my rig which won't matter that much because the only major change is that I just added a NVME drive for booting to macOS and I changed the case for better cooling and add some extra fans. I switched to AMD RX580 and all the headaches from the nVidia web drivers and lags (which I know is resolved now) are gone. Hey send me files run app RunMe.app have some news xD 1 Link to comment Share on other sites More sharing options...
SavageAUS Posted May 25, 2018 Share Posted May 25, 2018 (edited) 49 minutes ago, MaLd0n said: Hey send me files run app RunMe.app have some news xD Upload keeps failing. Will try again later. https://www.dropbox.com/s/dunv9q0gjfiw25q/Send me Shanes-iMac.lan.zip?dl=0 Edited May 25, 2018 by SavageAUS Link to comment Share on other sites More sharing options...
MaLd0n Posted May 25, 2018 Share Posted May 25, 2018 3 minutes ago, SavageAUS said: Upload keeps failing. Will try again later. zippyshare https://www.zippyshare.com/ Link to comment Share on other sites More sharing options...
SavageAUS Posted May 25, 2018 Share Posted May 25, 2018 3 minutes ago, MaLd0n said: zippyshare https://www.zippyshare.com/ See previous post. Link to comment Share on other sites More sharing options...
MaLd0n Posted May 25, 2018 Share Posted May 25, 2018 17 minutes ago, SavageAUS said: See previous post. update bios to last version and extract untouched tables, i'll patch last version Link to comment Share on other sites More sharing options...
Cyberdevs Posted May 25, 2018 Author Share Posted May 25, 2018 (edited) 1 hour ago, MaLd0n said: Hey send me files run app RunMe.app have some news xD Here is my folder. I'm on the latest BIOS F22f. https://www.dropbox.com/s/cyzet79h2rp634c/Send me Cyberdevs-iMac.zip?dl=0 Thanks a lot for you time and Magic Touch Bro Edited May 25, 2018 by Cyberdevs Link to comment Share on other sites More sharing options...
MaLd0n Posted May 25, 2018 Share Posted May 25, 2018 28 minutes ago, Cyberdevs said: Here is my folder. I'm on the latest BIOS F22f and here is my folder, https://www.dropbox.com/s/cyzet79h2rp634c/Send me Cyberdevs-iMac.zip?dl=0 Thanks a lot for you time and Magic Touch Bro check if work CLOVER.zip need a serials replace full clover folder, reboot and send me new SEND_ME , i need check if error in log is gone, have some about usb Nvidia or AMD, i put two injectors 1 Link to comment Share on other sites More sharing options...
Cyberdevs Posted May 25, 2018 Author Share Posted May 25, 2018 18 minutes ago, MaLd0n said: check if work CLOVER.zip need a serials replace full clover folder, reboot and send me new SEND_ME , i need check if error in log is gone, have some about usb Nvidia or AMD, i put two injectors Here is the new folder. https://www.dropbox.com/s/2a5u07o1ju67ks9/New Send me Cyberdevs-iMac.zip?dl=0 I'm still having slow boot from NVME. do you know what could be the cause? Link to comment Share on other sites More sharing options...
MaLd0n Posted May 25, 2018 Share Posted May 25, 2018 10 minutes ago, Cyberdevs said: Here is the new folder. https://www.dropbox.com/s/2a5u07o1ju67ks9/New Send me Cyberdevs-iMac.zip?dl=0 I'm still having slow boot from NVME. do you know what could be the cause? u try a HFS+J instead APFS? use some patches in config.plist to avoid ssdt dependencies error change GFX0 to IGPU 47465830 49475055 change HDAS to HDEF 48444153 48444546 change HECI to IMEI 48454349 494d4549 1 Link to comment Share on other sites More sharing options...
Cyberdevs Posted May 25, 2018 Author Share Posted May 25, 2018 Just now, MaLd0n said: u try a HFS+J instead APFS? use some patches in config.plist to avoid ssdt dependencies error change GFX0 to IGPU 47465830 49475055 change HDAS to HDEF 48444153 48444546 change HECI to IMEI 48454349 494d4549 No I haven't tested the HFS on the new NVMe drive. I just switched to NVMe for faster speed, the thing is that macOS loads fine on SATA SSD and the APFS format. it's weird why it takes longer on NVMe. I think it has to to with the TRIM being enabled on the NVMe by default. Let me disable the trim function and see how it effects the boot speed. Thanks again for the time and the brand new DSDT man you RULE! Link to comment Share on other sites More sharing options...
SavageAUS Posted May 25, 2018 Share Posted May 25, 2018 How's the new dsdt going? Any error? No I haven't tested the HFS on the new NVMe drive. I just switched to NVMe for faster speed, the thing is that macOS loads fine on SATA SSD and the APFS format. it's weird why it takes longer on NVMe. I think it has to to with the TRIM being enabled on the NVMe by default. Let me disable the trim function and see how it effects the boot speed. Thanks again for the time and the brand new DSDT man you RULE!Sent from my SM-G930F using Tapatalk Link to comment Share on other sites More sharing options...
MaLd0n Posted May 25, 2018 Share Posted May 25, 2018 11 minutes ago, Cyberdevs said: No I haven't tested the HFS on the new NVMe drive. I just switched to NVMe for faster speed, the thing is that macOS loads fine on SATA SSD and the APFS format. it's weird why it takes longer on NVMe. I think it has to to with the TRIM being enabled on the NVMe by default. Let me disable the trim function and see how it effects the boot speed. Thanks again for the time and the brand new DSDT man you RULE! ye, is default in NVME, lol i'm stay in HFS, i dont see much diff xD 2 Link to comment Share on other sites More sharing options...
Cyberdevs Posted May 25, 2018 Author Share Posted May 25, 2018 6 minutes ago, SavageAUS said: How's the new dsdt going? Any error? Sent from my SM-G930F using Tapatalk I don't see the previous ACPI errors. Link to comment Share on other sites More sharing options...

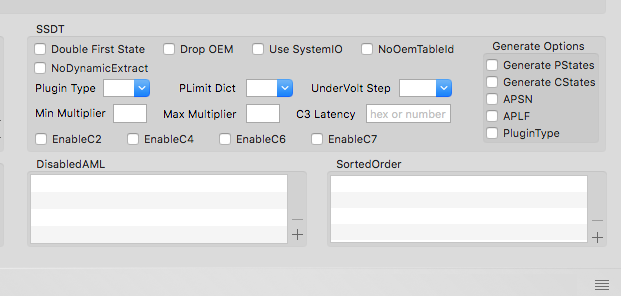

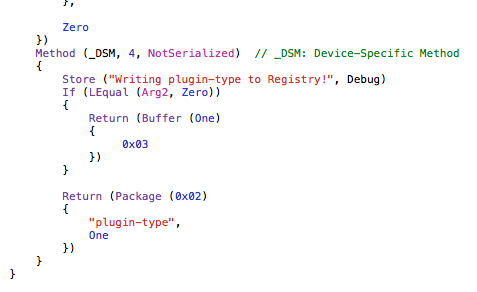

MaLd0n Posted May 25, 2018 Share Posted May 25, 2018 4 minutes ago, Cyberdevs said: I don't see the previous ACPI errors. have one acpi error, but is about Generate P and C States, u can remove it in ur config.plist, PLugIn type =1 already in DSDT about PM in config.plist use it(nothing) and check frequencies with Intel Power Gadget 2 Link to comment Share on other sites More sharing options...
SavageAUS Posted May 25, 2018 Share Posted May 25, 2018 (edited) 39 minutes ago, MaLd0n said: have one acpi error, but is about Generate P and C States, u can remove it in ur config.plist, PLugIn type =1 already in DSDT about PM in config.plist use it(nothing) and check frequencies with Intel Power Gadget Here is mine https://www.dropbox.com/s/0x8ht12pom0y878/Send me Shanes-iMac.lan.zip?dl=0 Edited May 25, 2018 by SavageAUS Link to comment Share on other sites More sharing options...
MaLd0n Posted May 25, 2018 Share Posted May 25, 2018 41 minutes ago, SavageAUS said: Here is mine https://www.dropbox.com/s/0x8ht12pom0y878/Send me Shanes-iMac.lan.zip?dl=0 CLOVER.zip put ur serials 1 Link to comment Share on other sites More sharing options...
SavageAUS Posted May 26, 2018 Share Posted May 26, 2018 CLOVER.zip put ur serialsThanks, do I need to enable any of the rename patches in config.plist? Sent from my SM-G930F using Tapatalk Link to comment Share on other sites More sharing options...
MaLd0n Posted May 26, 2018 Share Posted May 26, 2018 25 minutes ago, SavageAUS said: Thanks, do I need to enable any of the rename patches in config.plist? Sent from my SM-G930F using Tapatalk Yes, use it change GFX0 to IGPU 47465830 49475055 change HDAS to HDEF 48444153 48444546 change HECI to IMEI 48454349 494d4549 change SAT0 to SATA 53415430 53415441 change GLAN to GIGE 474c 414e 4749 4745 Link to comment Share on other sites More sharing options...
SavageAUS Posted May 27, 2018 Share Posted May 27, 2018 Yes, use it change GFX0 to IGPU 47465830 49475055 change HDAS to HDEF 48444153 48444546 change HECI to IMEI 48454349 494d4549 change SAT0 to SATA 53415430 53415441 change GLAN to GIGE 474c 414e 4749 4745Ok will do, what's different in this dsdt compared to the older one?Sent from my SM-G930F using Tapatalk Link to comment Share on other sites More sharing options...
MaLd0n Posted May 27, 2018 Share Posted May 27, 2018 43 minutes ago, SavageAUS said: Ok will do, what's different in this dsdt compared to the older one? Sent from my SM-G930F using Tapatalk update many patches, kill acpi errors and many others, serie 100/200/300 Link to comment Share on other sites More sharing options...
