chickenlittleextremists Posted May 31, 2020 Share Posted May 31, 2020 Hello Down35, I have a HP Prodesk 600 G1 with the configuration below: Intel i3 4130 and Intel HD 4400 and I'm using a DisplayPort to HDMI converter to power my HDMI monitor. Now, Your clover files do almost everything properly on my device, except for the graphics. It detects HD 4400 but shows only 3mb. I'm not able to get full QE/CI. Could you kindly help me, as I'd really like to use this device as my primary backup daily driver Mac. Attaching my clover file below. Regards. CLOVER.zip Link to comment Share on other sites More sharing options...
chickenlittleextremists Posted June 6, 2020 Share Posted June 6, 2020 To anybody else with a 600 G1, i finally got it working, Posting my debug files. Just one issue im facing: When i shut down the PC, it automatically restarts, even though i have fix shutdown checked in clover. Not sure why. debug_21079.zip 1 Link to comment Share on other sites More sharing options...
kumpik Posted June 9, 2020 Share Posted June 9, 2020 It's working great but i try use applealc instead voodoohda and every time i have error - AppleKeyStore Operation Failed. In my opinion VodooHDA have a bad sound quaility On 5/28/2020 at 6:18 PM, Donw35 said: Here is the OpenCore 5.8.0 EFI I am using on the HP 800 G1, your mileage will very. you should be able to boot to the desktop and then create your own serial numbers in the PlatForm section. not doing so will result in iCloud and iMessage not working. Give it a try and report back. HP_800_G1_OC_58.zip Link to comment Share on other sites More sharing options...
Donw35 Posted June 10, 2020 Author Share Posted June 10, 2020 A usb sound device that is compatible will offer better experience, I use that on this machine do avoid the AppleACL issues. I am able to use AppleACL using layout 15 but causes sleep and wake issues Link to comment Share on other sites More sharing options...
Sabrina13 Posted June 13, 2020 Share Posted June 13, 2020 (edited) Thanks for this tutorial,I bought an HP 800 G1 SFF 100 euros and add an MSI GEFORCE GT 1030 2GH LP OC graphics card.For Catalina and Mojave no Nvidia graphics driver :(.I installed High Sierra, everything works perfectly.USB 3 also works at high speed, iMessage etc. everything works.I used the EFI files that you suggest on the first page and add a patch in config.plist with Clover Configurator.Kernel & Kext Patchcom.apple.driver.usb.AppleUSBXHCIFind HEX: 837D880F 0F83A704 0000Replace HEX: 837D880F 90909090 9090Thank you for your work and see you soon ------------------------------------------ Update 22 Juin 2020 I wanted to install Catalina 10.15.5 for testing. I have removed the Nvidia graphics card and the result is good with intel HD 4600. USB 3: high speed function 4K display: 1080p Max 60Hz HDMI audio: works (AppleALC.kext) delete VoodooHDA. Edited June 22, 2020 by Sabrina13 Link to comment Share on other sites More sharing options...
chris1111 Posted June 28, 2020 Share Posted June 28, 2020 (edited) @Donw35 Many tanks for the Guide that's help me a lots for my HP (ProDesk 600 G1) SFF any news on your side for Big Mac Sur with OC Edited June 28, 2020 by chris1111 Link to comment Share on other sites More sharing options...

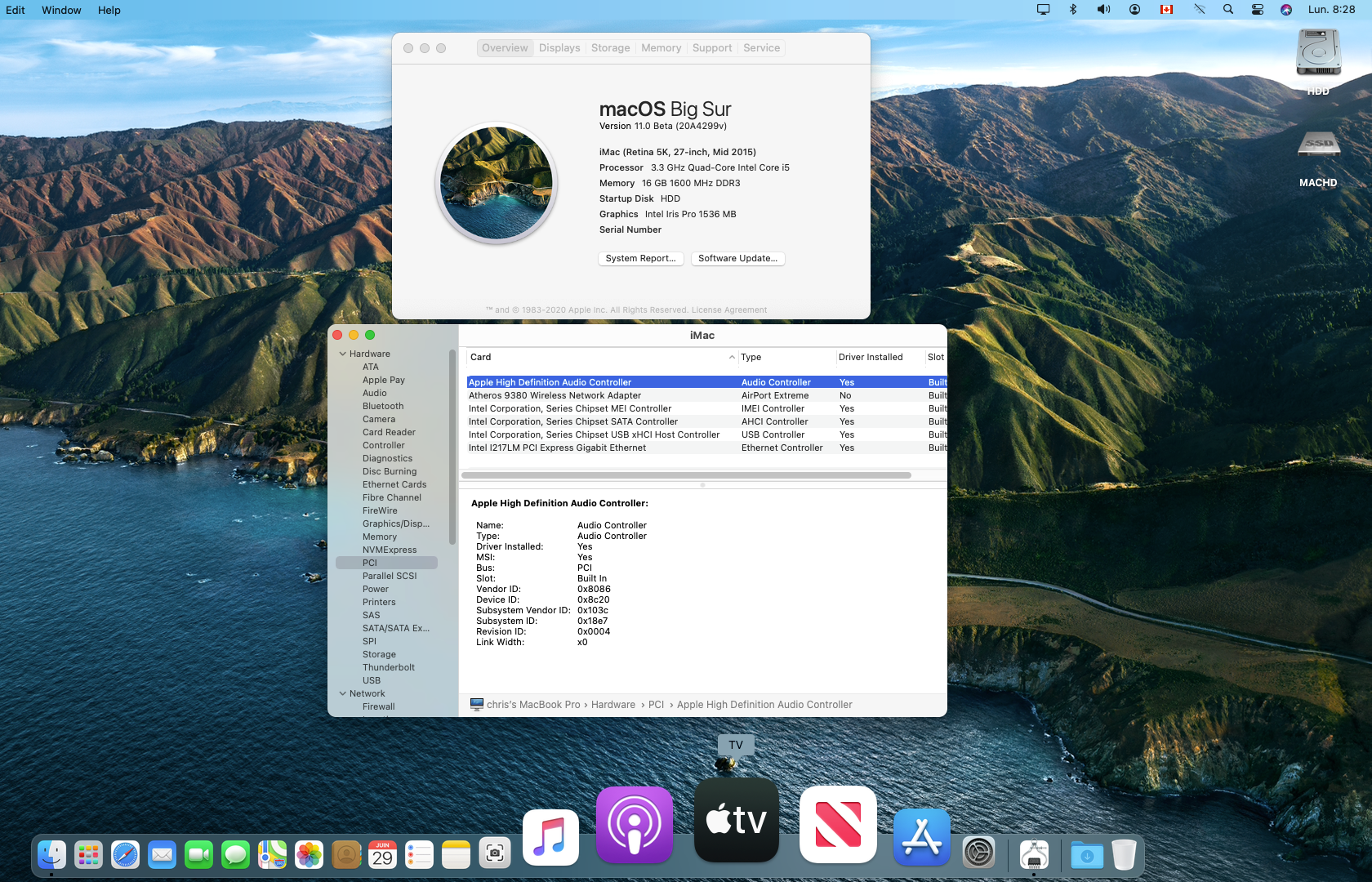

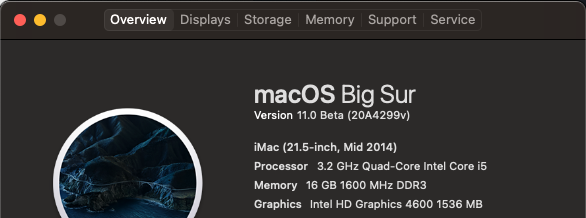

Donw35 Posted June 28, 2020 Author Share Posted June 28, 2020 (edited) I am currently letting the smarter people work out issues with Bug Sur, I don't think we are there yet, maybe by public beta I will start working on it, my target will be the HP 840 G3. I will post once we get some better movement on the OS and OpenCore UPDATE.... I got Big Sur woking on the HP 800 G1 mini, I have more optimization to do but for the most part, it works, sleep is working but the fan seems to be running faster. stay tuned for more info.... Edited June 29, 2020 by Donw35 updated info 1 Link to comment Share on other sites More sharing options...
chris1111 Posted June 29, 2020 Share Posted June 29, 2020 (edited) On 6/28/2020 at 3:52 PM, Donw35 said: I am currently letting the smarter people work out issues with Bug Sur, I don't think we are there yet, maybe by public beta I will start working on it, my target will be the HP 840 G3. I will post once we get some better movement on the OS and OpenCore UPDATE.... I got Big Sur woking on the HP 800 G1 mini, I have more optimization to do but for the most part, it works, sleep is working but the fan seems to be running faster. stay tuned for more info.... EDIT *** I try my self its boot perfectly after IOConsoleUsers: gIOScreenLockState the Apple arrives no progress bar running Stuck with a beautiful apple no progression EDIT *** Ok done Fresh Install Create Install Media from My Mac Book Pro I find why is not working for 3 days Edited June 30, 2020 by chris1111 1 Link to comment Share on other sites More sharing options...

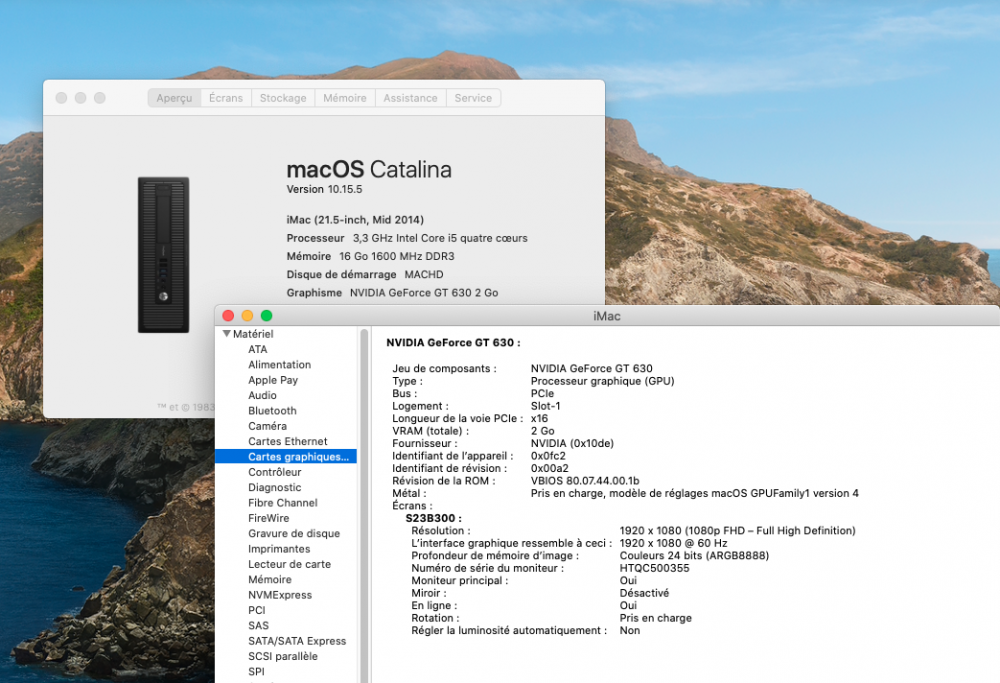

chris1111 Posted July 3, 2020 Share Posted July 3, 2020 (edited) Big News I just receive my GefOrce 630 today from USA California Works native Big sur and Cata EDIT *** Change my 630 for a GeForce GT 710 2 gig Works better Edited July 8, 2020 by chris1111 Change my 630 for a GeForce GT 710 2 gig Works better 1 Link to comment Share on other sites More sharing options...
chris1111 Posted July 7, 2020 Share Posted July 7, 2020 Hi @Donw35 do you have an issue wit the front USB 3.0 ? I have always disconnect Low power notification Link to comment Share on other sites More sharing options...
Amar Dave Posted July 7, 2020 Share Posted July 7, 2020 Guys, I am trying to get my elitedesk 800 g1 with following specs working since 4 days now. Processor i5 4690T 2.5ghz Graphics HD 4600 8gb ram Crucial 240gb ssd I have tried 2 methods to install catalina 1. Niresh catalina for which the pc gets stuck while booting 2. [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] usb installer thru which I was able to install catalina on the ssd but intel graphics doesnt load. Everything else works like usb ports, ethernet, sound etc but intel hd 4600 only shows 5mb. Please help me I have tried inject intel checkbox in clover with graphics ID for haswell. Also tried some config.plist files from this thread but nothing has worked to get the graphics working. 3. Today I also tried opencore method with 0.5.9 and this also gets stuck while loading. Link to comment Share on other sites More sharing options...
mohamed1 Posted July 20, 2020 Share Posted July 20, 2020 On 6/29/2020 at 5:44 AM, chris1111 said: EDIT *** I try my self its boot perfectly after IOConsoleUsers: gIOScreenLockState the Apple arrives no progress bar running Stuck with a beautiful apple no progression EDIT *** Ok done Fresh Install Create Install Media from My Mac Book Pro I find why is not working for 3 days On 7/7/2020 at 8:55 PM, chris1111 said: Hi @Donw35 do you have an issue wit the front USB 3.0 ? I have always disconnect Low power notification On 7/7/2020 at 8:55 PM, chris1111 said: Hi @Donw35 do you have an issue wit the front USB 3.0 ? I have always disconnect Low power notification Link to comment Share on other sites More sharing options...
Donw35 Posted July 25, 2020 Author Share Posted July 25, 2020 @mohamed1 I am not having that problem, if you share your EFI folding I can have a look but I have moved on to Open Core 5.9 for Catalina and OC 6.0 for Big Sur Beta 3 Link to comment Share on other sites More sharing options...
Balsie Posted July 29, 2020 Share Posted July 29, 2020 On 7/7/2020 at 8:55 PM, chris1111 said: Hi @Donw35 do you have an issue wit the front USB 3.0 ? I have always disconnect Low power notification Hi Chriss, my USB 3.0 don't work at all....... How come? I used your OC for HP Prodesk 600 G1..........everything works like a charm!!! 1 Link to comment Share on other sites More sharing options...
chris1111 Posted July 29, 2020 Share Posted July 29, 2020 3 minutes ago, Balsie said: Hi Chriss, my USB 3.0 don't work at all....... How come? I used your OC for HP Prodesk 600 G1..........everything works like a charm!!! Fix here by adding a ORICO 4 port USB HUB Plug the HUB to the back USB port then put the Hub to the PC Everything work now Link to comment Share on other sites More sharing options...
Balsie Posted July 29, 2020 Share Posted July 29, 2020 Thank you very much, I'm going to try that! Last question: when I want to wake from sleep, I have to use the power-button.... Can I change that to keyboard or mouse-click? Link to comment Share on other sites More sharing options...
Donw35 Posted July 29, 2020 Author Share Posted July 29, 2020 I can wake from keyboard but I am using a Apple keyboard with Apple WiFi, non Apple Wifi don't always work for that 1 Link to comment Share on other sites More sharing options...
Balsie Posted July 29, 2020 Share Posted July 29, 2020 I'm using an original Apple keyboard, but wired....... Link to comment Share on other sites More sharing options...
Balsie Posted July 29, 2020 Share Posted July 29, 2020 When I use Clover I can use my keyboard or mouse to wake........ Now I'm in OC and I can not..... Link to comment Share on other sites More sharing options...
chris1111 Posted July 29, 2020 Share Posted July 29, 2020 (edited) On 7/29/2020 at 1:31 PM, Balsie said: I'm using an original Apple keyboard, but wired....... Do you see video ORICO Video ORICO 4 port Hub Edited August 1, 2020 by chris1111 Video ORICO 4 port Hub Link to comment Share on other sites More sharing options...
themacmeister Posted August 1, 2020 Share Posted August 1, 2020 On 12/24/2017 at 12:07 PM, wishie said: yeah, the VGA port doesn't work at all, because no Mac's capable of running High Sierra have a VGA output, as far as I know. I'll be using both DisplayPort anyway, as I have just acquired another EliteDisplay E232 Thanks for confirming. This is nonsense, I have gotten VGA working for myself, and others using Mojave. It is very hit and miss, with lots and lots (and LOTS) of trial and error. For example, trying to get an old laptop running Mojave and using VGA output, took THREE DAYS, and then it just randomly started working... I wouldn't RELY on VGA. Link to comment Share on other sites More sharing options...
krtnptl Posted August 9, 2020 Share Posted August 9, 2020 On 3/17/2020 at 12:36 AM, mRayE said: I have the HP ProDesk 600 G1 SFF (i5-4570) in which the EliteDesk G1 only has a little extra I/O. It’s listed that only a few of your USB ports work. All mine work - USB 2.0 and USB 3.0, front and back. I would love to get a 4K monitor but it’s seems you have no success with using the iGPU and DisplayPort. I guess I will get a AMD RX560 LP for my 4K solution. I can confirm the cheap BestBuy brand DisplayPort to HDMI works. Request: I would rewrite the process with the USB Clover description because I did it two times without success until I figured out what it all meant. Just in case newbies like myself visits lol. Thanks so much for creating these folders man. Partition the USB Use Clover EFI Bootloader that generates content to be installed on USB (use any tutorial) Use Clover Configurator and “mount” EFI partition. Open mounted partition... Download the “USB_CLOVER folder” provided below, place the sub folders inside “EFI” folder previously mounted (Drivers, Patches and Kexts you need to boot up and install Mac OS) Unmount EFI partition (very important), Place the Clover Configurator app inside USB Use any tutorial to install macOS on computer. Once macOS is fully installed, use Clover Configurator to Mount the EFI partition on the drive in which MacOS is installed. Open the EFI partition.... Download the “Desktop Clover” folder provided below and follow the same steps for “USB Clover Folder” Afterwards, Unmount EFI partition. Can you make a video of this? Link to comment Share on other sites More sharing options...
Balsie Posted August 12, 2020 Share Posted August 12, 2020 Hello, I also have the HP Prodesk 600 G1 SFF.... But in Clover: NO sound and NO USB 3.0..... How did you manage that? Link to comment Share on other sites More sharing options...
fox168110 Posted August 14, 2020 Share Posted August 14, 2020 thank you very much! i'm going to install in my 800 g1 usdt. Link to comment Share on other sites More sharing options...
Donw35 Posted August 21, 2020 Author Share Posted August 21, 2020 (edited) Big Sur Beta 5 installed without issues, I uploaded my latest EFI using OpenCore 6.1.0 and the latest kexts to the main post, useful for making a USB installer, this EFI folder is the most current but will be out of date once Big Sur is officially released, I will post that EFI folder at that time. Enjoy everyone Edited August 21, 2020 by Donw35 Link to comment Share on other sites More sharing options...
