atariman Posted March 20, 2020 Share Posted March 20, 2020 @Donw35 First off, thank you so much for this guide and your support files. Using an iMac, I was able to install Catalina on a Samsung Evo 860 SSD and put the drive into my EliteDesk 800 G1 TWR and it worked like a charm. My question is with the serial number that gets assigned. I used your config.plist. I installed Clover Configurator (CC), but the only thing I used CCfor is to remove unwanted menu items in Clover during bootup and to clean things up a bit. I have no intention on using Facetime, Messages, or anything that needs a unique serial. I do however have a {censored} load of stuff I bought on the Mac App Store like Final Cut X. Do I need to create a new serial number, and if so, how do I do this? I just don't want to mess things up after many hours of trying to get this up and running. Thanks in advance Link to comment Share on other sites More sharing options...
Donw35 Posted March 20, 2020 Author Share Posted March 20, 2020 use Clover configurator to generate a serial number that is not used, that way you can use apps you paid for .. Link to comment Share on other sites More sharing options...
dblwood Posted March 30, 2020 Share Posted March 30, 2020 Thank you, Donw, your EFI files work on my 600 F1! 1 Link to comment Share on other sites More sharing options...

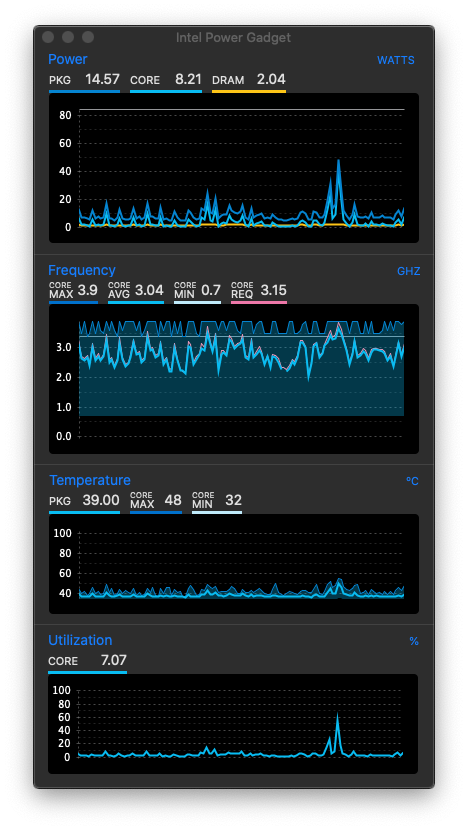

gpapadak Posted April 1, 2020 Share Posted April 1, 2020 (edited) Hi everyone, This is my Intel Power Gadget Screenshot. Is it Normal? I think my intel speedstep is not workong well... @Donw35 I haven't used the SSDT-EC.aml from your EFI Folder. What does it actualy do? Also I haven't build a USBMap.Kext and I use USBInjectAll.kext for my USB ports to work. Is there a problem with that? Thanks for the great info everyone shares here!!! My hackintosh: HP EliteDesk G1 800 TWR, i7-4770, AshRock Radeon RX 570* Phantom Gaming 8GB, 16GB, 2X250GB SSD + 500GB HDD, 10.15.4 + windows 10 dualboot *The original 320 watt PSU was enough for the discreet GPU just with an adapter. Edited April 1, 2020 by gpapadak Link to comment Share on other sites More sharing options...
Donw35 Posted April 1, 2020 Author Share Posted April 1, 2020 try enabling kernelXCPM and reboot, see if that gives better speed steep results Link to comment Share on other sites More sharing options...
gpapadak Posted April 1, 2020 Share Posted April 1, 2020 Did it but no difference. No need for a screenshot. I will attach my Clover Folder if anyone has a clue. @Donw35 Can you share a USBMap.Kext generation Tutorial if you think it is necessary? Again what is SSDT-EC.aml used for? thanks in advance! CLOVER.zip Link to comment Share on other sites More sharing options...
Donw35 Posted April 1, 2020 Author Share Posted April 1, 2020 SSDT-EC.am Renaming EC0 to EC can only work if you actually have an EC0. in my experience, this was need to get the OS to load. I used Hackintool to create the USBMap.kext, its easy to do, just follow the steps in the program by clicking on the I in the circle. I do not recommend using mine as it was created on a different model. I am including a current Clover folder I am working on, I stopped using AppleALC.kext due to wake issues. I want to use the lest about of settings in config.plist and the least kexts and drivers. This clover has working sleep, sound, speed steep. Look at ACPI section, this will help you to get speed step working CLOVER.zip Link to comment Share on other sites More sharing options...

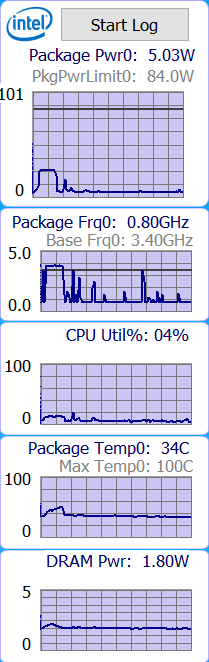

gpapadak Posted April 4, 2020 Share Posted April 4, 2020 (edited) Ok @Donw35 thanks for helping, used your "minimalistic" config and everything works. Generated a USBPorts.kext with the instructions of hackintool. Q: Why do you use both SSDT-###.aml files in the ACPI/Patched folder and the USBPorts.kext? In hackintool help advises otherwise. I followed instructions using only USBPorts.kext It did not generated an SSDT-EC.aml for me so no file in the ACPI /Patched folder. Kept AppleALC.kext and its config injection as it worked perfect for me. No problems with sleep or wake and even removed Graphics Entries left everything blank GPU works perfect with sleep wake but I have disabled IGPU. EDIT: I just retested Sleep and it is not working. At least no crashes.... Still I am not sure for speed step as I think the Intel Power Gadget shows lower frequencies in windows 10 but with the win gui is difficult to tell the differences. I attach 2 screenshots win and osx. Also my config.plist config-share.plist Edited April 4, 2020 by gpapadak retest sleep Link to comment Share on other sites More sharing options...
Pluskat5000Schiffe Posted April 5, 2020 Share Posted April 5, 2020 hi I was reading your topic and I have currently an issue that my system panics while rebooting / or shutdown. I don't know if it resets the BIOS but every time I boot my system it notifies me that the system had panicked. It works perfectly smooth but only reboot / shutdown is causing issues. Your tips at post one didn't help. Any idea? It is a standard ProDesk 600G1 which is almost the same as Elite Desk 800G1 thx. Link to comment Share on other sites More sharing options...
Donw35 Posted April 5, 2020 Author Share Posted April 5, 2020 That is interesting, try using Hackintool and rebuild kextcache and rebuild permissions. what apps do you have running in the back ground ? The BIOS is limited on these models so it's probably not that. do you have an dGPU ? Link to comment Share on other sites More sharing options...
Pluskat5000Schiffe Posted April 6, 2020 Share Posted April 6, 2020 (edited) 9 hours ago, Donw35 said: That is interesting, try using Hackintool and rebuild kextcache and rebuild permissions. what apps do you have running in the back ground ? The BIOS is limited on these models so it's probably not that. do you have an dGPU ? No dGPU, Well good news and bad news. I have update to bios 2.77 because I saw you did too. After that I couldn't boot anymore into GUI. I can boot now with inject intel and use a bogus fakeid 0x12345678 but it shows 7MB vram. I think the problem I have right now has to do with the DVMT preallocation being too small. My cpu has HD4600. What is best approach Lilu + Whatevergreen ? If so can somebody paste exact properties content I have to paste in clover configurator? Good news is that a complete restart or shutdown is going ok without notify a panic after next boot. I'm doing now a clean installation of Catalina. Edited April 6, 2020 by Pluskat5000Schiffe Link to comment Share on other sites More sharing options...
Pluskat5000Schiffe Posted April 6, 2020 Share Posted April 6, 2020 (edited) Add my EFI based on FakePCIID method. I'm aware this needs to be LiLU with WEG but with this method and a bogus Fake PCID I can enter in macOS Catalina however only with 7MB Vram. Where to begin? EFI.zip Edited April 6, 2020 by Pluskat5000Schiffe Link to comment Share on other sites More sharing options...
Donw35 Posted April 7, 2020 Author Share Posted April 7, 2020 interesting, try this clover folder and report back CLOVER.zip Link to comment Share on other sites More sharing options...
Pluskat5000Schiffe Posted April 7, 2020 Share Posted April 7, 2020 Thx will try tomorrow ... was reading procedure for changing default dvmt but in Windows it looks already 128mb... Link to comment Share on other sites More sharing options...
Donw35 Posted April 7, 2020 Author Share Posted April 7, 2020 you shouldn't have to do that, you can see from my folder that it is not needed, this I the clover from my HP 800 G1 SFF, the other folder was from my HP 800 G1 USFF Link to comment Share on other sites More sharing options...
Pluskat5000Schiffe Posted April 7, 2020 Share Posted April 7, 2020 Thx will try tomorrow ... was reading procedure for changing default dvmt but in Windows it looks already 128mb... Link to comment Share on other sites More sharing options...
Pluskat5000Schiffe Posted April 7, 2020 Share Posted April 7, 2020 Sorry it doesn't work with latest efi either. Due some strange condition IGP is not loaded. Link to comment Share on other sites More sharing options...
Donw35 Posted April 7, 2020 Author Share Posted April 7, 2020 hum, interesting, you can see that in mine I do not need any settings in clover.plist, with L and W you don't need them. What CPU in in your system ? Link to comment Share on other sites More sharing options...
Pluskat5000Schiffe Posted April 7, 2020 Share Posted April 7, 2020 On 5/7/2019 at 6:18 PM, basilfx said: will this work in 2.77 too? Prodesk 600 uses same BIOS as 800 G1 SFF // // HP 800 G1 SFF BIOS 02.75 only! // // Change DVMT Pre-Allocated to 128 MiB setup_var 0x233 0x4 // Disable CFG-LOCK setup_var 0x4a3 0x0 54 minutes ago, Donw35 said: hum, interesting, you can see that in mine I do not need any settings in clover.plist, with L and W you don't need them. What CPU in in your system ? 4670 ... this thing is driving me mad... ;-) I just applied the settings of setup_var 0x233 0x4 & setup_var 0x4a3 0x0 no difference ... Link to comment Share on other sites More sharing options...
Donw35 Posted April 7, 2020 Author Share Posted April 7, 2020 are you using the display port for video ? Link to comment Share on other sites More sharing options...
Pluskat5000Schiffe Posted April 7, 2020 Share Posted April 7, 2020 2 minutes ago, Donw35 said: are you using the display port for video ? Yes tried both. Link to comment Share on other sites More sharing options...
Donw35 Posted April 7, 2020 Author Share Posted April 7, 2020 I am using a 4570 here, no major difference between the two. so when you use my lastest clover you are still getting the crash on reset or when power down ?, sorry, with all this back and forth I forget what are trying to clear up. Link to comment Share on other sites More sharing options...
Pluskat5000Schiffe Posted April 7, 2020 Share Posted April 7, 2020 7 minutes ago, Donw35 said: I am using a 4570 here, no major difference between the two. so when you use my lastest clover you are still getting the crash on reset or when power down ?, sorry, with all this back and forth I forget what are trying to clear up. That was my original issue. I had bought this clunker and updated the bios. Before that it worked with Mojave but couldn't shutdown the system. It was not turning itself off. When I enforced it with the powerbutton after a boot it complained it had a panic but after that it booted fine this was in Mojave. So I decided to to upgrade the bios. Since 2.77 bios it didn't work anymore (fresh Catalina installer) however I found out that the DVMT is defaulted at 32MB. I changed it now to this (also CFG lock disabled) but no difference. Link to comment Share on other sites More sharing options...
Pluskat5000Schiffe Posted April 8, 2020 Share Posted April 8, 2020 DonW what resolution do you use on 800G1? Link to comment Share on other sites More sharing options...
Donw35 Posted April 8, 2020 Author Share Posted April 8, 2020 1920X1200 Intel HD Graphics 4600 1536 MB graphics Link to comment Share on other sites More sharing options...
