[Guide] El Capitan, Sierra / High Sierra / Mojave / Catalina on Intel 5, 6, 7, 8, 9 Chipset Series / Nehalem, SandyBridge, IvyBridge, Haswell, Broadwell


MaLd0n
2,509 posts in this topic

Recommended Posts

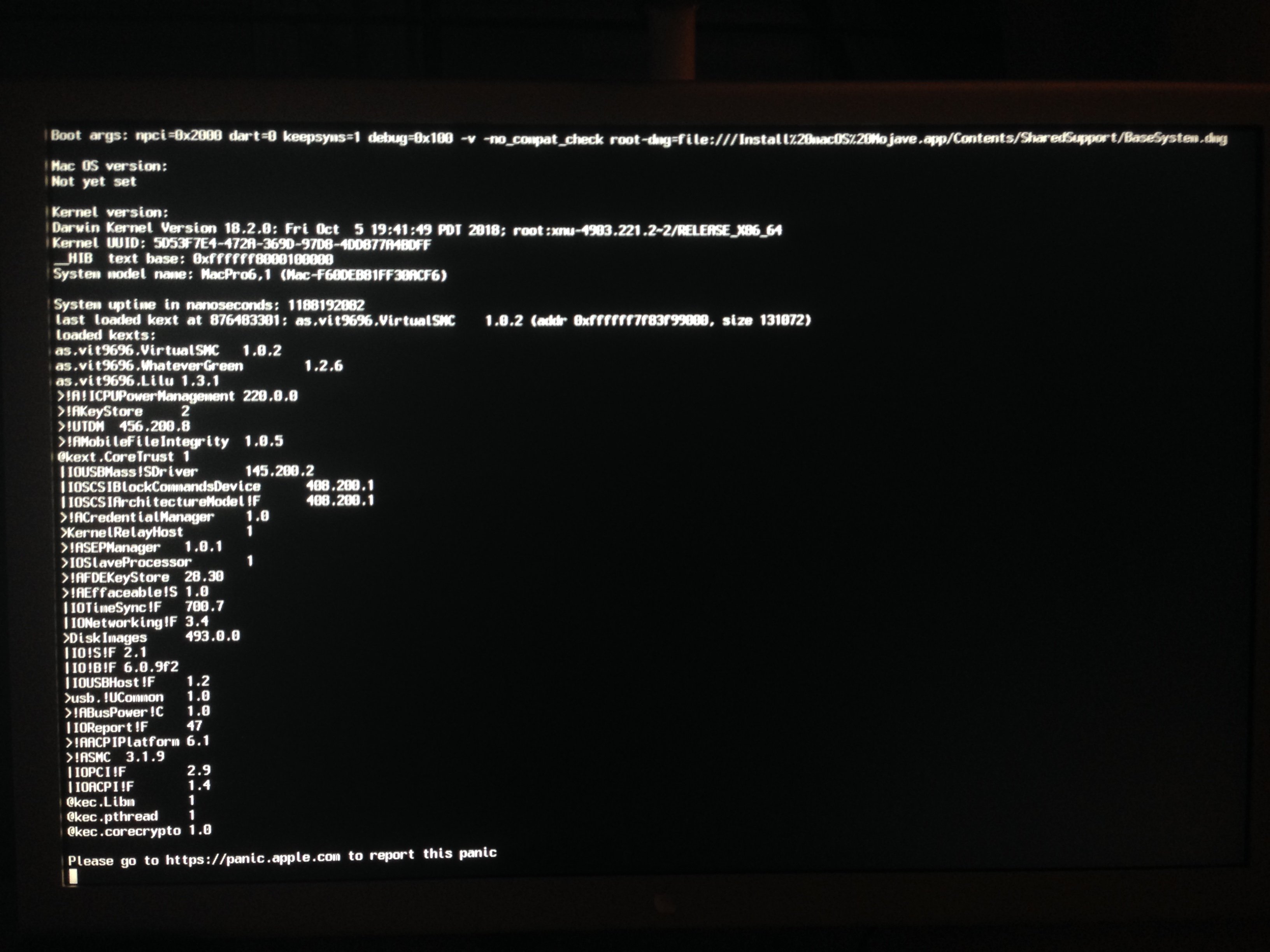

Dear Maldon this time I replaced CLOVER folder and got kernel panic as well. I tried several different args with no luck. Could't load installer.


  • Sad 1
Link to comment
Share on other sites

Dear Maldon this time I replaced CLOVER folder and got kernel panic as well. I tried several different args with no luck. Could't load installer.

Link to comment
Share on other sites

Hello and thank you for this space, I just installed 10.13.6 and seems to work fine, except for the USB ports in the back and the bluetooth device (I have an IOGEAR GBU521W6 Bluetooth 4.0 USB) it was very difficult for me to patch the Nvidia drivers and the ALC audio and nothing seems to work in order to put the usb and bluetooth back to normal (I had them working on Sierra but now I cannot).



I have this setup:



Processor: Intel(R) Core(TM) i7-3770K CPU @ 3.50GHz

MOBO: GA-Z77X-UP4 TH

GPU: NVIDIA GTX 1080ti

SSD: KINGSTON SUV480GB



this is my EFI file



any help will be much appreciated



Edited by agaliarept
processor specs
Link to comment
Share on other sites

8 hours ago, agaliarept said:

Hello and thank you for this space, I just installed 10.13.6 and seems to work fine, except for the USB ports in the back and the bluetooth device (I have an IOGEAR GBU521W6 Bluetooth 4.0 USB) it was very difficult for me to patch the Nvidia drivers and the ALC audio and nothing seems to work in order to put the usb and bluetooth back to normal (I had them working on Sierra but now I cannot).



I have this setup:



Processor: Intel(R) Core(TM) i7-3770K CPU @ 3.50GHz

MOBO: GA-Z77X-UP4 TH

GPU: NVIDIA GTX 1080ti

SSD: KINGSTON SUV480GB



this is my EFI file



any help will be much appreciated



--Run_Me
RunMe.app

  • Like 1
Link to comment
Share on other sites

Hi @MaLd0n



Since macOS 10.13.6 and now under macOS 10.14.3, I've got a issue with my patched DSDT both IMac 13,1 or macmini7,1 SMBIOS: Mojave restart randomly at first boot. I have to reboot several times to get a normal startup. Rebuilding don't solve the problem.



On 1/25/2019 at 6:45 PM, Matgen84 said:



I can't post full dump: darwindumper 3.0.4 crashs and reboot my system under 10.14.3



There is partial dump in attachements. Thanks.

DarwinDumper_3.0.4_25.01_18.33.22_iMac13,1_AMI_X64_4862_Unknown_18D42_mathieu.zip



Today, I use Run_Me: results in file attachement.



If you've a time to take a look, I will appreciate.

Thanks in advance

Send me iMac-de-Mathieu.zip

Edited by Matgen84
Link to comment
Share on other sites

Great guide, Mald0n. Everything works fine on 10.13.6 except HDMI audio. Even p-states and turbo with oc'd multiplier without adding anything extra.

My PC is connected to a 2k monitor and 4k tv ( through an AVR ) and I get occasional sound cutoffs on the tv which is running cable.

I guess osx is trying to play some system sounds through HDMI.

A noobish problem: I still can't manage to boot without the usb drive. I installed clover post-install to both the ssd and to UEFI.

I copied your folder to the ssd and the hidden EFI partition. Right now clover configurator sees 5 config files -

1 on the usb drive, 1 on the ssd and 1 on the hidden EFI. There are also 2 config-sample files.

What am I doing wrong ?

My system is:

Asrock p67 pro3

i5-3470

GTX 1060 6gb

Samsung 860 Evo 500gb

Archer T4U AC1300





Link to comment
Share on other sites

On 1/30/2019 at 3:30 AM, Matgen84 said:

Hi @MaLd0n



Since macOS 10.13.6 and now under macOS 10.14.3, I've got a issue with my patched DSDT both IMac 13,1 or macmini7,1 SMBIOS: Mojave restart randomly at first boot. I have to reboot several times to get a normal startup. Rebuilding don't solve the problem.





Today, I use Run_Me: results in file attachement.



If you've a time to take a look, I will appreciate.

Thanks in advance

Send me iMac-de-Mathieu.zip

use only it

CLOVER.zip

generate one SSDT for PM

https://olarila.com/files/Utils/SSDT_Automator.zip

  • Thanks 1
Link to comment
Share on other sites

4 hours ago, MaLd0n said:

use only it

CLOVER.zip

generate one SSDT for PM

https://olarila.com/files/Utils/SSDT_Automator.zip



Thanks a lot :) In Clover/ACPI/Patched/SSDT for USB isn't necessary despite USBInjectAll Readme by RehabMan, Right?



Generate one SSDT for PM means PowerManagement, right? SSDT Automator shows only for CPU. I don't understand. Give me some explanations, please.

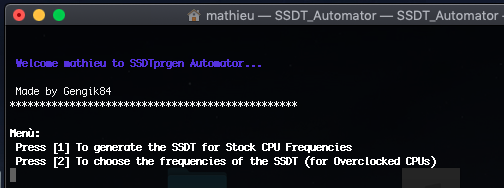

Capture d’écran 2019-02-04 à 07.05.09.png

Edited by Matgen84
Link to comment
Share on other sites

4 hours ago, Matgen84 said:



Thanks a lot :) In Clover/ACPI/Patched/SSDT for USB isn't necessary despite USBInjectAll Readme by RehabMan, Right?



Generate one SSDT for PM means PowerManagement, right? SSDT Automator shows only for CPU. I don't understand. Give me some explanations, please.

Capture d’écran 2019-02-04 à 07.05.09.png

in Mojave USB fix is mandatory

  • Like 1
  • Thanks 1
Link to comment
Share on other sites

Hi MaLd0n,

In attached my "send me" file

My main problem is the USB 3.0 that is not working ...

the mobo have 6 USB 3.0 on the back , and the case (fractal design Define R6) two USB 2.0 and two USB 3.0 on the front panel



My hardware is following :



MOBO Gigabyte GA-Z87X-UD7-TH

CPU INTEL CORE I7 4790K

GPU GIGABYTE GTX 760 4 GB

RAM KINGSTON HYPERX SAVAGE DDR3 2400 MHZ



Thank you in advance

Fabio



Send me Mac-Pro.fritz.box.zip

Edited by moonbase70
Link to comment
Share on other sites

3 hours ago, moonbase70 said:

Hi MaLd0n,

In attached my "send me" file

My main problem is the USB 3.0 that is not working ...

the mobo have 6 USB 3.0 on the back , and the case (fractal design Define R6) two USB 2.0 and two USB 3.0 on the front panel



My hardware is following :



MOBO Gigabyte GA-Z87X-UD7-TH

CPU INTEL CORE I7 4790K

GPU GIGABYTE GTX 760 4 GB

RAM KINGSTON HYPERX SAVAGE DDR3 2400 MHZ



Thank you in advance

Fabio



Send me Mac-Pro.fritz.box.zip

DSDT.aml.zip

usb check here

--USB Fix
https://olarila.com/forum/viewtopic.php?p=65287#p65287

Link to comment
Share on other sites

7 hours ago, MaLd0n said:

Hi MaLd0n,

Thank You for the DSDT !!

Can you explain me step by step how to install the DSDT on my hackintosh (i'm a beginner on DSDT SSDT) ?

I place the file on EFI/CLOVER/ACPI/PATCHED but i don't know if i must make any other settings

Plaease let me know

Thank you

Link to comment
Share on other sites

hi mlad0n
how to enable alc221 audio on hp 600 g1 pc high sierra
my spec
i5 4670
4gb ram
gt1030 2gb gpu

Sent from my SM-A520F using Tapatalk

hi mlad0n
how to enable alc221 audio on hp 600 g1 pc high sierra
my spec
i5 4670
4gb ram
gt1030 2gb gpu

Sent from my SM-A520F using Tapatalk

Link to comment
Share on other sites

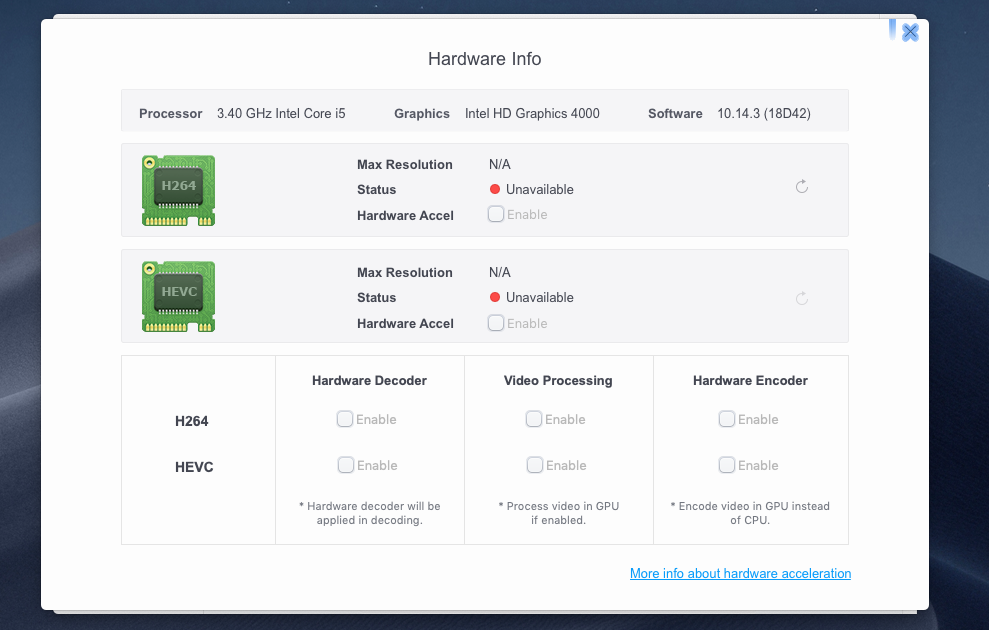

Hi, thank you for your amazing work. I've just upgraded my Hackintosh from 10.11.6 to 10.14.3 Mojave, all works fine but i've some random freeze of the system (maybe due to Intel GPU acceleration? I've read many things online...) and i can't find a solution. Check the screen. Also, some USB aren't recognized at bootup, so i'can't use keyBoard and mouse on USB 3.0 port on the back of the mobo.


On El Capitan OS All worked fine, except of the GPU Rx 580, which I just bought last week. Before I use an old HD 7870. Windows run fine, so no hardware problems.



Specs:

Intel Core i5 3570K @4.2GHz

Asrock Z77 Extreme 4 mobo

24GB of  DDR3 1866MHz RAM

Intel SSD

Radeon Rx 580 8GB GPU

3440x1440p 34" 21:9 Monitor



This is my DSDT patch:

SSDT.aml



And here the file obtained after RunMe App:

Send me iMacdiEmanuele.fritz.box.zip

Thanks in advance!





Link to comment
Share on other sites

On 2/12/2019 at 5:59 AM, rio_suck said:

Hey @MaLd0n kinda need your assistance again here..
I'm trying to install 10.13.6 on my ADATA SX8200 Pro M.2.
Everything when smooth, OSX installer detected the drive.
But when restart, clover can't detect the drive and only shows the USB Installer.
What's the problem?

Here's my IOReg

Send me Hilmans-iMac.zip

DSDT.aml.zip

Link to comment
Share on other sites

1 hour ago, palia95 said:

Hi, thank you for your amazing work. I've just upgraded my Hackintosh from 10.11.6 to 10.14.3 Mojave, all works fine but i've some random freeze of the system (maybe due to Intel GPU acceleration? I've read many things online...) and i can't find a solution. Check the screen. Also, some USB aren't recognized at bootup, so i'can't use keyBoard and mouse on USB 3.0 port on the back of the mobo.



On El Capitan OS All worked fine, except of the GPU Rx 580, which I just bought last week. Before I use an old HD 7870. Windows run fine, so no hardware problems.



Specs:

Intel Core i5 3570K @4.2GHz

Asrock Z77 Extreme 4 mobo

24GB of  DDR3 1866MHz RAM

Intel SSD

Radeon Rx 580 8GB GPU

3440x1440p 34" 21:9 Monitor



This is my DSDT patch:

SSDT.aml



And here the file obtained after RunMe App:

Send me iMacdiEmanuele.fritz.box.zip

Thanks in advance!





CLOVER.zip

infos

https://olarila.com/forum/viewtopic.php?f=62&t=7164

Link to comment
