geeti Posted May 20, 2017 Share Posted May 20, 2017 The files have been uploaded. System specs are: Intel i5-6500, Asus H110M-A-D3, NVidia 1070 graphics. Please take a look Thank you post files here -Post ur full Clover folder with original tables, press F4 in Clover Boot Screen, files generate in Clover/Acpi/origin -Post Ioreg, extract with Ioreg Explorer http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=235412 -Run it, post files generate in ur desktop http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222609 aphrodite_ioreg.zip CLOVER.zip Send me aphrodite.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted May 20, 2017 Author Share Posted May 20, 2017 Intel i5-6500, Asus H110M-A-D3, NVidia 1070 graphics. CLOVER.zip 2 Link to comment Share on other sites More sharing options...
geeti Posted May 20, 2017 Share Posted May 20, 2017 CLOVER.zip Thanks! Any reason not using the SSDT? 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted May 20, 2017 Author Share Posted May 20, 2017 Clover Generate P and C States for u too! 2 Link to comment Share on other sites More sharing options...
geeti Posted May 20, 2017 Share Posted May 20, 2017 Clover Generate P and C States for u too! You inspired me to try out the clover PM. It seems out with clover PM, the CPU frequency is being adjusted much more better. My previous confusion in this thread is about this. With SSDT and dropped pm/Ist0 tables, the CPU frequency keeps around max. Do you happen to know why? I see almost everyone is using ssdtPRGen created ssdt, but it just seems not that good. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted May 20, 2017 Author Share Posted May 20, 2017 now i'm using Clover, if processor have a native support, Clover generate a good PM. Send me ioreg IORegistryExplorer.app.zip 2 Link to comment Share on other sites More sharing options...
geeti Posted May 20, 2017 Share Posted May 20, 2017 now i'm using Clover, if processor have a native support, Clover generate a good PM. Send me ioreg IORegistryExplorer.app.zip Here's the ioreg. Please note this is not the PC I asked you about today. It's from a few days ago, with Xeon E3-1240v3.(Post #156 in this thread). Calamari 2.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted May 20, 2017 Author Share Posted May 20, 2017 Skylake? U dont have PM, need change SMBIOS to iMac17,1 3 Link to comment Share on other sites More sharing options...
geeti Posted May 20, 2017 Share Posted May 20, 2017 No, this is the older PC. Haswell. Skylake? U dont have PM, need change SMBIOS to iMac17,1 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted May 20, 2017 Author Share Posted May 20, 2017 ahhh ok but PM don't work try with iMac14,2 and check ioreg 2 Link to comment Share on other sites More sharing options...

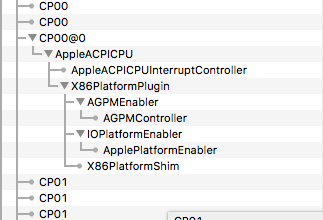

geeti Posted May 20, 2017 Share Posted May 20, 2017 Same result. As long as I put the SSDT in clover, no matter whether I drop the oem table or generate p/c from clover, the CPU frequency will stay high. But the CPU pm will be enabled in ioreg. Odd... ahhh ok but PM don't work try with iMac14,2 and check ioreg MaLd0n 2017-05-20 às 16.17.56.png 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted May 20, 2017 Author Share Posted May 20, 2017 post clover folder here 2 Link to comment Share on other sites More sharing options...
geeti Posted May 21, 2017 Share Posted May 21, 2017 post clover folder here I just finally understood it. When I use smbios of a iMac, the CPU register IA32_ENERGY_PERF_BIAS is set to 0x1, which is highest performance. At this setting, the CPU freq is maintained at a high level. WHen I use a macbook pro smbios, the same register is set to 0x5, which is performance and power balanced. At this setting, the CPU is shifting more agressively, and average frequency is much lower. I think these are all presets in x86platformplugs, so I'll just take what Apple want it to be. Thank you so much! 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted May 21, 2017 Author Share Posted May 21, 2017 work at 800 mhz in idle with iMac smbios, dont need MB smbios 1 Link to comment Share on other sites More sharing options...
nikketrikke Posted May 21, 2017 Share Posted May 21, 2017 In my post[HELP] Kernel Panic on Installation Gigabyte Z97 HD3you ask me for efi and some data to patch…yes done uploaded file as requestedI try the F4 on clover boot but don't where it put the file generated suppose on efi folderhowever i make a compress file with efi folder + runme.app + ioregdelete folder apple cause too bigHARDWAREmobo: Gigabyte Z97-HD3load default bios with vt-d disableaudio: ALC887cpu: i7 4790k not overclocked (for now)gpu: intel hd4600 (problem with QE/CI ---> probably CI work but QE not + glitches) HP monitor 27" USING HDMI cableram 8x2 corsair vengeance ddr3 dvd-cd asus seems workHD where now installed SIERRA 10.12.5 --> seagate sata 3 TBBUT I WILL SWITCH TO samsung EVO 850 SSD when completed post installation on hd seagate (and all will be right)so need also TRIM PATCH supposeBIOS: vt-d disabledCAN I re enable VT-d after to make proper work PARALLELS virtual machine ? PROBLEM WITH INTEL HD4600 (see photo of detail in system about this mac -> graphics)hd4600 glitches and suppose QE/CI doesn't work because the top bar is not transparent hd4600 glitches so i test QE/CI with dvd player and screensaver CI seems active cause screen saver run while DVD not start give me error suppose QE not active chess make a move but very very glitching and slow not fluid audio alc887 not know how to fix not patched and not kext inject at this time sleep NOT WORK BOOTING SEQUENCE (-v verbose) when boot stop long time here: ACPI dinamy table loadVARIOUS ACPI ERRORS see photo when switch off sierra: stopped a long time here: restart still waiting on IOUSB…. iousbmouse..... EFI.zip Send me iMac di iMac27nik.zip iMac di iMac27nik.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted May 21, 2017 Author Share Posted May 21, 2017 mobo: Gigabyte Z97-HD3 -Replace full folder CLOVER.zip -Update Clover http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=240174 -Reboot Link to comment Share on other sites More sharing options...
shakhri24 Posted May 23, 2017 Share Posted May 23, 2017 Hi @Mald0n I changed SMBIOS from iMac17.1 to Mac Book Pro 13.1 because of some sleep issues with iMac17.1 but its seems that old DSDT/Clover (from iMac17.1) not work good with MBP 13.1 now I reinstalled clover and created a fresh acpi files. iI would be very grateful if you create new patched DSDT/Clover for me. and please send the txt files of DSDT paches then I will not disturb you the next time CLOVER - rafigh89.zip Send me MacBook Pro - rafigh89.zip MacBook Pro - rafigh89.ioreg.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted May 23, 2017 Author Share Posted May 23, 2017 u can use same DSDT, what happens? Use HWP with MBP13, 1 Link to comment Share on other sites More sharing options...
shakhri24 Posted May 23, 2017 Share Posted May 23, 2017 u can use same DSDT, what happens? Use HWP with MBP13, cpu works at high frequency in idle time. previous clover config (in attachment) needs to any changes? config.plist.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted May 23, 2017 Author Share Posted May 23, 2017 u need a previous DSDT with config.plist for inject plugin type=1 and many others patches post ur full cloover folder in use now 1 Link to comment Share on other sites More sharing options...
shakhri24 Posted May 23, 2017 Share Posted May 23, 2017 I'm using CLOVER - rafigh89 - new at this time with MBP 13.1 CLOVER - rafigh89 -new.zip CLOVER - rafigh89 -iMac17.1.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted May 23, 2017 Author Share Posted May 23, 2017 check CLOVER.zip 1 Link to comment Share on other sites More sharing options...

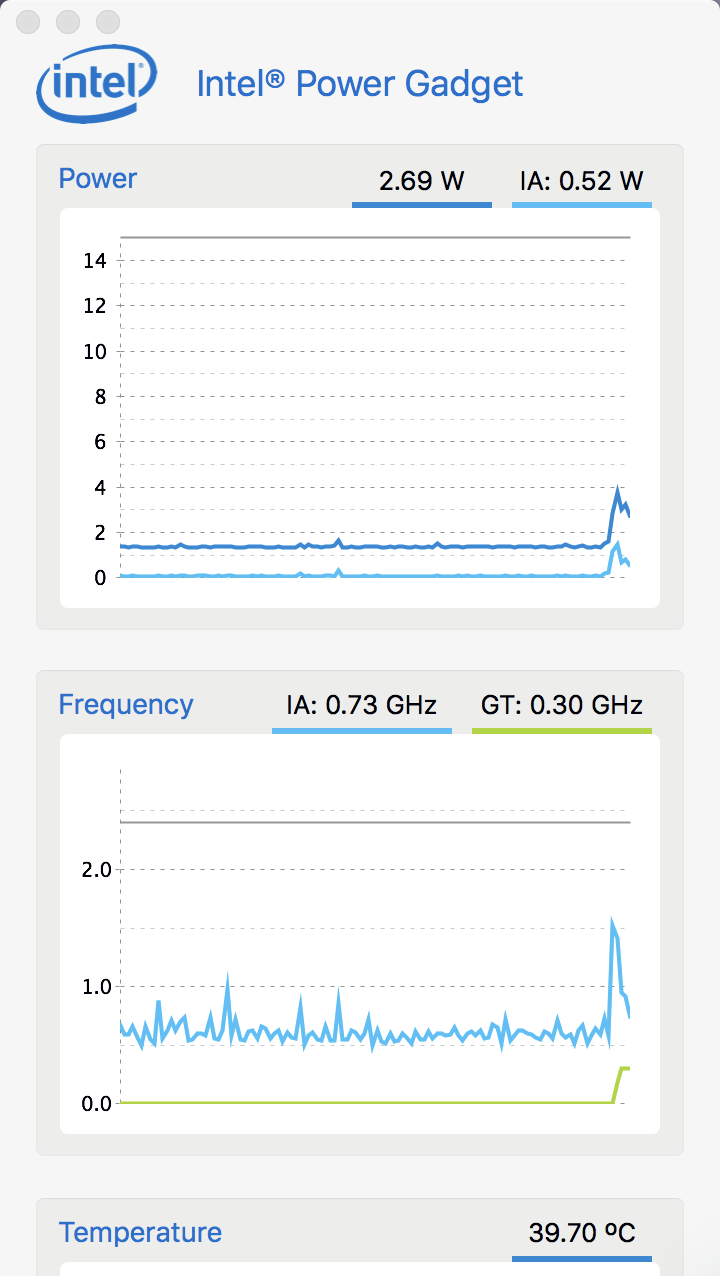

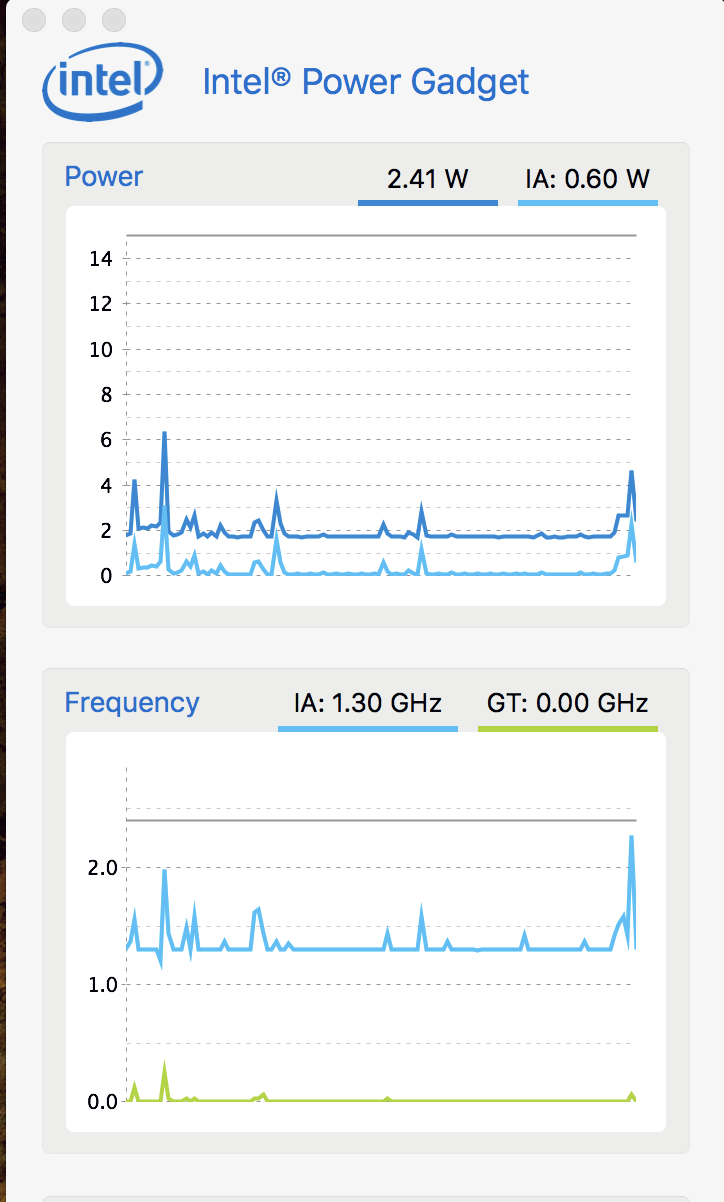

shakhri24 Posted May 23, 2017 Share Posted May 23, 2017 check CLOVER.zip sleep now work well keyboard backlit & Fn keys not work (use dsdt patch in attachment please ) with iMac17.1 cpu work at lower frequency, is it normal? 13. Fn Key Patches.txt 15. Keyboard Backlit 16 Level Patch.txt 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted May 23, 2017 Author Share Posted May 23, 2017 lower frequency is correct, hwp dont work at minimal frequency, need read about it, need fix it i think the patchs is already in ur DSDT DSDT.aml.zip check here http://www.insanelymac.com/forum/topic/321021-guide-hwpintel-speed-shift-enable-with-full-power-management/?p=2367065 1 Link to comment Share on other sites More sharing options...
shakhri24 Posted May 23, 2017 Share Posted May 23, 2017 lower frequency is correct, hwp dont work at minimal frequency, need read about it, need fix it i think the patchs is already in ur DSDT DSDT.aml.zip ok thanks. the dsdt patches that you are used are from which source? and please send the dsdt patch for my sound. I want to save it in safe place for future 1 Link to comment Share on other sites More sharing options...
