[Guide] El Capitan, Sierra / High Sierra / Mojave / Catalina on Intel 5, 6, 7, 8, 9 Chipset Series / Nehalem, SandyBridge, IvyBridge, Haswell, Broadwell


MaLd0n
2,509 posts in this topic

Recommended Posts

Hi MaLdOn



Would really appreciate it if you could have a look at my set up. Running macOS High Sierra dual boot with Windows 10 on one drive.

Clover themes folder has been removed to reduce size.



CPU: Intel i7 4790K

MB: Gigabyte GA-Z97X-UD5H-BK

Drive: Samsung PM951 1TB M.2 SSD on PCIe adapter

Memory: Corsair 16GB (4X4GB) DDR3 1600MHz

Graphics: Nvidia Geforce GTX 750Ti

Sound: ALC1150 and Nvidia HDMI

Display: Samsung U24E850


Thanks and kind regards.

gcc1 _runme.zip

gcc1_CLOVER .zip

gcc1_ioreg.zip

  • Like 1
Link to comment
Share on other sites



Hi MaLdOn



Would really appreciate it if you could have a look at my set up. Running macOS High Sierra dual boot with Windows 10 on one drive.

Clover themes folder has been removed to reduce size.



CPU: Intel i7 4790K

MB: Gigabyte GA-Z97X-UD5H-BK

Drive: Samsung PM951 1TB M.2 SSD on PCIe adapter

Memory: Corsair 16GB (4X4GB) DDR3 1600MHz

Graphics: Nvidia Geforce GTX 750Ti

Sound: ALC1150 and Nvidia HDMI

Display: Samsung U24E850


Thanks and kind regards.



Replace full folder, don't change nothing

CLOVER.zip

reboot

send me new ioreg

  • Like 2
Link to comment
Share on other sites

Hey mate i'm in troubles again, i've installed 10.13.3 update, everything went fine but then i've installed new version of nvidia web driver and after reboot i now have a black screen on both monitors... i really don't understand the reason why my builds are always full of troubles even if i always try to do all the correct configurations...  :(  :(  :(

  • Like 2
Link to comment
Share on other sites

HighSierra 10.13.3 or 10.13.4 beta

1- Install driver(Thanks fantomas1 and Micky1979)

InsanelyMacWebDriver(OsxBuild_17C205)-378.10.10.10.25.104.pkg.zip

-Reboot

2- Run my .command

NvidiaPatcherHS.command.zip



or

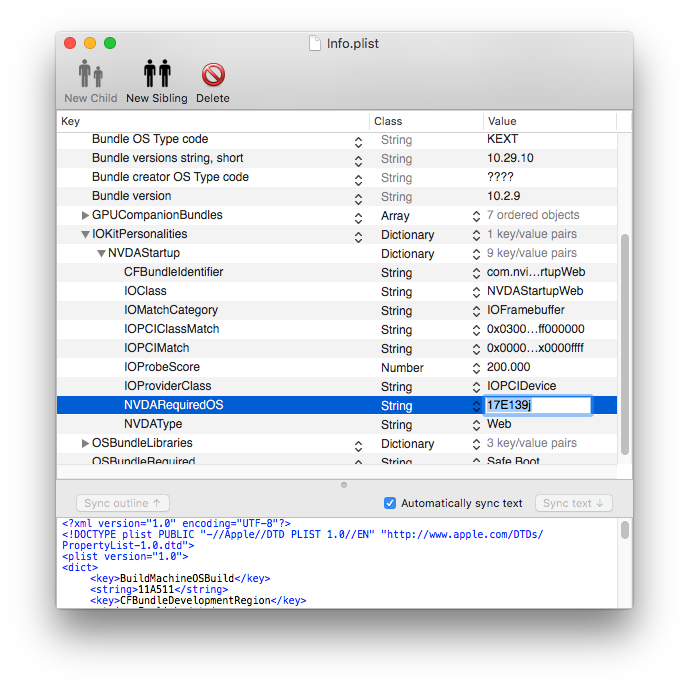

2a- add info in NVDAStartupWeb.kext

Check here


Add here

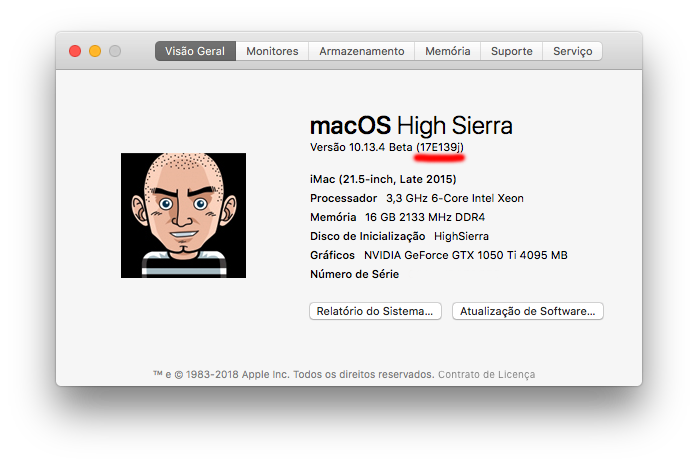

Kext mod for 10.13.4 Beta (17E139j)

NVDAStartupWeb.kext.zip

  • Like 8
Link to comment
Share on other sites

Hey mate i'm in troubles again, i've installed 10.13.3 update, everything went fine but then i've installed new version of nvidia web driver and after reboot i now have a black screen on both monitors... i really don't understand the reason why my builds are always full of troubles even if i always try to do all the correct configurations...  :(  :(  :(

The same happened to me: all my 3 screens are active but only show a black image...



I've even removed my old driver and reinstalled the new one twice, but the same bad result. :(



I'm now with the previous one.



Boa sorte,

Paulo

Link to comment
Share on other sites

Hi again MaLdOn.



Thanks for the super quick response. Installed new Clover folder and boot time is now blistering fast, thank you so much!



Attached files as requested.

test all ports usb3 with one device usb3(hdd external usb3 or usbstick usb3)

u have a hub usb? i see in RP04, i dont identify device

  • Like 1
Link to comment
Share on other sites

test all ports usb3 with one device usb3(hdd external usb3 or usbstick usb3)

u have a hub usb? i see in RP04, i dont identify device



Hi again.



All USB 3.0 ports tested and working fine. I think the USB hub is the Renesas USB 3.0 hub which is part of the motherboard chipset and connects to the 4 upper USB 3 ports at the back.



The RP04 device maybe a satellite TV card in a PCI slot which I use with Windows.



Hope that makes sense and thanks again.

  • Like 1
Link to comment
Share on other sites

Hi again.



All USB 3.0 ports tested and working fine. I think the USB hub is the Renesas USB 3.0 hub which is part of the motherboard chipset and connects to the 4 upper USB 3 ports at the back.



The RP04 device maybe a satellite TV card in a PCI slot which I use with Windows.



Hope that makes sense and thanks again.

Yes!

Enjoy!

  • Like 1
Link to comment
Share on other sites

×
×
