MaLd0n Posted January 2, 2018 Author Share Posted January 2, 2018 it's a inject kexts problem use all kexts in Library/Extensions if u use HS, need updates patches about PM put kexts in folder and run KextUtility Kext Utility.app.zip 1 Link to comment Share on other sites More sharing options...
zipp0tm Posted January 2, 2018 Share Posted January 2, 2018 it's a inject kexts problem use all kexts in Library/Extensions if u use HS, need updates patches about PM put kexts in folder and run KextUtility Kext Utility.app.zip is not downloading . 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 2, 2018 Author Share Posted January 2, 2018 ill check it, i think is about 2 GPUs patch, ill back in a few hours is sierra or high sierra? 1 Link to comment Share on other sites More sharing options...
zipp0tm Posted January 2, 2018 Share Posted January 2, 2018 ill check it, i think is about 2 GPUs patch, ill back in a few hours is sierra or high sierra? sierra. I need to update it to high sierra. From scratch, you can not put no patch 2 GPUs 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 2, 2018 Author Share Posted January 2, 2018 sierra. I need to update it to high sierra. From scratch, you can not put no patch 2 GPUs check my folder to sierra/high sierra x99 ud3p/5820k add essentials things for ur processor, i think is a fakecpuid CLOVER.zip 1 Link to comment Share on other sites More sharing options...

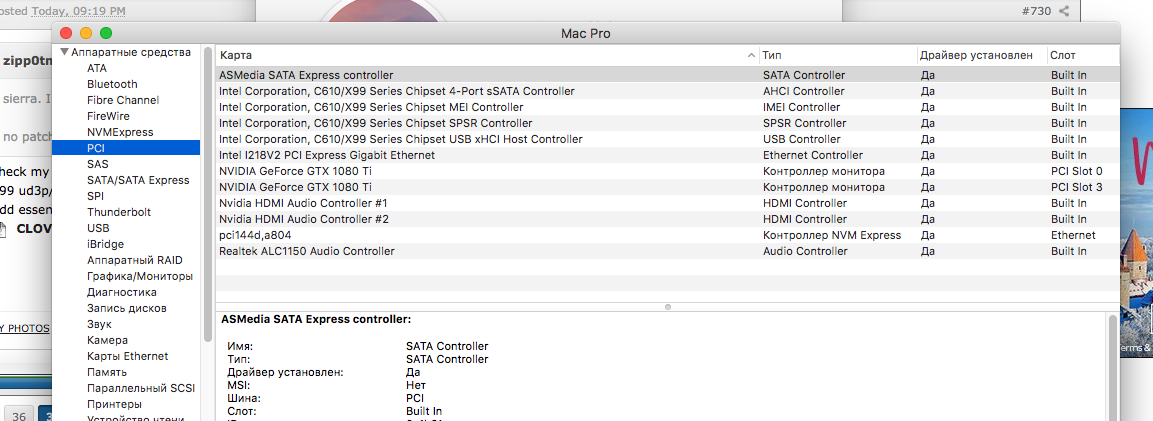

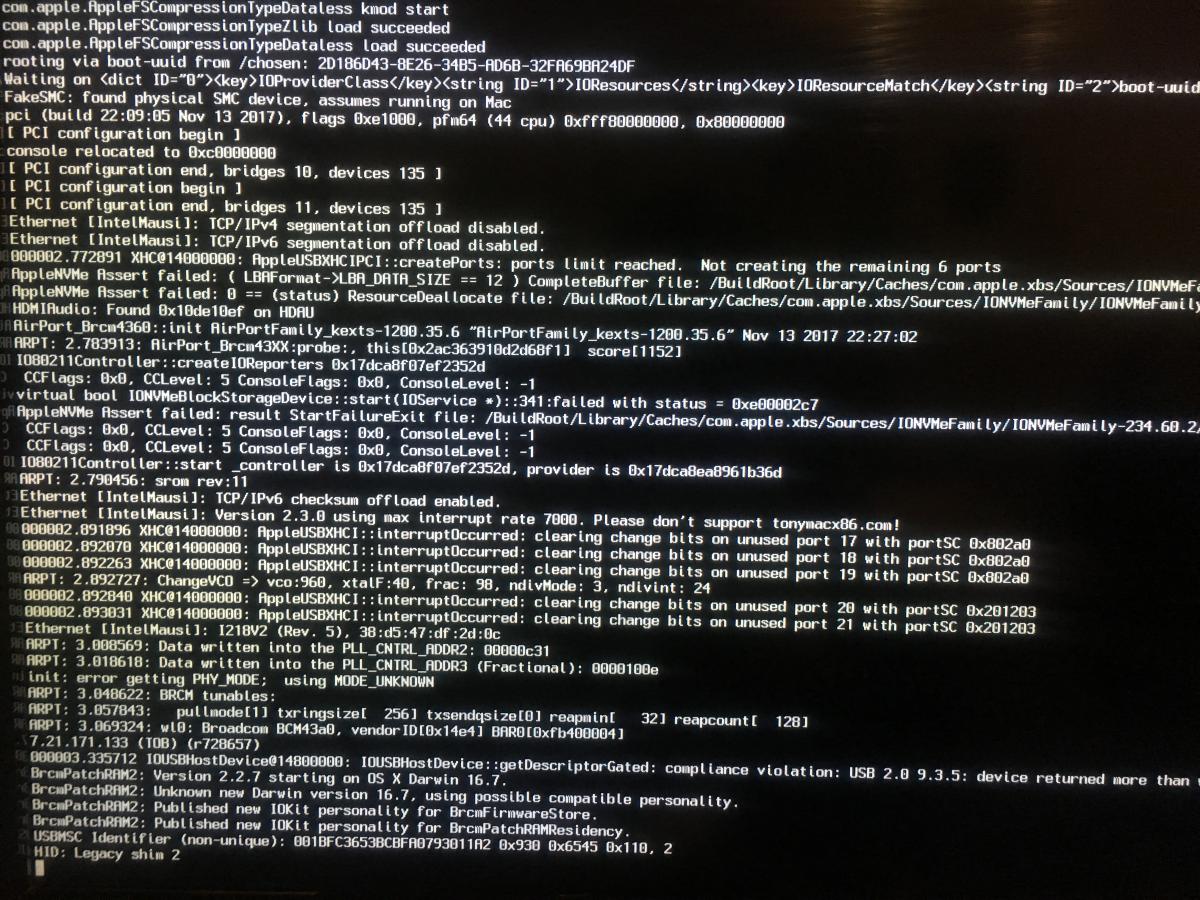

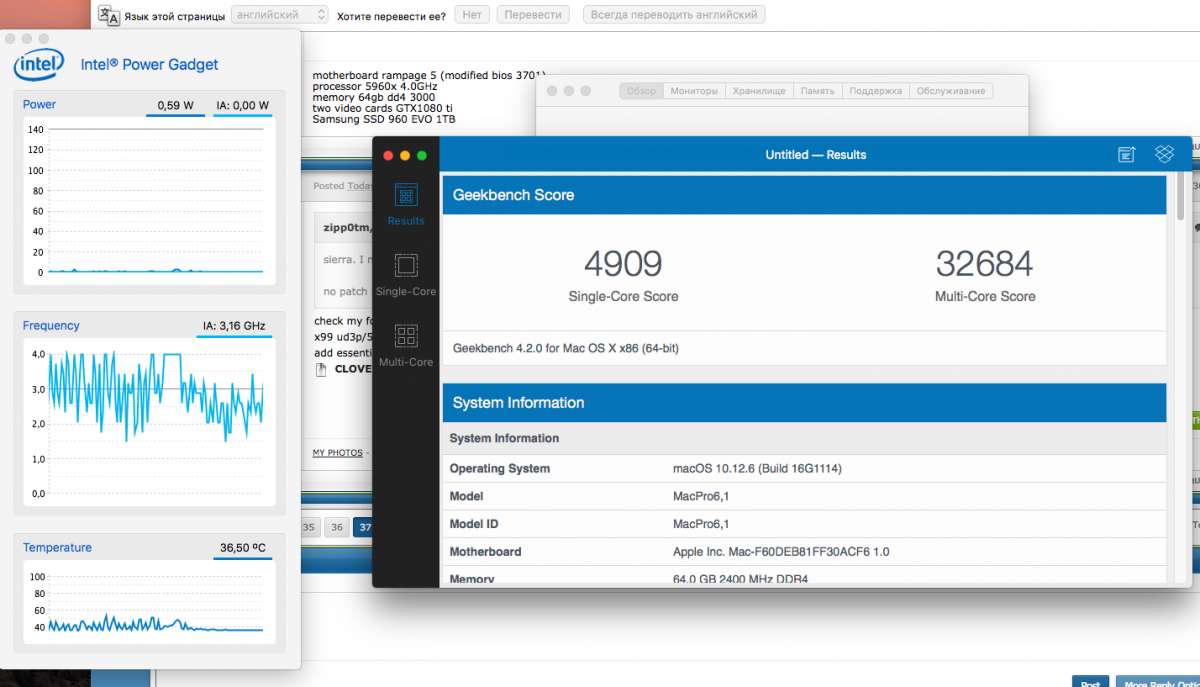

zipp0tm Posted January 2, 2018 Share Posted January 2, 2018 check my folder to sierra/high sierra x99 ud3p/5820k add essentials things for ur processor, i think is a fakecpuid CLOVER.zip x99 ud3p / 5820k the clover does not work It was possible to get on the first variant. Added by KernelToPatch . Here is the result only trouble((Samsung 1 TB EVO 960 M.2 SSD external became The NVMe patch causes kernel panic and still can not update to 10,13,2 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 2, 2018 Author Share Posted January 2, 2018 u need go to sierra, Native NVME support, same folder work for sierra and high sierra, dont update, use fresh install in other hdd/sdd for test dont forget remove/disable nvme patch Link to comment Share on other sites More sharing options...
jlrycm98 Posted January 2, 2018 Share Posted January 2, 2018 try with a Piker kext put kext and .command in desktop and run .command, after type in terminal some times sudo cat /tmp/AppleIntelInfo.dat put it in Clover/Other/KextsUSBInjectAll.kext.zip I already included the USBinjectall kext with no success but I still need to try the EH1, EH2 and XCH rename through clover DSDT hotpatches. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 2, 2018 Author Share Posted January 2, 2018 I already included the USBinjectall kext with no success but I still need to try the EH1, EH2 and XCH rename through clover DSDT hotpatches. load optmized default in bios and try again, device renamed in DSDT, dont need patches in config.plist 1 Link to comment Share on other sites More sharing options...
Rocky12 Posted January 2, 2018 Share Posted January 2, 2018 hi MaLd0n. can you please look into my up loaded files why i am not able to get the sound even with a patched kext i have attached all the required files DSDT From linux Clover Folder IORegistry File Send me Mac Pro Need Help .zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 3, 2018 Author Share Posted January 3, 2018 hi MaLd0n. can you please look into my up loaded files why i am not able to get the sound even with a patched kext i have attached all the required files DSDT From linux Clover Folder IORegistry File Send me Mac Pro DSDT.Rockey12.zip if work, send me new ioreg with new file ich10 dont need UsbInjectAll, work native, we can try it 1 Link to comment Share on other sites More sharing options...
jlrycm98 Posted January 3, 2018 Share Posted January 3, 2018 load optmized default in bios and try again, device renamed in DSDT, dont need patches in config.plist Ok I’ll do as you suggest. One more question: how you deal with USB power management in the DSDT you created? Some people create SSDTs to fix USB power management issues in hackintoshes? Link to comment Share on other sites More sharing options...
MaLd0n Posted January 3, 2018 Author Share Posted January 3, 2018 if u use my DSDT and this version USBInjectAll, u dont need nothing more, just use USBInjectAll.kext.zip Link to comment Share on other sites More sharing options...
jlrycm98 Posted January 3, 2018 Share Posted January 3, 2018 if u use my DSDT and this version USBInjectAll, u dont need nothing more, just use USBInjectAll.kext.zip The version of USBINJECTALL that I already had was dated Dec 2017. Should I use the version that you included here? 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 3, 2018 Author Share Posted January 3, 2018 to avoid problem/warning "usb power,,," use version above Link to comment Share on other sites More sharing options...

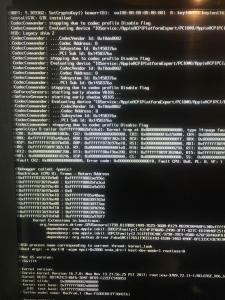

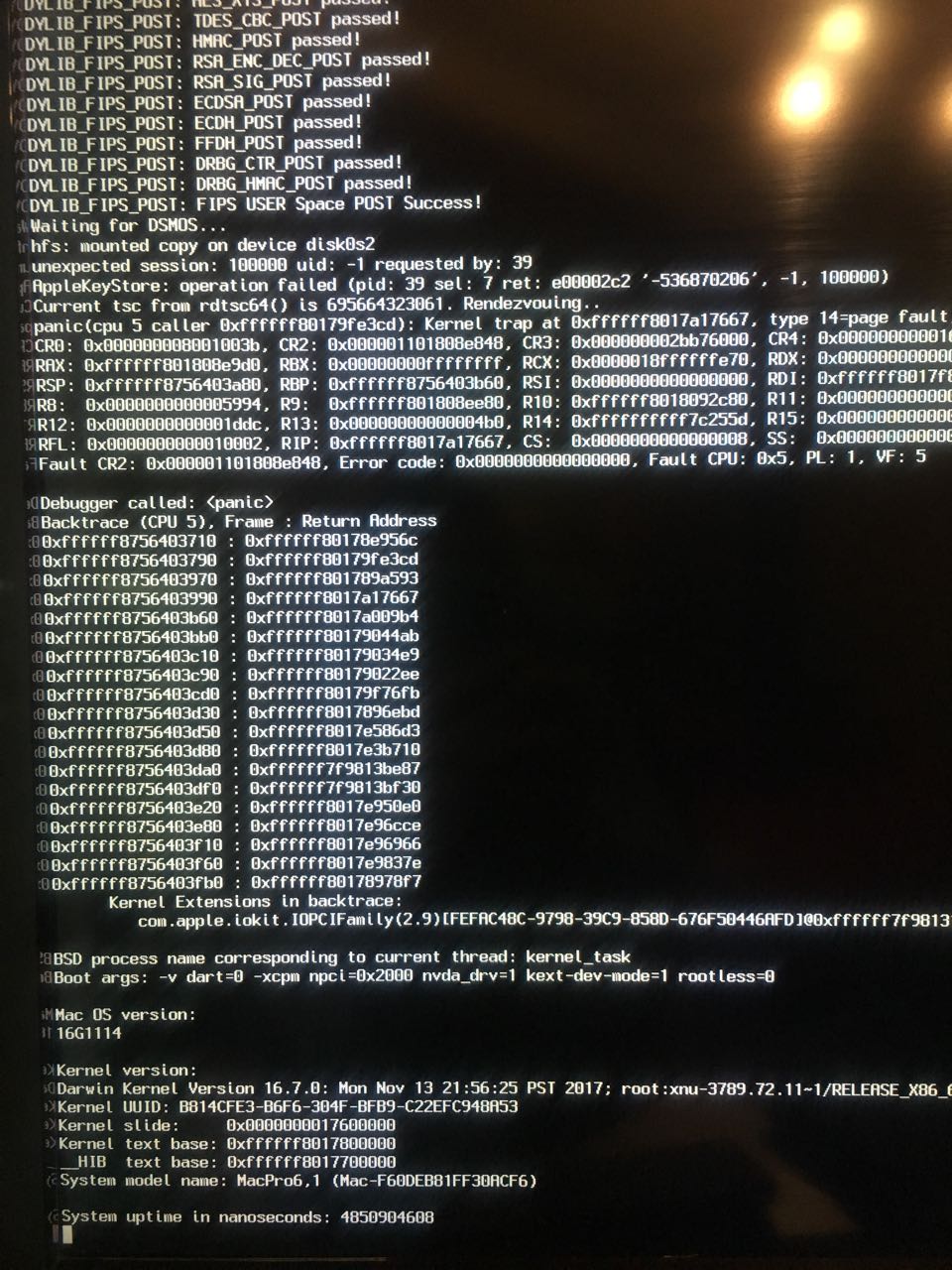

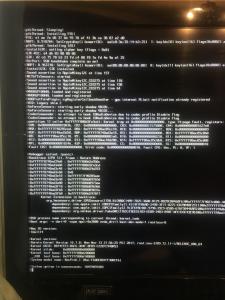

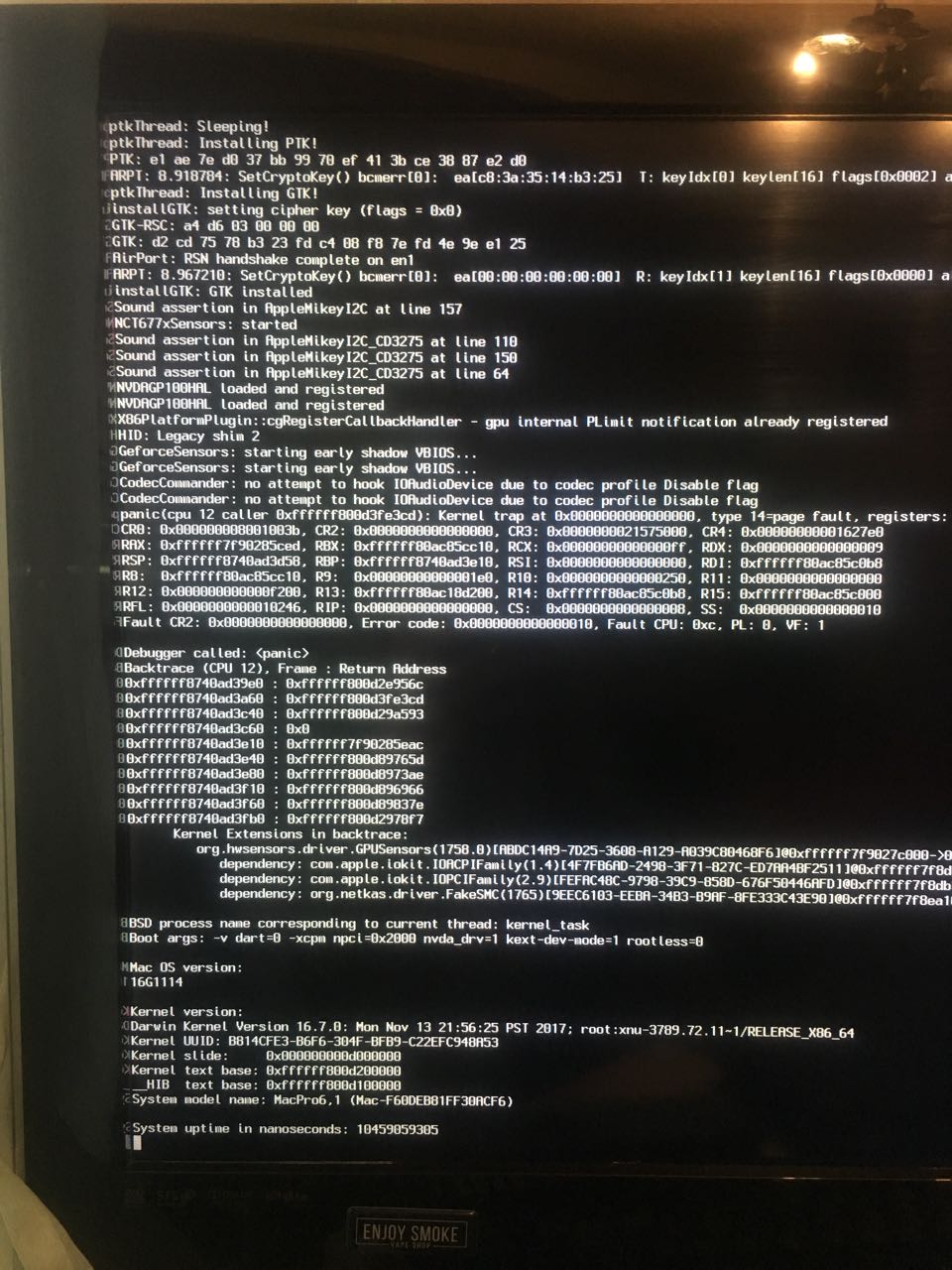

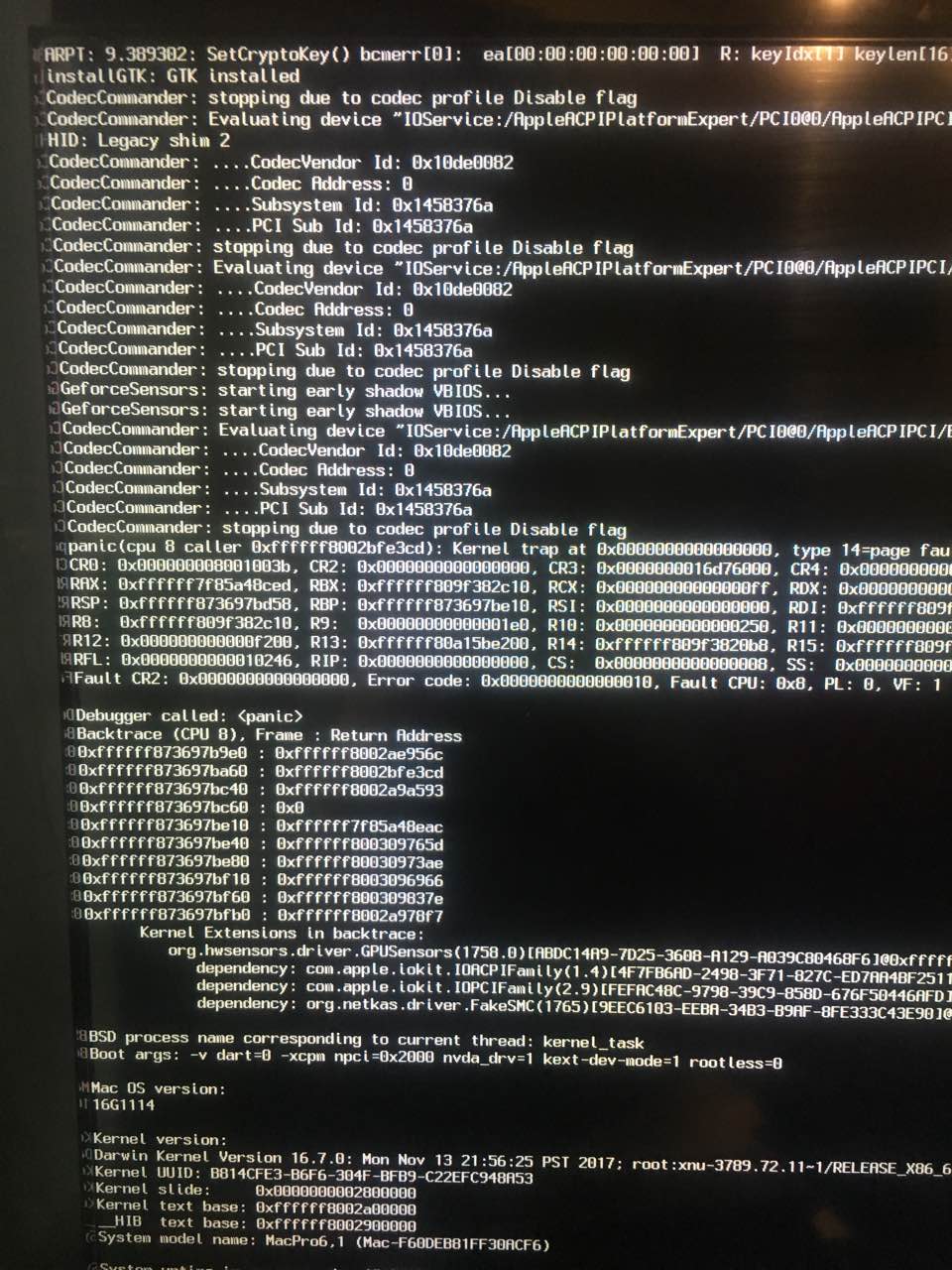

zipp0tm Posted January 3, 2018 Share Posted January 3, 2018 u need go to sierra, Native This support, same folder work for sierra and high sierra, dont update, use fresh install in other hdd/sdd for test dont forget remove/disable nvme patch Good morning. Yesterday the computer was loaded and it was all good , nvme internal. This morning it does not load. It produces such errors. I'm desperate Link to comment Share on other sites More sharing options...
MaLd0n Posted January 3, 2018 Author Share Posted January 3, 2018 Good morning. Yesterday the computer was loaded and it was all good , nvme internal. This morning it does not load. It produces such errors. I'm desperate Avoid use FakeSmc Sensors, in many cases cause problem, ur problem is GPU sensors Link to comment Share on other sites More sharing options...
zipp0tm Posted January 3, 2018 Share Posted January 3, 2018 Avoid use FakeSmc Sensors, in many cases cause problem, ur problem is GPU sensors removed Fake Sensors all and hwmonitor now this is a mistake HWSensors.6.26.1440 - loading problem resolved Please tell me about which patch 2gpu. How to make it? Thank you in advance 1 Link to comment Share on other sites More sharing options...
Elfmann Posted January 3, 2018 Share Posted January 3, 2018 try with a Piker kext put kext and .command in desktop and run .command, after type in terminal some times sudo cat /tmp/AppleIntelInfo.dat put it in Clover/Other/Kexts USBInjectAll.kext.zip ok, I'm here. I used the AppleIntelInfo, runed it in Terminal a few times, and these are the results: 1st result: AppleIntelInfo.kext v1.2 Copyright © 2012-2015 Pike R. Alpha. All rights reserved Settings: ------------------------------------ logMSRs............................: 1 logIGPU............................: 0 logIntelRegs.......................: 1 logCStates.........................: 1 logIPGStyle........................: 1 InitialTSC.........................: 0xbf58fbf321 MWAIT C-States.....................: 4384 Model Specific Regiters ------------------------------------ MSR_CORE_THREAD_COUNT......(0x35) : 0x40008 MSR_PLATFORM_INFO..........(0xCE) : 0xC10F0012500 MSR_PMG_CST_CONFIG_CONTROL.(0xE2) : 0x8401 MSR_PMG_IO_CAPTURE_BASE....(0xE4) : 0x10414 IA32_MPERF.................(0xE7) : 0x256CDAE2AB IA32_APERF.................(0xE8) : 0x235165B101 MSR_FLEX_RATIO.............(0x194) : 0xE0000 MSR_IA32_PERF_STATUS.......(0x198) : 0x24AB00002500 MSR_IA32_PERF_CONTROL......(0x199) : 0x2700 IA32_CLOCK_MODULATION......(0x19A) : 0x0 IA32_THERM_STATUS..........(0x19C) : 0x884E0000 IA32_MISC_ENABLES..........(0x1A0) : 0x850089 MSR_MISC_PWR_MGMT..........(0x1AA) : 0x400001 MSR_TURBO_RATIO_LIMIT......(0x1AD) : 0x2525252525252527 IA32_ENERGY_PERF_BIAS......(0x1B0) : 0x0 MSR_POWER_CTL..............(0x1FC) : 0x2104005B MSR_RAPL_POWER_UNIT........(0x606) : 0xA1003 MSR_PKG_POWER_LIMIT........(0x610) : 0x684E0005A8410 MSR_PKG_ENERGY_STATUS......(0x611) : 0x133F7F18 MSR_PKG_POWER_INFO.........(0x614) : 0x1E00410 MSR_PP0_CURRENT_CONFIG.....(0x601) : 0x14149480001FFF MSR_PP0_POWER_LIMIT........(0x638) : 0x80000000 MSR_PP0_ENERGY_STATUS......(0x639) : 0xB93A04F MSR_PP0_POLICY.............(0x63a) : 0x0 MSR_PKGC3_IRTL.............(0x60a) : 0x0 MSR_PKGC6_IRTL.............(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY.......(0x60d) : 0x5B093A3F57 MSR_PKG_C6_RESIDENCY.......(0x3f9) : 0x0 IA32_TSC_DEADLINE..........(0x6E0) : 0xBF5F5611F2 PCH device.................: 0x1D418086 CPU Ratio Info: ------------------------------------ CPU Low Frequency Mode.............: 1200 MHz CPU Maximum non-Turbo Frequency....: 3700 MHz CPU Maximum Turbo Frequency........: 3900 MHz CPU P-States [ (12) 33 37 ] CPU C3-Cores [ 0 4 5 ] CPU C6-Cores [ 0 1 3 ] CPU P-States [ (12) 29 33 37 ] CPU C3-Cores [ 0 4 5 7 ] CPU C6-Cores [ 0 1 3 4 6 7 ] CPU P-States [ (12) 29 31 33 37 ] CPU C3-Cores [ 0 1 4 5 7 ] CPU C6-Cores [ 0 1 2 3 4 5 6 7 ] CPU P-States [ (12) 29 31 33 35 37 ] CPU C3-Cores [ 0 1 2 4 5 6 7 ] CPU P-States [ (12) 26 29 31 33 35 37 ] CPU C3-Cores [ 0 1 2 3 4 5 6 7 ] CPU P-States [ 12 26 29 31 33 34 35 (37) ] CPU P-States [ 12 26 29 30 31 33 34 35 (37) ] CPU P-States [ (12) 26 27 29 30 31 33 34 35 37 ] CPU P-States [ (12) 22 26 27 29 30 31 33 34 35 37 ] CPU P-States [ (12) 22 23 26 27 29 30 31 33 34 35 37 ] CPU P-States [ 12 22 23 24 26 27 29 30 31 33 34 35 (37) ] 2nd result: AppleIntelInfo.kext v1.2 Copyright © 2012-2015 Pike R. Alpha. All rights reserved Settings: ------------------------------------ logMSRs............................: 1 logIGPU............................: 0 logIntelRegs.......................: 1 logCStates.........................: 1 logIPGStyle........................: 1 InitialTSC.........................: 0xbf58fbf321 MWAIT C-States.....................: 4384 Model Specific Regiters ------------------------------------ MSR_CORE_THREAD_COUNT......(0x35) : 0x40008 MSR_PLATFORM_INFO..........(0xCE) : 0xC10F0012500 MSR_PMG_CST_CONFIG_CONTROL.(0xE2) : 0x8401 MSR_PMG_IO_CAPTURE_BASE....(0xE4) : 0x10414 IA32_MPERF.................(0xE7) : 0x256CDAE2AB IA32_APERF.................(0xE8) : 0x235165B101 MSR_FLEX_RATIO.............(0x194) : 0xE0000 MSR_IA32_PERF_STATUS.......(0x198) : 0x24AB00002500 MSR_IA32_PERF_CONTROL......(0x199) : 0x2700 IA32_CLOCK_MODULATION......(0x19A) : 0x0 IA32_THERM_STATUS..........(0x19C) : 0x884E0000 IA32_MISC_ENABLES..........(0x1A0) : 0x850089 MSR_MISC_PWR_MGMT..........(0x1AA) : 0x400001 MSR_TURBO_RATIO_LIMIT......(0x1AD) : 0x2525252525252527 IA32_ENERGY_PERF_BIAS......(0x1B0) : 0x0 MSR_POWER_CTL..............(0x1FC) : 0x2104005B MSR_RAPL_POWER_UNIT........(0x606) : 0xA1003 MSR_PKG_POWER_LIMIT........(0x610) : 0x684E0005A8410 MSR_PKG_ENERGY_STATUS......(0x611) : 0x133F7F18 MSR_PKG_POWER_INFO.........(0x614) : 0x1E00410 MSR_PP0_CURRENT_CONFIG.....(0x601) : 0x14149480001FFF MSR_PP0_POWER_LIMIT........(0x638) : 0x80000000 MSR_PP0_ENERGY_STATUS......(0x639) : 0xB93A04F MSR_PP0_POLICY.............(0x63a) : 0x0 MSR_PKGC3_IRTL.............(0x60a) : 0x0 MSR_PKGC6_IRTL.............(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY.......(0x60d) : 0x5B093A3F57 MSR_PKG_C6_RESIDENCY.......(0x3f9) : 0x0 IA32_TSC_DEADLINE..........(0x6E0) : 0xBF5F5611F2 PCH device.................: 0x1D418086 CPU Ratio Info: ------------------------------------ CPU Low Frequency Mode.............: 1200 MHz CPU Maximum non-Turbo Frequency....: 3700 MHz CPU Maximum Turbo Frequency........: 3900 MHz CPU P-States [ (12) 33 37 ] CPU C3-Cores [ 0 4 5 ] CPU C6-Cores [ 0 1 3 ] CPU P-States [ (12) 29 33 37 ] CPU C3-Cores [ 0 4 5 7 ] CPU C6-Cores [ 0 1 3 4 6 7 ] CPU P-States [ (12) 29 31 33 37 ] CPU C3-Cores [ 0 1 4 5 7 ] CPU C6-Cores [ 0 1 2 3 4 5 6 7 ] CPU P-States [ (12) 29 31 33 35 37 ] CPU C3-Cores [ 0 1 2 4 5 6 7 ] CPU P-States [ (12) 26 29 31 33 35 37 ] CPU C3-Cores [ 0 1 2 3 4 5 6 7 ] CPU P-States [ 12 26 29 31 33 34 35 (37) ] CPU P-States [ 12 26 29 30 31 33 34 35 (37) ] CPU P-States [ (12) 26 27 29 30 31 33 34 35 37 ] CPU P-States [ (12) 22 26 27 29 30 31 33 34 35 37 ] CPU P-States [ (12) 22 23 26 27 29 30 31 33 34 35 37 ] CPU P-States [ 12 22 23 24 26 27 29 30 31 33 34 35 (37) ] CPU P-States [ (12) 19 22 23 24 26 27 29 30 31 33 34 35 37 ] CPU P-States [ (12) 19 22 23 24 25 26 27 29 30 31 33 34 35 37 ] CPU P-States [ (12) 18 19 22 23 24 25 26 27 29 30 31 33 34 35 37 ] 3rd result: AppleIntelInfo.kext v1.2 Copyright © 2012-2015 Pike R. Alpha. All rights reserved Settings: ------------------------------------ logMSRs............................: 1 logIGPU............................: 0 logIntelRegs.......................: 1 logCStates.........................: 1 logIPGStyle........................: 1 InitialTSC.........................: 0xbf58fbf321 MWAIT C-States.....................: 4384 Model Specific Regiters ------------------------------------ MSR_CORE_THREAD_COUNT......(0x35) : 0x40008 MSR_PLATFORM_INFO..........(0xCE) : 0xC10F0012500 MSR_PMG_CST_CONFIG_CONTROL.(0xE2) : 0x8401 MSR_PMG_IO_CAPTURE_BASE....(0xE4) : 0x10414 IA32_MPERF.................(0xE7) : 0x256CDAE2AB IA32_APERF.................(0xE8) : 0x235165B101 MSR_FLEX_RATIO.............(0x194) : 0xE0000 MSR_IA32_PERF_STATUS.......(0x198) : 0x24AB00002500 MSR_IA32_PERF_CONTROL......(0x199) : 0x2700 IA32_CLOCK_MODULATION......(0x19A) : 0x0 IA32_THERM_STATUS..........(0x19C) : 0x884E0000 IA32_MISC_ENABLES..........(0x1A0) : 0x850089 MSR_MISC_PWR_MGMT..........(0x1AA) : 0x400001 MSR_TURBO_RATIO_LIMIT......(0x1AD) : 0x2525252525252527 IA32_ENERGY_PERF_BIAS......(0x1B0) : 0x0 MSR_POWER_CTL..............(0x1FC) : 0x2104005B MSR_RAPL_POWER_UNIT........(0x606) : 0xA1003 MSR_PKG_POWER_LIMIT........(0x610) : 0x684E0005A8410 MSR_PKG_ENERGY_STATUS......(0x611) : 0x133F7F18 MSR_PKG_POWER_INFO.........(0x614) : 0x1E00410 MSR_PP0_CURRENT_CONFIG.....(0x601) : 0x14149480001FFF MSR_PP0_POWER_LIMIT........(0x638) : 0x80000000 MSR_PP0_ENERGY_STATUS......(0x639) : 0xB93A04F MSR_PP0_POLICY.............(0x63a) : 0x0 MSR_PKGC3_IRTL.............(0x60a) : 0x0 MSR_PKGC6_IRTL.............(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY.......(0x60d) : 0x5B093A3F57 MSR_PKG_C6_RESIDENCY.......(0x3f9) : 0x0 IA32_TSC_DEADLINE..........(0x6E0) : 0xBF5F5611F2 PCH device.................: 0x1D418086 CPU Ratio Info: ------------------------------------ CPU Low Frequency Mode.............: 1200 MHz CPU Maximum non-Turbo Frequency....: 3700 MHz CPU Maximum Turbo Frequency........: 3900 MHz CPU P-States [ (12) 33 37 ] CPU C3-Cores [ 0 4 5 ] CPU C6-Cores [ 0 1 3 ] CPU P-States [ (12) 29 33 37 ] CPU C3-Cores [ 0 4 5 7 ] CPU C6-Cores [ 0 1 3 4 6 7 ] CPU P-States [ (12) 29 31 33 37 ] CPU C3-Cores [ 0 1 4 5 7 ] CPU C6-Cores [ 0 1 2 3 4 5 6 7 ] CPU P-States [ (12) 29 31 33 35 37 ] CPU C3-Cores [ 0 1 2 4 5 6 7 ] CPU P-States [ (12) 26 29 31 33 35 37 ] CPU C3-Cores [ 0 1 2 3 4 5 6 7 ] CPU P-States [ 12 26 29 31 33 34 35 (37) ] CPU P-States [ 12 26 29 30 31 33 34 35 (37) ] CPU P-States [ (12) 26 27 29 30 31 33 34 35 37 ] CPU P-States [ (12) 22 26 27 29 30 31 33 34 35 37 ] CPU P-States [ (12) 22 23 26 27 29 30 31 33 34 35 37 ] CPU P-States [ 12 22 23 24 26 27 29 30 31 33 34 35 (37) ] CPU P-States [ (12) 19 22 23 24 26 27 29 30 31 33 34 35 37 ] CPU P-States [ (12) 19 22 23 24 25 26 27 29 30 31 33 34 35 37 ] CPU P-States [ (12) 18 19 22 23 24 25 26 27 29 30 31 33 34 35 37 ] CPU P-States [ (12) 18 19 21 22 23 24 25 26 27 29 30 31 33 34 35 37 ] CPU P-States [ 12 18 19 21 22 23 24 25 26 27 28 29 30 31 33 34 35 (37) ] CPU P-States [ (12) 18 19 20 21 22 23 24 25 26 27 28 29 30 31 33 34 35 37 ] CPU P-States [ 12 18 19 20 21 22 23 24 25 26 27 28 29 30 31 33 34 35 37 (39) ] CPU P-States [ (12) 18 19 20 21 22 23 24 25 26 27 28 29 30 31 33 34 35 36 37 39 ] CPU P-States [ (12) 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 39 ] CPU P-States [ (12) 16 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 39 ] Still didn't understand how to interpret properly these results, so if you could help me I'll really appreciate it. Thanks you 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 3, 2018 Author Share Posted January 3, 2018 removed Fake Sensors all and hwmonitor now this is a mistake HWSensors.6.26.1440 - loading problem resolved Please tell me about which patch 2gpu. How to make it? Thank you in advance idk about two GPUs work in hackintosh, u can try a nvidia single in config.plist ok, I'm here. I used the AppleIntelInfo, runed it in Terminal a few times, and these are the results: 1st result: AppleIntelInfo.kext v1.2 Copyright © 2012-2015 Pike R. Alpha. All rights reserved Settings: ------------------------------------ logMSRs............................: 1 logIGPU............................: 0 logIntelRegs.......................: 1 logCStates.........................: 1 logIPGStyle........................: 1 InitialTSC.........................: 0xbf58fbf321 MWAIT C-States.....................: 4384 Model Specific Regiters ------------------------------------ MSR_CORE_THREAD_COUNT......(0x35) : 0x40008 MSR_PLATFORM_INFO..........(0xCE) : 0xC10F0012500 MSR_PMG_CST_CONFIG_CONTROL.(0xE2) : 0x8401 MSR_PMG_IO_CAPTURE_BASE....(0xE4) : 0x10414 IA32_MPERF.................(0xE7) : 0x256CDAE2AB IA32_APERF.................(0xE8) : 0x235165B101 MSR_FLEX_RATIO.............(0x194) : 0xE0000 MSR_IA32_PERF_STATUS.......(0x198) : 0x24AB00002500 MSR_IA32_PERF_CONTROL......(0x199) : 0x2700 IA32_CLOCK_MODULATION......(0x19A) : 0x0 IA32_THERM_STATUS..........(0x19C) : 0x884E0000 IA32_MISC_ENABLES..........(0x1A0) : 0x850089 MSR_MISC_PWR_MGMT..........(0x1AA) : 0x400001 MSR_TURBO_RATIO_LIMIT......(0x1AD) : 0x2525252525252527 IA32_ENERGY_PERF_BIAS......(0x1B0) : 0x0 MSR_POWER_CTL..............(0x1FC) : 0x2104005B MSR_RAPL_POWER_UNIT........(0x606) : 0xA1003 MSR_PKG_POWER_LIMIT........(0x610) : 0x684E0005A8410 MSR_PKG_ENERGY_STATUS......(0x611) : 0x133F7F18 MSR_PKG_POWER_INFO.........(0x614) : 0x1E00410 MSR_PP0_CURRENT_CONFIG.....(0x601) : 0x14149480001FFF MSR_PP0_POWER_LIMIT........(0x638) : 0x80000000 MSR_PP0_ENERGY_STATUS......(0x639) : 0xB93A04F MSR_PP0_POLICY.............(0x63a) : 0x0 MSR_PKGC3_IRTL.............(0x60a) : 0x0 MSR_PKGC6_IRTL.............(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY.......(0x60d) : 0x5B093A3F57 MSR_PKG_C6_RESIDENCY.......(0x3f9) : 0x0 IA32_TSC_DEADLINE..........(0x6E0) : 0xBF5F5611F2 PCH device.................: 0x1D418086 CPU Ratio Info: ------------------------------------ CPU Low Frequency Mode.............: 1200 MHz CPU Maximum non-Turbo Frequency....: 3700 MHz CPU Maximum Turbo Frequency........: 3900 MHz CPU P-States [ (12) 33 37 ] CPU C3-Cores [ 0 4 5 ] CPU C6-Cores [ 0 1 3 ] CPU P-States [ (12) 29 33 37 ] CPU C3-Cores [ 0 4 5 7 ] CPU C6-Cores [ 0 1 3 4 6 7 ] CPU P-States [ (12) 29 31 33 37 ] CPU C3-Cores [ 0 1 4 5 7 ] CPU C6-Cores [ 0 1 2 3 4 5 6 7 ] CPU P-States [ (12) 29 31 33 35 37 ] CPU C3-Cores [ 0 1 2 4 5 6 7 ] CPU P-States [ (12) 26 29 31 33 35 37 ] CPU C3-Cores [ 0 1 2 3 4 5 6 7 ] CPU P-States [ 12 26 29 31 33 34 35 (37) ] CPU P-States [ 12 26 29 30 31 33 34 35 (37) ] CPU P-States [ (12) 26 27 29 30 31 33 34 35 37 ] CPU P-States [ (12) 22 26 27 29 30 31 33 34 35 37 ] CPU P-States [ (12) 22 23 26 27 29 30 31 33 34 35 37 ] CPU P-States [ 12 22 23 24 26 27 29 30 31 33 34 35 (37) ] 2nd result: AppleIntelInfo.kext v1.2 Copyright © 2012-2015 Pike R. Alpha. All rights reserved Settings: ------------------------------------ logMSRs............................: 1 logIGPU............................: 0 logIntelRegs.......................: 1 logCStates.........................: 1 logIPGStyle........................: 1 InitialTSC.........................: 0xbf58fbf321 MWAIT C-States.....................: 4384 Model Specific Regiters ------------------------------------ MSR_CORE_THREAD_COUNT......(0x35) : 0x40008 MSR_PLATFORM_INFO..........(0xCE) : 0xC10F0012500 MSR_PMG_CST_CONFIG_CONTROL.(0xE2) : 0x8401 MSR_PMG_IO_CAPTURE_BASE....(0xE4) : 0x10414 IA32_MPERF.................(0xE7) : 0x256CDAE2AB IA32_APERF.................(0xE8) : 0x235165B101 MSR_FLEX_RATIO.............(0x194) : 0xE0000 MSR_IA32_PERF_STATUS.......(0x198) : 0x24AB00002500 MSR_IA32_PERF_CONTROL......(0x199) : 0x2700 IA32_CLOCK_MODULATION......(0x19A) : 0x0 IA32_THERM_STATUS..........(0x19C) : 0x884E0000 IA32_MISC_ENABLES..........(0x1A0) : 0x850089 MSR_MISC_PWR_MGMT..........(0x1AA) : 0x400001 MSR_TURBO_RATIO_LIMIT......(0x1AD) : 0x2525252525252527 IA32_ENERGY_PERF_BIAS......(0x1B0) : 0x0 MSR_POWER_CTL..............(0x1FC) : 0x2104005B MSR_RAPL_POWER_UNIT........(0x606) : 0xA1003 MSR_PKG_POWER_LIMIT........(0x610) : 0x684E0005A8410 MSR_PKG_ENERGY_STATUS......(0x611) : 0x133F7F18 MSR_PKG_POWER_INFO.........(0x614) : 0x1E00410 MSR_PP0_CURRENT_CONFIG.....(0x601) : 0x14149480001FFF MSR_PP0_POWER_LIMIT........(0x638) : 0x80000000 MSR_PP0_ENERGY_STATUS......(0x639) : 0xB93A04F MSR_PP0_POLICY.............(0x63a) : 0x0 MSR_PKGC3_IRTL.............(0x60a) : 0x0 MSR_PKGC6_IRTL.............(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY.......(0x60d) : 0x5B093A3F57 MSR_PKG_C6_RESIDENCY.......(0x3f9) : 0x0 IA32_TSC_DEADLINE..........(0x6E0) : 0xBF5F5611F2 PCH device.................: 0x1D418086 CPU Ratio Info: ------------------------------------ CPU Low Frequency Mode.............: 1200 MHz CPU Maximum non-Turbo Frequency....: 3700 MHz CPU Maximum Turbo Frequency........: 3900 MHz CPU P-States [ (12) 33 37 ] CPU C3-Cores [ 0 4 5 ] CPU C6-Cores [ 0 1 3 ] CPU P-States [ (12) 29 33 37 ] CPU C3-Cores [ 0 4 5 7 ] CPU C6-Cores [ 0 1 3 4 6 7 ] CPU P-States [ (12) 29 31 33 37 ] CPU C3-Cores [ 0 1 4 5 7 ] CPU C6-Cores [ 0 1 2 3 4 5 6 7 ] CPU P-States [ (12) 29 31 33 35 37 ] CPU C3-Cores [ 0 1 2 4 5 6 7 ] CPU P-States [ (12) 26 29 31 33 35 37 ] CPU C3-Cores [ 0 1 2 3 4 5 6 7 ] CPU P-States [ 12 26 29 31 33 34 35 (37) ] CPU P-States [ 12 26 29 30 31 33 34 35 (37) ] CPU P-States [ (12) 26 27 29 30 31 33 34 35 37 ] CPU P-States [ (12) 22 26 27 29 30 31 33 34 35 37 ] CPU P-States [ (12) 22 23 26 27 29 30 31 33 34 35 37 ] CPU P-States [ 12 22 23 24 26 27 29 30 31 33 34 35 (37) ] CPU P-States [ (12) 19 22 23 24 26 27 29 30 31 33 34 35 37 ] CPU P-States [ (12) 19 22 23 24 25 26 27 29 30 31 33 34 35 37 ] CPU P-States [ (12) 18 19 22 23 24 25 26 27 29 30 31 33 34 35 37 ] 3rd result: AppleIntelInfo.kext v1.2 Copyright © 2012-2015 Pike R. Alpha. All rights reserved Settings: ------------------------------------ logMSRs............................: 1 logIGPU............................: 0 logIntelRegs.......................: 1 logCStates.........................: 1 logIPGStyle........................: 1 InitialTSC.........................: 0xbf58fbf321 MWAIT C-States.....................: 4384 Model Specific Regiters ------------------------------------ MSR_CORE_THREAD_COUNT......(0x35) : 0x40008 MSR_PLATFORM_INFO..........(0xCE) : 0xC10F0012500 MSR_PMG_CST_CONFIG_CONTROL.(0xE2) : 0x8401 MSR_PMG_IO_CAPTURE_BASE....(0xE4) : 0x10414 IA32_MPERF.................(0xE7) : 0x256CDAE2AB IA32_APERF.................(0xE8) : 0x235165B101 MSR_FLEX_RATIO.............(0x194) : 0xE0000 MSR_IA32_PERF_STATUS.......(0x198) : 0x24AB00002500 MSR_IA32_PERF_CONTROL......(0x199) : 0x2700 IA32_CLOCK_MODULATION......(0x19A) : 0x0 IA32_THERM_STATUS..........(0x19C) : 0x884E0000 IA32_MISC_ENABLES..........(0x1A0) : 0x850089 MSR_MISC_PWR_MGMT..........(0x1AA) : 0x400001 MSR_TURBO_RATIO_LIMIT......(0x1AD) : 0x2525252525252527 IA32_ENERGY_PERF_BIAS......(0x1B0) : 0x0 MSR_POWER_CTL..............(0x1FC) : 0x2104005B MSR_RAPL_POWER_UNIT........(0x606) : 0xA1003 MSR_PKG_POWER_LIMIT........(0x610) : 0x684E0005A8410 MSR_PKG_ENERGY_STATUS......(0x611) : 0x133F7F18 MSR_PKG_POWER_INFO.........(0x614) : 0x1E00410 MSR_PP0_CURRENT_CONFIG.....(0x601) : 0x14149480001FFF MSR_PP0_POWER_LIMIT........(0x638) : 0x80000000 MSR_PP0_ENERGY_STATUS......(0x639) : 0xB93A04F MSR_PP0_POLICY.............(0x63a) : 0x0 MSR_PKGC3_IRTL.............(0x60a) : 0x0 MSR_PKGC6_IRTL.............(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY.......(0x60d) : 0x5B093A3F57 MSR_PKG_C6_RESIDENCY.......(0x3f9) : 0x0 IA32_TSC_DEADLINE..........(0x6E0) : 0xBF5F5611F2 PCH device.................: 0x1D418086 CPU Ratio Info: ------------------------------------ CPU Low Frequency Mode.............: 1200 MHz CPU Maximum non-Turbo Frequency....: 3700 MHz CPU Maximum Turbo Frequency........: 3900 MHz CPU P-States [ (12) 33 37 ] CPU C3-Cores [ 0 4 5 ] CPU C6-Cores [ 0 1 3 ] CPU P-States [ (12) 29 33 37 ] CPU C3-Cores [ 0 4 5 7 ] CPU C6-Cores [ 0 1 3 4 6 7 ] CPU P-States [ (12) 29 31 33 37 ] CPU C3-Cores [ 0 1 4 5 7 ] CPU C6-Cores [ 0 1 2 3 4 5 6 7 ] CPU P-States [ (12) 29 31 33 35 37 ] CPU C3-Cores [ 0 1 2 4 5 6 7 ] CPU P-States [ (12) 26 29 31 33 35 37 ] CPU C3-Cores [ 0 1 2 3 4 5 6 7 ] CPU P-States [ 12 26 29 31 33 34 35 (37) ] CPU P-States [ 12 26 29 30 31 33 34 35 (37) ] CPU P-States [ (12) 26 27 29 30 31 33 34 35 37 ] CPU P-States [ (12) 22 26 27 29 30 31 33 34 35 37 ] CPU P-States [ (12) 22 23 26 27 29 30 31 33 34 35 37 ] CPU P-States [ 12 22 23 24 26 27 29 30 31 33 34 35 (37) ] CPU P-States [ (12) 19 22 23 24 26 27 29 30 31 33 34 35 37 ] CPU P-States [ (12) 19 22 23 24 25 26 27 29 30 31 33 34 35 37 ] CPU P-States [ (12) 18 19 22 23 24 25 26 27 29 30 31 33 34 35 37 ] CPU P-States [ (12) 18 19 21 22 23 24 25 26 27 29 30 31 33 34 35 37 ] CPU P-States [ 12 18 19 21 22 23 24 25 26 27 28 29 30 31 33 34 35 (37) ] CPU P-States [ (12) 18 19 20 21 22 23 24 25 26 27 28 29 30 31 33 34 35 37 ] CPU P-States [ 12 18 19 20 21 22 23 24 25 26 27 28 29 30 31 33 34 35 37 (39) ] CPU P-States [ (12) 18 19 20 21 22 23 24 25 26 27 28 29 30 31 33 34 35 36 37 39 ] CPU P-States [ (12) 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 39 ] CPU P-States [ (12) 16 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 39 ] Still didn't understand how to interpret properly these results, so if you could help me I'll really appreciate it. Thanks you it's good missing some PStates but good 2 Link to comment Share on other sites More sharing options...
zipp0tm Posted January 3, 2018 Share Posted January 3, 2018 idk about two GPUs work in hackintosh, u can try a nvidia single in config.plist it's good missing some PStates but good removed all the sensors. now there are no problems with the download. nvidia single, very bad, reboot almost immediately after logging on. with a new configuration of reboots less, but they are. Basically when rendering in Cinema 4 If I do not decide with reboots. The boss will force to switch to Windows ( Thanks you. You are great Link to comment Share on other sites More sharing options...
MaLd0n Posted January 3, 2018 Author Share Posted January 3, 2018 removed all the sensors. now there are no problems with the download. nvidia single, very bad, reboot almost immediately after logging on. with a new configuration of reboots less, but they are. Basically when rendering in Cinema 4 If I do not decide with reboots. The boss will force to switch to Windows ( Thanks you. You are great U can try a high sierra? u need check correct patches for ur processor, x99 dont work native PM like one Skylake e.g it's not easy, but after update to high sierra, my x99 work without any problem, is perfect in sierra, i have some reboots with USB Stick plugged 1 Link to comment Share on other sites More sharing options...
zipp0tm Posted January 3, 2018 Share Posted January 3, 2018 U can try a high sierra? u need check correct patches for ur processor, x99 dont work native PM like one Skylake e.g it's not easy, but after update to high sierra, my x99 work without any problem, is perfect in sierra, i have some reboots with USB Stick plugged There is no time for this. In the morning you need to imagine a hakintosh. I will insist on hakintosh, if it will turn out we will continue. I think under these tasks it was necessary to take xeon and eсс memory 1 Link to comment Share on other sites More sharing options...
Elfmann Posted January 3, 2018 Share Posted January 3, 2018 idk about two GPUs work in hackintosh, u can try a nvidia single in config.plist it's good missing some PStates but good top top, I think I'll offer u a beer, just to thank you for all the patience and your dedication you make for us. Thank you 2 Link to comment Share on other sites More sharing options...
Rocky12 Posted January 3, 2018 Share Posted January 3, 2018 IORegistry report Mac Pro.zip 1 Link to comment Share on other sites More sharing options...
